Product Type	Cordless Torque Multiplier
Brand	Ingersoll Rand
Model	TL-VP2T-PIM
Intended Use	Assembly applications requiring precise torque control, accuracy and repeatability
Power Source	Lithium-ion battery (compatible models: BL2005, BL2010, BL2012, BL2013, BL2022, BL2023 for 20V; BL4011, BL4013 for 40V)
Rated Voltage	20 V or 40 V depending on battery model
Dimensions (L x H x D)	Approximately 200 x 250 x 80 mm (estimated)
Weight	Approximately 1.5 kg (estimated with battery)
Sound Pressure Level	< 70.0 dB(A)
Vibration Level (EN 62841)	< 2.5 m/s² (K = 3 dB(A))
Ambient Temperature Range	0 °C to 45 °C
Connectivity	Bluetooth for cloning and communication with Ingersoll Rand app, IC-PCM or INSIGHTqx
Main Functions	Precise torque control, programming via ICS software, adjustable auxiliary handle, suspension hook
Maintenance	Every 25,000 cycles or 1 year (first occurrence) by qualified authorized personnel
Safety	Read all warnings, do not puncture batteries, use only with recommended accessories
Compliance	FCC Part 15, Innovation, Science and Economic Development Canada, Class I Division 2 (C1D2) for certain models
Environmental Protection	Recycle in accordance with local regulations after end of life; do not dispose with household waste
Spare Parts and Repairability	Contact a qualified Ingersoll Rand center or dealer
Included Accessories	Auxiliary handle, suspension hook (depending on version)

Frequently Asked Questions - TL-VP2T-PIM Ingersoll Rand

Which batteries are compatible with the TL-VP2T-PIM tool?

Compatible batteries are models BL2005, BL2010, BL2012, BL2013, BL2022, BL2023 for the 20V version, and BL4011, BL4013 for the 40V version.

How to adjust the auxiliary handle?

For the 20V model, mount the auxiliary handle on the gear case with the plastic handle in the groove and tighten by hand. For the 40V model, mount the handle, rotate it to the desired position, then tighten the screws.

Can I use this tool in a residential environment?

The tool is classified as Class A for radio interference. In a residential area, it may cause interference; the user will then need to take necessary measures at their own expense.

How to maintain the tool and how often?

Maintenance should be performed every 25,000 cycles or every 1 year, whichever comes first. Use qualified and authorized Ingersoll Rand personnel.

What to do if the battery does not hold a charge?

First check that the battery is properly inserted and the contacts are clean. If the problem persists, replace the battery with a compatible model. Do not puncture or burn the battery.

How to connect the tool to a computer?

Use a standard USB cable (USB - mini-B type) with a maximum length of 2 meters to connect to the ICS software.

Is the tool suitable for use in hazardous areas?

Certain models (marked C1D2) are certified for use in Class I, Division 2, Groups A-D, in the United States and Canada only.

How to recycle the tool at end of life?

Do not dispose of the tool with household waste. It contains a lithium-ion battery. Return it to a collection point for recycling in accordance with local regulations.

What is the noise level of this tool?

The sound pressure level is below 70.0 dB(A) and the vibration level is below 2.5 m/s² (uncertainty K=3 dB(A)).

Can I get spare parts?

Yes, contact a qualified Ingersoll Rand center or dealer. Maintenance manuals are available at ingersollrand.com.

USER MANUAL TL-VP2T-PIM Ingersoll Rand

Precision Torque Multiplier

QX Connect Multiplier Series

Product Information

EN Product Information
ES Especillas del producto
FR Spécifications du produit
IT Specifiche prodotto
DE Technische Produktdaten
NL Productspecificities
DA Produktspecifikationer
5V Produktspecifikationer
NO Produktspesifikasjoner
Fl Tuote-erittely
PT Especificações do Produto
EL Pnoidaypapec Ptoiovtoc
SL Specifikacja izdelka
SK Specifikacja produktu

6 Specifikace vyrobku
E Toote spetsifikatsion
HU A termek jellemzoi
Gaminio techniniali duomenys
Lerices specifikacijas
PL Informacja oprodukcie
BG IINHΦopMaun3a npOykTa
RO Informatij privind produsul
Ru Texnueckme xapaKtepntkN u3Jeinna
产品信息
JA 製品仕樣
KO
HR Podaci proizvodu

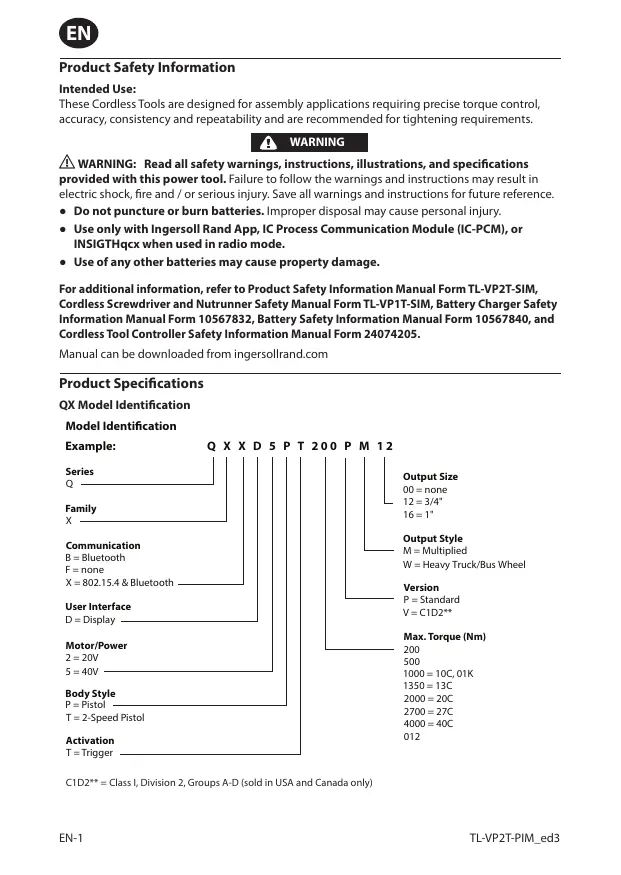

Product Safety Information

Intended Use:

These Cordless Tools are designed for assembly applications requiring precise torque control, accuracy, consistency and repeatability and are recommended for tightening requirements.

A WARNING

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

• Do not puncture or burn batteries. Improper disposal may cause personal injury.
• Use only with Ingersoll Rand App, IC Process Communication Module (IC-PCM), or INSIGHTqcx when used in radio mode.
• Use of any other batteries may cause property damage.

For additional information, refer to Product Safety Information Manual Form TL-VP2T-SIM, Cordless Screwdriver and Nutrunner Safety Manual Form TL-VP1T-SIM, Battery Charger Safety Information Manual Form 10567832, Battery Safety Information Manual Form 10567840, and Cordless Tool Controller Safety Information Manual Form 24074205.

Manual can be downloaded from ingersollrand.com

Product Specifications

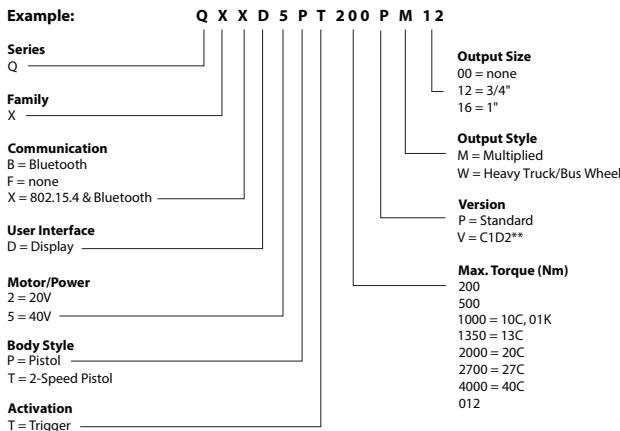

QX Model Identification

Model Identification

C1D2** = Class I, Division 2, Groups A-D (sold in USA and Canada only)

Model	Battery Model	Sound Pressure Level dB(A)	Vibration Level, *K (EN 62841)m/s2
QX2PM	BL2005, BL2010	<70.0	<2.5
QX 20V Pistol Multiplier Series	BL2012, BL2013
BL2022, BL2023
QX5PM	BL4011, BL4013
QX 40V Pistol Multiplier Series

^*K = Vibration measurement uncertainty 3dB(A).

• It is recommended that the tool be used in ambient temperatures (Ta) between 0^ and 45^ . However, the higher the ambient temperature, the lower the duty cycle the tool will be capable to support.

Intertek 4005366 4004004 5004871

Conforms to UL STD. 62841-1 and 62841-2-2. C1D2** = Conforms to ANSI STD. 12.12.01-2012, Class I, Division 2, Groups A-D, T3A.

Certified to CSA STD. C22.2 No. 62841-1 and 62841-2-2. C1D2** = Certified to CSA STD. C22.2 No 213.

Declaration of Noise and Vibration Emission

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool to another. It may be used for a vibration emission level representing the main applications of the tool. However, if the tool is used for a different application, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the time when the tool is switched off or when it is running free speed.

Installation

Cable Connection:

A standard USB cable (USB to Mini Type B) can be used to connect to a computer loaded with ICS software. Maximum cable length 2 meters.

Auxiliary Handle Mounting:

For 20V Torque Multiplier: Mount Auxiliary Handle on Gear Case with Plastic Handle positioned in the groove. Hand tighten.

For 40V Torque Multiplier: Mount Auxiliary Handle on Gear Case. Rotate Auxiliary Handle to desired position and tighten screws.

Hanger Connection:

For 20V Torque Multiplier, insert ends of hanger accessory at top of housing. For 40V Torque Multiplier, insert Tethering Hook into notch on top of Gear Case, then insert pin to secure.

Adjustments

A WARNING

Disconnect the tool from the battery before making any adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

Storage

Disconnect the battery from the tool when not in use.

Parts and Maintenance

Tool service is recommended every year or 25,000 cycles, whichever comes first. Tool repair and maintenance should only be carried out by authorized, trained personnel. When service or repair is required, contact an Ingersoll Rand office or distributor.

NOTICE

For Authorized Trained Personnel:

For 'Assembly/Disassembly' and other maintenance instructions regarding these products, see Maintenance Information Form TP-VP2T-MIM, located at ingersollrand.com or contact the nearest Ingersoll Rand office or distributor.

Environmental Protection

When the life of an Ingersoll Rand electrical product has expired, it must be recycled in accordance with all applicable standards and regulations (local, state, country, federal, etc.). Improper disposal may endanger the environment.

Symbol Identification

Return waste material for recycling.

Do not dispose of this product with household waste material.

Li-Ion
Product contains Lithium-lon. Do not dispose of this product with household waste material.

Original instructions are in English. Other languages are a translation of the original instructions.

Safety Information - Explanation of Safety Signal Words

DANGER

WARNING

CAUTION

NOTICE

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or property damage.

Indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property.

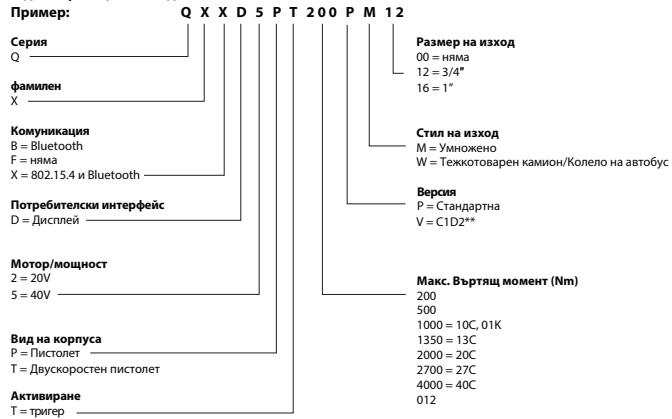

IdeHTnΦnKaunHaMoenQX

IeHTnΦkaunHaMoedena

C1D2** = KnacI, Pa3dien 2, Tpynn A-D (npo#aBce cmo B CAU n KaHada)

Pa3kaeTe 6aTeepnTa OT INHCTpyMeHa, KOraTo He rO n3non3BaTe.

Pe3epBnH qactn n npdpbXkKa

Плелорьва се 66слькава на Инструмента BCяка рогина пи на Всеки 25 000 укьна - Кото о.Tдугпеспли пьвло. Плорбатka полдржкatingа на Инструмента ТгябOA.de сИзврватCAMO OTУьнлимошени Уочен. Korato e Heo6doMoDA.de сИзвршпс obcIJrykba випповра Ссьчрете с сфис пи дстрибустар Ingersoll Rand.

BENEXKKA

3a yntbllHOMOeH o6yueH nepcoHaI:

3a cIro6BaHe/pa3rno6BaHe n I aDpyn IInCTpykUcMn 3a noIdpIbTkKHa na Te3n IpoDyTKn BVxTe nIHFOpmLaTnA 3a noIdpIbTkKHa TPG-2VT-MIM ha apec Ingsollrand.com nIe cCBpxKe t c NaH-Bm3KnO fOpnc nII nIin dInctpBvToR h Ingersoll Rand.

3auneta Ha okonHaTa cpea

CneI3nITUHAE cPOKA HA NDIOCT HA eNkTPIWcKNEKPOJyDKT Ha INsGorsL R, CbIaIHT P8BaJa de cepeuIKnIIPA BcTOBETCTBME C pNILOKIMNTe CTaNAPDTN PA3NOpede6 (MeCTH, UATCKN, DpbKaBH N, dedepaHN t H.N). HenpaJIINHNO TIXKBpIhne MOO da Ztacpaun OONOLATA CpeDA.

IeHTnKauHa HcMMBONITE

BbPheNTe n3paXdoEnHte MaTePnAa 3a peuKKnPaHae.

HnXeBbPrrnToTno npoYdkT aedHo c 6tOBWbO TmabHy.

PnpdykTb Tcbpka NtneB0OHOHbAtepey. He n3xbbprnale ToTe pnpdykTaeHDc6BtOBNOTaDbm.

OprrnHnHnTte nHcTrpykznn ca na ahrnniKcck enik. OctaHnIte e3iui ca npeboD na oprrnHnHnHnTe nHcTrpykznn.

HOpmaun3a6e0nacnoctta-06cneHHe Na CnRHaHInTe dymn 3a6e0nacnoct

ONACHOCT

Nokabara HnenocepctBHeNA onCAHcTtAaJI, KOTAO, AKO he CE 36eBHe, xeObeDGEoCMbPT INI cepno3HO HaparBAHe.

BHIMAHHE

Nok3a3o potencauHNO anocha Ctyauyau, KORTO, ako He ce 36eBHe, xe doBepe do CMbPTn Ycnp03HO HaparBaHE.

PENEYIPEXDEHME

Pokazba potenuHNO onaCnTuayuN, KoTko, ao He ce 36eHne, Moke da doBepe do neko nn cpeNo haparhahe nn MaTepuHaHa ueta.

BENEXK4

ПлКИЗВУ ИнДОРМАДУ ИЛ ПИФМЕНО ПОЛТИКА, KОТД ИΝΥЕKTΗ ИЛ ИДΙΝΥЕΤΗ CO ΑΤΗСΑ ΣΟ БEZONAЧОСΤΗ ΑΝΕΡСΗΝΑ ΙΙΝΙ ΜΑΙΣΙΝΑ ΛΑ ΜΥΜΙΣΕΥΤΟ.

C1D2** = Class I, Division 2, Groups A-D (民国及国民党军队)

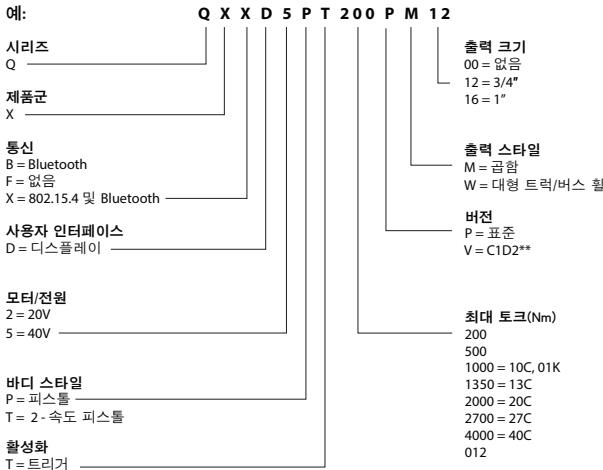

모对自己	버티지对自己	音樂라贝尔 dB(A)	진동라贝尔, *K(EN 62841)m/s²
QX2PM QX 20V 퍷斯万元以上일이터어 사려지	BL2005, BL2010 BL2012, BL2013 BL2022, BL2023	<70.0	<2.5
QX5PM QX 40V 퍷斯万元以上일이터어 사려지	BL4011, BL4013

RADIO FREQUENCY (RF) EQUIPMENT DECLARATION OF CONFORMITY

The declarations provided below pertain to the RF devices contained in the Ingersoll Rand product.

EN

This device complies with Part 15 of the FCC Rules and complies with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning:

1. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. To minimize RF exposure during Cloning Backup, utilizing Bluetooth*, the operator should maintain a minimum gap of 8mm from the tool's back cap assembly.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, used and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Ingersoll Rand Industrial Technologies

800-A Beaty Street, Davidson, NC 28036

Phone: [phone]

ISED Canada User Manual Notice

This device contains licence exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

FR

chelnel(s(the number of channels):15 (15)

JH:800-A Beaty Street, Davidson, NC28036

朝代朝史：704-896-4000

Notes:

Notes:

ingsollrand.com

© 2022 Ingersoll Rand

Ingersoll Rand
