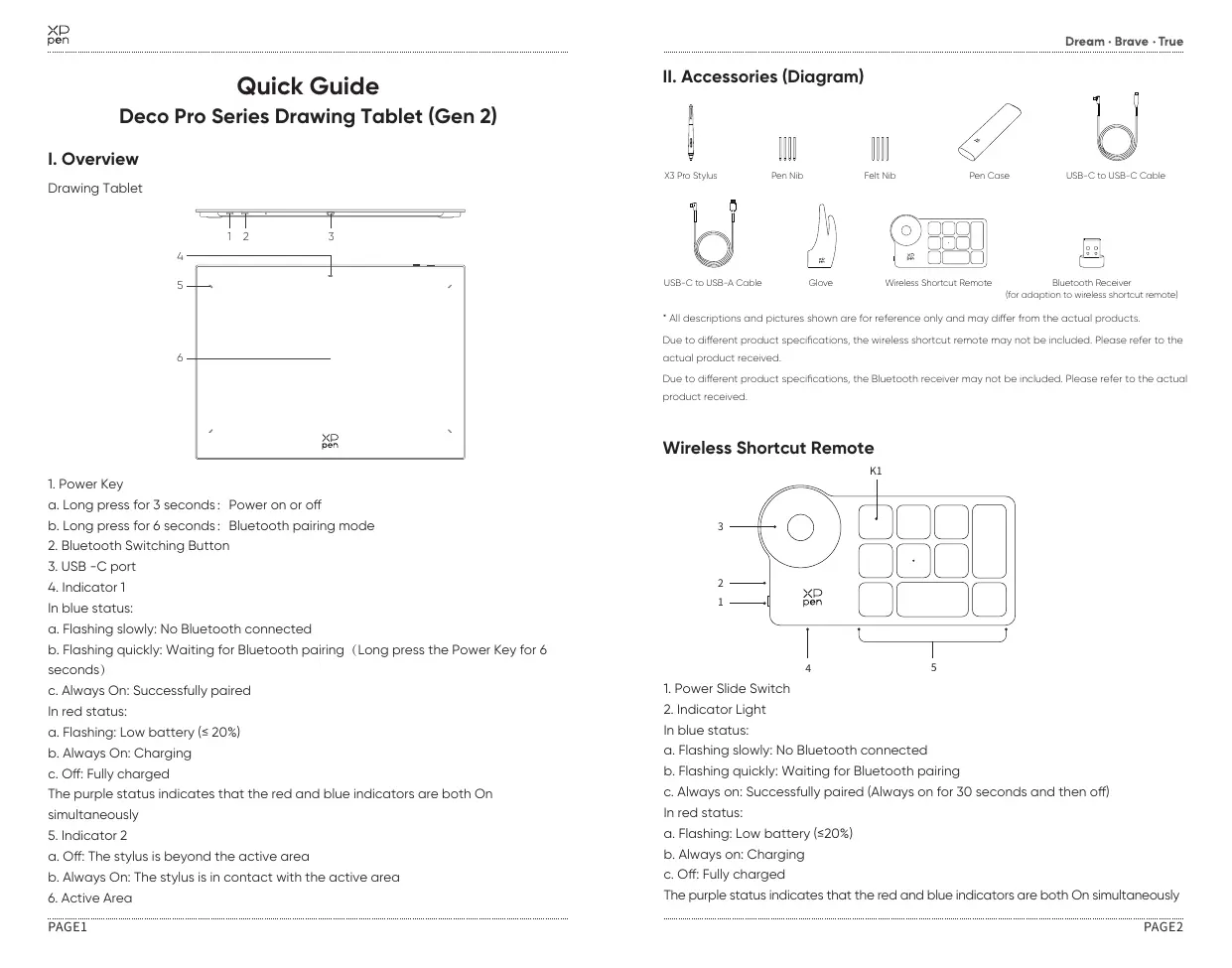

Quick Guide

Deco Pro Series Drawing Tablet (Gen 2)

I. Overview

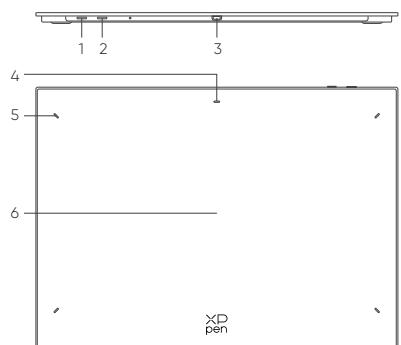

Drawing Tablet

1. Power Key
   a. Long press for 3 seconds: Power on or off
   b. Long press for 6 seconds: Bluetooth pairing mode
2. Bluetooth Switching Button
3. USB-C port
4. Indicator 1

In blue status:

a. Flashing slowly: No Bluetooth connected
b. Flashing quickly: Waiting for Bluetooth pairing (Long press the Power Key for 6 seconds)
c. Always On: Successfully paired

In red status:

a. Flashing: Low battery (≤ 20%)
b. Always On: Charging
c. Off: Fully charged

The purple status indicates that the red and blue indicators are both On simultaneously

1. Indicator 2
   a. Off: The stylus is beyond the active area
   b. Always On: The stylus is in contact with the active area
2. Active Area

II. Accessories (Diagram)

X3 Pro Stylus

Pen Nib

Felt Nib

Pen Case

USB-C to USB-C Cable

USB-C to USB-A Cable

Glove

Wireless Shortcut Remote

Bluetooth Receiver (for adaption to wireless shortcut remote)

• All descriptions and pictures shown are for reference only and may differ from the actual products.

Due to different product specifications, the wireless shortcut remote may not be included. Please refer to the actual product received.

Due to different product specifications, the Bluetooth receiver may not be included. Please refer to the actual product received.

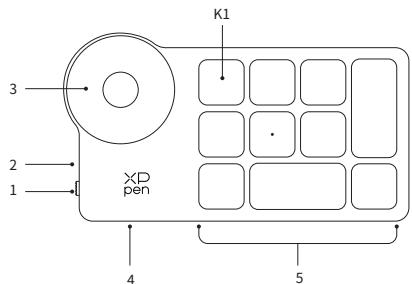

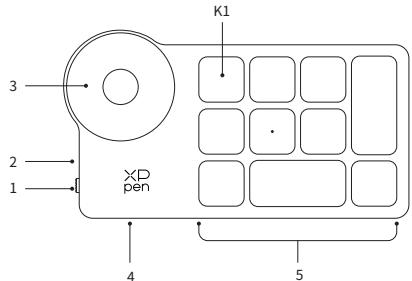

Wireless Shortcut Remote

1. Power Slide Switch
2. Indicator Light

In blue status:

a. Flashing slowly: No Bluetooth connected
b. Flashing quickly: Waiting for Bluetooth pairing
c. Always on: Successfully paired (Always on for 30 seconds and then off) In red status:

a. Flashing: Low battery (≤20%)
b. Always on: Charging
c. Off: Fully charged

The purple status indicates that the red and blue indicators are both On simultaneously

1. Roller
2. USB-C Port
3. Shortcut Key Group

The Wireless Shortcut Remote can be customized in four modes, with each mode customizing 10 keys. You can disable them if you don't need them.

One mode is enabled by default, and K1 is the toggle key. Click to switch between different key groups.

III. Connection

Wired Connection

Drawing Tablet

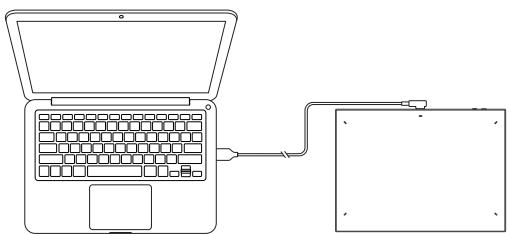

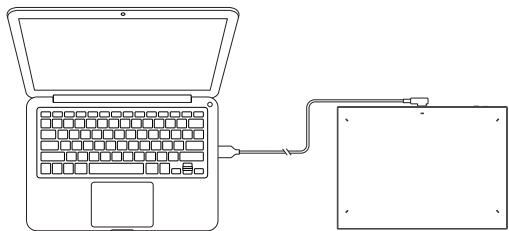

Please connect the USB-C to USB-C cable or the USB-C to USB-A cable to the USB port on the computer and the USB-C port on the tablet side respectively.

Wireless Shortcut Remote

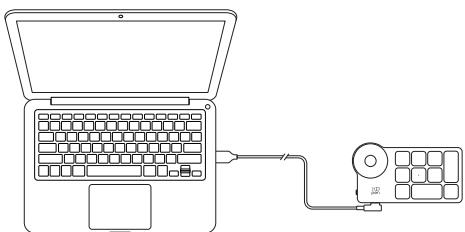

Please connect the USB-C to USB-C cable or the USB-C to USB-A cable to the USB port on the computer and the USB-C port on the wireless shortcut remote respectively.

Connect to Android Phone or Tablet

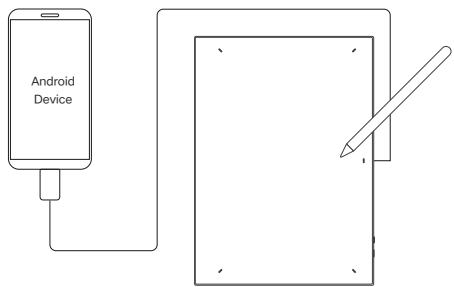

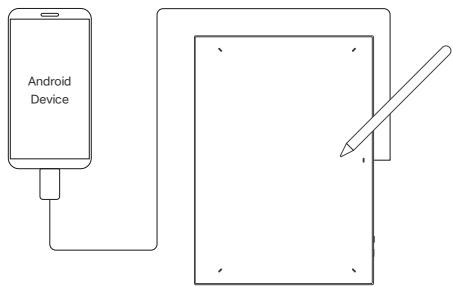

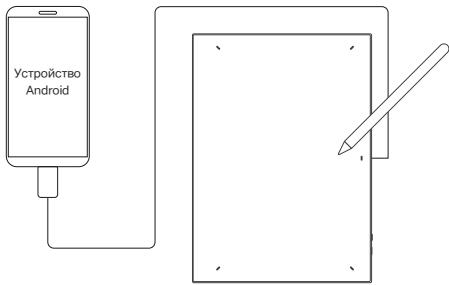

1. Please connect the USB-C to USB-C cable to the Android device and the drawing tablet respectively.
2. Please place the XPPen drawing tablet and the Android device upright, and open an Android App with support for pressure sensing.
3. Please disenable the auto-rotate function in the Android device, and keep the screen in portrait mode.
4. Currently, the drawing tablet can only be used normally when the Android device is in portrait mode. It will not be used normally when in landscape mode.

Wireless connection

A. Direct Bluetooth Connection

Drawing Tablet

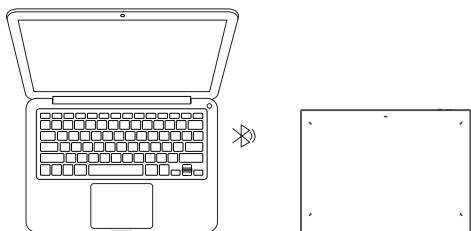

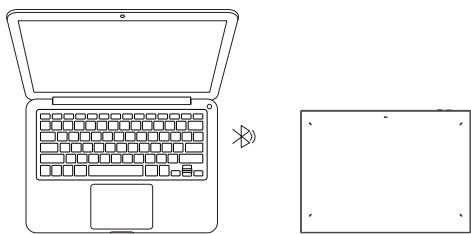

1. Press and hold the power switch for 3 seconds to turn on the drawing tablet, and the indicator light 1 flashes in blue; then long press the power switch for 6 seconds to enter the waiting state for pairing, and the indicator light 1 flashes in blue quickly.
2. Turn on the Bluetooth on the computer, add Bluetooth device, search for the device name "Deco Pro XX", and click to complete the Bluetooth pairing, with the blue indicator light 1 always on.
3. Press and hold the power switch for 3 seconds to shut down.

Wireless Shortcut Remote

1. Slide the power switch and the blue indicator light flashes slowly. Then long press the K1 shortcut key for 3 seconds to enter Bluetooth pairing and the blue indicator light flashes quickly.
2. Turn on the Bluetooth on the computer, add Bluetooth device, search for device name "Shortcut Remote" and complete Bluetooth pairing by clicking the device name "Shortcut Remote", with the blue indicator always on. The indicator will be off after 30 seconds.
3. Slide the power switch again to turn off.

B. Bluetooth Receiver Connection

Only Wireless Shortcut Remote

Plug the Bluetooth receiver into the computer and slide the power switch, with the indicator light always on in blue. The blue indicator will be off after 30 seconds.

IV. Bluetooth Device Switching

The drawing tablet supports connection to two Bluetooth devices

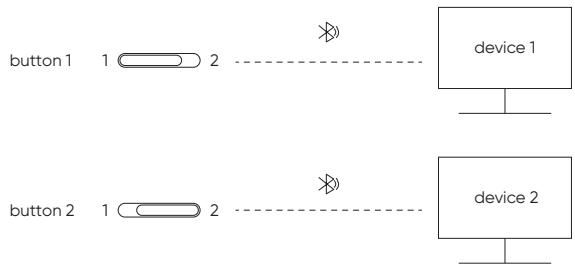

1. Toggle the Bluetooth switch button to button 1, long press the power button for 6 seconds, and the drawing tablet is paired with device 1.
2. Toggle the Bluetooth switch button to button 2, press and hold the power key for 6 seconds, and the drawing tablet is paired with device 2.
3. Toggle the Bluetooth switch button to switch the Bluetooth connection between the two devices.

V. Support System

Drawing Tablet

Wired Connection

Windows 7 (or later), macOS X 10.10 (or later), Android 10.0 (or later),

Chrome OS 88 (or later), Harmony OS, Linux.

Bluetooth Connection:

Windows 10 (or later), macOS X 10.10 (or later).

Wireless Shortcut Remote

Wired or Dongle Connection

Windows 7 (or later), macOS X 10.10 (or later), Linux.

Bluetooth Connection:

Windows 10 (or later), macOS X 10.10 (or later).

VI. Download and Install the Driver

1. Make sure your equipment is connected correctly to the computer.
2. Visit the XPPen website (www.xp-pen.com), click on the Support section and then Download. Choose a product model and download the latest driver according to your computer system.
3. Follow the prompts to finish the driver installation.

Notes:

1. Before installation, please close all anti-virus software and graphics software.
2. If the computer has already installed the drivers of other brands, please uninstall them first.
3. Please restart your computer after the installation is complete.
4. For the best performance of your device, it is recommended that you use the latest version of the driver.

If you need any further assistance, please contact us at:

[e-mail]

www.xp-pen.com

快速指南

USB-C to USB-C-Prime

USB-C to USB-A-4

g□一

FVYRALESHJOTTOH

15

（FyALESJH一力TOM一用）

[e-mail] www.xp-pen.kr

[JIaIaIaIaIIcN KScPbOBeHOMy] pIITyTbYPBnAEhJIeCbSbPTMnKHOKNKAMJI]

Bce onocanHn 3no6paeHHn pnpbOraTc TOnbKIO nOyT OTNHyTcBcRt OF qKTIneckxMPO npDyKT.
XAPAKETMCHIKYPOIOTKDYIOJOTICJI,6CNEPBOADHNOyIbT ynpBDAENRI C bCTyPTMIHN KONKAMM KOMeT HE 6bItk BKNIOEHP B KOMNIEKT. OINEPHTPYIe3B KO HAFtKcEENCKI pONDKT.
XAPKETRcIKN pnpkTbOT OTNIAQTOB, pcncBep BLtoeH He 6bTy BkIOeH B KOMnIeK. OmeHNTpIXeTEb Ha QpKtEcknck npnpkTb.

BecnpoBOHOI npblT ynpabLeHnC 6bICTpbIM KhoNkAMN

1. IpeekluoyateIb nHTaHn
   2.LBETINHIDKATOPa

CnH:

a. MeIeHNO MInGaTe: HET Bluetooth-NoKJIouChEnn
b.Быстpo Mngaet: OxuandaHne copyKeHn no Bluetooth
c.ПocToHnroTopnt:coprJKeHo (noctoHHoTopnt30cNbIKIOucaTc) KpacHbI:

a. Muraet: Hn3kni 3aprd 6atapei (≤ 20%)
b. NocToaHHo rOpNT: BbIOnHReTc3apJaKa
c.BbIKIoueHO:NOHOCbIO3apJxhen

ΦIOJIeTOBbI O3HaueT, UTO KpachBn I CINHm INHIMKATOpbl OJHOBPemEHOBKJIIOUeHbI

1. Kolencoynpablenia
2. NopT USB-C
3. pynnna 6bictpbix KhoNOK

BecnpoBDnoH npbTy npabLeHn MOeT pa60TaB b YeTpIpe pexpeximax, npn 3Tom B kaxdom pexime c 10 6blCTpbIMn KhoIkAM. PnO TcYtCTBn Heo6xoIMocTn IN MOxHO BvIKIOuHTb.

OINH peXIM BKNIOUeH NO yMOJUaHHIO, KHOPIKA K1 HAcTpoEHa KaK noI3yHok.

HaxmnteIJIpeKJIIOUeHnMEXkDy rpynnam6bICTpbIX KHOJOK

Bce onicaHn n3o6paKHe npuOaTcT oIbKO IaCpAKn mOryt OTnUaTbcr O fakTNHeCKNX IpOdyKTOB.

III. Podknioyehne

IpoBoaHoe noKJIIOueHne

Планшетдя рисоваян.

Плклочп Кбь USB-CВUSB-CBUSB-AKUSB-nopTu ha komlbtopeи npTy USB-CHa nlaanseTe.

BecnpoBOHOI npblyt npapBHeHn C 6bictpbIM KhoNkAMN

Плкюпге ka6eNB USB-C B USB-C ИИ USB-C B USB-A K USB-nopTy ha Комьhoepe n nopTy USB-C Na 6ecnpobOДнOM pyIbte ynpabJIeHnC 6bICT KHONKAMN.

Iopklueyene K TelephiOny Android nn nnaHwety

1. Пожклочп Кабелв USB-CВ USB-C K Yсторгв Android и палшету дя рисовaning.
2. Pâzmectnite планшет ду рисовимя XPPen u yctpoiéCTBO Android BepTKaJIbHO, OTKpOte npINOxehme Android c uyBCTBnTeJbHocTbU K haxaTIHO.
3. Bbiklouhnte fynkunio ABTOIOBOPota Ha yctpoiCTBe Android n pa3mectne ekpanB BeptNKaJIbHOM NIOLOXEHNI.
   *B HACTOUIE BPEM NIIANHET DIA PINCOBAHNIA MOKET KOPKEKTHo p6oTb, TOnkO eCIN yctpoCTBO Android HaxoHITcB BVEPTNKALBHOM NIOJXeHN. B rOpNIOTAHbOM pEXIME NIIAHHT MOKET p6oTbTb HekOPKEKTHo.

BecnpoBOHoe noKIOUeHne

A. Празмoe Bluetooth-норкlioчени

Планшетдг рсоваян.

1.Haxmte H yedeXnBaTe K hONkY nITAHnB T eHHe 3 cKyHd, YTO6bI BKNIOHTB PnAaHsET dIIN PnOcABHaN, pNt 3OTm INnDnKATOp 16 dyet MMrTa CnHM CBETOM. 3aTEM HAXmte H yedeXnBaTe K hONkY nITAHnB T eHHe 6 cKyHd, YTO6bI BOITN B PEXNM OxNDnAeCOnpJxEnH, pNt 3OTm INnDnKATOp 16 dyet bCTPO MMrTa CnHM CBETOM.
2. BkIIOUHTe Bluetooth Ha KOMNbIOTpe, DoabbTe yCTpoiCTBO Bluetooth, HauINTe NIMy UcTPOICTBA Deco Pro XX' IN HaxMITE Ha KONKy, YTO6bI 3aBepuNTb copjxehne no Bluetooth. Pn tOM cHIN INHdkatop 16ydet NoctOraHHo ropeTb.
3.HaxmTe uydepxNBaIe KHOIIky NITAHN B TeueHne 3 cKyH, yTO6bI bIKIOHTb.

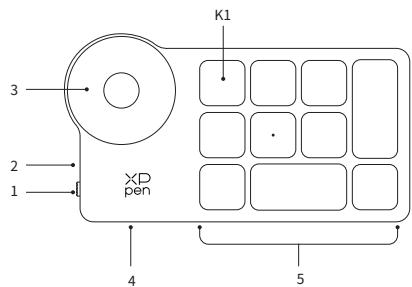

BecnpoBOHOI npblT ynpabNeHnC 6bICTpbIM KHOIIKAMN
