WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product
2.2. Accessories
2.3. Control panel
2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start
3.2. First usage
3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Standard functions
4.2.2. Special functions

5. COOKING GUIDELINES

5.1. General Cooking tables
5.2. Everyday Cooking tables

6. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven
6.2.1. Inside the oven: cleaning functions
6.2.2. Outside the oven: removal and cleaning the glass door
6.3. Cleaning of accessories
6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance disposal

8.2. Saving and respecting the environment

9. INSTALLATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• ⚠WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements Children less than 8 years of age shall be kept at away unless continuously super-

vised.

- ⚠ WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

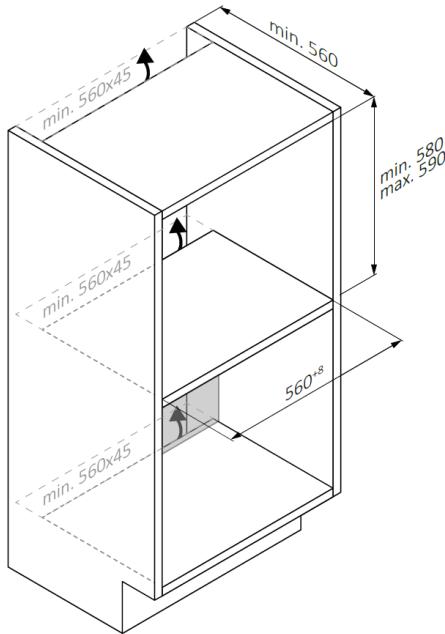

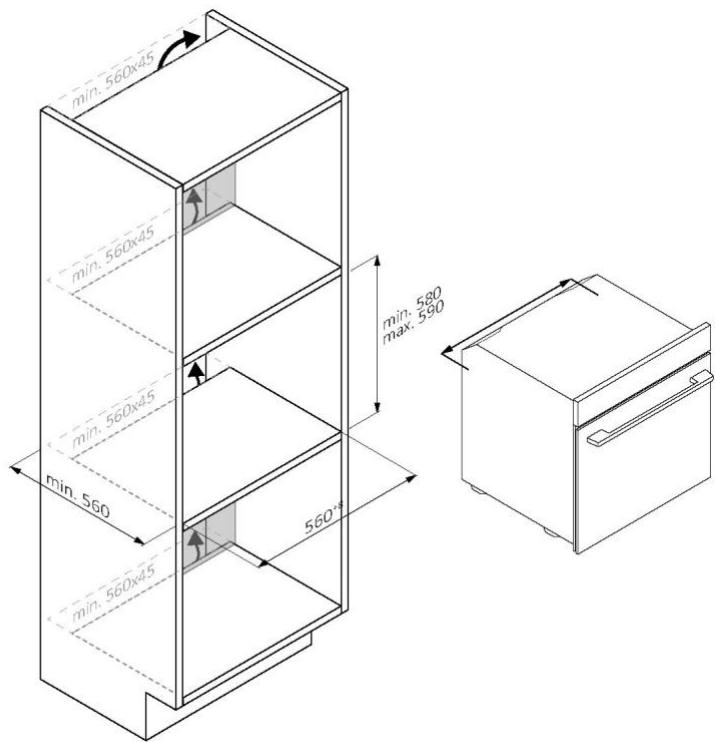

• The oven can be located high in a column or under a worktop.
- Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.
- No additional operation/setting is required in order to operate the appliance at the rated frequencies.
- The appliance must not be installed behind a decorative door in order to avoid overheating.
- During installation the oven should be disconnected from the mains to avoid overheating.
- If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.
- Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.
- Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.
- After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.
- Remove the packaging material before operating the appliance.
- During installation do not use the oven door's handle to lift and move the oven.
- The installation furniture and the adjacent ones must with stand temperatures of 95^ C.
- It is recommended to wear protective gloves during installation to avoid cut injuries.

• Do not install the product in open environments exposed to atmospheric agents.
  • This appliance is designed to be used at altitude lower than 2000m.

ELECTRICAL WARNINGS

• The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:
• do not pull on the power cable to disconnect the appliance from the power source;
• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension

cables is not recommended;

- in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

• NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
• Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
• The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.
• When you place the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.
• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.
- Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
- A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
- ⚠ WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
- WARNING: Never remove the oven door seal.
- CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
- For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

WARNINGS (\*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.
• WARNING: before initiating the automatic cleaning cycle:

- Clean the oven door;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

- Remove all accessories and the sliding rack kit (where present);

- Do not place tea towels.

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.
• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

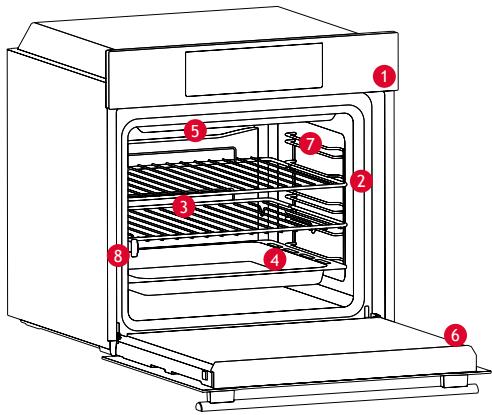

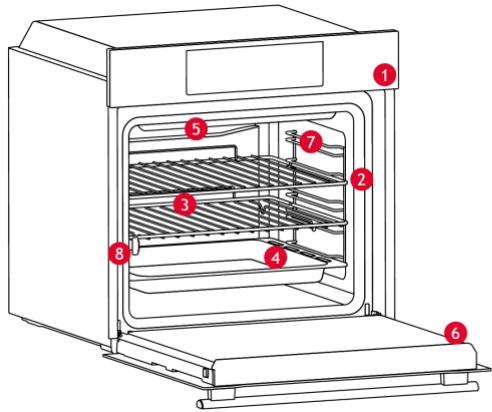

2.1. OVERVIEW OF THE PRODUCT

Technical diagram of an oven with numbered components for identification

2.2 ACCESSORIES

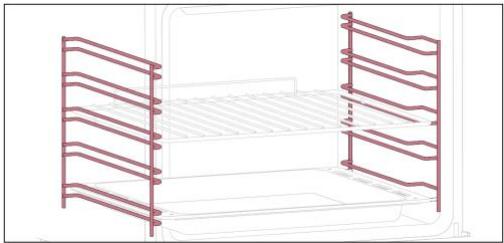

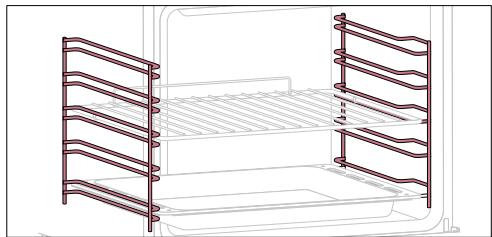

Lateral wire grids (only if present\*)

Technical line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

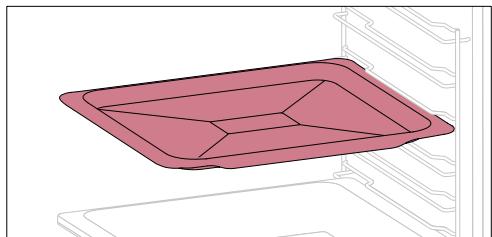

Baking tray (only if present\*)

Illustration of a pink plastic tray placed inside an oven (no text or symbols)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

1. Control panel
2. Shelf positions numbers
3. Grids
4. Trays
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Serial number & QRcode

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference.

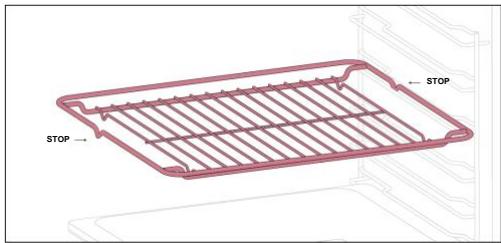

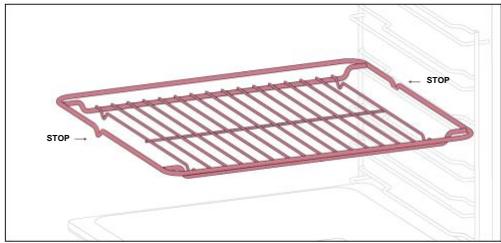

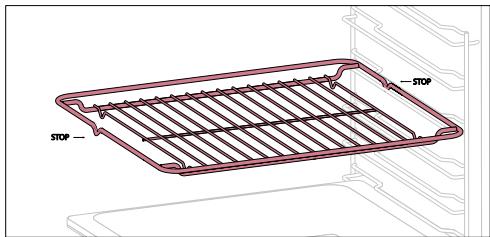

Metal grid

STOP — STOP

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

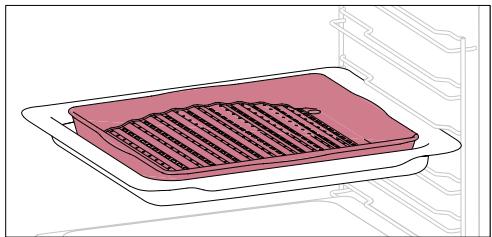

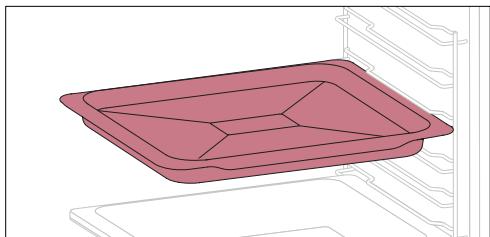

Deeper Tray

Line drawing of a red rectangular tray placed inside an oven (no text or symbols)

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

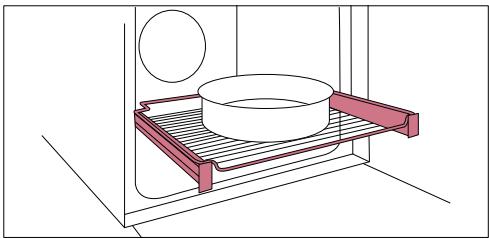

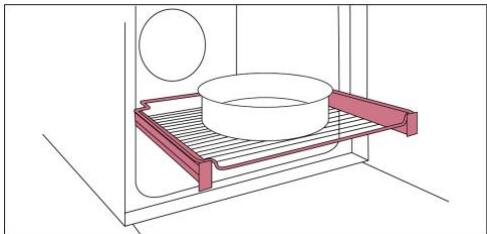

Telescopic Guides (only if present*)

Line drawing of a kitchen sink with a bowl, a round pan, and a red rack (no text or symbols)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

H-Lab Tray - BBQ mode (only if present*)

Line drawing of a rectangular tray with a striped pattern inside, placed inside an oven (no text or symbols)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more “wet” cooking will be obtained.

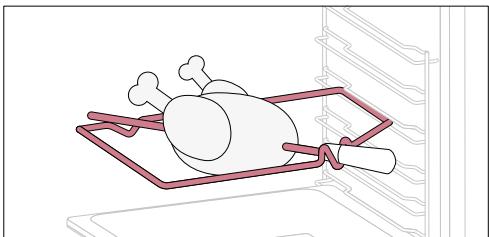

Turnspit (only if present*)

Illustration of a rooster inside an oven, no text or symbols present

The turnspit works together with the top heating element, by rotating the food can be cooked omogeniously. It is best used for medium-sized food. Ideal for rediscovering the taste of traditional roast.

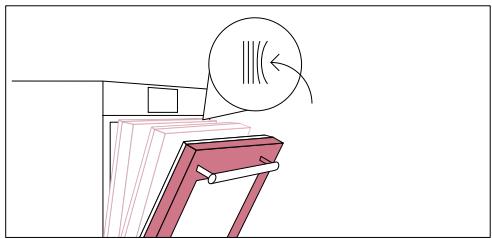

Softclose/Soft open hinges (only if present*)

Illustration of a desk lamp with a magnifying glass showing motion, no text or symbols present

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

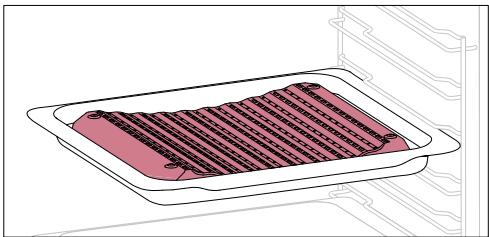

H-Lab Tray - STEAM mode (only if present*)

Illustration of a rectangular oven with a grating tray and lid, placed inside an oven (no text or symbols)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

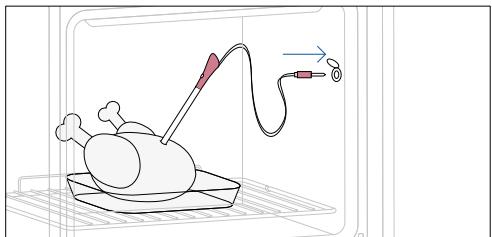

Heat Feel Sensor (only if present*)

Illustration of a medical procedure involving a rodent and needle inserted into a patient's organ (no text or symbols present)

This Meatprobe is a temperature sensor that, inserted into the food and connected to the oven via cable, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

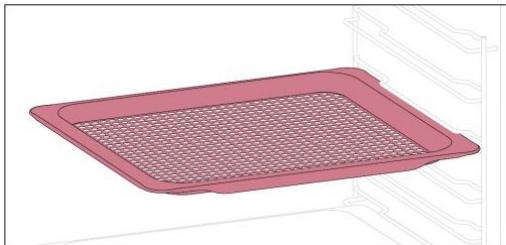

Airfry tray (only if present*)

Illustration of a pink rectangular tray with a mesh pattern inside, placed on an oven rack (no text or symbols)

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. To collect juices and breading, place it on top of the baking tray.

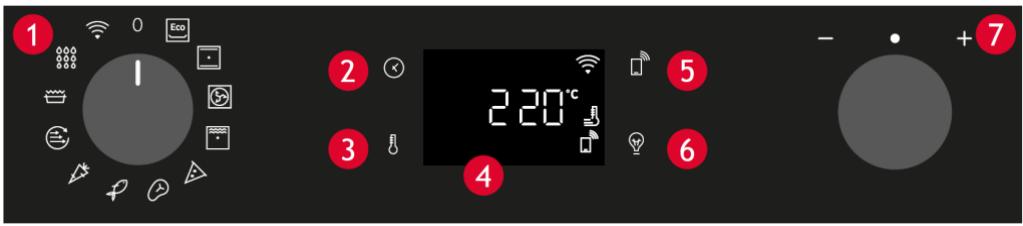

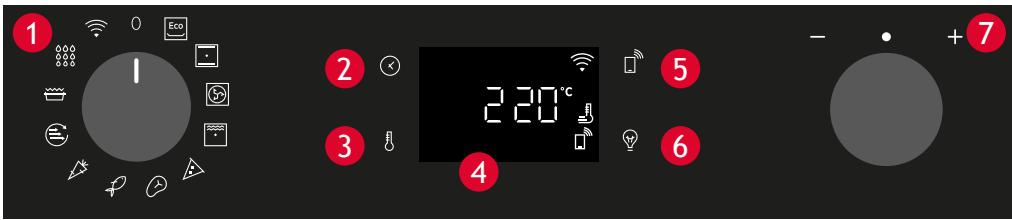

2.3 CONTROL PANEL

1 2 3 4 5 6 - +7 1 220°C

Functions and function ranking can be changed depending on the model.

1. Function selector knob
2. Time
3. Temperature
4. LED display 7
5. Remote control
6. Lamp
7. Dial control

MAIN FUNCTIONS

The display has 4 main functions:

Symbol	Function	Description

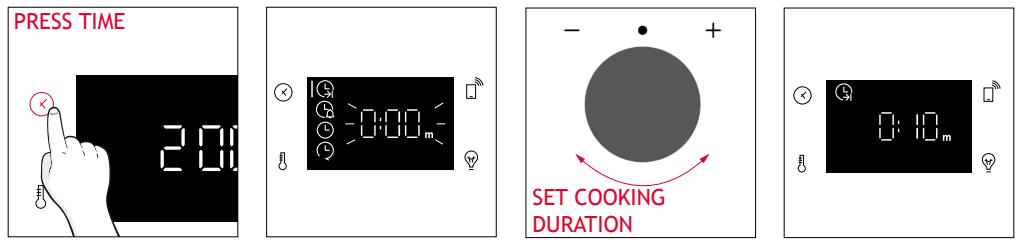

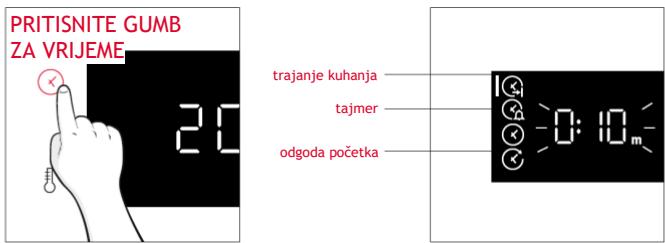

	Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for the time of day, and four times for delay start. In standby mode, only the kitchen timer is accessible.
	Temperature	Press once to check the cavity temperature, press and hold for 3 seconds to activate the fast-preheating option (only available during the oven's preheat phase). When the preheat is active, the released icon will be shown on the display.
	Remote Control on/off	Press the button to activate remote control, after pairing the oven with the hOn app (through the application).
	Light	Press to turn on/off the oven cavity light.

2.4 CONNECTIVITY

Wireless parameters

Technology	Wi-Fi	Bluetooth
Standard	IEEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401÷2483	2402÷2480
Maximum Power [mW]	100	10

Product information for networked equipment

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:

2,0 W.

How to activate wireless network port:

WIFI module switches on as soon as the function knob is set to a position different to zero.

How to deactivate wireless network port:

WIFI module is always off when the function knob is set to zero position.

If the knob is set to different position, go to WIFI menu and select off to deactivate the WIFI.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
  • You will be given step by step guidance on both your appliance and mobile device.
  • It may take up to 10 minutes to connect your oven.
  • For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

Available on the App Store GET IT ON Google Play

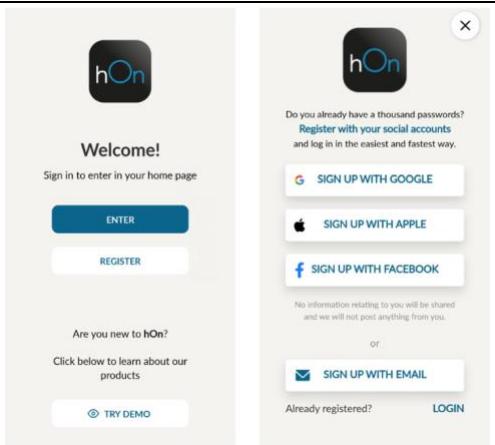

NEW USER REGISTRATION

• Click on "Register"
  • You can register through social accounts or sign up with your personal email

Welcome!

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

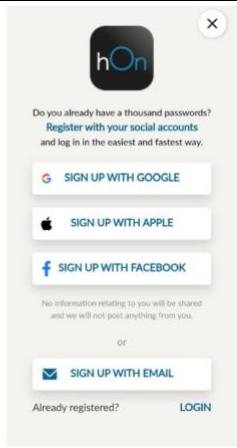

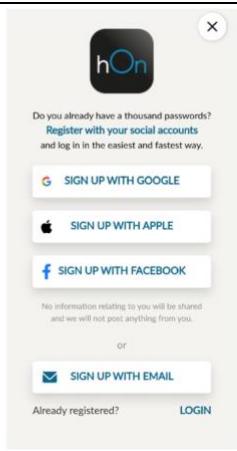

Do you already have a thousand passwords?

Register with your social accounts

and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

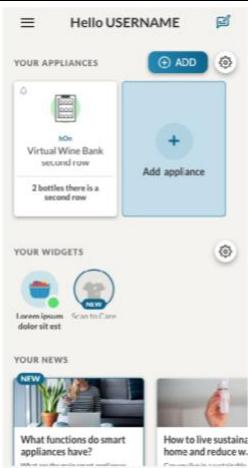

QUICK PAIR ENROLLMENT

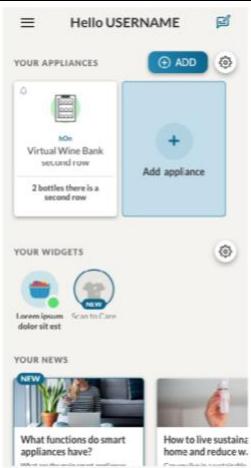

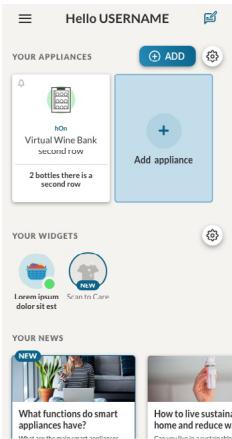

Step 1

- Select "Add appliance".

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Loves in ppm dolor sit est Scan In Care NEW YOUR NEWS What functions do smart appliances have? How to live sustain/ home and reduce w.

Step 2

- Allow your location permission.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a white circle with light blue border (no text or symbols)

CONTINUE

Step 3

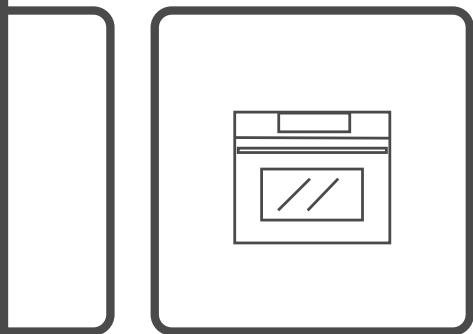

- Select oven from the appliance category.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Step 4

- Turn on your appliance; if it is already on, turn it off and on again.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract circular icon with a blue 'Power' button surrounded by icons (no text or symbols)

OK, I DID IT

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

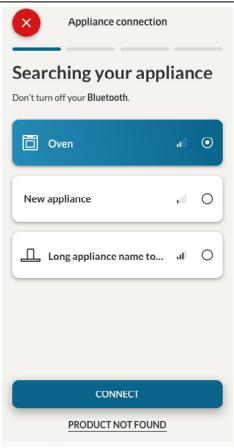

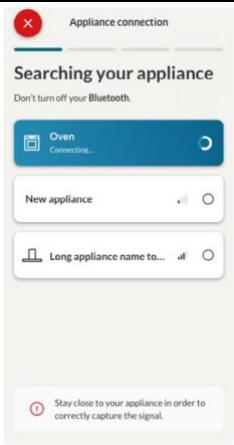

Step 6.1-6.2

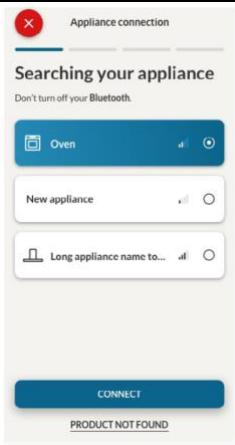

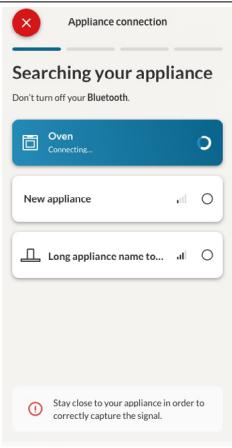

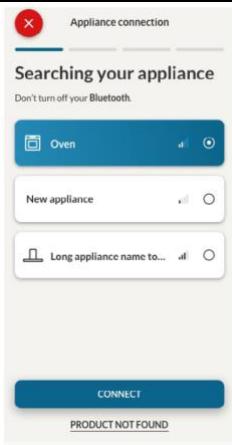

- Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Step 7

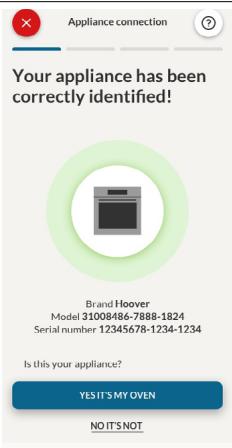

- Your Oven will be found and you can control it through hOn.

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Once the appliance is enrolled, the user can change the WIFI settings between:

• WIFI ON: It is only possible to monitor the oven status by App.
• WIFI OFF: The oven is not connected but still enrolled with network credentials saved.

• WIFI RESET: The connection is reset and a new enrollment is possible.

• Turn the function knob on WIFI menu.

• On display appears "On".
• Rotate the dial control until "Off" or the reset setting "rSt" will be showed.

87

Simple diagram with a gray circle, a black dot above, and a red curved arrow inside, no text or symbols present.

OFF SET

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; monitoring of the cooking process using the probe.

Furthermore, it is possible to receive notifications once programs or recipes are completed.

The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin and Supergrill grams.

How to activate Remote Control:

1. Turn the function knob on WIFI menu.
2. Press ☐.
3. On display appears "hOn". Both WIFI and Remote Control icons will be shown.
4. Access to the App, select a program and let the cooking starts. During the process is possible to control and change the program parameters from both product and App.

Diagram showing a circular device with icons for appliances and a red arrow pointing to 'Eco' on the right side.

81 PRESS REMOTE CONTROL

hOn

It's also possible to activate Remote Control during cooking process by pressing related button

2.00*

PRESS REMOTE CONTROL 2:00

200°C

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by rotating the function knob to a different position. These actions interrupt the cooking process.

Another way is by pressing the corresponding button of Remote Control that came with your appliance. These actions interrupt the cooking process.

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00米

You can also stop the cooking program remotely using the app by clicking the 'STOP' Button on display device. The oven will automatically stop the cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250 °C 3h 30m 151 Proveal (ONE) Efficiency Prove (OFF) EDIT DETAILS →

3. BEFORE STARTING

3.1. INFORMATION TO START

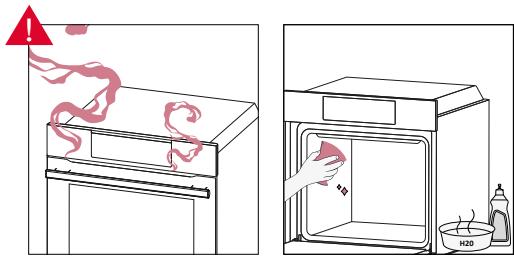

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

For functions that use the grill, thanks to the door switch technology the oven will automatically pause the heating elements when you open the door and continue cooking once you close it.

This feature is available only on specific oven configurations. All the pyro models have it.

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

How illumination works

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off.

It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

How status bar works

The status bar, based on the set programs, simplifies monitoring of temperature and time. Specifically, for functions involving preheating, it displays the temperature increase during this phase. In cooking programs and the pyrolytic cleaning function, it shows the countdown of cooking time and the cleaning cycle, respectively.

200°C PREHEA- TING

2:00 m PYROLYSIS

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day, choose between 13 ampere or 16 ampere, select brightness and sound level.

- SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, press ✕ and use the right knob to adjust the current hour. Press again ✕ and follow the same procedure to set the minutes. To confirm, press ✕ once more.

12:00

PRESS 12

12:00

- + SET TIME

07:00 PRESS

07:00

07:45

07 PRESS TO CONFIRM

- AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Just turn the right knob to pick the one you want, then press ✕ to confirm.

-13A

- + SET AMPERAGE

16.8

PRESS TO CONFIRM

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions.

- BRIGHTNESS: The display shows the symbol “br”. The numbers represent the level of brightness intensity, editable turning the right knob. To confirm press ✕

br 3 ---

- • + SET BRIGHTNESS

br 2 -- br 1 -

PRESS TO CONFIRM

- SOUND: The display shows the symbol “Sn”. The numbers represent the level of sound intensity, editable turning the right knob. To confirm press ✕

Sn 3

- + SET SOUND

5n 2 5n 1

PRESS TO CONFIRM

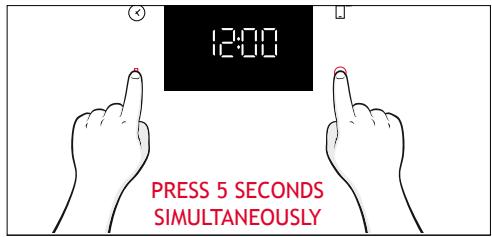

When oven is in stand-by mode, it is possible to go back to initial settings by pressing simultaneously Temperature and Lamp buttons for 5 sec.

12:00 PRESS 5 SECONDS SIMULTANEOUSLY

3.2. PRELIMINARY CLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Illustration of a kitchen sink with a hand cleaning the interior, water bath, and a bottle labeled H20 (no text or symbols on main objects)

MAX °C 60 min

Line drawing of a window with a chimney emitting smoke, next to an open door (no text or symbols)

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

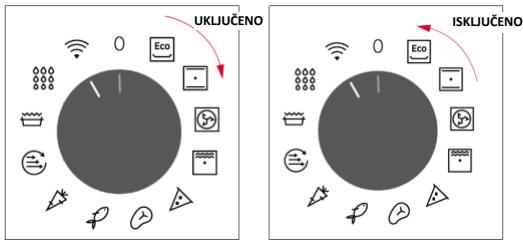

SWITCHING ON/OFF THE OVEN

To turn ON the oven rotate the function knob (clockwise/counterclockwise) and select a cooking program. To turn it OFF, set the function knob to the '0' position.

Eco ON

OFF Eco

SET COOKING PROGRAM

Turn the function knob and select the desired program. On display will appear a default temperature that can be edit in every moment turning the right knob (clockwise to increase and counterclockwise to decrease the temperature).

TIME MENU

Access the Time menu by pressing Ⓧ. To navigate into tap Ⓧ as many times as is needed to enter in the following settings:

PRESS TIME 20 cooking duration minute minder delay start 0:10m

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

COOKING DURATION

Allows to preset the cooking time required for the recipe chosen.

ACTIVATION: press Ⓧ to enter in the Time menu. Tap Ⓧ as many times as you need to select “Cooking duration” function. Then use the dial control to regulate the value.

The countdown starts at the end of preheating (if present). During cooking phase is possible to change the duration value by turning the right knob. When duration is elapsed the cooking stops.

MINUTE MINDER

Allows to use the oven as alarm clock.

ACTIVATION: press ✕ to enter in the Time menu. Tap ✕ as many times as you need to select “Minute minder” function. Then use the dial control to regulate the value.

2:00 PRESS TIME

0:00m

- • + SET MINUTE MINDER

0:03 m

When the function is set, the primary information showed on display is always the time. To edit the temperature, press ⏻ to enter dedicated edit mode. When duration is elapsed, the cooking continues until the left knob is turned in 0 position.

This function can be set also when the oven is in stand by mode by pressing Ⓧ. When activated, the minute minder operates independently of the oven's cooking functions.

DELAY START

Allows to choose the cooking start time.

ACTIVATION: press ✕ to enter in the Time menu. Tap as many times as you need to select “Delay start” function. Then use the dial control to set the start time of cooking.

PRESS TIME 20

10:30m

- • + SET DELAY START

20:00

NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill's functions.

ADDITIONAL FUNCTIONS

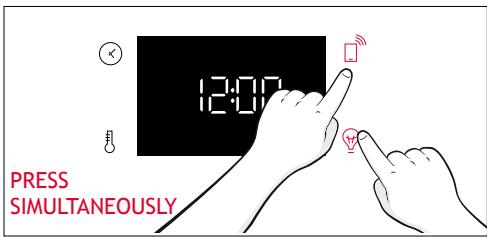

CHILD LOCK

This function allows you to lock the screen to prevent any unwanted use by minors. To activate the screen lock, press and hold down the Remote Control and Lamp buttons simultaneously. Repeat the same action to deactivate the lock.

12:07 PRESS SIMULTANEOUSLY

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

In order to accelerate preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3s after having selected cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated the cavity fan will be turned OFF until the oven reaches the desired temperature.

4.2.1. STANDARD FUNCTIONS

NOTE: for functions that require preheating, ensure all accessories are removed during this phase.

* Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.
**Use with the door closed.
*** Depending on the oven model.

Symbol	Function	T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	*ECO	190 °C 150-220 °C	L3/L4	NO	IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender.Cavity lamp is switched off
	*Conventional	30-250°C	L2/L3	Yes/Fast preheat	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.Can be used with Heat Feel Sensor.
	Multi-Level	160°C 50-250°C	L4 (one tray)L2+L5 (two trays)L2+L4+L6 (three trays)	Yes/Fast preheat	IDEAL FOR: cakes, biscuits and pizzas on one or more levels.Ideal to cook different foods.Can be used with Heat Feel Sensor.
	**Supergrill	05 01-05	L6	NO	IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot.Use with the door closed.Turn food two thirds of the way through cooking (If necessary).
	**Gratin(***)	200°C150-250°C	L4/L5	Yes/Fast preheat	IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.
	Airfry(***)	200°C150-250°C	L3/L4	NO	IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried.Thanks to the dedicated tray, the hot air can flow evenly over the foods.
	Gentle cooking	70°C50-90°C	3rd level	NO	DEAL FOR: slow cooking with sous-vide like result. Use it for meat, fish and vegetablesCan be used with Preci Probe.

4.2.2. SPECIAL FUNCTIONS

Symbol	Function	T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	Pizza	300°C200-300°C	2/3	NO	IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes

How to use the probe:

1. Plug the Probe into designed port on the oven and insert the accessory in the food.
2. On display appears the Probe icon. Only dedicated functions or cooking programs are available. From this moment, the displayed temperature will be that of the probe
3. Choose the cooking function and set the Probe target temperature to begin. The oven will then use the Probe data to monitor your food's internal temperature and stop cooking once the desired temperature is reached.

NOTE: When using the probe, there's no need to set a cooking timer; it will automatically stop once the desired temperature is reached.

1. Once the desired internal temperature is reached, the alarm sounds and the oven turns off. Before taking the food out of the oven, be sure to remove the Probe from the food carefully.

Illustration of a kitchen appliance with a tool and valve, no text or symbols present

Smart home control panel interface with icons for lighting, ventilation, and temperature settings

- • + ←

The Probe icon will be displayed on the screen. Only specific functions or cooking programs are accessible when this icon is active. If you attempt to use other functions, the oven will display a message saying “can’t use probe.”

CAN'T USE ProbE

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

Illustration of a medical procedure involving a tool and tubing, with no visible text or symbols.

The Probe can be used with manual functions (Static, Static + Fan, Grill, Super grill, Gratin, and Multilevel), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables) and Gentle cooking.

Food category	Suggested core T°C	Suggested positioning
Roast beef	45°C	Diagonally in the thickest part. For cylindrical shape foods (i.e. beef roasts) place the tip as close as possible to the geometric center
Roasted meats	55 °C / 60 °C / 65 °C
Poultry	83-85°C	Into the thickest part of the breast
Fish (whole/steaks)	65°C	Diagonally in the thickest part
Bread/casseroles	90°C	Close to the geometric center of the food

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Category	Recipe	N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes /Muffins	1	Static Multilevel	175°C 160°C		Baking tray Baking tray	L3 L4	20-30 30-40
		2	Multilevel	150°C	Y	Baking + Deeper trays	L2+L5	30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	40-50
	Sponge cakes (26 cm ∅)	1	Static	170°C		Metal grid + Cake tin	L2	30-40
			Multilevel	150°C	y	Metal grid + Cake tin	L4	40-50
		2	Multilevel	150°C		Metal grids + Cake tin	L1+L4	50-60
	Biscuits/ Shortbreads	1	Static Multilevel	150°C 150°C		Baking tray Baking tray	L3 L4	25-30 30-40
		2	Multilevel	140°C	Y	Baking + Deeper trays	L2+L5	30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	35-40
	Choquettes	1	Static	190°C		Baking tray	L4	25-35
		2	Multilevel	170°C		Baking tray	L3	25-35
	Yorkshire pudding	1	Static	200°C	Y	Baking tray	L3	20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray		90-160
	Macaron	1	Static	150°C	Y	Baking tray	L3	15-20
	Apple pie	1	Static	185°C	Y	Metal grid + Cake tin	L2	60-70
		1	Multilevel	170°C	Y	Metal grid + Cake tin	L4	65-75
	Tarte tatin	1	Static	170°C	Y	Metal grid + Cake tin	L2	40-60
	Chocolate souffle	1	Static	200°C	Y	Baking tray + molds	L3	10-15
	Cheesecake	1	Static	150°C	Y	Metal grid + Cake tin	L2	50-65
	Frozen crois-sants	1	Static	180°C	Y	Baking tray	L3	20-25
		2	Static	180°C		Baking trays	L2+L5	25-35
		3	Multilevel	160°C		Baking trays	L2+L4+L6	30-40
	Strudel, frozen	1	Static	210°C	Y	Baking tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	5	N	Metal grid	L6	4-6
	Focaccia	1	Static	200°C	Y	Baking tray	L2 or L3	25-35
	Bread, whole	1	Static	200°C	Y	Baking tray	L3	35-50
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1	Static	200°C	Y	Metal grid + Quiche tin	L1 or L2	30-50
		2	Multilevel	180°C	Y	Metal grid + Quiche tin	L1+L4	50-70
	Cheese souffle	1	Static	200°C	Y	Baking tray + molds	L3	20-35
	Lasagna, fresh	1	Static	200°C	Y	Metal grid + ovenproof dish	L3	40-60
	Lasagna, frozen	1	Static	180°C	Y	Metal grid + ovenproof dish	L3	50-60
	Cannelloni, frozen	1	Static	180°C	Y	Metal grid + ovenproof dish	L3	45-55
	Baked pasta	1	Gratin	200°C	Y	Metal grid + ovenproof dish	L4	20-30
Pizza	Pizza, fresh (Tray)	1	Static	250°C	Y	Baking tray	L2 or L3	15-20
	Pizza, fresh (Tray)	1	Pizza	250°C	N	Baking tray	L2 or L3	18-25
		2	Multilevel	180°C	Y	Baking + Deeper trays	L2+L5	25-35
	Pizza, fresh (Round)	1	Static	250°C	Y	Baking tray	L2 or L3	8-10
	Pizza, fresh (Round)	1	Pizza	300°C	N	Baking tray	L2 or L3	15-20
		2	Multilevel	180°C	Y	Baking + Deeper trays	L2+L5	30-40
	Pizza, frozen (thin crust)	1	Static	220°C	Y	Metal grid	L3	10-15
		2	Multilevel	200°C		Metal grid	L2+L5	15-25
		3	Multilevel	180°C		Metal grid	L2+L4+L6
	Pizza, frozen (thin crust)	1	Pizza	200°C	N	Metal grid	L2	10-15
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1	Gratin	220°C	Y	Metal grid/L4 Place Backing tray at L1 with 150ml of water	L4	40-60
	Chicken thighs	1	AitFry**	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3	50-60
Meat & Poultry	Rooster	1	Gratin	220°C	Y	Metal grid Place baking tray at L1	L4	20-40
	Roasted Turkey	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3	50-60
	Pork ribs (1000-1200g)	1	Static	200°C	Y	Metal grid + Ovenproof dish	L3	80-100
	Sausages	1	Supergrill	4	Y	Metal grid	L5	40-50
	Beef fillet (1000-1500g)	1	Gentle cooking**	60°C	N	Metal grid + Ovenproof dish	L3	60-80
	Roast beef (500g)	1	Gratin	220°C	Y	Baking tray	L3	20-40
	Meatloaf (1000-1500g)	1	Static	180°C	Y	Baking tray	L3	40-50
	Roasted chicken with potatoes	1	Gratin	200°C	Y	Deeper tray	L4	45-60
Fish and Seafood	Grilled seafood	1	Supergrill	4	N	Metal grid	L5	15-30
	Frozen fish sticks	1	AirFry**	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L3	40-60
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L3	80-90
	Frozen french fries (300-500g)	1	AirFry**	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L4	15-25
	Roasted potatoes	1	Static	200°C	Y	Baking tray	L4	30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category needs.

After selecting the cooking program, the default time will be shown and can be edited by turning the right knob; cooking temperature can be changed by pressing the dedicated icon. Both parameters can be set within a limited range as shown in the table below.

Symbol	Description	Pre-heat	Shelf position	Temperature range (°C)	Time Range (min)	Heat Feel Sensor temperature (if available)	Description
[0822]	Meat	NO	2-3-4	180-200	20-80	55-85°C	For beef, veal and pork roasts, poultry and cuts of meat.
	Fish	NO	3-4	160-180	15-45	55-65°C	For whole fish and fillets.
,	Vegetables	NO	3-4	180-200	30-80	70-90°C	For roasted vegetables and potatoes

NOTE: if, after turning off the oven, there is a need to continue cooking, it's recommended avoiding the use of everyday cooking programs and instead opting for standard functions.

Recipe	Serving size	Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast	500-800g	Meat	190°C	Metal grid	L3	30-40
Beef fillet	200g	Meat		Metal grid	L3
Meatloaf	1000-1500g	Meat	180°C	Metal grid	L3	40-50
Beef wellington	500g	Meat	200°C	Metal grid	L3	50-80
Port roast	800-1000g	Meat	200°C	Metal grid	L3	40-70
Pork ribs	1000-1200g	Meat	200°C	Metal grid	L3	80-100
Lamb rack	800-1000g	Meat	200°C	Metal grid	L3	60-80
Lamb leg	1500-2000g	Meat	190°C	Metal grid	L3	80-100
Salmon fillets	200-600g	Fish	170°C	Baking tray	L3	20-35
Tuna steaks	600g (app. 4 pcs)	Fish	180°C	Metal grid	L3	10-20
Swordfish steaks	700g (app. 4 pcs)	Fish	200°C	Baking tray	L3	15-20
Cod fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabream, whole	1	Fish	170°C	Baking tray	L3	35-45
Seabream, fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabass fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Salt baked fish	1	Fish	220°C	Baking tray	L3	30-40
Fish skewers	8 pieces	Fish	150°C	Metal grid	L3	20-30
Stuffed squid	4 pieces	Fish	180°C	Baking tray	L3	25-40
Whole bread	1	Bakery	200°C	Metal grid	L3	35-50
Rye bread	1	Bakery	190°C	Metal grid	L3	35-50
Sandwich loaf	1	Bakery	200°C	Metal grid	L3	35-50
Frozen baguettes	1	Bakery	200°C	Metal grid	L3	15-25
Frozen puff pastry snacks	1	Bakery	190°C	Metal grid	L3	20-30
Fennels	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Mixed vegetables	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Cauliflowers	1 tray	Vegetables	190°C	Metal grid	L3	40-50
Pumpkins, cubed	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Stuffed peppers	1 tray	Vegetables	180°C	Metal grid	L3	70-80
Stuffed zucchini	1 tray	Vegetables	190°C	Metal grid	L3	35-45
Carrot sticks	1 tray	Vegetables	180°C	Baking tray	L3	35-40
Broccoli	1 tray	Vegetables	190°C	Baking tray	L3	30-40
Ratatouille	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Vegetable flan	6 ramekins	Vegetables	180°C	Baking tray + molds	L3	25-35

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores.
Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
- In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.
- In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410^ C.

At the end of the cleaning cycle, all that remains within the cavity is a minimal deposit of dust, easily wiped away with a damp cloth.

How does it work:

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (*);
2. Turn function knob on ☐. Turn the dial control to set the Pyrolytic program;
   Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.
3. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
   ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

(*) only for models with 7 levels.

Line drawing of an oven with cooling rack and heat exchanger (no text or symbols)

PRE SET TIME

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

The Hydroeasy function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

1. Pour 100 ml of water into the bottom embossment of the oven.
2. Turn the knob on 110 . If necessary, turn the dial control to set the Hydro clean program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.
4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

H2O 100 ml

FIRE SET TIME

Warning symbol diagram showing warning triangle, thermometer, and red triangle with triangular indicators

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Catalytic cleaning

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing absorbs grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

MAX °C 10-20 MIN

Warning symbol diagram showing warning triangle, thermometer, and red triangle with warning symbols

Illustration of a kitchen oven with a hand cleaning a red cloth, emitting a H2O (no text or symbols present)

6.2.2. OUTSIDE THE OVEN:

removal and cleaning the glass door

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

Line drawing of a double door with hands operating it, no text or symbols present

Diagram of a mechanical device with a red downward arrow indicating force or direction (no text or symbols present)

1. Position the door at 45°. Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

45° 1 2

1. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

1. ⚠ WARNING: The outer glass is not removable.

Simple line drawing of a hand holding a red prohibition symbol (no text or labels)

1. Clean the glass using a soft cloth and suitable cleaning products.

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' in the bowl.

1. Insert the glass panels, making sure that the "Low-E" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door.

LOW-E

1. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

1. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.

Line drawing of a cabinet with two hands operating it, showing internal structure (no text or symbols)

Diagram showing a hand holding a tool with a red arrow pointing to a small figure, possibly indicating a step or direction of motion.

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a cloth, water being washed in a beaker labeled H₂O, next to a bottle and spray bottle.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Remove the lamp's glass cover.
3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.
5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Safety warning diagram showing a plug with red arrows indicating current and downward arrow indicating OFF status, alongside a hazard symbol.

Step 5

Step 2

Hand placing a red heart symbol on a small appliance into a oven (no text or symbols present)

Step 6

Step 3

Diagram showing a hand holding a circular object with a red curved arrow labeled 'S' inside an oven, indicating a process or measurement.

Illustration of a hand holding a small object inside an oven with a red arrow indicating rotation (no text or symbols)

Electrical diagram showing a plug, ON/OFF switch, and warning symbol with red arrows indicating direction

Step 4

Hand holding a magnifying glass over an open appliance (no text or symbols visible)

This product contains one or more light sources of energy efficiency class G (Lamp)

Changing the lateral bulb:

1. Disconnect the oven from mains supply.
2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.
3. Carefully grasp the bulb from its base.
4. Insert the new one.
5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Safety warning diagram showing a plug with red arrows indicating failure and a hazard symbol with 'OFF' label

Step 2

Illustration of a hand holding a tool near a device with a red arrow indicating direction (no text or symbols present)

Step 3

Illustration of a hand inserting a component into a printer (no text or symbols visible)

Step 4

Illustration of a hand holding a small object inside a circular frame, with no visible text or symbols.

Step 5

Diagram showing a mechanical assembly with a highlighted section and arrow, no text or symbols present

Step 6

Electrical warning symbol diagram showing a plug, ON/OFF warning symbol, and grounding symbols with red arrows indicating direction.

This product contains one or more light sources of energy efficiency class G (Lamp)

7. TROUBLE SHOOTING

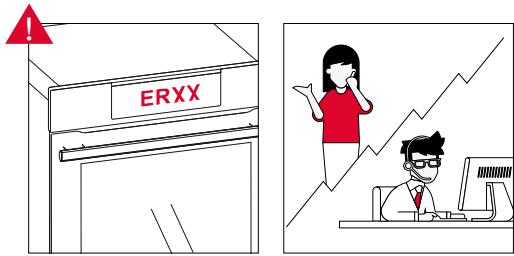

If, during oven use, an error occurs, the display will show the code “ER” followed by two digits, which will identify the error.

Proceed by turn off the oven and un-plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

Smoke

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an envi-

ronmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;
- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate.

Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the “delayed cooking” programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

Technical diagram of a refrigerator with labeled components and an inset showing a close-up view of the door mechanism.

WILLKOMMEN

Diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Technical line drawing of a multi-tiered storage unit with horizontal shelves (no text or symbols)

3D rendering of a pink rectangular tray placed inside an oven (no text or symbols)

STOPP STOPP

Illustration of a red rectangular tray inside an oven (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and a round pan (no text or symbols)

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular appliance placed inside an oven rack (no text or symbols)

Illustration of a medical procedure involving a mouse, needle, and syringe (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

Hello USERNAME YOUR APPLIANCES Add Add appliance Your WIDGETS Learn ipsum dolor sit est Scan to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Schritt 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Schritt 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Schritt 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Schritt 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Schritt 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Schritt 7

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

FERNSTEUERUNG

Diagram illustrating a circular device with icons for connectivity, safety, and eco-friendly features around it.

Diagram of a circular device control panel with icons for signal, Wi-Fi, ECO, battery, and various function buttons.

2:00

2:00*

Cooking 10H LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein 2.0M Efficiency Protein (OFF) EDIT DETAILS →

3.1. INFORMATIONEN ZUM START

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

Illustration of a cooking setup with a pan, tool, and pressure gauge (no text or symbols)

- - - - °C

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Hand cleaning a kitchen appliance with a cloth (no text or symbols visible)

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

MAY °C 10-20 MIN

Warning symbol with warning triangle and three warning symbols: a red triangle, a black circle, and a white circle.

Diagram showing a kitchen oven with a red cloth, water droplets, and a bottle labeled H20, likely illustrating a cleaning or dust removal procedure.

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a water bottle and labeled 'H2O' in a basin.

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of hands opening a small oven with lid open (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a water bottle labeled H₂O in a bowl, likely illustrating a chemical or chemical process.

Line drawing of an oven with a red arrow indicating the interior structure (no text or symbols)

6.4. WARTUNG

AUSTAUSCH VON KOMPONENTEN

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Schritt 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Schritt 3

Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

Schritt 4

Hand holding a circular object inside an oven, no text or symbols visible

Schritt 5

Hand holding a paper with a circular arrow, partially visible inside an oven (no text or symbols)

Schritt 6

Electrical warning diagram showing a plug, ON/OFF switch, and warning symbol with red arrows indicating direction

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Schritt 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Schritt 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Schritt 4

Illustration of a hand holding a small electrical component with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Schritt 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Schritt 6

Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Diagram showing a cooking step with a steaming oven and a hand cleaning the oven, accompanied by a label indicating H20.

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and a magnified inset showing the Stoffanger mechanism.

BIENVENIDO/A

Diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Technical line drawing of a multi-tiered storage unit with horizontal shelves (no text or symbols)

3D rendering of a pink rectangular tray placed inside an oven (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and a round pan (no text or symbols)

Illustration of a rectangular tray with a pink patterned lid and grid lines, placed inside an oven (no text or symbols)

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open shelf (no text or symbols)

Illustration of a medical procedure involving a mouse, a needle inserted into a container, and a syringe connected to a device (no text or symbols present)

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

REGISTRO RÁPIDO PARA EMPAREJAMIENTO

Paso 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Sara to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Paso 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Paso 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Paso 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

Paso 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Paso 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Paso 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

CONTROL REMOTO

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

ON PULSE EL CONTROL REMOTO

h0n

Diagram showing a circular device with icons for smart home, eco, and smart kitchen components, connected by a red arrow.

2:00

2:00*

Cooking 10H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein (ONE) Efficiency Protein (EPE) EDIT DETAILS →

Diagram showing a kitchen appliance with a hand cleaning a red cloth, labeled H220, next to a bottle and water bottle.

MAX °C 60 min

Simple line drawing of a stove with steam rising from the chimney, next to a cabinet (no text or symbols)

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

TIEMPO PREESTABLECIDO

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hidroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Limpieza catalítica

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAX °C 10-20 MIN

⚠ ◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀▶

Illustration of a kitchen oven with a hand cleaning a red cloth, emitting a bottle and water from a beaker (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, next to a bowl labeled H2O (no text or symbols on the main image)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. LIMPIEZA DE ACCESORIOS

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a water bottle labeled H₂O in a bowl, likely illustrating a chemical or chemical process.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. MANTENIMIENTO

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Paso 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Paso 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Paso 4

Hand holding a circular object inside an oven, no text or symbols visible

Paso 5

Line drawing of a hand holding a paper with a circular arrow, next to an open oven (no text or symbols)

Paso 6

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction

Electrical diagram showing a plug, warning symbol with a lightning bolt, and an ON/OFF switch panel with red arrows indicating direction.

Paso 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Paso 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Paso 4

Illustration of a hand inserting a small electronic component into a machine (no text or symbols visible)

Paso 5

Diagram of a staircase with an inset showing a wall-mounted device and a red arrow pointing to it (no text or symbols present)

Paso 6

Electrical warning symbol diagram showing a plug, ON/OFF warning sign, and grounding symbols with red arrows indicating direction.

Illustration showing a cooking step with a red warning sign and a hand cleaning the oven, accompanied by a chemical reaction diagram.

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a door mechanism and a 'Paragolpes' component.

en mm

ΚΑΛΩΣΗΡΘΑΤΕ

Diagram of an oven with numbered parts for identification

2.2. EEAPTHMATA

Line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

3D diagram of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round pan on a rack (no text or symbols)

Line drawing of a rectangular tray with red contents, placed inside an oven (no text or symbols)

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open shelf (no text or symbols)

Illustration of a medical procedure involving a mouse, pen, and needle inserted into a tray (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Learn ipsum dolor sit est Create the Care YOUR NEWS NEW What functions do smart appliances have? How to live sustainz home and reduce w.

Βήμα 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Βήμα 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Βήμα 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Βήμα 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Βήμα 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Βήμα 7

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

Diagram showing a circular device with icons for sensors, battery, and eco-friendly options, including a red arrow indicating rotation.

ON

Simple diagram with a gray circle, red curved arrows, and symbols (-, +, -) above, no readable text or labels.

OFF STK

THΛΕΧΕΙΡΙΣΜΟΣ

Diagram illustrating a circular device with icons for connectivity, safety, and eco-friendly features around it.

Diagram showing a circular device with icons for smart home, eco, and smart kitchen components, connected by a red arrow.

2:00*

2:00*

Cooking 10H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein (ONE) Efficiency Protein (EPE) EDIT DETAILS →

Diagram showing a kitchen appliance with a hand cleaning a red cloth, labeled H20, likely illustrating a cleaning or disinfection process.

MAX °C 60 min

Simple line drawing of a chimney emitting smoke next to an open door (no text or symbols)

Illustration of a cooking setup with a chicken and a syringe (no text or symbols)

-20°C

Simple diagram with a gray circle, a black dot, and red curved arrows indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Warning symbol with warning triangle and three thermometer icons, likely indicating a hazard or warning.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or process (no text or symbols present)

MAX °C 10-20 AETTA

Warning symbol diagram showing warning triangle, red triangle, and black circle with lettering

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle labeled H2O (no text or symbols on the main subject)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, next to a bowl labeled H2O (no text or symbols on the main image)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. ΚΑΘΑΡΙΣΜΟΣ ΕΞΑΡΤΗΜΑΤΩΝ

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, and a bottle of water nearby.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ΣΥΝΤΗΡΗΣΗ

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Βήμα 5

Βήμα 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Βήμα 6

Βήμα 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Βήμα 4

Hand holding a circular object inside an oven, no text or symbols visible

Line drawing of a hand holding a paper with a circular arrow, next to an open oven (no text or symbols)

Electrical hazard warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows

Electrical warning diagram showing a plug connected to an ON/OFF switch with a warning symbol and red arrows indicating direction.

Βήμα 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Βήμα 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Βήμα 4

Illustration of a hand holding a small electrical component with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Βήμα 5

Diagram of a staircase with an open electrical outlet and a magnified inset showing a red arrow pointing to the outlet (no text or symbols present)

Βήμα 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF indicators

Illustration showing a chemical reaction between an oven and a gasifier, with warning symbols and chemical labels.

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset view showing interior layout and electrical component insertion.

WELKOM

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT
2.2. ACCESSOIRES
2.3. BEDIENINGSPANEEEL
2.4. CONNECTIVITEIT

3. VOORDAT U BEGINT

3.1. INFORMATIE OM TE BEGINNEN
3.2. EERSTE GEBRUIK
3.3. VOORAFGAANDE REINIGING

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT
4.2. KOOKFUNCTIES
4.2.1. STANDAARDFUNCTIES
4.2.2. SPECIALE FUNCTIONS

ALGEMENE WAARSCHUWINGEN

INSTALLATIEWAARSCHUWINGEN

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT

Diagram of an oven with numbered components for identification

2.2. ACCESSOIRES

Line drawing of a two-tiered storage rack system with no text or symbols

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

STOP STOP

Illustration of a red rectangular tray inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round head, no text or symbols present

Illustration of a rectangular tray with a pink patterned lid and grid lines, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open shelf (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a needle inserted, no text or symbols present

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRATIE NIEUWE GEBRUIKER

hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SNELLE KOPPELING

Stap 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Sara to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Stap 2

Allow your location permission To enhance your experience, please allow location permission to hOn app In the next step. CONTINUE

Stap 3

- Selecteer ‘Oven’ in de apparaatcategorie.

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Stap 4

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Stap 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Stap 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Stap 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

Diagram illustrating a circular device with icons for connectivity, safety, and eco-friendly features around it.

Diagram of a circular device control panel with icons for signal, Wi-Fi, ECO, battery, and various function buttons.

2:00

2:00*

Cooking 10H LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein 2.0M Efficiency Protein (OFF) EDIT DETAILS →

3.1. INFORMATIE OM TE BEGINNEN

2:00m PYROLYSE

3.2. EERSTE GEBRUIK

Diagram showing a kitchen cleaning process with a hand cleaning a red cloth, water bath, and a bottle labeled H20.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN-/UITZETTEN

UIT Eco Smartwatch 20201 +

BEREIDINGSPROGRAMMA INSTELLEN

Illustration of a cooking setup with a pan, tool, and measuring probe (no text or symbols)

- - - - °C

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

VOORAF INGESTELDE TIJD

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Hand cleaning a kitchen appliance with a cloth (no text or symbols visible)

Katalytisch reinigen

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

MAY °C 10-20 MIN.

⚠ ◀ ▼ ◼

Diagram showing a kitchen oven with a red cloth, water droplets, and a bottle labeled H20, likely illustrating a cleaning or dust removal procedure.

Line drawing of a double door with hands operating it, showing interior opening and exterior shelf (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, next to a bowl labeled H2O (no text or symbols on the main image)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. SCHOONMAKEN VAN ACCESSOIRES

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, and a bottle of liquid nearby.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ONDERHOUD

VERVANGING VAN ONDERDELEN

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Stap 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Stap 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Stap 4

Hand holding a circular object inside an oven, with a red curved arrow indicating rotation (no text or symbols)

Stap 5

Line drawing of a hand holding a paper over an open oven with a red circular arrow indicating rotation (no text or symbols)

Stap 6

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating direction

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with warning symbol

Stap 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Stap 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Stap 4

Illustration of a hand holding a small electrical component with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Stap 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Stap 6

Electrical warning symbol diagram showing a plug, warning symbol with lightning, and ON/OFF indicators

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Isometric line drawing of a rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing the interior space and airway installation.

BEM-VINDO

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Technical line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

3D diagram of a red rectangular tray placed inside an oven (no text or symbols)

PARAR PARAR

Illustration of a red rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round pan (no text or symbols)

Line drawing of a rectangular tray with red patterned lid and white frame, no text or symbols present

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular tray with grid pattern inside, placed on an open shelf (no text or symbols)

Illustration of a medical procedure involving a mouse, needle, and syringe (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Sara to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Passo 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

COMO ALTERAR AS DEFINIÇÕES DE WIFI

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

CONTROLO REMOTO

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

ON PREMIR O CONTROLO REMOTO

hOn

Diagram showing a circular device with icons for smart home, eco-friendly devices, and smart kitchen components, connected by a red arrow.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 1:1 Proced (ONE) Efficiency Proced (OFF) EDIT DETAILS →

3. ANTES DE COMEÇAR

3.1. INFORMAÇÕES PARA COMEÇAR

PREMIR × 12

12:00

- • + ACERTAR A HORA

07:00 PREMIR

07:00

0749

PREMIR PARA CONFIRMAR

Diagram showing a kitchen cleaning process with a hand cleaning a red cloth, water bath, and a bottle labeled H20.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

Simple diagram with a gray circle, a black dot above it, and red curved arrows pointing inward (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

TEMPO DE PREDEFINIÇÃO

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hidroeasy

Warning symbol with warning triangle and three warning symbols: a thermometer, a red triangle, and a thermometer.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Limpeza catalítica

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

MAX °C 10-20 MIN

⚠ ~ ~ ~ ~ ~

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle nearby (no text or symbols)

Line drawing of a double door with two hands inserting a red cable into the opening (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a water bottle and labeled 'H2O' in a basin.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. LIMPEZA DOS ACESSÓRIOS

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a cloth, water being washed in a beaker labeled H2O, next to a bottle and cleaning device.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. MANUTENÇÃO

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Passo 5

Passo 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Passo 6

Passo 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Passo 4

Hand holding a circular object inside an oven, no text or symbols visible

Line drawing of a hand holding a paper over an open oven with a red circular arrow indicating rotation (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Passo 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Passo 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Passo 4

Illustration of a hand holding a small electrical component with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Passo 5

Diagram of a wall-mounted electrical outlet with an arrow pointing to it, no text or symbols present

Passo 6

Electrical warning diagram showing a plug, safety symbol, and ON/OFF switch with red arrows indicating direction

Illustration of two people working at a computer with a rising trend line (no text or symbols)

Fumo

!

Line drawing of a kitchen appliance with a red smoke trail above it (no text or symbols)

Illustration of a hand cleaning a kitchen oven with a red cloth and a BHA2O bottle nearby (no text or symbols)

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a door opening detail.

VITAJTE

Diagram of an oven with numbered components for identification

2.2. PRÍSLUŠENSTVO

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Illustration of a red rectangular tray inside an oven, with no text or symbols present.

Empty white rectangle with black border (no text or symbols)

STOP STOP

Illustration of a red rectangular tray inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round head, no text or symbols present

Illustration of a rectangular tray with a pink patterned lid and grid lines, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open tray (no text or symbols)

Illustration of a medical procedure involving a mouse, needle, and syringe (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols)

AKO KOMUNIKOVAŤ S APLIKÁCIOU

Available on the App Store GET IT ON Google Play

REGISTRÁCIA NOVÉHO POUŽÍVATEL'A

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

RÝCHLE PÁROVANIE

Krok 1

• Vyberte možnost' „Pridat' spotrebič“.

Hello USERNAME YOUR APPLIANCES ADD hOn Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Scan to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

• Povol'te lokalizáciu zariadenia.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Krok 3

• Vyberte rúru z kategórie spotrebičov.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

- Zapnite spotrebič. Ak už je zapnutý, vypnite ho a znova zapnite.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract circular icon with a blue 'Power' button surrounded by icons (no text or symbols)

OK. I DID IT

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Diagram showing a circular device with icons for sensors, battery, and eco-friendly options around it.

ON

Simple diagram with a large gray circle, a dot, and a curved arrow inside, no text or symbols present.

OFF STK

DIAL'KOVÉ OVLÁDANIE

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

On STLAČTE DIALKOVÝ OVLÁDAČ

h0n

Diagram showing a circular device with icons and labels including 'Eco', 'Smart', 'Smartbox', and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Pricet 500N EXiliary Pricet (OFF) EDIT DETAILS →

3. PRED ZAČATÍM

3.1. INFORMÁCIE PRED SPUSTENÍM

Illustration of a kitchen appliance with a hand cleaning a red cloth, next to a bottle and a bowl (no text or symbols)

MAX °C 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a window on the right (no text or symbols)

4. OBSLUHA SPOTREBIČA

4.1. FUNGOVANIE SPOTREBIČA

ZAPNUTIE/VYPNUTIE RÚRY

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

PREDNASTAVENÝ ČAS

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Warning symbol with warning triangle and three warning symbols: a thermometer, a red triangle, and a thermometer.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAY °C 10-20 MIN

⚠ ◀ ▼ ◼ ◀ ▼ ◼ ◀ ▼ ◼

Illustration of a kitchen oven with a hand cleaning a red cloth, emitting a bottle (no text or symbols)

Line drawing of hands opening a cabinet with an open door (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

1. ▲VAROVANIE: Vonkajšie sklo sa nedá vybrat'.

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' nearby.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of hands opening a small oven with lid open, showing interior space and base (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. ČISTENIE PRÍSLUŠENSTVA

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, next to a bottle.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ÚDRŽBA

VÝMENA KOMPONENTOV

Electrical hazard symbol and circuit diagram showing a plug, warning sign, and OFF button with red arrows indicating direction

Krok 5

Krok 2

Line drawing of a hand inserting a device into an oven with a red checkmark (no text or symbols)

Krok 6

Krok 3

Hand holding a circular object inside an oven, with a red curved arrow pointing downward (no text or symbols)

Krok 4

Hand holding a circular object with a red '2' mark inside an oven (no text or symbols on the object)

Line drawing of a hand holding a circular object over an open oven with a red arrow indicating rotation (no text or symbols)

Electrical hazard warning diagram showing a plug, ON/OFF symbol, and safety warning symbol with red arrows

Safety warning diagram showing a plug with red arrows indicating current and voltage, a warning symbol with a lightning bolt, and an OFF button.

Krok 5

Krok 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Krok 6

Krok 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Krok 4

Illustration of a hand holding an electrical outlet with a red arrow pointing to it, next to a shelf (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Illustration showing a cooking step with a red warning sign and a hand cleaning the oven, accompanied by a chemical reaction diagram.

8. OCHRANA ŽIVOTNÉHO PROSTREDIA A LIKVIDÁCIA SPOTREBIČA

8.1. LIKVIDÁCIA SPOTREBIČA

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled parts and an inset showing a close-up of the interior panel.

WITAMY

Diagram of an oven with numbered components for identification

2.2. AKCESORIA

Line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

STOP STOP

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round head, no text or symbols present

Line drawing of a rectangular tray with pink liquid and red pattern, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular tray with a grid pattern inside, placed on a white tray (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe inserted (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

SZYBKA REJESTRACJA PAROWANIA

Krok 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lorem ipsum dolor sit est Create to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Krok 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Krok 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

ZDALNE STEROWANIE

Diagram showing a circular device with icons for connectivity, battery, sensors, and eco-friendly options, including a red curved arrow indicating rotation.

ON NACIŚNIJ ZDALNE STEROWANIE

h0n

Diagram showing a circular device with icons and labels including 'Eco', 'Smart', 'Smartbox', and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Pricet 500% EXiliary Pricet (OFF) EDIT DETAILS →

3. PRZED URUCHOMIENIEM

3.1. INFORMACJE NA START

Illustration of a kitchen sink with a hand cleaning the interior, next to a bottle and a dish (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. DZIAŁANIE PRODUKTU

4.1. JAK DZIAŁA PRODUKT

WŁĄCZANIE/WYŁĄCZANIE PIEKARNIKA

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

USTAW CZAS

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or process (no text or symbols present)

MAX °C 10-20 MIN

Warning symbol diagram showing warning triangle, thermometer, and red triangle with magnified indicators

Illustration of a kitchen oven with a hand cleaning a red cloth, emitting a spray bottle and labeled H2O (no text or symbols on main subject)

Line drawing of hands opening a small oven with a red tool, no text or symbols present

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' nearby.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. CZYSZCZENIE AKCESORIÓW

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, next to a bottle.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. KONSERWACJA

WYMIANA KOMPONENTÓW

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Krok 5

Krok 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Krok 6

Krok 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Krok 4

Hand holding a circular object inside an oven, no text or symbols visible

Line drawing of a hand holding a paper with a circular arrow, next to an open oven (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Krok 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Krok 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Krok 4

Illustration of a hand holding a small electrical outlet with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Krok 5

Diagram of a wall-mounted electrical switch with a magnified inset showing the switch's left side (no text or symbols present)

Krok 6

Electrical warning diagram showing a plug, safety symbol, and ON/OFF switch with red arrows indicating direction

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and a magnified inset showing internal structure details.

VÍTEJTE

Diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage rack or shelf structure with no text or symbols

3D diagram of a pink rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage unit (no text or symbols)

Technical line drawing of a mechanical assembly with a bowl, tray, and circular component (no text or symbols)

Illustration of a rectangular tray with a pink patterned lid and grid lines, placed inside a rack (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Line drawing of a rectangular appliance with a red lid and grid pattern inside, placed on a tray (no text or symbols)

Illustration of a medical procedure involving a mouse, pen, and probe (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRACE NOVÉHO UŽIVATELE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO Do you already have a thousand passwords? Register with your social accounts and log in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

RYCHLÉ PÁROVÁNÍ S REGISTRACÍ

Krok 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Learn ipsum dolor sit est Create the Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Krok 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract circular icon with a blue 'Power' button surrounded by icons (no text or symbols)

OK. I DID IT

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Kroky 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

DÁLKOVÉ OVLÁDÁNÍ

Diagram illustrating smart home control icons with labels like Wi-Fi, eco, and smart lock symbols

ON STISKNĚTE DÁLKOVÉ OVLÁDÁNÍ

hOn

Diagram showing a circular control knob with icons for eco-friendly and food-related features, including labels like 'Eco' and 'Food'.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 800000 Protein (40%) EDIT DETAILS →

3. NEŽ ZAČNETE

3.1. INFORMACE KE SPUŠTĚNÍ

2:00m PYROLÝZA

3.2. PRVNÍ POUŽITÍ

Diagram showing a kitchen appliance with a hand cleaning a red cloth, next to a water bottle labeled H20 and a small bowl.

MAX °C 60 min

Simple line drawing of a cabinet with smoke rising and a door open (no text or symbols)

4. OVLÁDÁNÍ SPOTŘEBIČE

4.1. JAK TENTO VÝROBEK FUNGUJE

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

NASTAVTE ČAS

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Warning symbol with warning triangle and three warning symbols: a thermometer, a red triangle, and a thermometer.

Illustration of a hand cleaning a clean appliance into a microwave oven (no text or symbols)

Katalytické čištění

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

MAX °C 10-20 MIN

!

# #

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle nearby (no text or symbols)

Line drawing of a double door with two hands operating it, showing internal structure (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a water bottle and labeled 'H2O' in a basin.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

Illustration showing a hand cleaning a rack with a water bottle labeled H₂O in a bowl, likely illustrating a chemical or chemical process.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ÚDRŽBA

VÝMĚNA SOUČÁSTÍ

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Krok 5

Krok 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Krok 6

Krok 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Krok 4

Hand holding a circular object inside an oven, with a red curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a paper with a circular arrow, next to an open oven (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Krok 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Krok 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Krok 4

Illustration of a hand holding an electrical outlet with a red arrow pointing to it, next to a shelf (no text or symbols)

Krok 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Krok 6

Electrical warning symbol diagram showing a plug, safety warning sign, and ON/OFF switch with red arrows indicating direction

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of an oven with numbered components for identification

2.2. ACCESORII

Technical line drawing of a two-tiered storage unit with horizontal shelves (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage unit (no text or symbols)

Technical line drawing of a room sink with a bowl, a sphere, and a red platform (no text or symbols)

Illustration of a rectangular tray with a pink patterned lid and grid lines, placed inside a rack (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular appliance with a grid pattern inside, placed on an open tray (no text or symbols)

Illustration of a medical procedure involving a mouse, a needle inserted into a container, and a syringe connected to a device (no text or symbols present)

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

ÎNREGISTRAREA UNUI NOU UTILIZATOR

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

ÎNREGISTRAREA RAPIDĂ A ASOCIERILOR

Pasul 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Sara to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Pasul 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Pasul 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Pasul 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract circular icon with a blue 'Power' button surrounded by icons (no text or symbols)

OK. I DID IT

Pasul 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Pasul 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting...

New appliance

Long appliance name to...

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Stay close to your appliance in order to correctly capture the signal.

Pasul 7

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

CONTROL LA DISTANȚĂ

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

ON APĂSATI CONTROL LA DISTANȚĂ

hOn

Diagram of a circular device control panel with icons for signal, Wi-Fi, ECO, battery, and various function buttons.

2:00

2:00*

Cooking SH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Pricetal DIME Efficiency Pricetal (OFF) EDIT DETAILS →

3.1. INFORMATII PENTRU A ÎNCEPE

2:00m PIROLIZĂ

3.2. PRIMA UTILIZARE

Diagram showing a kitchen appliance with a hand cleaning a red cloth, next to a water bottle labeled H20 and a small bowl.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

SETAREA FUNCTIEI AMÂNARE PORNIRE

S 20:00

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

TIMP PRESET

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Curățare catalitică

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

MAX °C 10-20 MIN

Warning symbol with exclamation mark and three thermometer icons, likely indicating a warning or hazard.

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle nearby (no text or symbols)

Line drawing of a double door with two hands inserting a red cable into the opening (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a water bottle and labeled 'H2O' in a basin.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of hands opening a small oven with lid open, showing interior space and base (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. CURĂȚAREA ACCESORIILOR

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, and a bottle of water nearby.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ÎNTRETINEREA

ÎNLOCUIREA COMPONENTELOR

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Pasul 5

Pasul 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Pasul 6

Pasul 3

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

Pasul 4

Hand holding a circular object inside an oven, no text or symbols visible

Hand holding a paper with a circular arrow, partially visible inside an oven (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug with fuse and a hazard symbol, alongside an electrical switch labeled 'OFF' with red arrows.

Pasul 2

Illustration of a hand using a tool to clean or store items, with no visible text or symbols

Pasul 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Pasul 4

Illustration of a hand holding a small electrical component with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Pasul 5

Diagram of a wall-mounted electrical switch with an arrow pointing to it, no text or symbols present

Pasul 6

Electrical warning symbol diagram showing a plug, warning symbol with lightning, and ON/OFF switch

Illustration showing a cooking step with a red warning sign and a hand cleaning the oven, accompanied by a chemical reaction diagram.

8. PROTECTIA MEDIULUI ŞI ELIMINAREA PRODUSULUI

8.1. ELIMINAREA APARATULUI

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D box with lid and side panel (no text or symbols)

Diagram of an oven with numbered components for identification

2.2. TARTOZÉKOK

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Illustration of a red rectangular tray inside an oven, with no text or symbols present.

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Technical line drawing of a mechanical assembly with a bowl, plate, and cylinder (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Illustration of a pink rectangular appliance placed inside an oven, with no visible text or symbols.

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe, no text or symbols present.

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

ÚJ FELHASZNÁLÓ REGISZTRÁLÁSA

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

GYORS PÁROSÍTÁS

1. lépés

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lorem ipsum dolor sit est Create to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. lépés

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

3. lépés

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. lépés

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

5. lépés

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. lépés

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. lépés

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

Simple diagram with a gray circle, a black dot above it, and red curved arrows pointing inward (no text or symbols)

OFF 5K

TÁVVEZÉRLÉS

Diagram illustrating a circular device with icons for connectivity, safety, and eco-friendly features around it.

ON NYOMJA MEG A TÁVVE- ZÉRLÉS GOMBOT

hOn

NYOMJA MEG A TÁVVE- ZÉRLÉS GOMBOT 200

2:00

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 80000 Protein (40%) EDIT DETAILS →

3. MIELÖTT ELKEZDENÉ

3.1. KEZDÉSHEZ SZÜKSÉGES INFORMÁCIÓK

NYOMJA MEG

12:00

- • + IDŐ BEÁLLÍTÁSA

07:00 NYOMJA MEG

07:00

07:49

NYOMJA MEG A BEÁLLÍTOTT

NYOMJA MEG A BEÁLLÍTOTT

NYOMJA MEG A BEÁLLÍTOTT

NYOMJA MEG A BEÁLLÍTOTT

Diagram showing a kitchen cleaning process with a hand cleaning a red cloth, water bath, and a bottle labeled H20.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. A TERMÉK MÜKÖDÉSE

4.1. A TERMÉK MÜKÖDÉSE

A SÜTŐ BE- ÉS KIKAPCSOLÁSA

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

ELÓRE BEALLÍTOTT IDŐ

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Warning symbol with exclamation mark and three warning symbols: thermometer, red triangle, and bulb

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAY °C 10-20 PERC

⚠ ◀ ▼ ▼

Illustration of a kitchen oven with a hand cleaning a red cloth, emitting a bottle (no text or symbols)

Line drawing of hands installing or opening a cabinet (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, showing a steaming dish labeled 'H2O' (no text or symbols on the main subject)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands inserting a pan into the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, and a bottle of water nearby.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. KARBANTARTÁS

ALKATRÉSZEK CSERÉJE

Safety warning diagram showing a plug with fuse and a circuit breaker with OFF indicator, alongside a warning symbol.

1. lépés

2. lépés


Line drawing of a hand inserting a device into an oven with a red checkmark (no text or symbols)

1. lépés

2. lépés


Hand holding a circular object inside an oven, with a red curved arrow indicating rotation (no text or symbols)

1. lépés


Hand holding a circular object with a red '2' mark inside an oven (no text or symbols on the object)

Line drawing of a hand holding a circular object over an open oven, with a red curved arrow indicating rotation (no text or symbols)

Electrical hazard warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows

Safety warning diagram showing a plug, warning symbol with lightning, and OFF button

1. lépés


Illustration of a hand using a tool to clean or store items, with a red arrow indicating the process (no text or symbols present)

1. lépés


Illustration of a hand inserting a component into a machine (no text or symbols visible)

1. lépés


Illustration of a hand holding a wall-mounted electrical component, with a red arrow indicating direction (no text or symbols present)

1. lépés


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. lépés


Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Diagram showing a cooking process with a steaming oven and a water bottle labeled H20, accompanied by warning symbols.

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D box with lid and side panel (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset close-up showing internal structure and mounting details.

DOBRODOŠLI

Diagram of an oven with numbered components for identification

2.2. DODATKI

Stranske rešetke (samo, če so prisotne\*)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Illustration of a red rectangular tray placed inside a rack, with no text or symbols present.

Empty white rectangle with black border (no text or symbols)

STOP STOP

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round head, no text or symbols present

Line drawing of a rectangular tray with a pink patterned lid, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open shelf (no text or symbols)

Illustration of a medical procedure involving a rodent and needle inserted into a patient's abdomen (no text or symbols present)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVEGA UPORABNIKA

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

VPIS S HITRO SEZNANITVIJO

1. korak

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lorem ipsum dolor sit est Create to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. korak

• Dajte dovoljenje za lokacijo.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

3. korak

- Izberite pečico v kategorijah aparatov.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. korak

- Vklopite aparat; će je že vklopljen, ga izklopite in ponovno vklopite.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

5. korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2 korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

KAKO SPREMENITI NASTAVITVE WIFI

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

DALJINSKO UPRAVLJANJE

Diagram illustrating eco-friendly environmental controls with icons for sensors, clean water, and environmental protection.

ON PRITISNITE DALJINSKO UPRAVLJANJE

h0n

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 800000 Protein (40%) EDIT DETAILS →

3. PRED ZAČETKOM

3.1. INFORMACIJE ZA ZAČETEK

Diagram showing a kitchen appliance with a hand cleaning a red cloth, next to a water bottle labeled H20 and a small bowl.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4.1. KAKO IZDELEK DELUJE

VKLOP/IZKLOP PEČICE

Za vklop pečice zavrtite funkcijski gumb (v smeri urinega kazalca/v nasprotni smeri urinega kazalca) in izberite program kuhanja. Če jo želite izklopiti, nastavite funkcijski gumb v položaj »0«.

VKLOP Eco

IZKLOP Eco 20201 + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

NASTAVITE PROGRAM KUHANJA

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating airflow or cooling direction (no text or symbols)

PREDNASTAVLJENI ČAS

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Čiščenje s katalizo

Line drawing of an oven with a red arrow indicating a component or process (no text or symbols present)

MAX °C 10-20 MIN

Warning symbol diagram showing warning triangle, red triangle, and thermometer with Chinese characters

Illustration of a kitchen oven with a hand cleaning a red cloth and a bottle labeled H2O (no text or symbols on the main subject)

Line drawing of a double door with two hands inserting a red cable into the opening (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

1. Vrata postavite pod kotom 45°. Hkrati pritisnite oba gumba na obeh straneh stranskih ramen vrat in jih povlecite proti sebi, da odstranite pokrov zgornjih stekel vrat.

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

1. Očistite steklo z mehko krpo in ustreznim čistilnim sredstvom.

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, showing a steaming dish labeled 'H2O' (no text or symbols on the main subject)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. ČIŠČENJE DODATKOV

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H₂O, next to a bottle.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. VZDRŽEVANJE

ZAMENJAVA DELOV

Diagram showing electrical grounding symbols: a plug, warning symbol with lightning, and an OFF button with red arrows indicating current direction.

1. korak

2. korak


Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

1. korak

2. korak


Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

1. korak


Hand holding a circular object inside an oven, no text or symbols visible

Hand holding a paper with a circular arrow, next to an open oven (no text or symbols visible)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction

Safety warning diagram showing a plug with red arrows indicating current and voltage, a warning symbol with a lightning bolt, and an OFF button.

1. korak


Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

1. korak


Illustration of a hand inserting a small component into a machine (no text or symbols visible)

1. korak


Illustration of a hand inserting a plug into a wall-mounted electrical outlet (no text or symbols)

1. korak


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. korak


Diagram showing electrical grounding symbols including a plug, warning symbol with lightning, and ON/OFF indicators

Isometric line drawing of a rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset close-up showing internal structure and mounting details.

DOBRO DOŠLI

Technical diagram of an oven with numbered components for identification

1. Kontrolni panel
2. Brojevi pozicija polica
3. Rešetke
4. Plehovi
5. Poklopac ventilatora
6. Vrata rerne
7. Bočne žičane rešetke (ako su deo opreme: samo za ravnu šupljinu)
8. Serijski broj i QR kod

Empty white rectangle with black border (no text or symbols)

Line drawing of a two-tiered storage rack system (no text or symbols)

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

i NAPOMENA: 6 ili 7 nivoa u zavisnosti od modela.

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Pleh za pečenje je idealan za postizanje ravnomernog potamnjivanja sa donje strane, što ga čini savršenim za kolače i peciva zbog svog plitkog, ravnog dizajna. Pored toga, ako se postavi ispod rešetke za kuvanje može pomoći u sakupljanju curenja i sprečava prljanje pećnice.

Metalna rešetka

STOP STOP

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Dublji pleh je idealan za recepte prema kojima se dodaju tečnosti ili slojevi, kao što su duveč ili pečenja. Njegova dubina je posebno dizajnirana da osigura željenu ujednačenost hrane pripremljene u njemu.

Teleskopske vodice (samo ako su deo opreme*)

Technical line drawing of a mechanical assembly with a bowl, tray, and circular component (no text or symbols)

Illustration of a rectangular tray with a pink patterned lid and grid lines, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Ražanj funkcioniše zajedno sa gornjim grejnim elementom, a okretanjem se hrana može pripremati ujednačeno. Najbolje se koristi za hranu srednje veličine. Idealno za ponovno otkrivanje ukusa tradicionalnih pečenja.

Šarke za lagano zatvaranje/otvaranje (samo ako su deo opreme*)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular appliance with a grid pattern inside, placed on an open tray (no text or symbols)

Konveksni oblik je pogodan za pravljenje roštilja u pećnici na visokoj temperaturi (220°), omogućavajući rezultat roštiljanja čak i kod kuće sa malo dima zahvaljujući dejstvu ceđenja masti na dno posude.

Heat Feel senzor (samo ako je deo opreme*)

Illustration of a medical procedure involving a mouse, needle, and probe (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Airfry pleh obezbeđuje da vruć vazduh ravnomerno i trodimenzionalno dođe do hrane, čime se dobija hrskavija spoljašnjost uz održavanje mekoće unutra. Da biste sakupljali sokove i mrvice, stavite ga na vrh pleha za pečenje.

2.3. KONTROLNI PANEL

1 Eco - + 2 220°C 3 4 5 6 - +7

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVOG KORISNIKA

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

PRIJAVLJIVANJE ZA BRZO UPARIVANJE

1. korak

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Learn ipsum dolor sit est Create the Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. korak

Allow your location permission To enhance your experience, please allow location permission to hOn app In the next step. CONTINUE

3. korak

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. korak

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

5. korak

- Nakon uključivanja, aplikacija hOn počinje da traži vaš kućni uređaj.

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

KAKO DA PROMENITE PODEŠAVANJA WI-FI MREŽE

Kada se uređaj registruje, korisnik može da promeni podešavanja Wi-Fi mreže između:

• Wi-Fi ON: Moguće je pratiti stanje pećnice samo pomoću aplikacije.
• Wi-Fi OFF: Pećnica nije povezana, ali je i dalje registrovana sa sačuvanim mrežnim akreditivima.
• Wi-Fi RESET: Veza se resetuje i registracija može ponovo da se izvrši.

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

DALJINSKO UPRAVLJANJE

Diagram illustrating eco-friendly environmental controls with icons for sensors, clean water, and environmental protection.

ON PRITISNITE DALJINSKO UPRAVLJANJE

hOn

Diagram showing a circular device with icons and labels including 'Eco', 'Smart', 'Smartbox', and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Pricet 500N EXiliary Pricet (OFF) EDIT DETAILS →

3.1. INFORMACIJE VEZANE ZA POČETAK

Kada prvi put uključite pećnicu, možda ćete primetiti dim. Ne brinite, pre upotrebe pećnice samo sačekajte da se dim raščisti.

Illustration of a kitchen appliance with a hand cleaning a red cloth, next to a bottle and water bottle (no text or symbols)

MAX °C 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a window on the right (no text or symbols)

4.1. KAKO PROIZVOD RADI

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Da biste uključili pećnicu, okrenite funkcijsko dugme (u smeru kazaljke na satu/suprotno od kazaljke na satu) i izaberite program pečenja. Da biste je ISKLJUČILI, podesite funkcijsko dugme u položaj „0“.

UKLJUČENO Eco

ISKLIJUČENO Eco

PODESITE PROGRAM KUVANJA

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Sonda se može koristiti sa ručnim funkcijama (konvekcija, konvekcija + ventilator, roštilj, Super grill, gratiniranje i više nivoa), sa KATEGORIJAMA KUVANJA HRANE (meso, riba i povrće) i Gentle cooking.

Kategorija hrane	Predložena T °C sredine	Predloženo pozicioniranje
Pečena govedina	45 °C	Dijagonalno u najdebljem delu.Za namirnice cilindričnog oblika (kao što je goveđe pečenje),postavite vrh što bliže geometrijskom centru
Pečeno meso	55 °C / 60 °C / 65 °C
Živinsko meso	83-85 °C	U najdeblji deo grudi
Riba (cela/odresci)	65 °C	Dijagonalno u najdebljem delu
Hleb/musaka	90 °C	Blizu geometrijskog centra hrane

5.1. OPŠTA TABELA KUVANJA

Kategorija	Recept	Br. nivoa	Program kuvanja	T °C	Predgrevanje	Pribor za kuvanje	Položaj police	Vreme kuvanja nakon predgrevanja* (min)
Slatka peciva	Sitni kolači/ mafini	1	Konveksni višeslojni	+175 °C~ +160 °C		Pleh za pečenje Pleh za pečenje	L3 L4	20-30 30-40
		2	Više nivoa	150 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Plehovi za pečenje	L2+L4+L6	40-50
	Vazdušasti kolači (26 cm ∅)	1	Konvekcija	170 °C		Metalna rešetka + kalup za kolače	L2	30-40
			Više nivoa	150 °C	Da	Metalna rešetka + kalup za kolače	L4	40-50
		2	Više nivoa	150 °C		Metalne rešetke + kalup za kolače	L1+L4	50-60
	Keksi/kolačići	1	Konveksni višeslojni	+150 °C~ +150 °C		Pleh za pečenje Pleh za pečenje	L3 L4	25-30 30-40
		2	Više nivoa	140 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Plehovi za pečenje	L2+L4+L6	35-40
	Kroketi	1	Konvekcija	190 °C		Pleh za pečenje	L4	25-35
		2	Više nivoa	170 °C		Pleh za pečenje	L3	25-35
	Jorkširski puding	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	20-30
	Puslice	1	Više nivoa	90 °C	Da	Pleh za pečenje		90-160
	Makaronsi	1	Konvekcija	150 °C	Da	Pleh za pečenje	L3	15-20
	Pita od jabuka	1	Konvekcija	185 °C	Da	Metalna rešetka + kalup za kolače	L2	60-70
		1	Više nivoa	170 °C	Da	Metalna rešetka + kalup za kolače	L4	65-75
	Tart tatin	1	Konvekcija	170 °C	Da	Metalna rešetka + kalup za kolače	L2	40-60
	Čokoladni sufle	1	Konvekcija	200 °C	Da	Pleh za pečenje + kalupi	L3	10-15
	Čizkejk	1	Konvekcija	150 °C	Da	Metalna rešetka + kalup za kolače	L2	50-65
	Smrznuti kroasani	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	20-25
		2	Konvekcija	180 °C		Plehovi za pečenje	L2+L5	25-35
		3	Više nivoa	160 °C		Plehovi za pečenje	L2+L4+L6	30-40
	Štrudla, smrznuta	1	Konvekcija	210 °C	Da	Pleh za pečenje	L3	30-45
Hlebi lepinja	Tost hleb	1	Supergrill	5	Ne	Metalna rešetka	L6	4-6
	Fokača	1	Konvekcija	200 °C	Da	Pleh za pečenje	L2 ili L3	25-35
	Hleb, ceo	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	35-50
Slane pite i musake	Slani kolači / kiševi (26 cm ∅)	1	Konvekcija	200 °C	Da	Metalna rešetka + Pleh za kiš	L1 ili L2	30-50
		2	Više nivoa	180 °C	Da	Metalna rešetka + Pleh za kiš	L1+L4	50-70
	Sufle od sira	1	Konvekcija	200 °C	Da	Pleh za pečenje + kalupi	L3	20-35
	Lazanje, sveže	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	40-60
	Lazanje, smrznute	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Kaneloni, smrznuti	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	45-55
	Pečena testenina	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	20-30
Pica	Pica, sveža (pleh)	1	Konvekcija	250 °C	Da	Pleh za pečenje	L2 ili L3	15-20
	Pica, sveža (pleh)	1	Pica	250 °C	Ne	Pleh za pečenje	L2 ili L3	18-25
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	25-35
	Pica, sveža (okrugla)	1	Konvekcija	250 °C	Da	Pleh za pečenje	L2 ili L3	8-10
	Pica, sveža (okrugla)	1	Pica	300 °C	Ne	Pleh za pečenje	L2 ili L3	15-20
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	30-40
	Pica, smrznuta (tanka kora)	1	Konvekcija	220 °C		Metalna rešetka	L3	10-15
		2	Više nivoa	200 °C	Da	Metalna rešetka	L2+L5	15-25
		3	Više nivoa	180 °C		Metalna rešetka	L2+L4+L6
	Pica, smrznuta (tanka kora)	1	Pica	200 °C	Ne	Metalna rešetka	L2	10-15
Meso i živina	Pečeno celo pile (1-1,2 kg)	1	Gratiniranje	220 °C	Da	Metalna rešetka/ L4 Postavite pleh za pečenje na L1 sa 150 ml vode	L4	40-60
	Pileći karabatak	1	AirFry**	220 °C	Ne	Air fry pleh**	L4	30-50
	Pečena patka	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
Meso i živina	Petao	1	Gratiniranje	220 °C	Da	Metalna rešetka Postavite pleh za pečenje na L1	L4	20-40
	Pečena ćurka	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Svinjska rebra (1000-1200g)	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	80-100
	Kobasice	1	Supergrill	4	Da	Metalna rešetka	L5	40-50
	Goveđi file (1000-1500g)	1	Gentle cooking**	60 °C	Ne	Metalna rešetka + posuda za pečenje	L3	60-80
	Pečena govedina (500g)	1	Gratiniranje	220 °C	Da	Pleh za pečenje	L3	20-40
	Mesna vekna (1000-1500g)	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	40-50
	Pečena piletina sa krompirom	1	Gratiniranje	200 °C	Da	Dublji pleh	L4	45-60
Riba i morski plodovi	Morski plodovi sa roštilja	1	Supergrill	4	Ne	Metalna rešetka	L5	15-30
	Smrznuti riblji štapići	1	Airfry**	200 °C	Ne	Air fry pleh**	L4	20-25
	Pečena riba	1	ECO	200 °C	Ne	Metalna rešetka Postavite pleh za pečenje na L1	L3	40-60
Povrće	Gratinirano povrće	1	ECO	200 °C	Ne	Metalna rešetka + posuda za pečenje	L3	80-90
	Zamrznuti pomfrit (300-500g)	1	Airfry**	220 °C	Ne	Air fry pleh**	L4	18-25
	Gratinirani krompir	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	15-25
	Pečeni krompir	1	Konvekcija	200 °C	Da	Pleh za pečenje	L4	30-50

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

UNAPRED PODEŠENO VREME

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Funkcija Hydroeasy je dizajnirana da se bez napora uhvati u koštac sa laganom zaprljanošću i pruži brzo i ekološki prihvatljivo rešenje za čišćenje unutrašnjosti pećnice pomoću snage pare.

Kako funkcioniše:

1. Sipajte 100 ml vode u donji utisnuti deo pećnice.
2. Uključite dugme ^™ . Ako je potrebno, okrenite kontrolu brojčanika da biste podesili program Hydro Clean. Funkcija će raditi tokom unapred podešenog vremena.
3. Na kraju postupka čišćenja, pustite pećnicu da se ohladi.
4. Kada se uređaj ohladi, očistite unutrašnje površine pećnice krpom.
5. ⚠ UPOZORENJE: Proverite da li je uređaj ohlađen pre nego što ga dodirnete. Vodite računa o svim vrućim površinama jer postoji rizik od opekotina. Koristite destilovanu ili pijaću vodu.

H2O 100 ml

UNAPRED PODEŠENO VREME

!

# #

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Katalitičko čišćenje

Katalitički paneli oblažu unutrašnjost pećnice i pružaju vam luksuz da se nikada ne borite sa prljavom pećnicom.

Paneli su obloženi specijalizovanim emajlom koji se može pohvaliti mikroporoznom strukturom koja dobro apsorbuje mast koja prska.

Katalitičkom hemijskom reakcijom oni efikasno pretvaraju apsorbovanu mast u gasovite elemente kada su izloženi visokim temperaturama.

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAX °C 10-20 MIN

Warning symbol diagram showing warning triangle, red triangle, and thermometer icons

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle labeled H2O (no text or symbols on the main subject)

6.2.2. SPOLJAŠNJOST PEĆNICE: uklanjanje i čišćenje staklenih vrata

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

1. Postavite vrata na 45°. Istovremeno pritisnite dva dugmeta sa obe strane bočnih strana vrata i povucite prema sebi da biste uklonili poklopac gornjih stakala.

45° 1 2

1. Veoma pažljivo uklonite staklo pećnice, počevši od unutrašnjeg stakla. Tokom postupka, čvrsto držite staklo obema rukama i stavite ga na mekanu ravnu površinu (npr. na tkaninu).

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

1. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, showing a steaming dish labeled 'H2O' (no text or symbols on the main subject)

1. Umetnite staklene ploče, vodeći računa da oznaka „Low-E“ bude ispravno čitljiva i postavljena na donjoj levoj strani vrata, u blizini leve šarke. Na taj način će štampana etiketa na prvom staklu ostati na unutrašnjoj strani vrata.

LOW-E

1. Ponovo pričvrstite poklopac vrata gornjeg stakla tako što ćete ga gurati prema unutra dok ne čujete klik dva bočna dugmeta.

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

1. Zatim vratite vrata na 90° i okrenite jezičke za zaključavanje šarki prema unutrašnjosti pećnice.

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. ČIŠĆENJE DODATNE OPREME

Obavezno temeljno očistite dodatnu opremu nakon svake upotrebe i osušite je peškirom. Za tvrdokorne naslage, natopite dodatnu opremu u mešavini vode i sapuna oko 30 minuta pre nego što je ponovo operete.

ČIŠĆENJE BOČNIH NOSAČA:

- Model sa 6 nivoa

1. Uklonite bočne nosače povlačenjem u pravcu strelica.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.
3. Nakon procesa čišćenja, postavite žičane nosače obrnutim redosledom.

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, and a bottle of liquid nearby.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ODRŽAVANJE

ZAMENA KOMPONENTI

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with warning symbol

1. korak

2. korak


Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

1. korak

2. korak


Hand holding a circular object inside an oven, with a red curved line and number 3 visible (no text or symbols on the object itself)

1. korak


Hand holding a circular object inside an oven, no text or symbols visible

Hand holding a paper with a circular arrow, partially visible inside an oven (no text or symbols)

Electrical diagram showing a plug, warning symbol with lightning, and circuit breaker with ON/OFF indicators

Safety warning diagram showing a plug with fuse and warning symbol, alongside an electrical switch labeled 'OFF' with red arrows.

1. korak


Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

1. korak


Illustration of a hand inserting a small component into a machine (no text or symbols visible)

1. korak


Illustration of a hand holding a wall-mounted electrical component, with a red arrow indicating direction (no text or symbols present)

1. korak


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. korak


Electrical warning diagram showing a plug, ON/OFF warning symbol, and grounding symbols with red arrows indicating direction

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Isometric line drawing of a rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a door mechanism and a bracket.

SVEIKI

Diagram of an oven with numbered components for identification

2.2. PRIEDAI

Line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage cabinet (no text or symbols)

Technical line drawing of a room sink with a bowl, wall-mounted platform, and circular object (no text or symbols)

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present

Illustration of a pink rectangular appliance placed inside an oven rack (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe inserted (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

NAUJO NAUDOTOJO REGISTRACIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SPARČIOJO SUSIEJIMO REGISTRACIJA

1 veiksmas

Hello USERNAME YOUR APPLIANCES ADD hOn Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Scan to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2 veiksmas

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

3 veiksmas

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4 veiksmas

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

5 veiksmas

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

6.1-6.2 veiksmai

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting...

New appliance

Long appliance name to...

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Stay close to your appliance in order to correctly capture the signal.

7 veiksmas

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

ON

Simple diagram with a gray circle, a black dot above it, and red curved arrows pointing inward (no text or symbols)

OFF 5K

NUOTOLINIO VALDYMO PULTELIS

Diagram illustrating eco-friendly environmental controls with icons for sensors, clean water, and environmental protection.

ON PASPAUSKITE NUOTOLINIO VALDYMO PULTEL

h0n

Cooking 10H LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein LON Efficiency Protein (FF) EDIT DETAILS →

3. PRIEŠ PALEIDŽIANT

3.1. INFORMACIJA PRADEDANT

Illustration of a kitchen appliance with a hand cleaning a red cloth, next to a bottle and water bottle (no text or symbols)

MAX °C 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a window on the right (no text or symbols)

4.1. KAIP GAMINYS VEIKIA

ORKAITĖS IJUNGIMAS / IŠJUNGIMAS

iŠJUNGTA Eco

KAIP NUSTATYTI MAISTO RUOŠOS PROGRAMA

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

IŠ ANKSTO NUSTATYKITE LAIKA

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

„Hydroeasy“

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAX °C 10-20 MIN.

Warning symbol with warning triangle and three thermometer icons, likely indicating a hazard or alert scenario.

Line drawing of a kitchen oven with a hand cleaning the interior and a bottle labeled H20 nearby (no text or symbols on main subject)

Line drawing of a double door with two hands inserting a red cable into the opening (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a water bottle and a labeled dish containing H2O.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. PRIEDU VALYMAS

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a red cloth and a bottle labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. PRIEŽIŪRA

KOMPONENTŲ KEITIMAS

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with warning symbol

2 veiksmas

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

3 veiksmas

Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

4 veiksmas

Hand holding a circular object inside an oven, with a red curved arrow indicating rotation (no text or symbols)

5 veiksmas

Line drawing of a hand holding a paper with a circular arrow, next to an open oven (no text or symbols)

6 veiksmas

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating direction

Safety warning diagram showing a plug with fuse and warning symbol indicating 'OFF' status

2 veiksmas

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

3 veiksmas

Illustration of a hand inserting a component into a machine (no text or symbols visible)

4 veiksmas

Illustration of a hand holding an electrical outlet with a red arrow pointing to it, next to a shelf (no text or symbols)

5 veiksmas

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

6 veiksmas

Electrical warning symbol diagram showing a plug, safety warning sign, and ON/OFF switch with red arrows indicating direction

Illustration of a kitchen appliance with a red smoke trail above it (no text or symbols)

Illustration of a kitchen oven with a hand cleaning a red cloth, water being poured into a bowl (no text or symbols)

8. APLINKOS APSAUGA IR ATLIEKŲ ŠALINIMAS

8.1. PRIETAISO ŠALINIMAS

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and a magnified inset showing interior layout and buffer status.

TERE TULEMAST!

Technical diagram of an oven with numbered components for identification

2.2. TARVIKUD

Line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

STOP STOP

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open oven (no text or symbols)

Technical line drawing of a room sink with a bowl, a sphere, and a red platform (no text or symbols)

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open shelf (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and connector (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

UUE KASUTAJA REGISTREERIMINE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

KIIRÜHENDAMINE

1. samm

Hello USERNAME YOUR APPLIANCES ADD hOn Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Learn ipsum dolor sit est Scan to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. samm

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

3. samm

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. samm

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract icon with a blue 'Power' button surrounded by circular layers of icons (no text or symbols)

OK. I DID IT

5. toiming

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. samm

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. samm

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

KAUGJUHTIMISPULT

Diagram illustrating eco-friendly environmental controls with icons for sensors, clean water, and environmental protection.

ON VAJUTAGE KAUGJUHTIMISPULTI

hOn

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 80000 Protein (40%) EDIT DETAILS →

3. ENNE ALUSTAMIST

3.1. TEAVE ALUSTAMISEKS

Diagram showing a kitchen appliance with a hand cleaning a red cloth, labeled H220, next to a bottle and water droplet.

MAX °C 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a window on the right (no text or symbols)

4. TOOTE KASUTAMINE

4.1. KUIDAS TOODE TOIMIB

AHJU SISSE-/VÄLJALÜLITAMINE

VÄLJAS 0 Eco 20201 +

MÄÄRAKE KÜPSETUSPROGRAMM

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

EELSEADISTATUD KELLAAEG

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAX °C 10-20 MIN

Warning symbol with warning triangle and three thermometer icons, likely indicating a hazard or alert scenario.

Illustration of a kitchen oven with a hand cleaning a red cloth and a bottle labeled H20 (no text or symbols on the main objects)

Line drawing of hands installing or opening a cabinet (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, showing a steaming dish labeled 'H2O' (no text or symbols on the main subject)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. TARVIKUTE PUHASTAMINE

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, next to a bottle labeled 'H2O' and a bowl of water.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. HOOLDUS

KOMPONENTIDE VAHETAMINE

Lambipirni vahetamine:

Electrical hazard symbol and circuit diagram showing a plug, warning sign, and OFF button with red arrows indicating direction

1. samm


Line drawing of a hand inserting a device into an oven with a red checkmark (no text or symbols)

1. samm


Hand holding a circular object inside an oven, with a red curved arrow indicating rotation (no text or symbols)

1. samm


Hand holding a circular object with a red '2' mark inside an oven (no text or symbols on the object)

1. samm


Line drawing of a hand holding a circular object over an open oven with a red arrow indicating rotation (no text or symbols)

1. samm


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF indicators

Safety warning diagram showing electrical hazard symbol and OFF button with red arrows indicating current direction

1. samm


Illustration of a hand using a tool to clean or store items, with a red arrow indicating the process (no text or symbols present)

1. samm


Illustration of a hand inserting a small component into a machine (no text or symbols visible)

1. samm


Illustration of a hand holding a small electrical outlet with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

1. samm


Diagram showing a wall-mounted electrical outlet mounted on a platform, with an arrow pointing to the outlet (no text or symbols present)

1. samm


Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Illustration of a kitchen appliance with a red smoke trail and warning symbol (no text or labels)

Illustration of a kitchen sink with a hand cleaning the interior, water being washed in H2O (no text or symbols)

8. KESKKONNAKAITSE JA KÖRVALDAMINE

8.1. SEADME KÖRVALDAMINE

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and a magnified inset showing interior details including a door switch and Pörkeraud.

LAIPNI LÜDZAM

2.1. PRODUKTA PÄRSKATS

Technical diagram of an oven with numbered components for identification

2.2. PIEDERUMI

Line drawing of a two-tiered storage rack system with no text or symbols

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric lines, placed inside an open oven (no text or symbols)

Simple line drawing of a room sink with a bowl, a sphere, and a red platform (no text or symbols)

Simple line drawing of a red chair with a speech bubble and arrow, no text or symbols present

Line drawing of a rectangular tray with pink liquid and red pattern, placed inside a rack (no text or symbols)

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open tray (no text or symbols)

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a medical procedure involving a mouse, needle, and syringe connected to a tray (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

JAUNA LIETOTĀJA REGISTRĀCIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

ĀTRĀ PĀRA REGISTRĀCIJA

1. darbība

- Atlasiet “Pievienot ierīci”.

Hello USERNAME YOUR APPLIANCES ADD hOn Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Learn ipsum dolor sit est Scan to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. darbība

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

3. darbība

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. darbība

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

5. darbība

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. darbība

- Atlasiet savu sadzīves tehniku, pieskarieties pie “Savienot” un uzgaidiet dažas sekundes.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. darbība

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

Diagram showing a circular device with icons for sensors, battery, and eco-friendly options around it.

ON

Simple diagram with a gray circle, red curved arrows, and symbols (-, +, -) — no readable text or labels.

OFF STK

TĀLVADĪBA

Diagram illustrating a circular device with icons for connectivity, battery, sensors, and eco-friendly options around it.

On NOSPIEDIET TÄLVADIBAS POGU

hOn

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 80000 Protein (40%) EDIT DETAILS →

3. PIRMS SĀKŠANAS

3.1. INFORMĀCIJA, LAI SĀKTU

2:00m PIROLIZE

3.2. PIRMĀ LIETOŠANA

Diagram showing a kitchen cleaning process with a hand cleaning a red cloth, water bath, and a bottle labeled H20.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. PRODUKTA DARBĪBA

4.1. KÄ PRODUKTS DARBOJAS

CEPEŠKRĀSNS IESLĒGŠANA/IZSLĒGŠANA

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

Simple diagram with a gray circle, a black dot above it, and red curved arrows pointing inward (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Zondi var izmantot ar manuālām funkciṣām (statisks, statisks + ventilators, grils, super grill, sacepums un daudzlīmeņu), ar ĕDIENU GATAVOŠANAS KATEGORIJĀM (gaļa, zivis un dārzeni) un Gentle cooking.

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

IEPRIEKŠ IESTATITIS LAIKS

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

MAX °C 10-20 MIN

!

# #

Diagram showing a kitchen sink with a red cloth, water bath, and a bottle labeled H20, likely illustrating a cleaning or dust removal procedure.

Line drawing of hands opening a rectangular oven with lid, no text or symbols present

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a surface with a red cloth and water droplets, next to a bottle labeled 'H2O' in a basin.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of hands opening a cabinet with open door (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. PIEDERUMU TİRİŞANA

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, and a bottle of water nearby.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. APKOPE

KOMPONENTU NOMAINA

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

1. darbība

2. darbība


Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

1. darbība

2. darbība


Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

1. darbība


Hand holding a circular object inside an oven, no text or symbols visible

Line drawing of a hand holding a paper over an oven with a circular arrow indicating rotation (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug, warning symbol with lightning, and OFF button with red arrows indicating current warning.

1. darbība


Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

1. darbība


Illustration of a hand inserting a component into a machine (no text or symbols visible)

1. darbība


Illustration of a hand holding a wall-mounted electrical component, with a red arrow indicating direction (no text or symbols present)

1. darbība


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. darbība


Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Line drawing of a 3D box with lid and side panel (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a door opening detail view.

ДОБРЕ ДОШЛИ

Technical diagram of an oven with numbered components for identification

2.2. ПРИНАДЛЕЖНОСТИ

Line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round head, no text or symbols present

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present

Illustration of a rectangular appliance with a grid pattern on top, placed inside a rack (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe, no text or symbols present.

Illustration of a pink rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Sara to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Стъпка 2

Allow your location permission To enhance your experience, please allow location permission to hOn app In the next step. CONTINUE

Стъпка 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Стъпка 4

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Стъпка 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Стъпка 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Стъпка 7

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

КАК ДА ПРОМЕНЯ НАСТРОЙКИТЕ НА WIFI

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

Diagram illustrating smart home control icons including Wi-Fi, eco, and smart water sensors with a central screen and directional arrows.

07 НАТИСНЕТЕ ДИСТАНЦИОННОТО УПРАВЛЕНИЕ

hOn

Diagram showing a circular device with icons for smart home, eco, and smart water features, including a red arrow indicating rotation.

2:00

2:00*

Cooking 10H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein (ONE) Efficiency Protein (EPE) EDIT DETAILS →

3. ПРЕДИ ДА ЗАПОЧНЕТЕ

Illustration of a kitchen sink with a hand cleaning the interior, next to a water bottle and a dish labeled H20 (no text or symbols on main objects)

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open refrigerator (no text or symbols)

Illustration of a cooking setup with a pan, tool, and syringe (no text or symbols)

- - - - °C

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a component or part, no text or symbols present.

ПРЕДВАРИТЕЛНО ЗАДАДЕНО ВРЕМЕ

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen oven with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or operation (no text or symbols present)

MAX °C 10 - 20 МИН

⚠ ◀ ▼ ◼

Diagram showing a kitchen oven with a red cloth, water droplets, and a bottle labeled H20, likely illustrating a cleaning or dust removal procedure.

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, next to a bowl labeled H2O (no text or symbols on the main image)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. ПОЧИСТВАНЕ НА ПРИНАДЛЕЖНОСТИ

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a water bottle labeled H₂O in a bowl, likely illustrating a chemical or chemical process.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ПОДДРЪЖКА

ПОДМЯНА НА КОМПОНЕНТИ

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Стъпка 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Стъпка 3

Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

Стъпка 4

Hand holding a circular object inside an oven, no text or symbols visible

Стъпка 5

Line drawing of a hand holding a paper over an oven with a red circular arrow indicating rotation (no text or symbols)

Стъпка 6

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug with fuse and warning symbol, alongside an electrical switch labeled 'OFF' with red arrows.

Стъпка 2

Illustration of a hand using a tool to clean or adjust a small object on a machine (no text or symbols visible)

Стъпка 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Стъпка 4

Illustration of a hand holding a small electronic component with a red arrow pointing to it, next to an open device (no text or symbols present)

Стъпка 5

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Стъпка 6

Electrical warning diagram showing a plug, ON/OFF warning symbol, and grounding symbols with red arrows indicating direction

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset close-up showing interior details.

MM

DOBRO DOŠLI

Hvala što ste odabrali naš proizvod. Radi svoje sigurnosti i najboljih rezultata pažljivo pročitajte ovaj priručnik, uključujući upute u vezi sigurnosti i sačuvajte ga za buduću upotrebu.

Technical diagram of an oven with numbered components for identification

2.2. PRIBOR

Line drawing of a two-tiered storage rack or shelf unit with no text or symbols

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

ZAUSTAVI ZAUSTAVI

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage cabinet (no text or symbols)

Duboka ladica idealna je za recepte s dodanim tekućinama ili slojevima, kao što su složenci ili pečenja. Njena je dubina posebno dizajnirana kako bi hrana koja se u njenoj priprema imala željenu konzistentnost.

Line drawing of a kitchen sink with a bowl and a round head, no text or symbols present

Teleskopske vodilice u pećnici police su koje se mogu produljiti, što olakšava postavljanje i uklanjanje predmeta, bez potrebe za posezanjem duboko u vruću pećnicu. Poboljšavaju sigurnost, stabilnost i mogu se postaviti na različite razine.

Line drawing of a rectangular tray with a pink patterned lid, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Ražanj radi zajedno s gornjim grijaćim elementom, hrana se okretanjem peče ravnomjerno. Najbolje ga je upotrebljavati za hranu srednje veličine. Idealno za ponovno otkrivanje okusa tradicionalnog pečenja.

Šarke za postupno zatvaranje/otvaranje (samo ako je uređaj opremljen*)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Šarke za postupno zatvaranje i otvaranje upravljanju kretanjem vrata koja se zbog njih zatvaraju glatko, bez lupanja.

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open tray (no text or symbols)

Konveksni oblik prikladan je za pečenje roštiljanje u pećnici na visokoj temperaturi (220 °), omogućujući rezultate kao na roštilju čak i kod kuće, s malo dima zahvaljujući drenažnom djelovanju masti na dnu ladice.

Illustration of a medical procedure involving a mouse, needle, and syringe (no text or symbols)

Ova sonda za meso je senzor temperature koji, kada je postavljena u hranu i povezana s pećnicom, putem kabela omogućuje upravljanje unutarnjom temperaturom hrane tijekom njene pripreme. Uglavnom se koristi za ribu i meso.

Airfry tava (samo ako je uređaj opremljen*)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Register” (Registriraj se)
- Možete se registrirati putem računa društvenih mreža ili se registrirati adresom osobne e-pošte

Welcome!

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

BRZA REGISTRACIJA ZA UPARIVANJE

1. korak

- Odaberite „Add appliance” (Dodaj uređaj).

Hello USERNAME YOUR APPLIANCES ADD hOn Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Learn ipsum dolor sit est Create the Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. korak

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

3. korak

- Odaberite pećnicu iz kategorije uređaja.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. korak

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract circular icon with a blue 'Power' button surrounded by icons (no text or symbols)

OK. I DID IT

5. korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Korak 6.1 - 6.2

- Odaberite kućanski uređaj, dodirnite „Connect” (Poveži se) i pričekajte nekoliko sekundi.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

Your appliance has been correctly identified! Brand Hoover Model 3108486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES!T'S MY OVEN NO IT'S NOT

Nakon registracije uređaja, korisnik može odabrati sljedeće postavke Wi-Fi mreže:

• WIFI ON (UKLJUČI Wi-Fi): Stanje pećnice može se pratiti samo putem aplikacije.
• ISKLJUČI Wi-Fi (ISKLJUČI Wi-Fi): Pećnica nije spojena, ali je i dalje registrirana sa spremljenim mrežnim vjerodajnicama.

• WIFI RESET (RESETIRAJ WI-FI): Veza je ponovno uspostavljena i moguća je nova registracija.

• Okrenite birač funkcija u izborniku Wi-Fi mreže.

• Na zaslonu se prikazuje „On” (Uključeno).
• Okrećite birač dok se ne prikaže „Off” (Isključeno) ili postavka za resetiranje „rSt”.

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

DALJINSKO UPRAVLJANJE

Daljinsko upravljanje nudi brojne prednosti za korisnike, povećava praktičnost, učinkovitost i cjelokupno iskustvo pripreme hrane i pružaj mogućnost upravljanja proizvodom izravno s uređaja i iz aplikacije hOn

Ova funkcija omogućuje da putem uređaja uživate u raznim značajkama, kao što su: trenutno ili planirano pokretanje recepata ili programa kuhanja koji su već dostupni u aplikaciji; praćenje napretka vaših recepata u stvarnom vremenu; podešavanje korištenih parametara kuhanja; praćenje postupka kuhanja pomoću sonde.

Diagram illustrating a circular device with icons for connectivity, safety, and eco-friendly features around it.

ON PRITISNITE DALJINSKO UPRAVLJANJE

hOn

Diagram showing a circular control knob with icons for eco-friendly and sustainable options, including labels like 'Eco' and 'Fossil'.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 80000 Protein (40%) EDIT DETAILS →

3.1. INFORMACIJE ZA POČETAK

Diagram showing a kitchen cleaning process with a hand cleaning a red cloth, water bath, and a bottle labeled H20.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. UPOTREBA PROIZVODA

4.1. NAČIN RADA PROIZVODA

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Za uključivanje pećnice okrenite birač funkcija (udesno/ulijevo) i odaberite program pečenja. Želite li je isključiti, postavite birač funkcija u položaj „0”.

UKLIJUČENO ISKLIJUČENO

PODEŠAVANJE PROGRAMA KUHANJA

Okrenite birač funkcija i odaberite željeni program. Na zaslonu će se pojaviti zadana temperatura koja se može urediti u svakom trenutku okretanjem desnog birača (udesno za povećanje i ulijevo za smanjenje temperature).

IZBORNIK VREMENA

Pristupite izborniku vremena pritiskom na ✉. Za navigaciju dodirnite ✉ onoliko puta koliko je potrebno za unos sljedećih postavki:

PRITISNITE GUMB ZA VRIJEME 20 trajanje kuhanja tajmer odgoda početka 0:10m

i NAPOMENA: nije moguće postaviti nekoliko parametara istovremeno, stoga u memoriji ostaje samo posljednji, a prethodni se briše.

TRAJANJE KUHANJA

Omogućuje se prethodno postavljanje vremena kuhanja za odabrani recept.

AKTIVACIJA: pritisnite ✕ za ulazak u izbornik Time (Vrijeme). Dodirnite ✕ onoliko puta koliko je potrebno za odabir funkcije „Trajanje kuhanja”. Zatim biračem odaberite vrijednost.

PRITISNITE GUMB ZA VRIJEME 200

0:00m

- • + POSTAVLJANJE TRAJANJA KUHANJA

0:10m

Odbrojavanje počinje po završetku zagrijavanja (ako je uređaj opremljen). Tijekom faze kuhanja moguće je promijeniti vrijednost trajanja okretanjem desnog birača. Kad istekne vrijeme trajanja, kuhanje se zaustavlja.

TAJMER

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Sonda se može koristiti s ručnim funkcijama (Konvencionalna, Konvencionalan + ventilator, Roštilj, Supergrill, Gratiniranje i Više razina), s KATEGORIJAMA HRANE ZA KUHANJE (meso, riba i povrće) i s programom Gentle cooking.

Kategorija hrane	Predložena temperatura u središtu hrane T °C	Predloženi položaj
Pečena govedina	45 °C	Dijagonalno u najdebljem dijelu.Za namirnice cilindričnog oblika (npr. goveđe pečenje) postavite vrh što je moguće bliže geometrijskom središtu
Pečeno meso	55 °C / 60 °C / 65 °C
Perad	83 - 85 °C	U najdeblji dio prsa
Riba (cijela/odresci)	65 °C	Dijagonalno u najdebljem dijelu
Kruh/složenci	90 °C	Blizu geometrijskog središta namirnice

5. SMJERNICE ZA PRIPREMANJE HRANE

5.1. OPĆA TABLICA ZA PRIPREMU HRANE

Kategorija	Recept	Br. razina	Program kuhanja	T °C	Zagrija-vanje	Pribor za kuhanje	Položaj police	Vrijeme kuhanja nakon zagrijavanja *(min)
Slatki pekarski proizvodi	Mali kolačići / mafini	1	Konvencional na na više razina	175 °C160 °C		Ladica za pečenjeLadica za pečenje	L3L4	20 - 3030 - 40
		2	Više razina	150 °C	Y	Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
		3	Više razina	140 °C		Ladice za pečenje	L2 + L4 + L6	40 - 50
	Biskviti (26 cm ∅)	1	Konvencionalna	170 °C		Metalna rešetka + kalup za kolače	L2	30 - 40
			Više razina	150 °C	y	Metalna rešetka + kalup za kolače	L4	40 - 50
		2	Više razina	150 °C		Metalne rešetke + kalup za kolače	L1 + L4	50 - 60
	Keksi / prhko pecivo	1	Konvencionalna na više razina	150 °C + 150 °C		Ladica za pečenjeLadica za pečenje	L3L4	25 - 3030 - 40
		2	Više razina	140 °C	Y	Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
		3	Više razina	140 °C		Ladice za pečenje	L2 + L4 + L6	35 - 40
	Francuska peciva s punjenjem	1	Konvencionalna	190 °C		Ladica za pečenje	L4	25 - 35
		2	Više razina	170 °C		Ladica za pečenje	L3	25 - 35
	Jorkširski puding	1	Konvencionalna	200 °C	Y	Ladica za pečenje	L3	20 - 30
	Puslice	1	Više razina	90 °C	Y	Ladica za pečenje		90 - 160
	Macaron	1	Konvencionalna	150 °C	Y	Ladica za pečenje	L3	15 - 20
	Pita od jabuka	1	Konvencionalna	185 °C	Y	Metalna rešetka + kalup za kolače	L2	60 - 70
		1	Više razina	170 °C	Y	Metalna rešetka + kalup za kolače	L4	65 - 75
	Tarte tatin	1	Konvencionalna	170 °C	Y	Metalna rešetka + kalup za kolače	L2	40 - 60
	Čokoladni nabujak	1	Konvencionalna	200 °C	Y	Ladica za pečenje + kalupi	L3	10 - 15
	Torta sa sirom	1	Konvencionalna	150 °C	Y	Metalna rešetka + kalup za kolače	L2	50 - 65
	Smrznutikroasani	1	Konvencionalna	180 °C	Y	Ladica za pečenje	L3	20 - 25
		2	Konvencionalna	180 °C		Ladice za pečenje	L2 + L5	25 - 35
		3	Više razina	160 °C		Ladice za pečenje	L2 + L4 + L6	30 - 40
	Savijača, smrznuta	1	Konvencio-nalna	210 °C	Y	Ladica za pečenje	L3	30 - 45
Kruh i lepinja	Tostirani kruh	1	Supergrill	5	N	Metalna rešetka	L6	4 - 6
	Focaccia	1	Konvencio-nalna	200 °C	Y	Ladica za pečenje	L2 ili L3	25 - 35
	Kruh, cijeli	1	Konvencio-nalna	200 °C	Y	Ladica za pečenje	L3	35 - 50
Slane pite i složenci	Slani kolači / quichevi (Ø 26 cm)	1	Konvencio-nalna	200 °C	Y	Metalna rešetka + plitica za quiche	L1 ili L2	30 - 50
		2	Više razina	180 °C	Y	Metalna rešetka + plitica za quiche	L1 + L4	50 - 70
	Nabujak od sira	1	Konvencio-nalna	200 °C	Y	Ladica za pečenje + kalupi	L3	20 - 35
	Lazanje, svježe	1	Konvencio-nalna	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	40 - 60
	Lazanje, smrznute	1	Konvencio-nalna	180 °C	Y	Metalna rešetka + vatrostalna posuda	L3	50 - 60
	Cannelloni, smrznuti	1	Konvencio-nalna	180 °C	Y	Metalna rešetka + vatrostalna posuda	L3	45 - 55
	Pečena tjestenina	1	Gratiniranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L4	20 - 30
Pizza	Pizza, svježa (ladica)	1	Konvencio-nalna	250 °C	Y	Ladica za pečenje	L2 ili L3	15 - 20
	Pizza, svježa (ladica)	1	Pizza	250 °C	N	Ladica za pečenje	L2 ili L3	18 - 25
		2	Više razina	180 °C	Y	Ladice za pečenje + dublje ladice	L2 + L5	25 - 35
	Pizza, svježa (okrugla)	1	Konvencio-nalna	250 °C	Y	Ladica za pečenje	L2 ili L3	8 - 10
	Pizza, svježa (okrugla)	1	Pizza	300 °C	N	Ladica za pečenje	L2 ili L3	15 - 20
		2	Više razina	180 °C	Y	Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
	Pizza, smrznuta (tanka kora)	1	Konvencio-nalna	220 °C		Metalna rešetka	L3	10 - 15
		2	Više razina	200 °C	Y	Metalna rešetka	L2 + L5	15 - 25
		3	Više razina	180 °C		Metalna rešetka	L2 + L4 + L6
	Pizza, smrznuta (tanka kora)	1	Pizza	200 °C	N	Metalna rešetka	L2	10 - 15
Meso i perad	Pržena cijela piletina (1 do 1,2 kg)	1	Gratiniranje	220 °C	Y	Metalna rešetka / L4, postavite ladicu za pečenje na L1 sa 150 ml vode	L4	40 - 60
	Pileći batkovi	1	AirFry**	220 °C	N	Airfry tava**	L4	30 - 50
	Pečena patka	1	Gratiniranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	50 - 60
Meso i perad	Pijetao	1	Gratiniranje	220 °C	Y	Metalna rešetka, postavite ladicu za pečenje na L1	L4	20 - 40
	Pečena puretina	1	Gratiniranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	50 - 60
	Svinjska rebra (1000 - 1200 g)	1	Konvencio-nalna	200 °C	Y	Metalna rešetka + vatrostalna posuda	L3	80 - 100
	Kobasice	1	Supergrill	4	Y	Metalna rešetka	L5	40 - 50
	Goveđi file (1000 do 1500 g)	1	Gentle cooking **	60 °C	N	Metalna rešetka + vatrostalna posuda	L3	60 - 80
	Pečena govedina (500 g)	1	Gratiniranje	220 °C	Y	Ladica za pečenje	L3	20 - 40
	Mesna štruca (1000 do 1500 g)	1	Konvencio-nalna	180 °C	Y	Ladica za pečenje	L3	40 - 50
	Pečena piletina s krumpirom	1	Gratiniranje	200 °C	Y	Duboka ladica	L4	45 - 60
Riba i morski plodovi	Morski plodovi na žaru	1	Supergrill	4	N	Metalna rešetka	L5	15 - 30
	Smrznuti riblji štapići	1	AirFry**	200 °C	N	Airfry tava**	L4	20 - 25
	Pečena riba	1	ECO	200 °C	N	Metalna rešetka, postavite ladicu za pečenje na L1	L3	40 - 60
Povrće	Gratinirano povrće	1	ECO	200 °C	N	Metalna rešetka + vatrostalna posuda	L3	80 - 90
	Smrznuti pomfri (300 do 500 g)	1	AirFry**	220 °C	N	Airfry tava**	L4	18 - 25
	Gratinirani krumpir	1	Gratiniranje	200 °C	Y	Metalna rešetka + vatrostalna posuda	L4	15 - 25
	Pečeni krumpir	1	Konvencio-nalna	200 °C	Y	Ladica za pečenje	L4	30 - 50

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

UNAPRIJED POSTAVLJENO VRIJEME

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Funkcija Hydroeasy dizajnirana je za lako uklanjanje lagane prljavštine, brzo je i ekološki prihvatljivo rješenje za čišćenje unutrašnjosti pećnice snagom pare.

Kako funkcionira:

1. Ulijte 100 ml vode u donje udubljenje u pećnici.
2. Okrenite birač na 🚫. Ako je potrebno, okrenite birač za podešavanje programa Hydro Clean. Pričekajte da funkcija odradi svoj posao tijekom postavljenog vremena.
3. Po završetku postupka čišćenja, pričekajte da se pećnica ohladi.
4. Kad se uređaj ohladi, očistite unutarnje površine pećnice krpom.
5. ⚠ UPOZORENJE: Provjerite je li se uređaj ohladio prije nego ga dodirnete. Vodite računa o svim vrućim površinama jer postoji opasnost od opeklina. Koristite destiliranu ili pitku vodu.

H2O 100 ml

UNAPRIJED POSTAVLJENO VRUJEME

!

# #

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Katalitičko čišćenje

Katalitičke ploče oblažu pećnicu i pružaju vam luksuz da se nikada ne morate boriti s prljavom pećnicom.

Ploče su obložene specijaliziranim emajlom koji se diči mikroporoznom strukturom, vještom u apsorpciji masnih ostataka prskanja.

Katalitičkom kemijskom reakcijom učinkovito pretvaraju apsorbiranu mast u plinovite elemente kada su izloženi visokim temperaturama.

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

MAX °C 10 - 20 MIN

Warning symbol with warning triangle and three thermometer icons, likely indicating a hazard or alert scenario.

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle nearby (no text or symbols)

6.2.2. VANJSKE POVRŠINE PEĆNICE: uklanjanje i čišćenje staklenih vrata

1. Postavite vrata na 90°. Zakrenite jezičke za zaključavanje šarke tako da su okrenuti od pećnice.

Line drawing of hands opening a small oven with a red tape measure (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

1. ⚠ UPOZORENJE: Vanjsko staklo ne može se ukloniti.

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

1. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' nearby.

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

1. Zatim vratite vrata na 90° i zakrenite jezičke za zaključavanje šarki tako da gledaju prema unutrašnjosti pećnice.

Line drawing of hands opening a cabinet with open door (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. ČIŠĆENJE PRIBORA

Nakon svake upotrebe temeljito očistite pribor i osušite ga ručnikom. Tvrdokorne je ostatke na priboru pribora možda najbolje namočiti u mješavini vode i sapuna otprilike 30 minuta prije drugog pranja.

ČIŠĆENJE BOČNIH REŠETKI:

Model sa 6 razina

1. Uklonite bočne rešetke povlačenjem u smjeru strelica.
2. Žičane rešetke prilikom čišćenja stavite u perilicu posuđa ili upotrijebite mokru spužvu, a zatim ih obavezno osušite.
3. Nakon čišćenja postavite bočne police obrnutim redoslijedom.

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

H₂O

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. ODRŽAVANJE

ZAMJENA DIJELOVA

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

1. korak

2. korak


Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

1. korak

2. korak


Hand holding a magnifying glass over an oven with a red curved arrow indicating rotation (no text or symbols)

1. korak


Hand holding a circular object inside an oven, no text or symbols visible

Line drawing of a hand holding a paper over an oven with a circular arrow indicating rotation (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

1. korak


Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

1. korak


Illustration of a hand inserting a component into a machine (no text or symbols visible)

1. korak


Illustration of a hand inserting a plug into a wall-mounted electrical outlet (no text or symbols)

1. korak


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. korak


Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF indicators with red arrows

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset close-up showing internal structure and electrical switch.

VELKOMMEN

Technical diagram of an oven with numbered components for identification

2.2. TILBEH∅R

Line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Skriv dit serienummer her til fremtidig reference.

Metalrist

STOP STOP

Illustration of a red rectangular tray inside an oven (no text or symbols)

Technical line drawing of a mechanical assembly with a bowl, tray, and circular component (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Illustration of a pink rectangular appliance placed inside an oven rack (no text or symbols)

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe inserted (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRERING AF NY BRUGER

• Klik på "Registrer"
• Du kan registrere dig via dine SoMe-konti eller tilmelde dig med din personlige e-mailadresse

Welcome!

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

TILMELDING TIL HURTIG PARRING

Trin 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lorem ipsum dolor sit est Create to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Trin 2

- Tillad geolokation.

Allow your location permission To enhance your experience, please allow location permission to hOn app In the next step. CONTINUE

Trin 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Trin 4

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Trin 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Trin 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Trin 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

FJERNBETJENING

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

ON TRYK PÅ FJERNBETJENING

hOn

Det er også muligt at aktivere Fjernbetjening under tilberedningen ved at trykke på den tilhørende knap.

2:00*

TRYK PÅ FJERNBETJENING 2.00

2:00

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00°

Cooking 10H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 1:1 Proheat (ON) Efficiency Proheat (OFF) EDIT DETAILS →

3. INDEN DU STARTER

3.1. OPLYSNINGER FOR AT BEGYNDE

- • + INDSTIL KLOKKESLÆT

07:00 TRYK

07:00

07:45

TRYK FOR AT BEKRÆFTE

TRYK FOR AT BEKRÆFTE

TRYK FOR AT BEKRÆFTE

- • + INDSTIL LYD

Sn 2 Sn 1

TRYK FOR AT BEKRÆFTE

Diagram showing a kitchen appliance with a hand cleaning a red cloth, labeled H220, next to a bottle and water droplet.

MAX °C 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a window on the right (no text or symbols)

4.1. SÅDAN VIRKER PRODUKTET

TÆND/SLUK FOR OVNEN

TRYK PÅ TID 20

tilberedningstid minutur timerstart

- • + INDSTIL TILBEREDNINGSTID

0:10m

200° TRYK PÅ TID

0:00m

- • + INDSTIL MINUTUR

0:09m

TRYK PÅ TID 20

-10:30m

- + INDSTIL TIMERSTART

S 20:00

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

FORUDINDSTILLET TID

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Katalyserengøring

Line drawing of an oven with a red arrow indicating a component (no text or symbols present)

MAX °C 10-20 MINUTTER

!

# #

Diagram showing a kitchen sink with a red cloth, water bath, and a bottle labeled H20, likely illustrating a cleaning or dust removal procedure.

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, next to a bowl labeled 'H2O' (no text or symbols on the main image)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of hands opening a cabinet with open door (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. RENG∅RING AF TILBEH∅R

RENG∅RING AF SIDESKINNERNE:

- Model med 6 niveauer

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H₂O, next to a bottle.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. VEDLIGEHOLDELSE

UDSKIFTNING AF KOMPONENTER

Diagram showing a plug, warning symbol with lightning, and an electrical switch labeled 'OFF' with red arrows indicating direction.

Trin 5

Trin 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Trin 6

Trin 3

Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

Trin 4

Hand holding a circular object inside an oven, no text or symbols visible

Hand holding a paper with a circular arrow, next to an open oven (no text or symbols visible)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing electrical hazard symbol and OFF button with red arrows indicating current direction

Trin 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Trin 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Trin 4

Illustration of a hand holding a small electrical component with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Trin 5

Diagram of a wall-mounted electrical outlet with an arrow pointing to it, no text or symbols present

Trin 6

Electrical warning diagram showing a plug and fuse with hazard symbol and ON/OFF indicators

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a close-up of the door mechanism.

TERVETULOA

Technical diagram of an oven with numbered components for identification

2.2. LISÄVARUSTEET

Sivukannattimet

Technical line drawing of a two-tiered storage unit with horizontal shelves (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

STOP STOP

Illustration of a red rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and side table (no text or symbols)

Line drawing of a rectangular tray with a pink patterned lid, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red cabinet with a magnified inset showing internal texture (no text or symbols)

Illustration of a pink rectangular tray with engraved text inside, placed on an open tray (no readable text or symbols)

Illustration of a medical procedure involving a mouse, needle, and syringe connected to a tray (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

UUDEN KÄYTTÄJÄN REKISTERÖINTI

hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

NOPEA PARILIITOS

Vaihe 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Scram to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Vaihe 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Vaihe 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Vaihe 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

Vaihe 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Vaihe 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting...

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Vaihe 7

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

ETÄOHJAUS

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00*

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 80000 Protein (40%) EDIT DETAILS →

3. ENNEN ALOITTAMISTA

3.1. KÄYNNISTYSTÄ KOSKEVAT TIEDOT

Diagram showing a kitchen cleaning process with a hand cleaning a red cloth, water bath, and a bottle labeled H20.

MAX °C 60 min

Simple line drawing of a cabinet with smoke rising and a door open (no text or symbols)

4.1. MITEN TUOTE TOIMII

UUNIN KYTKEMINEN PÄÄLLE/POIS PÄÄLTÄ

4.2. RUOANVALMISTUSTOIMINNOT

NOPEA ESILÄMMITYSVAIHTOEHTO

4.2.2. ERIKOISTOIMINNOT

Illustration of a cooking setup with a chicken being heated by a tool, no text or symbols present

- - - - °C

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

5.2. EVERYDAY COOKING -TAULUKKO

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

ESIA SET TTTU AIKA

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Warning symbol with warning triangle and three warning symbols: thermometer, red triangle, and thermometer

Illustration of a hand cleaning a clean appliance into a microwave oven (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAY °C 10-20 MIN

⚠ ◀ ▼ ◼ ◀ ▼ ◼

Illustration of a kitchen oven with a hand cleaning a red cloth, emitting a bottle (no text or symbols)

6.2.2. UUNIN ULKOPUOLELLA: lasioven irrotus ja puhdistus

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' nearby.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. LISÄVARUSTEIDEN PUHDISTUS

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a red cloth and a bottle labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. HUOLTO

KOMPONENTTIEN VAIHTO

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with warning symbol

Vaihe 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Vaihe 3

Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

Vaihe 4

Hand holding a circular object inside an oven, no text or symbols visible

Vaihe 5

Hand holding a paper with a red circular arrow inside, next to an open oven (no text or symbols)

Vaihe 6

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction

Safety warning diagram showing a plug with fuse and a hazard symbol, alongside an electrical switch labeled 'OFF' with red arrows.

Vaihe 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Vaihe 3

Illustration of a hand inserting a small component into a machine (no text or symbols visible)

Vaihe 4

Illustration of a hand holding a small electrical outlet with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Vaihe 5

Diagram showing a wall-mounted electrical outlet mounted on a platform, with an arrow pointing to the outlet (no text or symbols present)

Vaihe 6

Electrical warning diagram showing a plug, safety symbol, and ON/OFF switch with red arrows indicating direction

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset close-up showing internal structure and component details.

VELKOMMEN

Technical diagram of an oven with numbered components for identification

2.2. TILBEH∅R

Line drawing of a two-tiered storage rack or shelf unit with no text or symbols

Illustration of a red rectangular tray inside an oven or storage unit (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Skriv her serienummeret for fremtidig referanse.

Metallgitter

STOPP STOPP

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage cabinet (no text or symbols)

Technical line drawing of a room with a bed, a round hole, and a metal rack (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Illustration of a pink rectangular appliance with a grid pattern inside, placed on an open tray (no text or symbols)

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe inserted (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

NY BRUKER-REGISTRERING

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

HURTIGPARING-REGISTRERING

Trinn 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Learn ipsum dolor sit est Create to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustainz home and reduce w.

Trinn 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Trinn 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Trinn 4

- lå på apparatet; hvis den allerede er på, slår du den av og på igjen.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Abstract circular icon with a blue 'Power' button surrounded by icons (no text or symbols)

OK. I DID IT

Trinn 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Trinn 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting...

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Trinn 7

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

FJERNKONTROLL

Diagram illustrating a circular device with icons for connectivity, battery, sensors, and eco-friendly options around it.

ON TRYKK FJERNKONTROLL

hOn

Diagram of a circular device control panel with icons for signal, Wi-Fi, ECO, battery, and various function buttons.

2:00

2:00*

Cooking 10H LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 3h 30m 111 Protein:ONE Efficiency Protein (EFF) EDIT DETAILS →

3.1. INFORMASJON FOR Å STARTE

2:00m PYROLYSE

3.2. F∅RSTE GANGS BRUK

TRYKK FOR Å BEKREFTE

Diagram showing a kitchen appliance with a hand cleaning a red cloth, labeled H220, next to a bottle and water droplet.

MAX °C 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a window on the right (no text or symbols)

4. DRIFT AV PRODUKTET

4.1. HVORDAN PRODUKTET FUNGERER

SLÅ PÅ/AV OVNEN

PÅ 0 Eco S P A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

AV 0 Eco AV

STILL MATLAGINGSPROGRAM

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

FORHÄNDSINNSTILLT TID

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

MAX °C 10-20 MIN

Warning symbol diagram with triangle, lightning bolt, and red triangle indicating a warning or hazard

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle labeled H2O (no text or symbols on the main subject)

Line drawing of hands opening a small oven with a red tape measure (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' nearby.

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. RENGJ∅RING AV TILBEH∅R

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a red cloth, water being washed in a beaker labeled H2O, next to a bottle.

Line drawing of an oven with a red arrow indicating a ventilation or airflow direction (no text or symbols)

6.4. VEDLIKEHOLD

UTSKIFTING AV KOMPONENTER

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Trinn 5

Trinn 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Trinn 6

Trinn 3

Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

Trinn 4

Hand holding a circular object inside an oven, no text or symbols visible

Hand holding a paper with a red circular arrow inside, next to an open oven (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Dette produktet inneholder én eller flere lyskilder av energieffektivitetsklasse G (lampe).

Bytte sidepære:

Safety warning diagram showing a plug, warning symbol with lightning, and OFF button

Trinn 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Trinn 3

Illustration of a hand inserting a small component into a machine (no text or symbols visible)

Trinn 4

Illustration of a hand holding a small electrical outlet with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Trinn 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Trinn 6

Electrical warning diagram showing a plug, safety symbol, and ON/OFF switch with red arrows indicating direction

Dette produktet inneholder én eller flere lyskilder av energieffektivitetsklasse G (lampe).

7. FEILS∅KING

Diagram showing a cooking process with a steaming oven and a water heater, including warning labels and a chemical reaction setup.

8. MILJ∅VERN OG KASSERING

8.1. KASSERING AV APPARAT

Line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Isometric line drawing of a rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a door mechanism and a støfänger component.

VÄLKOMMEN

Diagram of an oven with numbered components for identification

2.2. TILLBEHÖR

Line drawing of a two-tiered storage rack or shelf structure (no text or symbols)

Illustration of a red rectangular tray inside an oven, with no text or symbols present.

Empty white rectangle with black border (no text or symbols)

STOPP STOPP

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage cabinet (no text or symbols)

Technical line drawing of a mechanical assembly with a bowl, tray, and circular component (no text or symbols)

Diagram of a microwave oven with printed text on the lid panel and red paper bands

Line drawing of a roasted chicken on an oven (no text or symbols)

Illustration of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Illustration of a pink rectangular appliance placed inside an oven rack (no text or symbols)

Illustration of a medical procedure involving a mouse on a tray with a tool and probe inserted (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRERING AV NY ANVÄNDARE

• Klicka på "Registrera"
- Du kan registrera dig via sociala konton eller registrera dig med din personliga e-post

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO Do you already have a thousand passwords? Register with your social accounts and log in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SNABBREGISTRERING

Steg 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Learn ipsum dolor sit est Create the Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Steg 2

Allow your location permission To enhance your experience, please allow location permission to hOn app In the next step. CONTINUE

Steg 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Steg 4

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Steg 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Steg 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Steg 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

Diagram showing a circular device with icons for sensors, battery, and eco-friendly options, including a red arrow indicating rotation.

ON

Simple diagram with a gray circle, red curved arrows, and symbols (-, +, -) — no readable text or labels.

OFF Start

FJÄRRSTYRNING

Diagram illustrating smart home control icons around a central circular dial, with labels like 'Eco' and 'Wi-Fi' pointing to various symbols.

ON TRYCK PÅ FJÄRRSTYRNING

hOn

Diagram of a circular device control panel with icons for signal, Wi-Fi, ECO, battery, and various function buttons.

2:00

2:00*

Cooking SH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Pricetal DIME Efficiency Pricetal (OFF) EDIT DETAILS →

2:00m PYROLYS

Diagram showing a kitchen appliance with a hand cleaning a red cloth, next to a beaker labeled H20 and a bottle nearby.

MAX °C 60 min

Simple line drawing of a cabinet with steam rising from the top, next to an open door (no text or symbols)

4. DRIFT AV PRODUKTEN

PÅ 0 Eco S W S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S N

AV 0 Eco AV

STÄLLA IN TILLAGNINGSPROGRAM

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

Simple diagram with a gray circle, a black dot above it, and red curved arrows pointing inward (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

FÖRINSTÄLLD TID

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Line drawing of an oven with a red arrow indicating a component or airflow direction (no text or symbols present)

MAY °C 10-20 MIN

⚠ ◀ ▼ ◼ ◀ ▼ ◼

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle nearby (no text or symbols)

Line drawing of a kitchen oven with two hands operating it (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a red cloth and a water bottle, showing a steaming dish labeled 'H2O' (no text or symbols on the main subject)

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Line drawing of a kitchen appliance with two hands operating the oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. RENGÖRING AV TILLBEHÖR

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a cloth, water being washed in a beaker labeled H₂O, next to a bottle and cleaning device.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. UNDERHÅLL

BYTE AV DELAR

Electrical hazard symbol and circuit diagram showing a plug, warning sign, and OFF button with red arrows indicating direction

Steg 2

Hand placing a circular object into an oven with a red checkmark (no text or symbols)

Steg 3

Hand holding a circular object inside an oven, with a red curved arrow pointing downward (no text or symbols)

Steg 4

Hand holding a circular object with a red '2' mark inside an oven (no text or symbols on the object itself)

Steg 5

Line drawing of a hand holding a circular object over an open oven with a red arrow indicating rotation (no text or symbols)

Steg 6

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating direction

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Steg 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Steg 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Steg 4

Illustration of a hand inserting a plug into a wall-mounted electrical outlet (no text or symbols)

Steg 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Steg 6

Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF indicators with red arrows

Illustration showing a cooking step with a red warning sign and a hand cleaning the oven, accompanied by a chemical reaction diagram.

8. MILJÖSKYDD OCH BORTSKAFFANDE

8.1. BORTSKAFFANDE AV APPARATER

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset showing a door mechanism and buffer mechanism.

ЛАСКАВО ПРОСИМО

Diagram of an oven with numbered components for identification

2.2. ПРИЛАДДЯ

Technical line drawing of a two-tiered storage unit with horizontal railings (no text or symbols)

Illustration of a red rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray placed inside an oven (no text or symbols)

Technical line drawing of a mechanical assembly with a bowl, tray, and circular component (no text or symbols)

Line drawing of a rectangular tray with a pink patterned lid, placed inside an oven (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a red cabinet with a magnified inset showing a circular arrow pointing to a white line (no text or symbols)

Illustration of a pink rectangular appliance placed inside an oven rack (no text or symbols)

Illustration of a medical procedure involving a mouse, needle, and syringe connected to a tray (no text or symbols)

Illustration of a pink rectangular baking tray with a mesh grille, placed inside a rack (no text or symbols)

Available on the App Store GET IT ON Google Play

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

Hello USERNAME YOUR APPLIANCES ADD Add appliance HV Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lorem ipsum dolor sit est Create to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Крок 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Крок 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Крок 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Крок 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Крок 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Крок 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YESIT'S MY OVEN NO IT'S NOT

Diagram illustrating smart home control interface with icons for sensors, devices, and connectivity

ON

Simple diagram with a gray circle, a red curved arrow, and a plus sign, no text or symbols present.

OFF SET

Diagram illustrating smart home control icons including Wi-Fi, eco, battery, and security symbols around a central circular dial.

07 НАТИСНІТЬ "ДИСТАНЦИНЕ КЕРУВАННЯ"

hOn

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00°

Cooking 10H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-350m 1:1 Proheat (ON) Efficiency Protein (OFF) EDIT DETAILS →

2:00m ПИРОЛІЗ

Simple line drawing of a cabinet with steam rising and a door open (no text or symbols)

4. ЕКСПЛУАТАЦІЯ ВИРОБУ

Illustration of a chicken being tested with a syringe, no text or symbols present

- - - - °C

Simple diagram with a gray circle, a dot, and a curved arrow indicating rotation or direction (no text or symbols)

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Warning symbol with warning triangle and three warning symbols: thermometer, red triangle, and thermometer

Illustration of a hand cleaning a clean appliance into a microwave oven (no text or symbols)

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

MAX °C 10-20 XB

⚠️ ◀◀◀◀◀ ◀◀◀◀◀

Illustration of a kitchen oven with a hand cleaning a red cloth and a water bottle nearby (no text or symbols)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a water bottle and labeled 'H2O' in a basin.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a kitchen oven with two hands operating it (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a water bottle labeled H₂O in a bowl, likely illustrating a chemical or chemical process.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

Electrical hazard symbol and circuit diagram showing a plug, warning sign, and OFF button with red arrows indicating direction

Крок 5

Крок 2

Hand placing a circular object into an oven with a red checkmark (no text or symbols)

Крок 6

Крок 3

Hand holding a circular object inside an oven, with a red curved arrow pointing downward (no text or symbols)

Крок 4

Hand holding a circular object with a red '2' mark inside an oven (no text or symbols on the object)

Line drawing of a hand holding a paper with a circular arrow, next to an open oven (no text or symbols)

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating direction

Safety warning diagram showing a plug with fuse and warning symbol, alongside an electrical switch labeled 'OFF' with red arrows.

Крок 2

Illustration of a hand using a tool to clean or adjust a small object on a machine (no text or symbols visible)

Крок 3

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Крок 4

Illustration of a hand holding a small electronic component with a red arrow pointing to it, next to an open device (no text or symbols present)

Крок 5

Diagram of a cabinet with an open door and a red arrow pointing to the door (no text or symbols present)

Крок 6

Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Isometric line drawing of a 3D rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset view showing a door mechanism.

MM

HOŞ GELDİNİZ

Technical diagram of an oven with numbered components for identification

2.2. AKSESUARLAR

Line drawing of a two-tiered storage rack or shelf structure with no text or symbols

3D diagram of a red rectangular tray placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a red rectangular tray with internal geometric patterns, placed inside an open storage unit (no text or symbols)

Technical line drawing of a room sink with a bowl, tray, and wall (no text or symbols)

Simple line drawing of a red chair with a speech bubble containing three vertical lines, no text or symbols present.

Line drawing of a rectangular tray with a pink patterned lid and grid lines, placed inside an oven (no text or symbols)

Illustration of a pink rectangular tray with a grid pattern inside, placed on an open tray (no text or symbols)

Line drawing of a rooster on an oven with steam rising (no text or symbols)

Illustration of a medical procedure involving a mouse on a stand with a syringe and tubing (no text or symbols)

Illustration of a pink rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols)

Available on the App Store GET IT ON Google Play

YENİ KULLANICI KAYDI

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD hOn Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Learn ipsum dolor sit est Show the Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Adım 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a light blue circular frame (no text or symbols)

CONTINUE

Adım 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Adım 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract icons, no text or symbols present.

Adım 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Adım 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting...

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Adım 7

Appliance connection

Your appliance has been correctly identified!

Simple icon of a kitchen oven inside a light green circular frame (no text or symbols)

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

ON

Simple diagram with a gray circle, a dot, and a red curved arrow inside, no text or symbols present.

OFF 5K

UZAKTAN KUMANDA

Diagram illustrating smart home control icons including Wi-Fi, ECO, battery, and safety symbols around a central circular dial.

ON UZAKTAN KUMANDAYA BASIN

hOn

Diagram showing a circular device with icons and labels, including 'Eco' and various symbols around it.

2:00

2:00°

Cooking 1H 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 250°C 30-35m 111 Protein (30%) 800000 Protein (40%) EDIT DETAILS →

3. BAŞLATMADAN ÖNCE

- • + SAAT AYARI

07:00 BAS

07:00

07:45

ONAYLAMAK İÇİN BASIN

12:00 AYNI ANDA 5 SANİYE BASIN

3.3. ÖN TEMİZLİK

Diagram showing a cleaning or dust removal setup with labeled components including a spray bottle, water bottle, and a container marked H220.

MAX °C 60 min

Simple line drawing of a kitchen appliance with steam rising from the chimney and a cabinet on the side (no text or symbols)

4. ÜRÜNÜN ÇALIŞTIRILMASI

4.1. ÜRÜN NASIL ÇALIŞIR?

FIRININ AÇILMASI/KAPATILMASI

AÇIK 0 Eco S W S W S S S S

KAPALI 0 Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco Eco

200° SAATE BASIN

0:00m

- • + DAKİKA HATIRLATICI AYARI

0:09m

SAATE BASIN 20

-10:30m

- + GECİKMELİ BAŞLATMA AYARI

20:00

12:07 AYNI ANDA BASIN

Illustration of a kitchen appliance with a tool and attached tubing, no text or symbols present

- - - - °C

- • + →

Illustration of a medical procedure with a syringe and tubing, no text or symbols present

Line drawing of an oven with a red arrow indicating a direction (no text or symbols)

ÖN AYARLI ZAMAN

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Hydroeasy

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Katalitik temizleme

Line drawing of an oven with a red arrow indicating a component or process (no text or symbols present)

MAX °C 10-20 DK.

⚠ ◀ ▼ ◼

Illustration of a kitchen oven with a hand cleaning a red cloth and a bottle labeled H2O (no text or symbols on the main subject)

Line drawing of hands installing or adjusting a cabinet interior (no text or symbols)

Diagram showing a mechanical component with a red downward arrow indicating force or direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a red prohibition symbol over a window frame (no text or symbols present)

Illustration showing a hand cleaning a tiled surface with a red cloth and a water bottle labeled 'H2O' nearby.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of hands opening a microwave oven (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing a red arrow indicating direction (no text or symbols present)

6.3. AKSESUAR TEMİZLİĞI

Line drawing of an oven with a red arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a rack with a water bottle labeled H₂O in a bowl, likely illustrating a chemical or chemical process.

Line drawing of an oven with a red arrow pointing to the interior panel (no text or symbols)

6.4. BAKIM

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with warning symbol

Adım 2

Hand inserting a circular icon into an oven with a red checkmark (no text or symbols)

Adım 3

Hand holding a circular object inside an oven, with a red curved line and arrow indicating motion (no text or symbols)

Adım 4

Hand holding a circular object inside an oven, no text or symbols visible

Adım 5

Hand holding a paper with a circular arrow, partially visible inside an oven (no text or symbols)

Adım 6

Electrical warning diagram showing a plug, ON/OFF symbol, and warning sign with red arrows indicating current direction.

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with hazard symbol

Adım 2

Illustration of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Adım 3

Illustration of a hand inserting a small component into a machine (no text or symbols visible)

Adım 4

Illustration of a hand holding a small electrical outlet with a red arrow pointing to it, next to an open electrical cabinet (no text or symbols present)

Adım 5

Diagram of a wall-mounted electrical outlet with an arrow pointing to it, no text or symbols present

Adım 6

Electrical warning symbol diagram showing a plug, warning sign, and ON/OFF switch with red arrows indicating direction

Illustration showing a cooking step with a red warning sign and a hand cleaning a oven, accompanied by a chemical reaction diagram.

8. ÇEVREYİ KORUMA VE BERTARAF

8.1. CİHAZIN BERTARAF EDİLMESİ

Isometric line drawing of a 3D rectangular box with a lid and side panel (no text or symbols)

Isometric line drawing of a rectangular box with a side panel and mounting feet (no text or symbols)

Technical diagram of a refrigerator with labeled components and an inset view showing a door mechanism and Tampon device.
