USER MANUAL BMG2508B BRANDT

© ® N OU 2 W NH 4/Fejlsogning .

"FORHOLDSREGLER FOR AT

À0YO TOV BEPHOKPAOIWV OU

Dear Customer, You have just acquired a BRANDT product and we would like to thank you. We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. We have devoted our know-how, our innovative spirit and the passion that has been guiding us for over 60 years. In an effort to ensure that our products meet your requirements in the best possible way, our Customer Relations department is at your disposal, to answer all your questions and to listen to all your suggestions. Visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information. BRANDT is delighted to assist you every day and hopes you get the most out of your purchase. https://brandt.com/ À Important: Before using your appliance, read this user guide carefully to familiarise yourself more quickly with its operation.

Installation and connection 3/ USING THE APPLIANCE nnnnnrnrennnmnenne 19 Operation Instructions

7. Defrost By Weight

10. Lock-out Function for Children .

— Do not attempt to operate FN this oven with the door open WARNING: since this can result in If the door or door seals are harmful exposure to damaged, the oven must not microwave energy. It is be operated until it has been important not to break or repaired by a competent tamper with the safety person. interlocks. ADDENDUM If the apparatus is not maintained in a good state of — Do not place any object between the oven front face and the door or allow soil or € k cleaner residue to cleanliness, its surface could accumulate on sealing be degraded and affect the surfaces. lifespan of the apparatus and lead to a dangerous situation. Specifications Model: BMG2508B Rated Voltage: 230V50Hz Rated Input Power(Microwave): 1250W Rated Output Power(Microwave): 800W Rated Input Power(Grill): 1000W EN 4

A WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: — Read and follow the specific:"PRECAUTIONS TO

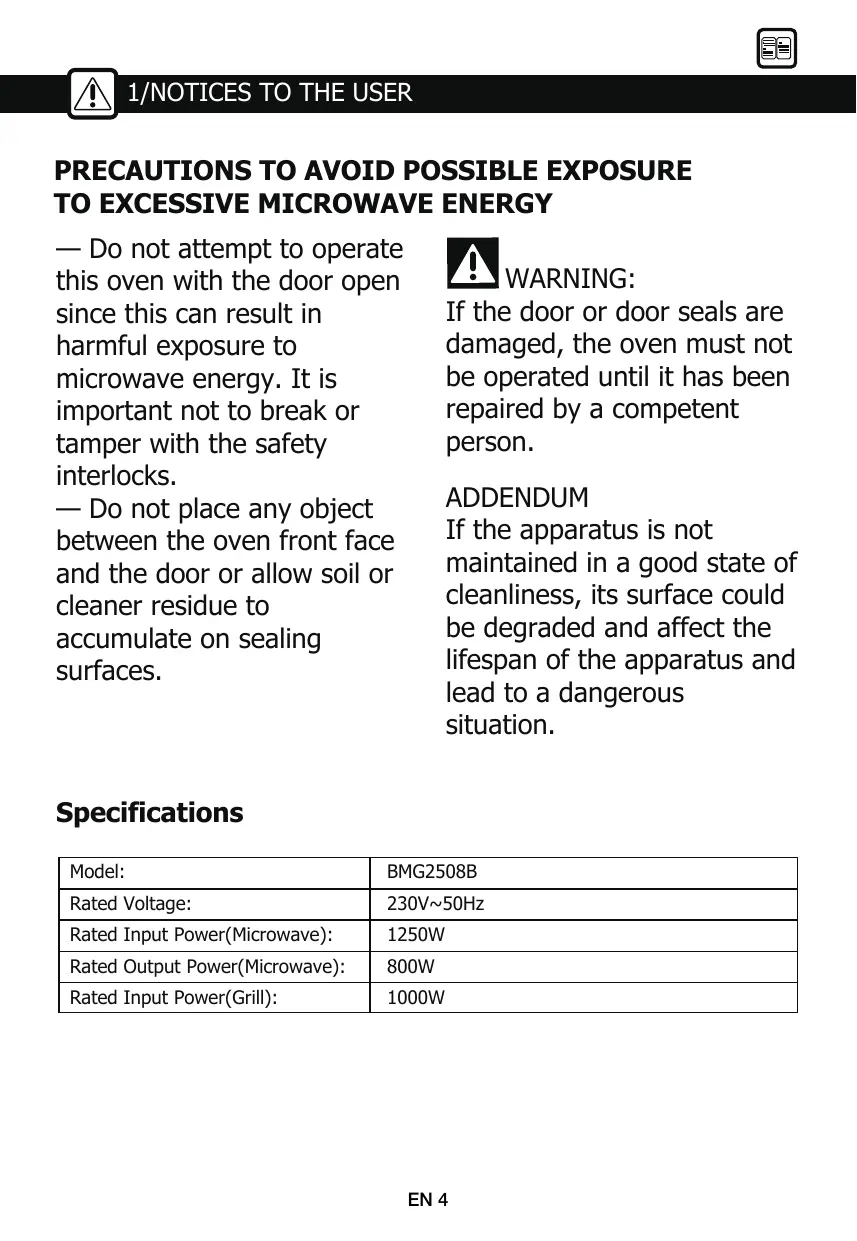

AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE

ENERGY". — This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised. — Keep the appliance and its cord out of reach of children less than 8 years. — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.( For appliance with type Ÿ attachment) A WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. A| WARNING: It is hazardous for anyone other EN 5

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. A WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. — When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. — Only use utensils that are suitable for use in microwave ovens. — If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. — Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. — The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. — Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. — The oven should be cleaned regularly and any food deposits removed. — Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. — Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) — The microwave oven must EN 6

be operated with the decorative door open. (for ovens with a decorative door.) — This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments. — The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. — Metallic containers for food and beverages are not allowed during microwave cooking. — The appliance shall not be cleaned with a steam cleaner. — Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detacha le turntables. But this is not applicable for appliances with horizontal bottom hinged door.) — The microwave oven is intended to be used built-in. — Surface of a storage drawer can get hot. A | WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. — During use the appliance EN7

becomes hot. Care should be taken to avoid touching heating elements inside the oven. A| WARNING: Accessible parts may become hot during use. Young children should be kept away. — The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.) EN run: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. — Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

To Reduce the Risk of Injury to Persons Grounding Installation LA DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. EN WARNING Electric Shock Hazard Improper us e of the gro unding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped With a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. À short power-supply cord

is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or

extension cord is used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must EN 9

be a grounding-type 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the

oven after using with a slightly damp cloth.

2. Clean the accessories in

the usual way in soapy water.

3. The door frame and seal

and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive

cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in

1/NOTICES TO THE USER

shattering of the glass.

5. Cleaning Tip---For easier

cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300mi (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you EN 10

can test the utensil in question following the procedure below. Utensil Test:

1. Fill a microwave-safe

container with 1 cup of cold water (250ml) along with the utensil in question.

3. Carefully feel the utensil.

If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute

Materials you can use in microwave oven Utensils Remarks Follow manufacturer's instructions. The bottom of browning Browning dish dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not Dinnerware use cracked or chipped dishes. Glass j Always remove lid. Use only to heat food until just warm. Most ‘ass Jars glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer's instructions. Do not close with metal tie. Oven cooking bags Make slits to allow steam to escape. Paper plates and Use for short-term cooking/warming only. Do not leave oven cups unattended while cooking. Use to cover food for reheating and absorbing fat. Use with Paper towels supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers Plastic soften, as the food inside gets hot. "Boiling bags” and tightiy closed plastic bags should be slit, pierced or vented as directed by package. Plasti Microwave-safe only. Use to cover food during cooking to retain astic Wrap moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. EN 12

Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metaltrimmed | Metal shields the food from microwave energy. Metal trim may utensils cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic f Plastic foam may melt or contaminate the liquid inside when astic foam exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. EN 13

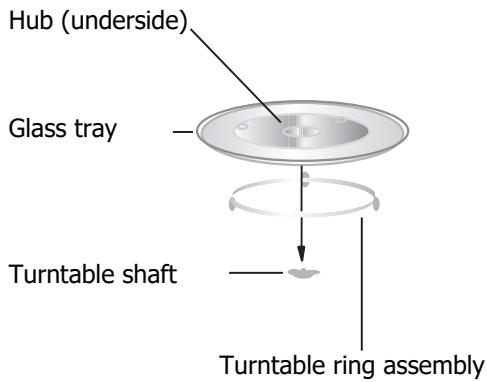

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 Grill Rack( Can not be used in microwave function and must be placed on the glass tray ) Turntable Installation Hub (underside) Glass tray

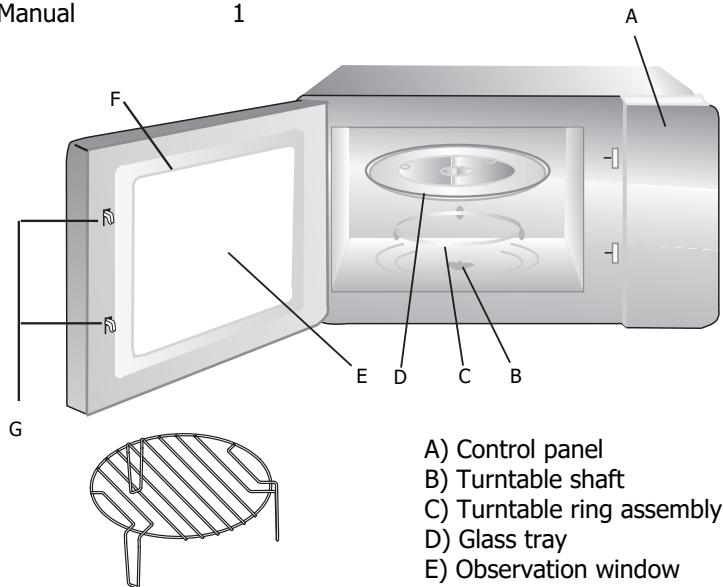

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Never place the glass tray upside down. The glass tray should never be restricted. Both glass tray and turntable ring assembly must always be used during cooking. . All food and containers of food are always placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection no longer to accessible following installation, an all-pole disconnecting

1. This appliance is only intended for device must be present on the

domestic use. installation side with a contact gap of at

2. This oven is intended for built-in use least 3mm.

only. It is not intended for counter-top 8. Adapters, multi-way strips and use or for use inside a cupboard. extension leads must not be used.

3. Please observe the special installation Overloading can result in a risk of fire.

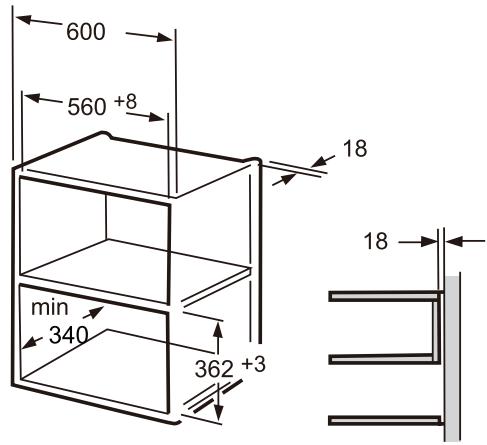

instructions. 4, The appliance can be installed in a The accessible surface may be hot 60cm wide wallmounted cupboard. during operation.

5. The appliance is fitted with a plug and

must only be connected to a properly installed earthed socket.

6. The mains voltage must correspond to

the voltage specified on the rating plate. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is

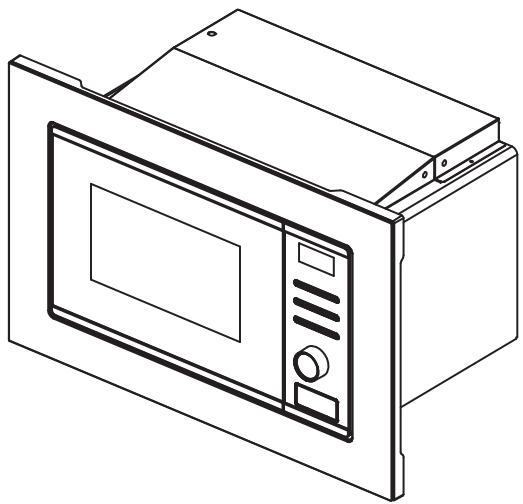

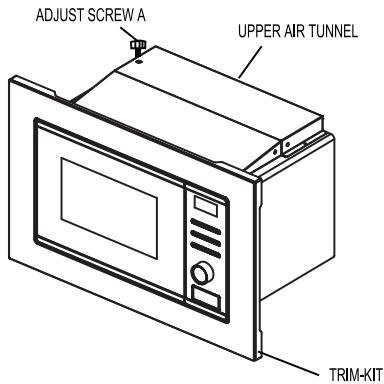

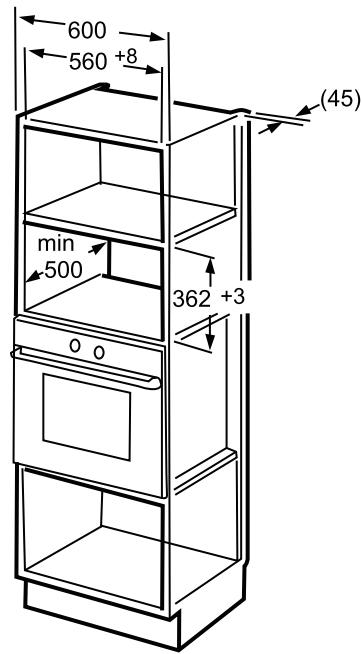

Installation Instructions Please Read the Manual Carefully Before Installation ADJUST SCREW À =———

2 / INSTALLATION Please Note Electrical connection The oven is fitted with a plug and must be only connected to a properiy installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician. Ifthe plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm. If an appliance is not equipped with à mains cable and a plug or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of overvoltage category III for full isolation, an isolating device must be incorpo-rated into the permanentiy installed electrical installa-tion in accordance with the installation regulations. If an appliance is not equipped with a mains cable and a plug or other means the fixed wiring insulation must be protected, for example, by insulating sleeving having an approp-riate temperature rating. An all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm. The appliance must not be placed in a cabinet. Don't use under the worksurface and that it must not be subject to spillage from containers onto surfaces under which the appliance is installed A. Built-in furniture The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm. Do not cover ventilation slots and air intake points. EN 16

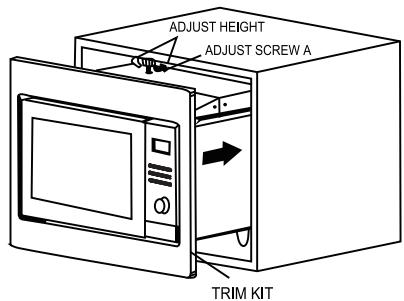

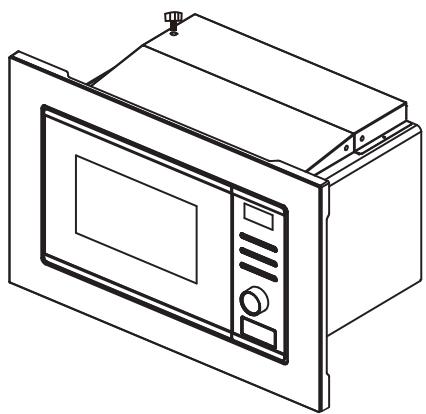

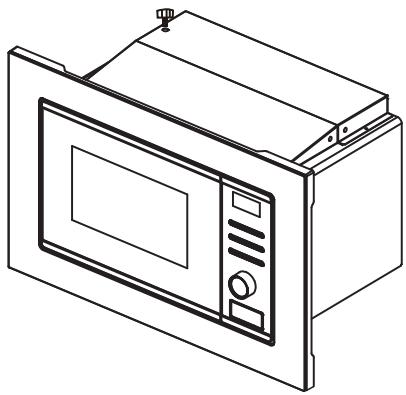

1. Fix ADISUTSCREW A on the UPPER AIR TUNNEL of the oven, and then install the

oven into the cabinet. e Adjust the height of ADJUST SCREW A to keep 1mm gap between the ADJUST SCREW A and the top plane of cabinet. e Do not trap or kink the power cord. e Make sure that the oven is installed in the center of the cabinet. L F—#4 SCREWB INSTALLATION HOLE TRIMKIT PLASTIC COVER INSTALLATION HOLE

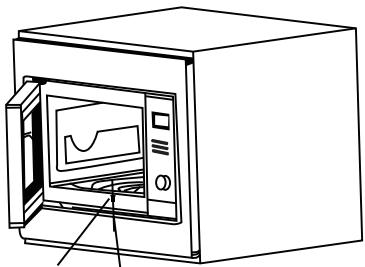

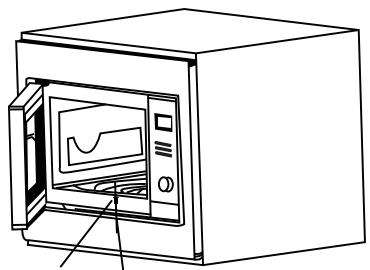

2. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE

Operation Instructions

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " © "twice , the hour figures will flash.

2) Turn" 6 "to adjust the hour figures, the input time should be within O0--23.

3) Press " © ", the minute figures will flash.

4) Tum" Q "to adjust the minute figures, the input time should be within O--59.

5) Press " @, "to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "C]" , the oven will go back to

the previous status automatically.

2. Microwave Cooking

1) Press " UV " once, the screen will display "P100". Turn " Q "right to choose the

power you want, and "P100", "P10", "P30", "P50" or "P80" will display in turn.

2) Press " @," to confirm, and turn " G "to set cooking time from 0:05 to 95:00.

3) Press "(P\," again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " UX "once, the screen displays "P100".

2) Turn" Q "to choose 80% microwave power.

3) Press " @, "to confirm, and the screen displays "P 80".

4) Tum" "to adjust the cooking time until the oven displays "20:00".

5) Press " @}, " to start cooking.

1) Press " YX " twice, the screen will display " 0:30 ".

2) Turn" "to set cooking time from 0:05 to 95:00.

3) Press " @, "again to start cooking.

Note: When the grill time is halfway completed, the oven will sound twice. In order to have better grilling results, you should flip the food over, close the door, and then press " @, "to continue cooking. If no action is taken, the oven will still continue cooking. 4.Combination Cooking

1) Press" UV "three times, the screen will display "C-1", turn " @ "to choose the

power "C-1" or "C-2".

2) Then press " @, "to confirm, and turn " @ "to set cooking time from 0:05 to

95:00. Press " ®, "again to start cooking. Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " & "three times, the screen display "C-1".

2) Press " @, "to confirm, and the screen displays "0:30".

3) Tu" G "to adjust the cooking time until the oven displays "10:00".

4) Press " @, "to start cooking

(1) Press " © "once , the screen will display 00:00. (2) Turn " Q "to enter the timer time. (The maximum cooking time is 95 minutes). (3) Press " ()." to confirm setting. (4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set (24-hour system), the screen will display the current time. Note: The Kitchen Timer is different from 24-hour system.\Kitchen Timer is a timer.

1) In waiting state, press " @&, "to start cooking with 100% power for 30 seconds, each

added press will increase 30 seconds cooking time up to 95 minutes.

2) In microwave, grill, combination cooking or time defrost state, each press of " @, "

can increase 30 seconds cooking time.

3) Under the states of auto menu and weight defrost, cooking time cannot be increased

by pressing " (®), ".

4) In waiting state, turn " G "left to set cooking time with 100% microwave power,

then press " @, "to start cooking.

7. Defrost By Weight

1) Press " x" once, and the oven will display "100".

2) Turn" G "to select the weight of food from 100 to 2000 g.

3) Press" (}, "to start defrosting.

Note: When the defrost time is halfway completed, the oven will sound twice. In order to have better defrosting results, you should flip the food over, close the door, and then press " @, "to continue cooking. If no action is taken, the oven will still continue cooking. EN 22

1) Press" 3 " twice, and the oven will display "0:30".

2) Turn" Q "to select the defrost time. The MAX. time is 95 minutes.

3) Press " @, "to start defrosting.

The defrost power is P30. It cannot be changed.

1) In waiting state, turn right " Q "to choose the menu, and "Al" to "A8" will

2) Press " @, "to confirm.

3) Tu" © "to choose the default weight as the menu chart.

4) Press " @, "to start cooking.

2) Press " @, "to confirm.

3) Tu" Q "to select the weight of fish till "250" displays.

4) Press " @, "to start cooking.

10. Lock-out Function for Children

Lock: In waiting state, press " (ni "for 3 seconds, there will be a long beep denoting entering the children-lock state. The screen will display " £ Z Z 3". Lock quitting: In locked state, press " (ni "for 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Inquiring Function

1) In states of microwave, grill and combination cooking, press " ", the current

power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to its former state;

2) In cooking state, press " © "to inquire the time and the time will be displayed for 3

seconds. After 3 seconds, the oven will turn back to its former state. EN 24

(1) The buzzer will sound once when turning " Q "5 2)" @, " must be pressed to continue cooking if the door is opened during cooking; during cooking; (3) Once the cooking programme has been set , " ®, "is not pressed in 1 minute, the current time will be displayed. The setting will be cancelled. (4) The buzzer sounds once by efficient press, inefficient press will be no responce. (5) The buzzer will sound five times to remind you when cooking is finished. EN 25

4/ Trouble shootin Normal Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliance, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam accumulating on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in. It is forbidden to run the until without any food inside. It is very dangerous. Trouble Possible cause Remedy Oven can not be started.

1. Power cord not plugged

Unplug. Then plug again in tightly. after 10 seconds.

2. Fuse blowing or circuit

Replace fuse or reset circuit breaker (repaired by professional personnel of our company) breaker works.

3. Trouble with outlet.

Test outlet with other electrical appliances. Oven does not heat.

4. Door is not closed well.

Close door well. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. EN 26

Bedieningspaneel = Microwave = Grill — Combi = Weight - Time - Timer — Clock [M] Stop/Wissen

© ® N OU 2 W NH 4/Feilsoking …

© ® N OU 2 W NH 4/Felsôükning
