USER MANUAL SG1200IX SCHEPPACH

OUTPUT overLoao lei OFF4 ON

Explanation of the symbols on the device Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa- nYing explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures Attention! Failure to observe the safety signs and warning information affixed to the machine and failure to observe the safety and operating instructions can result in serious injury or even death Warning - Read the operating manual to reduce the risk of injury. Wear hearing protection. Excessive noise can result in a loss of hearing Wear work gloves! Do not expose the device to rain Naked flames or smoking near the device is strictly prohibited! Warning - Hot parts! Warning against electrical voltage Make sure that other persons maintain a sufficient safety distance. Keep uninvolved persons away from the device. Attention: hot surface! Danger of burning, Before carrying out any cleaning or maintenance work, switch off the engine and remove the Spark plug connector from the spark plug Danger of poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms. Sparks are produced when the engine is started. These can ignite nearby flammable gases. Read the whole text of the operating manual through carefully before start up!

Lsehpèch | Important. Always switch off the engine before refuelling. Do not refill during operation Be very careful when dealing with fuels and lubricants! Guaranteed sound power level of the device Check the oil level

The product complies with the applicable European directives. A Attention! We have marked points in these operating instructions that impact your safety with this symbol. www.scheppach.com

Table of contents: Page:

5. General safety instructions

10. Cleaning and maintenance

13. Disposal and recycling.…

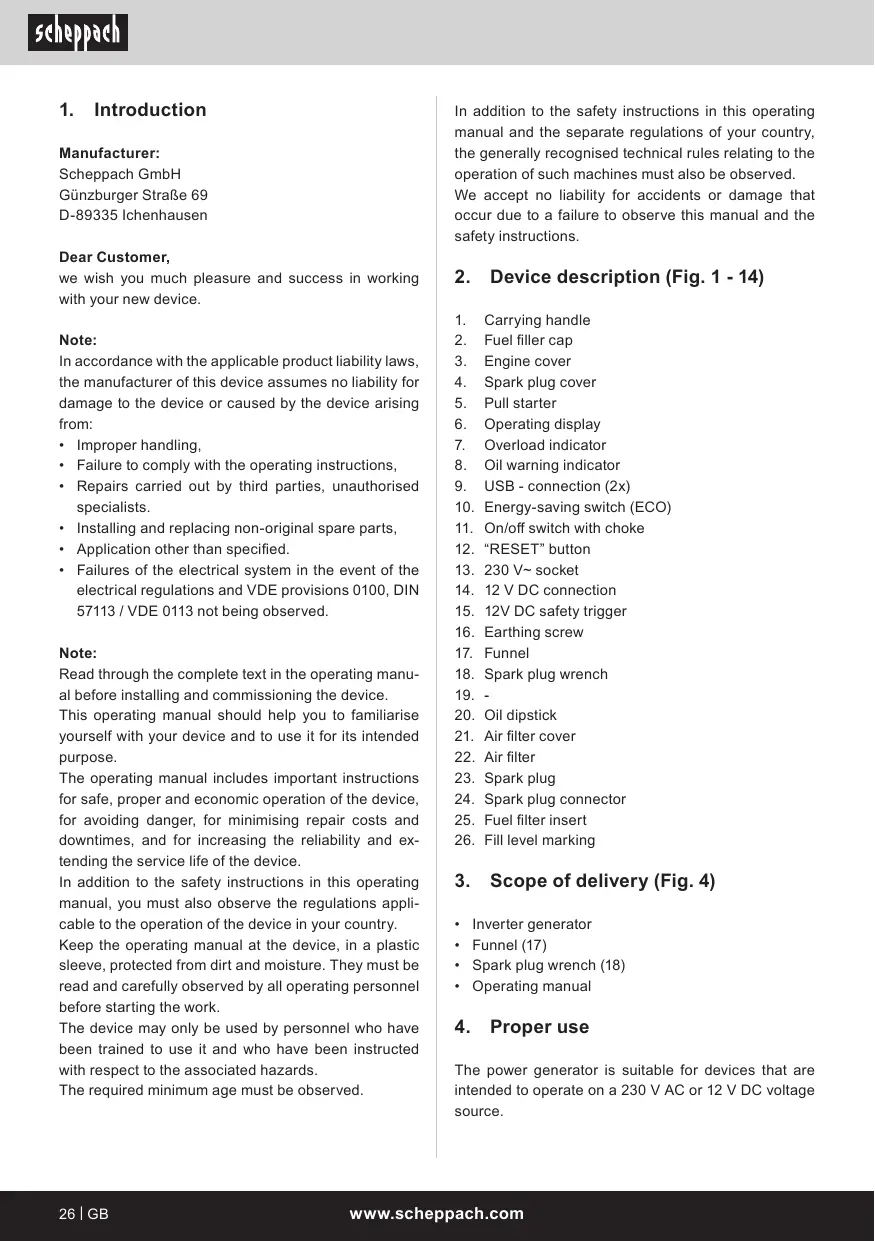

Manufacturer: Scheppach GmbH Günzburger Strake 69 D-89335 Ichenhausen Dear Customer, we wish you much pleasure and success in working with your new device: Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from: +_Improper handling, Failure to comply with the operating instructions, Repairs carried out by third parties, unauthorised specialists. Installing and replacing non-original spare parts, Application other than specified. Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed. Note: Read through the complete text in the operating manu- al before installing and commissioning the device. This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device: In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work, The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that oceur due to a failure to observe this manual and the safety instructions.

9. USB - connection (2x)

10. Energy-saving switch (ECO)

11. Onfoff switch with choke

15. 12V DC safety trigger

21. Air filter cover

3. Scope of delivery (Fig. 4)

The power generator is suitable for devices that are intended to operate on a 230 V AC or 12 V DC voltage source. www.scheppach.com

With household devices and electronic devices, please check the suitability according to the respective manu- facturer's specifications: Attention! The power generator must not be connect- ed to the mains supply as a domestic emergency power supply. lt can cause damage to the power generator or other electrical devices. The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. An element of the intended use is also the observance of the safety instructions, as well as the assembly in- structions and operating information in the operating manual Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers. The liabiity ofthe manufacturer and resulting damages are excluded in the event of modifications of the ma- chine. Please note that our equipment was not designed with the intention of use for commercial or industrial purpos- es. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work

5. General safety instructions

We have marked points in the operating manual that im- pact your safety with this symbol: À Furthermore, the operating manual contains other important text sections that are marked with the word “ATTENTION. A Attention! When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions. 1f you hand the device over to an- other person, please hand over this operating manual / safety instructions as well. We accept no liability for accidents or damage that oceur due to a failure to ob- serve this manual and the safety instructions. À DANGER À failure to observe these instructions poses an ex- treme danger of death or the risk of life-threatening injuries. À WARNING A failure to observe these instructions poses a danger of death or the risk of serious injuries. À CAUTION À failure to observe these instructions poses a minor to moderate danger of injury. NOTE! À failure to observe these instructions poses a risk of damage to the engine or other property.

1. Lis prohibited to make any modifications to the

2. The manufacturers preset speed must not be

changed. Power generators or connected devices may be damaged.

3. Danger of poisoning! Exhaust gases, fuel and lu-

bricants are poisonous, exhaust gases may not be inhaled

4. Fire risk! Petrol and fuel vapours are highly flam-

5. Engine exhaust gases are toxic. The power gener-

ator must not be operated in unventilated rooms. If the power generator is Lo be operated in well-ven- tilated rooms, the exhaust gases must be dis- charged directly outside via an exhaust gas hose. Additional requirements for protection against fire and explosion must also be observed. Toxic ex haust gases can also escape when operating an exhaust hose. Because of the risk of fire, the ex- haust hose must never be directed at flammable materials.

6. Never operate the power generator in rooms with

highly flammable substances.

7. Hot surfaces! Danger of burns, do not touch ex-

haust system and drive unit.

8. Do not touch any mechanically moving or hot

parts. Do not remove any protective covers.

9. Protective equipment! Use suitable hearing pro-

tection when you are near the device.

11. Repair and adjustment work may only be carried

out by authorised specialist personnel.

12. Protect yourself from electrical hazards.

Never touch the power generator with wet hands. Only use approved and appropriately identified ex- tension cables for use outdoors (HO7RN). If extension leads or mobile distribution networks are used, the resistance value must not exceed 1.5

9. As a guideline value, the total length of lines

for a cross-section of 1.5 mm? should not exceed 60 m, and for a cross-section of 2.5 mm, 100 m Should not be exceeded Never operate the power generator during rain or snowfall. Always switch off the engine during transport and refuelling. Fuel is combustible and highly flammable. Do fuel the unit during operation. Do not fuel the unit when someone is smoking or near open flames. Do not Spill any fuel. Do not refuel or empty the tank near open light, fire or flying sparks. Smoking prohibited! Do not use the power generator in a thunderstorm. - Danger of lightning strike! Provide a secure, level place for the power gener- ator, Turning and tilting or changing location during operation are forbidden: Place the power generator at least 1 m away from walls or connected devices. Children must be protected by ensuring that they stay a safe distance away from the power gener- ator/inverter. Some parts of the reciprocating internal combus- tion engine are hot and may cause burns. The warnings on the power generator must be ob- served Values specified in the technical data under sound power level (LWA) and sound pressure level (LpA) represent emission levels and are not necessarily safe working levels. Since there is a correlation between emission and exposure levels, it can- not be reliably used to determine any additional precautionary measures that may be required Factors influencing the current exposure level of the worker include the characteristics of the work- space, other noise sources, airborne noise, etc., such as the number of machines and other adja- cent processes and the length of time an operator is exposed to the noise. The permitted exposure level may also vary from country to country. Nev- ertheless, this information will enable the operator ofthe machine to make a better assessment of the risks and hazards.

If necessary, acoustical measurements should be taken after installation to determine the sound pressure level. Warning! Comply with the electrical safety regu- lations applicable to the place where the power generator/inverters are used Warning! Consider the requirements and precau- tionary measures in case of re-supply of a system by power generator/inverters depending on the protective measures of this system and the appli- cable directives Inverter power generators should only be used up to their rated power under the rated ambient con- ditions. If the inverter power generator is used in conditions that do not comply with the reference conditions according to ISO 8528-8:2016, 71, and if the cooling of the engine or generator is im- paired, e.g. as a result of operation in restricted areas, a reduction in power is required Due to high mechanical loads, only durable rubber hose lines (per IEC 60245-4) or equivalent equip- ment should be used Observe the electrical safety regulations applica- ble to the place where the power generator/invert- eris used. Consider the requirements and precautionary meas- ures in case of re-supply of a system by power gen- erator/inverters depending on the protective meas- ures of this system and the applicable directives. Electrical safety

Prior to use, the generator and its electrical equip- ment (including lines and plug connectors) should be checked to ensure that there are no defects. The power generating unit must not be connected to another power source such as the power sup- ply of energy supply companies. In special cases where a reserve connection to existing electrical systems is provided, this must only be carried out by a qualifie electrician who will take into account the differences between the operated equipment using the public mains and operation of the power generating unit. According to this part of ISO 8528, the differences in the operating manual must be specified. Protection against electric shocks depends on the circuit breakers which are matched precisely to the power generating unit. If a circuit breaker must be replaced, this should be done using a cir- cuit breaker with the same rating and performance characteristics. www.scheppach.com

Warning! This power tool generates an electromagnet- ic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacture of the medical implant prior to operating the power tool ATTENTION: Use only E10 unleaded petrol as fuel. A Use of petrol A Danger to life! Petrol is toxic and highly flam- mable. Only store petrol in containers (canisters) designed and tested for this purpose. The tank caps must al- ways be properly screwed on and tightened. Defec- tive caps must be replaced for safety reasons. Keep petrol away from sparks, open flames, per- manent flames, heat sources and other sources of ignition. Do not smoke! Refuel outdoors only and do not smoke while refu- elling- Before refuelling, switch off the combustion engine and let it cool down. Petrol must be filed before starting the combustion engine. While the combustion engine runs or if the machine is hot, the fuel cap must not be opened and petrol must not be filled. Open the fuel cap carefully and slowly. Wait for the pressure to equalise and only then remove the fuel filler cap completely. Use a suitable funnel or filer pipe for refuelling so that no fuel can spill onto the combustion engine and housing or lawn Do not overfill the fuel tank! To leave room for the fuel to expand, never fill the fuel tank beyond the lower edge of the filing nozzle Observe additional information in the combustion engine user manual. If petrol has overflowed, do not start the combustion engine until the petrol-contaminated area has been cleaned. Avoid starting the engine until the fuel va- pours have evaporated (wipe dry). Always wipe up spilled fuel immediately. If petrol has got on clothing, it must be changed The tank cover must be properly screwed on and tightened after each refuelling operation. The device must not be put into operation without the original tank cover screwed on. For safety reasons, check fuel line, fuel tank, fuel cap and connections regularly for damage, ageing {brittieness), tight fit and leaks and replace if nec- essary. Only empty the tank outdoors. Never use beverage bottles or similar to dispose of or store operating materials, such as fuel. People, especially children, could be tempted to drink from it Never store the device with petrol in the tank inside a building. Any fuel vapours produced can come into contact with naked flames or sparks and ignite. Do not place the device and fuel tank near heaters, radiant heaters, welding machines or other sources of heat Risk of explosion! If a defect is detected on the tank, the tank cover or on fuel-carrying parts (fuel lines) during operation, the combustion engine must be switched off immediately. Then consult a specialist dealer. Residual risks The device is state-of-the-art and has been built in ac- cordance with the recognised technical safety rules. However, individual residual risks can arise during op- eration. Health hazard due to electrical power, with the use of improper electrical connection cables. Furthermore, despite all précautions having been met, some non-obvious residual risks may still re- main. Residual risks can be minimised if the “Safety In- structions” and the “intended Use” together with the operating manual as a whole are observed Avoid accidental start-ups of the power generator. Use the device in the way that is recommended in this operating manual. This is how to ensure that your power generator provides optimum perfor- mance

Lsehpèch | Max. power P,., (230 V) (8225) 1.2KW Rated voltage U, 280 V-/DCSV/ DC 12V Rated current, 4.3 A (230 V-) Rated current, 5.0 A(12V) Rated current, 1x21 PS USE) Frequency F, 50 Hz Performance class Gi Active power factor @ 1 Quality class À Drive motor type 4-Stroke, 1 cylinder, air-cooled Displacement 56 cm° Max. power (engine) 13kW/18PS Fuel Super E10 petrol Tank contents 31 Engine oil type 15W40 Oil volume (approx.) 250 ml Consumption at full load 0.65 Uh Max. temperature. 40°C Mar stalltion altitude (above 4000 m Spark plug ABRTC Subject to technical changes! Operating mode S1 (continuous operation) The machine can be operated continuously with the specified power. Operating mode S2 (short-term operation) The machine may only be operated at maximum or peak power for a brief time. Noise and vibration À Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection. Information about noise development in accordance with EN ISO 3744:1995, ISO 8528- 10:1998 Noise data Sound power level L,, 92.61 dB Sound pressure level L,, 72.68 dB Uncertainty K sx 0.77 dB

Open the packaging and carefully remove the de- vice Remove the packaging material, as well as the pack- aging and transport safety devices (if present). Check whether the scope of delivery is complete. Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised. If possible, keep the packaging until the expiry of the warranty period Familiarise yourself with the device by means of the operating manual before using for the first time. With accessories as well as wearing parts and re- placement parts use only original parts. Spare parts can be obtained from your specialist dealer. When ordering please provide our article number as well as type and year of manufacture for your equip- ment À WARNING! The device and the packaging material are not children's toys! Do not let children play with plas- tic bags, films or small parts! There is a danger of choking or suffocating!

8. Before commissioning

Electrical safety Prior to use, the power generator and its electrical equipment (including lines and plug connectors) should be checked to ensure that there are no defects. Never connect the power generator Lo the mains (sock- et) The power lines to the consumer must be kept as short as possible. À DANGER! Risk of fire and explosion! When filing, fuel may ignite and even explode. This can lead to severe burns or death. = Switch off the engine and let it cool down. -_ Keep heat, flames and sparks away. www.scheppach.com

= Only fill up with fuel outdoors: Wear protective gloves. -_ Avoid contact with skin and eyes Start the device at a distance of at least 3 m from the fuel filling point. = Watch out for leaks. If petrol is leaking, do not start the engine. À WARNING! Health hazard! Inhaling petrol/ubricant vapours may lead to severe health damage, loss of consciousness and, in extreme cases, to death = Do not inhale petrol/lubricant vapours. - Operate the device outdoors only. NOTE! Device damage Using the device without or with too little engine and gearbox oil can result in engine damage. = Fill with petrol and oil before commissioning. The device is supplied without engine oil and gearbox oil NOTE! Environmental damage! Spilled oil can pollute the environment permanentiy. The liquid is highly toxic and can quickly lead to water pollution Filllempty oil only on level, paved surfaces. - Use a filling nozzle or funnel. Collect drained oil in a suitable container. = Wipe up spilled oil carefully immediately and dis- pose of the cloth according to local regulations: Dispose of oil as per local regulations: 84 Earthing (Fig. 3) A Attention Electric shock! + Do not use bare wires for earthing +_ Power generator must be safelÿ earthed Earthing the housing is necessary to discharge static charging. To do this, connect a cable on one side to the earth terminal (16) of the power generator and on the other side lo an external mass rising pipe (e.g. rod earth) A ATTENTION! Check before operation + Check all sides of the engine for oil or fuel leaks. Check the engine oil level Check the fuel level — Fill with at least 2 litres of Su- per E10 petrol Check the condition of the air filter. Check the condition of the fuel lines. Look for signs of damage. Check that all protective covers are in place and all screws are tightened Ensure that the device is sufficiently ventilated. Make sure that the spark plug connector is attached to the spark plug (23) Disconnect any connected electrical devices from the power generator.

8.2 Top up oil (Fig. 7 +8)

A Attention! The power generator is delivered without engine oil. Therefore, ensure that you add oil before start ing it up. Use 15W40 oil here. Check the oi level regularly before commissioning. An oil level that is too low can damage the motor.

1. Place the power generator on a level, even sur-

2. Remove the engine cover (3) by unscrewing the

two screws with a Phillips screwdriver (not includ- ed in the scope of delivery).

3. Unscrew the oil dipstick (20).

4. Fill the tank with engine oil using a funnel (17).

Note the max. filing capacity of 400 ml. Carefully fil the oil up to the lower edge of the filling port

5. Wipe the oil dipstick (20) with a clean, lint-free

6. Re-insert the oil dipstick (20) and check the oil lev-

el without screwing the dipstick tight again.

7. The oil level must be within the middle mark on

8. _Ifthe oil level is too low, add the recommended

amount of oil (max. 400 mi).

9. Then screw the oil dipstick (20) in again.

10. Put the engine cover (3) on and fix in place by

retightening the two screws. 83 Refill A Attention! The power generator is delivered without petrol. It is therefore essential to fill with petrol before com- missioning. Use Super E10 petrol for this. fuel

1. Unscrew the tank filer cap (2) and fill a maximum

of31 Super E10 petrol into the tank container using the funnel (17) www.scheppach.com 8131

2. Ensure that the tank is not overfilled (observe the

fill level marking (26)!) and that no petrol is spilled Use a fuel filter insert (25). Clean up spilled petrol immediately and wait until the fuel vapours have evaporated (wipe dry).

3. Close the tank cover (2)

A ATTENTION! Refuel in a well-ventilated area with the engine stopped. If the engine was in operation immediately before, allow it to cool first. Never refuel the engine in a building where the fuel vapours may come into contact with flames or sparks. Petrol is highly inflammable and explosive. When handling fuels, you may suffer burns or other se- vere injuries.

À Attention! Always make sure the device is fully assembled before commissioning! 91 Starting the engine (Fig. 5 + 6) A Attention! Danger of poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms.

1. Setthe ventilation on the tank cover (2) to “ON”.

2. Setthe on/off switch (11) to the “RUN position

Note: The energy saving switch (10) must be set to "OFF" When the engine is cold

1. Attention! Never allow the pull starter (5) to whip

back. This can result in damage

2. Setthe onloff switch (11) to the *CHOKE" position.

3. Now pull the pull starter (5) and the engine should

Start. If the engine does not start, repeat the pro- cess.

4. Move the onfoff switch (11) from the *CHOKE" po-

sition to the “RUN” position after starting the en- gine (after approx. 15-30 seconds). (Fig. 6)

5. _Ifthe engine does not start even after several at-

tempts, read the “Troubleshooting" chapter. Note: If the engine is being started for the first time, several tries are required to start until the fuel has been deliv- ered from the tank to the engine. Note: With high outside temperatures, it may be neces- sary to start the power generator without the choke even when the engine is cold! When the engine is warm

1. Set the onfoff switch (11) to the *RUN" position.

2. Now pull the pull starter (5) quickly. The device

should start after a maximum of 2 pulls. If the device has still not started, repeat the procedure described under “Starting the engine when cold”

9.2 Shutting the engine off

Allow the power generator to run for a short time (ap- prox. 30 seconds) without load before switching it off so that it can ‘cool down”

1. Set the onfoff switch (11) to the “OFF” position.

2. Disconnect the power consumers from the device.

3. Set the ventilation on the tank cover (2) to “OFF”.

9.3 Operating display (6) (Fig. 3)

The operating display (6) is active when the engine is running

9.4 Overload indicator (7) (Fig. 3)

The overload protection becomes active if the power consumption is too high and switches off the 230 V - sockets (13).

1. Switch the device off as described in section 9.2

2. Disconnect the power consumers from the device.

9.5 “RESET” button (12) (Fig. 3)

If the overload protection has been triggered and the overload indicator (7) lights up red, the “RESET" button {12) can restore the output power of the power gen- erator/inverter. It is then not necessary to restart the engine.

1. Press and hold the “RESET” button (12) for 1 sec-

ond until the light (red) is extinguished and the op- eration indicator (6) (green) illuminates: Ifthe overload protection has not tripped, the “RESET" button (12) has no effect.

9.6 Oil warning indicator (8) (Fig. 3)

The indicator activates when the oil level is too low and deactivates as soon as the oil level is sufficient.

9.7 Automatic oil cut-off

The automatic oil cut-off system responds when there is too little engine oil. The oil warning indicator (8) Starts flashing when there is too little oil in the engine www.scheppach.com

The indicator lamp starts to light up when the oil quan- tity has not reached the safety quantity. The engine switches itself off after a short time. It is not possible to start the engine until the engine oil has been filled (see chapter 8.2). The indicator activates when the oil level is too low and deactivates as soon as the oil level is sufficient If the oil level is too low, the oil warning indicator (8) lights up during the start attempt. Top up engine oil as. described in 8.2 and repeat the starting procedure.

9.8 Energy saving switch (10) (Fig. 3)

To reduce the fuel consumption when idle, move the energy saving switch (10) to the “ON” position. The energy saving switch (10) must be switched off when electrical devices that require a high starting cur- rent are connected, for example a compressor. Even when the power generator is started, the energy saving switch must be initially set to “OFF”

9.9 USB connection (9) (Fig. 3)

This power generator is equipped with two USB con- nections. These can be used to charge smartphones for example 910 Charging external devices (Fig. 3) À DANGER! Danger due to incorrect charging.

1. Plug the adapter cable with 12 V terminals (19) into

the 12 V DC connection (14) provided for this.

2. _Ifthe 12 V DC safety release (15) has been tripped,

the 12 V DC safety release (15) can restore the output power of the inverter power generator Press and hold the 12 V DC safety release button (15) for 1 second.

3. Ifthe 12 V DC safety release (15) has not been

tiggered, the 12 V DC safety release (15) is in- effective

10. Cleaning and maintenance

Before carrying out any cleaning or maintenance work, switch off the engine and remove the spark plug con- nector (24) from the spark plug (23). ATTENTION! Danger of burning! Wait until the de- vice has cooled down before performing cleaning or maintenance work. 101 Cleaning Keep protective devices, air vents and the motor hous- ing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the device directly after every use Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

WARNING! Always wear protective gloves and a mask during maintenance work!

10.21 Checking the oil level

1. Proceed as described in 8.2

10.2.2 Changing oil (Fig. 7 +8)

Change the engine oil after 20 operating hours, then after 50 hours or every three months. The engine oil change should be carried out while the engine is at operating temperature.

1. Place the power generator on a level, even sur-

2. Remove the engine cover (3) as described in 8.2.

3. Provide a collection container (not included in the

4. Open the oil dipstick (20) and drain warm engine

oil into the collection container by tilting the power generator.

5. Fill up with new engine oil (approx. 250 mi)

Screw the oil dipstick (20) in again.

7. Dispose of the used oil properly.

NOTE! k of damage! Operating the engine without a filter element or with a damaged filter element can cause engine damage: = Never run the engine without the air filter element or with a damaged filter element. This would allow dirt into the engine, which would result in severe dam- age to the engine. Clean the air filter (22) every 50 operating hours, re- place if necessary. www.scheppach.com GB|3

1. Remove the engine cover (3) (Fig. 7).

2. Remove the air filter cover by pressing the fasten-

ing tabs on the side.

3. Remove the air filter (22).

4. Do not use harsh cleaners or petrol to clean the

5. Clean the elements by knocking them out on a flat

surface. If heavily soiled, wash with soapy water, then rinse with clean water and allow to air dry.

6. The re-assembly takes place in reverse order.

10.2.4 Spark plug (Fig. 11 + 12)

A ATTENTION: Only replace the spark plug when the engine is cold! Check the spark plug (22) for contamination for the first time after 20 operating hours and clean it with a copper wire brush if necessary. Then maintain the spark plug (22) every 50 operating hours.

1. Open the spark plug cover (4).

2. Pull off the spark plug connector (24) with a twist-

3. Remove the spark plug (23) with the enclosed

Spark plug wrench (18)

4. Remove any dirt from the base of the spark plug

deposits present using a wire brush

6. Check the spark plug gap. Setthe electrode gap to

0.6 to 0.7 mm with a feeler gauge

7. The re-assembly takes place in reverse order.

NOTE A loose spark plug can overheat and cause damage to the engine. Tightening the spark plug too much can damage the thread in the cylinder head.

10.2.5 Clean the fuel filter insert (Fig. 13 + 14)

Note: The fuel filer insert (25) is a filter cup which is located directly under the tank cover (2) and filters all the fuel filed in.

1. Setthe on/off switch (11) to the “OFF” position.

2. Open the fuel filer cap (2)

3. Remove the fuel filter insert (25) and the fill level

marking (26). Clean it in a non-flammable solvent or a solvent with a high flash point

5. Close the tank cover (2)

Please provide the following information in the event of any enquiries: + Machine data - type plate + Engine data - type plate Important note in the case of repairs: For return delivery of the device for repair, please en- sure for safety reasons thatitis free of oil and fuel when itis sent to the service centre.

10.3 Ordering spare parts

Please provide the following information when ordering spare parts: + Device type + Device article number Service information With this product, itis necessary to note that the follow ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles Wearing parts“: Spark plug, air filter

• may not be included in the scope of delivery! Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page

114 Preparation for storage

1. Empty the fuel tank using a petrol extraction pump

Warning: Do not remove the petrol in enclosed

spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.

2. Change the oil at the end of every season

3. To do so, remove the used engine oil from a warm

engine and refil with fresh oil

4. Remove the spark plug (23). (Fig. 12)

5. Fill the cylinder with approx. 20 ml of oil from an

6. Pull the start pull cord slowlÿ so that the oil pro-

tects the inside of the cylinder. 7... Screw the spark plug (23) back in

8. Store the device in a well-ventilated place or area.

112 Drain petrol with a petrol extraction pump In the case of storage over a longer period of time, the petrol must be drained www.scheppach.com

1. Hold a collection container under the hose of the

petrol extraction pump (not included in the scope of delivery).

4. Push the hose of the petrol extraction pump into

the fuel tank and drain the petrol completely using the petrol extraction pump.

1. Empty the fuel tank using a petrol extraction pump

2. If operational, keep the engine running until the

remaining petrol has been used up

3. Drain the engine oil from the warm engine (as de-

scribed under 10.2.2 Oil change)

4. Remove the spark plug connector (24) from the

5. Secure the device against slipping using a tension

6. The power generator can be lifted and moved via

13. Disposal and recycling

Notes for packaging . The packaging materials are recy- A a @ clable. Please dispose of packag- ÊA ing in an environmentally friendly manner. Notes on the electrical and electronic equipment act [ElektroG] Electrical and electronic appliances do not X belong in household waste, but should be collected and disposed of separately. + Old batteries or rechargeable batteries that are not permanently installed in the old unit must be removed before handing them in! Their disposal is regulated by the battery act. Owners or users of electrical and electronic devices are legally obliged to return them after use The end user is responsible for deleting their per- sonal data from the old device being disposed of! The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste. Waste electrical and electronic equipment can be handed in free of charge at the following places: Public disposal or collection points (e.g. municipal works yards) -_ Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily. Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. -_ For additional take-back conditions of the man- ufacturers and distributors, please contact the respective customer service. In the case of delivery of a new electrical device by the manufacturer to a private household, the latter may arrange for the free collection of the old elec- trical device upon request from the end-user. Get in contact with the manufacturer's customer service. These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 20129/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union. Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices. Fuels and oils Before disposing of the unit, the fuel tank and the engine oil tank must be emptied! Fuel and motor oil do not belong in household waste or drains, but must be collected or disposed of sep- arately! Empty oil and fuel tanks must be disposed of in an environmentally friendly manner. www.scheppach.com GB135

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. ault Engine cannot be started Possible cause Automatic oil cut-offtrips Remedy Check oil level, fill with engine oil Spark plug sooty Clean or replace spark plug No fuel Top up with fuel Generator has insufficient or no voltage Electronics defective Repair by an authorised service centre. tripped Overload protection switch Restart the power generator, reduce consumers Air filter dirty. Clean or replace filter

15. Maintenance plan

Always comply with the following maintenance intervals in order to ensure problem-free operation. ATTENTION! At initial start-up, engine oil and fuel must be filled. the device Before | afteroperating for 20 | after operating for 50 | after operating for 300 every use hours hours hours Checking the x engine oil Changing the first time, then every engine oil 50 hours Checking the air x Change filter insert if filter necessary Cleaning the air x filer Visual inspection of x Cleaning the spark plug Gap: 0.6 - 0.7 mm, replace if necessary Check and readjust play the throtlle valve x Cleaning the x cylinder head Adjust the valve x Attention: Only have points “X*' carried out by an authorised specialist company. www.scheppach.com
