Before using or storing, plug your Goal Zero Yeti into the wall until it is fully charged. Keep your Goal Zero Yeti plugged in when not in use. For more tips and tricks on keeping your battery healthy, see the BATTERIES 101 section

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions and cautions carefully before use to avoid personal injury or damage to the unit and any connected products Observe all Input/Output connectors ratings: To avoid fire or electrical shock hazard, observe all ratings on unit, and products you intend to use; check manuals for more information Use in a ventilated area: Ensure proper ventilation while in use and do not obstruct fan openings on unit. Inadequate ventilation may cause damage to the unit. Do not stack anything on top of the unit in storage or in use. DO NOT operate in wet conditions: In order to avoid short circuits or electric shock do not allow unit to get wet. Let unit dry completely before using Keep the unit clean and dry: Inspect the unit for dirt, dust, or moisture on a regular basis: Shock or Fire Hazard: This Yeti genertes the same potentially lethal AC power as a normal household wall outlet. Please use it carefull just like using a normal AC outlet on the wall DO NOT insert foreign objects into outputs or ventilation holes. DO NOT attempt to replace the internal battery with anything other than the authorized replacement battery available from Goal Zero. Any manipulation to the unit or its components will void all warranties.

Table of Contents Getting Started

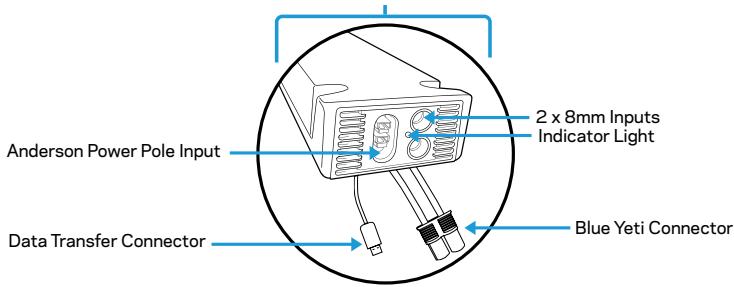

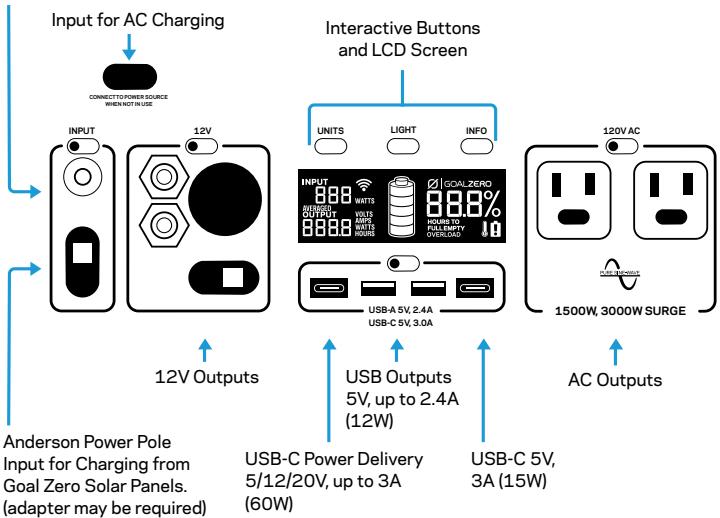

i. Get to Know Your Gear 2

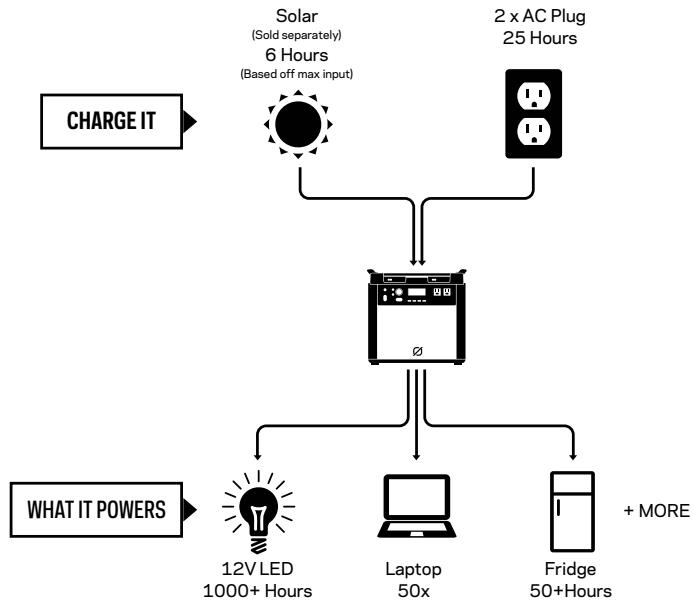

ï. How it Works Charging Your Goal Zero Yeti 4

i. Charging from Solar

ï. Charging from the Wall Using Your Goal Zero Yeti 6-9 ï. How to use

ii. Best-Use Strategy

Goal Zero Yeti Roll Cart & Storage and 8-9 Dountime Maintenance Technical Specifications 10 Frequently Asked Questions 12 Troubleshooting 15 Education 16 i Batteries 101 ï. Solar 101 Warranty. 18 Français 20-38 Deutsch 39-57 Español 58-76 Get To Know Your Gear Solar Charging Optimization Module 2 x mm Inputs Indicator Light Anderson Power Pole Input ndicator Ligl Blue Yeti Connector Data Transfer Connector 8mm Input for Charging from Goal Zero Solar Panels, or AC Input for AC Charging Interactive Buttons and LCD Screen

= Q +MORE 12VLED Laptop Fridge 1000+ Hours 50x 50+Hours [ Charging Your Goal Zero Yeti | ing Your Goal Zero Ye CHARGE ME NOW: Before using or storing, plug your Goal Zero Yetiinto the wall until itis fully charged. Keep your Goal Zero Yeti plugged inwhen not inuse. For more tips and tricks on keeping your battery healthy, see the BATTERY 101 section When charging your Goal Zero Yeti you will notice a battery segment blinking in the display. This indicates the current charge status. Once your Goal Zero Yeti is fully charged, all battery segments will be lit and remain solid. As long as there is more power going into the Goal Zero Yeti than is being pulled from the output ports, the display will also indicate an estimated time until fully charged. This is an estimated time based on the power input and output numbers at that time; it will gradually adjust to a shorter or longer time as the average charge or discharge rates fluctuate. Charging from Solar IMPORTANT NOTE: Do not exceed 22V input into the integrated input ports or ization Module; doing so will cause damage to the unit the Solar Charging Opti and potential bodily injury. For questions about solar recharging and proper way o set up your solar panels, call our solar experts at 888-794-6250. There are several different inputs you can use when charging your YETI from solar, two of which are located in the “INPUT” area on the left side of the VETI faceplate and a third one located inside the storage compartment under the top lid. The round 8mm ports are designed to be used with Goal Zero Solar Panels. The combined input power maximum is 360W.

1. Place your solar panel where it will get as much direct sunlight as possible.

2. Insert the blue-ringed solar panel plug into one of the INPUT ports, either on the

front of the YETI or in the storage compartment under the top lid. You will know the Yeti is charging when the blue LED light next to the INPUT port lights up, and the battery segments inthe LCD BATTERY DISPLAY are blinking. The YETI is fully charged when all battery segments stop blinking and remain solid

3. You can also connect the VETI to other brands of solar panels using the Anderson

4. You can chain multiple Goal Zero Solar Panels together to reduce solar recharge times.

Do not exceed more then 22V input through the integrated input ports.

5. You can charge your VETI with solar panels, and awall charger at the same time.

Solar Charging Optimization Module The pre-installed Solar Charging Optimization Module functions as a maximum power point tracker (MPPTI. It actively monitors the energy source youre using to charge the Goal Zero Yeti Lithium and optimizes the source to maximize power, resulting in up to 40% faster charge times. You may also notice better charge times from AC when utilizing the Yeti Lithium's AC charging cable plugged into the module. The three ports on the right side of the Yeti are part of the Solar Charging Optimization Module. Refer to the included Solar Charging Optimization manual for more information Charging from the Wall Using the included AC Wall Charger, plug your Goal Zero Yetiinto any wall outlet. You will know the Goal Zero Yeti is charging when the blue LED light next to the INPUT port turns on, and battery segments in the BATTERY DISPLAY are linking. The Goal Zero Yetiis fully charged when all battery segments stop blinking and remain solid. The Goal Zero Yeti should recharge from the wall in about 25 hours.

1. The AC wall adapter comes in two pieces. Connect the two pieces by plugging the

2. The AC cable can be plugged into the AC adapter while its stored inside the

storage compartment ith the 8mm DC barrel connector plugged into the port inside the compartment, or it can be moved out of the compartment and plugged into the front panel input port.

3. You can purchase an additional wall charger from Goal Zero for faster charge times.

IMPORTANT NOTE: The Goal Zero Yeti Lithium is not compatible recharging from a 12V source, it can result in damage to the unit, cable, as well as your vehicle. Using your Goal Zero Yeti How to use your Goal Zero Yeti:

1. Press the power button located above each port you will be using. “When not

using certain ports, make sure to turn them off to conserve power.

2. Youfl know the port is turned on when the green LED light on the button is

3. Plug in your gear for power anywhere life takes you

4. 1f possible, keep your Goal Zero Yeti plugged into a power source when not in use

5. You can charge your Goal Zero Yeti, and run your gear at the same time

Best-Use Strategy When charging gear with your Goal Zero Yeti take note of the LCD Battery Display. If you plug in devices that have ahigh power requirement [a large refrigerator) the charge level of your Goal Zero Yeti can drop very quickly and you may not get exactly 3000Wh of energy. Also, especially when using the AC power output, the Goal Zero Yetiwill be converting the energy from the DC power of the battery ta the AC power needed by your device. Although your Goal Zero Yetihas a High efficient inverter,there is still some energy lost in this conversion and you will not getthe full rated capacity ofthe battery. I youire experiencing shorter runtimes, you my want to check the devices power requirements, see TROUBLESHOOTING for help. Cold Weather Usage: Cold temperatures (below freezing) can impact the Goal Zero Yeti battery capacity. If youll be out living off-grid in sub-zero conditions, we recommend keeping your Goal Zero Yeti in an insulated cooler, connected to a power source (solar panels), and charging your gear. The natural heat generated by the Goal Zero Yeti contained in an insulated cooler will keep battery capacity at its highest. LCD Display The built-in LCD display indicates four important things: SD Icontzero LC ours

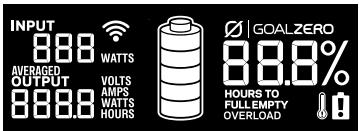

INPUT shows the amount of power (watts) going into the Goal Zero Yetiwhile charging. If charging from solar, you] see the watts change as you reposition the panels intofout of the sunlight.

2. LO will be displayed if power flow is below a measurable amount.

2. OUTPUT shows the amount of power (watts) your devices are using while plugged

into the Goal Zero Yeti 3.TIME TO EMPTY/FULL shows the amount of time before your Goal Zero Yeti is completely charged or empty, depending on if the net amount of power going into the Goal Zero Yeti is positive or negative.

4. BATTERY LEVEL shows 5 segments, approximating 20% - 40% - 60% - 80%

-100% capacity. As you use your Goal Zero Yeti, segments will disappear from the display indicating the remaining charge. When charging your Goal Zero Yeti you will notice a battery segment blinking, This indicates the current charge status. Once your Goal Zero Yeti is fully charged, all battery segments will be lit and remain solid. As long 28 there is more power going into the Goal Zero Yeti than is being pulled from the output ports, the display will also indicate an estimated time until fully charged. This is an estimated time based on the power input and output numbers at that time: itwéll adjust to a shorter or longer time if the charge or discharge rates fluctuate. Note that when you first plug in a power source, whether its a solar panel or a wall charger, the Yetimay take 8 minute to detect and adjust its charge circuitry before it starts drawing power from the source

5. The WiFi symbol indicates the Yetis WiFiis tumed on. flashing, the Yeti is ready to

connect to a device. Front Buttons: Pressing the UNITS button will scroll through different output and power consumption settings: Pressing the LIGHT button will turn the display backlight on and off. Pressing the INFO button will alternate the screen between showing the detailed battery state of charge percentage and the Time to Empty/Full

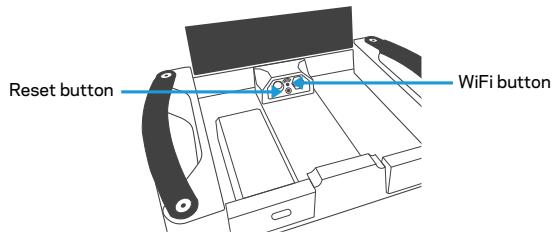

Using your Goal Zero Yeti Buttons Under Lid: Pressing the WiFi button will activate the Yetis WiFi for connection to a device. For information on connecting your device to the Yeti, see the included Yeti App Start Up Guide Pressing and holding the RESET button will reset the WATT HOUR output counter.state of charge percentage and the Time to Empty/Full Reset button WiFi button Goal Zero Yeti Lithium Roll Cart The Yeti Roll Cart comes pre-installed on the Goal Zero Yeti 3000 and can be easily removed when needed.

2. Lay the entire unit on its backside with the outputs of the Veti facing up.

2. Remove the 4 screws holding the Veti to the roll cart.

3. Carefully lift the Yeti off the cart.

The included handle is telescoping and can slide up and down while pressing down on the button

Storage and Downtime Maintenance Having your Goal Zere Yeti connected to a power source, like a solar panel or wall plug, between adventures or while in storage keeps its battery healthy and topped off. This prolongs battery life and will ensure your Goal Zero Yeti is charged and ready to go all day, every day. If you can't keep your Goal Zero Yeti plugged into a power source during storage, fully-charge your Goal Zero Yeti every 3 months and store it in a cool, dry place. Failure to maintain your Goal Zero Yeti by following these steps can result in battery damage which will void the product warranty.

Charging Part input, Sr) Power Pole Charging Por input} Expansion Module port Dhs 25e 60-120 hrs 30-60bre Lion NWC. Up to 307SWh (-10.95V. up to 280 SA) Up to 842h@ 3.65V 500 Cycles to 80% capacity Charge avery 3-6 months PAM charge controller, on battery protection SV up to 2 4A (12 max regulated SV up t 3 OA (L5W max, regulated SV 12V,20V up to 3 OA (6OW man, reguated 12V up te 10A(120W max 12V up te 10A(120W max 12V up t 20A (240W max 120VAC 60Hz, 12 5A (1500, 3000W surgel 230Vac 50 6.SA(LSOOW 3000 suroel 14-22V,up to 10A (120W max 14-224, un te 30A (260W max Covered port under tha id To ba used ith Goal Zero expansion moduies on.

EObeléke) 104x153x18 im 22104F (0400) 74389 883 em 12 monthe Frequently Asked Questions What type of battery is in my Goal Zero Yeti? Your Goal Zero Yeti uses custom designed Lithium lon. Here are some basic facts about Lithium lon batteries:

2. Lithium lon batteries can store and release a lot of energy in a short period of time.

The batteries in your Goal Zero Yeti are ina protective enclosure with a sophisticated battery management and protection system controlling its terminals to the outside world.

2. His critical that your battery does not get wet as moisture and water can get into the

battery cells behind the protection circuitry and bypass that protection. How do | know if my Goal Zero Yeti is charged? To check the charge level of your Goal Zero Yeti, refer ta the LCD Battery Display. When lit up, youll see a battery outline with 5 segments, indicating the current charge level. It is OK 0 use your Goal Zero Yeti even when its not fully charged Why is the light on the AC button blinking? A blinking light on the AC button indicates that at the current load, the AC inverter will be shutting off soon. Recharge your Goal Zero Yeti as soon as possible to continue powering your device. Once the AC inverter has shut off, the Veti will attempt to reset itself three times. After three attempts, the AC inverter will remain off until you physically reset it by pushing the AC button or by recharging the battery a small amount How do ! know if my device will work with the Goal Zero Yeti? First, you'll need to determine the amount of power your device requires. This may require some research on your end, a good internet search or examining the user guide for your device should suffice. Second, you will need to check the capacity for the individual output ports. For example, the Goal Zero Yeti AC port is powered by an inverter that allows for 1500W of power. This means if your device is pulling more than 1500W for an extended period of time, the Goal Zero Yetis inverter will shut off. Another number to watch for is the surge rating of your device as compared to that of the port. The Goal Zero Yeti inverter has an advanced

surge management system that will maximize its compatibility with various devices, but there will still be items that will surge at a higher rate, and for a longer time, than the Goal Zero Yeti can manage, in which case the port will turn itself off. Finally, once you know your device is compatible, youll want to determine how long youll be able to power your gear from the Goal Zero Yeti. Here's a quick and dirty lesson in power. Al GOAL ZERO power packs and solar generators have a number in their name, ex Guide210 Plus Power Pack, Goal Zero Yeti 3000. These numbers refer to the Watt Hours {Wh), or the amount of energy that can be stored in each recharger, and how youll know if vour gear is compatible with each recharger. For example, a 200Wh recharger should run 2 100W light for 2 hours (200/100=2]. I your gear falls within the 3000Wh capacity of the Goal Zero Yeti, you want to check the restrictions on each of the output parts Another factor in the math is how much power is being converted going from the Goal Zero Yeti battery to the device you are powering/charging. In some situations, like when running a 12V device, such as the LAL 350, directly off the 12V port, there will be no conversion and so no additional losses. In using the USB ports to charge a phone, you add a layer of conversion (12V battery in the Goal Zero Yetiis being converted to a 5V USB output}, which introduces around 10% of losses. When using the inverter, there are to layers of conversion [12V to high voltage, DC to AC). The least efficient way of using the battery in the Goal Zero Yeti is to use an AC-DC adapter off the AC ports, as is the case if you use à phone wall charger to charge your phone, as it adds yet another layer of conversion in the wall adapter. So when voue deciding on what to power from your new GOAL ZERO recharger, do some research into your devices watt consumption. For more quick tips and learning tools, check out www.GoalZero.comllearn.html

Troubleshooting you are having trouble with WiFi connection:

1. Press and hold the WiFi button for approximately 3 seconds to force the Yeti into

connection mode. The WiFi symbol on the screen will begin to flash

2. Recomnect your device to your Yeti following the instructions in the Goal Zero Veti App,

Hour devices are not recharging from your Goal Zero Yeti follow these steps:

1. Ensure the Output Port has been turned on. The green LED light on the power button

2. Ifany ofthe lights have tumedred, this indicates a trip. Push the button again to reset

it. The light will turn green when it is successfully reset.

2. Check the Battery Display. Kit is at 20% or below, charge your Goal Zero Yeti.

3. Check the LCD Display for warning icons:

OVERLOAD: Power draw exceeds ports maximum allowence. Indicated by redllight in the ports button Temperature warning Battery requires attention. Allow unit to cool Contact customer support. 1-888-794-6250

4. Verify your device is suitable for use with the Goal Zero Yeti

2. All of the Goal Zero Yeti output ports have their own max power capacity. Check the

Goal Zero Yeti Tech Specs to ensure your device is compatible.

5. 1f vou are still experiencing trouble with your Goal Zero Yeti, please call our Customer

Solutions Center at 1-888-794-6250 or by email at support@goalzero.com.

BATTERIES 101: GOAL ZERO utlizes the latest and greatest in battery technology to accompany you on all life's adventures. From the versatile and lightweight Lithuim lon, to the robust and powerful Lead Acid, wee compiled some helpful tips to keep your GOAL ZERO batteries working their best. i Batteries need exercise. The best thing for any battery is to use it. Dont leave the battery sitting without being charged for extended periods of time. If you will be storing the Goal Zero Yeti without a charger, make sure its fully charged before you put it away. äi. The ‘Battery Memory” myth. Thanks to old Nickel-Cadmium {NiCel batteries, there's a mythrunning around that you should completely drain your batteries before plugging them in for a recharge, called'deep cycling” Although true with NiCd batteries, the typical batteries you find'in most of your gear today, including the advanced lithium and lead-acid batteries used in your GOAL ZERO rechargers, require no such draining. In fact, you should avoid deep cycling your batteries = it does more harm than goodiin most cases. iï. The “Stadium Effect The stadium effect oceurs when recharging your batteries. Youll notice your battery quickly filing up in the beginning, then slowing down noticeably when trying to charge up the last several percentages. Think of how quickly a stadium fills up when the doors first open - there are hundreds of open seats so its easy to find the one youwant. Eventuall there are only 2 few open seats here and there and people have to maneuver around to findthe spot they wrant and filing those seats takes longer. The same theory applies to recharging batteries. Its easy for energy to flowiin and take up empty space in the beginning, andas time goes on and there is less space available, it takes longer for the energy to fillinthe holes.

Yeah, it might be a long read, but the manuel is the best place to find the dos and dons for the battery in your specific device. Reading your manual will ensure voue taking steps to keep your batteries happy and healthy.

SOLAR 101: GOAL ZERO makes it easy to recharge your gear from the sun - we didn't invent solar power, we perfected it. Some things to keep in mind when recharging your gear with solar power:

i. Solar panels don't store power from the sun, they collectit.

We teach you to COLLECT - STORE - USE, whichis the best way to utilize solar power to recharge your gear. COLLECT the sun's energy with a solar panel. STORE the power ina recharger. USE the recharger to power your gear, day or night. youire really a diehard, you can plug vour gear directly into the junction box located on the back of our NOMAD Solar Penels to recharge from the sun. ï. Not all solar charge times are created equal. Most solar panel manufacturers calculate their recharge times with the following equation: Device Watt Hours/Salar Panel Watts = Solar Recharge Times. So theoretically a 13 watt solar panel would recharge a 50 watt-hour recharger in 3.84 hours (50/13 = 3.84) - and this is the number you could findin marketing material for a solar panel. However, in order to standardize results across all manufacturers, these tests are completed in laboratory settings. The truthis, on a good, sumny day, ouf receive about 50-75% of your solar panels ratedwattage, and this is how the engineers at GOAL ZERO caleulate the solar recharge times you see on our packaging. Solar works, even in overcast conditions. Solar panels utilize IR, UV, and visible rays from the sun that can penetrate through clous. Although the efficiency of the solar panel will decrease in cloudy conditions, youl still be collecting valuable power from the sun

iv. Keep away from shade and windows.

Although you should seek out the shade on sunny days, your soler panels wil collect more power when fully exposed to the sunlight. Windows also have a habit of decreasing efficiency. So keep those panels outside and'inthe bright sunlight.

v. Proper alignment works wonders.

Keeping your solar panel angled toward the sun can dramatically increase solar efficiency. Set it up andlet Mother Nature de the rest.

Warranty & Contact LIMITED WARRANTY GOAL ZERO LLC warrants ta the original consumer purchaser that this GOAL ZERO product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period identified in Paragraph 2, below, subject to the exclusions set forth in Paragraph 5, below. This Warranty statement sets forth GOAL ZEROS total and exclusive warranty obligation. We wil not assure, nor authorize any person to assume for us, any other liability in connection with the sales of our products. WARRANTY PERIOD The warranty period for GOAL ZERO battery cells (nhether purchased on a stand-alone basis or as part of another product is 180 days. The warranty period for all other GOAL ZERO products and components is ane (1) year. In each case, the warranty period is measured starting on the date of purchase by the original consumer purchase The sales raceipt fram the first consumer purchase, ar other reasonable documentary proof is required in rder to establish the start date of the warranty period. I you completed the online GOAL ZERO Product Registration Form within 30 days after purchesing your product, that registration can also establih the start date of the warranty period [but warranty coverage is not conditioned upon such registration) REMEDY GOAL ZERO wil repair or replace [at GOAL ZEROS option and expense] any GOAL ZERO product that fals to operate during the applicable warranty period due to a defect in workmanship or material.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on GOAL ZERO' products is limited to the original consumer purchaser and is not transferable to any subsequent onner. EXCLUSIONS GOAL ZEROS warranty does not apply to ( any product that is misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in GOAL ZEROS then- current product literature, r(i any product purchased through an online auction house. GOAL ZERO warranty does not apply to any battery cel or product containing a battery cell unless the battery cel is fuly charged by vou vithin seven [7 days after you purchase the product and at least once every months thareafter.

HOW TO RECEIVE SERVICE

To obtain warranty service, you must contact our customer service team via telephone at (888) 704- 6250, or via email at suppart@goalzero. com. If our customer service team determines that further assistance is required, they will give you a Return Material Autharization l'RMA" number and il provide vouwith prepaid return shipping label that you can use to mail back your nor-functioning items. You must Properiy package the product, clearly marking the RMA number on the package and including proof of your purchase date with the product. We wil process your return and send your repaired ar replacement product to you at aur expense for product being shipped ta locations in North America. For product Purchased or being shipped outside of North America, please contact the local distributor from whom you purchased the product or email support@goalzero.com to obtain further distributor information.

IMPLIED WARRANTIES THE LIMITED WARRANTY STATED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IN NO EVENT SHALL ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR À PARTICULAR PURPOSE OR NON-INFRINGEMENT, EXTEND BEYOND THE APPLICABLE WARRANTY PERIOD IDENTIFIED IN PARAGRAPH 2, ABOVE. Some states do not allow limitations on how lang an implied warranty lasts, sa the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

EXCLUSIVE REMEDY; LIMITATION OF LIABILITY

The foregoing provisions state GOAL ZERO® entire liability, and your exclusive remedy, for any breach of warranty, express or mplied. IN NO EVENT WILL GOAL ZERO BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM ANY USE OR MALFUNCTION OF ANY GOAL ZERO PRODUCT, OR FROM ANY BREACH OF WARRANTY, INCLUDING DAMAGE TO OTHER DEVICES. IN NO EVENT WILL GOAL ZEROS LIABILITY FOR ANY CLAIM, WHETHER IN CONTRACT, WARRANTY, TORT {NCLUDING NEGLIGENCE AND STRICT LIABILITY] OR UNDER ANY OTHER THEORY OF LIABILITY, EXCEED THE AMOUNT PAID BY YOU FOR THE GOAL ZERO PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you:

FREE EXTENDED WARRANTY

Get an ADDITIONAL YEAR of protection for your Goal Zero Yeti Lithium Portable Power Station by simply registering your product at: GOALZERO.com/extendedwarranty This gives you TWO TOTAL years of worry-free product coverage. IS free and easy peace of mind for you and your new power companion.
