USER MANUAL 50 CL ORCA

The Orca 050 CL pool cleaner user manual is intended to give you all the information you need for optimal installation and maintenance. For safety reasons, it is essential to familiarize yourself with this document and keep it in a safe and familiar place after installation for future reference. LI Safety measures and general conditions of use Be sure to strictly observe the use of the device under its operating conditions. Read this manual carefully and use the device in accordance with the manual. No liability for any loss or injury resulting from improper use can be held against the manufacturer. General instructions + __ Use only accessories recommended or sold by the manufacturer. +__ This pool cleaner is mainly intended for flat-bottomed pools. + __ This equipment is not intended for use by children under 8 years old or persons with reduced physical, sensory or mental abilities, or with lack of experience and knowledge, unless they have been supervised or instructed in the use of the equipment by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device, or climb on it. +__Do not operate the pool cleaner when it is out of the water. +__Do not operate the unit when people are in the pool. *__ The filter and retention tank must be rinsed and cleaned after each use. +__Itis imperative to turn off the pool cleaner when servicing, cleaning or when it is not in use. +__ The pool cleaner's sealing assembly can only be dismantled by our after-sales service. +__Itis recommended to stop the filtration of the pool when the pool cleaner is running. + Due to the capacity of its battery, the use of this pool cleaner is recommended for small pools. The cleaning quality could be affected by improper use of the pool cleaner. +__Itis prohibited to pierce the cover of the unit with nails or other sharp objects, and it is prohibited to hit or throw the unit. + __ The pool cleaner must be stored in a cool, ventilated place, out of direct sunlight. +__ Slight water pollution can occur if grease leaks into the engine oil seal. Instructions for the battery +__ Use only the original and approved charger. +__ It must be connected to a leak-proof outlet and grounded when charging. +__Itis better not to let the battery run out completely. Be sure to charge the battery before it is completely empty. As soon as you notice that the pool cleaner's power is decreasing, stop the pool cleaner and recharge the battery. Never recharge a fully charged battery. Overcharging reduces the battery's service life. + The battery must be charged under the authorized conditions. The pool cleaner must be stored in a cool place between 10°C and 40°C when charging the battery. Do not place anything on it or cover it to avoid damaging the internal electrical components due to overheating of the power supply unit. Before charging the battery, if it is hot, let it cool down. MANUAL_CLEANER 050CL_indA_1219 17 sur 128

+ __lfthe battery has been unused for a long period of time (more than six months), it must be recharged. + __Itis prohibited to charge the battery near a fire or in extreme heat conditions, do not use and store the pool cleaner near a heat source.

The ORCA 050CL pool cleaner robotis a new type of rechargeable automatic pool cleaning equipment with automatic grounding function. It can clean the bottom automatically without emptying the pool. In addition, it filters the water in the basin by removing suspended particles and sediments.

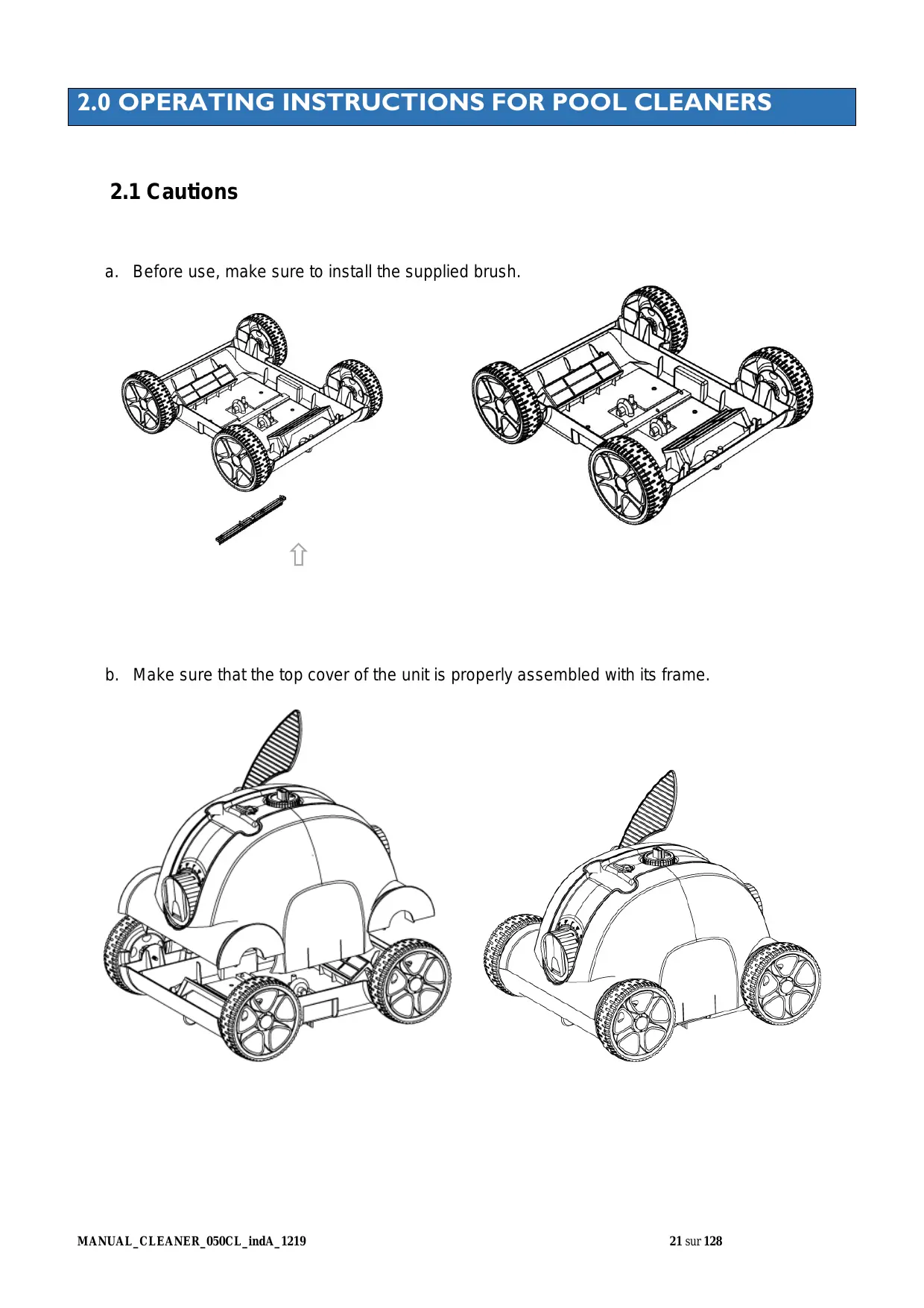

a. Before use, make sure to install the supplied brush. b. Make sure that the top cover of the unit is properly assembled with its frame. 21 sur 128 MANUAL_CLEANER_050CL_indA_1219

c. Lower the unit into the water as shown in the left figure by draining it COMPLETELY FROM THE EMPRISED AIR and ensure that the pool cleaner is correctly positioned on its wheels. d. To remove the pool cleaner from the pool, pull it by the floating handle and its cord to the surface of the water, then pull it out by the main handle. e. To avoid damaging the pool wall or the pool cleaner, make sure that the pool cleaner does not touch it while you remove it from the pool. f. Before removing the pool cleaner from the pool, it is best to hang it 10 - 15 seconds above the pool to drain it of water. g. Turn off the pool cleaner after each use

a. Install the floating handle. Adjustthe length ofthe supplied cord according to the depth of the pool. Connect the floating handle to the pool cleaner at the point indicated in the figure on the right. b. Install the swivel plate on the top cover, at the location indicated in the right figure. MANUAL_CLEANER 050CL_indA_1219 22 sur 128

c. Connect and plus the charger Check that the charger door is clean and dry before charging. The red charging indicator light indicates that the battery is charging. The green charging indicator light indicates that charging is complete. Be sure to turn the switch knob to OFF before loading. Charging light Status red Charging green Completed Charge d. Turn the switch to ON after putting the cleaner in the water, the blue light comes on, after 15 seconds, the blue light flashes, the device starts working. e. The blue light flashes 3 times at the end of the cleaning cycle, the pool cleaner systematically approaches the poolside after about 2 minutes of operation, then the pool cleaner stops while the light lights up blue. OFF Status Cleaner light Ongoing operating blue light flashes Completed cycle Permanent bleu light Out of order Bleu light flashes quickly g. Turn the switch knob to OFF, the light goes out. Please clean the filter and retention tank after each use. MAINTENANCE AND

USTMENT OF POOL CLEANERS

3.1 Function and adjustment of nozzles

There are two nozzles on the pool cleaner. While one opens, the other closes. The water is expelled through the open nozzle and propels the pool cleaner in the opposite direction. Adjust the orientation of the nozzles using the markers to make the pool cleaner describe a trajectory following a slight curve. MANUAL_CLEANER _050CL_indA_1219 23 sur 128

a. Adjustment of nozzles and trajectories generality : Nozzle angle markers from 0 ° to 40 ° Setthe nozzles to 0°, the unit operates in a straight line. Position the nozzles at 0° to 40° to obtain an increasingly large curve. b. Example of nozzle positions Example 1: Default setting: 0°--20°, for most pools Nozzles position Path Cu) RE)

TRES MT oo oo oo Note: Due to the different shapes of pools, and the adjustment of the nozzles, the displacement will be a little different in reality.

3.2 Cleaning the filter

a. The upper cover opens with two clips MANUAL_CLEANER_050CL_indA_1219 26 sur 128

b. lift the filter c. Rinse the filter and tray separately until the water is clean. d. Assembling the cleaner e. Put the cover down and lock it in place by pressing down on the side of the locking latches until you hear a click.. MANUAL_CLEANER 050CL_indA_1219 27 sur 128

3.3 Installation and removal of the swivel plate

To install the swivel plate, it must be inserted into the base. To remove it, push the loop upwards.

4.0 FREQUENTLY ASKED QUESTIONS

Attention! In any case, always comply with the safety instructions set out in point I.I. at the beginning of this manual in order to avoid potential mechanical or physical damage. observation Possible cause Solution The cleaner does not work and the indicator Low remaining battery Charge the battery light flashes slowly. capacity The cleaner does not work and the lightflashes | Internal fault contact the after-sales service quickly. The cleaner does not Charge the battery and turn on the unit to work and the light goes Battery protection check if the indicator light is on. If not, out contact the after-sales service The charger indicator light Charger failure contact the after-sales service does not light up Inappropriate nozzle Adjust the nozzles angle The device does not The shape ofthe pool Setthe nozzle to a large mark for a wider reach the entire pool is special path. The filtration system is : : Stop the filtration system. in operation.

This product has undergone various quality and safety tests carried out by the plant's technical department. Warranty information:

1. The warranty period is 24 months of use on the engins, the battery and the PCB, from the date of

purchase and is established according to the terms of the consumer code, as well as the legal warranty against defects and hidden defects that applies in any case under the conditions of the items in the country of purchase.

2. The warranty will be void if the product is handled or repaired by unqualified persons outside the

authorized repair services.

3. Broken parts are not covered by the warranty.

3. The warranty covers only factory defects, it does not cover damage caused by improper use of the

4. Any claim made or repair made during the warranty period will be subject to the mandatory

presentation of the purchase invoice. Environmental Programmes, WEEE European Directive Please respectthe European Union regulations and help to protectthe environment. Return non-working electrical equipment to à facility appointed by your municipality that properly recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins. D For items containing removable batteries, remove batteries before disposing of the product. Waterman GmbH - Bahnhofstrasse 68 - 73240 Wendlingen —- GERMANY Tel : +49 (0) 7024 / 4048- 0 — info@waterman-pool.com
