USER MANUAL PURE FAN TOWER EQUATION

Line drawing of a portable air conditioner with digital display and control buttons (no text or symbols)

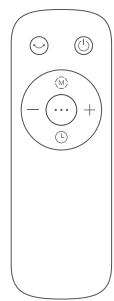

Line drawing of a remote control with buttons and a plus/minus function (no text or symbols)

Modèle/Modelo/Modello/Movtéλo/Model		EAN
AMS150-PB	84583136	3276007457407

Manuel d'Instructions
Manual de Instrucciones
Manual de Instruções
Manuale di Istruzioni
Εγχειρίδιο Οδηγιών

Troubleshooting......63

Warranty 64

AVERTISSEMENT

LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER L'APPAREIL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries and one battery (no text or labels)

Simple line drawing of a U-shaped container with a small top and internal lines, no text or symbols present.

UTILISATION

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries and one battery (no text or labels)

Simple line drawing of a U-shaped container with a small top and internal lines, no text or symbols present.

UTILIZACIÓN

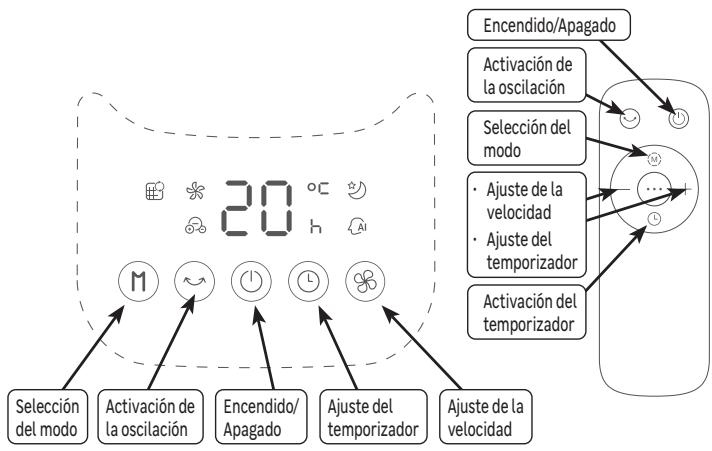

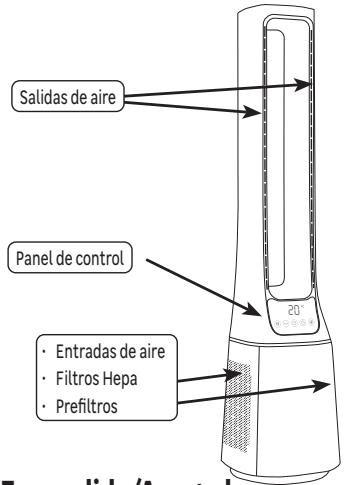

Salidas de aire Panel de control • Entradas de aire • Filtros Hepa • Prefiltros

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries and one battery (no text or labels)

Simple line drawing of a U-shaped container with a small top and internal lines, no text or symbols present.

UTILIZAÇÃO

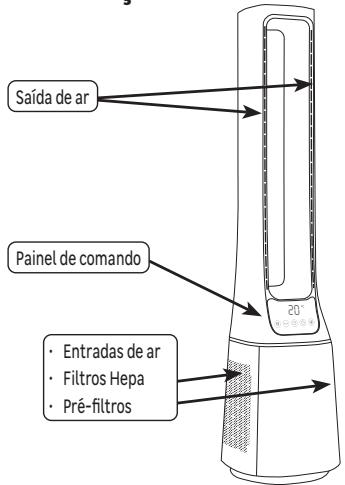

Saída de ar Painel de comando • Entradas de ar • Filtros Hepa • Pré-filtros

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries and one battery (no text or labels)

Simple line drawing of a U-shaped container with a small top and internal lines, no text or symbols present.

UTILIZZO

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of a hand inserting a card into a machine (no text or symbols)

Line drawing of hands installing or adjusting a patterned object inside a device (no text or symbols)

Line drawing of a hand pressing down on a textured surface inside a container (no text or symbols)

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries with positive and negative charge indicators (no text or symbols)

Simple line drawing of a U-shaped container with a small top and downward arrow inside (no text or symbols)

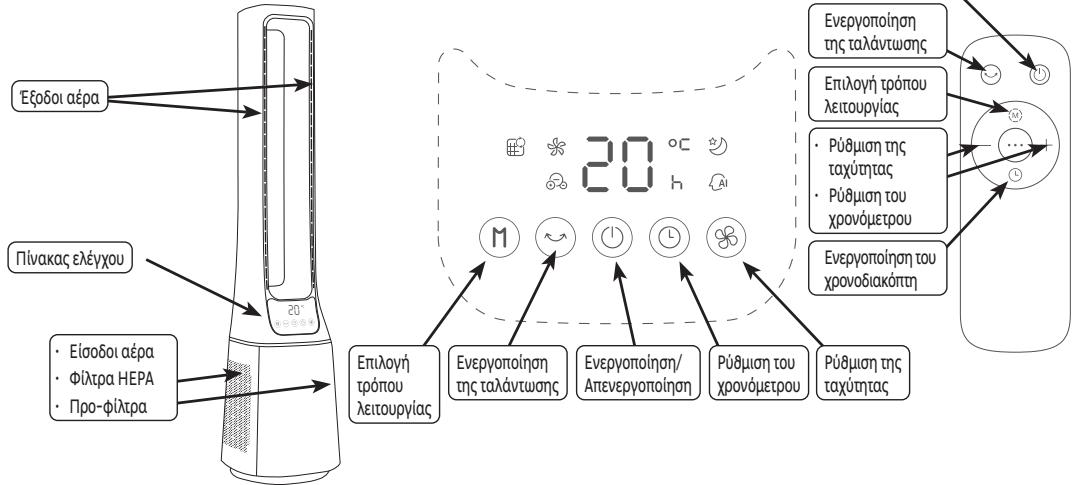

ΧΡΗΣΗ

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of hands inserting a card into a machine (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Diagram of a hand pressing down on a perforated panel with arrows indicating movement (no text or symbols)

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries and one battery (no text or labels)

Simple line drawing of a U-shaped container with a small top and internal lines, no text or symbols present.

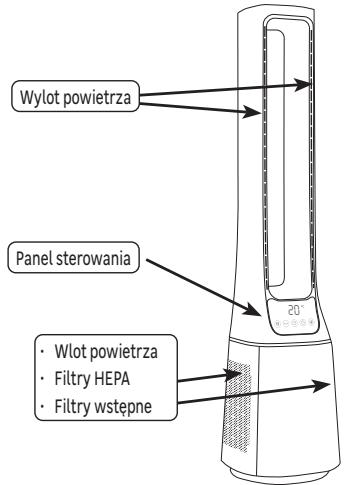

UŻYTKOWANIE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of a hand opening a door with a cloth cover, no text or symbols present

Line drawing of hands installing or adjusting a patterned object inside a device (no text or symbols)

Line drawing of a hand pressing down on a textured surface inside a container (no text or symbols)

Technical illustration showing a device with a plug inserted into a socket and its connector attached to a wall (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries with positive and negative charge indicators (no text or labels)

Simple line drawing of a U-shaped container with a small top and downward arrow inside (no text or symbols)

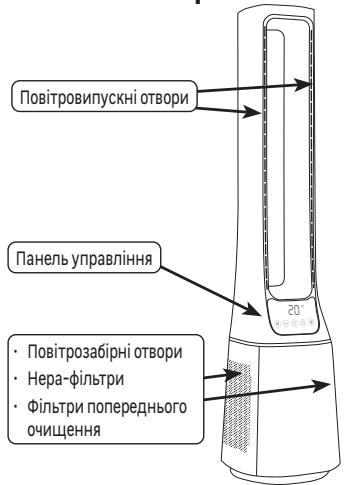

ЕКСПЛУАТАЦІЯ

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a remote control panel with two batteries and one external battery, showing internal components (no text or labels)

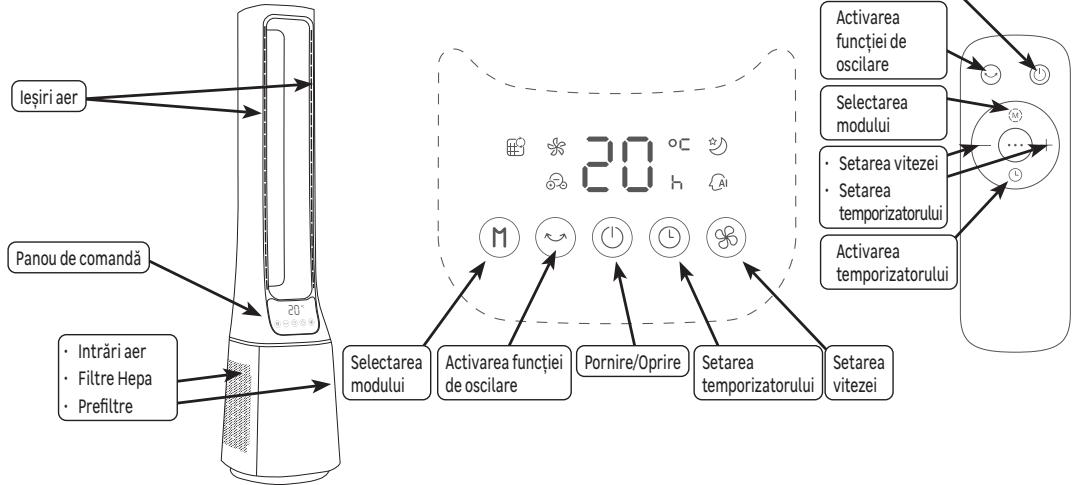

UTILIZARE

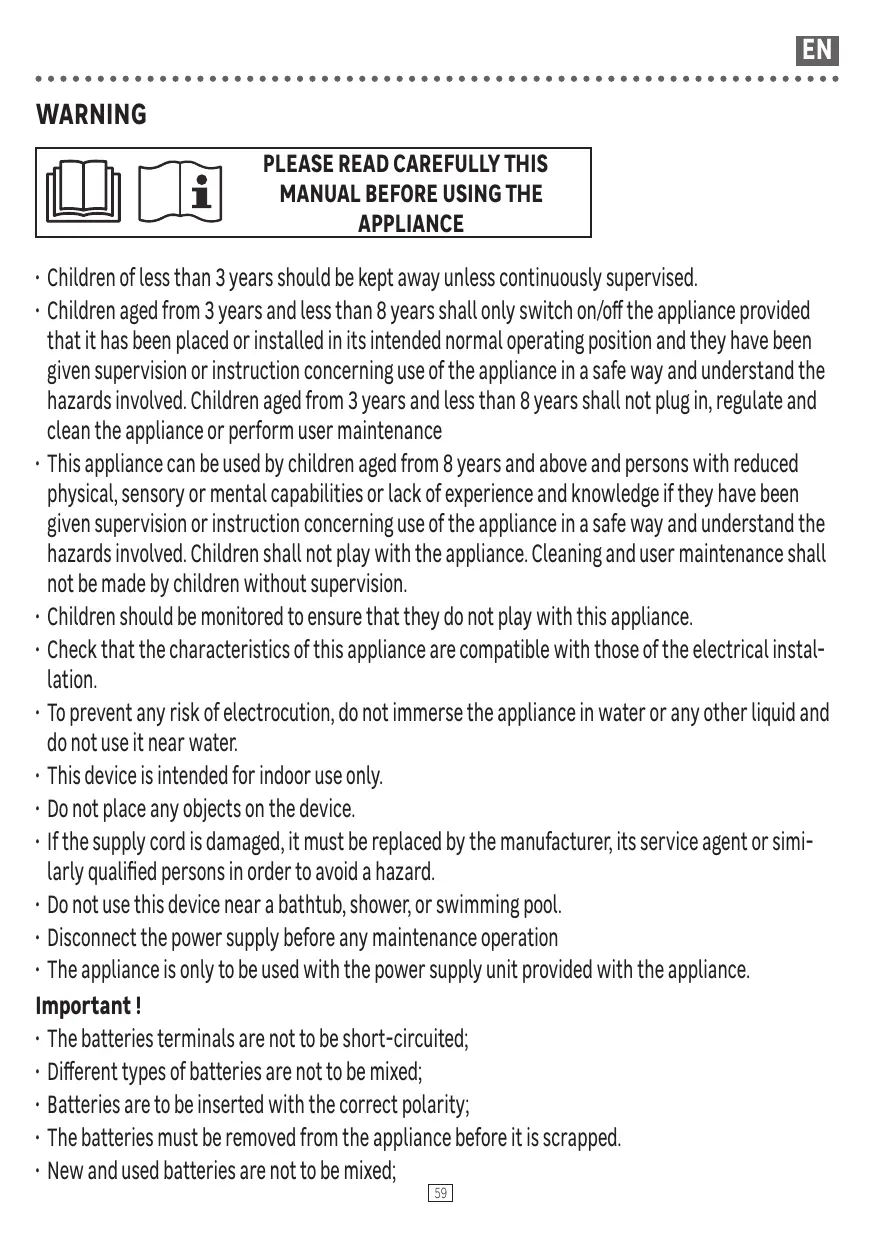

PLEASE READ CAREFULLY THIS MANUAL BEFORE USING THE APPLIANCE

• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be monitored to ensure that they do not play with this appliance.
• Check that the characteristics of this appliance are compatible with those of the electrical installation.
• To prevent any risk of electrocution, do not immerse the appliance in water or any other liquid and do not use it near water.
• This device is intended for indoor use only.
• Do not place any objects on the device.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use this device near a bathtub, shower, or swimming pool.
• Disconnect the power supply before any maintenance operation
• The appliance is only to be used with the power supply unit provided with the appliance.

Important!

• The batteries terminals are not to be short-circuited;
• Different types of batteries are not to be mixed;
• Batteries are to be inserted with the correct polarity;
• The batteries must be removed from the appliance before it is scrapped.
• New and used batteries are not to be mixed;

• Non-rechargeable batteries are not to be recharged;
- Exhausted or leaking batteries are to be removed from the appliance and safely disposed of;
- Do not ingest batteries;
- Do not let children play with batteries;
- If the appliance is to be stored unused for a long period, the batteries should be removed;

Disposing of the packaging

- The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations.

Processing waste of electronic and electric devices at life-cycle end.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved organisations.

For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

STX P&G80P NVW80K
60000K	#
60000S	#
#2001	#
100000K	#
#100000	#
30000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	#
#1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
#10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

INSTALLATION

Installing the filters (on each side of the device)

Remove the air inlet cover.	Remove the pre-filter.	Remove the HEPA filter from its packaging.

Line drawing of a hand opening a door with a cloth, no text or symbols present

Line drawing of a hand inserting a component into a device (no text or symbols)

Diagram of a hand pressing down on a textured surface with directional arrows (no text or symbols)

Place the HEPA filter with the "FRONT" labels facing forward.
Place the pre-filter.
Close the lid.

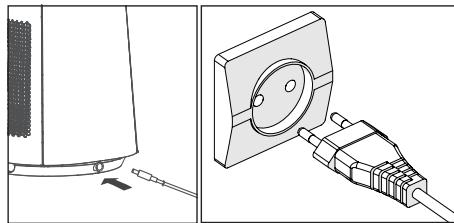

Connection

• Connect the Jack plug to the fan.
• Connect the adapter to a 220-240V \~ 50-60 Hz outlet.
• Unplug the device when not in use.

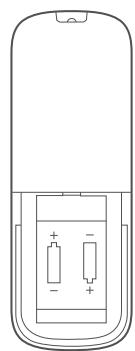

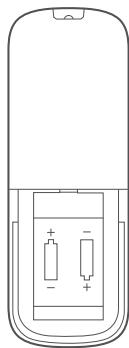

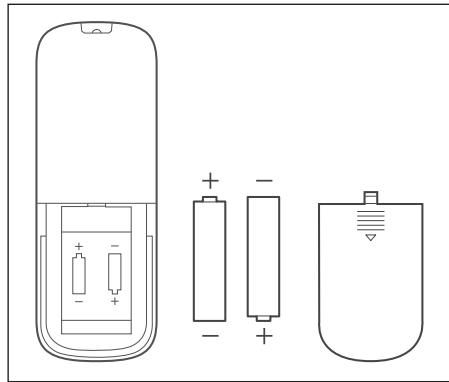

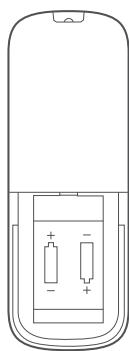

Installing the remote control batteries

• Press the battery compartment door and push it in the direction of the arrow to remove it.
• Insert 2 AAA (R03) 1.5 V batteries into the compartment.
• Make sure that the polarity (“+” and “-”) is respected.
• Replace the battery compartment door on the remote control

Technical illustration showing a device with a cable inserted into a housing and connected to a plug socket (no text or symbols present)

Diagram of a mobile phone rear panel showing two batteries and one battery (no text or labels)

Simple line drawing of a U-shaped container with a small top and internal lines, no text or symbols present.

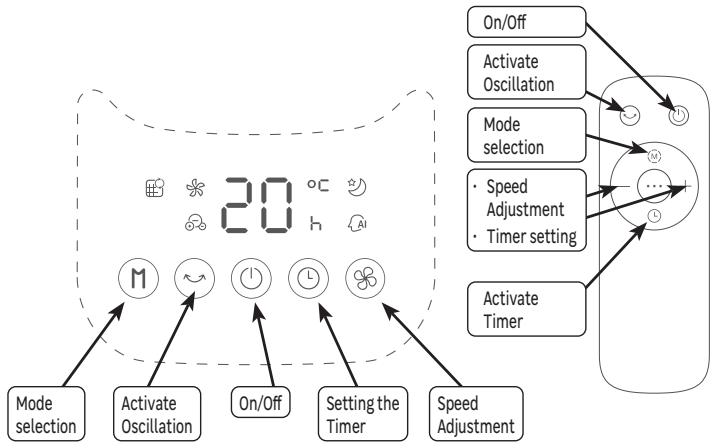

USE

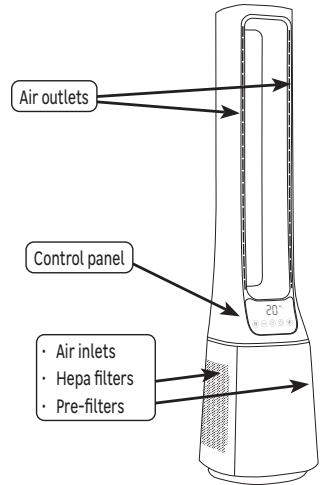

Air outlets Control panel • Air inlets • Hepa filters • Pre-filters

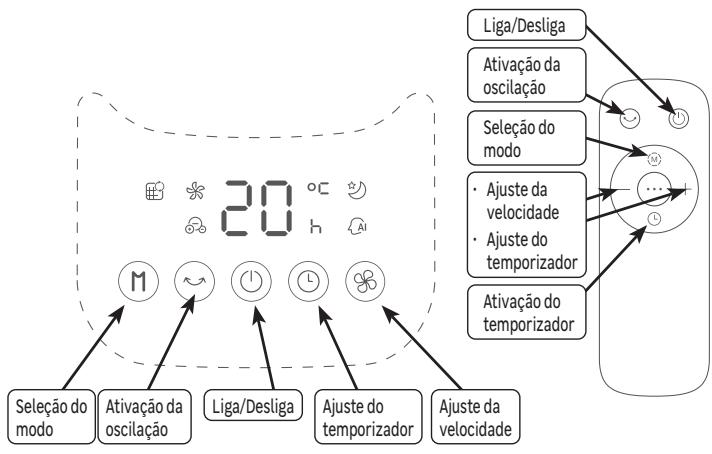


On/Off

Press ⏻ to turn the fan on or off.

When switched off, the settings are memorized to be applied automatically when switching on again.

Mode Selection

Press Ⓜ several times to choose the mode :

✿ Normal : the fan speed is constant, it can be adjusted by pressing 🌿
Sleep: the speed decreases gradually to promote sleep, it can be adjusted by pressing
Smart : the fan speed automatically adapts to the room temperature that is displayed..
Ionizer: the air is purified thanks to the simultaneous action of the HEPA filter and the ionizer.

Speed Adjustment

Press repeatedly Ⓤ to choose the speed. 1, 2, 3, ..., 10 is displayed.

Activate Oscillation

Press to ↗ to activate oscillation.

Using the timer

When the appliance is on, press several times on Ⓤ to set the duration (from 1h to 12h) until the automatic switching off of the appliance.

After 30 seconds of no action, the display goes into standby mode.
After 15 hours without action, the device switches off completely.

CLEANING

• Use a soft, dry cloth.
• For persistent stains, use a cloth dampened with soapy water and wipe immediately with a dry cloth.

Cleaning the pre-filters

Remove the air inlet cover.	Remove the pre-filter.	Dust the pre-filter.	Place the pre-filter.	Close the lid.

Replacement of HEPA filters (Ref. 84587043-3276007458558)

The symbol on the display indicates that the HEPA filters must be replaced

Remove the air inlet cover and the pre-filter	Remove the HEPA filter	Remove the HEPA filter from its packaging.	Place the HEPA filter with the "FRONT" labels facing forward.	Place the pre-filter and cover

Press Ⓜ for several seconds on to make the 📋 symbol disappear.

TROUBLESHOOTING

Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses.

Problem	Causes, solutions
The device does not turn on.	Check the power supply.Press ⏻ to turn on the fan.
The device does not turn off.	Press ⏻ to turn off the fan.
The device makes an abnormal sound.	Check that no foreign body has been accidentally inserted.

WARRANTY

Terms and conditions of the ADEO SERVICES manufacturer warranty

Adeo Services offers a manufacturer warranty on its products.

The scope of the Adeo Services manufacturer warranty:

Adeo Services products are designed and built to provide quality performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services' responsibility to repair or replace it. The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it with a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.

Cases excluded from the coverage of the Adeo Services manufacturer warranty:

The Adeo Services manufacturer warranty is not intended to apply in the cases listed below:

• Normal wear and tear of the product and/or its components.
• Accidental damage (due to dropping the product, impact or improper installation of the product)
• Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage)
• Damage caused by failure to comply with the product maintenance recommendations.
• Damage caused by external sources such as transportation, weather, power failure or power surges.
• Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components,
• Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale of the product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters).
• Failures caused by:

Negligent use, misuse, mishandling or careless use of the product.

Use not in accordance with the product user manual.

Use of the product for purposes other than normal domestic use in the country where it was purchased.

Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions.

Use of parts and accessories that are not genuine Adeo Services components.

Faulty installation or assembly.

Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents.

- The warranty will also not be valid if the serial number or the nameplate of the product (if the product has a nameplate) is removed or defaced.

• If Adeo Services receives information from competent public authorities that the product has been stolen.

What are the terms and conditions for implementing the warranty?

The terms and conditions for implementing the Adeo Services warranty are as follows

• The warranty takes effect on the date of purchase (or on the date of delivery if later).
• A proof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note.
• All work will be performed by Adeo Services or its authorized service providers.
• Any replaced part becomes the property of Adeo Services
• The repair or replacement of your device under warranty does not extend the warranty period.
• The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.
  • To make use of this warranty, you must contact the brand company from which you purchased your product.

Date of entry into force of the warranty:

The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is later.

Geographic scope of Adeo Services warranty:

The warranty is valid in the country of purchase of the product.

If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis.

Fate of Adeo Services warranty in case of resale of the product:

In case of resale of the product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however:

That the proof of original purchase of the product is brought along,

That the proof of proof of proper functioning of the product at the time of the resale is brought along,

That the terms and conditions of implementation of the warranty as detailed within the present document are met. It is specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date of the resale.

NOTES

NOTES

FR Traduction de la version originale du mode d'emploi
ES Traducción de las Instrucciones originales
PT Tradução das Instruções originais
IT Traduzione delle istruzioni originali

FR IT CE PAP

Made in China

ADEO SERVICES - 135 RUE SADI CARNOT - CS 00001 - 59790 RONCHIN - FRANCE
