USER MANUAL ALTONA 4 - FS40T - FS40T PRO1 EQUATION

Texnue He 6cbnyrobyaHHn 49

UcyhenHHe HecnpaBHOcti. 49

TapaHTi 50

NO AVERTISMENT 52

Asamblare 54

Utilizare 55

Intretinere 56

Depanare. 56

Garantie 57

ENWARNING 59

Assembly. 61

Use. 62

Care. 63

Troubleshooting 63

Warranty. 64

Avertissement

KoKoHTaKTu ShTeKepa HnHpya XNBHeHH NoXkoJxHeHi, Ioro cIyTuJIi3yBaTn.

. ytnlizaia ynaKOBKN

-Уразковka повинна 6утни пос'tи посяпеpeрблеса,як 3a3нayeно В Надрукованomy Ha Hiс симьолi порбк. Pizhi komnohoeTN yразкови He можнавиknidaТи на пироdi,ix cnld utnili3ybaTи BiД nobiДИНdoMiCzeBnxHOpM.

Ipepeo6ka eIeKtpoHHx BiXoHIB Ta eIeKtpuHHx npncTpoIB y KINzI JKTBeBO rKny.

Ley cIMBOJ Bka3ye Ha Te, 10 npnlaJ He MoJHa yTNIi3yBaTu JK nobyTOBI BiXoJN. 3aIPOBaJKeH O6OB'3KOBy CNTeMy yTNIi3aCiTi Ta cTeiaJIbHOI nepepo6Kn BVKOpNCtAHN eNEKTPuHNX Ta eNEKTPoHHNX npncTPOIB, kA nepeD6aaye npABO nocTaayBHKiB 6e3KoUToBHO npniMaTI BxNBaHy TexHiKy pni KyniBn I HOBoI TexHIKN, a TAKoJcTeiaJIbHNI 36ip TaKnx BiXoIDy B iDnOBiDHNx ceHTpax 360py BiXoIDI.

HanaaTbyaHnKa KyTa Haxiny

-BUMKHIbTBeHTnIyTOp.
- 3Jerka nocla6Te rBnHT haxiny, noBepHyBIm Ioro npOTn roDHHNKOBOi cTpiKN.
- BcTaHOBtB BeHTnIaTOp nID nOTpi6Hm KyTom i 3aΦiKcyTe Ioro, nobepHyBUn rBnHT 3a RoDHHNKOBIO CTPIKIO.

HanaaHTyBaHHB BnCOTN

BncoTy MoXHa HanaaHTyBaTn, NocNa6bUu CTiKy.

TEXHlYHE OBCJyROBvBAHH

-Дя Oчиценя NOBepxOHB NIKOPINCTOBYte cyxMy TkaHNY.
-ДястиКиХ ПлЯ ВИКОпСТовУTe RaHчIPKy,ЗМоЧЕну МИльнIM рОзЧINOM, iВiДра3Y поТрпс b cyхю raHчIPKOЮ.

YcyHeHHa HecnpabHocti

HecnpaBHOCTI yacTo BnHnKaIObT uee3 He3NaHHi npuynHn; nepe 3BepHeHHm Do cepBicHO CIyJX6n NOINBtCBs HxKHeABeDeHy Ta6Ntu. Lc I03BOInTb 3aoUaADNTn BaW lac i yHnKHyTN 3aBnX BnTpA.

TapaHTIa BnO6Hka Adeo Services He noUHpiUeTBcHa Na HauDeHi NHeJyE BnIaKn:

• HopmaIbHn 3HOC npOdyKtTa/a60 Ioro KOMIOHeHTiB.
  Bnpanokoe noIskoJKeHHN (noB'z3aHe 3 npaiHHM npOyKTu, ynapom a6o He npabunbHm ycTaHOBJIeHHM).
  -Пошкджehньслддьнб63doTpmaHnBka3ibokу noci6Hky KOpntybaa Ta/a60Ha ynaKobu (Hapniknad, HehanexhHa Happyra XNBleHn).
  Пошкдженив Всалдов Неторимня рекомпадци i3 texhiHOrO o6cIyRoBvBaHnЯ npodukTy.
  IoiKoJxHHeN, cPiuHHeHc 0BHiHIMn oakTopaMn, HapuKnaJ Upe3 TpaHcnOpTyBaHH, HerOy, BiKluOeHneEneKtpoeHepri a6o nepenadn Hanpyr.
  KocmetnHi nOuKoJxHHeHH, 3OKpeMa, Okpim iHsOro, NIOpIaHHN, NIOtePToCTi a60 NIOLOMKn PnactIKOBHX DeTaeJe.
• HecnpabHocti, cnpuHneHi fopc-MaxkopHMn o6cbTuHAMn (noiieo, kHa ne 3aJenKtB biD Adeo Services, 6yna Hepepe6b4yBaHO Ha MomeHT npOdaKy npOkyTу n HacniikBЯKOI HEmOxKnBO yHnKHyTn, BxNBlu BiIOBIDHNX 3axoIB (HaNPKNlaD, CTnxiHmN liXamn).
• HecnpabHocti, cnpuHHHeI TaKIMN 06CTaBnHaM:

Heo6epexHne, He npabnIbHe uH Heo6aue HBe NKOpncTaHH npOyKTo a60 HeHaJIeXHe NpOBoJxEHn 3 Hm;
BVKOpncTaHnHa 63 DoTpmaHn H pOceUp, BKNlaeHnx y noc6Hky KopncTyBaa npOdyKty;
BVKOpncTaHnI npOkykTu IyIeI, BiDmiHHnx BiI 3BnuaHOro NObyTOBOr BOKOpncTaHn B KpaHi npDi6aHn;
BVKOpNCtAHNJaTeTanei,aki He 3i6paHO a6o He BCTaHOBNeHO BiINObiINO do iHcTpyKciA Adeo Services MOHTaKy;
BVKOpncTaHnI npncTpoTo Ta deTaleN, BiDmiHHnx BiD opriHaJIbHnx KOMNoHEtIB, IIO haJaE Adeo Services;
HeCnpaBHe BnKoHaHH BCTaHOBHeHH a60 36uPAHH;
pemont a6o moiΦikaui, 3diCHeHcTOpHaMn, He BnOBHOBaKeHmMn Adeo Services a6o ii BnOBHOBaKeHmMn areHTaMn.

• TapaantjraTakOJHe iincha, JaKzO BnIaJeHO a6o 3iNcBaHO cepHn HOMep qH nacnpTHy TaBnUcy npOkyT (Aki0i nepeD6aueHO).

B Oha TakoK He iE, kIIO Adeo Services OTPMBy BID KOMPeTeHTHnx DepeXabHNx opraHIB IHOpMaio Ipo Te, IIO npOdyKT yKpaedeHO.

PLEASE READ CAREFULLY THIS MANUAL BEFORE USING THE APPLIANCE

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children should be monitored to ensure that they do not play with this appliance.
- Check that the characteristics of this appliance are compatible with those of the electrical installation.
- To prevent any risk of electrocution, do not immerse the appliance in water or any other liquid and do not use it near water.
- This device is intended for indoor use only.
- Do not place any objects on the device.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not use this device near a bathtub, shower, or swimming pool.
- Disconnect the power supply before any maintenance operation.
- Do not put the product in the fire.
- The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

- Disposing of the packaging

• If the pins of the plug parts are damaged, the plug-in power supply shall be scrapped.
• The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations.

Processing waste of electronic and electric devices at life-cycle end.

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved organisations.

For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

Appliance technical specification
Rated voltage	220-240V
Rated frequency	50Hz
Power rating	45W
Maximum fan flow rate	41.5m³/min
Service value (SV)	1.1(m³/min)/W
Off mode power consumption (Poff)	-
Electrical protection class	Class II
Fan sound power level	51.86dB(A)

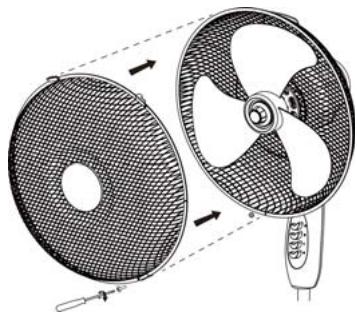

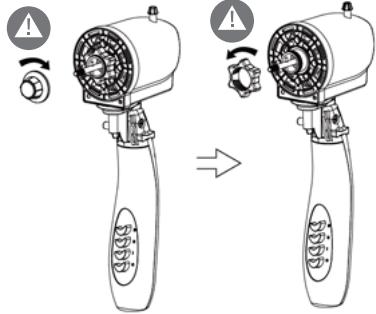

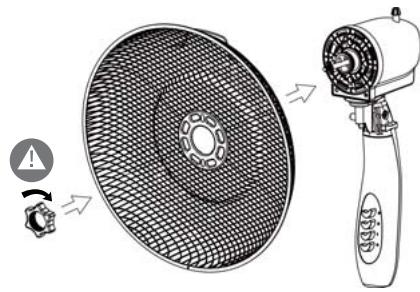

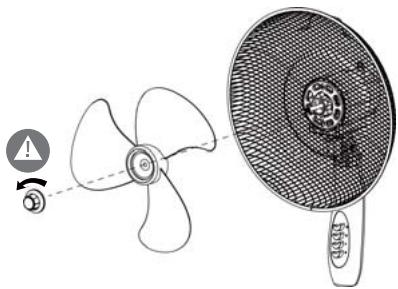

ASSEMBLY

1

2

3

4

5

6

7
8

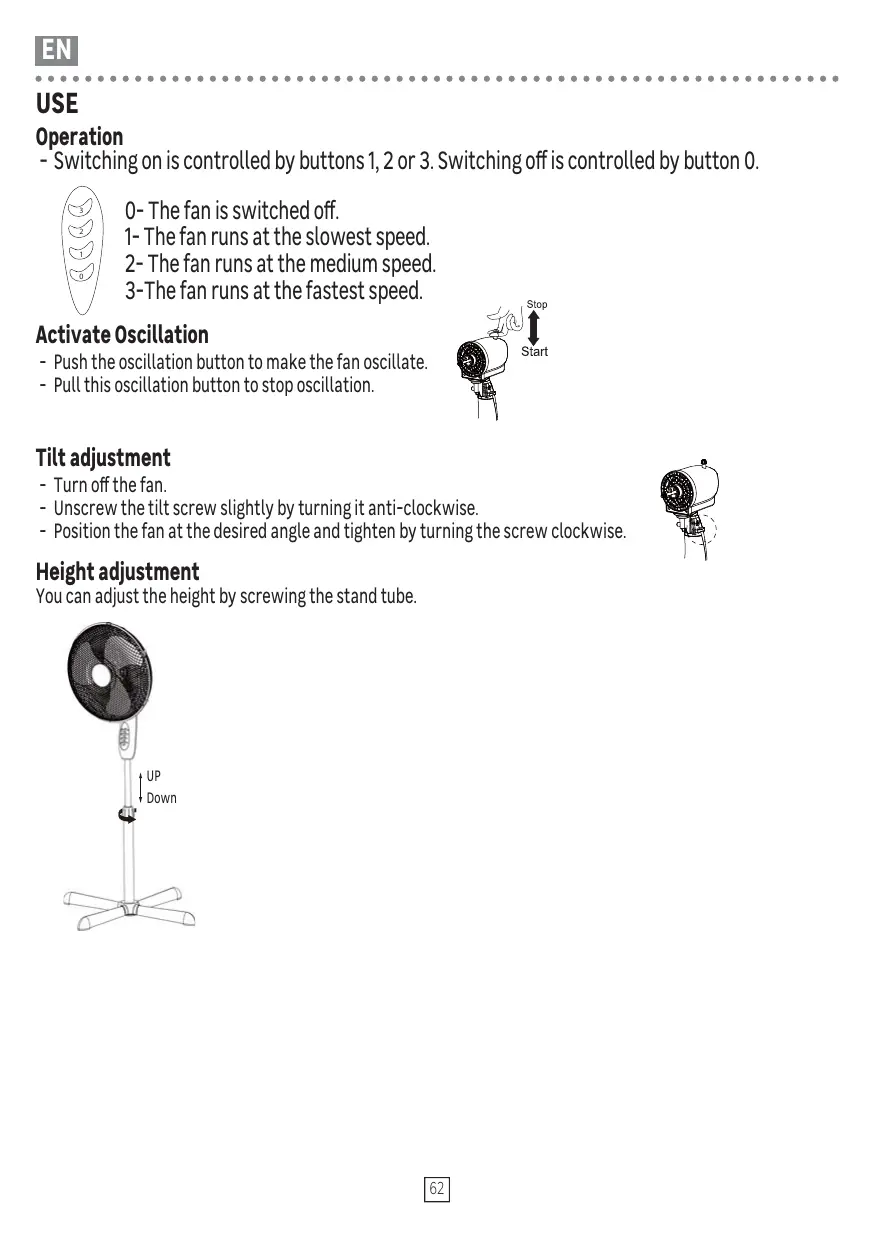

USE

Operation

• Switching on is controlled by buttons 1, 2 or 3. Switching off is controlled by button 0.

0- The fan is switched off.

1- The fan runs at the slowest speed.
2- The fan runs at the medium speed.
3-The fan runs at the fastest speed.

Activate Oscillation

• Push the oscillation button to make the fan oscillate.
• Pull this oscillation button to stop oscillation.

Tilt adjustment

• Turn off the fan.
• Unscrew the tilt screw slightly by turning it anti-clockwise.
• Position the fan at the desired angle and tighten by turning the screw clockwise.

Height adjustment

You can adjust the height by screwing the stand tube.

CARE

• Use a soft, dry cloth to clean the surfaces.
• For persistent stains, use a cloth dampened with soapy water and wipe immediately with a dry cloth.

TROUBLE SHOOTING

Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses.

TROUBLE SHOOTING
Problem	Possible cause	Solution
The fan does not turn on	No voltage in the power supply network	Check for voltage at the outlet, check by a specialist
	Mode switch does not work	Contact service, check by a specialist electrician
	Open in the wiring of the fan

WARRANTY

Terms and conditions of the ADEO SERVICES manufacturer warranty

Adeo Services offers a manufacturer warranty on its products.

The scope of the Adeo Services manufacturer warranty:

Adeo Services products are designed and built to provide quaility performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services' responsibility to repair or replace it. The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it with a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.

Cases excluded from the coverage of the Adeo Services manufacturer warranty:

The Adeo Services manufacturer warranty is not intended to apply in the cases listed below:

Normal wear and tear of the product and/or its components.
- Accidental damage (due to dropping the product, impact or improper installation of the product)
- Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage)
- Damage caused by failure to comply with the product maintenance recommendations.
- Damage caused by external sources such as transportation, weather, power failure or power surges.
- Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components,
- Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale of the product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters).
- Failures caused by:

• Negligent use, misuse, mishandling or careless use of the product.
  Use not in accordance with the product user manual.
  Use of the product for purposes other than normal domestic use in the country where it was purchased.
  Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions.
  Use of parts and accessories that are not genuine Adeo Services components.

• Faulty installation or assembly.
  □ Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents.

• The warranty will also not be valid if the serial number or the nameplate of the product (if the product has a nameplate) is removed or defaced.

• If Adeo Services receives information from competent public authorities that the product has been stolen.

What are the terms and conditions for implementing the warranty?

The terms and conditions for implementing the Adeo Services warranty are as follows

• The warranty takes effect on the date of purchase (or on the date of delivery if later).
• A proof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note.
• All work will be performed by Adeo Services or its authorized service providers.
• Any replaced part becomes the property of Adeo Services
• The repair or replacement of your device under warranty does not extend the warranty period.
• The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.
  To make use of this warranty, you must contact the brand company from which you purchased your product.

Date of entry into force of the warranty:

The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is later.

Geographic scope of Adeo Services warranty:

The warranty is valid in the country of purchase of the product.

If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis.

Fate of Adeo Services warranty in case of resale of the product:

In case of resale of the product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however:

That the proof of original purchase of the product is brought along,

That the proof of proof of proper functioning of the product at the time of the resale is brought along,

That the terms and conditions of implementation of the warranty as detailed within the present document are met. It is specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date of the resale.
