USER MANUAL FT15A2 EQUATION

TapaHTiBnPo6NkA Adeo Services He noUmpuOeTbCra Ha HabeJeHi NnJxue BnJaKn:

• HopmaIbHn 3HOC npOdyKty Ta/a60 Ioro KOMIOHeHTiB.
  Bnpanokoe noIskoJKeHHnnoB'3aHe 3 npaiHHm npOyKTu, ynapom a6o He npabunbHm ycTaHOBJIeHHM.
  -Пошкджehньслддьнб63doTpmaHnBka3ibokу noci6Hky KOpntybaa Ta/a60Ha ypaKobu (HapnPKnaI, HehaJexHnHa npyra JxNblenH).
  Пошкдженив Всалдов Неторимня рекомпадци i3 texhiHOrO o6cIyRoBvBaHnЯ npodukty.
  IoiKoJxHHeN, cPiuHHeHc 0BHiHIMn oakTopaMn, HapuKnaJ Upe3 TpaHcnOpTyBaHH, HerOy, BiKluOeHneEneKtpoeHepri a6o nepenadn Hanpyr.
  KocmetnHi noIshKOJdKeHH, 3OKpeMa, OKpim IHsOro, IIOpIaHH, IOTepTocti abo IIOLOMKII NaactIKOBHX DeTaeJe.
  Hecnpabhocti, cnpuunHei fopc-MaxkopHMn o6ctaBnHAMn (noieo, kna He 3aJenTb BiD Adeo Services, byaHa nepeed6auyBaHO Ha MOMeHT npOdaKy npOkyT y HacJIikB JKOI HEMOxNBO yHnKHytN, BKNBm BiIOBIDHNX 3axoIB (HaNPKlnd, CTnxiHMMn nXAMn)).
• HecnpabHocti, cnpuHHHeI TaKIMN 06CTaBnHaM:

Heo6epexHne, He npabnIbHe uH Heo6aue HBe NKOpncTaHH npOyKTo a60 HeHaJIeXHe NpOBoJxEHn 3 Hm;
BVKOpncTaHnHa 63 DoTpmaHn H pOceUp, BKNlaeHnx y noc6Hky KopncTyBaa npOdyKty;
BVKOpncTaHnI npOkykTu IyIeI, BiDmiHHx BiI 3BnuaHOro NObyTOBOr BIKOPncTaHnB KpaHi npDi6aHn;
BVKOpNCtAHNJaTeTanei,aki He 3i6paHO a6o He BCTaHOBNeHO BiINObiINO Do iNcTpyKciA Adeo Services MoHTaKy;
BVKOpncTaHnI npncTpoTo Ta deTaeIeN, BiDmiHHnx BiD opriHaJIbHnx KOMNoHEtIB, IIO haJaE Adeo Services;
HecnpaBHe BkOHaHH BCTaHOJIeHH a60 36paHH;
pemont a6o moiΦikaui, 3diCHeHcTOpHaMn, He BnOBHOBaKeHmMn Adeo Services a6o ii BnOBHOBaKeHmMn areHTaMn.

• Tapaantia TaKoJ He DiIcHa, JaKTo BvIaIeHo a60 3iNcObaH o cepiHn HOMep qH nacnpTHy TabIuKy npOkyT (JaKTo ii nepeIb6aHEno).

Boa TaKoJ He iE, JaIoo Adeo Services OTPMBy BID KOMPeTeHTHnx DepeXabHnx OprAHIB IHOpMaIIO npTo, IIO npOyKT yKpaDeHo.

- Порядок peanlaцii rapantii

Tapahtia Adeo Services peani3yecb B 3a3NaeHomy HnKue nopJky.

• Fapantia Hapiapae YHHocTi 3 daTn KyniBni (a6o 3 daTn DoCTaKn, kIuO BOHa Ni3HlHa).
• Pene6 6byb-8KIM BtpuahnHm y BaI npicptiH na rapaTti nOtpi6HO nopepeHbO HadaTu NiITBepdxHeHHaDcTabKn/kyniBNI.3BepHtYbary,10o6e3 zuoRO dka3y IJRA BVKOHnH6ydb-aynxPo6IT MaE 6tyNHaDaHO KaIbKyIaIIO BVTPaT, kY NOBHHeH npinHrTn 3AmOBnK nepe6ydb-8KIM BtpuahnHm. 36epiraTe TObapHn YekA60 KBNTaHciIO pO DocTabKy.
  Yci BTPyauHHa 3diHcHObaTmUyTbc KOMpaHicEIO Adeo Services a60 ii 3aTbePdxKeHIMn NoCTaayabHnKaMM.
  Будь-яказамина DeталыпекхODITb BylaacHicTb Adeo Services.
• PemOH T a60 3aMiHa pIncTpoIO 3a rapaHTieIO He pIpu3BOODtB Do IpoIOBKeHnRA rapaHTiHOrO TepMHy.
• rapaHTiH e CTaBnTb nID cyMHB MOxJIbICtB peaIizauii BaIHX npAB BiIOBjHO do IOpIuHnx rapaHTi, nepeIb6aHuNx LcIBHm KOeKcOm I3akOHm Ipo 3axnCT npAB cNoXbAay.
  LIO6 OTOPMaTI NIO rapaHTIO, Heo6XiIDHO 3BepHyTnCIO fipMOBOrO Maa3INHy, y kOMy Bn PnpIb6aII pnoDyKT.

Data Ha6yTTa YHHHOCTI rapaHTi

Tapahtia Adeo Services HabyBaecuHHocTi 3 daTu npiDbaHna6o 3 daTu IocTaBKn IpOdyKTy, 3aIexHo BiD TorO, Ka3 HnxPi3HiHa.

TeorpaΦiHa Tepntopia 3acTocyBaHnra rapaHTii Adeo Services

TapaHTia Die B KpaHnI pnpaBHaNn npOdykTy.

Klso BV BnKOpNCToByeTe CBI npncTpiB iHsi KpaHi, a He B Ti, De BV NIO pNID6aHb, BV MoKeTe BTPaTHTIraPANTIO. YCbOMy BnPaNDky 3BepHtBCsA Do fipMOBOrMa3HNy B KpaHi NoXoJxHeHry, De BV PnID6aHn IpOdyKT, AKNp03rJaTAmE rapaNTHy BmOry B KOxHOMy KOHKpETHomy BnApDky.

3bIbHeHnA Adeo Services BiI rapaHTiHnx 306OB'zaHb y pa3i nepenpoaJx npodukTy

U p3i nepenpoaJy npOky npOTraG rapaHTiHOro TepMiHy rapaHTi 3aJIuHaetbCyaHHHO Ha KOpNCb nOKyIpy I MOKe 6TyI peJIiOBAHa OCTaHHIM 3a yMOBN, LIO:

HaHaHo NiTBePdXeHHeOpnIHaNbHoKi KynbIi npOyKTy;

HadahoIoka3n HalekHoipo60Tu npOdyKtu Ha MOMeHT nepePpOdaKy;

NobIDOMJIeHO IPO BCIO cyKUnHicTb yMOB peaIi3aJIi rapaHTII, BKNlaJeHNx yCbOMy DOKyMeNTi;

yka3aHo, 10 nepeepoJaK TOBAPy He BnInBaE Ha rapaTHiN TepMIn, 10 3aJIiUmbc H a DaTy pepepoJaxy (To6To BlaIChNK pepePoiAoHOrO npOdykTu MoKe BmaraTn 3acTocvBaHnra paoTII Adeo Services y Mexax TepMHy iI, 10 3aJIiUmbcdo 3akIHueHH nii 3a3HaueHOI rapaTII Ha DaTy pepepoJaxy).

Дараз Виробниства:

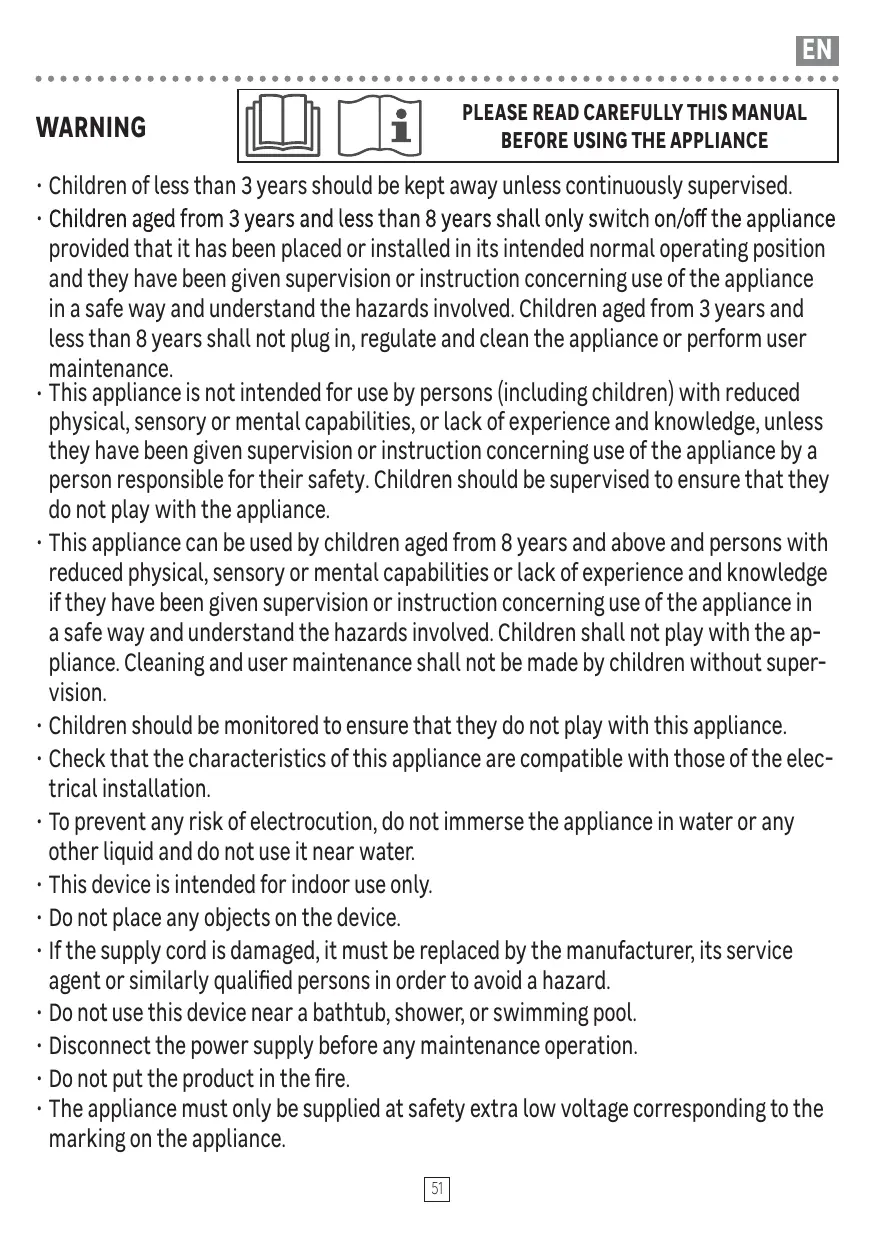

PLEASE READ CAREFULLY THIS MANUAL BEFORE USING THE APPLIANCE

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children should be monitored to ensure that they do not play with this appliance.
- Check that the characteristics of this appliance are compatible with those of the electrical installation.
- To prevent any risk of electrocution, do not immerse the appliance in water or any other liquid and do not use it near water.
- This device is intended for indoor use only.
- Do not place any objects on the device.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not use this device near a bathtub, shower, or swimming pool.
- Disconnect the power supply before any maintenance operation.
- Do not put the product in the fire.
- The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

• If the pins of the plug parts are damaged, the plug-in power supply shall be scrapped.

Disposing of the packaging

• The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations.

Processing waste of electronic and electric devices at life-cycle end.

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved organisations.

For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

Appliance technical specification
Rated voltage	220-240V
Rated frequency	50Hz
Power rating	12W
Maximum fan flow rate	6.0 m³/min
Service value (SV)	0.6(m³/min)/W
Off mode power consumption (Poff)	-
Electrical protection class	Class II
Fan sound power level	45.57dB(A)

ASSEMBLY

1

• Unscrew the adjusting screw by turning it counterclockwise until it completely clears the M6 nut.

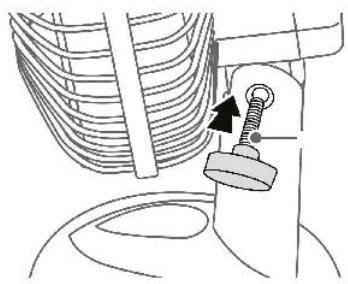

2

• Insert the swivel arm under the motor unit into the slot in the base.

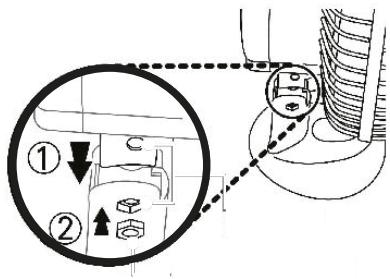

3

• Align the holes of both parts.
• Insert the adjusting screw into the holes of both parts (1 and 2).

4

• Tighten the adjusting screw again by turning it clockwise.

USE

Caution:

• Always choose a suitable place for a fan and follow the safety tips described in this manual.
• If you place the fan on a table or a shelf, make sure that the power cord does not hang in a place where it could be pulled off and inadvertently cause the appliance to drop.
• Do not attach or attach the fan to a wall or a ceiling.

Operation

• Turn the On / Off switch + speed selector on the back of the motor unit from 0 to 1 or 2 position.

0- The fan is switched off.
1- The fan runs at the slowest speed.
2-The fan runs at the fastest speed.

Angle adjustment

• Turn off the fan.
• Unscrew the tilt screw slightly by turning it anti-clockwise.
• Position the fan at the desired angle and tighten by turning the screw clockwise.

CARE

• Use a soft, dry cloth to clean the surfaces.
• For persistent stains, use a cloth dampened with soapy water and wipe immediately with a dry cloth.

TROUBLE SHOOTING

Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses.

TROUBLE SHOOTING
Problem	Possible cause	Solution
The fan does not turn on	No voltage in the power supply network	Check for voltage at the outlet, check by a specialist
	Mode switch does not work	Contact service, check by a specialist electrician
	Open in the wiring of the fan

WARRANTY

Terms and conditions of the ADEO SERVICES manufacturer warranty

Adeo Services offers a manufacturer warranty on its products.

The scope of the Adeo Services manufacturer warranty:

Adeo Services products are designed and built to provide quality performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services' responsibility to repair or replace it. The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it with a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.

Cases excluded from the coverage of the Adeo Services manufacturer warranty:

The Adeo Services manufacturer warranty is not intended to apply in the cases listed below:

Normal wear and tear of the product and/or its components.
- Accidental damage (due to dropping the product, impact or improper installation of the product)
- Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage)
- Damage caused by failure to comply with the product maintenance recommendations.
- Damage caused by external sources such as transportation, weather, power failure or power surges.
- Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components,
- Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale of the product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters).
- Failures caused by:

• Negligent use, misuse, mishandling or careless use of the product.
  Use not in accordance with the product user manual.
  Use of the product for purposes other than normal domestic use in the country where it was purchased.
  Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions.
  Use of parts and accessories that are not genuine Adeo Services components.

• Faulty installation or assembly.
  □ Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents.

• The warranty will also not be valid if the serial number or the nameplate of the product (if the product has a nameplate) is removed or defaced.

• If Adeo Services receives information from competent public authorities that the product has been stolen.

What are the terms and conditions for implementing the warranty?

The terms and conditions for implementing the Adeo Services warranty are as follows

• The warranty takes effect on the date of purchase (or on the date of delivery if later).
• A proof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note.
• All work will be performed by Adeo Services or its authorized service providers.
• Any replaced part becomes the property of Adeo Services
• The repair or replacement of your device under warranty does not extend the warranty period.
• The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.
  To make use of this warranty, you must contact the brand company from which you purchased your product.

Date of entry into force of the warranty:

The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is later.

Geographic scope of Adeo Services warranty:

The warranty is valid in the country of purchase of the product.

If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis.

Fate of Adeo Services warranty in case of resale of the product:

In case of resale of the product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however:

That the proof of original purchase of the product is brought along,

That the proof of proof of proper functioning of the product at the time of the resale is brought along,

That the terms and conditions of implementation of the warranty as detailed within the present document are met. It is specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date of the resale.
