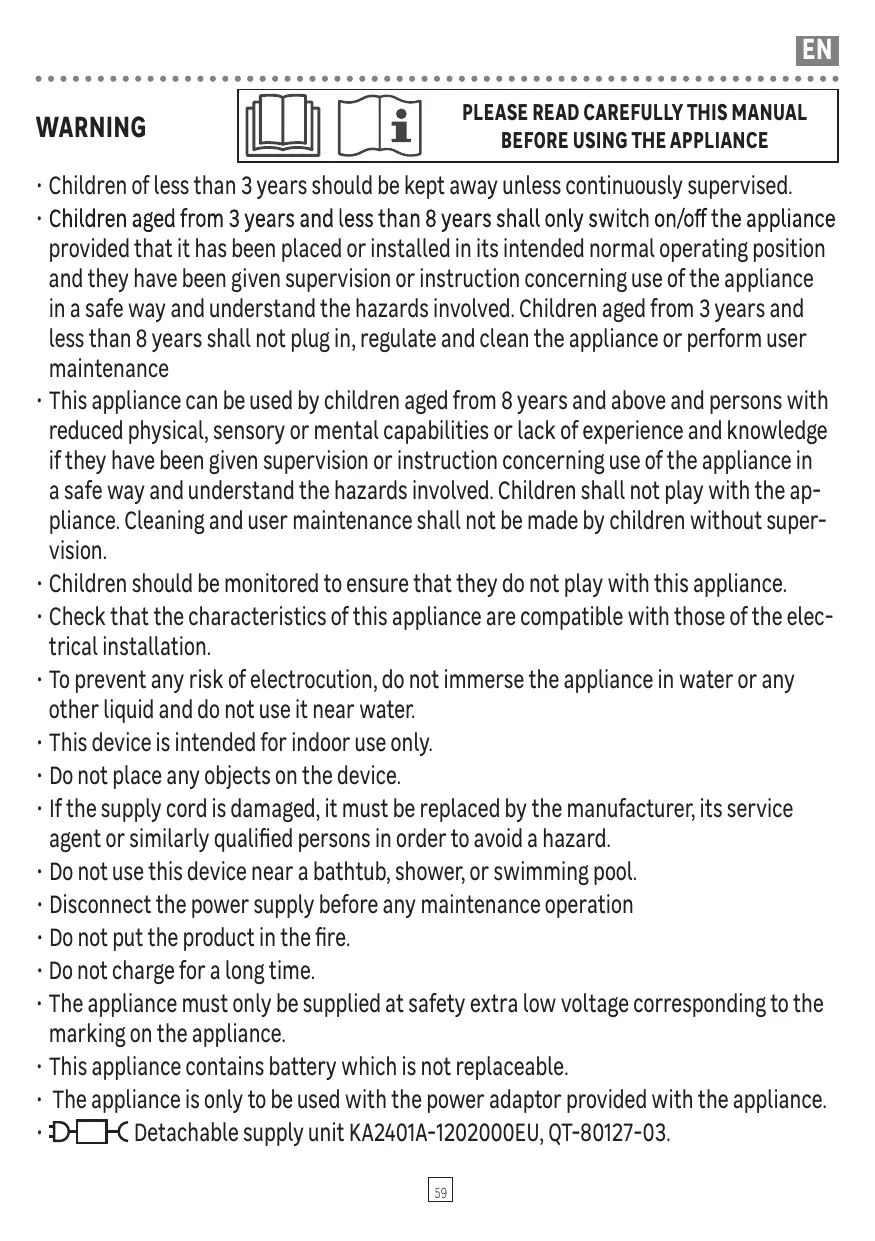

PLEASE READ CAREFULLY THIS MANUAL BEFORE USING THE APPLIANCE

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be monitored to ensure that they do not play with this appliance.
- Check that the characteristics of this appliance are compatible with those of the electrical installation.
- To prevent any risk of electrocution, do not immerse the appliance in water or any other liquid and do not use it near water.
- This device is intended for indoor use only.
- Do not place any objects on the device.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not use this device near a bathtub, shower, or swimming pool.
- Disconnect the power supply before any maintenance operation
- Do not put the product in the fire.
- Do not charge for a long time.
- The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
- This appliance contains battery which is not replaceable.
- The appliance is only to be used with the power adaptor provided with the appliance.
- D-D-C Detachable supply unit KA2401A-1202000EU, QT-80127-03.

EN

• If the pins of the plug parts are damaged, the plug-in power supply shall be scrapped.
• Operating Frequency: 433.42MHz to 434.42MHz.
  EIRP Power: 12dBm

- Disposing of the packaging

• The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations.

Processing waste of electronic and electric devices at life-cycle end.

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved organisations.

For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

Disposal of an exhausted battery.

To preserve natural resources, please recycle or dispose of the batteries properly. Consult your local waste authority for information regarding available recycling and / or disposal options.

ASSEMBLY

Insert the first element on the base, ensuring the correct alignment of the arrows	Insert the other elements by choosing one of the four possible alignment angles in order to be able to distribute the air flow around the device.

Connection

• Connect the Jack plug to the fan
• Connect the adapter to a 220-240V 50-60 Hz outlet
• Unplug the appliance when it is not in operation

Charging the remote control

• The remote's display will show "CCC" when it needs to be recharged.
• Charge the remote control using the USB type C cable plugged into the adapter.
• The display shows "FFF" when remote control is fully charged.

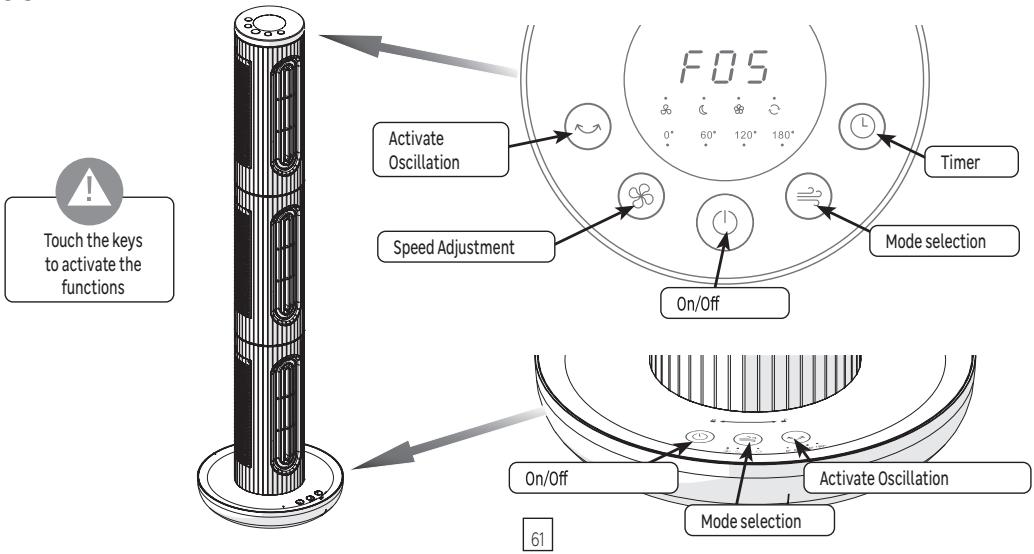

USE

On/Off

Press for a few seconds to turn the fan on or off.

Speed Adjustment

Press repeatedly to choose the speed, F01, F02, F03,..., F12 is displayed.

Activate Oscillation

Press repeatedly to choose the angle of oscillation displayed in degrees.

Using the timer

When the device is on, press several times to set the duration (from 1h to 12h) until the automatic switch-off of the device.

Mode selection

Press several times to choose the mode:

Normal: the fan speed is constant, it can be adjusted using the button

Sleep: the speed gradually decreases to promote sleep, it can be adjusted using the button

Strong: the speed is at maximal level

Circulating: speed varies to simulate natural airflow, it can be adjusted using the button

CARE

• Use a soft, dry cloth to clean the surfaces.
• For persistent stains, use a cloth dampened with soapy water and wipe immediately with a dry cloth.

TROUBLESHOOTING

Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses.

Problem	Causes, remèdes
The device does not turn on.	Check the power supply. Press Ⓒ for a few seconds to turn on the fan.
The device does not turn off.	Press Ⓒ for a few seconds to turn off the fan.
The device makes an abnormal sound.	Check that no foreign body has been accidentally inserted.
Appliance technical specification
Rated voltage	DC 12V
Rated frequency	/
Power rating	24W
Maximum fan flow rate	38.8 m3/min
Service value (SV)	1.9(m3 /min)/W
Off mode power consumption (Poff)	-
Electrical protection class	Class II
Fan sound power level	59.51dB(A)
Adaptor specification
Manufacturer's name	Shenzhen Keyu Power Supply Technology Co.,Ltd
Manufacturer's registration number	91440300591889293H
Manufacturer's address	2~3F, No.13, Lane3, Yuquan East Road, the 2nd Industrial park,Yulv, Guangming District, 518000 Shenzhen, PEOPLE'S REPUBLIC OF CHINA
Model Identifier	KA2401A-1202000EU
Input voltage	100-240V~
Input AC frequency	50-60Hz
Output voltage	12.0V DC
Output current	2.0A
Output power	24.0W
Average active efficiency	87.72%
Efficiency at low load (10%)	83.11%
No-load power consumption	0.056W
Adaptor specification
Manufacturer's name	Foshan Hochi Electric appliance Co., Ltd.
Manufacturer's registration number	91440606MA526CL4XG
Manufacturer's address	No.51, Huanan Road, Hongqi, Ronggui Town, Shunde District, Foshan City, Guangdong Province, P.R China(Post: 528305)
Model Identifier	QT-80127-03
Input voltage	100-240V~
Input AC frequency	50-60Hz
Output voltage	5.0V DC
Output current	1.0A
Output power	5.0W
Average active efficiency	74.60%
Efficiency at low load (10%)	70.40%
No-load power consumption	0.07W

WARRANTY

Terms and conditions of the ADEO SERVICES manufacturer warranty

Adeo Services offers a manufacturer warranty on its products.

The scope of the Adeo Services manufacturer warranty:

Adeo Services products are designed and built to provide quality performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services' responsibility to repair or replace it. The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it with a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.

Cases excluded from the coverage of the Adeo Services manufacturer warranty:

The Adeo Services manufacturer warranty is not intended to apply in the cases listed below:

Normal wear and tear of the product and/or its components.
- Accidental damage (due to dropping the product, impact or improper installation of the product)
- Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage)
- Damage caused by failure to comply with the product maintenance recommendations.
- Damage caused by external sources such as transportation, weather, power failure or power surges.
- Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components,
- Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale of the product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters).
- Failures caused by:

• Negligent use, misuse, mishandling or careless use of the product.
  Use not in accordance with the product user manual.
  Use of the product for purposes other than normal domestic use in the country where it was purchased.
  Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions.
  Use of parts and accessories that are not genuine Adeo Services components.

• Faulty installation or assembly.
  Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents.

• The warranty will also not be valid if the serial number or the nameplate of the product (if the product has a nameplate) is removed or defaced.
  If Adeo Services receives information from competent public authorities that the product has been stolen.

What are the terms and conditions for implementing the warranty?

The terms and conditions for implementing the Adeo Services warranty are as follows

• The warranty takes effect on the date of purchase (or on the date of delivery if later).
• A proof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note.
• All work will be performed by Adeo Services or its authorized service providers.
• Any replaced part becomes the property of Adeo Services
• The repair or replacement of your device under warranty does not extend the warranty period.
• The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.
  To make use of this warranty, you must contact the brand company from which you purchased your product.

Date of entry into force of the warranty:

The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is later.

Geographic scope of Adeo Services warranty:

The warranty is valid in the country of purchase of the product.

If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis.

Fate of Adeo Services warranty in case of resale of the product:

In case of resale of the product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however:

That the proof of original purchase of the product is brought along,

That the proof of proof of proper functioning of the product at the time of the resale is brought along,

That the terms and conditions of implementation of the warranty as detailed within the present document are met. It is specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date of the resale.

Modèle du produit

84583135

Industrial Type Design Reference

QT-U360E

Marque Produit

EQUATION

EAN

3276007457391

SN 120039 01 DDMMYY 01 PPPPPP (SN: Serial No., SSSSSS : Supplier code, XX :
