USER MANUAL P610344 INVICTA

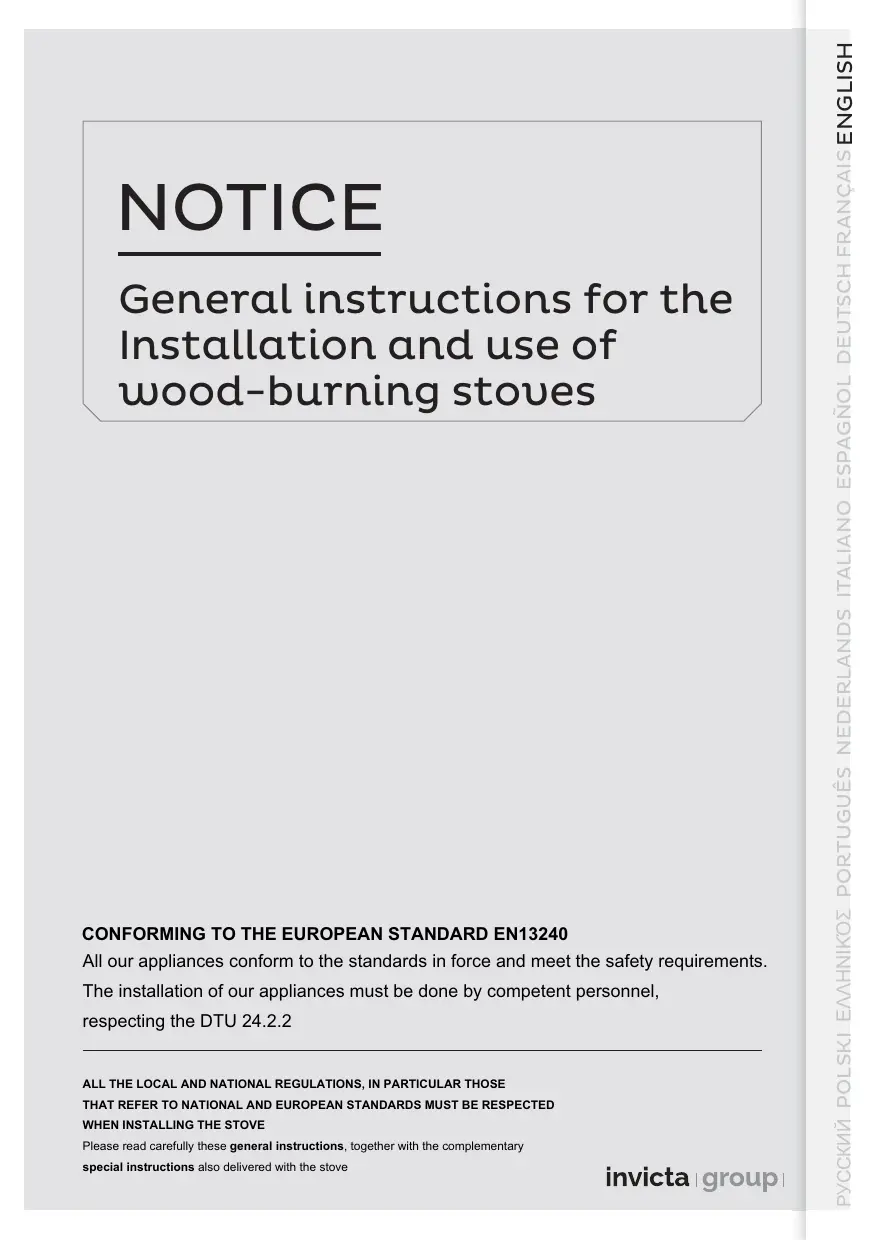

NOTICE General instructions for the Installation and use of wood-burning stouves

CONFORMING TO THE EUROPEAN STANDARD EN13240

All our appliances conform to the standards in force and meet the safety requirements. The installation of our appliances must be done by competent personnel, respecting the DTU 24.2.2 ALL THE LOCAL AND NATIONAL REGULATIONS, IN PARTICULAR THOSE: THAT REFER TO NATIONAL AND EUROPEAN STANDARDS MUST BE RESPECTED

WHEN INSTALLING THE STOVE

Please read careful} these general instructions, together with the complementary special instructions also delivered with the stove invicta ENGLISH

DRAUGHT The depression in the smoke conduit must be between 6 and 12 Pascals. This measure can be checked during heating using a manometer. A draught moderator is required is almost all cases to keep the draught to the recommended values. Connecting the stove to a smoke conduit used for other units is forbidden. VENTILATION OF THE PREMISES IN WHICH THE STOVE IS INSTALLED The operation of the stove requires an intake of air additional to that required for the regulatory renewal of air. This air intake is obligatory when the dweling is equipped with mechanical ventilation. The plug for the air intake must be situated either directly outside or in a location with external ventilation and be protected by a gril The exit for the air intake must be situated as close as possible to the stove. It must be able to be being used, be careful to see that is free of any obstruction. The cross-section of the air intake must be at least equal to one quarter of the cross-section ofthe smoke conduit with a minimum of 50 cm? It may be necessary to stop the extractor of the mechanical ventilation system to avoid the doun draught of smoke into the room when the door is opened I other heating units may be used simultaneously, additional cross-sections of fresh air input must be provided for these units.

The stove must be situated on a floor with an adequate bearing capacity. If an existing construction does: not meetthis prior condition, suitable measures (for example: the installation of a plate to spread the load) must be taken to enable the floor to bear the stove. The siting ofthe stove must allow easy access for cleaning the stove, the connecting conduit and the smoke conduit. invicta ENGLISH

Use only the fuels recommended: hardwood (Beech, Hombeam or Oak) that is dry (less than 20% humidity or a minimum of 2 years covered storage after cutting) and of a size that suits the characteristics of the stove. Avoid the use of coniferous wood (pine, fr, spruce, etc.) which require more frequent maintenance of the stove and conduit The ash drawer must always be left in the stove except for cleaning Clean out the ash daily. Empty the contents of the ash drawer into a metal or non-inflammable recipient exclusivelykept for this purpose. Ash, when apparentiy cold, may be very hot even after cooling for some time. When the stove is operating, the handling facilities and door handle may be very hot. To avoid burns, use the ‘oven glove” supplied with the stove to manipulate them Continuous low level operation, especially during mild weather (unsatisfactory draught) and when the wood is damp result in incomplete combustion leading to deposits of bistre and tar: - Altemate periods of low operation with periods of normal operation - Use small loads in preference. MAINTENANCE ADVICE Have your chimney swept by specialists at least twice a year, including once during the heating season. Atthe same time have the complete stove and connecting conduit cleaned and checked by a competent technician who: Will clean the stove thoroughly, check the junctions of the various parts, dismantle and check the deflector and its position, inclined and supported on top on the hood and maintained on the base below. - Will change any wo components if necessary (in particular the door seal). Following a long period of non-use, check that the conduit is not obstructed before lighting. DO NOT USE À SPRAY TO CLEAN THE GLASS. ITS USE ON THE PAINTED CAST IRON PARTS OF THE STOVE COULD PERMANENTLY DAMAGE ITS COATING | SAFETY RULES Objects in inflammable materials or which are damaged by heat must be kept at least 1.5 metres from all stove surfaces, in particular clothing or objects that may be put to dry in front of the stove. there is a chimney fire, close the reloading door and then the primary and secondary air intakes and then contact the local fire brigade immediately. During operation, all the stove's surfaces are hot: Be careful of bumsl! Avoid installing the stove in an area of frequent passage Never try to modify the stove. Never put into the stove loads of wood that exceed those indicated in the “Instructions for use” (ie. less than halfthe heïght of the combustion chamber). The use of fuels that are not recommended and unsuitable for the stove are forbidden, including liquid fuels. The combustion chamber must always remain closed, except during reloading and removing ash. Never overheat the stove: Using the stove as an incinerator is forbidden. Manufacturers spare parts must be used. invicta ENGLISH

CAUSES OF POOR FUNCTIONING

PROBLEM | PROBABLE CAUSES \ | ACTION

| Use hard wood, eut at least 2 years ago and having been stored in a !ventlated sheler | To light, use ruffled paper and very dry smal pieces of wood. | To keep the fire in, use split logs. 1 The logs are too large 1 lUse hard wood, relessing much heal and producing good embers | takes badly | Poor qualiy wood 1! (@ham, ok, ash, maple, birh, em, bech, et.) ï 1° Open wide the primary air shutter.(ash pan) Ï RME ES ! | pen the extenor fresh airintake gl. D lt! Check that the pipe work is not obstructed, do a mechanical brushing if ! Insuficint draught ! = \necessany ! m | Checkthat the lue conforms | Excess of primary air {Very that he draught valve is nof staÿing open Reese caen 1m: Install à draugh regulator. 1 Do not continualy bum small wood, faggots, off euts from joinery | Poor quaty wood | | | (phywood, pallts...). To proscribe the pallets. | The flue is cold | Heatthe pipe work by burning a paper torch in the stove. Emana Ë litfumes. 1 The stove is under low | pressure ! In houses equipped with a VMC, half open an exterior window until the | fire is well I. Very the conformity of the flue and its insulation. {M Very that the pipe work Is not obstructed, do a mechanical brushing if || necessary. The draught is insuficient Emanation of fumes during combustion The apres andere: | In houses equipped with a VMC, it is necessary to install a complementary lexterior air ntake for he chimney. M Ole Poor qualty wood ! | Ony use the fuel recommended : cnea la | Very the convection Grvui (entry grles, fusion gril, air pipe wo) RE TIEEREEEN 11m | Veriÿ that ie nojghboring rooms are equipped wi an 2erabon gril Lo 1! assistthe circulation of hot air. Den re res 1m! Check le conformiy of the lue of he chimney with ne exigencies | required and is isultion Absence of airintake of | 1° Install an air intakegrate {itake ar with regulation cut from dm! outside | (Om fr ex near the chimney ‘The glass gots dirty in a short time Use of wet wood or not 1 adapted PRESS 1 lin Be ninatess ban th glass ae edge door while Mas eee c en femmes No suffcient air intake by, he grate 1 Check the air circulation recovering the heat of the ie place, increase Fast wear ofthe cast ! he openings and the grates of ventilation. Check if the system of ventilation iron elements Grate deformed Insufficient ventilation Misses ventilation of the grate Ge hpn 1 isn't blocked by closed grates, use non adjustable grates. ! Empty every day the ash pan Excessive use of agressive liquid |__| Use the liquid s0 that it doesn't flow under the glass or wash with a foamy during the washing oflne glass | product 1 Use hardwood dry, preserved during 2 years at the sheltr. | Take care, wood newy cut have approximately 5 L water for 10 Kg. Condens: the hoarth Damp wood combustion with small fre and closed glass I This sign rmcommends that you should uso the senices of a quad professional Lo ect these aperations. ENGLISH

CONTRACTUAL WARRANTY Commercial warranty applicable to consumers. For information, in addition to legal warranties, the INVICTA GROUP provides a contractual warranty for consumers only, and therefore excluding professional customers, covering fireplaces, inserts, waod-burner stoves, pellt stoves, wood-bumer and oi-fired ranges with back boilers, gas heating and cooking appliances, in line with the conditions below subject to settiement of the invoice issued by the INVICTA GROUP. In the event of dificulty applying this warranty, pror to any legal action, consumers have the possibilty of seeking an amicable solution by contacting the INVICTA GROUP After-Sales Department. Pursuant to Article L 211-16 ofthe French Consumer Code, when, during the course of the commercial warranty granted on: purchase or repair of an item, reconditioning covered by the warranty is requested from the vendor by the buyer, any period in which the item is out of service for more than seven days will be added to the remaining warranty period stil to run. This period runs from the time when the buyer requests a repair service or when he item in question is made available for repair, if availabilty is subsequent to the request for repair. Torritoriality The commercial warranty for the consumer applis in all countries where the Products are sold by the INVICTA GROUP. Content and period Heating appliances (freplaces, inserts, wood-burning stoves, pellt stoves, ol toves and ranges with back bollrs, wood-burner ranges with back balers, gas heating applances) Heating units (non-temovable parts) are covered by the consumer warranty from the date of delivery by the aulier or to the sales outlet for the following periode: - 5 years for replace, insert, wood-bumer and ranges with back baiers, sold under the INVICTA, LAUDEL or DEVILLE brand names, - 2 years for pellet stoves sold under he INVICTA, LAUDEL or DEVILLE brand names, - 2 years for oiMfred stoves and ranges with back boilers sold under the INVICTA, LAUDEL or DEVILLE brand names, - 2 years for wood-burner ranges with back bollrs sold under the INVICTA, LAUDEL or DEVILLE brand names, - 2 years for gas heating appliances sold under he INVIGTA, LAUDEL or DEVILLE brand names. Electrical part (extractors, ventlators, electronic cards) of pelle stoves sold under the INVICTA or DEVILLE brand names, together with electrical parts (electric cards) of gas heating appliances sold under the INVICTA, LAUDEL or DEVILLE brand names come wih a 2-year warranty. Other components, such as: - latches, screws and bals, ventlators, printed circuits, swiches, connector terminals,electic res, electric sheaths for fieplaces, insert, and woac-burmers sold under the INVICTA, LAUDEL or DEVILLE brand names, - latches, screws and bols, decoratve back-plates and deflectors of pellt stoves sold under the INVICTA, LAUDEL or DEVILLE brand names, - latches, screws and bols, disrbutors, butions and bumers of o-fred stoves and ranges with back bailers sold under the INVICTA, LAUDEL or DEVILLE brand names, - handles, screws and bolts, bricks and thermometers of wood-burmer ranges with back boilers sold under the INVICTA, LAUDEL or DEVILLE brand names, - handles, screws and bols and bumers of gas heating appliances sold under the INVICTA, LAUDEL or DEVILLE brand names, are covered by the consumer warranty for one year from the date of delivery by the haulir or to he sales oullt. During this period, the warranty applies to any material or manufacturing fau provided appliances have been used correct} in line with the user manual supplied with the appliance and al applicable regulations. Proof of purchase of the Product (invoice, detailed checkout receipt) and photos of he product wil be requested to process any complaints. The warranty is only valid the appliance wes installed atthe address on the warranty certificate supplied with the appliance and if the buyer registered the warranty on the wwwiinvicta.fr Intemet it or ia the freephone telephone number 0.809.10.00.13, it being specified that, in any event, the consumer must produce proof of purchase of the Product to activate he warranty The warranty is limited te re replacement of parts acknowledged lo be fault after verification by the INVICTA GROUP. it proves too cost to replace the parts, the INVICTA GROUP may decide t replace the product. In any event, no damages of any Kind or in any form may be requested of the INVICTA GROUP. invicta group ENGLISH

CONTRACTUAL WARRANTY The INVICTA GROUP is released from any obligation relating to the warranty in he event of non-compliant installation of the Product in terms of legal, regulatory and/or administrative recommendations or professional practice or in the event of modification of the Product. ‘The commercial warranty is non-applicable in the nt of professional use. Other warranty exclusions: Removable external parts,

• Normal wear and tear of the Product, such as a change in aspect (colour, brillance) or corrosion, as well as mobile or fixed internal parts of the Product made of steel or cast iron, the consequences of poor or no servicing of the Product, an accident, negligence or a mistake when handling the Product and, generally speaking, fallure to comply with the recommendations for use and servicing and, in particular, servicing by qualiied personne, Since the 750"C resistant glass and temperatures in the combustion unit never reach this temperature, the glass cannot break due to overheating. Consequenty, a broken glass due to incorrect handling during use or servicing of the appliance is not covered by the warranty, The seals of any heating appliance, pellet stove cruaibles and igniters for pellet stoves and gas heating appliances that are considered to be wear and tear parts, + The combustible elements used and the appliance duct which are beyond the control of the manufacturer, the parts of he fireplace in contact direct or otherwise, with ignited combustible elements, such as: - decorative back-plates, fireplace baskets, deflectors, fire dogs in inserts, wood-burner and ranges with back bailers, sold under the INVICTA, LAUDEL or DEVILLE brand names, - decorative back-plates and deflectors of pellt stoves sold under the INVICTA, LAUDEL or DEVILLE brand names, - Diffuser tubes, wicks, igniters and cast iron rings of oll-fired stoves and ranges with back boilers sold under the INVICTA, LAUDEL or DEVILLE brand names, - Refractory bricks, fireplace baskets and deflectors of wood-burner ranges with back boilers sold under the INVICTA, LAUDEL or DEVILLE brand names, - decorative back-plates and deflectors of gas heating appliances sold under the INVICTA, LAUDEL or DEVILLE brand names, Also excluded from the warranty is any malfunction caused by mechanical or electric parts not supplied by he Product manufacturer and/or which are prohibited by laws governing heating appliances. Damage caused by the use of a combustible substance other than the ane intended for use with the Product concemed! Costs relating to travel, transport, labour, packing, dismanting and the consequences of the appliance standing idie, resulting from warranty operations, are to be paid by the customer. The warranty does not cover any total or partial, direct or indirect damage resulting from abnormal, negligent or improper use of the Product non-compliant with the recommendations for use and/or servicing or due to a cause beyond the intrinsic. properties of the Product. ‘Transfer of the warranty. The warranty is linked to he Product sold by the INVICTA GROUP and is automatically taken over by any new owner for the period stil to run. Price for the warranty The commercial warranty as defined above does not involve any payment by the consumer. invicta group ENGLISH
