USER MANUAL GREEN POWER XL - 4192 HOZELOCK

Midpoint Park, Birmingham,

B76 1AB. England

Tel: [phone]

www.hozelock.fr

Ref. 585644-001

Green Power XL

Fig. 1

Fig. 2

Fig. 3

Fig. 4

GB

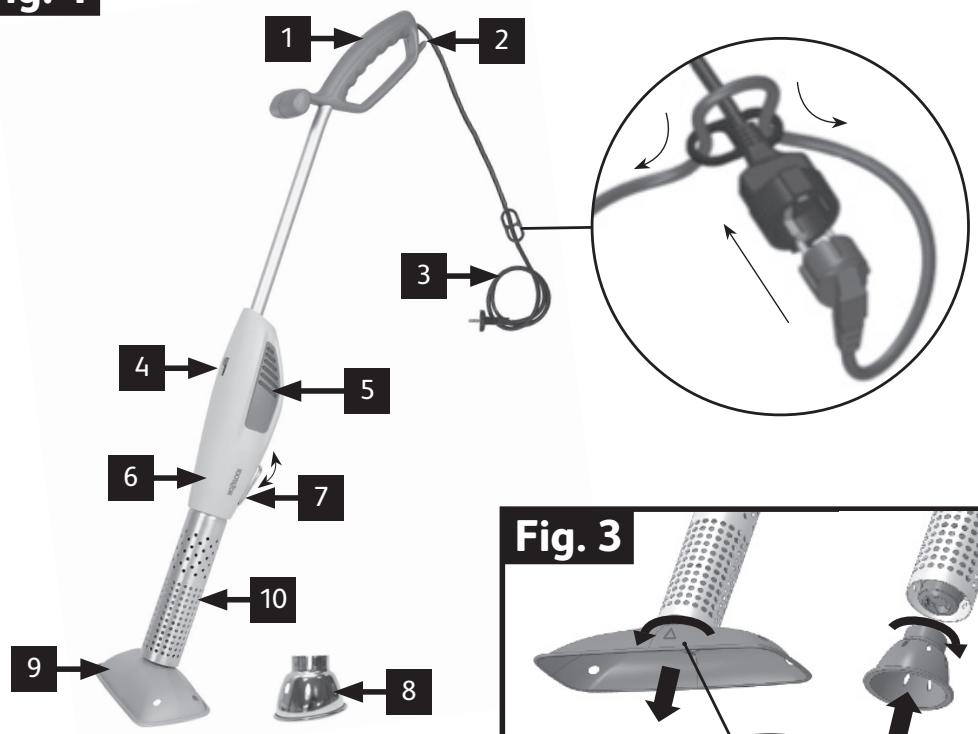

Fig.1:

1 Ergonomic handle.
2 Cable strage hook.
Supply cord.
4 On/Ventilation/Off switch.
5 Air inlet vent
6 Main power module
Device carrier
8 Round nozzle
9 Extra large nozzle
10Thermical protection

INSTRUCTIONS

Caution! For safety purposes, do not use the GREEN POWER XL device without having roughly read and understood instructions.

Children and teenagers below the age of 16 should not use the GREEN POWER XL and must stand away when it runs. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This device should not be used by persons (including children) with impaired physical, sensory or mental abilities, or lacking knowledge and experience, without supervision by a person in charge of their safety, instructing them on how to use the device.

Ensure that the product is properly positioned

Unplug the product before removal from fire

Allow the product to cool before storage

Do not allow the hot part of the product to touch the cord or other flammable materials.

SAFETY MEASURES

READ CAREFULLY BEFORE USE

The user is liable towards any third party for any event linked with the use of the GREEN POWER XL (electrical installation, etc.). In France, comply with the NF C15-100 standard of 07/00 governing low voltage electrical installations. In other countries, comply with local regulations. Before using the GREEN POWER XL, we advise you to ask a skilled electrician to check that the safety measures required on the electrical network are fitted.

The specifications indicated on the plate of the GREEN POWER XL must match the specifications of the electrical network. For safety purposes, the electrical network supplying the GREEN POWER XL must be fitted with a differential circuit breaker (30 mA).

Check the condition of the power supply cables before starting up.

Do not use the cable to other ends than those planned, do not use the cable to carry the GREEN POWER XL, hang it nor disconnect it from the power outlet

If you add an extension cord, it must be identical to the power supply cable of the GREEN POWER XL (see paragraph 4), with sealed connecting plug.

Do not modify the GREEN POWER XL. Never intervene on the electrical part. Only

HOZELOCK after-sales service is authorized to intervene on the electrical part of the GREEN POWER XL. If the electrical cable of the product becomes damaged, do not use the product.

If the electrical cable is damaged, it must be replaced by the

manufacturer, their after sales department or by people with similar qualifications to avoid any danger. We waive any liability in case of accident caused by a use of the GREEN POWER XL not complying with safety instructions or beyond its scope of application, or due to a modification of the GREEN POWER XL or an intervention on the electrical part. A fire may result if the appliance is not used with care, therefore: Do not use the GREEN POWER XL in an environment featuring risks of explosion or near flammable materials.

Do not use in an arid zone to prevent risks of fire.

Do not direct the hot air towards persons or animals.

Do not direct the hot air flow to the same point for a rather long period. Ensure the heat cannot propagate to hidden flammable materials, and ignite them.

After its use, lay the GREEN POWER XL on its carrier (Fig1 item 7) safely and leave it to cool down completely before storing it.

Do not leave the GREEN POWER XL running unattended.

Do not expose the GREEN POWER XL to rain or humidity.

Do not immerse the GREEN POWER XL in water.

Disconnect the device before changing any accessories or storing it. Do not touch the hot nozzle (Fig1 item 8,9). Never obstruct the vents (Fig1 item 5).

SCOPE OF APPLICATION

The GREEN POWER XL is designed for a private domestic use.

It eliminates weed by means of thermal shock. The fast temperature build-up bursts the cells of the plant and destroys the weed.

START-UP - FIRST USE

Starting up

Choose the round nozzle or the extra large nozzle for your using.

Nozzle	Using	Duration of the treatment per plant
Round	Localized treatment in the lawn, vegetable garden, flowerbeds...	3-5 seconds
Extra large	Treatment of the paths, pavement, gravel path, borders...	5-7 seconds

Assemble without tool the nozzle chosen with bayonet system (Fig3).

Caution: Don't exchange, don't dismount or don't assemble a nozzle if GREEN POWER XL was just used. Make sure that the product is totally cold before to do these operations.

Ensure the nozzle (8 or 9) is properly fitted and the switch (4) is set to 'OFF' (Fig2A). Connect the GREEN POWER XL with the supply cable (3) onto the power supply network after checking the safety measures are observed. Check that nothing is placed in front of the nozzle when switching on the GREEN POWER XL.

Start the GREEN POWER XL by setting the switch to the heating position (Fig2B).

Hold the GREEN POWER XL with its ergonomic handle (1).

Warm up the device for 45 seconds to reach the operating temperature.

To eliminate weed, apply the nozzle (8 or 9) onto it while letting it rest on the ground for the duration indicated in the table above. You simply need to heat (whiten) the weeds until they shrink back; there is no need to burn the plant.

The plant cells will then dry and the

weeds will wither and be destroyed in 2 to 3 days.

The residue may then be removed and composted.

Note: several treatments may be necessary for stubborn and tenacious weeds.

Stopping the device

Before stopping the device completely, a cooling phase is required.

Set the switch (4) to the "Ventilation" position (Fig2C). Ventilation must last 30 seconds minimum.

Once this operation is complete, you can set the switch to OFF (Fig2A) to switch off the GREEN POWER XL.

Using as a charcoal BBQ lighter

Equiped with the round nozzle, this device can be used to light charcoal barbecues. Comply with the barbecue manufacturer's instructions.

To light the charcoal, put the charcoal in the barbecue as usual and bring the nozzle up to within a few centimetres from the charcoal.

Make sure that the device is suitably positioned and stable directed at the centre of the barbecue. Set the device to "heat" (Fig2B). Leave the device in the same position until the charcoal starts to glow. This may take between 30 seconds and 2 minutes depending on the charcoal. When the charcoal is sufficiently hot, it becomes red and flames may appear near the nozzle.

This indicates that the charcoal is lit.

Unplug the device before removing it from the fire. Allow the device to cool down before putting it away (see next paragraph). Do not let the hot parts of the device to touch the power cord or other inflammable materials.

Storage

Check the device is completely cold before storing it.

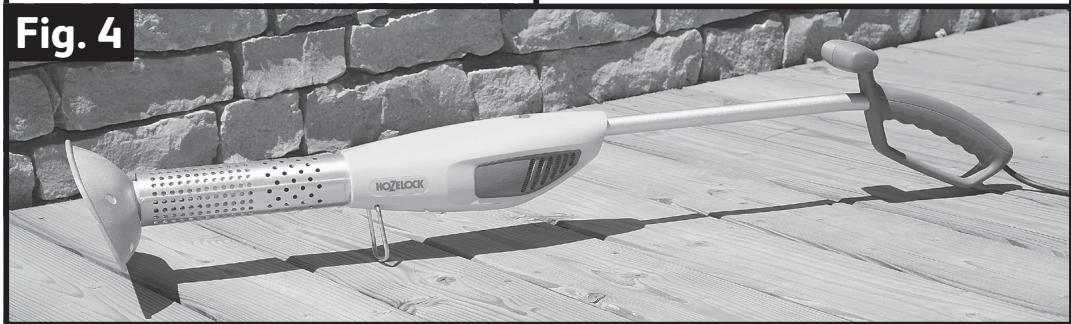

The device can be laid on the ground

on its carrier (7) or hung to the wall by its anchoring point (2).

TECHNICAL SPECIFICATIONS

Power	2000 watt
Voltage	220V-240V 50Hz
Temperature at nozzle outlet, approx.	600°C
Supply cord	1,5 m – H05 RNF
Protection rating	IPX0
Insulation class	Class 2

TROUBLESHOOTING / SOLUTIONS

Incidents	Causes	Solutions
a- The device does not heat.	1- No power supply. 2- The switch (4) is not in the heating position.	1- Check that the plug is properly inserted into the socket. 2- Set the switch (4) to the ‘heating’ position.
b- The plant does not fade.	1- The device is not set properly on the ground. 2- The application time is not long enough.	1- Apply the nozzle properly to the weed while letting rest on the ground. 2- Depending the plants size, it could be necessary to increase the treatment duration until the plant wilt.

For any other anomaly, please call our after-sales service. For safety purposes, only HOZELOCK's after-sales service is authorized to disassemble the electrical weeder.

WARRANTY

This product has a 2-years warranty against any material or manufacturing defect, from the date of purchase of the device by the user, upon presentation of the purchase invoice or cashier receipt only. This warranty consists in repairing the faulty device.

Our warranty excludes:

• unauthorized disassembly of the device,

• wear parts,

-modified equipment,

• equipment used against the recommendations described in these instructions,

• equipment abused,

• degradations due to careless use: shock, drop...

Our warranty does not cover accidents resulting from the damage or faulty and abnormal use of the equipment.

The legal warranty for conformity defects and redhibitory vice applies according to the conditions of articles 1641 to 1649 of the French Civil Code.

CE DECLARATION

I, the undersigned, Jérôme BOULMIER - Quality Manager - hereby certify that the product

Type: Electric weeder

Brand: HOZELOCK

Model: GREEN POWER XL

Ref: 4192 1240

Was developed, designed and manufactured in accordance with all relevant provisions of the following directives:

LV Directive 2014/35/EU
EMC Directive 2014/30/EU
- ROHS Directive 2011/65/EU

Villefranche, 28/11/2018

FR

Fig.1:

Model: Green Power XL

Ref:4192 1240

Grill-starter functionality

Model: Green Power XL

Ref:4192 1240

Model: Green Power XL

Nr ref: 4192 1240

BHHMaHHe! B ueJx 6e3OpacHocTn, nHa, He O3HaKOMMbUneCn H He

yachnBwne yka3aHna, npnbdeHHbIe B daHHoH nHCTpyKcHn, He doJXhbl hCnoJb3OBaTb ycTpoiCTBO GREEN POWER XL.

IeTHn IInu, He DoCTHgUHe 16-Tn
JIeTHeRo BO3pacta, He DOJXHbI
HCNoJIb3OBaTb yCTpoiCtBO GREEN
POWER XL n He Doynckatbcra K
Hemy Bo BpeMraero pa6Otbl.
3OT npH6Op He DoJxKeH
HCNoJIb3OBaTbCra IInzAmn (BkJIIOuaA
deTe) C OrpaHnueHHbIMN
fH3NuCeCKHM, CeHCOPHbIMn H
ymCTBeHNbIMn CNOco6HOCTaMn HJIH
He HMeIoUHM OnbIta O6paUeHna
c npH6Opom, 3a NCKJIIOueHHem
ClyuaeB, KOrda OHn HaxoJATcB
PnHcyTCTBn IInu, OTBeuaOuNX 3a
HX 6e3OJaacHOCTb, n KOToPbIe daIOT
HM Heo6XoDmMbIe HHCTpyKcHn PO
HCNoJIb3OBaHHIO npH6opa.

MEPbI 6E3OPIACHOCTN-ДЛЯ BHNMATEJIbHOTO O3HAKOMJIeHIN ПЕPEDИСПОЛьЗOBAHinem

IopTeHnI, HcNoJIb3yUOuNe yCTpoiCTBO GREEN POWER XL, HeCyT OTBETCTBeHHoCTb nepeTpeTbIMN IInzamn 3a erO npImeHHe (JleKtpnueckoe NOkJIIOUeHne yCTpoiCTBa, n T. d).BoΦpaHnN Heo6xOdmo

co6JIIOJeHHe HOpM NF C15-100, peIaMeHTnpyUoInx NcNoJIb3OBaHne Hn3KOBOJIbTHbIX 3JIeKTpOpiPn6OpOB. Bdpyrnx CTpaHax Heo6xOdImo pyKOBoIDCTBOBaTbCЯ MeCTHbIMn IpabHJAMN nCTAHdApTAmn.

IpeNd HauaIOM hCNoJIb3OBAHnY yCTpoiCTBa GREEN POWER XL erOpekOMeHdyETcR npEJIoXHTb dIra OCMOTpa ONbITHomy 3JeKtpNky, KOtOpbl ONpeDeIHT Heo6xOdHMbIe MEPbl 6e3OJaacHOCTn pRn pa6Ote OT 3JeKTPnueCKoI CETn.

Yka3aHHbIe Ha a6pHNoI pIacTnHe GREEN POWER XL xapaKTepeNCTnKn DOJIHKbI COOTBETCTBOBATb XapaKTepeNCTnKam 3JIeKTPnueckoI cTeN. B 9eJx Co6JIoJeHnIe Mep 6e3OpacnOcTn, 3JIeKTPnuecka I cTe NITAHnI dJa GREEN POWER XL DoJIHKHa 6bITb CHa6JKeHa DnΦΦepeHcuaJIbHbIM aBTOMATOM (30 mA).

PpOBePraIe CoCToHHe UHypOB PtTAnHnpePeJ KaxdblM BKJIoucHHeM.

He nCnoJb3yIte shHyp dIa IpynX ueIe KpOme Tex, dJI KOTOpbIX OH npEJaHa3HaueH, He nCnoJb3yIte shHyp dJIpepeHoCKN yCTpoiCtBa GREEN POWER XL,ero IOBWeSHINBAHnA, a TAKKe N3BLeueHnI N3 pO3ETKn.

PnnoKlUoyHnn ydlnHnteJn OHdoJIKeH COOTBETCTBOBATb Tnny shHypa nHTaHnYyCTpOInCTBa

POWER XL B BOy. OTKJIIOuaIte
yCTPOiCTBO OT cETn nepeJ 3aMeHOn
ero DeTaleN nn XpaHeHnEM.
He npKacaiTeCb K ropayemy conny
(Pnc.1, no3.8).
HnkOrda He 3aKpbBauiTe
BeHTnJIauNoHHbIe uEJI (Pnc.1 n03.
5).

OBJACTb PIPIMHEHNA

YCTPOINCTBO GREEN POWER XL npedHa3HaueHo dIa IHNiHBnDyAJIbHO NOIIOB3OBAHnB DOMaWHNX YCLOBHx. Cero NOMOuBIO MOJHO O6pa6aTBaIBaTb copHnK, BO3dEInCTbBy Ha HNx TENIOBbIM yapom. BbICTpo nOBtuWeHne TEmpeaTpby. INaBhni pInnHi— He cKeHb pAcTeHHe npNBODIT K pa3pUweHnIO KJIeTOK pAcTeHnI yNHTuToKeHHo COPHKnOB.

BKKIQUEHNE-INEPBOE NCIOJIb3OBAHNE

Nyck

Bb6hpaiTe kpyIbI nIIN shpOKn paCbIInTeIb B 3aBCHMOCTN OT BAUXNOTpe6HocTe.

YCTPOINCTBO MOJHO CTABNTb HA NOI Ha erO onopy (7) (pnc. 4), a npoBOD MOJHO HAMATbIBaTb Ha KpIOUOK Ha pyKoRtke.

TEXHINCHECKHEXAPAKTEPNCNTIKN

Мошносты	2000 watt
Напраоженце	220V-240V 50Hz
Temпература на БвіхODEиЗ солла, приблиз..	600°C
Шнyp пітань	1,5 m - H05 RNF
КлASS зацHTы	IPX0
КлASS зацHTы (Двий Ная ИЗOLAЦА)	Klacc 2

HENCTPABHOCTN IPII PABOTE/ YCTPAHEHNAJADOK
