USER MANUAL Aspen 2 Fix i-Size ABC DESIGN

IMPORTANT: Keep instructions for future reference.

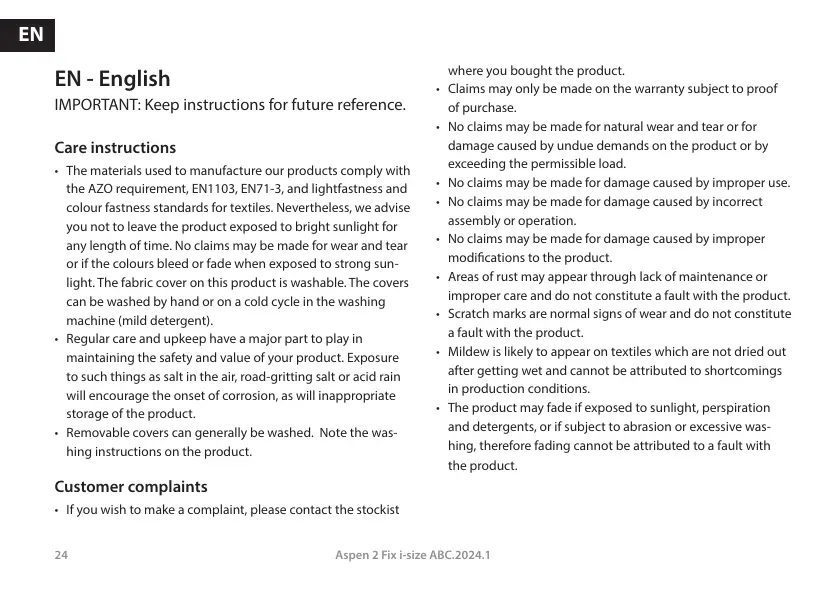

Care instructions The materials used to manufacture our products comply with the AZO requirement, EN1103, EN71-3, and lightfastness and colour fastness standards for textiles. Nevertheless, we advise you not to leave the product exposed to bright sunlight for any length of time. No claims may be made for wear and tear or the colours bleed or fade when exposed to strong sun- light, The fabric cover on this product is washable. The covers can be washed by hand or on a cold cycle in the washing machine (mild detergent). Regular care and upkeep have a major part to play in maintaining the safety and value of your product, Exposure to such things as salt in the air, road-gritting salt or acid rain will encourage the onset of corrosion, as will inappropriate storage of the product. + Removable covers can generally be washed. Note the was- hing instructions on the product.

Customer complaints -_Ifyou wish to make a complaint, please contact the stockist

where you bought the product.

Claims may only be made on the warranty subject to proof of purchase.

No claims may be made for natural wear and tear or for damage caused by undue demands on the product or by exceeding the permissible load.

No claims may be made for damage caused by improper use. No claims may be made for damage caused by incorrect assembly or operation.

No claims may be made for damage caused by improper modifications to the product

AAreas of rust may appear through lack of maintenance or improper care and do not constitute à fault with the product. Scratch marks are normal signs of wear and do not constitute a fault with the product.

Mildew is Iikely to appear on textiles which are not dried out after getting wet and cannot be attributed to shortcomings in production conditions.

The product may fade if exposed to sunlight, perspiration and detergents, or if subject to abrasion or excessive was- hing, therefore fading cannot be attributed to a fault with the product.

24 Aspen 2 Fix size ABC-2024.1

+ Do not use the child seat on car seats in which a front airbag is activated.

This is a child restraint system of the “i-Size” category. It has been approved in accordance with regulation no. 9 for use ‘on car seats which are suitable for i-Size restraint systems according to the vehicle manufacturer specification in the vehicle manual. Please contact the manufacturer of the child restraint system or the retailer in cases of doubt.

+ The safety ofthe baby seat is only guaranteed by the manu- facturer when the seat is used by the initial purchaser. It is therefore not advisable to buy a second-hand seat.

Aspen 2 Fix i-size ABC.2024.1 25

+ The baby seat is only for use in car seats which face the direction of travel

+ Fold-down car seats must be firmly clicked into place.

Ifthe baby seat is fitted to the passenger seat then the pass-

enger seat must be pushed back as far as it will go.

‘The baby seat may not be used on car seats which are ftted

with an airbag. It might be possible to disable the airbag (ask

+ The backrest of the passenger seat must be fully upright. If

there is a head restraint fited to the seat, it must be put into

the lowest position.

‘The baby seat must not be caught in the car door or in

fold-down seats; no heavy objects may be placed on the

Never hold your baby on your lap when travelling in the car.

‘The sheer force released in an accident will prevent you from

holding on to your baby.

Never put the seat belt around yourself and the baby.

+ No modifications may be made to the baby seat and the

Make sure that the seat belt in the car is not damaged and is

All the straps designed to restrain the baby in the seat must

be tightened. The straps holding the baby must be taut. Make sure that these straps are not twisted.

Never leave your baby in the baby seat for too long, Alt- hough the baby seat is extremely comfortable is important for your baby to have regular periods Iying on its stomach. This is in the interests of healthy development.

+ When not in use, the baby seat should not be left in the blazing sun, the residual heat from which might later cause unnecessary discomfort to your baby. Parts of the child seat could get hot and burn your child.

Do not neglect to use the baby seat on short journeys, These actually account for the majority of accidents.

Never leave your child alone in the baby seat in the car.

Set a good example and fasten your seat belt at all times.

+ Never allow your baby to play with the seat belt fastening.

- Take short breaks on relatively long journeys so that your baby has the opportunity to spend some time outside the vehicle to recover from the strain of travelling.

Please read these instructions for use and installation through carefully and follow them strictly in the interests of your child's safety.

The safety of the baby seat can only be guaranteed if used correct.

The baby seat can be fastened with a three-point emergency locking retractor belt on the passenger seat or on the rear

seats insofar as this belt meets the requirements set out in ECE R16 or an equivalent standard. We recommend putting the baby seat on the rear seat.

An unsecured seat may injure the passengers in the event of an emergency stop or an accident.

Make sure that the seat does not get caught in the door of the vehicle or damaged by rotating car seats or by objects placed on the baby seat (e.g. luggage), etc.

Do not make any modifications to the baby seat. This could adversely affect the safety of the seat.

In an accident (even at low speed above 10 km/h) the child safety seat could suffer damage which is not necessarily obvious. In this case you must replace the child seat. Please dispose of it proper.

Before you buy the baby seat we recommend that you check whether it can be installed properiy.

Ensure that all items of luggage and objects which could injure passengers in the event of an accident or a sudden application ofthe brakes are adequately secured.

The instructions should be kept in the pocket provided in the child car seat.

Never put the child seat with the child in on a high surface, such as a table, work surface, bed or shopping trolley. The seat with the baby inside could fall off.

‘The Enhanced Child Restraint System shall not be used

26 Aspen 2 Fix size ABC-2024.1

The Enhanced Child Restraint System cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part ofthe restraint performance.

Consul your vehicle manual to find out the position of the Isofx anchor points and correct installation of -Size restraint systems.

Aspen 2 Fix i-size ABC.2024.1
