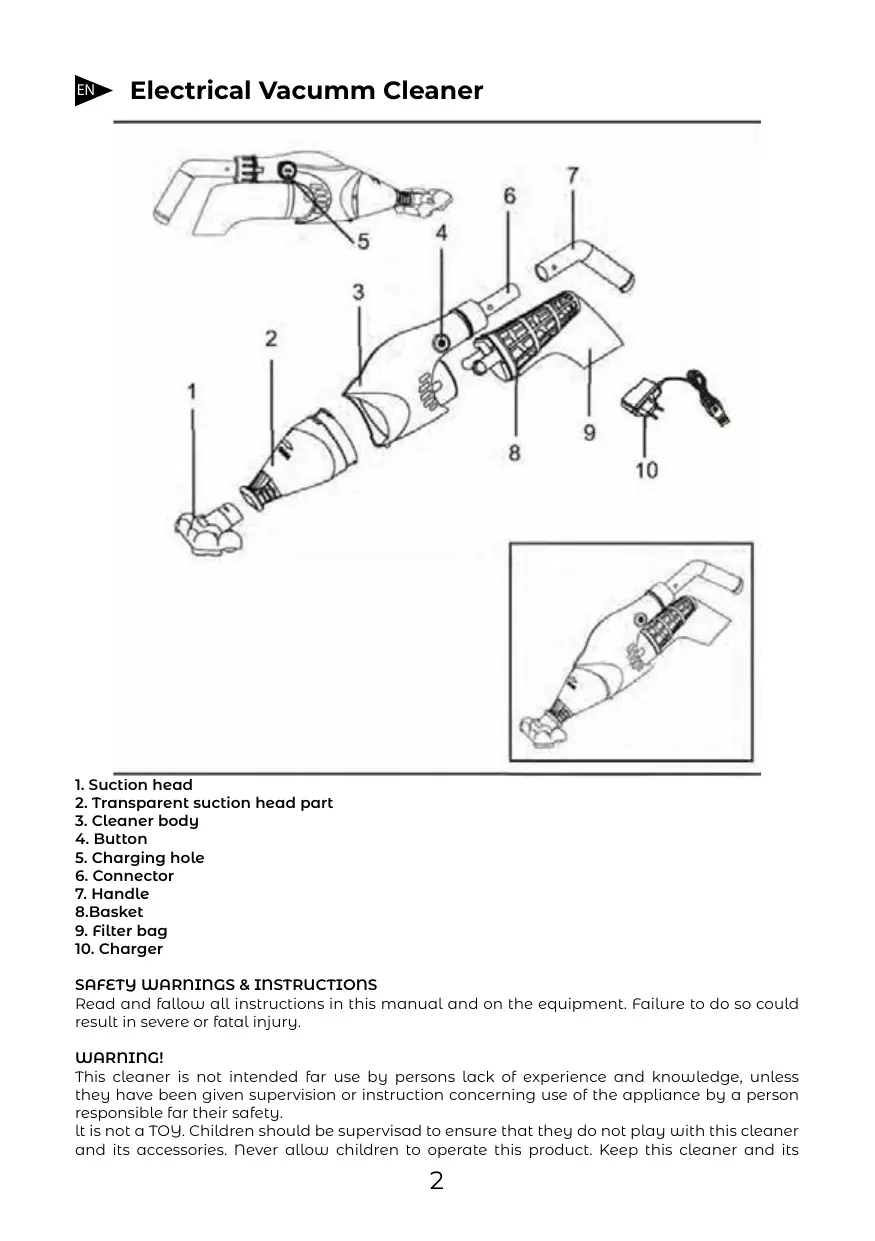

USER MANUAL VCB15 GRE

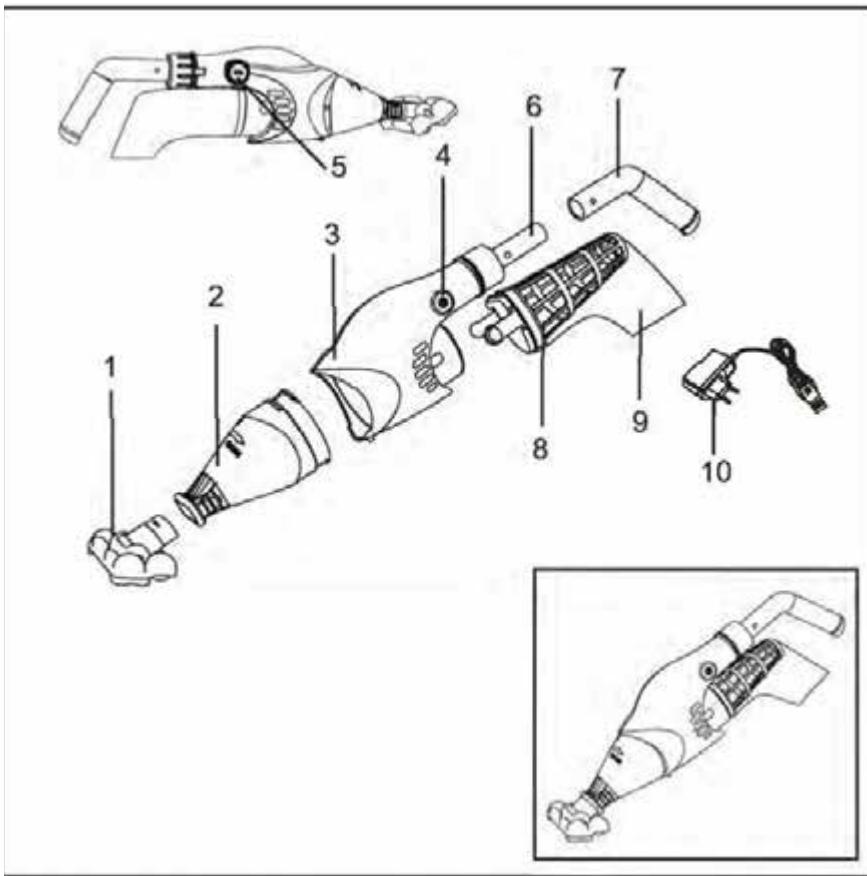

1. Suction head
2. Transparent suction head part
3. Cleaner body
4. Button
5. Charging hole
6. Connector
7. Handle
   8.Basket
   9.Filter bag
8. Charger

SAFETY WARNINGS & INSTRUCTIONS

Read and fallow all instructions in this manual and on the equipment. Failure to do so could result in severe or fatal injury.

WARNING!

This cleaner is not intended far use by persons lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible far their safety.

It is not a TOY. Children should be supervised to ensure that they do not play with this cleaner and its accessories. Never allow children to operate this product. Keep this cleaner and its

accessories away from children.

Be sure the cleaner is fully immersed in the water before operation. DO NOT operate it outside of water. It will lead to failure of the shaft seal / motor, and then VOID the warranty.

Maximum operating depth in water: 3 meters (10ft).

Operating water temperature: 4^ (39.2^) - 35^ (95^)

DO NOT use this cleaner if any damage is found.

It is necessary to change parts or assemblies as quickly as possible if they become damaged.

Only use parts certified by the distributor or manufacturer.

Detach the cleaner from charger and make sure the cleaner is power off before operating the product.

Do not operate this cleaner when people/pets are in the water.

Risk of Suction Entrapment Hazard. This cleaner generates suction. Avoid hair, body or any loose parts of your clothing to contact with the suction hole of the cleaner in operation.

Never insert body parts, clothing or other objects into the openings and moving parts of the cleaner.

DO NOT use this cleaner to pick up any toxic substance, flammable or combustible liquids such as gasoline, or operate in the presence of explosive or flammable fumes.

Never attempt in any way to disassemble your cleaner on your own.

Under no circumstances should you attempt to disassemble the cleaner and replace the impeller, motor by yourself.

Charger:

Far indoor use only. The charger should not be used outdoor and not be exposed to rain, humidity, any liquid or heat.

Keep the charger out of reach of children.

Never use the charger if any damage is found.

DO NOT handle the charger with wet hands.

DO NOT handle the cleaner, the charger while charging with wet hands and without shoes.

Disconnect the charger from power when not in use.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

Make sure the cleaner and charger are totally dry before charging.

CAUTION!

This cleaner is designed for underwater use only, not for use as an all-purpose vacuum cleaner. DO NOT attempt to use it to clean anything other than your pool / spa. Use original accessories delivered with this product.

It is not recommended to use this cleaner with another cleaner simultaneously.

Avoid picking up sharp objects with this product. They may damage the cleaner and filter.

Use extra care when cleaning stairs in the pool.

Charge the cleaner indoor in a clean, dry place with good ventilation.

If the cleaner is not to be used for an extended period, detach it from the charger, use dry damp cloth to clean and dry the cleaner and accessories. Store them in a well ventilated area away from the sunlight, children, heat, ignition sources and pool chemicals. Never leave the cleaner plugged for long term storage. Recharge the cleaner every three months.

If you do not use the transparent body part, you should take it off the electric cleaner.

Above warnings and cautions are not intended to incorporate all possible instances for risks and/or severe injury. Pool / spa owners should always exercise intensive caution and common sense when operating the cleaner.

GETTING STARTED

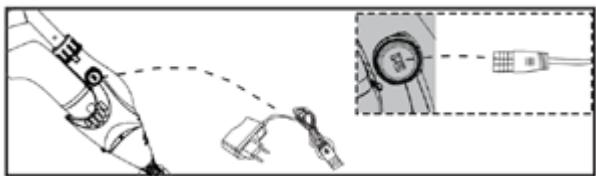

Set Up for Batteq Charging

(1) Plug one end of the charger into the socket, and the charger is green.
(2) Then, plug one end of charger to P1111, the charger is red, the charger is working now.
(3) After charging 3 hours, the charger becomes green, and P1111 is fully charged.
(4) Now, it is time to work.

WARNING!

Charging must be done in indoors, in a well ventilated area away from the sunlight, children, heat and ignition sources.

Never use the charger if any damage is found.

Use the original the charger provided only.

Make sure cleaner and the charger are clean and dry before set up.

NOTE: Charge the cleaner 3 hours prior to the first use.

Normally cleaner can be operated for 30 minutes after fully charged.

Set Up for Operation

The arrow of transparent suction head part Handle assembly and transparent body should be aligned, and then you can put down the transparent garbage can to the bottom of transparent body. Then rotate 90 degrees rightly (from open to close).

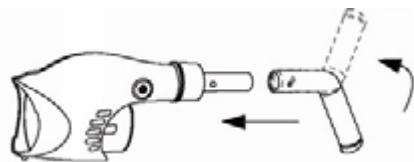

Handle assembly

Insert the handle as shown behind big department, according to needs, looking for what kind of convenient way to clean the wall and bottom of the POOUSPA, you find easier to hold the cleaner when cleaning the pool / spa wall and bottom. Insert the handle into the cleaner as shown until the side pin on the handle is secured in the Handle Locking Hole on the cleaner.

To release the handle, press down the side pin and pull out the handle.

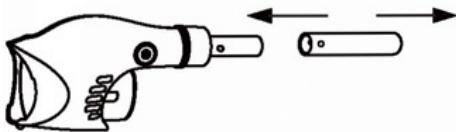

Telescopic pole assembly

Insert the end(with one side pin) of the Pole Connector into the cleaner as shown until its single side pin is secured in the Hand Locking Hole of the cleaner. Slide and align the side holes of the telescopic with the side pins of the Pole Connector.

To release the telescopic pole, press down two side simultaneously and pull out the pole.

Suction head assembly

Insert the Suction Head directly to the suction hole of the cleaner tightly by hand.

In order to have the better suction effect, please operate the electric cleaner as the following instructions:

(1) Insert the suction head when suction the small pebbles and leaves, as the Picture A shows.
(2) No need to insert the suction head onto B the electric cleaner when suction the stones and other large garbage and so on, as the Picture B shows.

Brushes on the Suction Head can be removed by pulling out directly from the head.

For Vinyl, liner and fibreglass pools, it is recommended to keep the brushes on the suction head to prevent damage to your pool

B

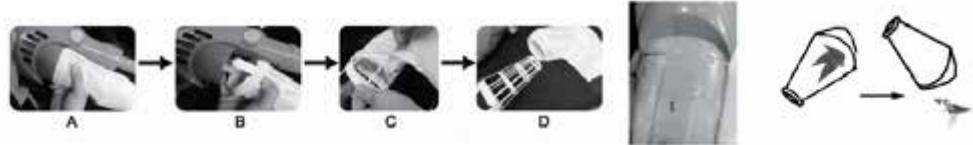

Cleaning the cleaner after using the electric cleaner:

(1) Take the transparent body off the electric cleaner (following the OPEN-CLOSE direction, rotate to OPEN direction 90 degrees), and take the garbage out of the transparent body, and then clean it.)
(2) Take out the rear part of filter bag, and take out the filter bag, and get out the garbage, and then clean the filter bag.

The cleaning steps of filter bag

1. Pull out the basket and filter bag from the rear of pool cleaner;
2. Detach the filter bag from the filter basket;
3. Clean the filter bag and filter basket
   (3) Check whether there is garbage on the impeller. If it has, take out the garbage, and clean the impeller.

OPERATION

Warning

Do not use the cleaner if any damage is found.

Pollution of the liquid could occur due to leakage of lubricants.

Do not operate this cleaner when people/pets are in the water.

Make sure the cleaner is fully immersed in the water before operating. DO NOT operate it outside of water. It will lead to failure of the shaft seals/motor, and then VOID the warranty.

Maximum water temperature: 4^ (39.2^) - 35^ (95^)

DO NOT use the cleaner without intact filter sock and sleeve in place. Using you cleaner without intact filter sock and sleeve in place will Void your warranty.

Risk of Suction Entrapment Hazard. This cleaner generates suction. Avoid hair, body or any loose parts of your clothing to contact with the suction hale of the cleaner in operation.

Never insert body parts, clothing or other objects into the openings and moving parts.

DO NOT use this cleaner to pick up any toxic substance, flammable or combustible liquids such as gasolina, or operate in the presence of explosive or flammable fumes.

CAUTION

Use original accessories delivered with this product with this product.

DO NOT use this cleaner immediately after pool shocking. It is recommended to leave the pool circulating far at least 24-48 hours.

It is not recommended to use this cleaner with another cleaner simultaneously.

DO NOT leave the cleaner in the water when not in use or battery is low as water leakage may occur.

The transparent suction part should be well installed before your powering the electric cleaner. (the transparent suction part has the button protection system in case the impeller will get your hands hurt))

BATTERY DISPOSAL

Your Rechargeable Pool Vacuum Battery is a lithium battery which must be disposed of properly is required; please contact your local authority far infarmation.

WARNING!

Never attempt to disassemble a I-MH battery.

Remove all personal items such as rings, bracelets, necklaces and watches when unwiring a lithium battery from the vacuum unit.

A battery can produce a short circuit current high enough to weld a ring (or like item) to metal causing a severe burn.

Wear complete eye protection, gloves and protective clothing when removing the battery pack. Take care not to touch wires together or allow them to contact any metal items, which would cause sparking and/or short circuit the battery.

Never smoker or allow a spark or flame in the vicinity of the cleaner. Batteries can generate gases which could possibly ignite.

Do Not expose to tire ar intense heat as this may result in an explosion.

CAUTION!

If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag.

If acid comes in contact with skin and clothing, wash immediately with plenty of soap and water.

If acid comes in contact with eyes, immediately flood eye with running cool water far at least 15 minutes. Get medical attention immediately.

How to remove the battery

The steps of changing the battery:

(1) Put the buckle to the body, and there is CLICKING; be sure the buckle does not be connected to the button on the rear body as the Picture show.
(2) Rotate the rear body counterclockwise, and take out the large button part.
(3) You will find the triangular battery, and take it out.
(4) Use the original battery from the manufacturer, and install the battery rightly, and rotate tightly. Pay attention to the installation.
(5) Rotate the rotation cover on the rear body to the buckle position on the bottom after being sure that the battery has been installed rightly (check it by operating the electric cleaner).
(6) Put the small buckle to cover position on the rear, and it will have CLICKING. Guarantee the buckle rotated tightly.
(7) Now you can use your electric cleaner following the instructions of how to use the electric cleaner.

Problem	Possible Cause	Remedy
Cleaner does not capture the debris	Battery is running out	Charge the battery again. Normally cleaner can operate 30 minutes after fully charged.
	Impeller is jammed	Power off the cleaner and visually check the gap in middle of the cleaner to see if the impeller is jammed. you can use your hand to rotate the impeller two circles to make the impeller rotation looser. WARNING! Make sure cleaner is power off when servicing the cleaner.
	Impeller is broken	Contact your dealer for impeller replacement.
	When the filter bag is full	Detach the filter basket and filter bag, and clean them.
Garbage flowing out from the Transparent Suction Head part	The soft rubber of the rear impeller is broken	The soft rubber of rear impeller is like a door in case the garbage in the filter bag will flow backwards into impeller and the cover of transparent suction head part.
Garbage flow out from the rear filter bag	Filter sock is damaged	Replace a new filter sock
Handle/pole connector cannot be secured in assembly	Side pin broken	PUssing the new V-Shape clip
Cleaner cannot be recharged	Battery is dead	Contact dealer for battery replacement. WARNING! When you replace the battery, please contact the local dealers to purchase the original lithium battery in case that the electric cleaner is destroyed.
	The charger is out of order	Contact dealer for proper transformer. WARNING! Using wrong charger will result in damaging the cleaner / battery and void the warranty.

CAUTION!

How to judge whether the battery is destroyed or the impeller is jammed?

1. The impeller suddenly is choked after it worked in a very short time. Turn off the button, and connected the electric cleaner to the civil electricity by means of the charger. If the Green LEO is on, it proves that the battery is destroyed (the solution is referring to the step of how to replace the destroyed battery group); if the Red LEO is on, start the power of P1111 to see whether the impeller will be rotating or not. If not, it proves that the impeller is jammed. (The solution is referring to how to resolve the problem that the impeller is jammed).

2. The Green LEO indicator is on after it is charged. Start the power, whereas the impeller does not work; turn off the button.

a. Connect the charger, and press the button to check whether there is the sound of impeller operation. If it product "Kaka" sound, it proves that the impeller is jammed (the solution is referring to how to resolve the problem that the impeller is jammed).
b. Connect the charger, press the button to check whether the impeller works normally. Turn off the button, and if the Green indicator is on, pull charger off the P1111 electric cleaner. Start the power again. If the impeller still does not work, it proves that the battery is destroyed.
c. Using the voltmeter to judge whether the battery is destroyed or the impeller is obstacle. Firstly charging the battery for more than 10 minutes. Pull the battery out the P111 electric cleaner, and measure the voltage of the battery. If it is "O", the battery is in dysfunction; if it is not "O", it proved that the impeller is jammed.
3. Directly rotate the impeller until it can be moved smoothly(Referring to how to resolve the problem that the impeller is jammed), and have the battery full of electricity. The battery is destroyed if the impeller does not rotate.

It is necessary to change the pieces of the distribution rules.

In accordance with these provisions, the seller guarantees that the product corresponding to this guarantee ("the Product") is in perfect condition at the time of delivery.
The Guarantee Term for the Product is two (2) years from the time it is delivered to the purchaser.
In the event of any defect in the Product that is notified by the purchaser to the seller during the Guarantee Term, the seller will be obliged to repair or replace the Product, at his own cost and wherever he deems suitable, unless this is impossible or unreasonable.
If it is not possible to repair or replace the Product, the purchaser may ask for a proportional reduction in the price or, if the defect is sufficiently significant, the termination of the sales contract.
The replaced or repaired parts under this guarantee, will not extend the guarantee period of the original Product, but will have a separate guarantee.
In order for this guarantee to come into effect, the purchaser must provide proof of the date of purchase and delivery of the Product.
If, after six months from the delivery of the Product to the purchaser, he notifies a defect in the Product, the purchaser must provide proof of the origin and existence of the alleged defect.
This Guarantee Certificate is issued without prejudice to the rights corresponding to consumers under national regulations.

INDIVIDUAL TERMS

This guarantee covers the products referred to in this manual.
This Guarantee Certificate will only be applicable in European Union countries.
For this guarantee to be effective, the purchaser must strictly follow the Manufacturer's instructions included in the documentation provided with the Product, in cases where it is applicable according to the range and model of the Product.
- When a time schedule is specified for the replacement, maintenance or cleaning of certain parts or components of the Product, the guarantee will only be valid if this time schedule has been followed.

LIMITATIONS

This guarantee will only be applicable to sales made to consumers, understanding by "consumer", a person who purchases the Product for purposes not related to his professional activities.
The normal wear resulting from using the product is not guaranteed. With respect to expendable or consumable parts, components and/or materials, such as batteries, light bulbs, etc. the stipulations in the documentation provided with the Product, will apply.
The guarantee does not cover those cases when the Product; (I) has been handled incorrectly; (II) has been repaired, serviced or handled by non- authorised people or (III) has been repaired or serviced not using original parts. In cases where the defect of the Product is a result of incorrect installation or start-up, this guarantee will only apply when said installation or start-up is included in the sales contract of the Product and has been conducted by the seller or under his responsibility

2-CROSSED-OUT WASTE CONTAINER

In order to reduce the amount of waste of electric and electronic apparatus, to reduce the danger of components, to encourage the reuse of apparatus, to assess waste and to set up a suitable waste treatment system, with the aim of improving the efficiency of environmental protection, a set of rules has been established applicable to the manufacture of the product and other rules regarding the correct environmental treatment when these products become waste.
It is also intended to improve the environmental practices of all agents involved in electrical and electronic goods, including manufacturers, distributors, users and particularly those directly involved in the treatment of waste derived from these apparatus.
From 13th August 2005, there are two ways of disposing of this apparatus:
If you purchase a new equivalent apparatus or which has the same functions as the one you wish to dispose of, you can hand it over, free of charge, to the distributor when making your purchase, or
You can take it to local collection points.
We shall cover waste treatment costs.
The apparatus are labelled with a symbol of a "crossed-out waste container". This symbol means that the apparatus is subject to selected waste collection, different from general
