SBS 573 WD C X625C - American fridge VALBERG - Free user manual and instructions

Product type	American refrigerator-freezer
Brand	VALBERG
Model	SBS 573 WD C X625C
Height	1793 mm
Width	910 mm
Depth	698 mm
Voltage	220-240 V ~ 50 Hz
Climate class	SN, N, ST, T (from +10°C to +43°C)
Water dispenser	Yes, cold water
Ice dispenser	Yes, crushed ice and ice cubes
Special functions	Holiday mode, Super Cool, Super Freeze, child lock, door open alarm
Lighting	LED (class G)
Defrost	Automatic
Adjustable feet	Yes
Grounding	Required
Cleaning	Regular, use a soft cloth and soapy water
Repairability	LED light replaceable only by a professional
Warranty	2 years
Included accessories	Ice tray, water tank, shelves, door bins, drawers

Frequently Asked Questions - SBS 573 WD C X625C VALBERG

How to activate the Super Freeze+ mode?

To activate the Super Freeze+ mode, press the MODE SELECT button until the * SUPER FREEZE icon lights up. The mode will activate once the panel is locked. It allows you to quickly freeze large quantities of food. The appliance automatically exits the mode after 40 hours.

What to do if error code E0 appears?

The E0 code indicates an error related to ice production. Although refrigeration and freezing functions continue, contact a qualified repair technician to resolve the issue.

How to clean the water tank?

After 150 days of use, the cleaning icon lights up. Remove the tank, clean it with a soft cloth and warm water, then dry it. Reinstall it and hold the WATER TANK RESET button for 3 seconds to reset the alert.

How to set the refrigerator temperature?

Press the MODE SELECT button to select the refrigerator compartment, then use the + and - buttons to adjust the temperature from 2°C to 8°C. The setting takes effect after the panel is locked.

Why does condensation form on the outside?

External condensation is normal when ambient humidity is high. Wipe with a dry cloth. This often occurs in humid weather.

What to do if the door does not close properly?

Check that no food or object blocks the door. If the gasket is deformed, gently heat it with a hair dryer then let it cool to restore its shape. Make sure the appliance is level.

How to disable ice production?

If you do not use ice for a long period, press the ICE OFF button. The corresponding icon lights up to indicate that ice production is disabled.

How to defrost the appliance?

The appliance has automatic defrost. If an excessive layer of frost forms, empty the freezer, unplug the appliance and leave the doors open until the frost melts. Do not use sharp objects.

What is the recommended water pressure for the ice dispenser?

The recommended water pressure is between 0.25 and 0.42 MPa. The minimum pressure is 0.15 MPa and the maximum is 0.8 MPa.

What to do in case of a power outage?

The appliance saves the current state and retains it until power is restored. If the outage is prolonged, remove frozen foods and check their edibility. Store them in a cool place.

USER MANUAL SBS 573 WD C X625C VALBERG

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

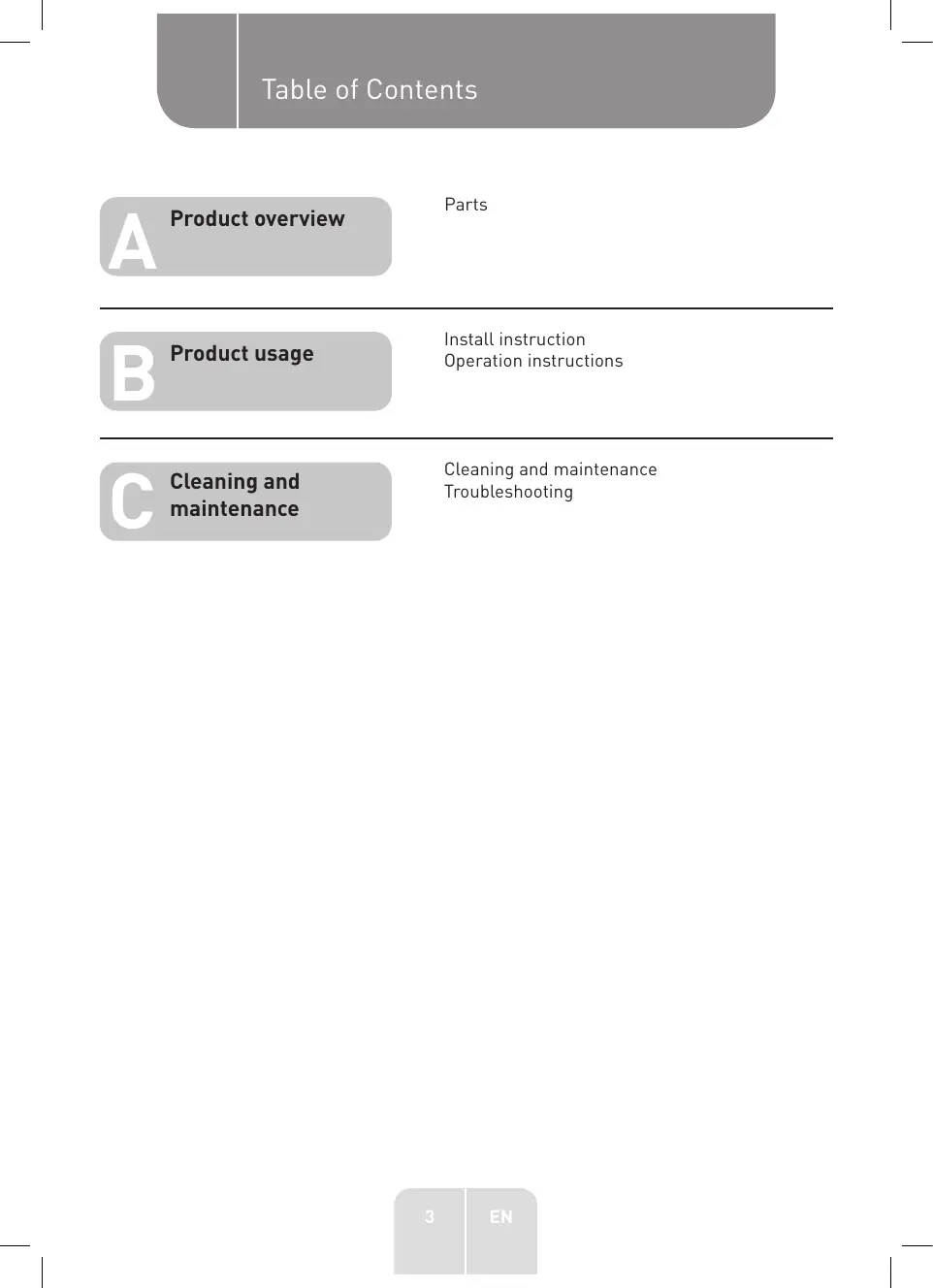

Table of Contents

A Product overview

Parts

B Product usage

Install instruction Operation instructions

Cleaning and maintenance

Cleaning and maintenance Troubleshooting

Parts

A LED lighting
B Ice maker wind shield
Ice container (removeable)
D Ice / Water dispenser
E Freezer glass shelf
Freezer door tray
6 Freezer drawer
Refrigerator door tray
Refrigerator glass shelf
Water tank
Fruits and vegetables box

• For the most efficient use of energy, please keep the all internal items such as trays, drawers, shelves and ice cube box on the position supplied by manufacturer.
• This refrigerating appliance needs to be installed independently and cannot be used as a built-in. Otherwise, it will cause problems such the performance and life of the appliance are reduced. And the manufacturer does not provide basic appliance warrant.

ATTENTION:

Differences: Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Install instruction

Before first use

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.
• Avoid placing the cabinet in a narrow recess or near any heat source, direct sunlight, or moisture.
• Let air circulate freely around the cabinet. When installing the unit, ensure that 10cm of free space is left at both sides, 10cm at the rear of the unit and 7.5cm at the top of the unit.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
• The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

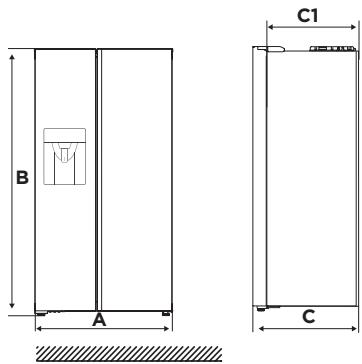

Space requirement diagram

A	B	C	C1	D	E
910 mm	1793 mm	698 mm	610 mm	1470 mm	1010 mm

Connecting the appliance

After installing the product, please let it stay for more than 2 hours before turning on the power, otherwise it will lead to a decrease in cooling capacity or a damage to the product.

Allow the appliance to run empty for 24 hours so the compartment can cool to the appropriate temperature.

CAUTION!

• The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.

Ambient Temperature

• Depending on the climate class, this refrigerator is intended to be used at an ambient temperature range as specified in the following table.
  The product may not operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.

Climate Class	Ambient Temperature
SN	+10 °C to +32 °C
N	+16 °C to +32 °C
ST	+16 °C to +38 °C
T	+16 °C to +43 °C

If you have any doubts regarding installation, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

ATTENTION:

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

Leveling feet

To avoid vibration, the appliance must be leveled.

If required, adjust the leveling feet to compensate for the uneven floor.
The front should be slightly higher than the rear to aid in door closing.
- Leveling feet can be turned easily by tipping the cabinet slightly.
- Turn the leveling feet counter clockwise to raise the unit, clockwise to lower it.

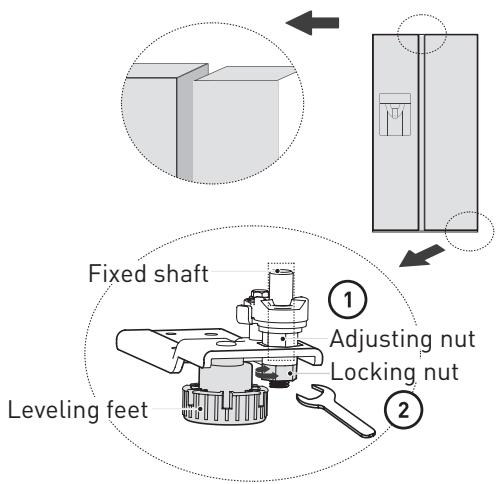

Leveling doors

If the doors are not at the same height, the door can be adjusted with a spanner.

1. Loosen locking nut ② counterclockwise.
2. Rotate the adjusting nut ① counterclockwise to adjust the height of door.
3. When the door is correctly aligned, tighten the locking nut ② clockwise.

Changing the light

• Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.
  This product contains two light sources of energy efficiency class (G).
  Light source in this product can only be replaced by qualified professionals.
• Please contact after-sales service if the light source fails.
• The light source shall be removed at the end of the product's useful life, with sorting and recycling done separately.

B Product usage

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION:

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Moving the appliance

1. Remove all items from the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and trays as shown in the product overview offers the most efficient use of energy and should be retained as far as possible.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers and shelves can be removed. The top and bottom drawers and shelves should be removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use.
• Allow warm food to cool before placing it in the refrigerator/freezer compartment. Food that has already cooled down increases energy efficiency.
• Allow frozen food to defrost in the refrigeration compartment The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.
• Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• Setting the temperature no colder than necessary contributes to optimal energy use.
• The door gaskets of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

Operation instructions

Use and functions

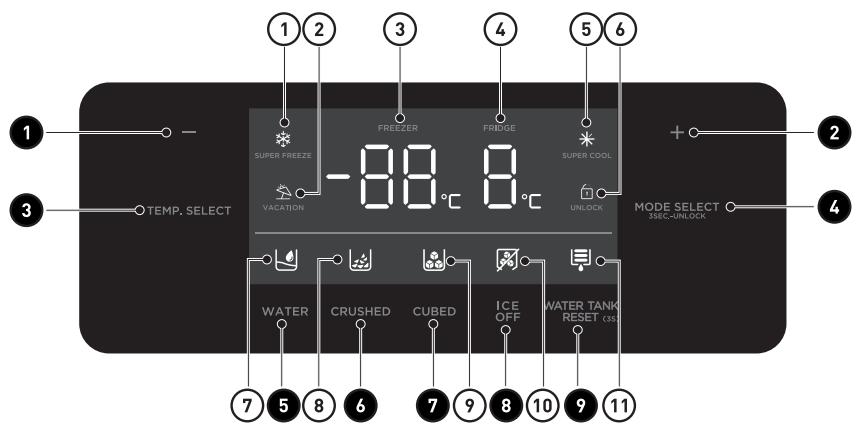

Feature panel

Display

① Super Freeze
(2) Vacation mode
3 Freezer compartment temperature
4 Fridge compartment temperature
Super Cool
6 Lock/unlock icon
7 Cold water
8 Crushed ice
9 Ice cubes
10 Ice making off
(11) Water tank cleaning warning

B Product usage

Button

1 Temperature down
2 Temperature up
3 Temperature compartment selection
Mode/Unlock/Lock
Cold water mode
6 Ice crushing mode
Ice cube mode
8 On/off button for icemaker
Water tank warning reset

ATTENTION:

The actual control panel may differ from model to model.

Display

• When powering on the refrigerator, all the icons on the display screen will light up for 3 seconds, meanwhile the starting up sound rings. Then the display screen operates normally, which will show the set temperature of both fridge and freezer compartment when there is no fault.

Lock“”/unlock“”

• In the unlocked state, long press the button "MODE SELECT" for 3 seconds, enter the "☑" state; In the locked state, long press the button "MODE SELECT" for 3 seconds, enter the "☑" state.
• All the following functions must be operated in the unlocking status.

Vacation mode " VACATION

• Click the button "MODE SELECT" to enter the vacation mode. Icon "vacation" lights up, the vacation mode will will take effect after panel locked.

Super cool mode " * " SUPER COOL

• Click the button "MODE SELECT" to enter the Super cooling mode. Icon " * " lights up, the Super cooling mode will take effect after panel locked, Super cooling exits up to 6h or exits after reaching the temperature of super cooling for 30 minutes.
• Click the button "MODE SELECT" to exit the Quick cooling mode.

Super freezer mode " Super FREEZ

• Click the button "MODE SELECT" to enter the Super freezer mode. Icon " * " lights up, the Super freezer mode will take effect after panel locked, Super freezer mode exits for 40h.
• Click the button "MODE SELECT" to exit the Super freezer mode.

ATTENTION:

The Super freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the Super freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

Temperature setting of refrigerating chamber

• Click the button to change the set temperature of refrigerator chamber.
  Each time click the "+" or "-" the set temperature will rise 1^ or will drop 1^ . The temperature setting will take effect after the display panel is locked.
• The setting range of refrigerator chamber is 2^ - 8^ .

Temperature setting of freezing chamber

• Click the button to change the set temperature of freezer chamber.
  Each time click the "+" or "-" the set temperature will rise 1^ or will drop 1^ . The temperature setting will take effect after the display panel is locked.
• The setting range of freezer chamber is -24^ -16^ .

Thermostat setting for ambient T°C : NORMAL ≈ +24°C (± 4°C)	3°C/-19°C
Thermostat setting for ambient T°C : COLD ≈ +16°C (± 4°C)	3°C/-19°C
Thermostat setting for ambient T°C : HOT ≈ +32°C (± 4°C)	2°C/-19°C

Water tank cleaning warning

• The working time of the water tank will be recorded after the first power-on. After 150 days of water tank used, the “日” icon will light up to prompt the user to clean the water tank. After 180 days of water tank used, the “日” icon will keep flashing, prompting the user to clean the water tank.
• After cleaning and installing the water tank, press the "WATER TANK" button for 3 seconds to cancel the "Water tank cleaning warning" function and the "重启" icon stops flashing. The water tank working time will be reset.

Opening warning and alarm control

• When open the refrigerator doors, the opening tone will play. If the door is not closed in two minutes, the buzzer will sound once every minute until the door is closed.
• Long press " + " and " - " 3 seconds can close and turn on the tone when opening the door.
• Disable the door opening alarm sound: Not possible.

B Product usage

Storage upon power failure

• In case of power failure, the instant working state will be memorized and maintained till re-electrification.

Fault indication

• The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have refrigerator and freezing function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure normal use of the refrigerator.

Fault code	Fault Description
E0	Icemaker fault
E1	Temperature sensor detection circuit error of refrigerating chamber
E2	Temperature sensor detection circuit error of freezing chamber
E5	Freezing defrost sensor detection circuit error
E6	Communication fault of main board and Display control panel
E7	Circulation of ambient temperature sensor detection circuit error
EE	Icemaker sensor circuit error
EH	Moisture sensor fault
EP	Ice-separating fault of icemaker
EF	Water tank loose fault
CA	Communication fault of main board and ice making board

Fetching water and Ice

• Sounds will be produced during making ice cubes and crushed ice: water valve will produce buzzing sounds; water's flowing into ice vessel will produce sounds; grinding machine's grinding ice into small pieces or product ice's falling into the container will produce sounds. Scratching noises may be produced when taking out the ice cubes. Nothing to worry about this. The sounds are normal.
• The ice in the container may be stuck together. In such cases, please take out the ice container and separate stuck ice into pieces by means of, for instance, using plastic or wooden spoons to push hard on the ice carefully.
• Please fetch the ice from the ice container if you need a lot of ice.

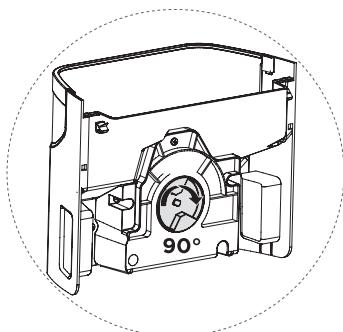

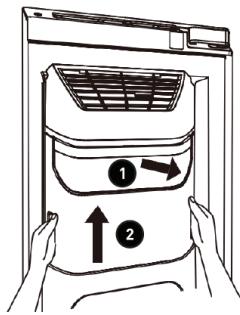

• To prevent ice smell or bad taste of the ice, please clean the ice container regularly.
• Ice and water can only be fetched when the door is closed.
  Maximum intake pressure 0.8MPa.
  Minimum intake pressure 0.15MPa.

B Product usage

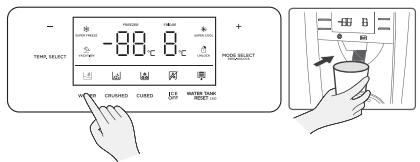

Fetching cold water

• Keep clicking the buttons "WATER" until the icon "L" turns on.
• Push the container in the direction of the water dispenser pad, Cold water starts to flow into the container.
• Remove the container to end the exporting of water.

Fetching crushed ice

• Keep clicking the buttons "CRUSHED" until the icon "L" turns on.
• Make the container tight with mouth of dispenser to prevent the side jet.
• Press the container in the direction of fetching water cushion. Fill the container with crushed ice.
• Remove the container from fetching water cushion and end the exporting of crushed ice.

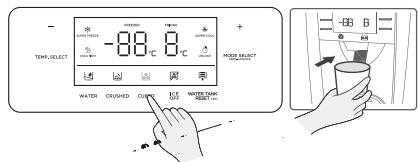

Fetching ice cubes

• Keep clicking the buttons "CUBED" until the icon "B" turns on.
• Push the container in the direction of fetching water cushion.
• Ice cubes start to fall into the container.
• Remove the container from fetching water cushion and end the exporting of ice cubes.

B Product usage

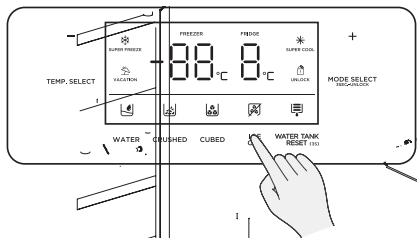

Cancel the function of ice-making

• If the function of fetching ice is not used for long time, you can cancel the function of ice- making.
• Press the button "ICE OFF", the icon "阙" turns on.

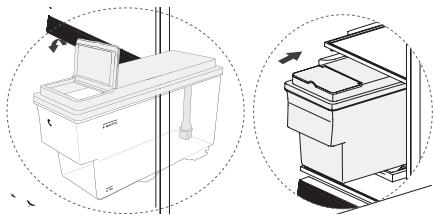

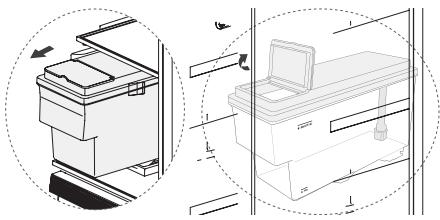

Instructions for water tank use

For first-time use, clean the inner side of the water tank and dry well.

1. Pull out the water tank;
2. Open the water-injection cover;
3. Add bottled drinking water or filtered water, do not exceed the Max level. Otherwise water overflows.

1. Close the water-injection cover;
2. Reinsert the water tank and make sure it fits into the shelf. Otherwise, the water tank may not operate properly and a EF error code will appear.

Storing food

Freezer compartment

• The freezer compartment is designated for the low-temperature freezing of food, long-term storage of frozen food, and for the production of ice cubes.
• Pay attention to the star classifications (4 star, 2 star and 1 star) in the freezer compartment and the resulting storage periods for frozen food.

B Product usage

• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing large amounts of fresh food (such as meat, fish or chopped meat), please divide them into several small pieces before putting in, so that they can be quickly frozen and pick up easily.
• Abide by the storage times recommended by food manufacturers on the packages, there is no information on the packaging, food should not be stored frozen for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable individual packages to ensure that adjacent food cannot be contaminated. Consume thawed and defrosted foods immediately, do not refreeze them.
• In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food and check whether they are still edible, then store them in a sufficiently cool place or in another appliance.
• To defrost food, remove it from the freezer and let it defrost at room temperature or in the refrigerator. To defrost food quickly, you can use the defrost function on your microwave, for example.
• If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid "freeze burn" and will reduce ice formation on the remaining foods.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the fridge compartment in unsealed containers.
• Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the fridge compartment. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the fridge compartment.
• Foods or food containers should not touch the back wall of the fridge because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the fridge compartment, which can be used in 1-2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables

ATTENTION:

Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator.

B Product usage

Storage times and temperature

Note:

Overlong storage or storage at inappropriate freezing temperature may cause a quality loss or spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18^ or colder.

Follow the maximum recommended storage times below:

Stew, ice cream, sausages, bread: 2-6 months.
- Fish, shrimp, lamb, meat: 4-8 months.
Vegetables, fruits, poultry, beef: 6-12 months.

Cleaning and maintenance

CAUTION!

Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

• Hold the plug, not the cable, when unplugging the appliance.
• Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
• Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the product should be cleaned regularly to avoid odor.
• Use a soft cloth or sponge to clean the inside of the product, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the product (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the product or contaminated food.
• Wipe the outer surface of the product with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

C Cleaning and maintenance

• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

ATTENTION!

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

Defrosting

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows:

1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.
2. When defrosting is completed, clean your freezer as described above.

CAUTION!

Don't use sharp objects to remove frost from the freezer. Only after the interior completely dry should the appliance be switched back on and plugged back into the mains socket.

Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
• After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Cleaning of glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement.

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.

2. Lift the vegetable drawer up and remove it by pulling it out.

Clean the ice container

• Ice in the ice container may block the outlet because of lumping or other reasons. In this case the ice container needs cleaning or eliminating block.

• When the ice on light goes out, hold the left and right clasps of the ice storage box with both hands:

1: Lift the ice storage bin slightly
2: pull it out as shown in the figure 1

Figure 1

1. Clean the ice storage box as needed. The installation process of the ice storage box is contrary to the removal process. Pull the ice storage box downwards forcefully until it is installed in place. If it is difficult to install the ice storage box, turn the turntable on the ice storage box 90^ according to Figure 2, and then install the ice storage box.

Figure 2

Cleaning of Ice lattice and water pipe

1. Ice making function if not used for a period of time, before using again. Please empty the ice in the ice storage box, make half a box of ice (about 24h) and dump it again, then you can use it normally.
2. If the water intake function is not used for a period of time, before using again, please press the water intake operation to take two liters of water, and then normal use.

CAUTION!

• If the door is opened, ice or water cannot be taken from the door.
• To ensure hygiene, it is recommended to pour out all the ice cubes made fully in the ice storage box for the first time.
• If slamming the door, it may cause the water in the icemaker to splash into the ice storage box.
• To prevent the ice storage box from accidentally falling, please operate with both hands when disassembling the ice storage box.
• To avoid personal injury, please clean up any water or ice that may fall on the ground. To avoid possible injury to children, do not allow children to touch the ice fetching area or ice storage box.

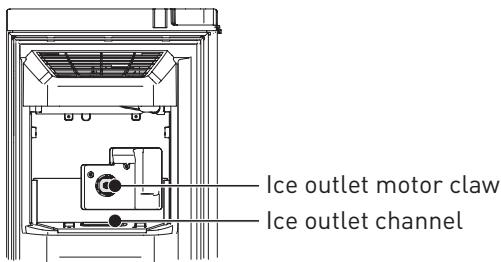

• Do not put your hands or any objects into the ice outlet channel, otherwise, it may cause personal injury or damage to the parts of the ice storage box. To avoid possible injury, do not touch the ice outlet motor claw with your hands, as shown in Figure 3.
• The recommended external water pressure for the ice maker is (0.25 0.42) Mpa, and the nominal ice making capacity is generally measured at 0.33Mpa . When the water pressure is not within the recommended range, the ice making function is normal, but the ice making volume will fluctuate, which is a normal phenomenon.

Figure 3

Troubleshooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem	Possible Causes	Solution
Not operate	·The power supply is not turned on and the plug is not firmly inserted. ·Low voltage, power failure or part of the circuit tripped.	·Insert the power cord plug firmly. ·Check the power supply at home.
Light not on	·The appliance is not powered on. ·The light is broken.	·Unplug and re-plug the power cord. ·Replace the light with a new one.
Fruits or vegetables are frozen	·Has the food been placed at the back of the fridge? The area near the back wall is where the temperatures are coldest. ·Fruits or vegetables are stored in the Fresh/Chill zone.	·Not placing food which may freeze easily at the back of the fridge compartment. ·The Fresh/Chill zone is only for meat/ fish.
Fridge/freezer is over-cooling	·Temperature control is not set correctly.	·Temperature control is not set correctly.
Compressor working for a long time	·High ambient temperature causing long working time. ·Putting too much food in at one time. ·Food is put in before it has cooled down. ·Opening the door too often. ·The frost layer inside is too thick.	·This is normal. ·Do not put too much food in at one time. ·Wait until the food has cooled down before putting it in. ·Do not open the door too often. ·Need to defrost.
Door does not close properly	·Door is stuck with objects. ·Too much food in. ·Door gasket deformed.	·Do not put in too much food. ·Place the appliance stably. ·Heat the door gasket, then cool it for restoration (with an electrical drier or hot water for heating).
Outer wall is hot	·When the appliance is operating, heat is dissipated to the outside through the metal tubes inside the cabinet. ·Higher ambient temperatures in the summer cause the temperature of the outer wall to rise.	·Higher temperature on the outer wall is normal. ·Increase the heat dissipation space, or put the appliance in a ventilated and cool place.
Cross or vertical beams are hot	·There are metal tubes inside the beams, and the heat released from the tubes prevents condensation.	·This is normal.
Odors	·Spoiled food ·Food with strong odors ·The interior compartment is dirty.	·Clean and remove any spoiled food. ·Make sure strong smelling food is wrapped airtight. ·Clean the interior compartment.
The actual temperature differs from the set temperature	·When warm food is put in, the temperature will rise temporarily. ·After setting a new temperature, it will take some time for the temperature in the compartment to reach the set temperature when the door is not opened. ·After the temperature stability, the actual temperatures at different locations within the compartment are different, with a deviation of about ±3℃.	·This is normal. ·Wait for some time before testing the actual temperature.
Condensation forms on the outside	·Condensation may form when the humidity in the room is high.	·This is normal. Wipe off the condensation using a dry cloth.
Condensation forms inside the fridge and drawers	·The fridge maintains a high humidity to keep vegetables and other food items fresh. ·Humidity is too high in the room and doors have been opened frequently. ·The door gasket are not tight.	·Wipe off the condensation using a dry cloth. ·Do not open doors as frequently or do not keep them open too long. ·Check the door gasket, clean or correct position.
Frost around the vents	·Door is not closed properly. ·The door gasket are not tight.	·Make sure food does not block the door. ·Check the door gasket, clean or correct position.
Hard to open the door	·The difference in air pressure between the inside and outside of the compartment may sometimes make it hard to open the freezer door.	·Wait a few moments, and then try to open the door slowly.
Not making ice cubes (Only models with ice maker)	·The ice making function not turned on. ·The appliance is not being supplied with water. ·The water pipe has kinks in it. ·The water pipe connection is installed incorrectly. ·Water pressure is too low.	·Switch on the ice maker. ·Check whether the water supply is on. ·Straighten out the kinks. ·Check the water connection. ·Check the pressure of the water supply, or whether the filter is clogged.

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• Noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.

C

Cleaning and maintenance

• Touching the adjacent piece of furniture - move the refrigerator away.
• Creaking of the drawers or shelves - take out and put back the drawer or shelf.
• Sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the compressor (switching on) and cooling, system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

Merci!

(1) Congélation +
2 Mode Vacances

Compartment de congélation

Mode Superfrio " * SUPER COLD

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.

FR

CONDITION DE GARANTIE
