USER MANUAL C15E SEGWAY

User Manual ninebot Before first use, please scan the QR code on the scooter to activate it.

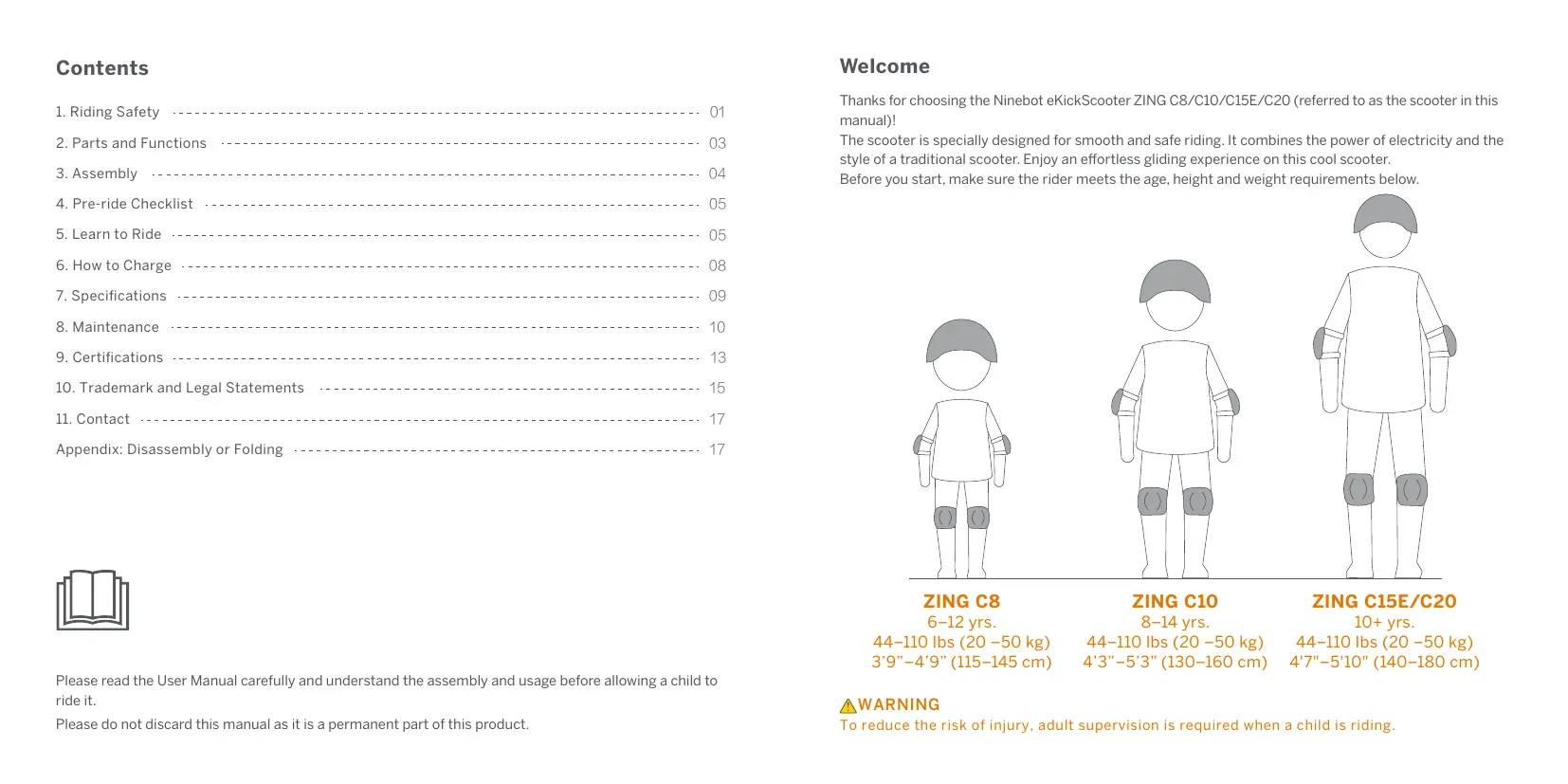

Contents L Riding Safety --- ot

2. Parts and Functions -- 03

3. Assembly --- - 04

8. Maintenance --- 10

9. Certifications ---- - 13

10. Trademark and Legal Statements 15

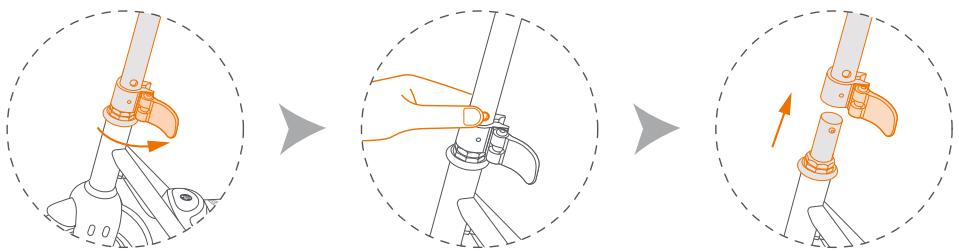

Appendix: Disassembly or Folding --- 17 Please read the User Manual carefully and understand the assembly and usage before allowing a child to ride it. Please do not discard this manual as it is a permanent part of this product. Welcome Thanks for choosing the Ninebot ekickScooter ZING C8/C10/C15E/C20 (referred to as the scooter in this manual)! The scooter is specially designed for smooth and safe riding. It combines the power of electricity and the style of a traditional scooter. Enjoy an effortiess gliding experience on this cool scooter. Before you start, make sure the rider meets the age, height and weight requirements below.

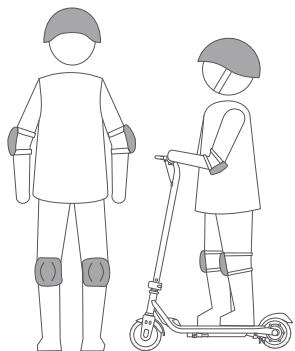

AWARNING To reduce the risk of injury. adult supervision is required when a child is riding.

LRiding Safety © The product is for recreation only. I is not intended for transportation, Do not modify the scooter in any way to change the purpose for which it was designed. In order to master riding skills, the rider needs to practice. Use with caution since kil is required to avoid fall or collisions causing injury to the user or third parties. @ Segway Parties are not responsible for any inuries, damages or legal disputes caused by a rider inexperence or failure to follow the instructions in this manual. © Remember that henever you ride the scooter, you risk injury from loss of control, colisions, and fall. To reduce the risk, you must read and follow all" CAUTION” and * À WARNING" notices. Please understand that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate al the risks. Please use common sense when riding @ The assembly and adjustment should ONLY be done by adults. The scooter contains small parts which can pose à choking hazard. Te avoid suffocation, do net allow children to touch plastic covering. Children must always be under parental supervision. Children under the age of 6 must be kept away from the product © D0 NOT allow anyone to ride the scooter on his/her oun unless he/she, and the supervising adults, have carefully read this manual. Its your responsibility to assure a new rider safety. Assist new riders until they are familiar with the basic eperation of the scooter. The rider must wear a helmet and other protective gear. When you give the product to others please deliver the User Manual together. AWARNING Protective equipment should be worn. Not to be used in traffic. 50 kg max. This toy is unsuitable for children under 6 years due to its maximum speed. Never hitch a ride with another vehicle. Riding Surfaces and Environment: © This scooter is designed for riding on flat, dry. paved surfaces. Please ride in an open outdoor space. Make sure there are no pedestrians, skateboards, bikes, scooters and other riders in your surroundings. © Never use in roadways, near motor vehicles, near steep inclines or steps, swimming pools or other bodies of water. Avoid construction sites, sudden surface changes, drainage grates, potholes, cracks, hydrants, parked cars, speed bumps and ther obstacles. Don't ride on loose grounds (such as rocks, gravel or sand) © Do not ride in extreme temperature conditions or in low visibility, such as at daun/dusk or at night. Do not ride in the snow or in the rain. Submersion in water may cause battery damage, catch fire or even explode. When Riding: © One rider ONLYI © Always wear a helmet and other protective gear (such as elbow pads and knee pads) when riding the scooter. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head © DO NOT bypass. Slow down when entering unfamiliar areas. Use caution when riding in areas with trees, posts, or fences, Always slow down when turning. @ Be alert and aware of the surroundings both far ahead and in front of you when riding. Your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel and ice). ‘© Avoid sudden acceleration and deceleration. Never ride faster than the designed top speed (the top speed can be affected by rider weight, battery level incline, etc.). As with other vehicles, faster speeds require longer braking distance Sudden braking on low traction surfaces could lead to wheel slip or fall. Be cautious and always keep a safe distance between you and others when riding. ‘© Keep both hands on the handlebar and do not carry cargo of any kind. DO NOT use a cell phone, camera, headphones, earbuds or perform any other activities while riding, DO NOT ride downhill ‘© Do not touch moving or spinning wheels. Keep your hair, clothing, or similar articles from coming in contact with the moving parts. Please get off the scooter and walk along with it when you encounter special road surfaces such as speed bumps and potholes. AWARNING I the scooter makes abnormal sound or signals an alarm, stop riding immediately. Do NOT take your hands of the handlebar and DO NOT ride with one hand or on one foot. DO NOT use mobile phones or wear headphones while riding. DO NOT press the electronic throttie when you walk along with the scooter. Who Should Not Ride: L.Anyone under the influence of alcohol, drugs, or intoxicants. Il Anyone who suffers from diseases (especially in the head, heart, back and neck) that put them at risk if they engage in strenuous physical activity IL Anyone who has a health condition that would intertere with their ability to maïntain balance.

IV. Anyone whose age, height and weight is outside the stated limits (see Specifications).

V. Those with compromised mental abilities who cannot understand the risks and proper operation of the vehicle.

VL. Anyone who is pregnant. Safe Use: ‘© Do not ride the scooter when the ambient temperature exceeds the operating temperature of the product (see Specifications), because low/high temperatures can decrease vehicle performance and even lead to accidents. ‘© Always park with the kickstand on a flat and stable surface. Once the scooter is on its stand, check its stability to avoid any risk of falling (by Slip. wind or light joit). Do not park in a busy area, but rather along a wal ‘© itis recommended to conduct regular maintenance of the scooter (see Maintenance . © Please read the User Manual before charging the battery (see How to Charge). À WARNING Oniy use the charger specified by the manufacturer. Only use the battery supplied by the manufacturer. ‘© Never allow your child to touch any vehicle parts with gaps such as the folding mechanism, fender, wheels, the brake system. ete. Do not touch the brake or hub motor after riding, so as to avoid burns due to increased temperature.

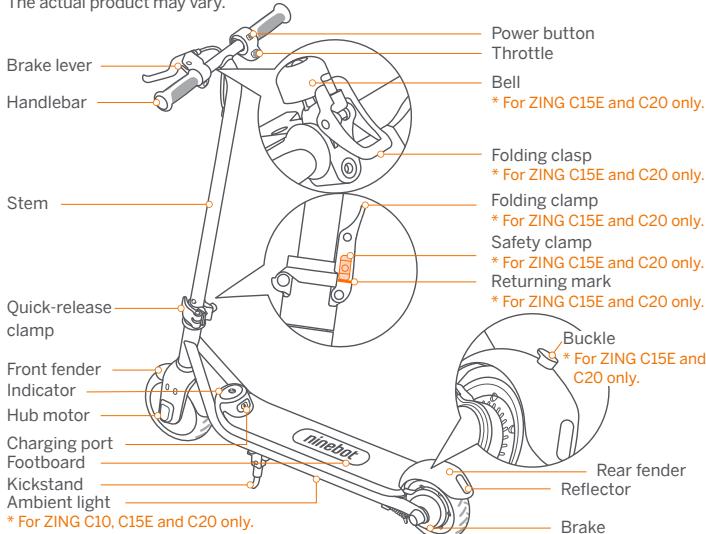

2 Parts and Functions Please familiarize yourself with each part, This manual uses CIO as an example and pictures are for illustration purposes only. ‘The actual product may vary. Accessories

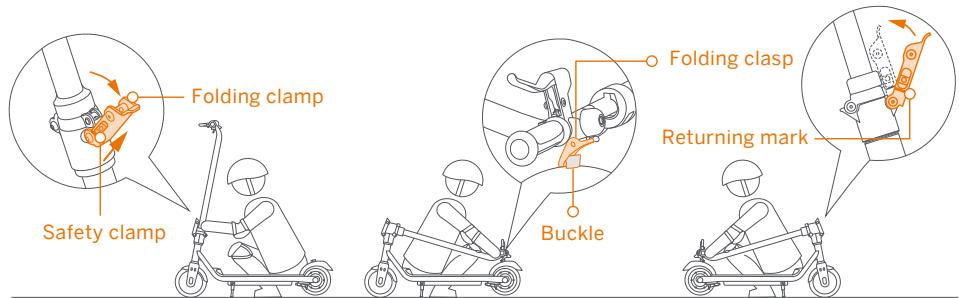

• For ZING C1SE and C20 onty. Brake lever Handlebar Folding clasp
• For ZING CIE and C20 onty. Folding clamp

• For ZING CISE and C20 oniy. Safety clamp

• For ZING CISE and C20 oniy. Returning mark

• For ZING CISE and C20 oniy. Stem Quick-release clamp Bückle Front fender * For ZING CISE and Indicator Hub motor Charging port Footboard Kickstand Ambient light

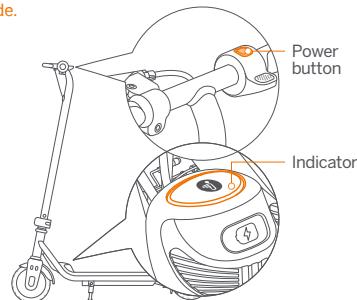

• For ZING C10, CISE and C20 only. Power button Press the button to power on or change riding modes. The Turbo mode is set as default when turned on. Hold for 2s to power off Rear fender Reflector 5 mm Allen wrench
• For ZING C15E and C20 only. Brake \ od Turbo mode Cruise moi Safe mode ZING C8 10 mph (16 km/h) 10 mph (16 km/h) 6.2 mph (10 km/h) Max, speed ZINGCIO | 10mph(6km/h) 10 mph (16 km/h) 622 mph (10 km/h) [ANG CISE/C20] 10 mph (km/h) Indicator solid, with 1 beep Ambient ight (or ZING CIO.CISE and C20on| — full-colour puising 10 mph (16 km/h) 6.2 mph (10 km/h) link stowlÿ, with 2 beeps | link fast, with 3 beeps blue puising red puising Battery indication ‘The color of the indicator shows the battery level: z 10% white, < 10% red
• When an abnormality oceurs, the indicator will flash and an alarm will start beeping. 3 Assembly

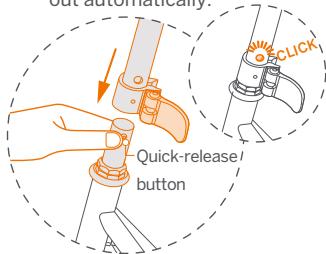

© Press the quick-release button @ Flip the quick-release clamp and insert the stem into the to the closed position to front fork. The button will pop secure the stem. outautomatically. NOTE: Ifthe stem is shaky. you can adjust the knob to tighten it. \ Quick-release/ \ PS button 7 ZING CI15E, ZING C20 Appendix: Folding clamp Open: Push and hold the safety clamp to the top and then open the folding clamp. Lock: Lock the folding clamp until the safety clamp reaches the réturning mark. Folding clamp 7 TN LE € Safety clamp —}s; Make sure the folding clamp is closed when installing. @ Aïgnthe positioning groove Jigner ie iwo Fi éme with the positioning screw, alternately several times. then slide the screw into the @ Once tightened. attempt to groove and insert the stem wiggle the handlebar to to the bottom. ensure it is safely secured. Folding clamp Positioning groove Positioning screw

L )Q-" À WARNING Power off the scooter before assembling. The brake cable should not wrap around the stem.

4 Pre-ride Checklist <, | Make sure there are no loose fasteners and damaged components. Check al functional parts like the frame handiebar tires and make sure the steering system is well adjusted. Ensure that all locking devices are engaged GS Sheck the brake for proper function. When you squeeze the brake lever, there should be positive braking action: 7; Battery: the battery level is low (Ihe indicator is red) please fully charge the battery to ensure safe riding. Always wear a helmet and protective equipment like knee pads and elbou pads. <; Always wear shoes and proper outft (sports shoes and clothes are recommended). Never ride barefoot or in sandals Long hair should be tied back to prevent it from blocking your vision: <,_ Donot attempt your first ride in any area where you might encounter children, pedestrians. pets, vehicles, bicycles, or other obstacles and potential hazards. GS Check and obey local rtf aus and regulations for scooters CAUTION: I you have any concern over the safety of the product and/or there is a symptom of abnormalty, please stop using the product immediately and contact customer service for support. 5 Learn to Ride À WARNING © ur on the scooter. If the indicator is red, please Always wear a helmet and other protective gear charge immediately (see How to Charge). 40 minimize any possible injury in the learning CAUTION process. To reduce the risk of injury, adult Please scan the QR code on the scooter to activate Supervision s require. itbefore your first ride. For the safety of the rider, please ride in Safe mode until he rider is comfortable enough to use Turbo mode. When the scooter starts cruising, place both feet @ Hoi tre handebar firmiy with bath hands, Place on the footboard and keep your balance. ne foot on the footboard and start kicking with the other foot. @ scccicrate and Decelerate

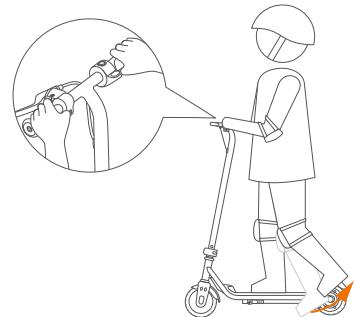

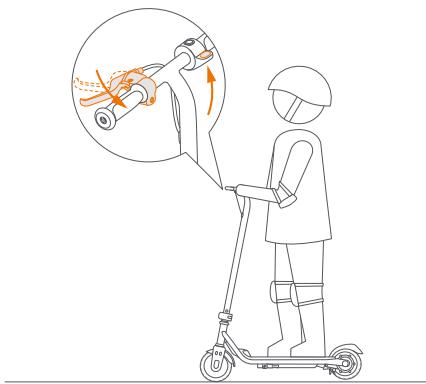

dicator blinks slowly) indicator is always on ) findicator blinks fast ) Acceleration Kick and go Press the throttle lightiy Deceleration Squeeze the brake lever Release the throttle and squeeze the brake lever Accelerate CN

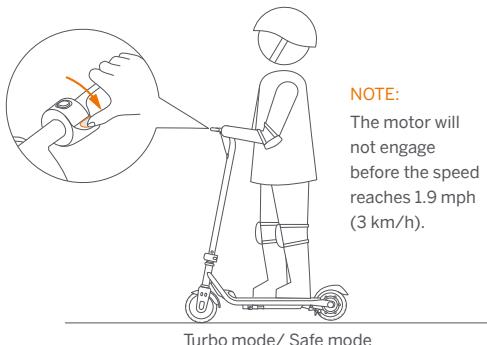

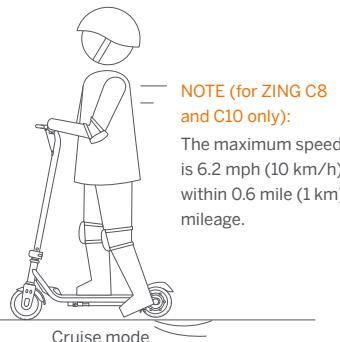

{/} 2 NOTE (for ZING C8 Î " and C10 only) The maximum speed is 6.2 mph (10 km/h) within 0.6 mile (1 km) mileage. NOTE: The motor will not engage before the speed reaches L9 mph km/h) Cruise mode Turbo mode/ Safe mode

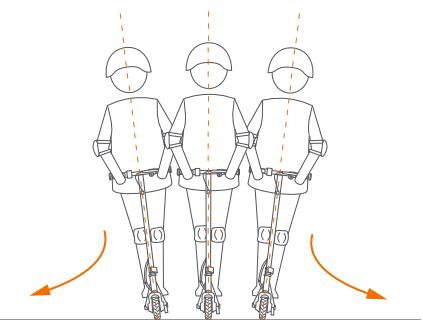

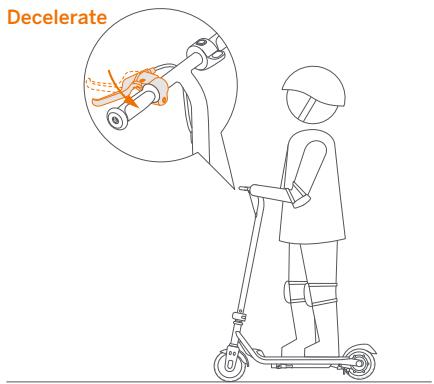

Decelerate Cruise mode A WARNING Stay alert and avoid abrupt acceleration or deceleration. Otherwise you risk serious injury due to imbalance, loss of traction and falls, DO NOT perform stunts of any Kind. Both tires must remain on the ground at all times. © 1 trahit our body and turn the hanclebar sighti. ‘Turbo mode/ Safe mode @ "rente scooter has stopped erising step of'one foot at a time, Be extra cautious when dismounting forthe first time. D À WARNING De not turn the handiebar violentiy when riding.

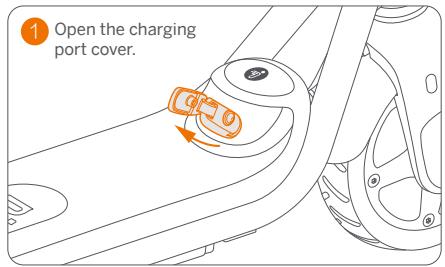

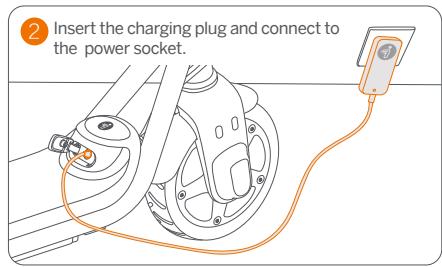

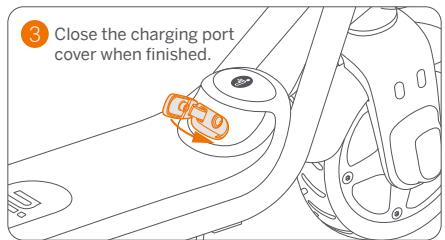

À WARNING Stay calm and do not jump off the scooter. 6 How to Charge CAUTION Oniy allow children at least 8 years old to use the battery charger. Give sufficient instruction so that the child is able to use the battery charger in a safe way and explain that it is not a toy and must not be played with Charging steps Open the charging port cover. @ 17:21 1e charging plug and connectto the pouer socket. @ cie the chargine port cover when finished. Charger indicator Red: charging Green: full À WARNING ‘ Use only the charger specified by the manufacturer. Other types can burst and catch fire. ‘e Do not attempt to charge your scooter if the charger or the power outiet is wet. ‘& When there is abnormal smell, sound or light display, stop charging immediately and contact after-sales service ‘© Keep away from flammable and explosive materials when charging, and place the scooter in a place out of the reach of children. ‘& When not charging. disconnect the charger from the power socket ‘& Do not try and recharge non-rechargeable batteries because of the danger of eruption

7 Specifications Requirement Recommended Age eight ana [Net Weight Approx. 174 lbs (79kg) | Approx.179lbs(8.1kg) | Approx. 234 Ibs (106 kg) Approx. 315 * 187 x 334in| Approx. 3.5 * 157 x 374 | Approx 362 x 157 x402in Size x Width x Heï Lente Math x HE] (800 « 350 x 850 mm)__ | (B00 x 400 x 950 mm) | (220 x 400 x1020mm) Payload 44-110 lbs (20-50 kg) Rider 6-12 yrs. 8-lyrs. 10+ yrs. Recommended Height 39"-49"(u5-45cm) | 43°-53"(30-160 cm) | 47°-510" (140-180 cm) Max. speed Approx. 10 mph (16 km/h) Typical Range Approx. 6.2 miles (10 km) Approx, 12.4 miles (20 km) Traversable Terrain Flat surface, paved road; obstacles < 0.4 in (1 em); gaps < L.2in (3 cm) Re eers [Operating Temperature | 14-104 (10-40°C) Storage Temperature | -4-122°F (-20-50°C); 41-86°F (5-30°C) recommended IP Rating 1Px4 Charging time Approx. 3h Approx. 6h Battery Type Lithium-ion battery Nominal Voltage GE Battery Pack [Charging Temperature | 32-3°F (0-45"C); 50-95°F (10-35"C) recommended Nominal Capacity / Energy | 2500 mAh / 54 Win 5000 mAh / 108 Wn Battery Management System] Over-heating, short circuit, over-current and over-charge protection Voter Nominal Power 120 W (0.12 KW) 150 W (015 KW) Max. Power 180 W (0.18 kw) 260 W (0.25 kW) input Voltage 100240 V- Battery [Max Output Voltage Charger [Rated Output Output Power 242W(002kW) Braking Method Hand-operated brake Tires Solid tire: material: synthetic rubber Others Frame Material Steel Handiebar Material | TPR Foot Pad Material | Sandpaper Silicone [Typical Range: tested while riding with a full battery, 110 lbs (50 kg) load. 77°F (25°C), 60% of max. speed on average on pavement.

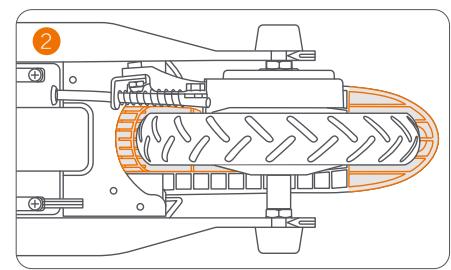

• Some of the factors that affect range include: rider weight, number of starts and stops, ambient temperature, etc. 8 Maintenance Maintenance should be carried out by an adult regulariy. Cleaning Use à soft and wet cloth to clean. Stains hard to remove can be serubbed with a toothbrush and toothpaste then wiped off with a soft andiwet cloth To prevent jamming to the wheels, wheel bearings, or brakes, please clean and check these areas (as shoum in the gray highighted areas below for dirt anci other foreign objects,

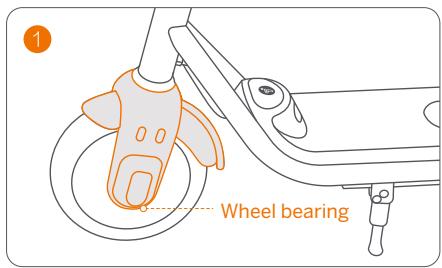

First clean up the foreign objects, and then wipe clean with a soft wet cloth. Lubricate both sides of the bearing with lubricating oil or machine oi. the problem still exists, please contact customer service. CAUTION: To avoid the accumulation of foreign objects, DO NOT ride on muddy, dusty, grassy or slippery roads. Do not clean your scooter with alcohol, gasoline, acetone, or other corrosive/volatile soivents. These substances may damage the appearance and internal structure of your scooter. De not wash your scooter with a power washer or hose.

À WARNING © Do not dispose of this product in a landfill, by incineration, or by mixing with household trash. Serious danger/injury can oceur because of the electrical components. © Before cleaning, make sure the scooter is powered off, the power cord is unplugged. and the rubber cap on the charging por is tightly sealed otherwise you may damage the electrical components. Storage Before storage, please turn of the scooter and fully charge i to avoid over-discharge, which will cause permanent damage. Charge the scooter every 30 days for long-time storage. Store in a cool and dry place indoors. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the vehicle components and may permanent} damage the battery. the temperature of the storage environment is lower than 32°F (0°C). do not charge it until after placing it in a warm environment, preferably over 50°F (10°C). À WARNING Prolonged exposure to UV rays, rain and he elements may damage the enclosure material. © Store indoors when not in use. © Keep away from fire! Battery A well-maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery. When at 72°F (22°C), the battery performance is at its best and the vehicle can achieve a longer range. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-charging or over-discharge will not be covered by the Limited Warranty. À WARNING © For information about battery and electrical waste, please contact your household waste disposal service, your local or regional waste management ofice, or yaur paint-of-sale. The battery is not replaceable. Do not attempt Lo replace or disassemble the battery. Do not dismantle or puncture the casing. Keep away from metal objects to prevent short circuit. © Risk offre and electric shock. No user serviceable parts. ‘© Do not store or charge the battery at temperatures outside the stated limits (see Specifications). © Never charge in areas forbidden by law Battery Charger Regularly examine the charger for damage to the cord, plug, enclosure and other parts. If any damage is found, stop using untilitis repaired or replaced À WARNING Risk of electric shock. Do not disassemble the case or touch the metal contacts. Charge Li-ion batteries ONLY! Cable Tension Adjustment When the brake is too tight or loose, you can thread in/out the brake cable adjuster Tighten the brake Loosen the brake Others © Before lifting, moving, or otherwise transporting the scooter, turn it off and fold the scooter. Handle with care and avoid violent force, such as throwing and heavy pressure. Keep away from fire and water. © Tires supplied with the product are to be mounted on the wheel by a professional reparer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions. In case of accidents or breakdown, contact an authorized repairer if the product is still under warranty. If it's not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers from customer service available at www.segway.com. Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he/she is advised to contact an authorized or a specialized repairer or customer service. NOTICE: INSURANCE YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS SCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED, PLEASE CONTACT YOUR INSURANCE COMPANY OR AGENT.

For Model: ZING C8, ZING C10, ZING C15E, ZING C20 The battery complies with UN/DOT 38.3. ZING C8, ZING C10, ZING C20 are certified to ANSI/CAN/UL-2272 by TUV. European Union Compliance Statement Important WEEE information

WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU To prevent possible harm to the environment or human health from uncontrolled waste disposal recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer were the product was purchased. They can take this product for environmental safe recycling Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive. In accordance with the European Directive 2006/66/EC and amendment 2013/56/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances, Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection: Electromagnetic Compatibility Directive Ninebot (Changzhou) Tech Co. Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU The Safety of Toy rective Ninebot (Changzhou) Tech Co. Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC. Restriction of the use of certain hazardous substances (RoHS) Directive Ninebot (Changzhou) Tech Co. Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 20°)

EU Authorised Representative: Segway-Ninebot Europe Dynamostraat 7, 1014 BN Amsterdam, The Netherlands Ninebot (Changzhou) Tech Co. Ltd. hereby declares that the product model: ZING C8, ZING C10, ZING CISE, ZING C20 comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility 2014/30/EU, The Safety of Toy Directive 2009/48/EC and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.

UK Authorised Representative: UKCA Experts Ltd Dept 302, 43 Owston Road Carcroft, Doncaster, DNG 8DA, United Kingdom Ninebot (Changzhou) Tech Co. Ltd. hereby declares that the product model: ZING C8, ZING C10, ZING CISE, ZING C20 comply with the essential requirements and other relevant provisions of Electromagnetic Compatibiity Regulations 2016, Toys (Safety) Regulations 2011 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. ‘The declaration of conformity can be viewed at the following address: http:/eu-en.segway.com/support-instructions

10. Trademark and Legal Statements

Ninebot is the registered trademark of Ninebot (Beijing) Tech. Co. Ltd: Segway and the Rider Design are the registered trademarks of Segway Inc.: The respective owners reserve the rights of their trademarks referred to in this manual. We have attempted to include description and instruction for al the functions of the Ninebot ekickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your scooter may differ slightiy from the one shown in this document. Visit ww segway.com to download the latest user materials. Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not applicable to your unit. The manufacturer reserves the right to change the design and functionality of the scooter product and documentation without prior notice. ©2022 Ninebot (Beijing) Tech Co. Ltd. Al rights reserved Legal Statement IMPORTANT: Ninebot ekickScooter (the “product") is an off road product rather than a means for transportation. Be aware, the user shall agree to read the entire user manual and fully understand its content (especially the parts related to the safety riding).

1. The “Segway parties” mentioned above and below is the Manufacture (“Ninebot”) Segway-Ninebot Europe. (Segway")

and their affliates (including but not limited to their parent company, subsidiary, affliated companies, predecessor, subsequent company, administrators, succcessors, assigns, officers, directors, managers, employees, members, shareholders, and agents, attorneys, insurers). 2. This product can be dangerous to a user, other persons, and property in proximity to that. The user shall assume all the risks and losses in connection with the product (especially for those related to and/or arising out of violation of the instructions about warnings and caution statements). Such risks include but not limited to loss of control, failure of the product, and/or collusion) The consequences for such an incident can be severe, including but not limited to injuries, bodilyinjuries, death, and/or damages to property. Segway parties shall not be liable for any claim, liabiity, and loss related to such consequences it is due to the user's assumption of risk 3.The product is a means of entertainment and play. The user may not have the necessary and sufficient experience and skills to ride it, especially in complex environment and/or undesirable road. Such risk may increase if the user has physical and/or mental impairment or disability. Such risk may also increase if the user is not sufficientiy fariliar with the functions, features and performance of the product. Thus, new users shall learn and practice how to use this product properiy and safely. 4. The user shall regulary and periodically, as the circumstance requires, inspect and maintain the product. The user shall also conduct reasonable examination and inspection of the product every time before riding it. For instance, every time before riding the product, the user shall check and examine tire performance, battery level, and all functional parts. If abnormaliy, discoloration or change of color of material (especially in an area that receives high stress when the product is in motion or junction), scratch, crack, loose fasteners, and/or missing parts (such as screwr, bolts and/or nut) which Strongly indicates that it is not safe to ride the product 5. Since it is impossible to predict and/or anticipate all and every scenario, condition. and/or circumstances under which a product user may be exposed to risk and danger, the User Manual i not intended to be an exhaustive list on how to ride the product safely and/or avoid hazards related to the product. So, in addition, to adhere to the instructions, the user shall also ride and/or use the product vith responsibility, carefuiness, precaution, and best judgment. 6. The users shall check and obey the local laws or regulations over the product. The laws and regulations may be different in different jurisdictions. Apart from the others, such laws and regulations may include: 2.A helmet may be legally required by local law or regulation in your jurisdiction. Your product is not be allowed to be driven on a motorway or highwaÿ. cYou may obtain more information related to legal requirements on the product from your local government. 7.The users shall immediately check whether the product and its accessories are in good condition upon receipt of the product.

8. Allthe separate components and parts of the products must be properly installed per the User Manual. Inappropriate

installation and/or assembly may significantly increase the risk of loss of control, product failure, collisions, and fall. The product may contain removable components and small parts. Please Keep them out of the reach of children to avoid Choking hazards.

Do not dispose of this product in a landfil by incineration, or by mixing with household trash. Serious danger/ injury can oceur because of the electrical components and the battery. For information about battery and electrical waste, please contact your household waste disposal service, your local or regional waste management office, or your point-of-sale. The user shall not use any non-original accessories or dismantie or modify the product without authorization. All damages, injuries, and damages to property arising from that place will be your sole responsibility and risk.

10. Segway Parties reserve the right to make changes to the product, release firmware updates, and update this manual at

any time. Segway parties may make improvements and changes to this user manual necessitated by typographical errors, inaccuracies of current information, or modifications to programs and/or equipment at any time and without notice. Such changes will, however, be incorporated into new editions of this user manual Al illustrations are for illustration purposes only and may not accurately depict the actual device. Actual product and functions may vary. Due to the update of the product, there may be some deviations in color, appearance, and other aspects between the product listed in this manual and the product you purchased. Please refer to the actual product.

11. This document should be considered as a permanent part of the product, and it shall be provided to the user together

with the product all the time. Thank you again for choosing Ninebot ekickScooterl

Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your scooter. Europe, Middle East and Africa: Segvay-Ninebot Europe, Dynamostraat 7, 1014 BN Amsterdam, The Netherlands Website: wwwsegway.com Have your scooter serial number on hand when contacting Segway. You can find the serial number on the underside of your scooter. Appen Disassembly or Folding How to disassemble ZING C8, ZING C10 @ 1sssentne quickrelease clamp @ Press tne quickcrelease button © Litine stem up 10 detach it rom the front tort Folding and Unfolding ZING C15E, ZING C20 Note: The following steps should be operated after powering off the scooter. Folding clasp A Safety clamp_# 2 ÔS =) € i Folding Unfolding Holdthe stem loosen the safety camp Fold he tem andlock te flding Liftthefoding clasp ut ofthe andthefolding camp Clap into te buekle ontherear Buck Uprigt the ste and fender. secure the oing lamp + The safety clamp should reach the returning mark when the folding clamp is secured. ‘e)

Carrying After folding the scooter, grip it tightiy and hold the stem to carry it.

There are safety risks associated with riding scooters. Before the first use, the speed is limited to 3.1 mph (5 km/h) with the indicator light flashing and a buzzer warning sound. Please be sure to scan the QR code on the scooter, then follow the instructions to remove the speed limit. Actual product functions may not conform to the manual due to technical and firmware updates. For the latest feature introduction and safety guide, please visit www.segway.com. Ninebot eKickScooter

For Model: ZING C8, ZING C10, ING CISE, ZING C20 The battery complies with UN/DOT 38.3. ZING C8, ZING C10, ING C20 are certified to ANSI/CAN/UL-2272 by TUV. European Union Compliance Statement Important WEEE information

WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU. Te prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment Electromagnetic Compatibility Directive Ninebot (Changzhou) Tech Co. Ltd. hereby declares thatthe product listed in this section comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU The Safety of Toy Directive Ninebot (Changzhou) Tech Co. Ltd. hereby declares thatthe product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC. Restriction of the use of certain hazardous substances (RoHS) Directive Ninebot (Changzhou) Tech Co. Ltd. hereby declares the whole product including parts (cables, cords, and so on) mets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast' or "RoHS 20°)

EU Authorised Representative: Segway-Ninebot Europe Dynamostraat 7, 1014 BN Amsterdam, The Netherlands Ninebot (Changzhou) Tech Co. Ltd. hereby declares that the product model: ZING C8, ZING C10, ZING C15E, ZING C20

10. Trademark and Legal Statements

Ninebot is the registered trademark of Ninebot (Beijing) Tech. Co. Ltd: Segway and the Rider Design are the registered trademarks of Segway Inc.: The respective owners reserve the rights of their trademarks referred to in this manual. We have attempted to include description and instruction for all the functions of the Ninebot eKickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your scooter may differ slightiy from the one shown in this document. Visit www.segway.com to download the latest user materials: Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not applicable to your unit. The manufacturer reserves the right to change the design and functionality of the scooter product and documentation without prior notice. ©2022 Ninebot (Beijing) Tech Co. Ltd. All rights reserved. Legal Statement IMPORTANT: Ninebot ekickScooter (the “product”) is an off road product rather than a means for transportation. Be aware, the user shall agree to read the entire user manual and fully understand its content (especially the parts related to the safety riding).

1. The “Segway parties” mentioned above and below is the Manufacture (*Ninebot”) Segway-Ninebot Europe. (“Segway")

and their affliates (including but not limited to their parent company, subsidiary, affliated companies, predecessor subsequent company, administrators, sucocessors, assigns, officers, directors, managers, employees, members, abnormality, discoloration or change of color of material (especially in an area that receives high stress when the product is in motion or junction), scratch, crack, loose fasteners, and/or missing parts (such as screw bolts and/or nut) which strongly indicates that itis not safe to ride the product. 5. Since it is impossible to predict and/or anticipate all and every scenario, condition, and/or circumstances under which a product user may be exposed to risk and danger, the User Manual is not intended to be an exhaustive list on how to ride the product safely and/or avoid hazards related to the product. So, in addition, to adhere to the instructions, the user shall also ride and/or use the product with responsibility, carefulness, precaution, and best judgment. 6. The users shall check and obey the local laws or regulations over the product. The laws and regulations may be different in different jurisdictions. Apart from the others, such laws and regulations may include: 2.A helmet may be legally required by local law or regulation in your jurisdiction. bYour product is not be allowed to be driven on a motorway or highway. <:You may obtain more information related to legal requirements on the product from your local government. 7.The users shallimmediately check whether the product and its accessories are in good condition upon receipt of the product.

8. All the separate components and parts of the products must be properly installed per the User Manual. Inappropriate

installation and/or assembly may significantly increase the risk of loss of control, product failure, cellisions, and falls. The product may contain removable components and small parts. Please keep them out of the reach of children to avoid choking hazards. 9. Do not dispose of this product in a landfill by incineration, or by mixing with household trash, Serious danger/ injury can oceur because of the electrical components and the battery. For information about battery and electrical waste, please Pour le modèle : ZING C8/ZING C10/ZING C15E/ZING C20 La batterie est conformes à la norme UN/DOT 38.3. ZING C8, ZING C10, ZING C20 sont certifiés ANSI/CAN/UL-2272 par TUV. Déclaration de conformité Union européenne Informations importantes sur les DEEE
