USER MANUAL BOOMBLASTER400 BOOMTONEDJ

MODE D'EMPLOI – USER MANUAL – HANDLEIDING - MANUAL DE USO

ACTIVE COLUMN SPEAKER WITH LEDS 2 X 10" 400W

WITH USB, BLUETOOTH & MIC

ENCEINTE ACTIVE COLONNE A LEDS 2 X 10" 400W

AVEC USB, BLUETOOTH et MICRO

ACTIEVE LUIDSPREKERZUIL MET LED 2 X 10" 400W

MET USB, BLUETOOTH & MICROFOON

ALTAVOZ ACTIVO TIPO COLUMNNA CON LED 2 X 10" 400W

CON USB, BLUETOOTH Y MICRO

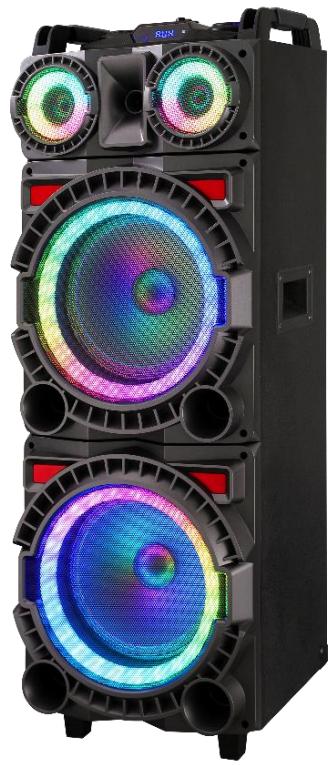

Black multi-tiered outdoor sound speaker tower with colorful ambient lighting (no text or symbols visible)

BOOMASTER400

1 4 MODE STOP VOL+ CH- MUTE 2 9 7 10 11 3 REPE VOL- EQ 8 6 1 2 3 4 5 6 7 8 9 0 5 B

PANNEAU DE COMMANDE – CONTROL PANEL – CONTROLPANEEL – PANEL DE CONTROL

POWER 11 MICO VOL+ 7 REC 8 9 LED SW 10 ECHO- 2 TREBLE- 3 BASS- 4 TFCARD 5 USB 6 MIC1 IN MIC2 IN VOLUME+ 13 14 15 16

17 DC15V IN 12 POWER LED ON MIC PRIORITY AUX IN 18 19

Manufacturer : MERRY KING ENTERPRISES CO LTD

Address: 3F, No. 13 Building Cui Hu, Industrial Zone Huaide Village, Fu Yong Town, Baoan, Shenzhen, Guangdong, China

Model : QDPOWER-1504A

Average active efficiency : 88.5%

Efficiency at low load (10 %) : 87.0%

No-load power consumption : 0.18W

Please read the manual carefully and keep it for future reference.

The lightning flash with arrowhead symbol, within an equilateral Triangle, is intended to alert the user to the presence of not insulated dangerous voltages within the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

DO NOT OPEN THE HOUSING SHOCK HAZARD

CAUTION:

Do not place any recipients filled with liquids, such as glasses or vases, on top of or directly next to the appliance. They could fallover, causing waterto enter the appliance. Never pour out liquid so over the appliance. Do not place small objects, such as coins or paper clips, on the appliance since they could fall inside the appliance and cause fire or a shock hazard! If any liquid or objects enter the appliance, pull immediately the mains plug out of the socket and contact a specialist.
Only pull the mains plug out of the socket by the intended gripping surface. Do not pull it by the cable.
- Never plug the mains plug in or out with damp or wet hands
Electrical appliances must be kept out of the reach of children. Be particularly careful if children are present. Children are not aware of the hazards involved in handling electrical appliances improperly. Children could attempt to poke objects into the appliance. There is a life-threatening danger of electrocution.
Never placethe appliance on an unstable or mobile surface. Persons could be injured or the appliance damaged by it falling down.
All persons involved in operating, installing and servicing the appliance and putting it into service must be trained and qualified accordingly and observe these operating instructions.
- Defective mains cables may only be replaced by specialists. Danger of shock hazard!
If you are not sure about the correct connection or if questions arise which are not answered by the operating instructions, please do not hesitate to contact support or a specialist of your choice. Consult a specialist if you are in doubt about the operating principle or the safety of the product.
Please unplug the adaptor and switch the unit off if you don't use it for a long time, to avoid damage due to voltage surges.
No naked flame sources such as lighted candles should be placed on the apparatus.
- A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

The device in operation cannot be exposed to extreme temperatures (not below 5^ C and not above 35^ C)

The device can only be used indoors

Use of the Remote Control

Please operate the remote control within a distance of 6m and 30° between the remote and the appliance. Aim the remote at the sensor. Remove all obstacles between the remote and the sensor.

The remote control might not work properly if the sensor is exposed to strong sunshine. If the remote control doesn't work properly, please check the batteries

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate collection points for recycling.

ATTENTION

Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type. Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

WARNING

The supplied remote control contains abattery. In case of ingestion, it might cause serious internal burns within only 2 hours that might lead to death.

If you are indoubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

Accordance with the requirements of CE standard

Recycled products can be recycled

The product is suitable for indoor use

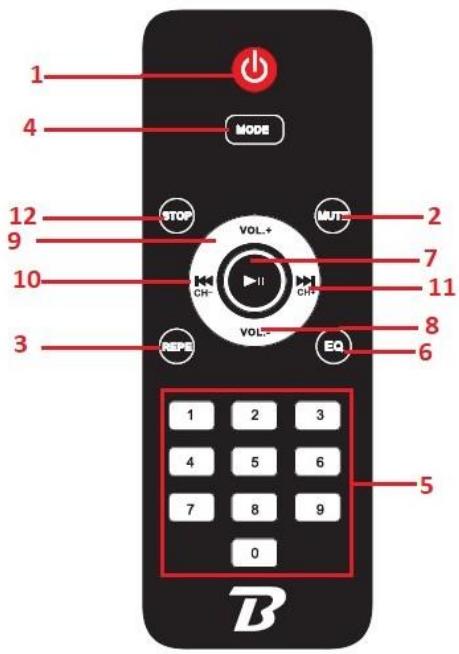

REMOTE CONTROL

1. Standby
2. Mute
3. Repeat key (single repeat, repeat all) in USB/TF mode
4. Mode key (Choose from AUX/USB/TF/BLUETOOTH). Long press to switch the LEDs on the woofer on or off.
5. 0 - 9 keys
6. Sound EQ mode key (To select from Rock, Pop, Jazz, Norm,...)
7. Play / Pause
8. Volume –
9. Volume +
10. Previous Track
11. Next Track
12. Stop

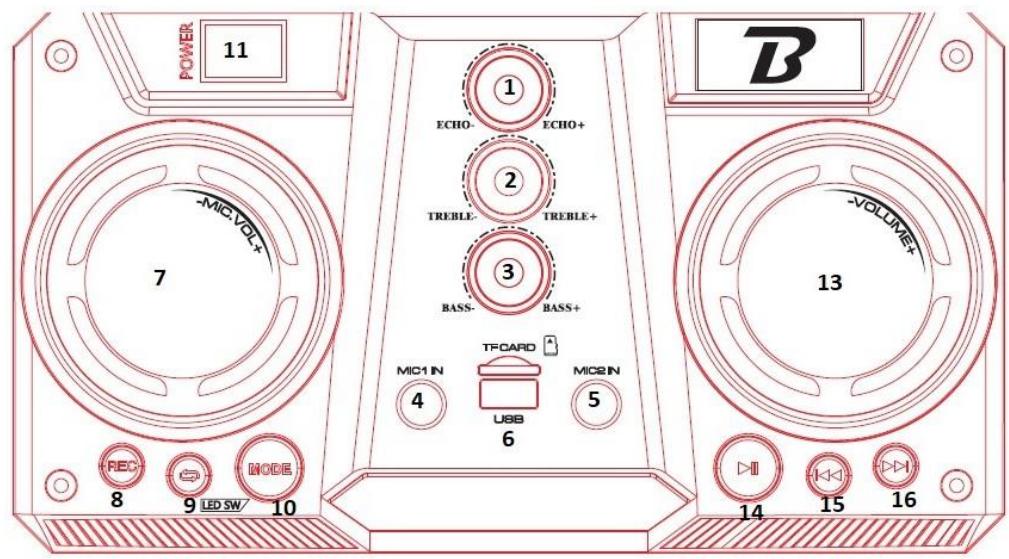

CONTROL PANEL

1. Echo > to add echo effect on microphone sound
2. Treble > to increase or decrease high frequency
3. Bass > to increase or decrease low frequency
4. Microphone input 1 (6.35mm jack)
5. Microphone input 2 (6.35mm jack)
6. USB / TF input
7. Microphone Volume > to adjust the voulume of MIC 1 and MIC 2
8. REC > to record sound of MIC1 and MIC2 on USB drive
9. REPEAT > to repeat One track or all track (USB mode)

10. MODE > to switch between USB-TF/ BLUE / LINE-IN

11. POWER SWITCH ON/OFF

12. Power led
13. Main Volume control knob
14. PLAY / PAUSE
15. Previous Track (Hold to decrease volume of USB)
16. Next Track (Hold to increase volume of USB)

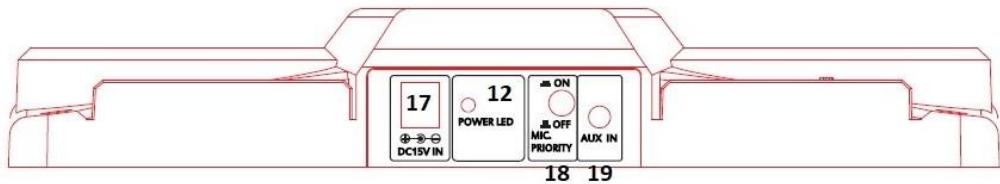

17. DC15V in > to connect to supplied AC/Dc adapter 15V - 4A
18. MIC priority switch > reduce the sound of music when talk in microphone
19. AUX IN > to connect an MP3 ao other applinace with 3.5mm output phone jack

BLUETOOTH OPERATION

1 TurnontheunitandpresstheMODEbuttononunitorontheremotecontrolto
2. Select the Bluetooth function. "blue" will start flashing on the display, the system automatically enters search mode.
3. Activate the Bluetooth feature on the external device to be paired.
4. Initiate a search for devices. The device shows up as "BOOMASTER400"
5. Select it and enter the password «0000» if required.
6. Play now the music from the device
7. Press the PLAY button on the unit or the ▶ key on remote control, to start playing and the buttons NEXT and PREV, or the keys? and for the selection of songs.

In USB/TF play mode: Long press on the record key to go into recording mode.

The current sound output will stop and go to mute status. The recording will start when the screen displays 00:01. You can use a microphone to record. If you connect the USB/TF card for the first time to the speaker, the system will create a folder.

LINE IN MODE

1. Press MODE button (10) on the unit or on the remote control until "LINE" appears on display.
2. You can play music from the connected device (19) and adjust Volume

USB/TF OPERATION

Support music formats: MP3, WMA

1. USB port: plug and play
2. TF slot: plug and play
3. Play/pause: Press to play, press to pause, press again to resume play.
4. Previous/Next: During play press once to go back to the beginning of the track or to the next track.
5. Repeat: During play press once to repeat the current song, press twice to repeat all songs.

Technical Specification

Speaker.... 2 x 10"/25cm

Tweeters 1 x 1.5"

Max. power 400W

Power supply 100-240Vac 50/60Hz

Adapter to use......QDPOWER-1504A**

Frequency response 40Hz - 20kHz (+ / -5%)

Bluetooth frequency range 2402 - 2480MHz

Max. BTRF emission 2.08dBm

Dimensions....350 x 295 x 1018mm

Net Weight....14.7kg

** Only the AC adapter with the characteristics below can be used with the BOOMASTER400 product:

Manufacturer : MERRY KING ENTERPRISES CO LTD

Address: 3F, No. 13 Building Cui Hu, Industrial Zone Huaide Village, Fu Yong Town, Baoan, Shenzhen, Guangdong, China

Model : QDPOWER-1504A

Average active efficiency : 88.5%

Efficiency at low load (10 %) : 87.0%

No-load power consumption : 0.18W

The EU declaration of conformity is available on our website www.msc-distribution.om

Manufacturer : MERRY KING ENTERPRISES CO LTD

Address: 3F, No. 13 Building Cui Hu, Industrial Zone Huaide Village, Fu Yong Town, Baoan, Shenzhen, Guangdong, China

Model : QDPOWER-1504A

Average active efficiency : 88.5%

Efficiency at low load (10 %) : 87.0%

No-load power consumption : 0.18W

Manufacturer : MERRY KING ENTERPRISES CO LTD

Address: 3F, No. 13 Building Cui Hu, Industrial Zone Huaide Village, Fu Yong Town, Baoan, Shenzhen, Guangdong, China

Model : QDPOWER-1504A

Average active efficiency : 88.5%

Efficiency at low load (10 %) : 87.0%

No-load power consumption : 0.18W

EU Declaration of Conformity

Hereby we,

MSC Distribution – 9, Avenue Camille Flammarion – 91630 Avrainville - FRANCE

Certify and declare under our sole responsibility that the following product:

Trade name:

Product name:

BOOMASTER400

Type or model:

ACTIVE SPEAKER WITH LEDS

Conforms to the essential requirements of the:

Red Directive 2014/53/EU – ROHS Directive 2011/65/EU and 2013/863/EU – ERP Directive 1275/2008/EC and 2019/1782 and 801/2013

Based on the following specifications applied:

RED Directive 2014/53/EU	ROHS Directive 2011/65/EUROHS Directive 2013/863/EU	ERP Directive 1275/2008/ECERP Directive 2019/1782, Regulation 801/2013
ETSI EN301 489-1 V2.2.3 (2019-11)ETSI EN301 489-17 V3.2.4 2020-09)EN 55032:2015/A1:2020EN55035:2017/A11:2020ETSI EN300 328 V2.2.2 (2019-07)EN50663:2017EN62368-1:2014+A11:2017EN61000-3-2:2013 / EN61000-3-3:2013	IEC62321-3-1:2013 Ed 2.0IEC62321-5:2013 Ed 2.0IEC62321-4:2013+AMD1:2017 CSvIEC62321-6:2015IEC62321-7-1:2015IEC62321-7-2:2017IEC62321-8:2017	EN50564:2011EN50563:2011+A1:2013

Place and date of issue: Avrainville, 01/06/2021

Nicolas Bézard / CEO
