USER MANUAL ORION 100 BOOST

with BLUETOOTH, USB, TF & REMOTE CONTROL

ENCEINTE ACTIVE HAUTE PUISSANCE 1000W

AVEC BLUETOOTH, USB, MICRO-SD & TELECOMMANDE

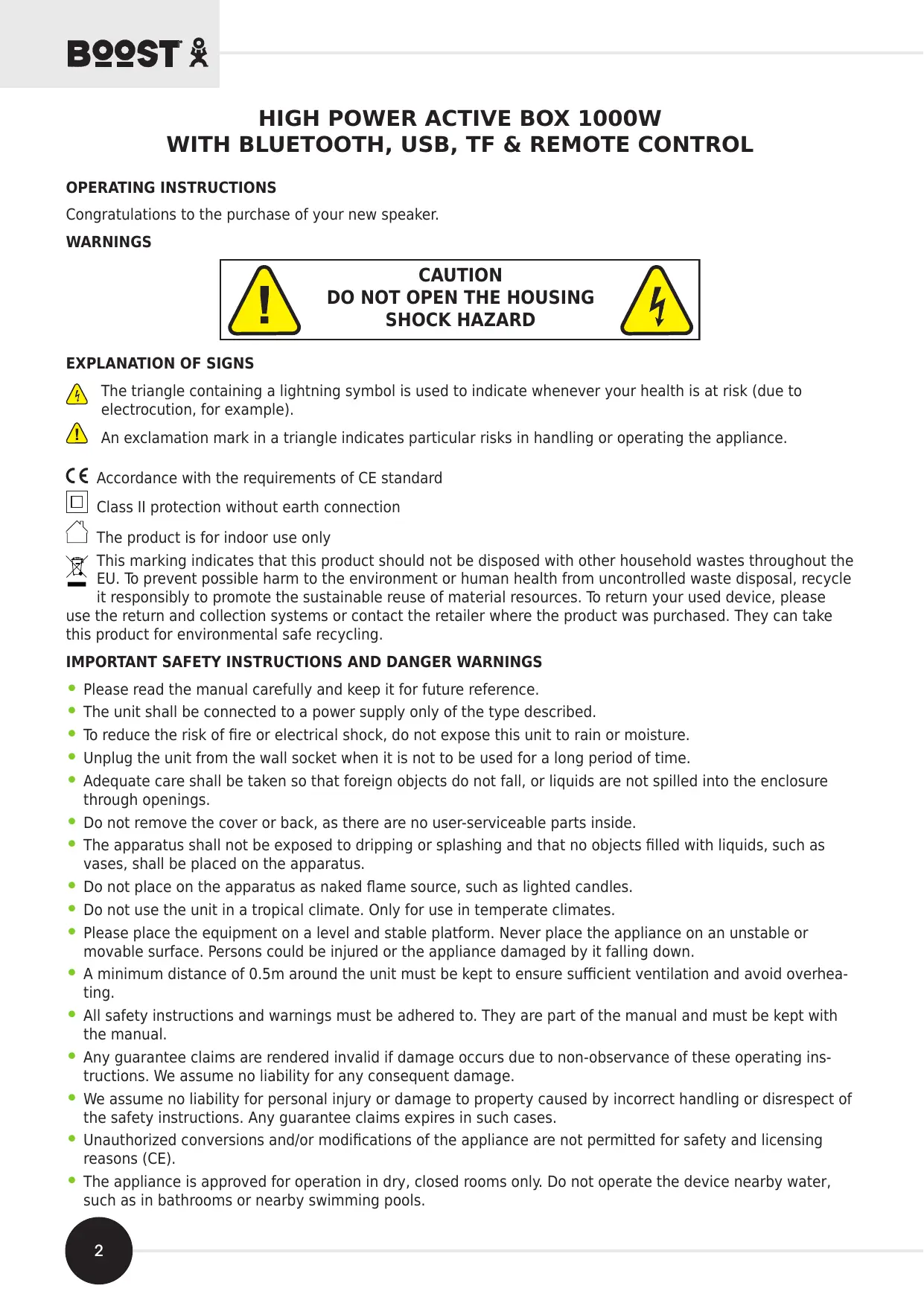

Congratulations to the purchase of your new speaker.

WARNING

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

EXPLANATION OF SIGNS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).
An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

C ∈ Accordance with the requirements of CE standard

Class II protection without earth connection
The product is for indoor use only
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.
• Do not remove the cover or back, as there are no user-serviceable parts inside.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place on the apparatus as naked flame source, such as lighted candles.
• Do not use the unit in a tropical climate. Only for use in temperate climates.
• Please place the equipment on a level and stable platform. Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.
  A minimum distance of 0.5 ~m around the unit must be kept to ensure sufficient ventilation and avoid overheating.
• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any guarantee claims expires in such cases.
• Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).

• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.

• The appliance may not be exposed to extreme temperatures (< +5^ C / > +35^ C) in operation.

• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• CONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

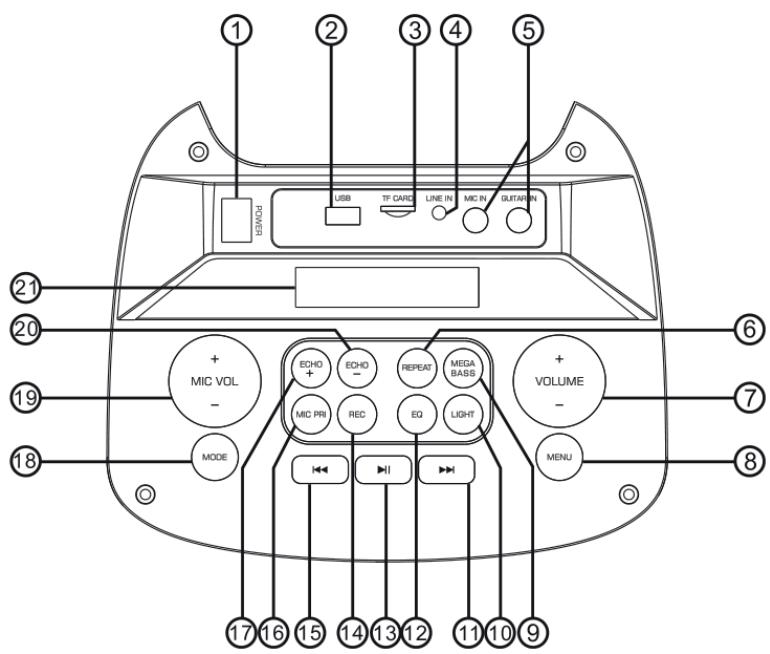

DESCRIPTION OF THE TOP PANEL CONTROLS & CONNECTORS

1. Power ON/OFF
2. USB input
3. TF card input
4. Line in
5. Microphone input & Guitar input
6. Repeat function
7. Main Volume+/-
8. Menu: Bass adjustment and treble adjustment
9. Mega Bass
10. LED Light adjustment
11. Next song
12. EQ Fuction
13. Pause & Play
14. Record function
15. Previous song
16. MIC Priority
17. Echo+
18. Mode: Line in, USB mode, TF Card, Wireless BT
19. MIC Volume+/-
20. Echo-
21. LED Display

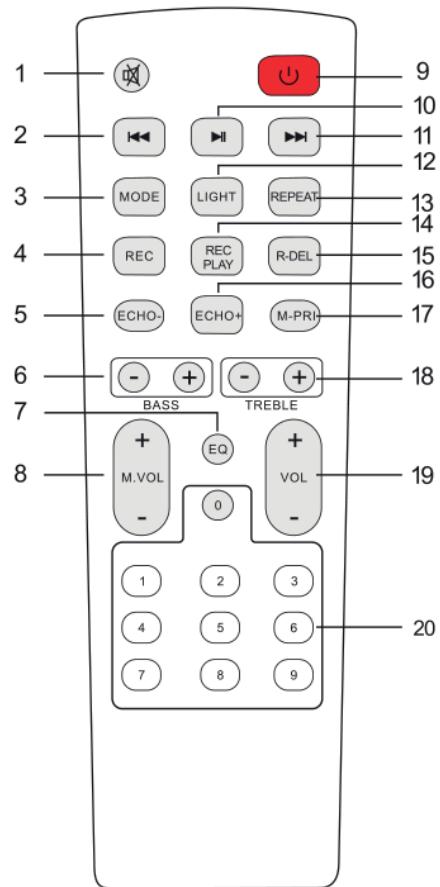

REMOTE CONTROL

1. Mute: Mutes the sound in any mode
2. Previous Song
3. Mode: Press shortly to skip to Wireless BT/LINE IN/USB/TF mode.
4. Record function: In USB/TF mode, press "REC" button to record
5. Echo-
6. BASS+/-
7. EQ function
8. Microphone Volume+/-
9. Stand by
10. Pause / Play
11. Next song
12. Changes the light mode: press to cycle through the various modes
13. Repeat function
14. Play the recorded file
15. Delete the recorded file
16. Echo+
17. Microphone priority
18. Treble+/-
19. Main Volume
20. Number buttons: In USB/TF mode enter directly the number of the desired songs

INSTALLING THE BATTERIES IN THE REMOTE CONTROL

Remove the battery cover from the back of the remote control as shown and insert 2x AAA size batteries ensuring correct polarity

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations..

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed.Only replace by the same or equivalent type.

WARNING :Do not swallow the battery. Danger of chemical burns. Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

BLUETOOTH PAIRING PROCEDURE

Press MODE or Blue button on the unit or the remote control until BT is displayed.

1. Put the cell phone within 10 meters
2. Activate the BT search function on your cell phone to search for the BT device. Please refer to the user manual for details
3. Select ORION1000 in the list of found devices.
4. Shortly press the PLAY/PAUSE button to play or pause the music. Shortly press the "▶" or "▶" button to select the previous or next track.

LINE IN MODE:

Press the MODE button on the unit or the remote control until LINE is selected. Play the music of the device connected to the LINE input.

USB MODE:

1. Press MODE to select "USB" and insert the USB device. The unit will automatically read and play the music in the USB device.
2. Press "▶ II" button shortly to pause or play.
3. Shortly press "▶" button to go to the previous song.
4. Shortly press "▶" button to go to the next song.

SPECIFICATIONS

Power supply. 100-240V\~ 50/60Hz

Consumption 78W

Woofer . 2× 10^ / 25cm

Tweeter 1

Max. power 1000W

BT frequency band 2402-2480MHz

Max. RF emission power .1.334dBm

Dimensions 280 x 330 x 820mm

Weight. 10kg

The above specifications are for reference only.

Design and specifications are subject to change for improvement without prior notice.

ENCEINTE ACTIVE HAUTE PUISSANCE 1000W AVEC BLUETOOTH, USB, MICRO-SD & TELECOMMANDE

INTRODUCTION

RECOMMANDATIONS POUR LES PILES

EU Declaration of Conformity

Hereby we,

LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgium

+32.2.390.91.91

Certify and declare under our sole responsibility that the following product:

Trade name:

BQOST

Product name:

SPEAKER WITH BLUETOOTH, USB and SD

Type or model:

BOOST-ORION1000

Conforms with the essential requirements of

RED directive 2014/53/EU, ErP directive 2009/125/EC, Commission Regulation (EC) No 1275/2008 & 801/2013, 2011/65/EU RoHS directive and the Commission Delegated Directive (EU) 2015/863

Based on the following specifications applied:

EN 62368-1:2014+A11:2017

EN 62479 : 2010

EN 55032 : 2015

EN 55035 : 2017

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.1.1 (2017-02)

Place and date of issue: Saintes (Belgium), on 25/11/2020

Manuel De Sousa

Quality manager

CE
