Product type	Connected ergometer exercise bike
Brand	CARE FITNESS
Model	Telis connected ergometer
Dimensions (L x W x H)	95 x 56 x 143 cm
Unit weight	45 kg
Max user weight	150 kg
Power supply	Transformer for initial battery charge, then recharged by generator during exercise
Display	LCD with functions: Time, Speed, RPM, Distance, Calories, Pulse, Watts
Resistance	32 levels of electronic adjustment
Training programs	Manual, Beginner, Advanced, Sport, Cardio, Watt
Heart rate measurement	Hand grips or chest strap (optional)
Body fat function	Yes, with input of gender, age, height, weight
Cardiac recovery	Recovery Test (F1 to F6)
Standard	EN-957 class HA (domestic use)
Frame warranty	5 years
Wear parts warranty	2 years
Maintenance	Regularly check tightening of screws and nuts; lubricate moving parts; clean with a damp sponge after use; avoid corrosive products
Recycling	Do not dispose with household waste; take to a recycling center or collection point
After-sales service	CARE SAV, 18/22 rue Bernard, 93012 Bobigny Cedex, Tel. [phone]

Frequently Asked Questions - Telis ergomètre connecté CARE FITNESS

How to start the device for the first time?

Plug in the transformer for approximately 8 hours for the initial battery charge. After that, the battery will be automatically recharged by the generator during your workouts.

What is the maximum supported weight?

The maximum user weight is 150 kg.

How to adjust the resistance during exercise?

Use the UP and DOWN buttons (or the encoder) to adjust the resistance in steps, from 1 to 32.

What to do if the screen does not turn on?

Check that the transformer is properly plugged in and that the battery is charged. If the problem persists, unplug and plug the adapter back in. If the screen still does not respond, contact after-sales service.

How to use Cardio mode?

Select CARDIO in the menu, set your age, choose a target heart rate percentage (55%, 75%, 90% or TAG), then set the duration. Press START to begin.

How to measure body fat?

In stop mode, press the BODY FAT key. Enter your gender, age, height, and weight. Hold the hand grips for 8 seconds until the fat percentage and BMI are displayed.

What do error codes E-1 and E-4 mean?

E-1: no pulse detection (hand grips not held properly or chest strap not positioned correctly). E-4: fat percentage out of range (less than 5% or more than 50%) or abnormal BMI.

How to perform the cardiac recovery test?

During exercise, hold the hand grips and press the RECOVERY key. The countdown goes from 60 to 0 seconds, then displays a level from F1 (best) to F6 (worst). Press RECOVERY again to return to the main display.

What are the training tips for weight loss?

Work in the fat burning zone (55 to 65% of your maximum heart rate) for at least 30 minutes per session. Maintain a regular frequency and combine with a balanced diet.

How to order spare parts?

Contact CARE after-sales service at 01 48 43 67 20 Monday to Friday, from 10am to 12pm and from 2pm to 5pm. Have the product name or reference and the manufacturing number ready.

USER MANUAL Telis ergomètre connecté CARE FITNESS

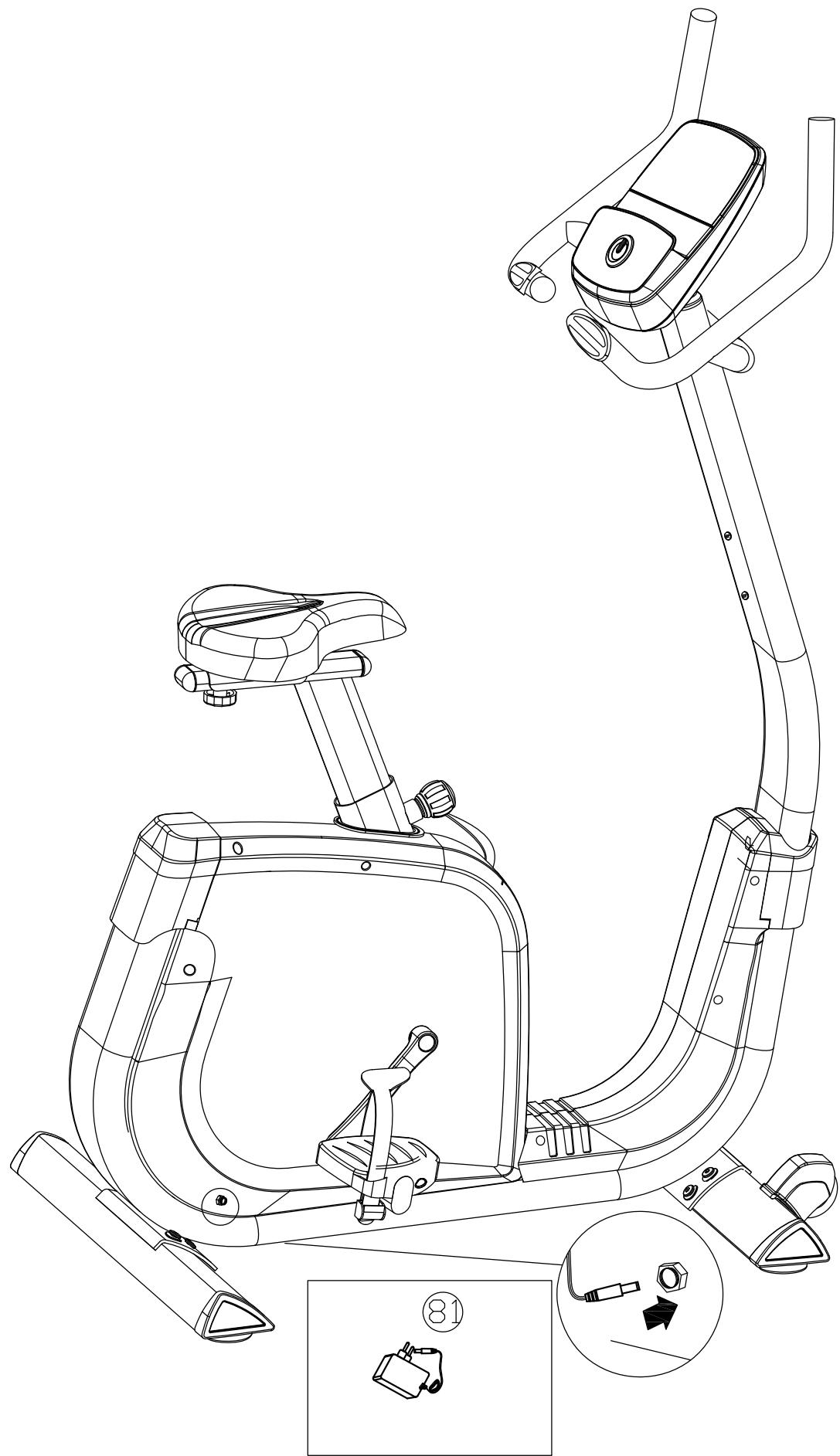

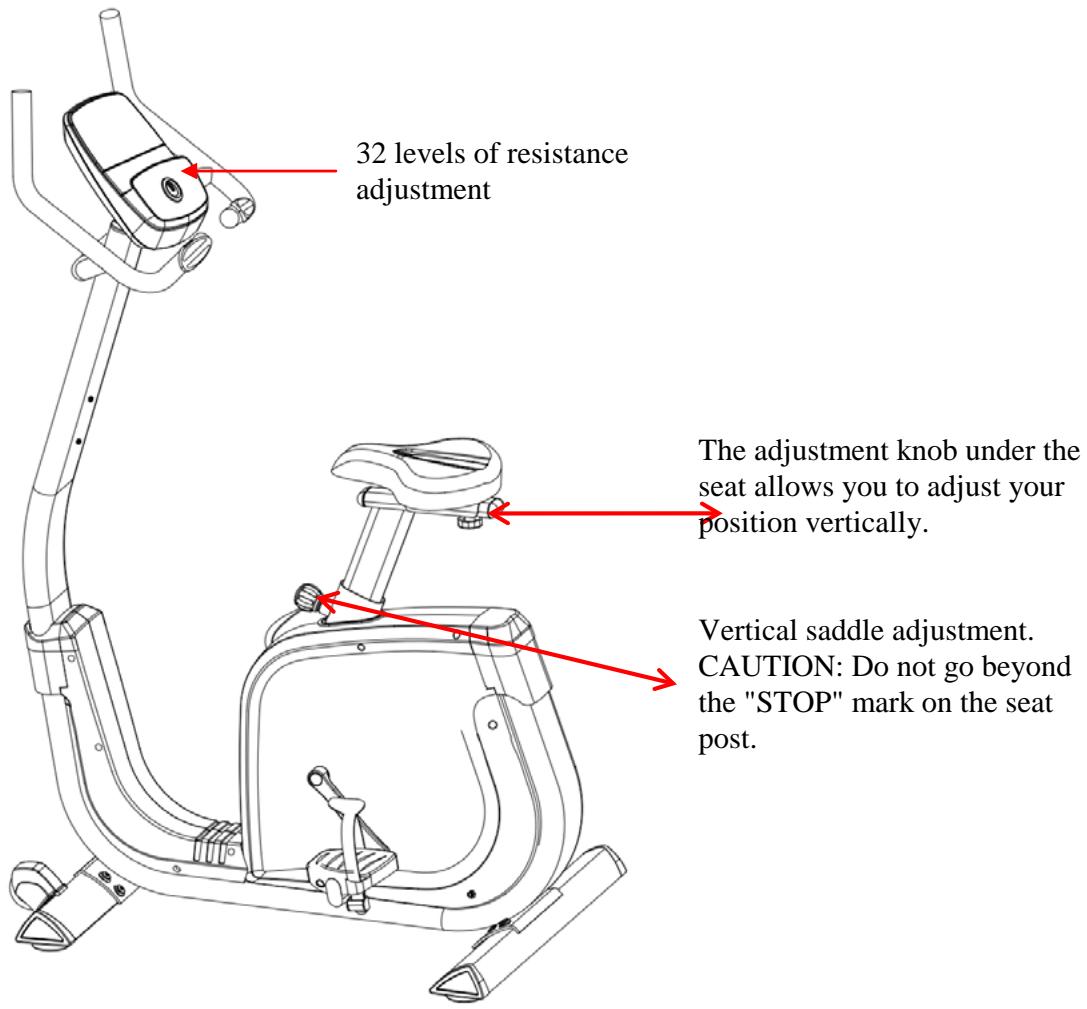

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

FR

Important: Read these instructions before using the equipment!

Safety

HOW TO USE A BIKE WITH A GENERATOR SYSTEM

The generator bike is delivered with an adaptor.

This adaptor must be plugged for at least 8 hours before the first use of the bike and in case the bike is not used for a long time, to load the battery.

Afterwards, the battery will be loaded by the generator during the training.

• Read this user manual and keep it in a safe place. Use this product exclusively in the manner indicated.
• This equipment must be assembled and used by adults.
• The equipment complies with the EN-957 standard, classification HA for use in the home. It must not be used in a sports center or any other public, associative or rented space.

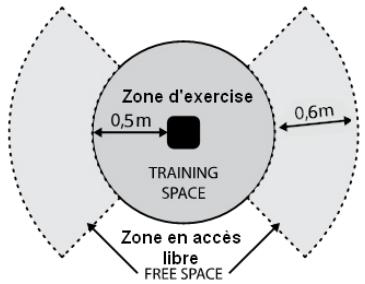

• Ensure the instatlation base is levelled and stable. Please make sure there is 0.6 m free space around the machine (see picture below-solid circle indicates the radius of training area) and at least 0.5 m of free space on each side of the machine (see picture below-dashed line indicates an additional free space.

• WARNING ! Rhythm control systems heart rate may be inaccurate. Overtraining can lead to serious injury or death. If you feel unwell, stop training immediately.
• For totally safe use, a stable, level surface is required. Protect your floor covering with a mat. Do not use the equipment in damp areas (swimming pool, sauna, etc.).
• Do not allow children to play with this equipment. CARE declines all responsibility for any injuries they may incur. Do not allow children close to this equipment when you are training.
• CARE declines all responsibility if technical modifications are made to any of its products by the user.
• Maximum weight of user: 150 kg.
• Before you start training, it is essential that you consult your doctor to determine the intensity level of the program you use.
  CAUTION: The control systems of the heart rate may be incorrect. Excessive exercise can cause serious injury or cause death. If you feel any discomfort, stop the exercises immediately.
• Excessive or badly programmed training can damage your health.
• Keep your back straight when exercising.
• It is strongly recommended that your wear suitable clothing and footwear.

Maintenance

• Regularly check that elements fastened with nuts and bolts are correctly tightened.

• To maintain the level of safety, the equipment must be regularly checked. It is vital that any faulty parts are replaced and that it is not used until completely repaired. Remember regularly to grease moving parts.

• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after training. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products should be avoided.

• Poids unitaire : 45 kg
• Dimensions : 95 x 56 x 143 cm (0.53m²)
• The braking system is independent of speed
• This class C crank training device is not suitable for high precision exercises

Guarantee: the chassis is guaranteed for 5 years. Moving parts are guaranteed for 2 years. The guarantee applies to normal use by a private individual in his home. Validate your product warranty on line www.carefitness.com

Recycling : The « crossed out dustbin » sign means that this product and its batteries cannot be thrown out whit domestic waste. They should be treated apart. When you have finished with them, drop them at an authorised collection point so they can be recycled. This gesture will go towards protecting the environment and your health.

*the parts most subject to wear is the grip foam and end cap.

3

4

5

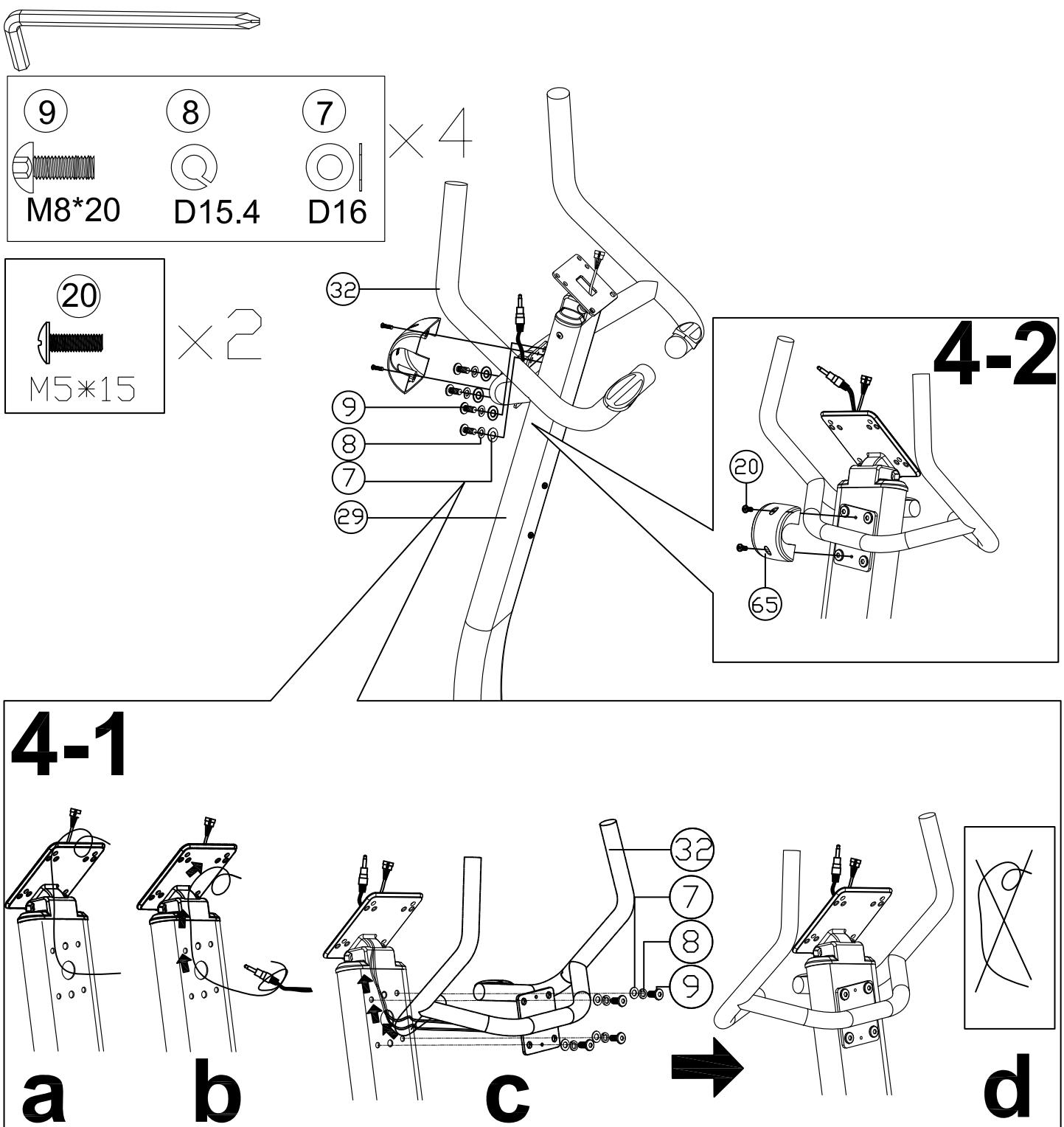

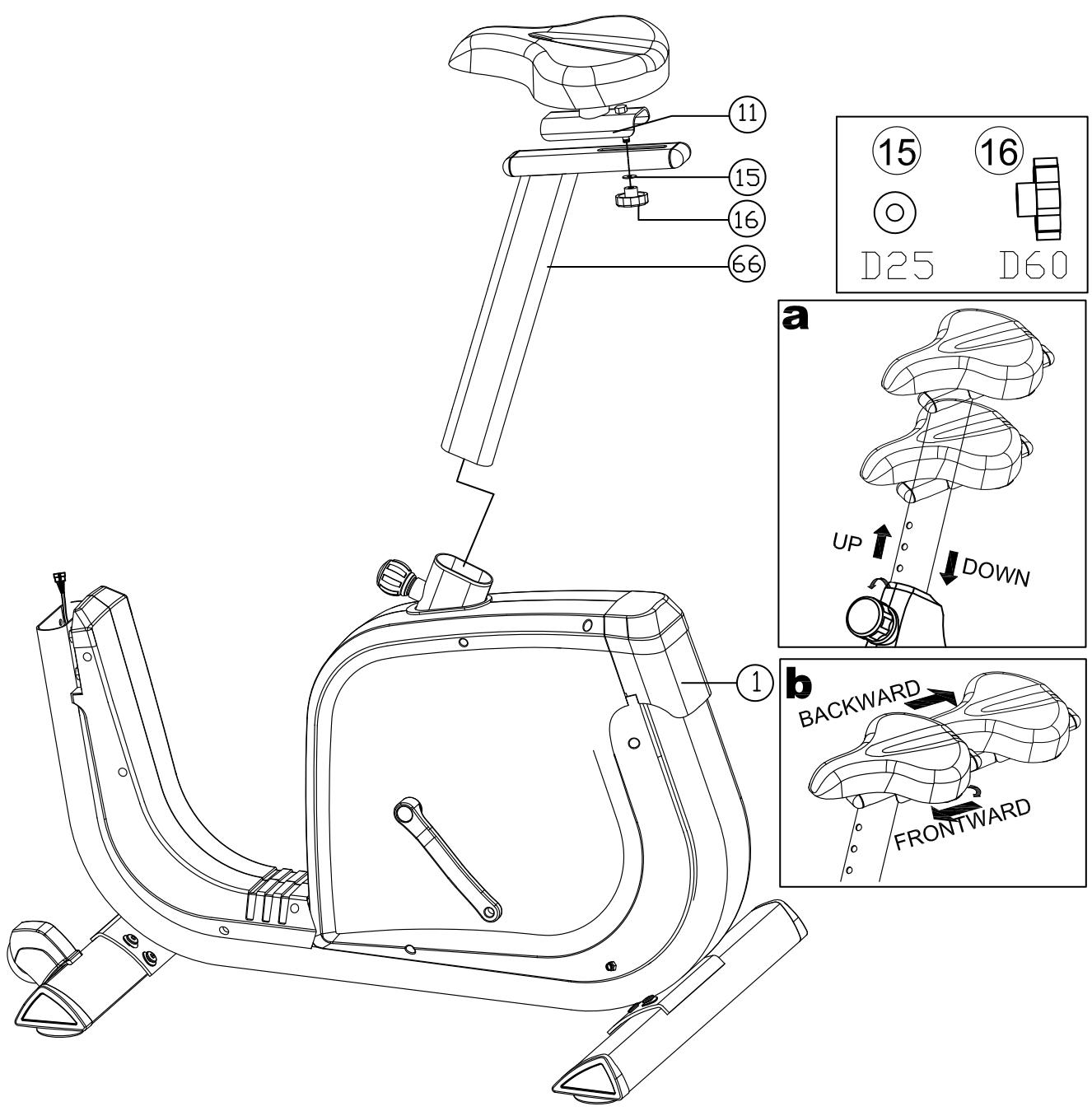

Technical line drawing of a stationary exercise machine with labeled components (no text or symbols present)

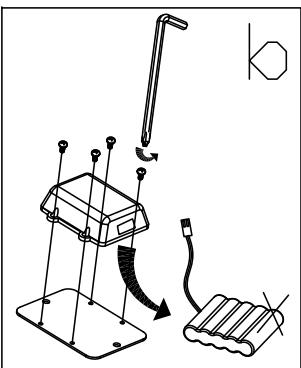

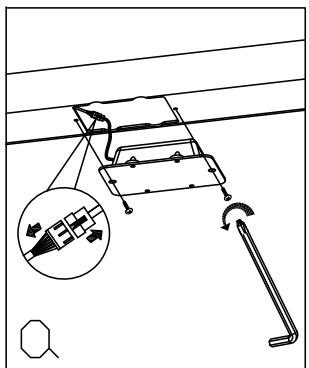

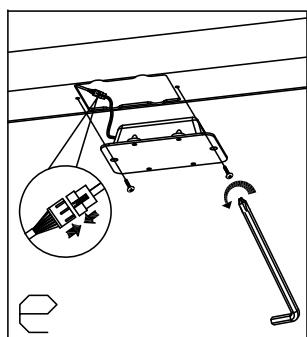

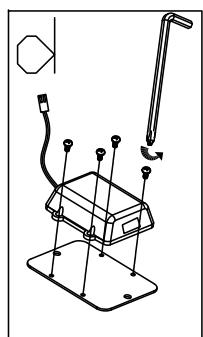

If the battery needs changing

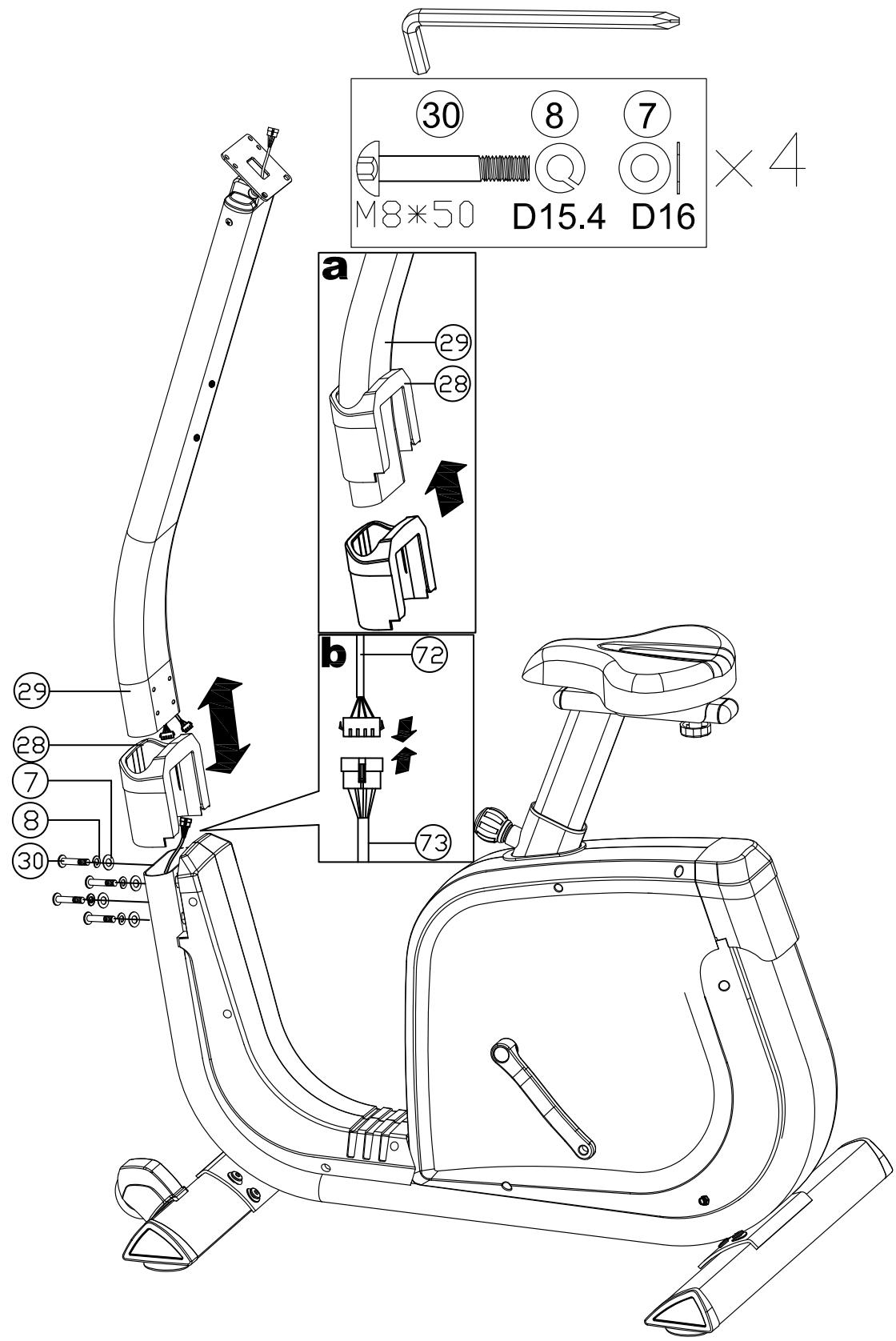

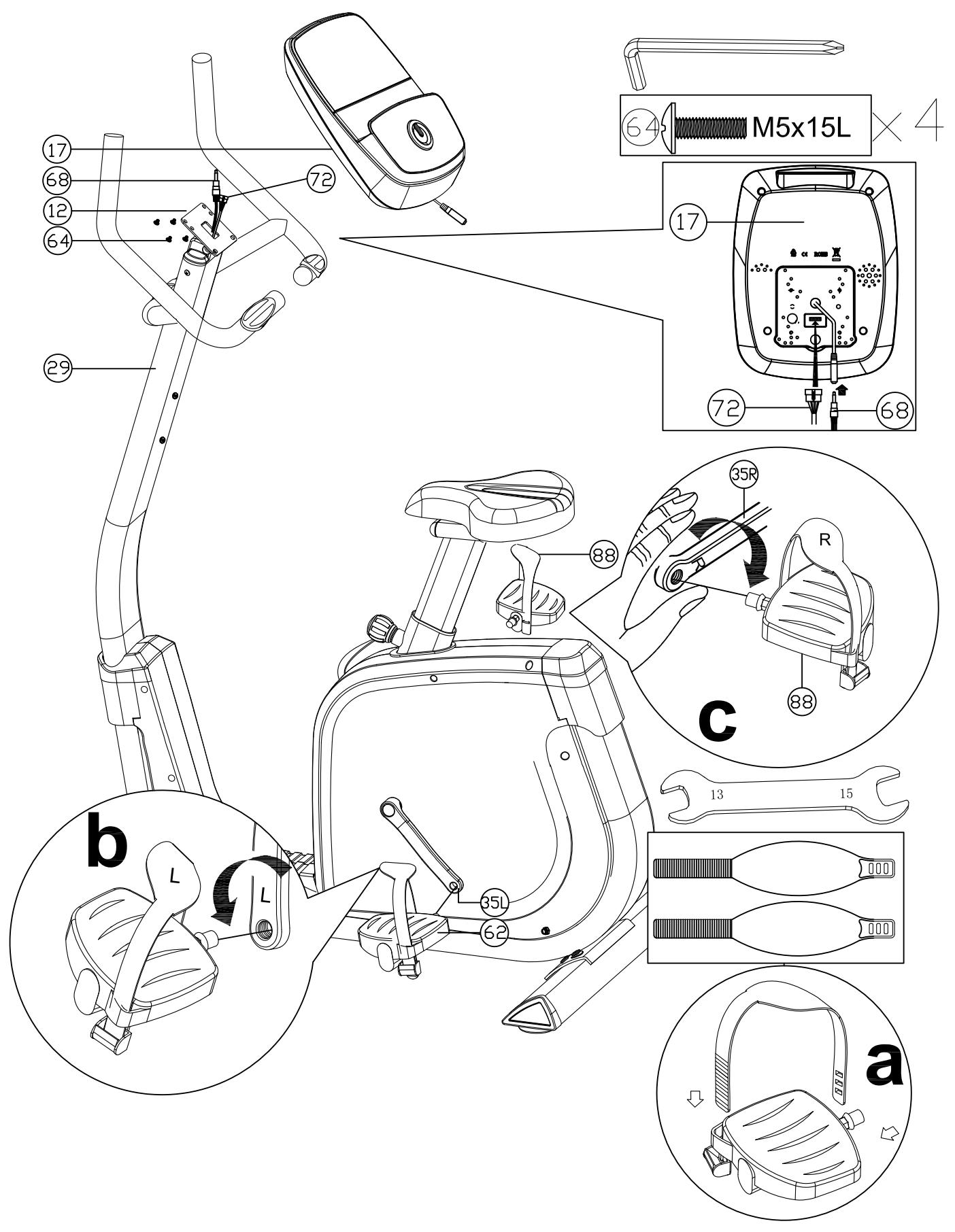

Technical line drawing of a stationary exercise machine with no visible text or symbols

Diagram showing a device connected to a battery pack, with no visible text or symbols

Technical line drawing of a mechanical device with labeled components and a handle (no text or symbols)

dessin 16

dessin 17

Mode Watt

dessin 18

RECOVERY

dessin 22

dessin 23

dessin 25

dessin 24

	BODY FAT		E-4

dessin 26

Connection application Kinomap

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

E mail : https://www.carefitness.com/sav

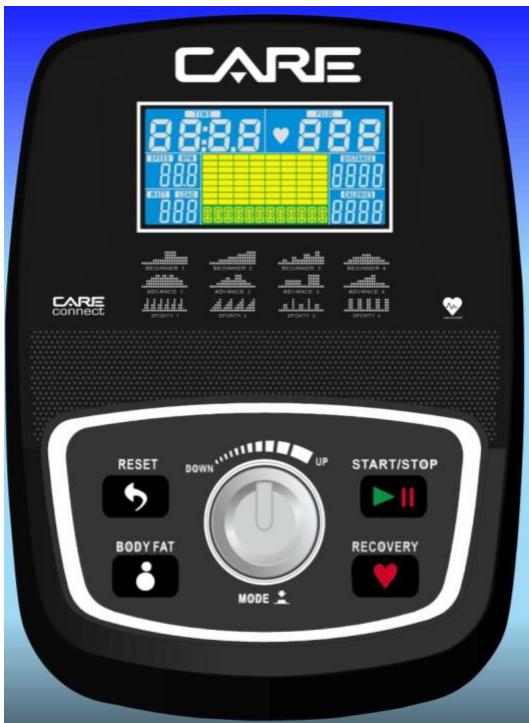

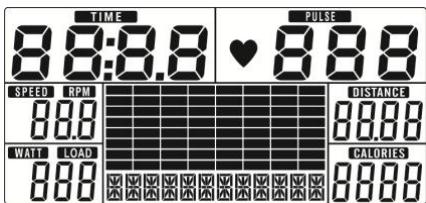

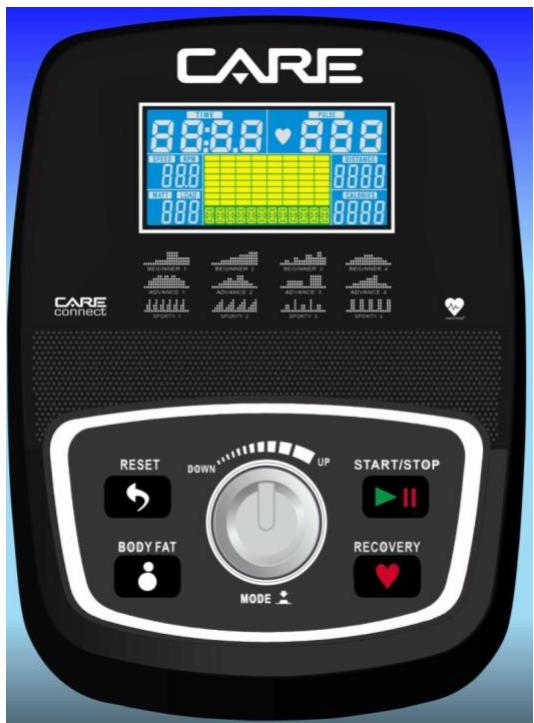

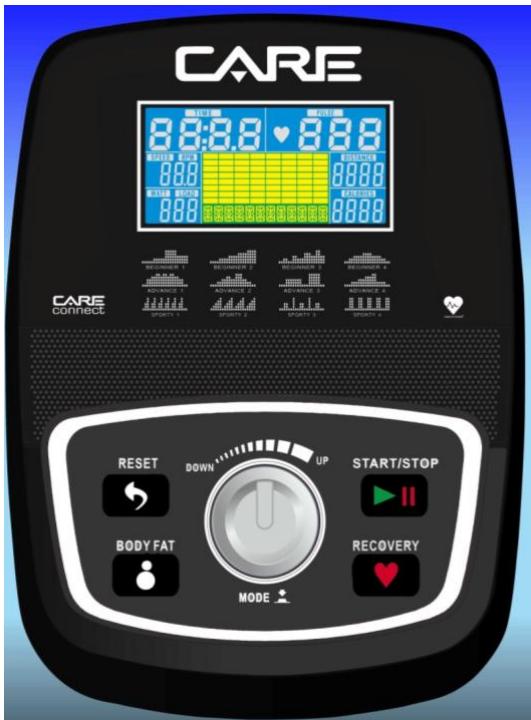

DISPLAY FUNCTIONS

ITEM	DESCRIPTION
TIME	Count up - No preset target, Time will count up from 00:00 to maximum 99:59 with each increment is 1 minute.Count down - If training with preset Time, Time will count down from preset to 00:00.Each preset increment or decrement is 1 minute between 00:00 to 99:00.
SPEED	Displays current training speed. Maximum speed is 99.9 KM/H or ML/H.
RPM	Displays the Rotation Per Minute. Display range 0~15~999
DISTANCE	Accumulates total distance from 0.00 up to 99.99 KM or ML. The user may preset target distance data by using UP/DOWN button.Each preset increment or decrement is 0.1KM or ML between 0.00 to 99.90.
CALORIES	Accumulates calories consumption during training from 0 to maximum 9999 calories.(This data is a rough guide for comparison of different exercise sessions which can not be used in medical treatment.)
PULSE	User may set up target pulse from 0 - 30 to 230; and computer buzzer will beep when actual heart rate is over the target value during workout.
WATTS	Display current workout watts. Display range 0~999.
MANUAL	Manual mode workout.
BEGINNER	4 PROGRAM selection.
ADVANCE	4 PROGRAM selection.
SPORTY	4 PROGRAM selection.
CARDIO	Target HR training mode.
WATT PROGRAM	WATT constant training mode.
Up (Encoder)	Increase resistance levelSetting selection.
Down (Encoder)	Decrease resistance levelSetting selection.
Mode / Enter	Confirm setting or selection.
Reset	Press and hold for 2 seconds, computer will reboot and start from user setting.Reverse to main menu during preset workout value or stop mode.
Start/ Stop	Start or Stop workout.
Recovery	Test heart rate recovery status.
Body fat	In stop mode, press it for body fat measurement

OPERATION:

POWER ON

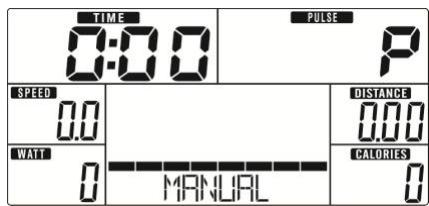

Plug in power supply, computer will power on and display all segments on LCD for 2 seconds (Drawing 1).

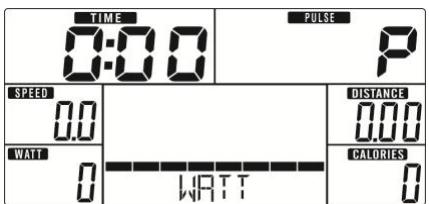

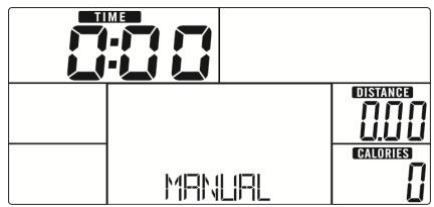

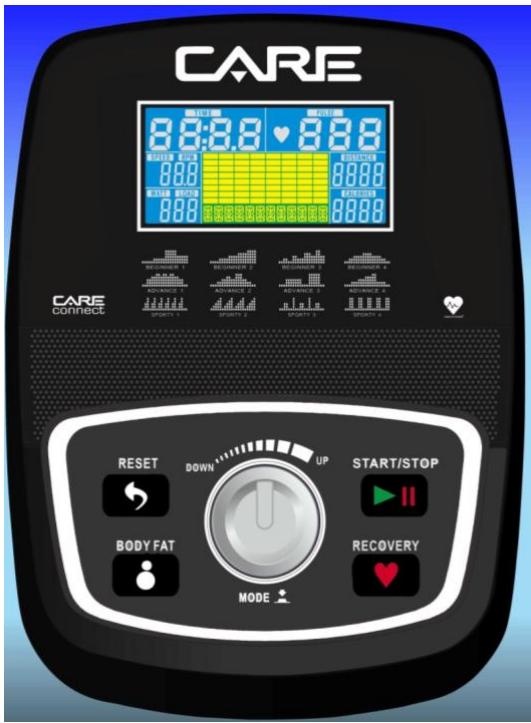

Drawing 1

WORKOUT SELECTION

Use UP or DOWN (Encoder) to select workout Manual (Drawing 2)→ Beginner(Drawing 3) → Advance (Drawing 4) → Sporty(Drawing 5) → Cardio(Drawing 6) → Watt(Drawing 7).

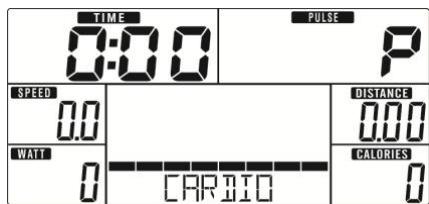

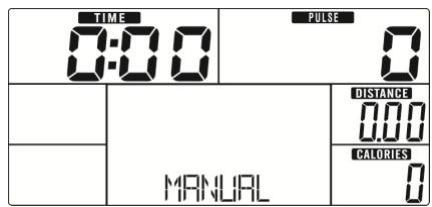

Drawing 2

Drawing 4

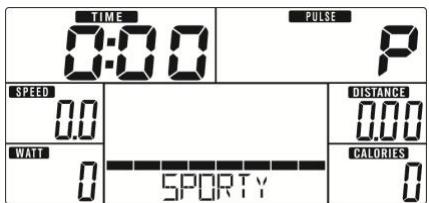

Drawing 3

Drawing 5

Drawing 6

Drawing 7

Manual Mode

Press START in main menu may start workout in manual mode.

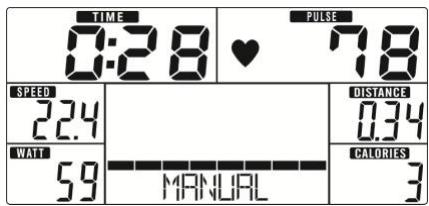

1. Use UP or DOWN (Encoder) to select workout program, choose Manual and press MODE / ENTER to get into.
2. Use UP or DOWN (Encoder) to set TIME (Drawing 8), DISTANCE (Drawing 9), CALORIES (Drawing 10), PULSE (Drawing 11) and press MODE / ENTER to confirm.
3. Press START/STOP keys to start workout. Use UP or DOWN (Encoder) to adjust load level. Load level display in WATT window, no adjusting for 3s, it will switch to display WATT (Drawing 12).
4. Press START/STOP keys to pause workout. Press RESET to reverse to main menu.

Drawing 8

Drawing 9

Drawing 10

Drawing 11

Drawing 12

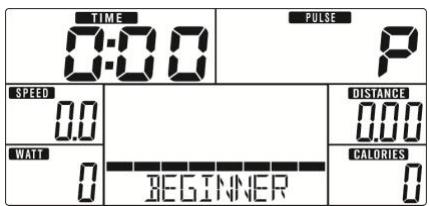

Beginner Mode

1. Use UP or DOWN (Encoder) to select workout program, choose Beginner mode and press MODE / ENTER to get into.
2. Use UP or DOWN (Encoder) to select Beginner program 1\~4 (Drawing 13) and press MODE / ENTER to get into.
3. Use UP or DOWN (Encoder) to set TIME.
4. Press START/STOP key to start workout. Use UP or DOWN (Encoder) to adjust load level.
5. Press START/STOP key to pause workout. Use RESET to reverse to main menu.

Drawing 13

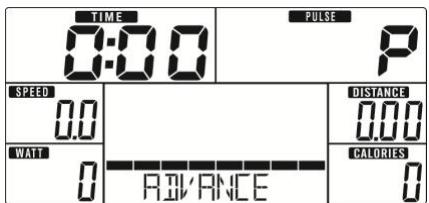

Advance Mode

1. Use UP or DOWN (Encoder) to select workout program, choose Advance mode and press MODE / ENTER to get into.
2. Use UP or DOWN (Encoder) to select Advance program 1\~4 (Drawing 14) and press MODE / ENTER to get into.
3. Use UP or DOWN (Encoder) to set TIME.

4. Press START/STOP key to start workout. Use UP or DOWN (Encoder) to adjust load level.

5. Press START/STOP key to pause workout. Use RESET to reverse to main menu.

Drawing 14

Sporty Mode

1. Use UP or DOWN (Encoder) to select workout program, choose Sporty mode and press MODE / ENTER to get into.
2. Use UP or DOWN (Encoder) to select Sporty program 1\~4 (Drawing 15) and press MODE / ENTER to get into.
3. Use UP or DOWN (Encoder) to set TIME.
4. Press START/STOP key to start workout. Use UP or DOWN (Encoder) to adjust load level.
5. Press START/STOP key to pause workout. Use RESET to reverse to main menu.

Drawing 15

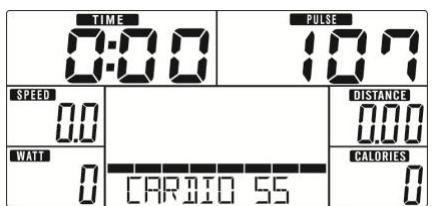

Cardio Mode

1. Use UP or DOWN (Encoder) to select workout program, choose CARDIO and press MODE / ENTER to get into.
2. Use UP or DOWN (Encoder) to set Age (Drawing 16).

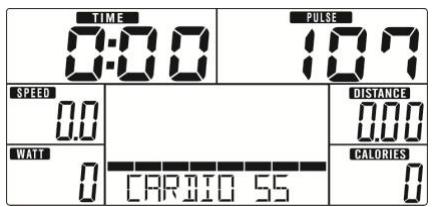

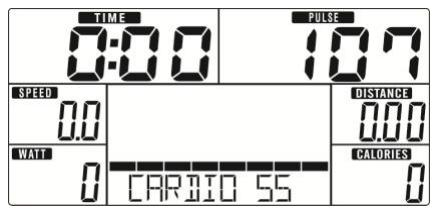

3. Use UP or DOWN (Encoder) to select 55% (Drawing 17).75%.90% or TAG (TARGET H.R.) (default: 100).
4. Use UP or DOWN (Encoder) to set workout TIME.
5. Press START/STOP key to start or stop workout. Use RESET to reverse to main menu.

Drawing 16

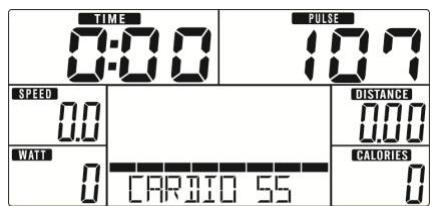

Drawing 17

Watt Mode

1. Use UP or DOWN (Encoder) to select workout program, choose WATT and press MODE / ENTER to get into.
2. Use UP or DOWN (Encoder) to set WATT target. (default: 120, Drawing 18)
3. Use UP or DOWN (Encoder) to set TIME.
4. Press START/STOP key to start workout. Use UP or DOWN (Encoder) to adjust Watt level.
5. Press START/STOP key to pause workout. Use RESET to reverse to main menu.

Drawing 18

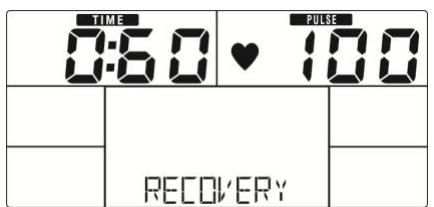

RECOVERY

After exercising for a period, keep holding on hand grips or wearing chest strap and press RECOVERY key. All function display will stop except “TIME” starts counting down from 00:60 to 00:00 (Drawing 19). Screen will display your heart rate recovery status with the F1, F2.... to F6. F1 is the best, F6 is the worst (Drawing 20). User may keep exercising to improve the heart rate recovery status. (Press the RECOVERY button again to return the main display.)

Drawing 19

Drawing 20

BODY FAT

1. In STOP mode, press the BODY FAT key to start body fat measurement.
2. Console will remind to input user GENDER (Drawing 21), AGE, HEIGHT, WEIGHT, then begin to measure.
3. During measuring, users have to hold both hands on the hand grips. And the LCD will display “=” “=” (Drawing 22) for 8 seconds until computer finish measuring.

4. LCD will display BODY FAT advice symbol, BODY FAT percentage (Drawing 23), BMI (Drawing 24) for 30 seconds.

5. Error message:

*The LCD displays “==” “==” (Drawing 25)—means not hand the grip or wear chest strap correctly.

*E-1—There is no heart rate signal input detected.

*E-4–Occurs when FAT% is below 5 or exceeds 50 and BMI result is below 5 or exceeds 50 (Drawing 26).

Drawing 21

Drawing 22

Drawing 23

Drawing 24

Drawing 25

Drawing 26

Application connection

Copy the link here under to your brower (Edge, Firefox, Chrome, Safari etc)

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

And Follow the detailed instruction

Noted:

1. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake

the console up.

1. When computer act abnormal, please plug out the adaptor and plug in again

Cardio – Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to liminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system.

The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

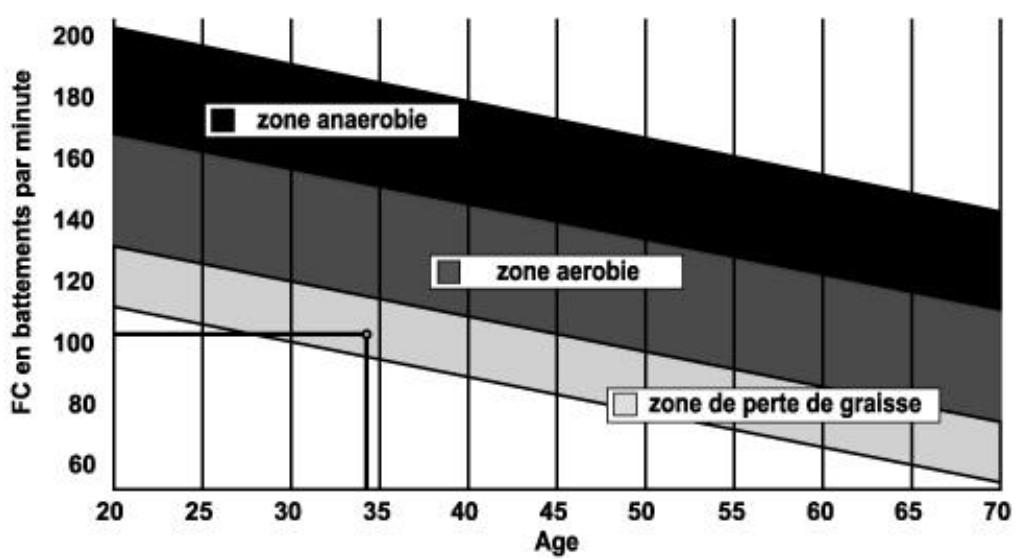

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

Make a diagram of the target zones

The progressive training stages:

A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles

on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you

begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 – 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who

are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR. -

Gradually increase from 30 to 60 minutes per session.

- Exercise 3 or 4 times a week.

The Aerobic Zone, 65-85%

This zone is recommended for those who are in good physical condition who train

regularly. By training in this zone, you will improve your physical condition but avoid overworking.

- Duration: 20 to 30 minutes per session.

- Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended

without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina.

The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints

are still warm. This relaxes the muscles and helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

To order spare parts

To guarantee an efficient service, make sure you have the following items before you

contact our After Sales Service:

The name or reference of the product.

After Sales Service

Email: [e-mail]

ANZEIGEFUNKTIONEN

Zeichnung 18

RECOVERY

Zeichnung 21

Zeichnung 22

Zeichnung 23

Zeichnung 24

Zeichnung 25

Zeichnung 26

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

Dibujo 16

Dibujo 17

Modo vatios

Dibujo 18

RECUPERACIÓN

Dibujo 21

Dibujo 22

Dibujo 23

Dibujo 24

Dibujo 25

Dibujo 26

disegno 16

disegno 17

Modalità Watt

disegno 18

RECUPERO

disegno 21

disegno 22

disegno 23

disegno 24

disegno 25

disegno 26

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

E mail : [e-mail]

DISPLAY FUNCTIONS

WATT constant training mode.

KEY FUNCTION

Tekening 16

Tekening 17

Wattmodus

Tekening 18

RECOVERY

Tekening 21

Tekening 22

Tekening 23

Tekening 24

Tekening 25

Tekening 26

C. Applicatie-verbinding

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

De harttraining (cardiotraining):

2 tot 3 trainingen per week = circa 30 minuten per keer.

1 tot 2 trainingen per week = circa 50 minuten per keer.

E-mail: [e-mail]

CARE

FITNESS
