CARE FITNESS CV-385 - Exercise bike

CV-385 - Exercise bike CARE FITNESS - Free user manual and instructions

Find the device manual for free CV-385 CARE FITNESS in PDF.

📄 56 pages English EN Download 💬 AI Question 17 questions ⚙️ Specs
Notice CARE FITNESS CV-385 - page 11
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Exercise Bike
Brand CARE FITNESS
Model CV-385
Display LCD screen with backlight
Power Supply Self-powered by pedaling (internal dynamo)
Sleep Mode After 4 minutes of inactivity
Resistance Electronic, adjustable by rotary knob (16 levels)
Sensors Pulse sensors on handlebars (hand)
Programs 24 programs: Manual (P1), Preset (P2-P13), User (P14-P17), Heart rate (P18-P22), Watt (P23), Fat (P24)
Displayed Functions Time, Distance, Speed, RPM, Calories, Pulse, Watt, Age, Target heart rate, Distance bar
Heart Rate Recovery Yes, evaluates recovery over 1 minute (rating F1.0 to F6.0)
Body Fat Measurement Yes (program P24) – calculates % fat, BMI, BMR
Watt Control Yes (program P23) – maintains constant power
Target Heart Rate Yes, with audible alarm
User Programs 4 slots (P14-P17): creation of profiles on 10 columns
Preset Programs 12 profiles: Step, Hill, Rolling, Valley, Fat burning, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice
Heart Rate Programs 5 programs (P18-P22) with automatic resistance adjustment
Error Modes E1: no pedaling signal; E2: memory fault; E3: defective motor
Spare Parts CARE FITNESS after-sales service (contact information in the manual)
Maintenance Clean with a damp cloth; check screws periodically

Frequently Asked Questions - CV-385 CARE FITNESS

How to turn on the CV-385 exercise bike?
The bike turns on automatically when you start pedaling. The screen lights up immediately. If the screen is in sleep mode, touch it or press any key to wake it up.
How to adjust resistance during exercise?
Turn the rotary knob clockwise to increase resistance, or counterclockwise to decrease it. The resistance level is displayed on the screen.
What do error codes E1, E2 and E3 mean?
E1: No pedaling signal detected for more than 4 seconds. Check that you are pedaling. E2: Internal memory problem. Contact customer service. E3: The resistance motor does not return to zero. Consult the manual for troubleshooting.
How to measure my heart rate with this bike?
Place your hands on the sensors located on the handlebars. The screen will display your pulse in beats per minute (BPM). For a more accurate measurement, you can use a compatible chest strap (not included).
How to set a time, distance or calorie goal?
Select a program (for example P1 Manual) and press ENTER. Use the UP/DOWN keys to adjust the desired value (time, distance, calories or pulse) and press ENTER to confirm. Start pedaling to begin the exercise.
How to use the watt control program (P23)?
Select P23 using the UP/DOWN keys, press ENTER. Set time, distance, target watts (default 100 W) and calories. The computer automatically adjusts resistance to maintain constant power. If you pedal faster, resistance decreases; if you pedal slower, it increases.
How to measure body fat percentage with program P24?
Select P24 and press ENTER. Enter your height, weight, gender (1=male, 0=female) and age. Press START/STOP to start the measurement. Place your hands on the sensors. After a few seconds, the screen displays your % fat, BMI and BMR. Then, a personalized exercise profile is proposed to you.
How to perform a heart rate recovery test?
After reaching your exercise goal, the screen beeps for 5 seconds. Place your hands on the pulse sensors. The 1-minute countdown starts. At the end, a rating from F1.0 (excellent) to F6.0 (poor) is displayed, indicating the quality of your heart rate recovery.
How to create a custom program (P14 to P17)?
Select one of the user programs (P14 to P17) and press ENTER. Set the resistance level for each of the 10 columns using the UP/DOWN keys and ENTER. Then, set a time, distance, calories or pulse goal. The profile is stored in memory for future sessions.
How to maintain the CV-385 exercise bike?
Clean the device with a soft, damp cloth. Avoid solvents. Regularly check that all screws are tight. Protect the bike from moisture and dust. In case of a defective part, contact CARE FITNESS customer service (contact information in the manual).

User questions about CV-385 CARE FITNESS

7 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

How to resolve error code E1 on the CARE FITNESS CV-385 exercise bike?
Frequently Asked Questions - 21/04/2026
Response Notice-Facile

The error code E1 on the CARE FITNESS CV-385 exercise bike indicates a loss of signal from the motor's motion sensor. This occurs when the display has not received a signal for more than 4 seconds, checked 3 consecutive times. When this error appears, the motor driver is automatically cut off and all digital displays and functions turn white.

Start by resetting the control screen by holding down the control button for 3 seconds. This operation often resolves temporary system errors.

Next, check all wired connections, especially those connecting the motor's motion sensor to the digital display. Ensure that the cables are properly connected at both ends and in good condition (no visible damage, kinks, or exposed wires).

Inspect the motion sensor located at the drive mechanism. Gently clean this area with a dry cloth to remove any dust or debris that could interfere with signal detection. A dirty sensor can interrupt the signal and trigger the E1 error.

If the error persists after these checks, perform a complete restart: turn off the bike, unplug it from the electrical outlet for 2 to 3 minutes, then plug it back in and turn it on. This procedure completely resets the electronic system.

If the E1 code continues to display after these steps, it may indicate a more serious problem such as damaged internal memory or a failure of the motion sensor. In this case, contact CARE FITNESS customer support or a specialized technical service for a thorough diagnosis and professional repair.

Respond (be the first)
How to use the CARE FITNESS CV-385 exercise bike screen?
Frequently Asked Questions - 16/04/2026
Response Notice-Facile

The digital screen of the CARE FITNESS CV-385 exercise bike turns on automatically as soon as you start pedaling and turns off automatically 4 seconds after you stop pedaling. No intervention is needed to start or stop the device. If the screen does not turn on spontaneously, you can activate it manually. To completely reset the screen, press and hold the RESET button for 3 seconds.

To navigate and select a program, use the UP and DOWN buttons. The screen displays 24 different programs: manual mode (P1), 12 pre-defined programs such as mountain, random, or fat burning (P2-P13), 4 customizable programs (P14-P17), 5 heart rate control modes (P18-P22), a watts mode (P23), and body composition analysis (P24). Once you have chosen your program, press the ENTER button to confirm your selection.

During your workout, use the UP and DOWN buttons to adjust the resistance and modulate the intensity of your exercise. The screen displays all important parameters in real-time: elapsed time, distance traveled (up to 99.9 km), pedal revolutions per minute (RPM), power in watts, speed in km/h, and calories burned. This data allows you to accurately track your performance and adjust your effort.

The CV-385 has a built-in manual heart rate sensor that allows you to measure your heart rate by placing your hands on the sensors located on the handles. The screen displays your heart rate in real-time in beats per minute. You can also use the heart rate recovery test function, which evaluates your fitness level by measuring your heart rate for 5 seconds after exercise and displaying an indicative score.

In summary, the CARE FITNESS CV-385 bike offers comprehensive and automated tracking of your workout. Its intuitive design allows for simple use: pedal to turn on, select a program with the UP/DOWN buttons and confirm with ENTER, adjust the resistance during exercise, and let the device turn off automatically. All performance parameters are available at any time on the screen to optimize your session.

Respond (be the first)
Where is the electrical connection of the CARE FITNESS CV-385 exercise bike?
Frequently Asked Questions - 09/02/2026
Response Notice-Facile

The electrical connection of the CARE FITNESS CV-385 exercise bike is generally located at the back of the frame, near the base of the bike. Here’s how to locate it precisely:

  • At the back of the bike: Look for a connector or socket where the power cable is plugged in. This area is often near the motor or the power supply system.
  • On the side of the frame: Sometimes, the connection may be positioned on one side, close to the console or screen of the bike.
  • Cable identification: The power cable is usually a black cable that connects to a wall socket to power the bike.

For safety reasons, make sure the bike is unplugged before handling the electrical connection.

Respond (be the first)
How to assemble the CARE FITNESS CV-385 exercise bike?
Frequently Asked Questions - 09/02/2026
Response Notice-Facile

The CARE FITNESS CV-385 exercise bike is delivered in several pieces that require assembly before use. Here is the complete procedure to assemble it correctly and safely.

Before you begin, carefully unpack all the parts and check for all the elements: the main frame (front and rear feet), the vertical and horizontal tubes, the handlebars, the seat with seat post, the two pedals with cranks, the digital monitor, the fixing screws (M8×55, M8×16, 8×20 as needed), and any tools provided. Refer to the exploded view in the manual to identify each component.

Step 1: Assembling the main frame. Start by assembling the feet and base of the bike according to the provided assembly diagram. Place the main frame on a flat surface and securely attach all the vertical and horizontal tubes with the appropriate screws. Use a wrench to tighten each screw firmly, being careful not to overtighten to avoid damaging the material.

Step 2: Installing the pedals. Screw the pedals onto the cranks carefully: the right pedal screws in clockwise, while the left pedal screws in counterclockwise (reverse direction). Tighten them securely to prevent any loosening or unpleasant vibrations during use. Regularly check their attachment during the first sessions.

Step 3: Attaching the handlebars. Insert the handlebar post into the designated support on the vertical frame. Position the handlebars at a height that suits you, then tighten the fixing screws firmly to ensure stability. The handlebars should be stable and not move during your workouts.

Step 4: Installing the seat. Insert the seat post into the vertical tube of the seat. Adjust the height of the seat (it should be about at hip height when you are standing next to the bike) and then tighten the knob or fixing screw to keep the seat in position. Ensure it does not move and is securely locked before each use.

Step 5: Connecting the monitor. Connect the cable of the digital monitor to the base of the bike according to the designated connectors. Plug in the device according to the instructions in the monitor manual to activate the training functions (display of time, distance, calories, heart rate). The monitor turns on automatically as soon as you start pedaling, and turns off 4 seconds after you stop pedaling.

Final checks: Inspect the entire bike to confirm that all screws and attachments are securely tightened. Check the overall stability by applying slight pressure on the handlebars and seat in different directions. Perform a test of pedaling without load (without resistance) to ensure that the mechanism works correctly, that the pedals turn freely, and that there are no unusual noises or vibrations. Once these checks are completed, your CARE FITNESS CV-385 is ready for your workouts.

Respond (be the first)
What are the "Up" and "Down" buttons for on the CARE FITNESS CV-385 exercise bike?
Frequently Asked Questions - 30/01/2026
Response Notice-Facile

The "Up" and "Down" buttons on the CARE FITNESS CV-385 exercise bike allow you to adjust various settings during your workout session. Here is their main function:

  • "Up" button: increases the value of the selected parameter, such as the pedaling resistance or the duration of the workout.
  • "Down" button: decreases the value of the selected parameter, allowing you to reduce the resistance or shorten the duration.

These buttons are used to navigate through the options on the control panel and customize your workout according to your needs.

Respond (be the first)
Where are the 'Up' and 'Down' buttons located on the CARE FITNESS CV-385 exercise bike?
Frequently Asked Questions - 29/01/2026
Response Notice-Facile

On the CARE FITNESS CV-385 exercise bike, the 'Up' (increase) and 'Down' (decrease) buttons are generally located on the central control panel, near the display screen.

Here’s how to locate them:

  • Look at the control console located in front of the handlebars, where the digital screen is.
  • The 'Up' and 'Down' buttons are often positioned on either side or just below the screen.
  • They allow you to adjust the resistance or navigate through the menu options.

If you do not see them immediately, carefully inspect the surface of the console, as these buttons may be small and sometimes represented by arrows pointing up and down.

Respond (be the first)
What are the technical specifications of the charger for the CARE FITNESS CV-385 exercise bike?
Frequently Asked Questions - 28/11/2025
Response Notice-Facile

The charger for the CARE FITNESS CV-385 exercise bike has specific technical specifications that are important to know for safe and correct use:

  • Input Voltage: 100-240 V AC, 50/60 Hz, compatible with international household electrical systems.
  • Output Voltage: 9 V DC, providing reliable power to the bike's electronic circuit.
  • Output Current: 2 A, ensuring sufficient power for the digital display and all sensors.
  • Connector Type: standard round DC connector (cylindrical jack connector), compatible with the bike's power port.
  • Cable Length: approximately 150 cm, offering a suitable connection distance for living rooms and bedrooms.
  • Safety Standards: CE certified, compliant with European electrical safety standards for risk-free use.

The charger must always be connected before using the bike, as without power, the digital display and tracking functions cannot operate. Before using the bike for the first time or after a prolonged period of inactivity, ensure that the connector is properly inserted into the bike's power port.

If the original charger is lost or damaged, make sure to acquire a replacement charger with the exact specifications: 9V DC 2A with standard round DC connector. Using a charger with different specifications could damage the electronic circuits of the CV-385 or reduce the lifespan of the device. To obtain a compatible charger, you can contact CARE FITNESS customer service or check the recommended accessories for this specific model.

Respond (be the first)

Download the instructions for your Exercise bike in PDF format for free! Find your manual CV-385 - CARE FITNESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CV-385 by CARE FITNESS.

USER MANUAL CV-385 CARE FITNESS

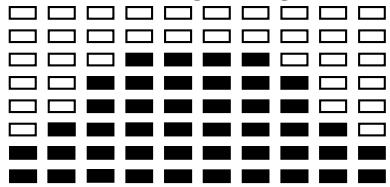

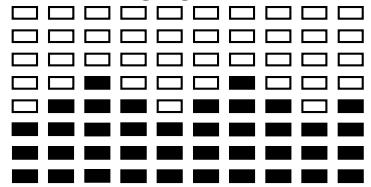

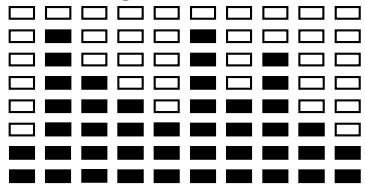

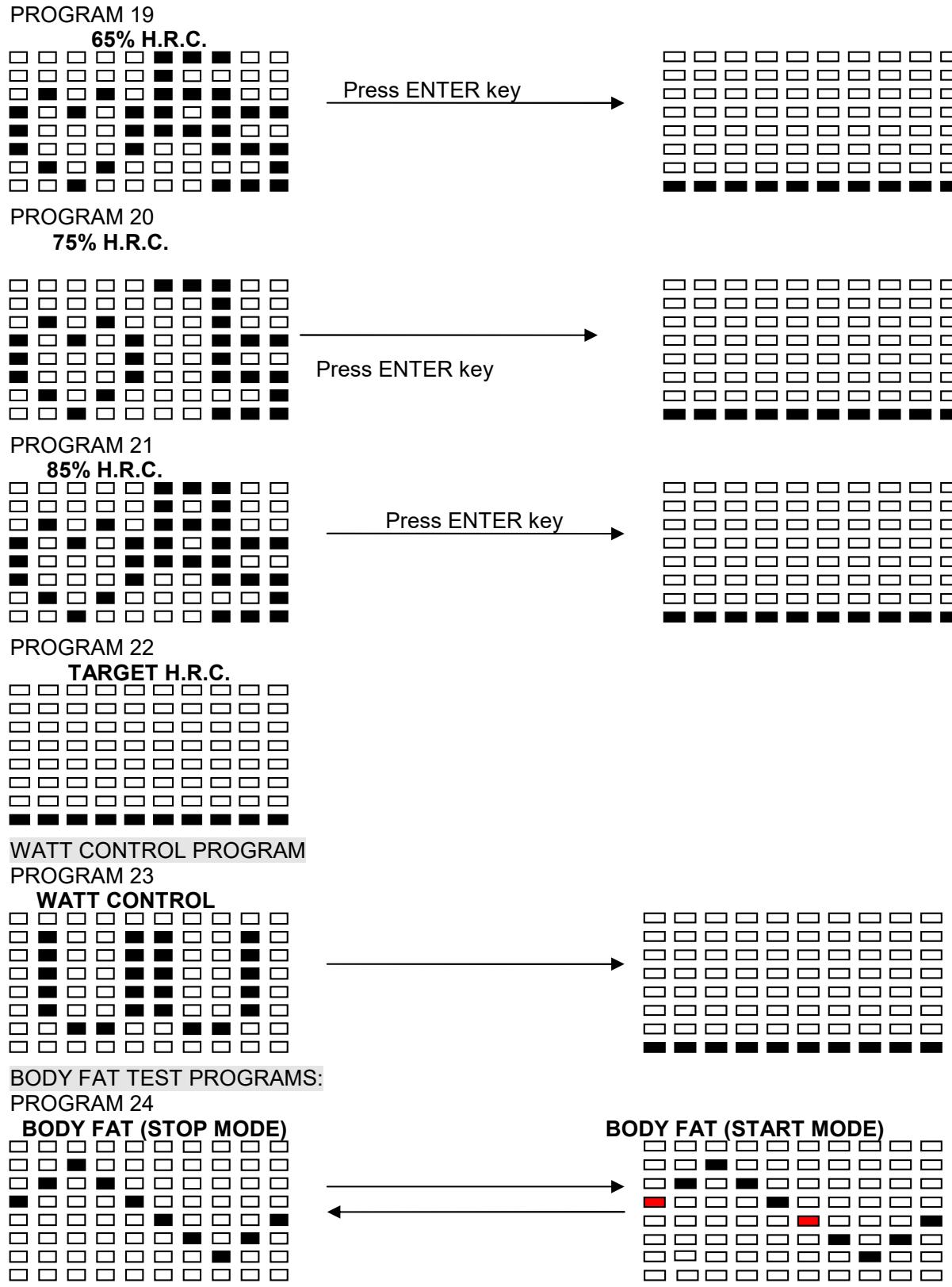

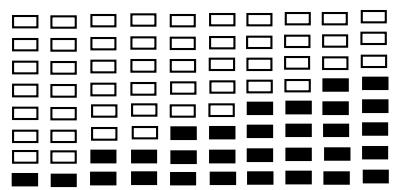

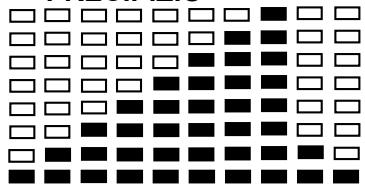

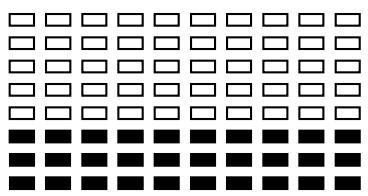

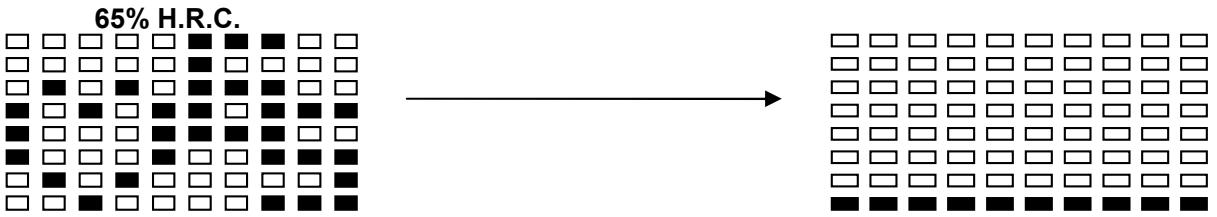

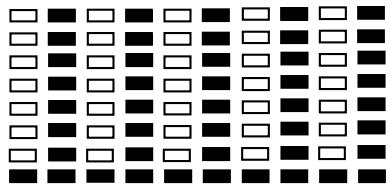

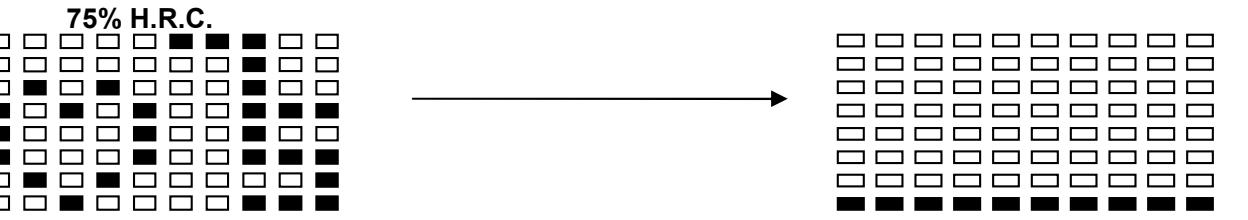

Programme Contrôle de fréquence cardiaque : 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target (cible) H.R.C.

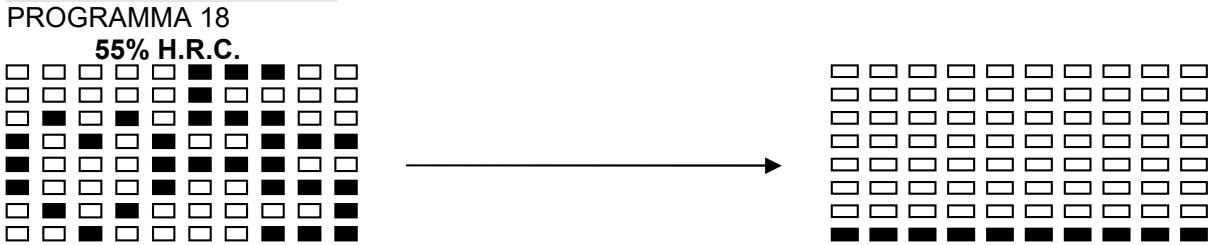

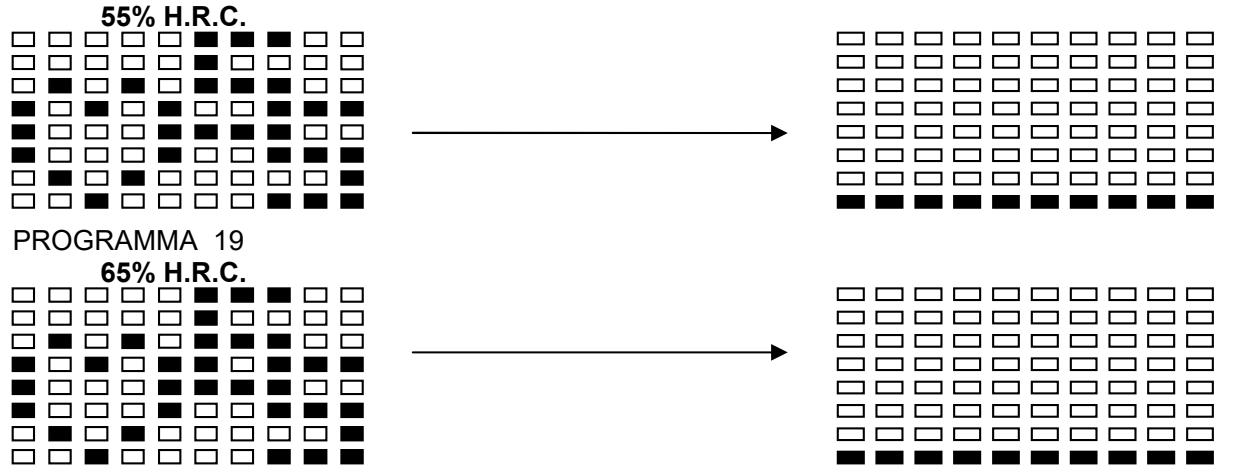

Programme 18 : 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%
Programme 19 : 65% Max H.R.C. - - Target H.R. = (220 - AGE) x 65%

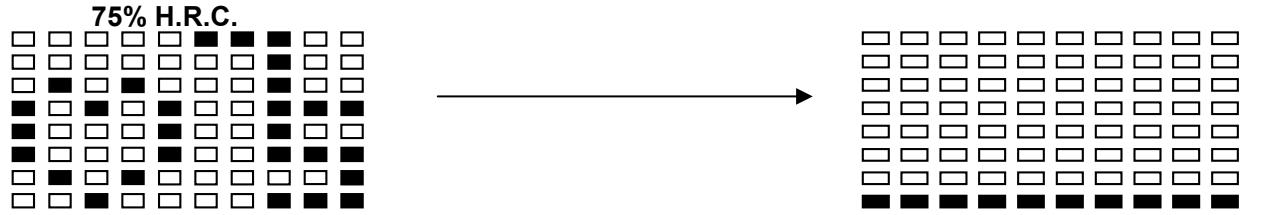

Programme 20 : 75% Max H.R.C. - - Target H.R. = (220 - AGE) x 75%

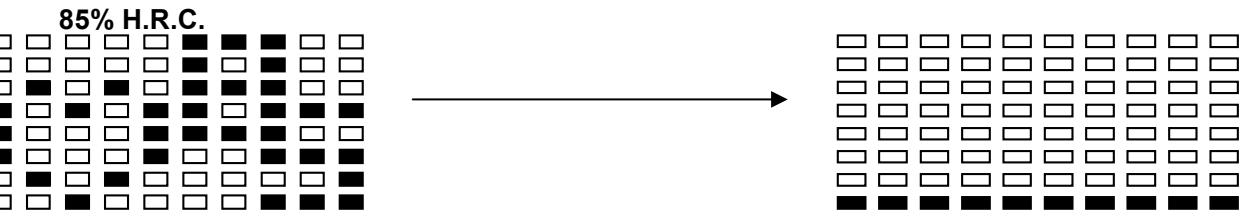

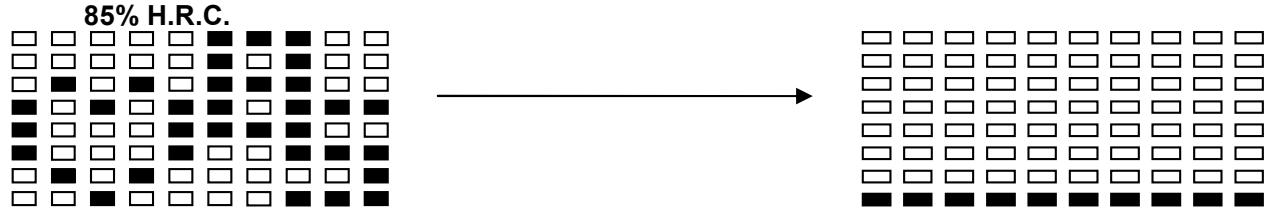

Programme 21 : 85% Max H.R.C. - - Target H.R. = (220 - AGE) x 85%

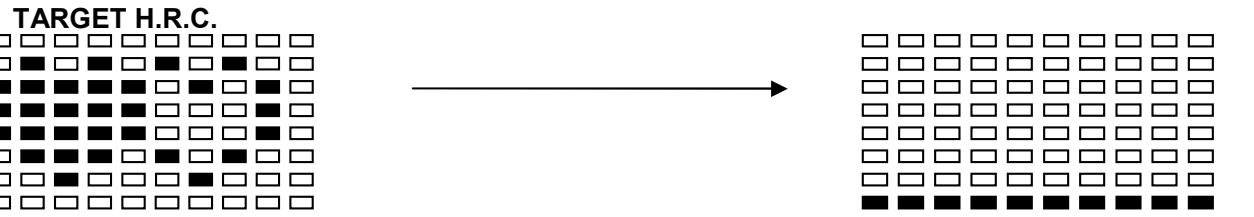

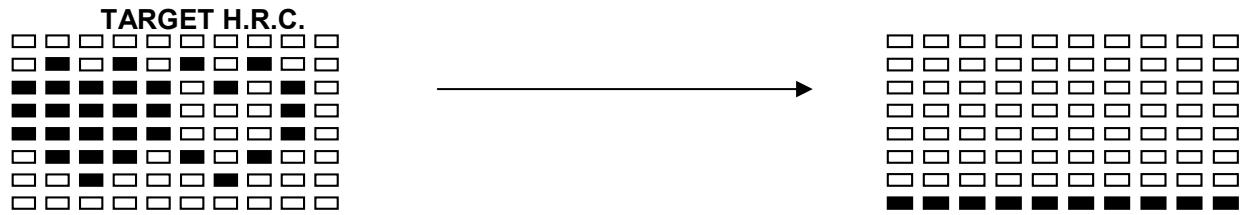

Programme 22: Target H.R.C. - - Entrainement à votre valeur de fréquence cardiaque ciblée.

C. connection bluetooth & application

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

The things you should know before exercise

A. Auto start and stop function

Pedaling exercise equipment, the monitor will start immediately. Stop pedaling after 4 seconds will go to stop mode. You can select program and set up the exercise target only in the stop mode.

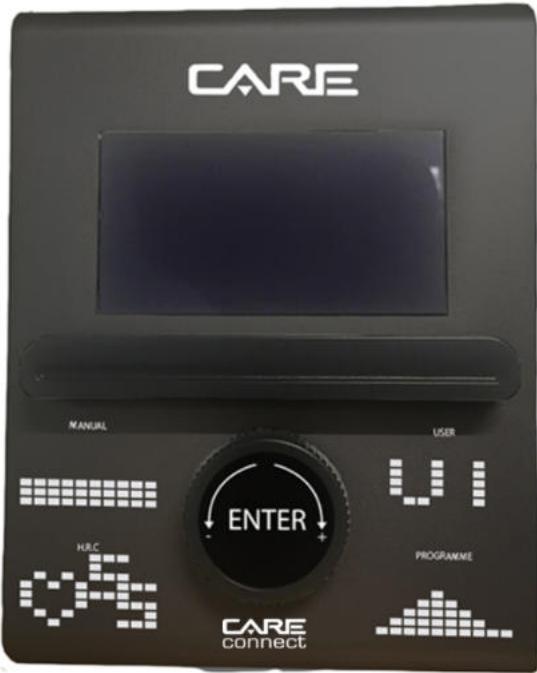

B. UP & DOWN function

  1. During the program setting mode, turn the button to increase ( clockwork side) or decrease ( reverse clock side) value.
  2. During the exercise mode, turn the button to increase or decrease the resistance level.
    C. Enter function

Press the button to confirm your program choosing or confirm your target value to do exercise. You can set up the exercise time, Distance and calorie but only can choose one of them to be your exercise target every time.
D. Reset monitor function

Press and hold button 3 seconds can reset the monitor.

E.Pulse Recovery function

Once reach your exercise target, the monitor will have Bi sound 5 seconds. Please move your hand to the heart rate sensor. After one minute you can get your result.

time starts counting from 01:00 - 00:59 -- to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0.

1.0 means OUTSTANDING

1.0<F<2.0 means EXCELLENT

2.0≤F≤2.9 means GOOD

3.0≤F≤3.9 means FAIR

4.0≤F≤5.9 means BELOW AVERAGE

6.0 means POOR

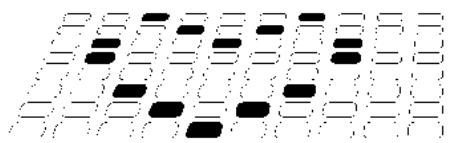

CARE FITNESS CV-385 - means OUTSTANDING - 1
Normal test picture

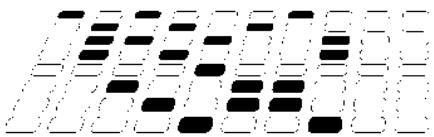

CARE FITNESS CV-385 - means OUTSTANDING - 2
No heart rate input picture

F. Target heart rate

You can set up your target heart rate value. Once reach your target, monitor will produce bi sound to remind you.

A. Program select and setting value

  1. Turn the button to select program mode and then press ENTER to confirm your exercise mode.
  2. At the Manual mode, turn the button to set up your exercise TIME, DISTANCE, CALORIES, PULSE. Press the button to confirm your target value.
  3. pedaling the machine to start exercise.
  4. When you reach the target, the computer will produce beep sounds and go to pulse recovery function.

B Wake-Up Function

The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Press the screen to start the monitor.

Functions and Features:

  1. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
  2. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.
  3. RPM: Your pedal cadence.
  4. WATT: The amount of mechanical power the computer is receiving from your exercise.
  5. SPEED: Displays your workout speed value in KM/MILE per hour.
  6. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.
  7. PULSE: Your computer displays your pulse rate in beats per minute during your workout.
  8. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.
  9. TARGET HEART RATE (TARGET PULSE): The heart rate you should maintain is called your Target Heart Rate in beats per minute.
  10. DISTANCE BAR: Every bar indicates 100 meter or 0.1 mile.

Program Introduction & Operation:

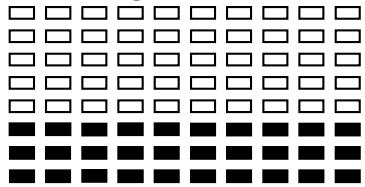

Manual Program: Manual

P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select the MANUAL (P1) program.
  2. Press the ENTER key to enter MANUAL program.
  3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.

  4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.

  5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  7. Pedaling the machine to begin exercise

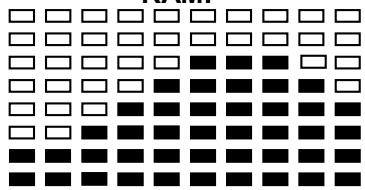

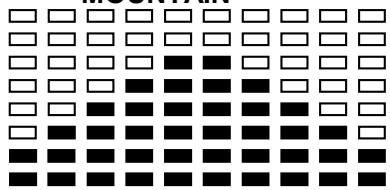

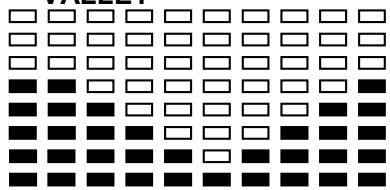

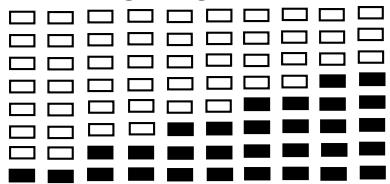

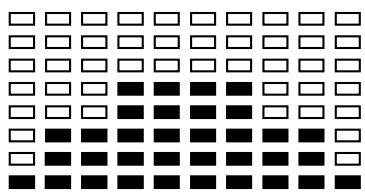

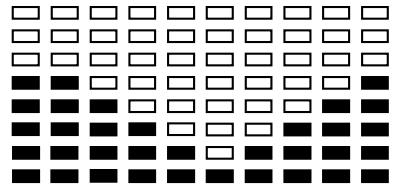

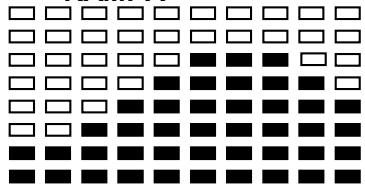

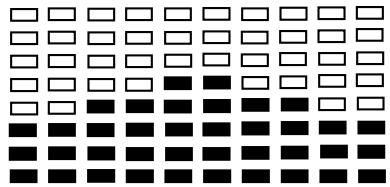

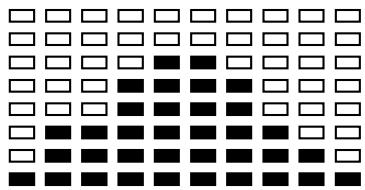

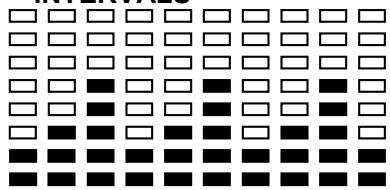

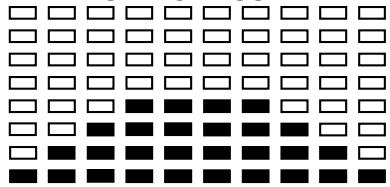

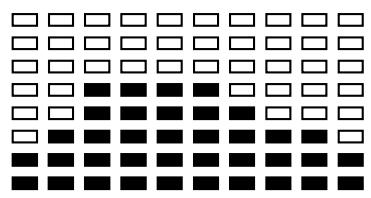

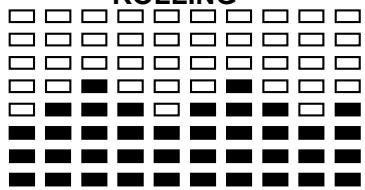

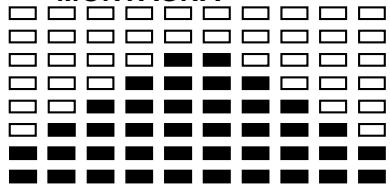

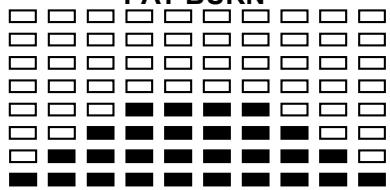

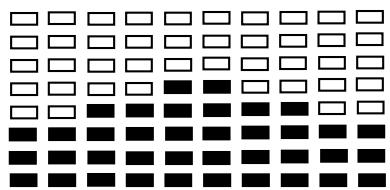

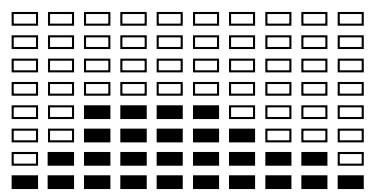

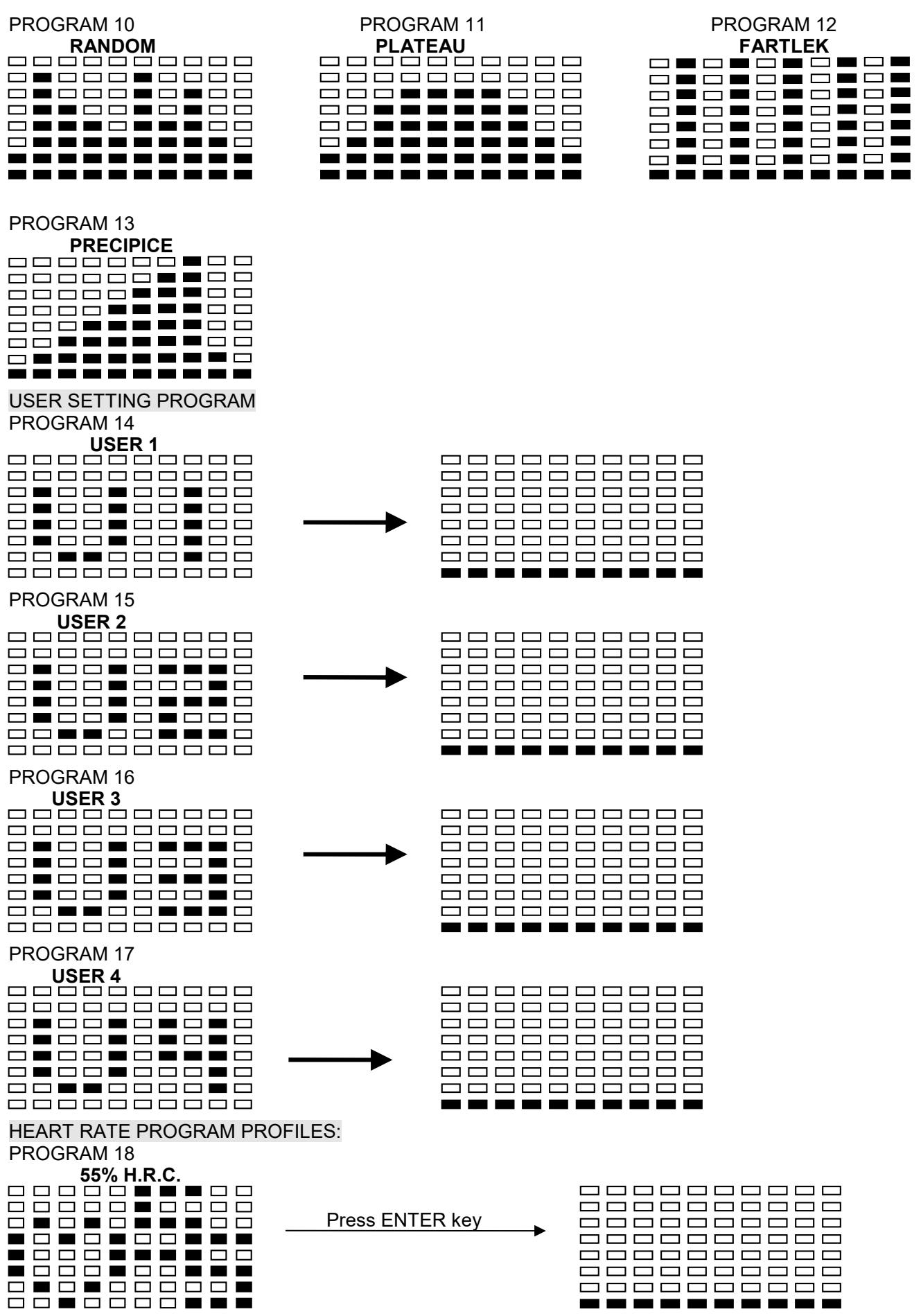

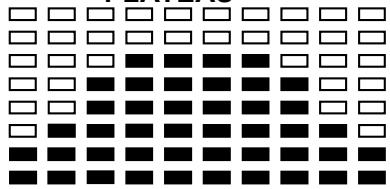

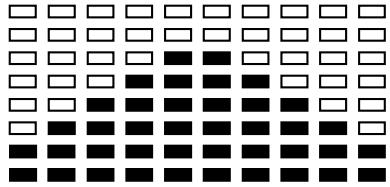

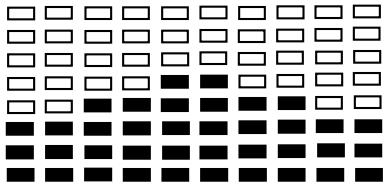

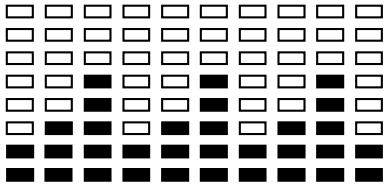

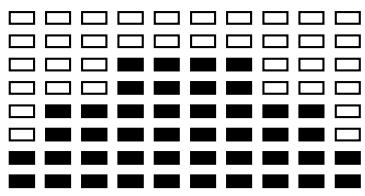

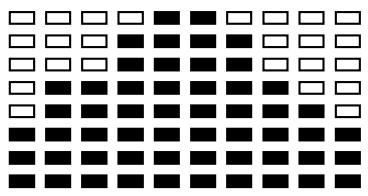

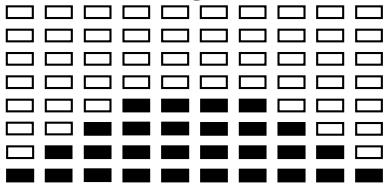

Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program

PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
  2. Press the ENTER key to enter your workout program.
  3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  7. Pedaling the machine to begin exercise

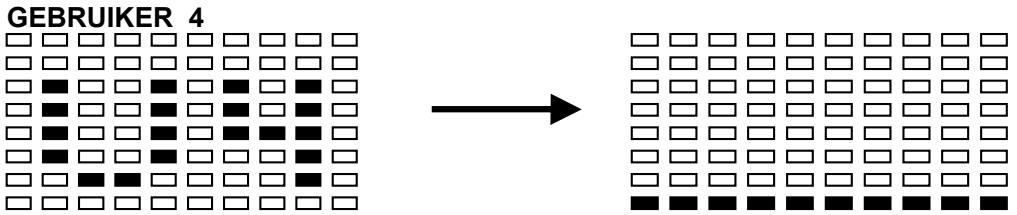

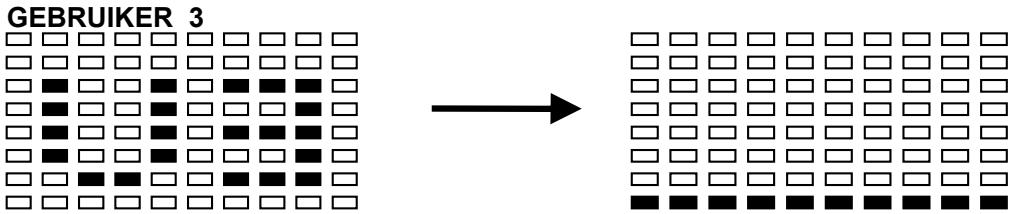

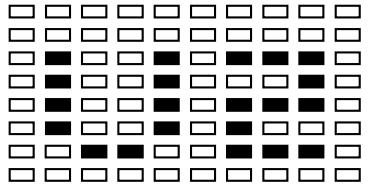

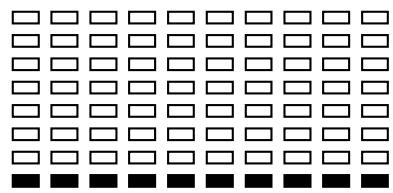

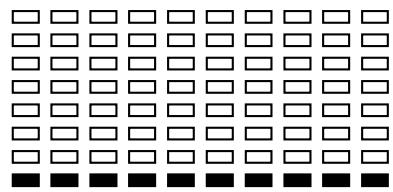

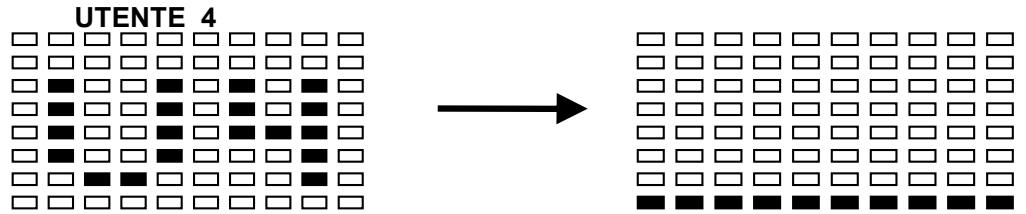

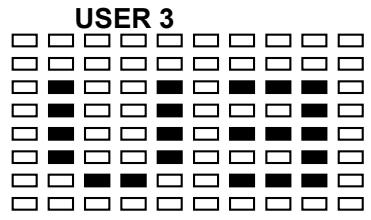

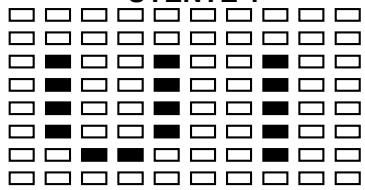

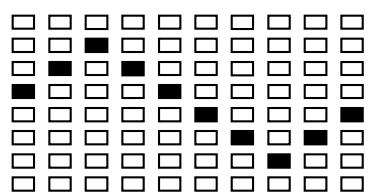

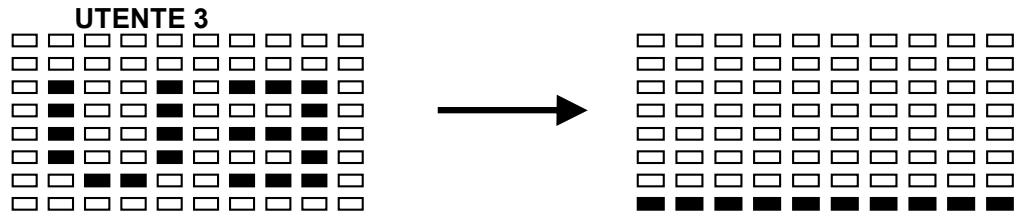

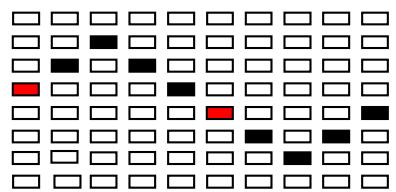

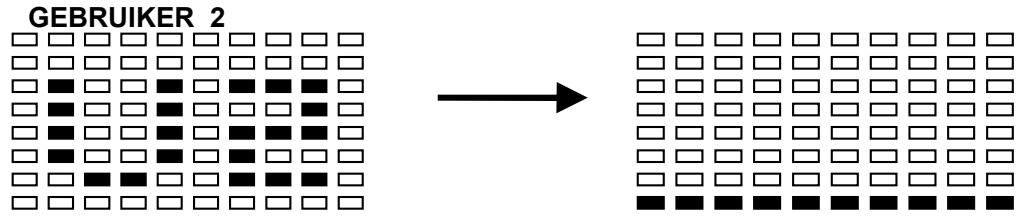

User Setting Program: User 1, User 2, User 3 and User 4

Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory.

Operations:

  1. Use UP/DOWN keys to select the USER program from P14 to P17.
  2. Press the ENTER key to enter your workout program.
  3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your first column of exercise profile. The default level is load 1.
  4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your second column of exercise profile.
  5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired exercise profile.
  6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
  7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  8. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  9. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  10. Pedaling the machine to begin exercise

Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program.

Program 18 is the 55% Max H.R.C. -- Target H.R. = (220 - AGE) x 55%

Program 19 is the 65% Max H.R.C. -- Target H.R. = (220 - AGE) x 65%

Program 20 is the 75% Max H.R.C. -- Target H.R. = (220 - AGE) x 75%

Program 21 is the 85% Max H.R.C. -- Target H.R. = (220 - AGE) x 85%

Program 22 is the Target H.R.C. - - Workout by your target heart rate value.

Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET H.R and then the computer will show "SLOW DOWN" on the message

window. Also the resistance level may decrease every 20 seconds while the heart rate detected is higher than the TARGET H.R and then the computer will show "HURRY UP" on the message window. As a result, the user's heart rate will be adjusted to close the TARGET H.R. between the range of TARGET H.R. +5 and TARGET H.R. -5 and then the computer will show "KEEP GOING" on the message window.

Operations:

  1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
  2. Press the ENTER key to enter your workout program
  3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE. The default age is 35.
  4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
  5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES. You only can set up the target one of them and the monitor will go to the target heart rate setting
  8. Pedaling the machine to begin exercise

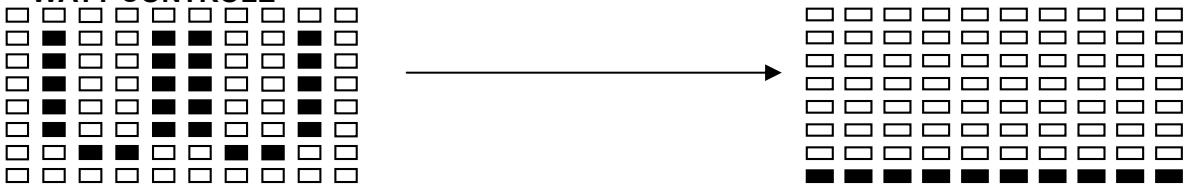

Watt Control Program: Watt Control

Program 23 is a Speed Independent Program. Press ENTER key to set up the values of TARGET WATT, TIME, DISTANCE and CALORIES. During the exercise mode, the level of resistance is not adjustable. For example, the level of resistance may increase while the speed is too slow. Also the level of resistance may decrease while the speed is too fast. As a result, the calculated value of WATT will close to the value of TARGET WATT setup by users.

Operations:

  1. Use UP or DOWN key to select the WATT CONTROL (P23) program.
  2. Press ENTER key to enter your workout program.
  3. The TIME will flash and you can press UP or DOWN key to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The WATT will flash and you can press UP or DOWN key to set your target WATT value. Press ENTER key to confirm your target WATT. The default WATT value is 100.
  6. The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  7. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.

8. Pedaling the machine to begin exercise

NOTE:

  1. WATT = TORQUE (KGM) * RPM * 1.03
  2. In this program, the WATT value will keep constant value. It means that if you peddle quickly, the resistance level will decrease and if you peddle slowly, the resistance level will increase. Always try to keep you in the same watt value.

Body Fat Program: Body Fat

Program 24 is a special program design to calculate users' body fat ratio and to offer a specific loading profile for users. There are 3 body types divided according to the FAT% calculated.

Type1: BODY FAT% > 27
Type2: 27 □ BODY FAT% □ 20
Type3: BODY FAT % < 20
The computer will show the test results of FAT PERCENT, BMI and BMR.

Operations:

  1. Use UP/DOWN keys to select the BODY FAT (P24) program.
  2. Press the ENTER key to enter your workout program.
  3. The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT. Press ENTER key to confirm your HEIGHT. The default HEIGHT is 170cm or 5'07" (5feet 7 inches).
  4. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER key to confirm your WEIGHT. The default WEIGHT is 70kgs or 155lbs.

  5. The GENDER will flash and you can press UP or DOWN keys to select your sex. Number 1 means man and number 0 means female. Press ENTER key to confirm your Gender. The default sex is 1 (MAN).

  6. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press ENTER key to confirm your AGE. The default AGE is 35.
  7. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure your hands are attached well on the grips or the chest belt is touch well on your body. Then press the START/STOP key again to begin body fat measurement.
  8. After finished your measurement, the computer will show the values of BMR, BMI and FAT PERCENT on the LCD display. Furthermore, the computer will show your own exercise profile for your body type.
  9. Pedaling the machine to begin exercise

Operation guide:

  1. Sleep Mode: The computer will enter the sleep mode when there is no signal input and no keys be pressed after 4 minutes. You can press any key to wake up the computer.

C. Bluetooth & application connection

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

And Followw the detailed instruction

Error Message:

E1 (ERROR 1):

Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1.

Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor's driver will be cut off immediately and show the E1 on the LCD display. All the other digital and function mark are blank, and the output signals are cut off also.

E2 (ERROR 2): When the monitor read the memory data, if the I.D. code is not correct or the memory IC damages then the monitor will show E2 immediately at power on.
E3 (ERROR 3): After 4 seconds by start mode, the computer detects the faulty motor did not leave the zero point then the LCD bar displays "E3".

LCD Workout Graphics

PRESET PROGRAM PROFILES:

PROGRAM 1

MANUAL

CARE FITNESS CV-385 - MANUAL - 1

PROGRAM 4

ROLLING

CARE FITNESS CV-385 - ROLLING - 1

PROGRAM 7

RAMP

CARE FITNESS CV-385 - RAMP - 1

PROGRAM 2

STEPS

CARE FITNESS CV-385 - STEPS - 1

PROGRAM 5

VALLEY

CARE FITNESS CV-385 - VALLEY - 1

PROGRAM 8

MOUNTAIN

CARE FITNESS CV-385 - MOUNTAIN - 1

PROGRAM 3

HILL

CARE FITNESS CV-385 - HILL - 1

PROGRAM 6

FAT BURN

CARE FITNESS CV-385 - FAT BURN - 1

PROGRAM 9

INTERVALS

CARE FITNESS CV-385 - INTERVALS - 1

CARE FITNESS CV-385 - INTERVALS - 2

CARE FITNESS CV-385 - INTERVALS - 3
One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT:

CARE FITNESS CV-385 - INTERVALS - 4
Exercise Time: 40 minutes

CARE FITNESS CV-385 - INTERVALS - 5
Exercise Time: 40 minutes

CARE FITNESS CV-385 - INTERVALS - 6
Workout time: 20 minutes

CARE FITNESS CV-385 - INTERVALS - 7
Workout Time: 40 minutes

CARE FITNESS CV-385 - INTERVALS - 8
Exercise Time: 40 minutes

CARE FITNESS CV-385 - INTERVALS - 9
Exercise time: 20 minutes

Cardio - Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

Cardio - Training:

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to eliminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system. The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

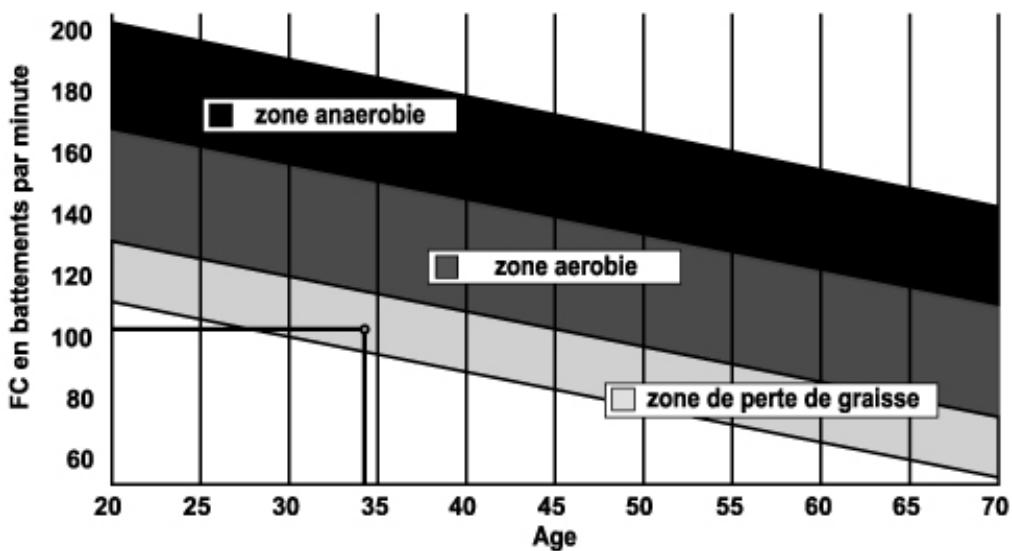

Make a diagram of the target zones

CARE FITNESS CV-385 - Make a diagram of the target zones - 1

The progressive training stages:

1) A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 - 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR.

Gradually increase from 30 to 60 minutes per session.
Exercise 3 or 4 times a week.

The Aerobic Zone, 65 - 85%

This zone is recommended for those who are in good physical condition who train regularly. By training in this zone, you will improve your physical condition but avoid overworking.

Duration: 20 to 30 minutes per session.
- Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina. The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints are still warm. This relaxes the muscles and helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

All defective materials or parts can only be exchanged once we have received them. Shipping is at the sender's expense. No returns of goods will be accepted without our prior approval.

To order spare parts

To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:

The name or reference of the product.

The manufacturing number shown on the main chassis and on the packing box.

The number of the missing or faulty part shown on the exploded view of the product described in this manual.

CARE FITNESS CV-385 - To order spare parts - 1

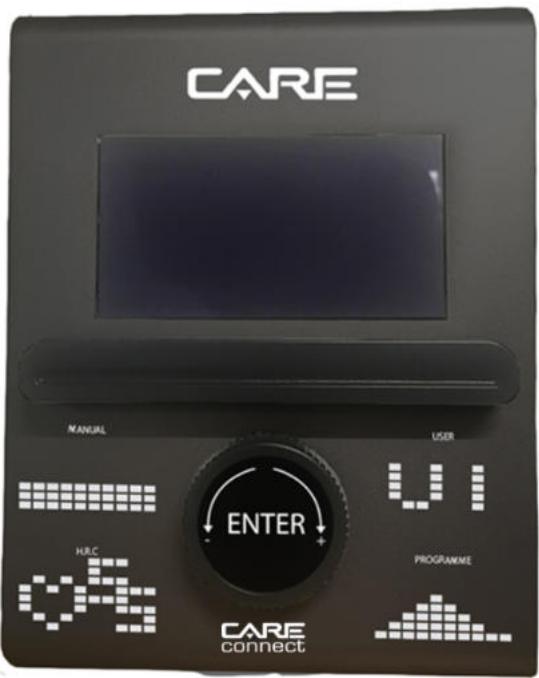

CARE FITNESS CV-385 - To order spare parts - 2

Vor Trainingsbeginn zu beachten

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CV-385 - To order spare parts - 3
MOUNTAIN
PROGRAMM 11

CARE FITNESS CV-385 - To order spare parts - 4
PLATEAU

CARE FITNESS CV-385 - To order spare parts - 5
PROGRAMM 3
HILL
PROGRAMM 6

CARE FITNESS CV-385 - To order spare parts - 6
FAT BURN
PROGRAMM 9

CARE FITNESS CV-385 - To order spare parts - 7
INTERVALS
PROGRAMM 12

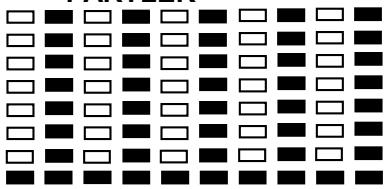

CARE FITNESS CV-385 - To order spare parts - 8
FARTLEK

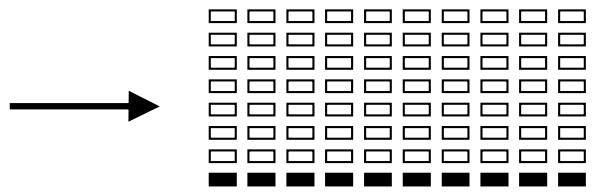

CARE FITNESS CV-385 - To order spare parts - 9

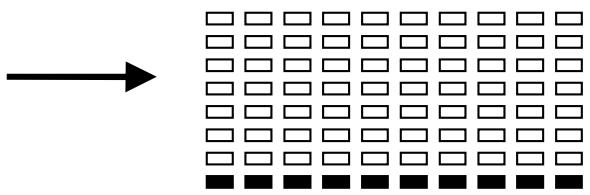

CARE FITNESS CV-385 - To order spare parts - 10

CARE FITNESS CV-385 - To order spare parts - 11
PROGRAMM 16
PROGRAMM17

E mail: service-de@carefitness.com

CARE FITNESS CV-385 - To order spare parts - 12

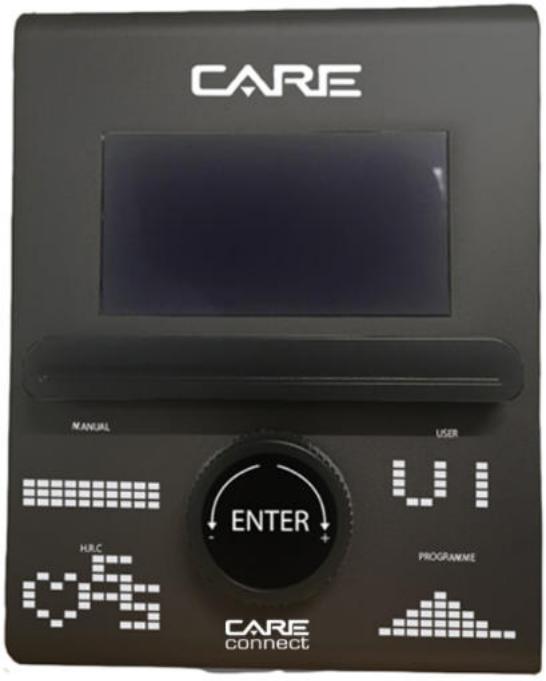

CARE FITNESS CV-385 - To order spare parts - 13

Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C.

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - ETA') x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - ETA') x 65%

Programma 20: 75% Max H.R.C. - - Target H.R. = (220 - ETA') x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - ETA') x 85%

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 1
PROGRAMMA 1
MANUALE
PROGRAMMA 4

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 2
ROTOLARE
PROGRAMMA 7

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 3
RAMPA
PROGRAMMA 10

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 4
RANDOM
PROGRAMMA 13

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 5
PRECIPIZIO

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 6
PROGRAMMA 2
PASSI
PROGRAMMA 5

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 7
VALLATA
PROGRAMMA 8

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 8
MONTAGNA
PROGRAMMA 11

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 9
ALTOPIANO

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 10
PROGRAMMA 3
COLLINA
PROGRAMMA 6

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 11
BRUCIAGRASSI
PROGRAMMA 9

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 12
INTERVALLO
PROGRAMMA 12

CARE FITNESS CV-385 - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 13
FARTLEK

PROGRAMMA DA IMPOSTARE DALL'UTENTE

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 1
PROGRAMMA 14
UTENTE 1
PROGRAMMA 15

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 2
UTENTE 2

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 3

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 4

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 5

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 6

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 7
PROGRAMMA 16

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 8
PROGRAMMA 17
PROFILI DELLA FREQUENZA CARDIACA (H.C.R)

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 9
PROGRAMMA 18

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 10
PROGRAMMA 20

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 11
PROGRAMMA 21

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 12
PROGRAMMA 22

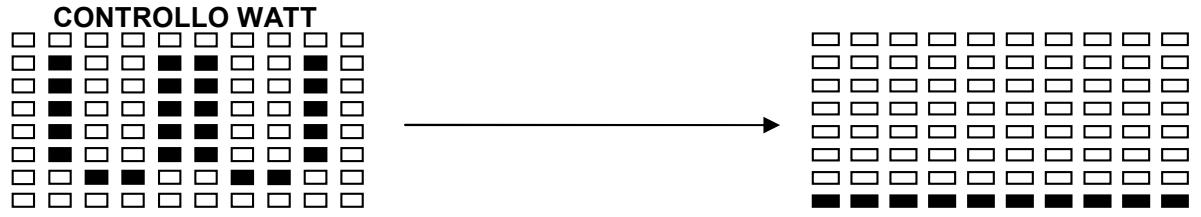

PROGRAMMA PER IL CONTROLLO DEI WATT

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 13
PROGRAMMA 23

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 14
PROGRAMMI PER IL TEST DEL GRASSO CORPOREO
PROGRAMMA 24
GRASSO CORPOREO (MODALITA' STOP)
GRASSO CORPOREO (MODALITA' START)

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 15

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 16

E mail: service-it@carefitness.com

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 17

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 18

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 85%

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 19
PROGRAMMA 15
PROGRAMMA 16

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 20

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 21
PROGRAMMA 17

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 22
HARTSLAG PROFIELEN:

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 23
PROGRAMMA 19

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 24
PROGRAMMA 20

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 25
PROGRAMMA 21

CARE FITNESS CV-385 - PROGRAMMA DA IMPOSTARE DALL'UTENTE - 26
PROGRAMMA 22

WATT CONTROLE PROGRAMMA

PROGRAMMA 23

CARE FITNESS CV-385 - PROGRAMMA 23 - 1
WATT CONTROL

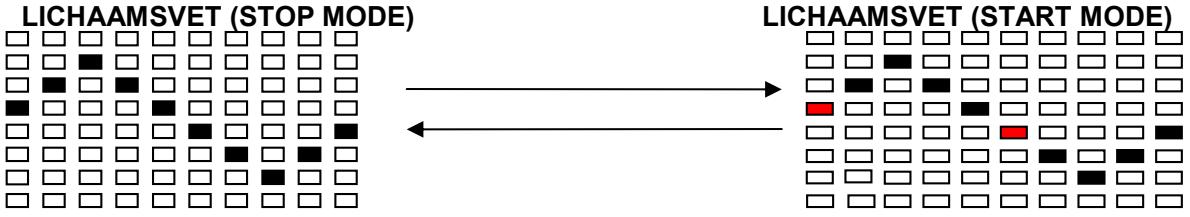

LICHAAMSVET TEST PROGRAMMA'S:

CARE FITNESS CV-385 - LICHAAMSVET TEST PROGRAMMA'S: - 1
PROGRAMMA 24

De harttraining (cardiotraining):

Dagelijke training = circa 10 minutes per keer.

2 tot 3 trainingen per week = circa 30 minutes per keer.

1 tot 2 trainingen per week = circa 50 minutes per keer.

  • Het的那一头的训练班。

E-mail: service-nl@carefitness.com

CARE

FITNESS

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CARE FITNESS

Model : CV-385

Category : Exercise bike
