USER MANUAL 24km/h - CARE - ZEPHYR CARE FITNESS

Previous song/VolumeEnter

Next song/Volume+ Clear

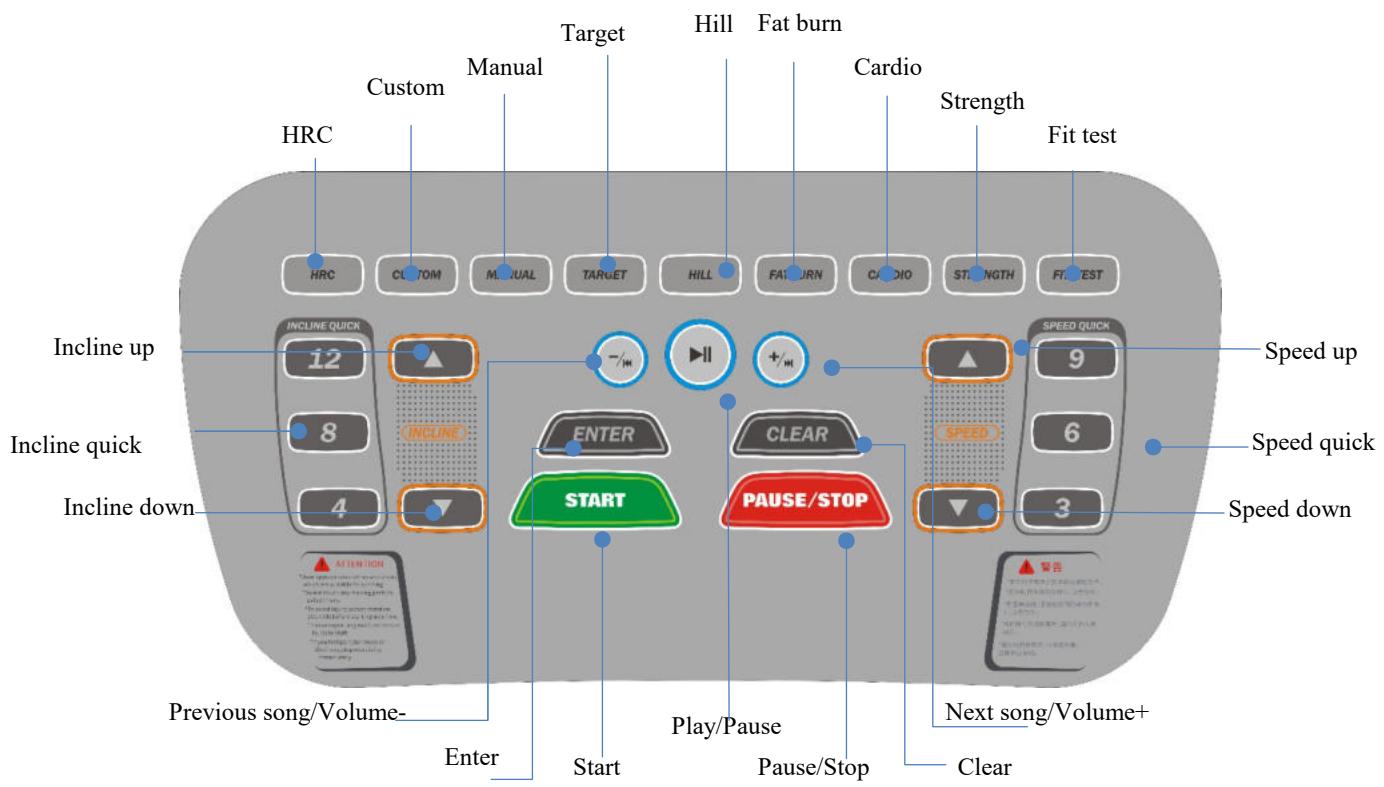

GB Controlling panel instruction 1 Physical silicon button controlling panel Target

Previous song/Volume-

START After power on, press “START”,the treadmill starts running.

PAUSE/STOP Press this button when running, the treadmill will puase, and press again to stop. After the pause, press the start button and the treadmill will return to the running state before the pause.

ENTER CLEAR Press this key to confirm the setting. Press this key to clear the setting.

It is a safety device to prevent slipping or force shutdown in case of emergency. When using the treadmill, you need to insert the safety key Emergency stop button inward (after inserting, the emergency stop button will / Safety key automatically reset and spring up). Press the emergency stop button or pull out the side of the safety key to stop the treadmill. When the treadmill running, press them to adjust the speed, Speed adjustment long press leads to quickly adjustment; you can also press this key to increase or reduce value in the direct exercise program.

Quick speed Incline adjustment Quick incline

Build-in 3-6-9 three speed shortcut keys. (It is effective when the treadmill running) When the treadmill running, press them to adjust the incline, long press leads to quickly adjustment; you can also press this key to increase or reduce value in the direct exercise program. Build-in 4-8-12 three incline shortcut keys. (It is effective when the treadmill running)

Audio play Previous song/VolumePlay/Pause Next song/Volume+

Short press will back to previous song, long press to volume down. Press once to play, press again to pause. Short press will go to next song, long press to volume up.

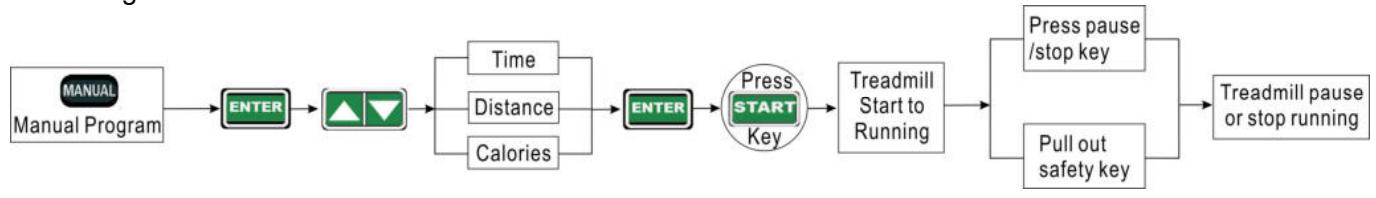

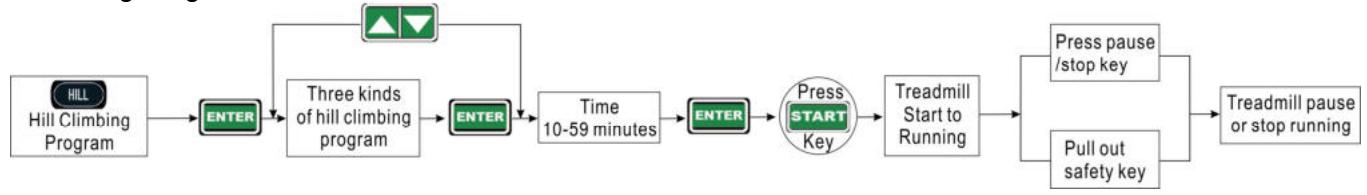

P1-P9 : 9 kinds of intelligent exercise program direct selection P1: Heart rate control program P2: Custom program P3: Manual program P4: Target program P5: Hill program

HRC1-HRC3 Users can customize each section of speed in the program inside each section of speed, and choose according to your own conditions, the setting can be saved even power off. This program can be set for time/distance/calorie, only one mode can be set at a time. There are six levels P4-1---P4-6 Six kinds of different incline hill program. It can be strengthen upper and lower limb joint and muscle training. P5-1---P5-6

P6: Fat burn program

There are six levels, P6-1---P6-6

There are six levels, P7-1---P7-6

P8: Strength program

There are six levels, P8-1---P8-6

In standby mode, it will countdown 30 seconds for Body Mess Index Test: fat percentage (Calorie window display); Basal metabolism rate (Distance window display); BMI (Speed window display) .

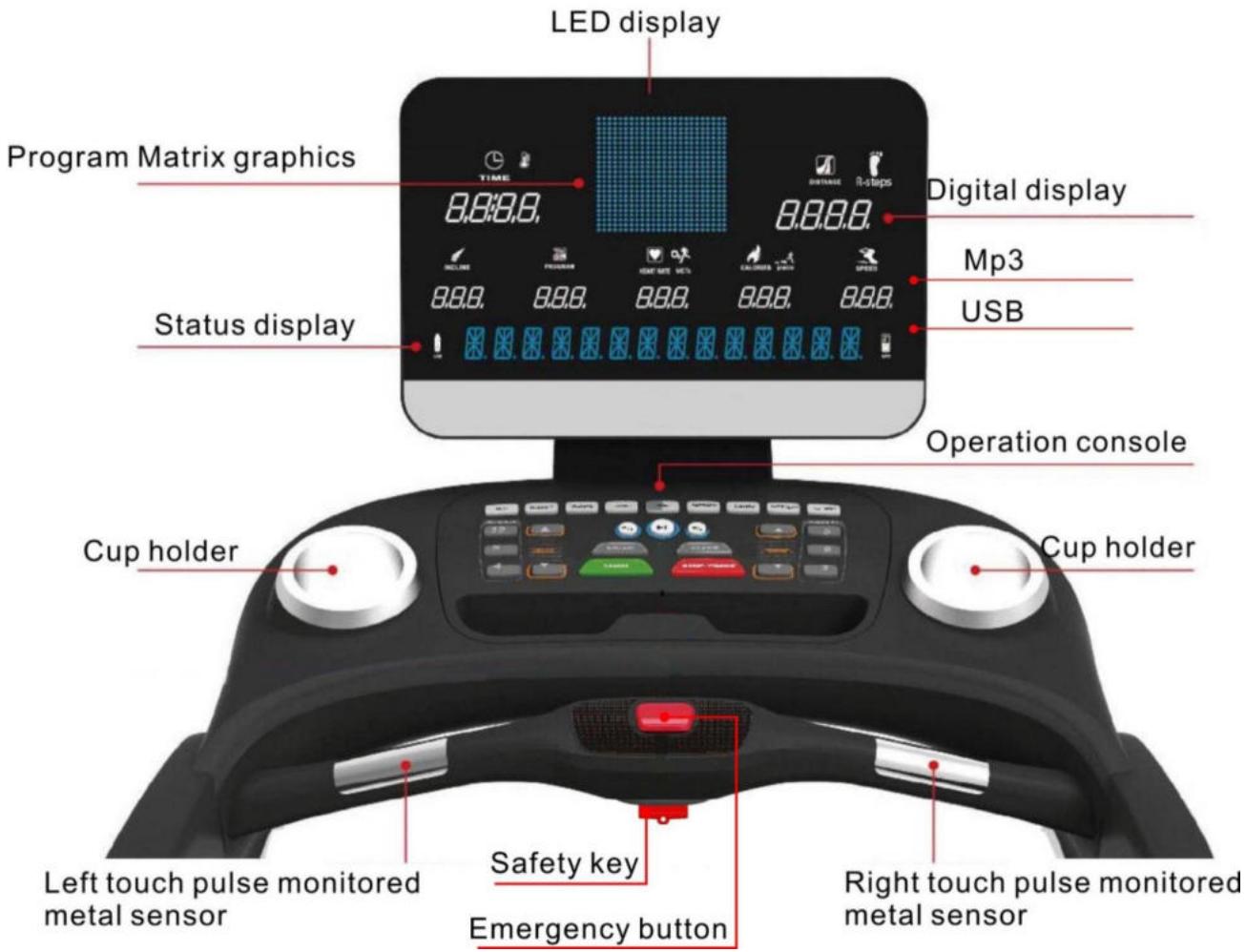

3.Display and controlling panel 3.1 Illustration

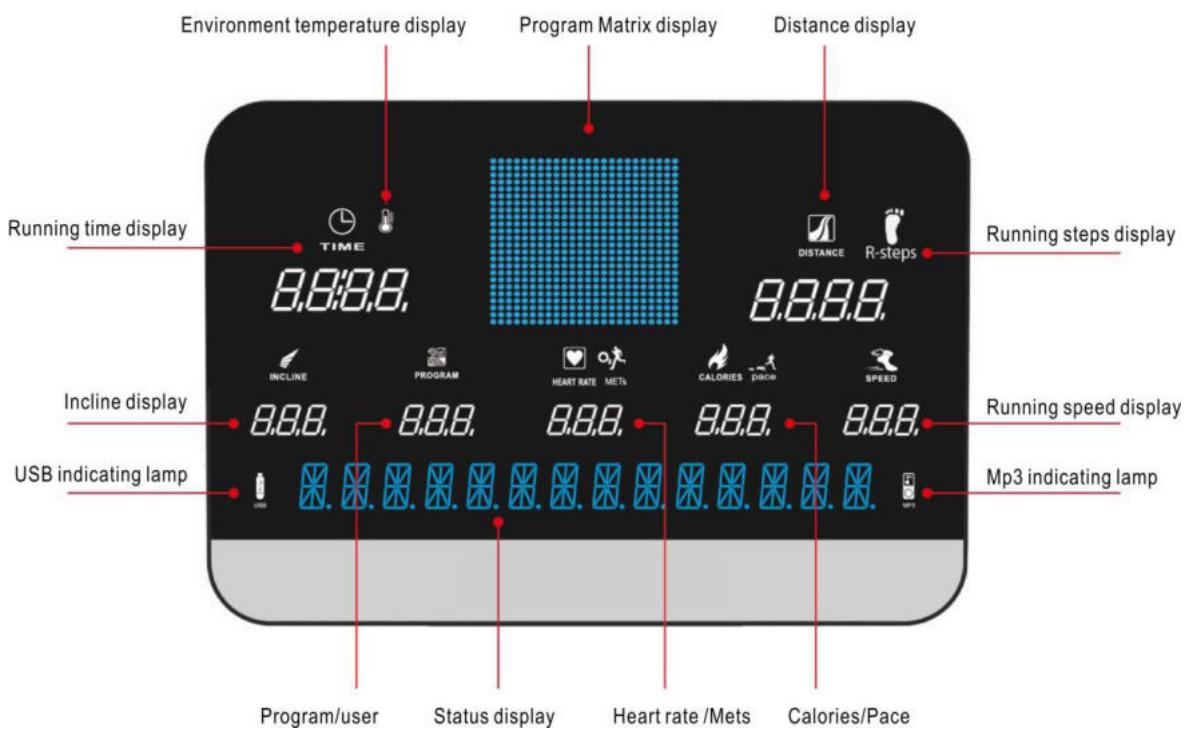

3.2 Display function

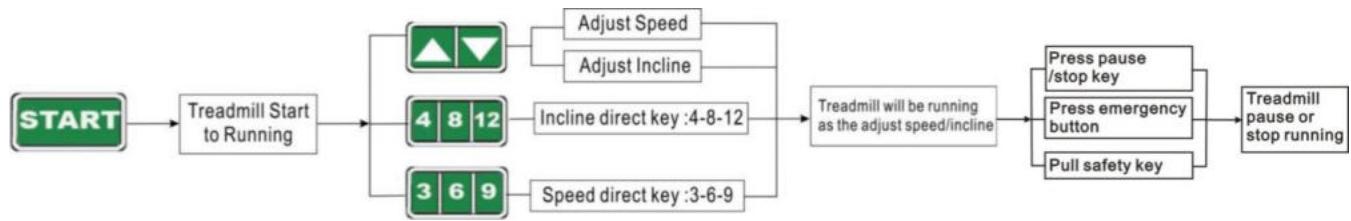

4. Operating instruction 4.1Treadmill operating instruction 4.1.1Standby mode operation Put the special power wire insert to treadmill socket, another end of power wire is connected to the environment working voltage (the environment working voltage must be in conformity with requirements of the treadmill). Connect the power, the treadmill enters to standby mode, Distance window shows preset program ,other windows show initial value “0”. 4.1.2 Start treadmill operation In standby mode, press START key, treadmill start to running, each window shows current exercise data accordingly. Matrix window displays dynamic runway and number of lap, each lap is 400 meters. At the same time, you can select speed or incline key to adjust speed or incline as you like, press stop key to pause or stop running.

4.1.3 Exercise program operating instruction The treadmill is equipped with 9 kinds of intelligent exercise program wiht different level of internsity. Exerciser can choose a appropriate exercise program according to his age, gender, weight and other parameters as well as exercise purpose. When use intelligent program, you need to use setting key to confirm; press Clear key

to proceed relevant setting, press Enter key

to modify the setting; Press P1-P9 direct key

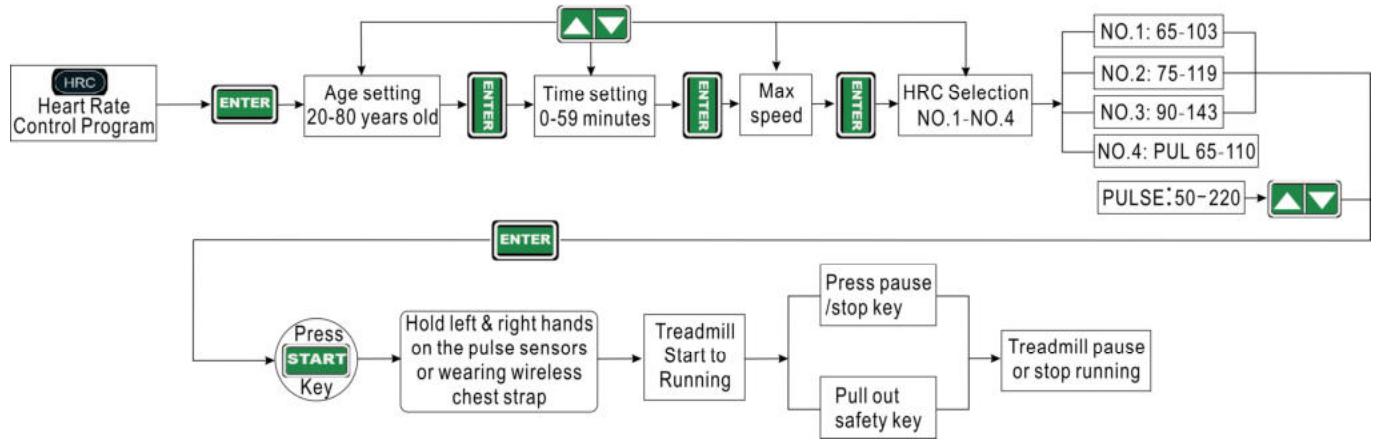

intelligent program as you like, press Stop/Pause key program. 4.1.4 Intelligent Exercise program operation schematic diagram P1: Heart Rate Control Program

to exit when selected, then you can select another

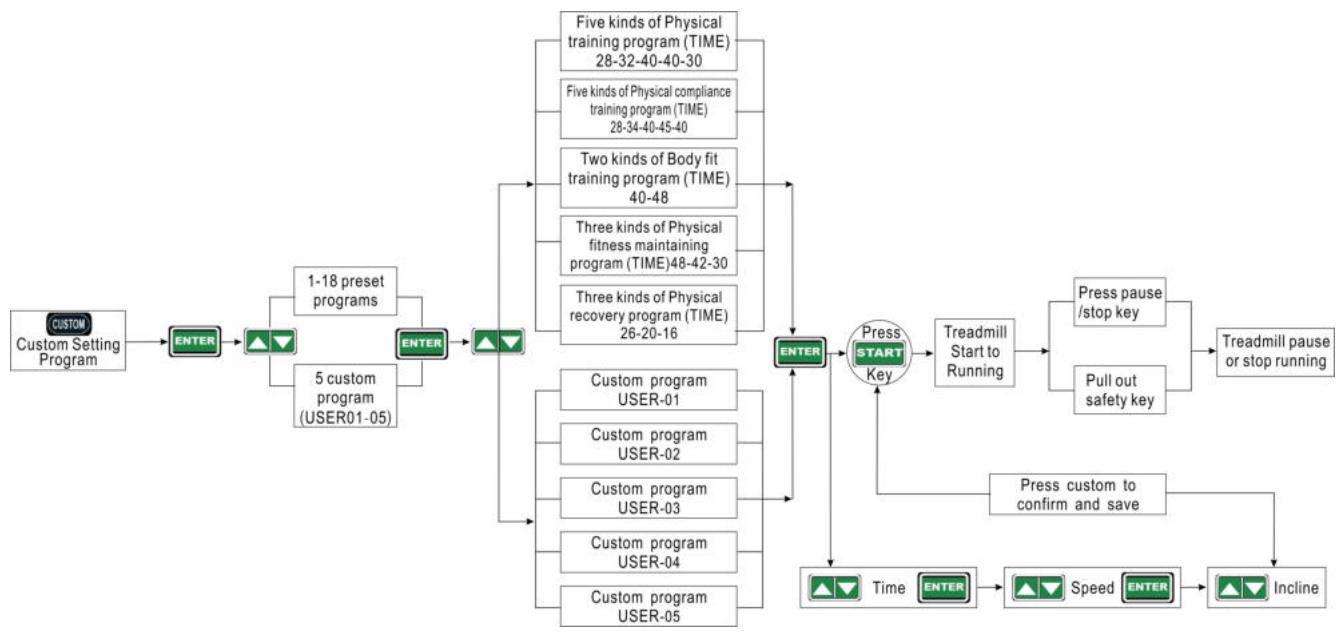

P2: Custom and preset program

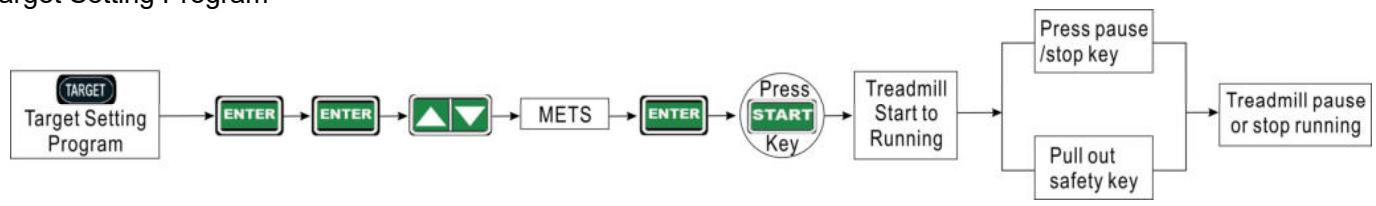

P4: Target Setting Program

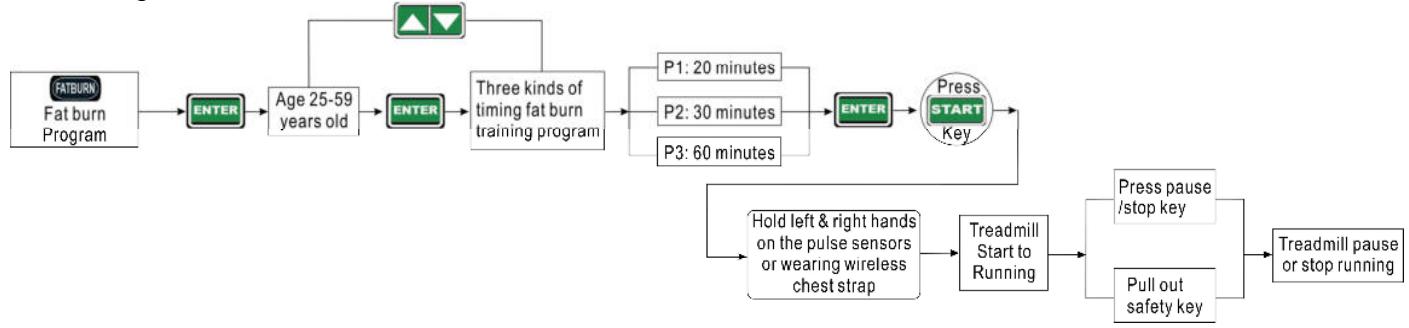

P6: Fat burn Program

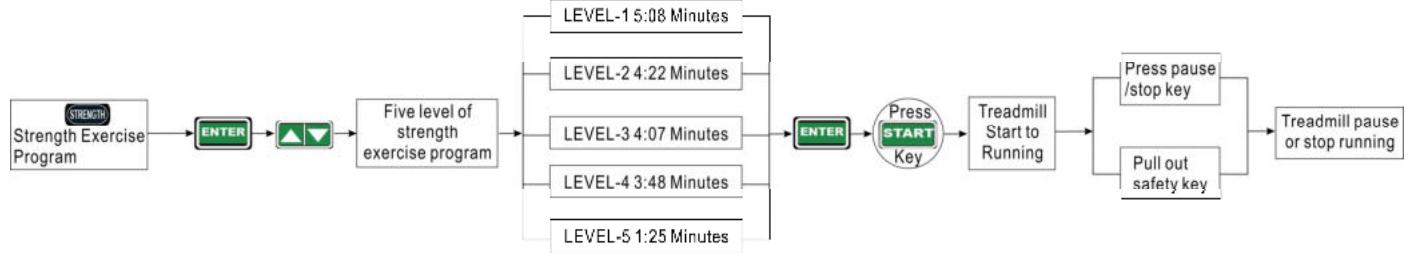

P8: Strength Exercise Program

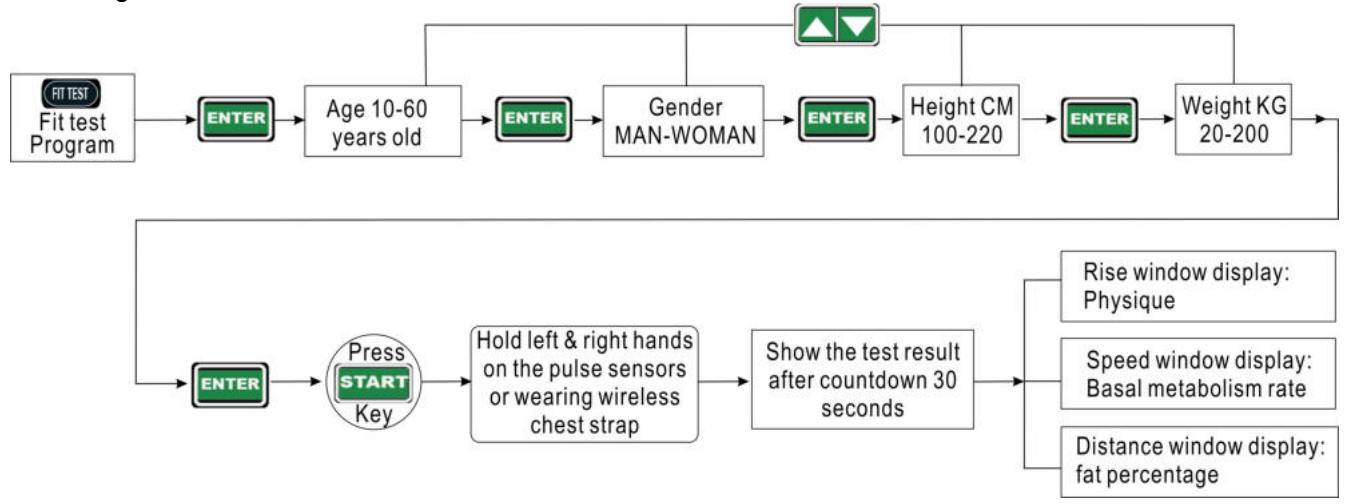

P9: Fit test Program

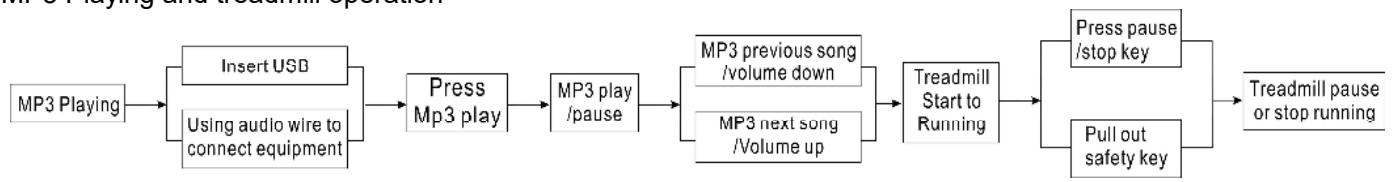

4.1.5 MP3 Playing and treadmill operation

Warm tip: When you use P1 Heart Rate Control Program/ P6 Fat burn Program or P7 Cardio Program, do not play MP3 at the same time to avoid audio signal interfere wireless heart rate, and must be wearing special HRC wireless heart rate chest belt. (If have) 4.1.6 Program Matrix graphics and body mass index reference table Custom program graphics

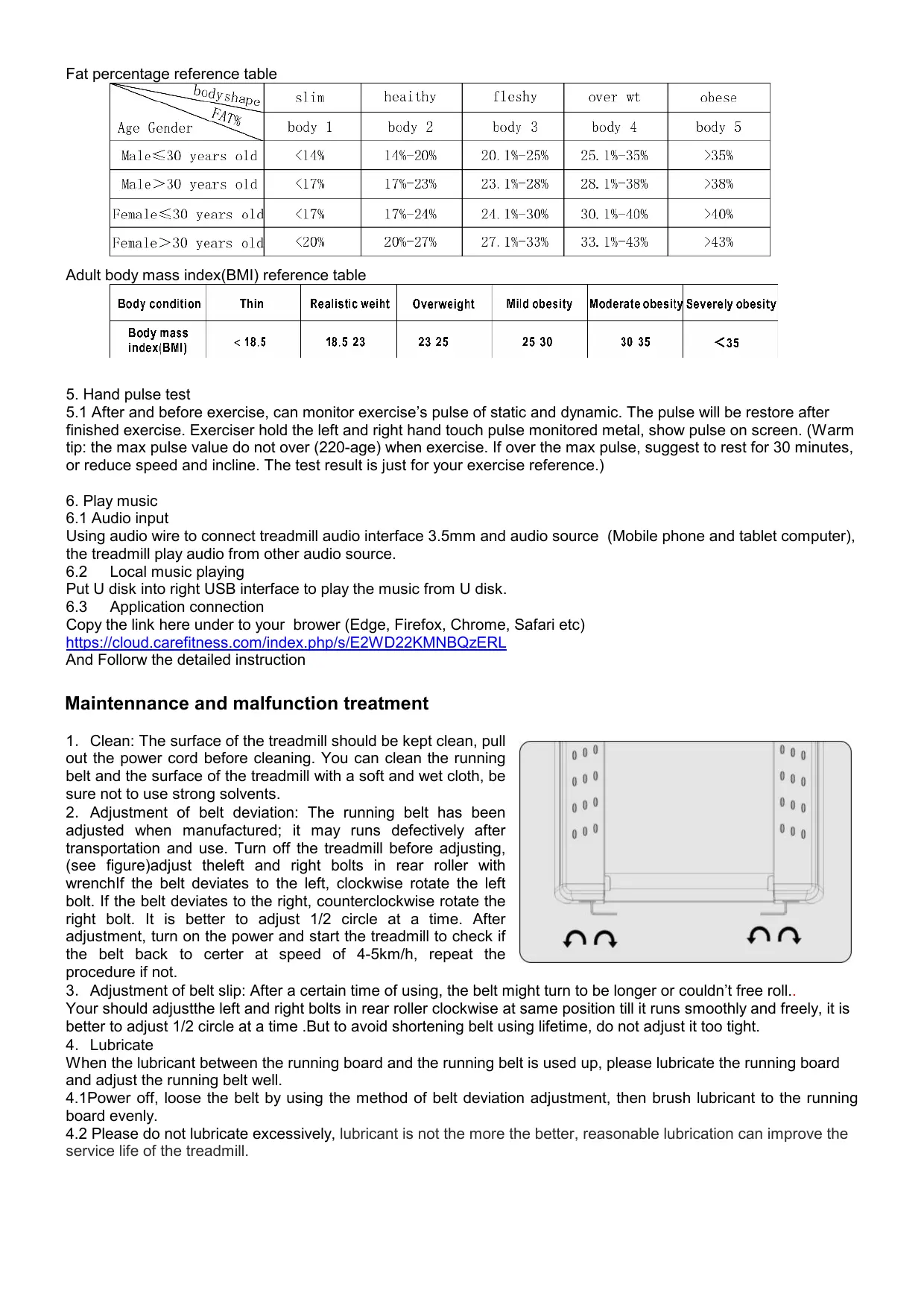

Fat percentage reference table

Adult body mass index(BMI) reference table

5. Hand pulse test 5.1 After and before exercise, can monitor exercise’s pulse of static and dynamic. The pulse will be restore after finished exercise. Exerciser hold the left and right hand touch pulse monitored metal, show pulse on screen. (Warm tip: the max pulse value do not over (220-age) when exercise. If over the max pulse, suggest to rest for 30 minutes, or reduce speed and incline. The test result is just for your exercise reference.) 6. Play music 6.1 Audio input Using audio wire to connect treadmill audio interface 3.5mm and audio source (Mobile phone and tablet computer), the treadmill play audio from other audio source. 6.2 Local music playing Put U disk into right USB interface to play the music from U disk. 6.3 Application connection Copy the link here under to your brower (Edge, Firefox, Chrome, Safari etc) https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL And Follorw the detailed instruction

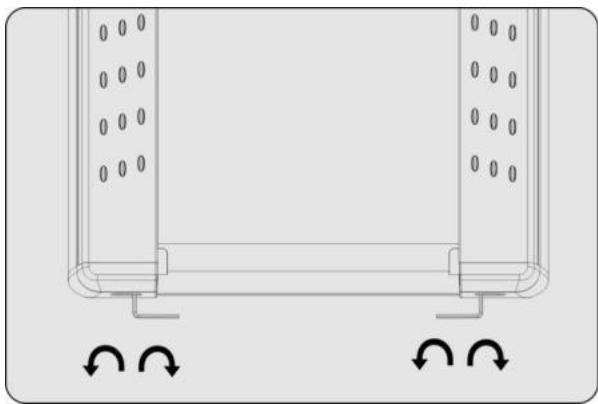

Maintennance and malfunction treatment 1．Clean: The surface of the treadmill should be kept clean, pull out the power cord before cleaning. You can clean the running belt and the surface of the treadmill with a soft and wet cloth, be sure not to use strong solvents. 2．Adjustment of belt deviation: The running belt has been adjusted when manufactured; it may runs defectively after transportation and use. Turn off the treadmill before adjusting, (see figure)adjust theleft and right bolts in rear roller with wrenchIf the belt deviates to the left, clockwise rotate the left bolt. If the belt deviates to the right, counterclockwise rotate the right bolt. It is better to adjust 1/2 circle at a time. After adjustment, turn on the power and start the treadmill to check if the belt back to certer at speed of 4-5km/h, repeat the procedure if not. 3．Adjustment of belt slip: After a certain time of using, the belt might turn to be longer or couldn’t free roll.. Your should adjustthe left and right bolts in rear roller clockwise at same position till it runs smoothly and freely, it is better to adjust 1/2 circle at a time .But to avoid shortening belt using lifetime, do not adjust it too tight. 4．Lubricate When the lubricant between the running board and the running belt is used up, please lubricate the running board and adjust the running belt well. 4.1Power off, loose the belt by using the method of belt deviation adjustment, then brush lubricant to the running board evenly. 4.2 Please do not lubricate excessively, lubricant is not the more the better, reasonable lubrication can improve the service life of the treadmill.

Maintenance prompt function The treadmill have been Pre-lubricated before leave factory, it is not necessary to add lubricant oil when the treadmill running first time. In order to keep the treadmill operating at its best condition, the treadmill is equipped with oil adding reminding. When the treadmill running to 9000KM, LED will show “LUBRICATE”, it means need to add oil to the treadmill. After the first time oiling, the next reminding will display every 1000KM. Press “ENTER” to add oil and exit the reminding. Press “CLEAR” key to ignore lubricate temporarily, LED will show ”LUBRICATE” after 50KMS. The LED will show “REPLACE BELT” when the treadmill running every 25000KM totally, press “ENTER” to replace belt and exit the reminding, Press ”CLEAR” to ignore replace belt temporarily, LED will show “REPLACE BELT” after 50KMS Shown as below:

Oil adding reminding

replaces belt reminding

Mulfunction and treatment Error code

Treatment countermeasures

01H Abnormal in temperature sensor

1. Power off for 1 minute then on, and start 2. Check whether the NTC plug connection on the converter is loose 3. If not, please contact customer service for support

1. Power off for 5 minute then on, and start 2. Check whether the load is overweight 3. Check whether the running belt needs lubricant, or the belt is seriously worn, or the transmission mechanism (eg.roller) is abnormal 4. If not, please contact customer service for support

1. Check whether the power supply voltage is normal 2. Power off for 1 minute then on, and start 3. If not, please contact customer service for support

1.The possible cause is that the current exceeds the rated load, the system of self-protection activates, restart the treadmill 2.A part of the treadmill is stuck, resulting in the motor can not rotate, the load is too heavy, the current is too large, the system of self-protection activates, adjust the treadmill to restart operation or add the lubricating oil 3. Check whether there is a flow sound or burning odor when the motor is running, replace the motor 4. Replace the controller 1.Check whether the input voltage is normal 2.Check whether the connector of the power socket plug is loose

18H U fault in current sensor

1. Check whether the converter connector is loose 2.If not, please contact customer service for support

40H Incline system failure

88H W fault in current sensor

1.Check whether the power cord between incline motor and converter is loose or detached off 2.Check whether the signal cable between incline motor and converter is loose or detached off 3.Check whether the upper and down cables are well connected 4.Check whether the incline motor is damaged 5.Check whether the converter is damaged 1. Improve enviromental ventilation and clean the heat sink of converter 2.Return to the factory to replace the converter cooling fan（The fan starts when the converter reaches 50 degrees） 3. If not, please contact customer service for support 1. Check whether the converter connector is loose 2.If not, please contact customer service for support

To order spare parts To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service: The name or reference of the product. The manufacturing number shown on the main chassis and on the packing box. The number of the missing or faulty part shown on the exploded view of the product described in this manual. After Sales Service

Email: service-uk@carefitness.com
