USER MANUAL 14km/h - CARE - CT-960 - KINOMAP CARE FITNESS

Important: Read these instructions before using the equipment!

Safety

• Read this user manual and keep it in a safe place. Use this product exclusively in the manner indicated.
• This equipment must be assembled and used by adults.
• The equipment complies with the EN-957 standard, classification HB for use in the home. It must not be used in a sports center or any other public, associative or rented space.
• For totally safe use, a stable, level surface is required. Protect your floor covering with a mat. Do not use the equipment in damp areas (swimming pool, sauna, etc.).
• Do not allow children to play with this equipment. CARE declines all responsibility for any injuries they may incur. Do not allow children close to this equipment when you are training.
• CARE declines all responsibility if technical modifications are made to any of its products by the user.
  Maximum weight of user: 100kg
• Before you start training, it is essential that you consult your doctor to determine the intensity level of the program you use.
• Excessive or badly programmed training can damage your health.
• Keep your back straight when exercising.
• It is strongly recommended that your wear suitable clothing and footwear.
• For adjustable parts, bear the maximum positions in mind.

Maintenance

• Regularly check that elements fastened with nuts and bolts are correctly tightened.
• To maintain the level of safety, the equipment must be regularly checked. It is vital that any faulty parts are replaced and that it is not used until completely repaired. Remember regularly to grease moving parts.
• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after training. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products should be avoided.

Guarantee: the chassis is guaranteed for 5 years. Moving parts are guaranteed for 2 years. The guarantee applies to normal use by a private individual in his home. Validate your product warranty on line www.carefitness.com

Recycling : The « crossed out dustbin » sign means that this product and its batteries cannot be thrown out whit domestic waste. They should be treated apart. When you have finished with them, drop them at an authorised collection point so they can be recycled. This gesture will go towards protecting the environment and your health.

Garantie ammelden www.carefitness.com

When you open the carton, you will find the below spare parts.

Installation tools:

20.L shape 5#Wrench	55.Silicon oil	75.screw M6*12 4PCS
96.power line	103.MP3 line	114.handrail 2PCS
128.safety key

Install :

First Step:

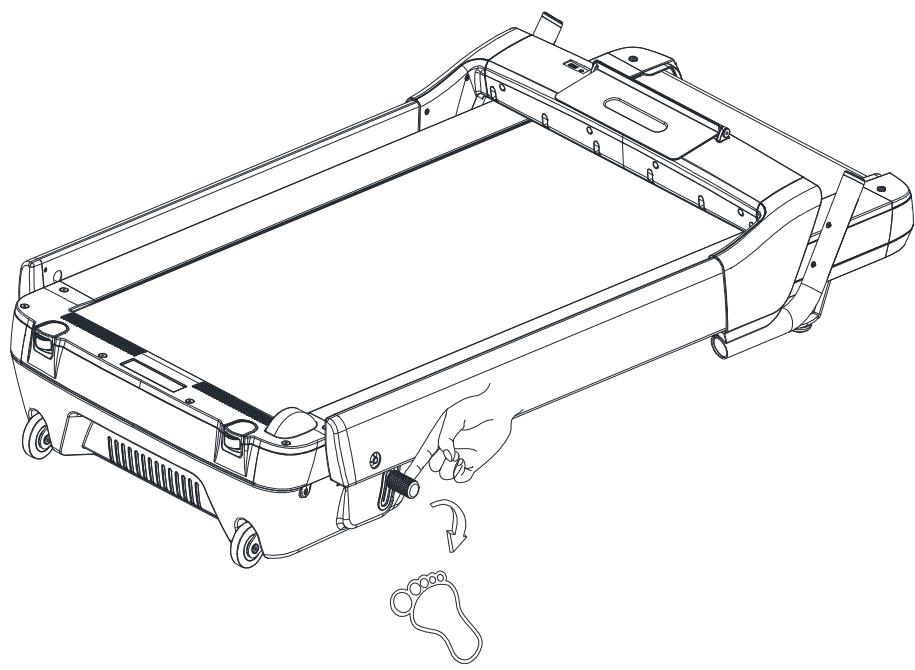

Hold the upright with right or left hand. Press the foot lever with foot or hand, until you hear a sound of "ka", then left the uprights till you hear the sound of "ka". Lightly shake the uprights, loosen hands after confirmation that the uprights are locked tightly.

Second Step:

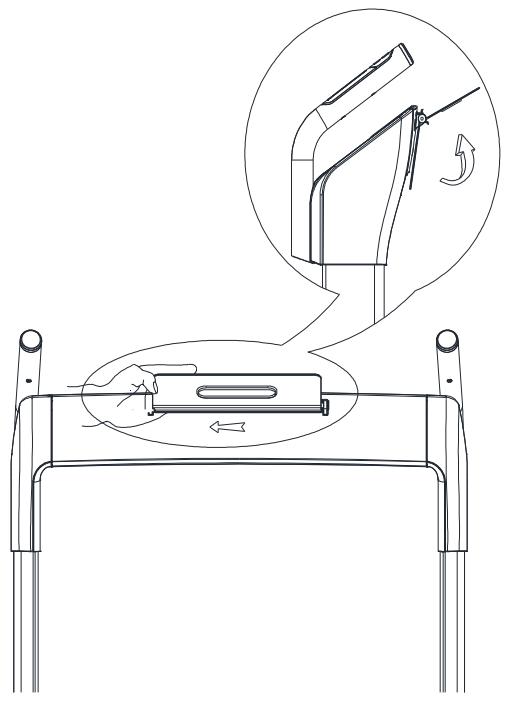

Pull the pad bracket to the left after turning upward the pad bracket according to the arrow direction in the drawing. Shake to and fro with hands, you can use it after confirmation that it is locked tightly.

Third Step:

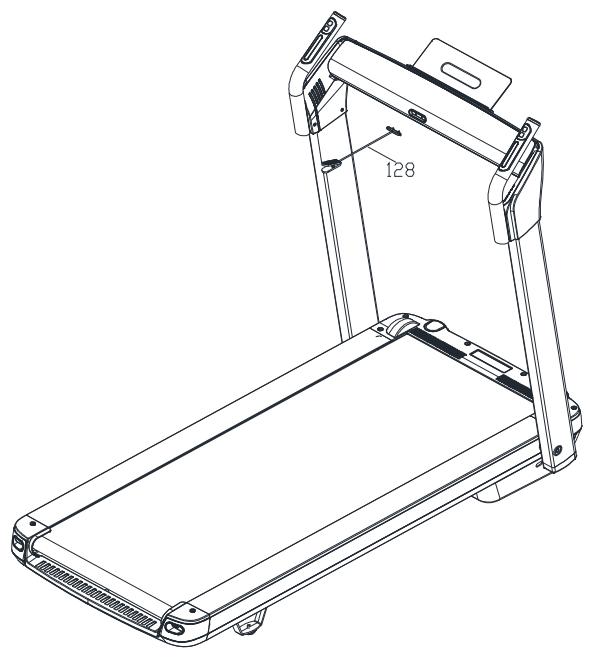

Put the safety key in the treadmill corresponding hole.

Notice:You can only plug in the power,after the confirmation that treadmill is assembled completely according to the assemble requirements and there is nothing missing.Please read carefully corresponding instructions on the later part of this manual,when you operate and use the treadmill.

Fourth Step:

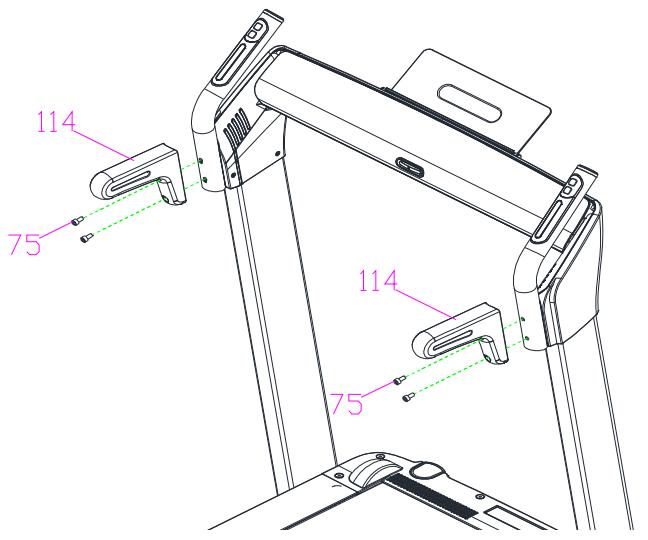

Lock tightly the handrails(114) to the treadmill bracket with screw M6*12L(75).

When you fold the product, you

Please assemble the handrails for your safety.

FOLDING AND UNFOLDING INSTRUCTION

1. You have to remove the handrails according to the drawing, before you fold the treadmill.

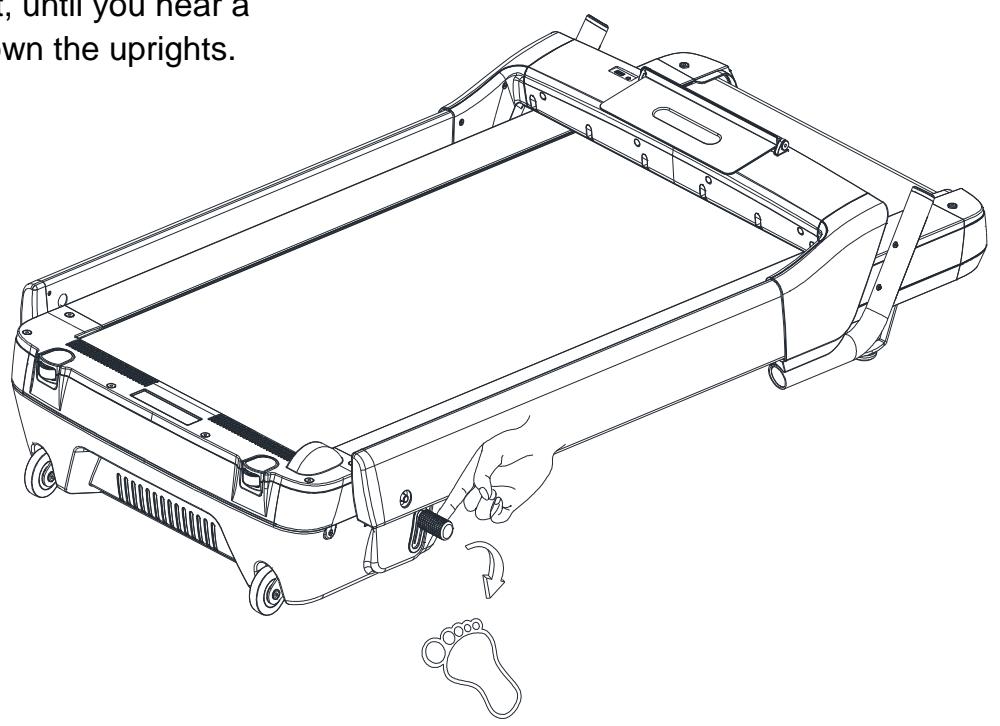

2.Hold the upright with right or left hand. Press the foot lever with hand or foot, until you hear a sound of "ka", Then put down the uprights.

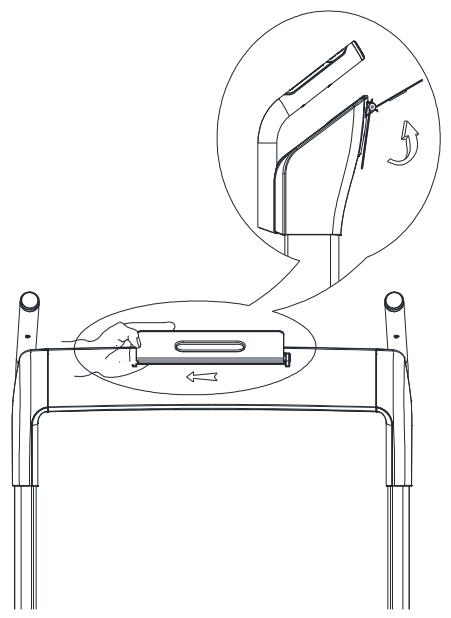

3.Fold the pad bracket. Pull the pad bracket to the right according to the drawing. Then finish by turning down. Need to take off the handrails when you fold the product.

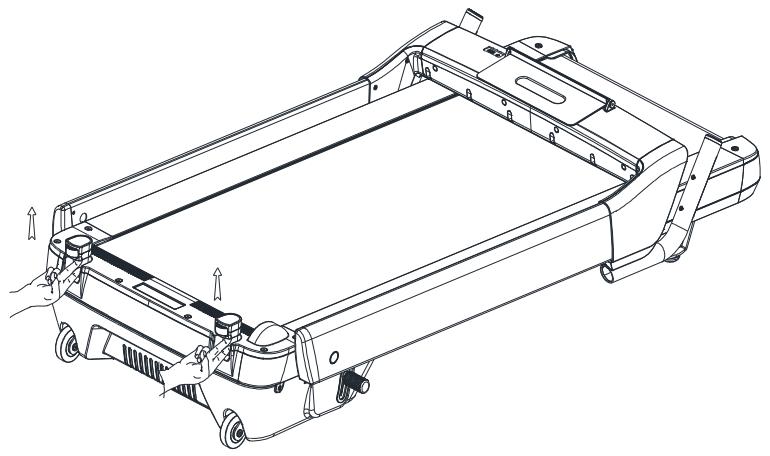

1. Before moving the treadmill, pull out the supporting moving wheels according to the drawing, to ensure the standing stability of the bracket.

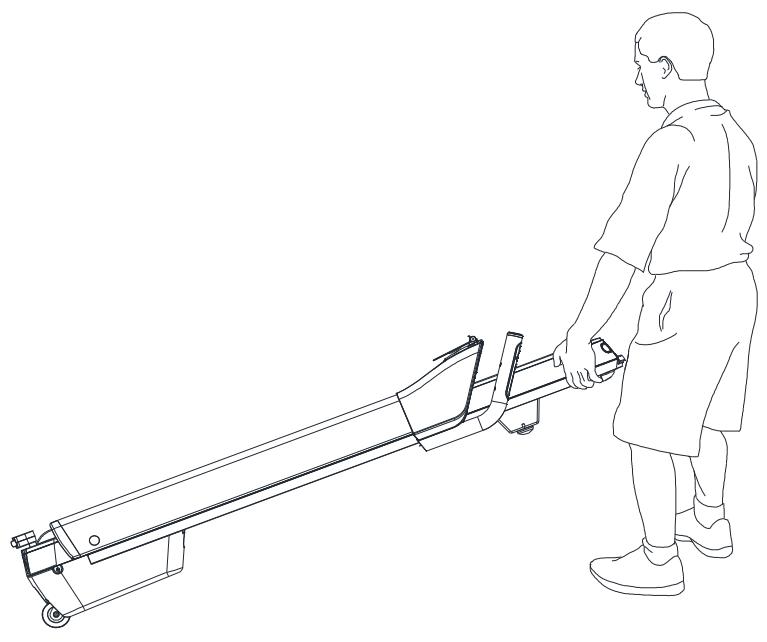

5.Can move the treadmill to the appropriate place when the above steps are finished. The supporting wheels can move left-to-right direction,moving wheels can move fore-and-aft direction. Put in standing position.
