BARRE DE SON AX5100G - Soundbar HISENSE - Free user manual and instructions

Product Type	5.1 channel soundbar with wireless subwoofer and rear surround speakers
Brand	Hisense
Model	AX5100G
Max Audio Power	340 W
Supported Audio Formats	Dolby Atmos, Dolby Digital, DTS
Connectivity	HDMI eARC, HDMI ARC, Optical, Coaxial, USB, AUX, Bluetooth
Bluetooth	Yes, version 5.0
HDMI Input	1 x HDMI eARC/ARC
Optical Input	1 x Optical
Coaxial Input	1 x Coaxial
AUX Input	1 x AUX (3.5 mm)
USB Port	1 x USB for music playback
Wireless Connection	Wireless subwoofer and surround speakers (automatic pairing)
Remote Control	Yes, with AAA batteries included
Box Contents	Soundbar, subwoofer, 2 surround speakers, remote control, power cords (x2 for soundbar/subwoofer, x1 for surround), RCA, optical, HDMI cables, wall mounts and screws
Wall Mounting	Yes, wall mounts included for soundbar and surround speakers
Power Consumption	Not specified
Dimensions (W x H x D)	Soundbar: approx 1000 x 70 x 120 mm
Weight	Not specified

Frequently Asked Questions - BARRE DE SON AX5100G HISENSE

How to pair the wireless subwoofer with the soundbar?

The subwoofer and surround speakers pair automatically when powered on. If pairing fails, press and hold the PAIR button on the back of the subwoofer for 2 seconds to start pairing, or 5 seconds to clear the existing pairing.

How to connect the soundbar to a TV?

Use the included HDMI cable to connect the HDMI eARC port on the soundbar to the HDMI eARC/ARC port on the TV. You can also use the optical or coaxial inputs. Then select the corresponding source with the SOURCE button.

How to enter Bluetooth mode?

Press the BT button on the remote control or press and hold to activate pairing. On your Bluetooth device, search for 'Hisense AX5100G' and connect.

How to adjust bass and treble levels?

Use the BASS and TREBLE buttons on the remote control to increase or decrease bass and treble levels.

How to use Dolby Atmos function?

The soundbar supports Dolby Atmos via HDMI eARC. Make sure your TV and source (e.g., Blu-ray, streaming) are compatible and set to Dolby Atmos format. The soundbar will automatically decode the signal.

How to mount the soundbar on the wall?

Use the included wall mounts and screws. Attach the mounts to the back of the soundbar, then mark and drill holes in the wall. Insert wall anchors and screw the wall mounts. Hang the soundbar on the mounts.

What to do if the subwoofer produces no sound?

Check that the subwoofer is powered on and its LED is solid (connected). If the LED flashes slowly, pairing failed. Manually re-pair by pressing and holding the PAIR button on the subwoofer for 2 seconds.

How to play music via USB?

Insert a USB drive containing music files (MP3, WMA, etc.) into the USB port on the soundbar. Press SOURCE to select USB mode. Use the play/pause and previous/next track buttons on the remote control.

How to use the remote control?

Insert two AAA batteries into the compartment. The buttons allow you to power on/off, select source, adjust volume, bass/treble, enable/disable surround sound, and access audio modes (Music, Movie, etc.).

How to clean the soundbar?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use chemical or abrasive products. Avoid liquids entering openings.

USER MANUAL BARRE DE SON AX5100G HISENSE

5.1CH Soundbar with Wireless Subwoofer

Model: AX5100G

Roku TV

Ready

√ Simple setup
√One remote.
Quick settings

340W

Max Audio Power

Dolby Atmos

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

Bluetooth

What's in the Box

Main Unit

Wireless Subwoofer

Rear Surround Speakers

AC Power Cord x 2
For Main Unit / Wireless Subwoofer

AC Power Cord x1

For Rear Surround Speakers (SR)
* Plug type varies by region

RCA Cable

Optical Cable

HDMI Cable

Brackets (x4)/Bracket Screw (x4) /Wall Anchors (x4)

Remote Control /
AAA Batteries x 2

User Manual /
Quick Start Guide

• Power cord quantity and plug type vary by regions.

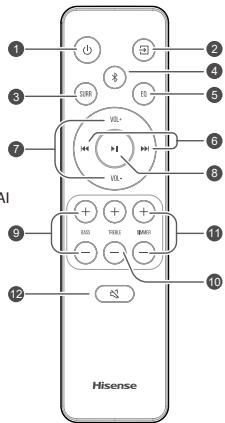

1 Remote Control

① ①

Switch the unit between ON and STANDBY mode.

② (SOURCE) Select the play mode.
③ SURR Adjust the surround ON/OFF.

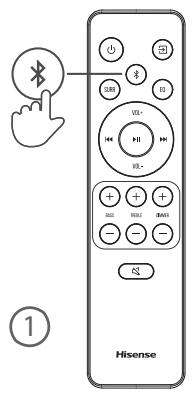

(4) (BT) Select the Bluetooth mode. Press and hold the

(BT) button to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.

⑤ EQ
6

Select MUSIC/MOVIE/NEWS/SPORT/NIGHT/GAME/AI

⑦ vo
(8)

Skip to previous/next track in BT / USB mode.

BASS+/- Adjust bass level.
10 TREBLE+/- Adjust treble level.
⑪ DIMMER+/- Adjust display brightness.
12 (MUTE) Mute or resume the sound.

Replace the Remote Control Battery

1 Press and slide the back cover to open the battery compartment of the remote control.
2 Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3 Close the battery compartment cover.

• Do not mix old and new batteries;
• Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.

2

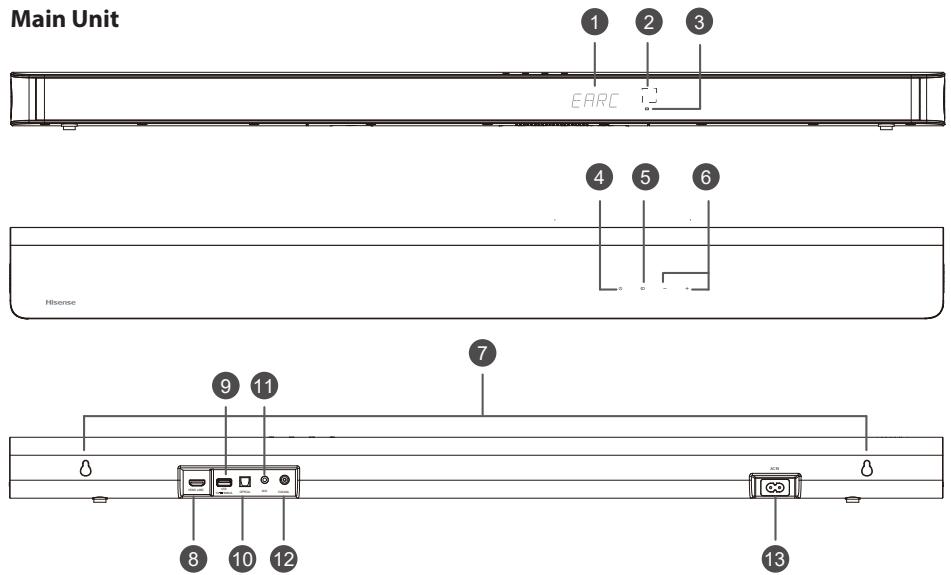

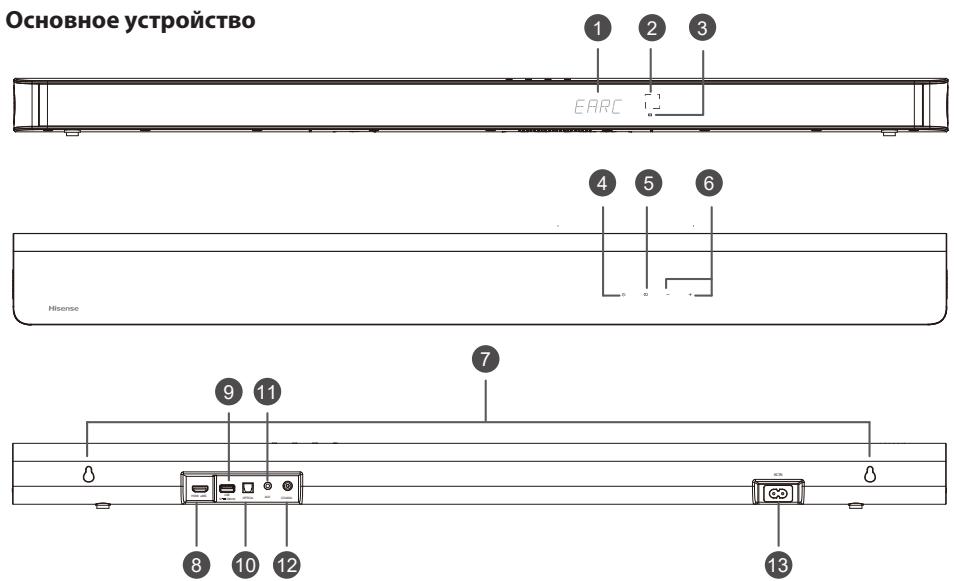

Identifying the Parts

① Display Window

Show the current status.

(2) Remote Control Sensor

Receive signal from the remote control.

③ Red Standby Indicator

• Constant on	In Standby mode
• Slow blink	In Auto-Wake On mode

(4) (ON/OFF) Button

Switch the unit between ON and STANDBY mode.

⑤ SOURCE)Button

Select the play mode.

(6) +/-(VOL+/VOL-) Button

Increase/decrease the volume level.

⑦ Wall Mount

Install the wall mounting screws into the wall mount of the unit.

Wireless Subwoofer

① Indicator

• Fast blink	The subwoofer in pairing mode
• Constant on	Connected / Paired successfully
• Slow blink	Connection / Pairing failed

8 HDMI eARC Socket

The port for connecting a TV. The port supports the eARC/ARC HDMI feature, which allows the soundbar to play audio that originates on the connected TV.

⑨ USB Socket

Insert the USB device to play music.

10 OPTICAL Socket

Connect to the OPTICAL OUT socket on an external device.

11 AUX Socket

Connect to an external audio device.

12 COAXIAL Socket

Connect to the COAXIAL OUT socket on an external device.

13 AC IN Socket

Connect to the power supply.

PAIR Button

2 seconds	Pairing mode
5 seconds	Clear the pairing record

AC IN Socket

Connect to power supply.

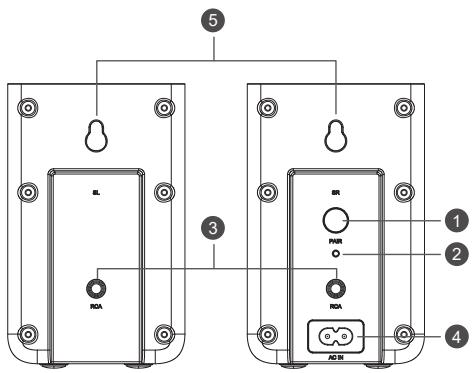

Wireless Rear Surround Speakers

PAIR Button

2 seconds	Pairing mode
5 seconds	Clear the pairing record

Indicator

• Fast blink	Rear speakers in pairing mode
• Constant on	Connected / Paired successfully
• Slow blink	Connection / Pairing failed

RCA Socket

Connect the left and right rear surround speakers.

ACIN Socket

Connect to power supply.

Wall Mount

Install the wall screws and brackets into the back of the rear surround speakers.

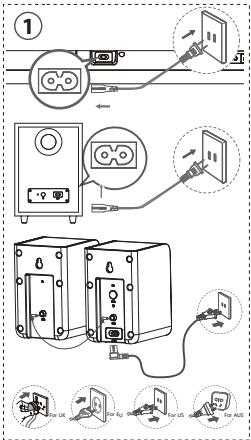

Pair up with the Subwoofer and Rear Surround Speakers

The subwoofer, rear surround speakers and soundbar will be automatically paired when they are powered on.

• If no audio from the wireless subwoofer and the rear surround speakers can be heard, manually pair up them.

Hold this button for 3 seconds

5

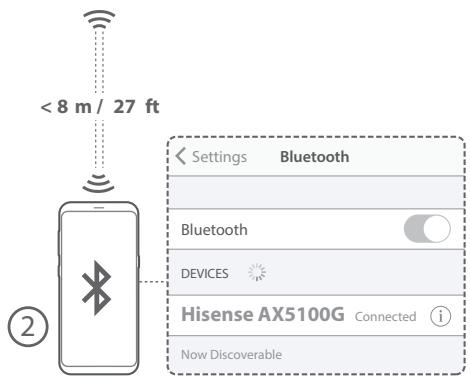

Bluetooth(®) Operation

4

5

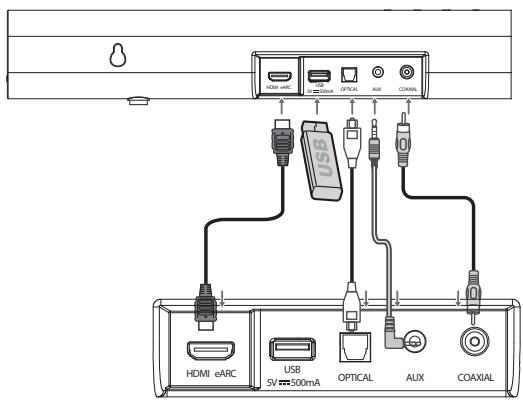

Select the play function (☑)

Display	Mode
EARC	HDMI eARC
ARC	HDMI ARC
OPT	OPTICAL
COAX	COAXIAL
BT_IN	Bluetooth
NO_BT	Connected
	Not Connected
USB	USB
NO_USB	No USB connected
AUX	AUX

6

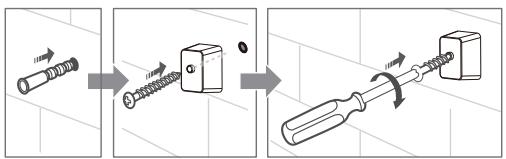

Wall Mounting

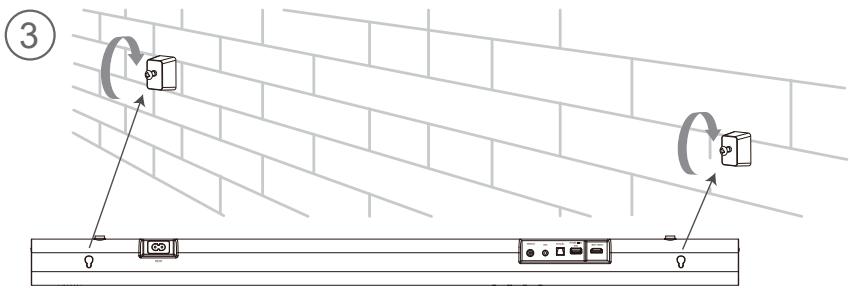

Mounting the Soundbar on the Wall

(2)

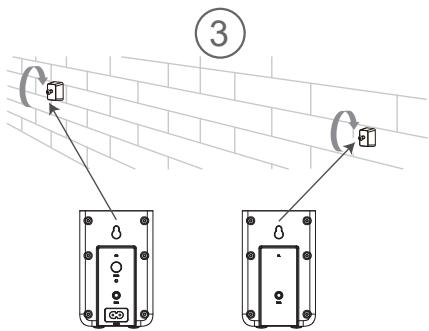

Mounting the Rear Surround Speakers on the Wall

(2)

Hisense

Pilot / Bacteria AAA × 2

Instrukcia obsglu / Skrocona obslugu

Cable of alimentare c.a. × 1 Pentu diflouaree surround (c)

Arka Surround Hoparlor (SR) iin

*Fiş tipi bolgeye,goredecessir

RCA Kablo

Optik Kablo

HDMI Kablosu

Braketler (× 4) /Bekrat Vidais (× 4) /Duvar Dubeliere (× 4)

Uzaktan Kumanda/ AAA Piller × 2

Kullanm klavuzu / Hizb Alaigiankilavuzu

Guc kablosu miktari ve fiis tipi bolgelere gore degisir.

1 Uzaktan Kumanda

① ①
② (SOURCE)
③ SURR
(4) B(BT)

KoPHTHbIa (N4) / BHTbIa KpOHTbIa HE (N4) / CTeBnAbeKpeK

Ntbytaapanhae/ Bateparekni tna AAA x

PKOyBCTdo nolbosten/ KpOyBCTdo nolbosten

• KolinyectBO shHypOB nHTaHnI n TIN BUNK 3aBnCt OT perNoHa.

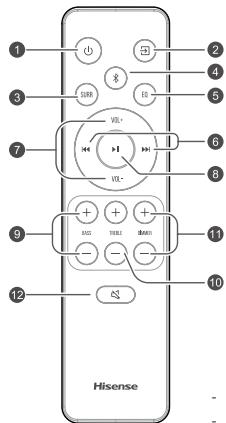

1 Пуньт урравлия
