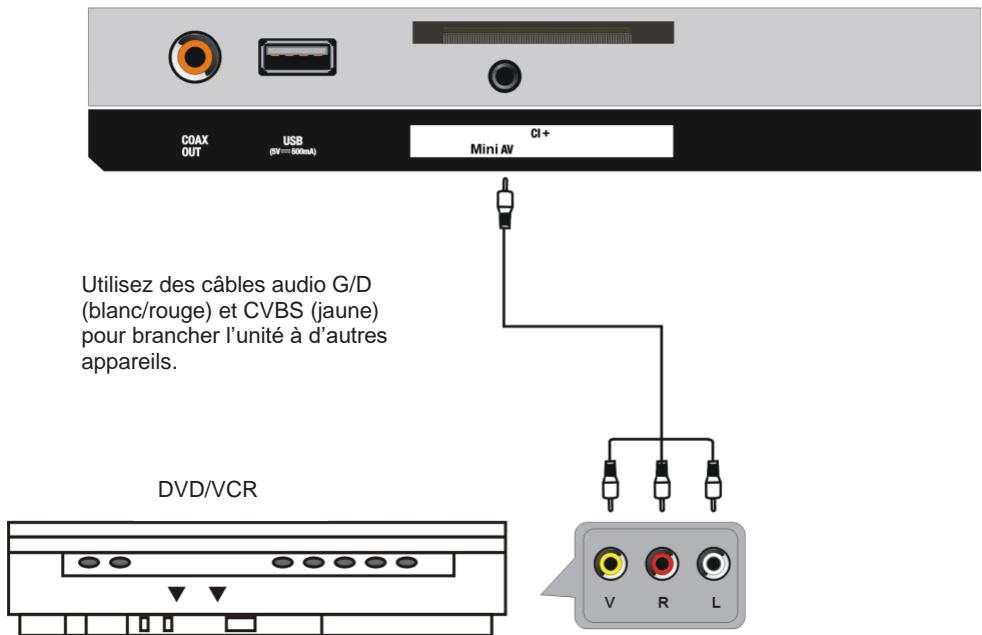

Branchement AV (video composite)

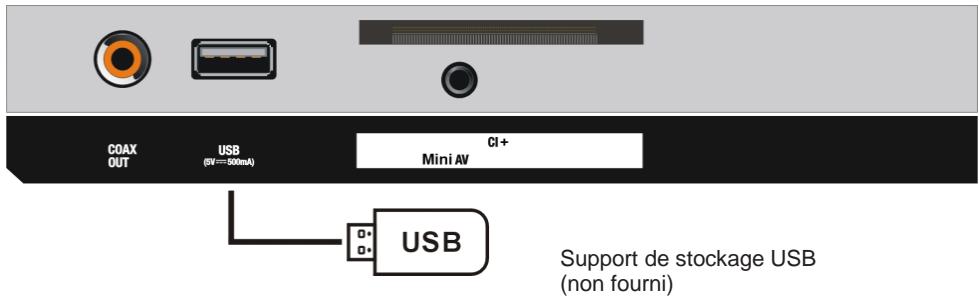

Branchement USB
Insérer une carte C
FONCTIONS DE BASE
Hotline Darty France
https://www.madocumentationreparation.com
https://www.darty.com/achat/services/reparation-hors-garantie/index.html
Inhoudsopgave
WAARSCHUWINGEN. 2
PRODUCTBESCHRIJVING 5
MONTAGE 6
AFSTANDSBEDIERING 8
AANSLUITINGEN 9
BASISWERKING 13
DE MENU'S GEBRUIKEN 14
Digital Video Broadcasting
Digital Video Broadcasting
Digital Video Broadcasting
This product is manufactured, distributed, serviced and warranted exclusively by Etablissements DARTY et Fils.
"JVC" is the trademark of JVCKENWOOD Corporation, used by Etablissements DARTY et Fils under license.
[European Union]
Dear Customer,
This apparatus is in conformance with the valid European directives and standards
regarding electromagnetic compatibility and electrical safety.

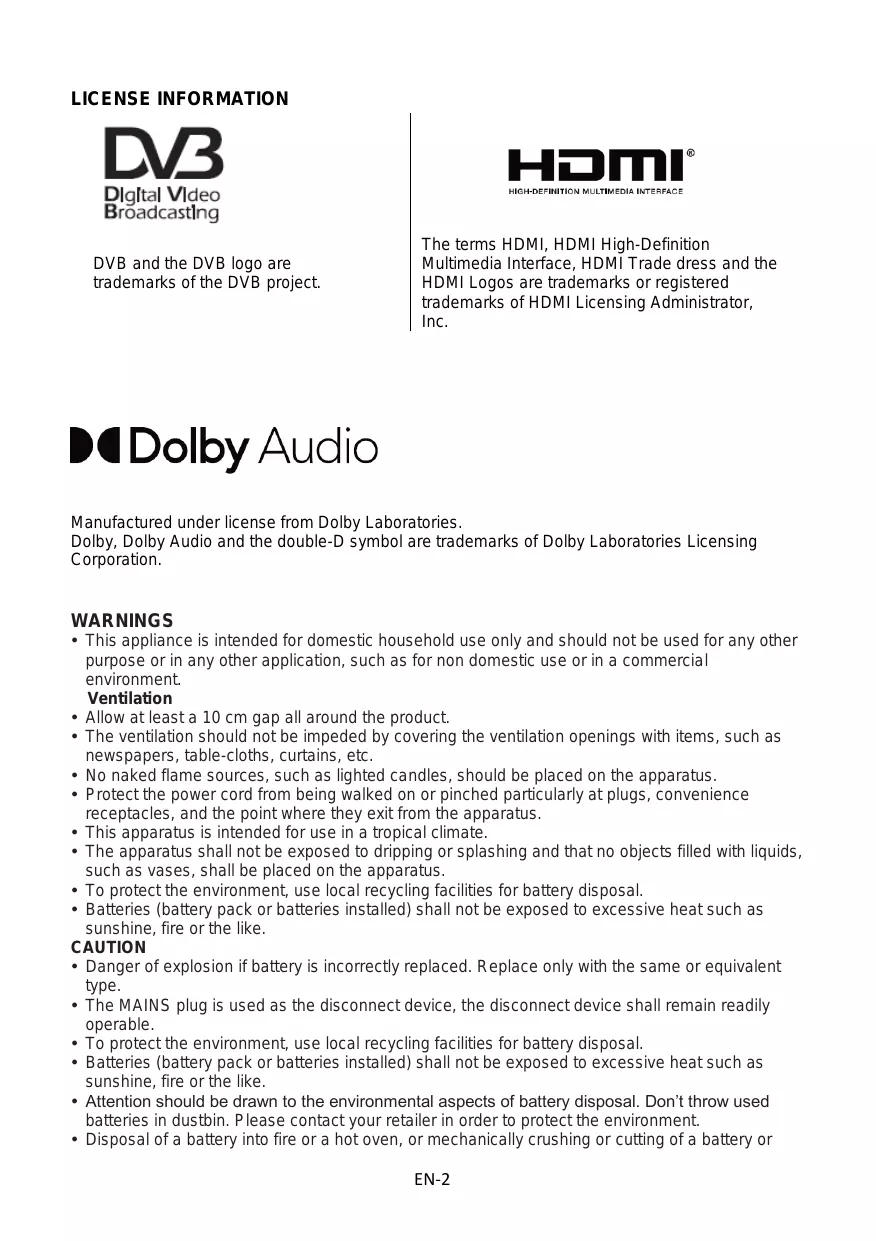

DVB and the DVB logo are trademarks of the DVB project.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Dolby Audio
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
WARNING
Ventilation
- This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment.
- Allow at least a 10cm gap all around the product.
- The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
- No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- This apparatus is intended for use in a tropical climate.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- To protect the environment, use local recycling facilities for battery disposal.
- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
- The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
- To protect the environment, use local recycling facilities for battery disposal.
- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
- Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery or
expose to excessive heat such as sunshine, fire or the like that can result in an explosion.
- Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
- A battery subjected in extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
- Different types of batteries or new and used batteries are not to be mixed.
- Batteries are to be inserted with the correct polarity.
- Exhausted batteries are to be removed from the appliance.
- The supply terminal are not to be short-circuited.
To prevent possible high sound pressure and hearing damage risk, do not listen at high volume levels for long periods.
Never place a television set in an unstable location.
A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be applied.
IMPORTANT SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
This marking indicates that the unit
complies with the European radio equipment directive.
This symbol indicates that the unit has insulation.
This symbol indicates that there are not operating and maintenance options in the documentationpanying this unit.
This symbol indicates that dangerous
voltage constituting a risk of electric shock is present within this unit.
- Read these instructions and keep them for further reference. Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.
Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.
- Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil or pen, or make a scratch on it.
- Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.
PRODUCT DESCRIPTION
Front and Side Views
- Screen
- Remote control sensor / Power indicator
- Stand
- VOL+/- button: Adjust the volume level
- CH + / - button: Select previous/next channel or move up/down
- MENU button: Access the main menu.
- SOURCE button: Change the input source.
- STANDBY button: Turn the power on or off.

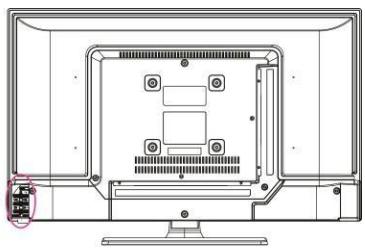

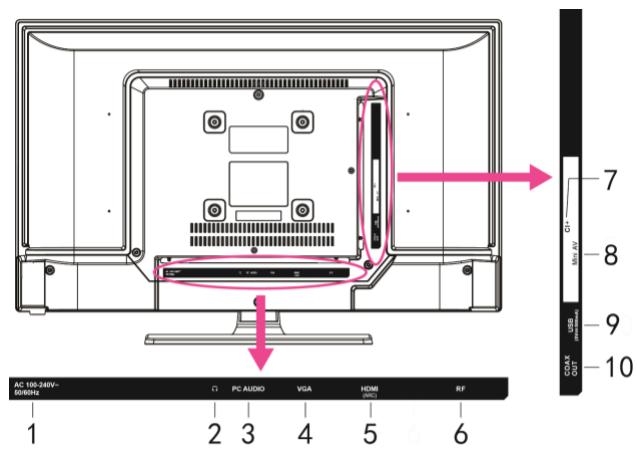

Back View
- Power input
- EARPHONE jack
- PC AUDIO port
- VGA port
5.HDMI port
- RF port
- Cl+ port
- Mini AV port
- USB ports
- COAXIAL output port
ASSEMBLING

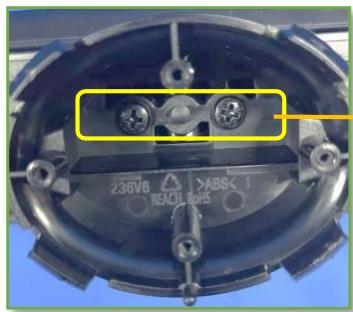

Attaching the Stand
1
Place the TV screen-down on a cushioned clean flat surface to prevent scratches or damage to the screen.

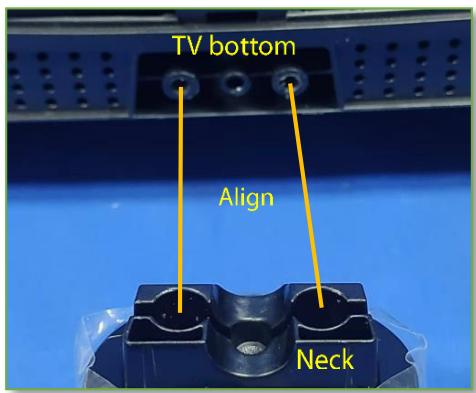

Align the neck with the screw holes on the bottom of your TV.
2
Secure the neck to your TV with the provided two long screws.
3

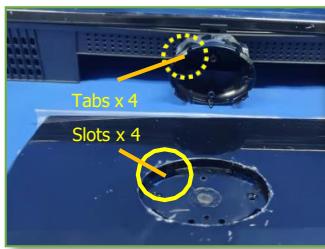

Attach the neck to the stand by inserting and snapping the tabs on the neck into the slots in the stand.
4
Attach the stand to the TV using the provided four short screws.
Place the TV upright on a stable level surface.

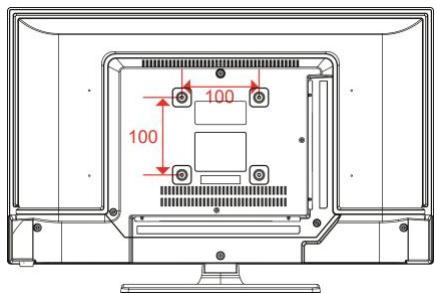

Mounting on a Wall
CAUTION:
- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
- The distance between the holes is 100 × 100 mm in width and height.
- Tighten the screws (M4x10mm) firmly to prevent the TV from tilting forward. Do not over tighten.

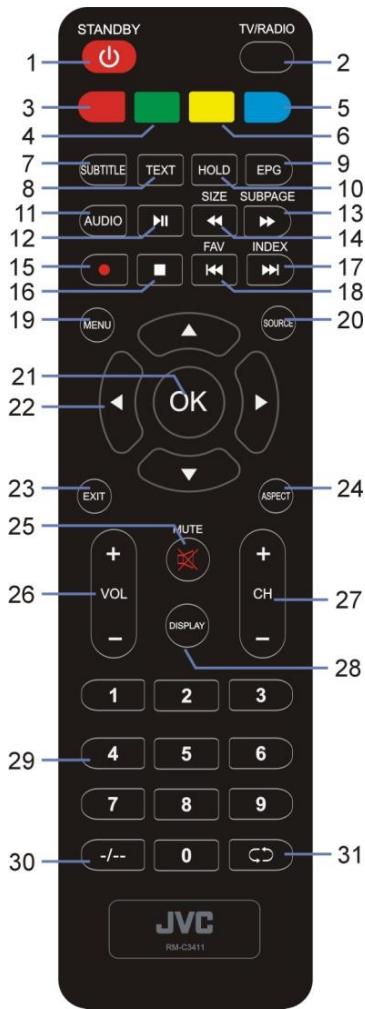

REMOTE CONTROL
1 POWER/Standby
2 TV/RADIO
3 RED
4 GREEN
5 BLUE
6 YELLOW
7 SUBTITLE -Enable/disable subtitles
8 TEXT-Display the available Teletext.
9 EPG -Display the electronic program guide.
10 HOLD-Hold the Teletext.
11 AUDIO
12 Playback start/pause
13 SUBPAGE -Access Teletext sub-page.
Move fast forward
14 SIZE -Switch Teletext size.
Move fast backward.
15 (DTV) - Start recording when watching available digital programs
16 Stop playing.
17 Play the next file.
INDEX - Display the record list or Teletext index.
18 Play the previous file.
FAV - Display the favorite channel list.
19 MENU
20 SOURCE - Select a desired input source.
21 OK - Confirm selection.
22 ▲/▼/△
23 EXIT
24 ASPECT-Change aspect ratio.
25 MUTE
26 VOL +/-: Adjust the volume level.
27 CH + / - Scroll through the saved channels.
28 DISPLAY - Display the available program information.
29 Numeric buttons (0-9) - Change channels.
30 ---: Switch the digit when watching TV programs.
31 Return to previous channel.
Remote control operation
- Open the battery cover.
- Insert two AAA size batteries (not included), observing the proper polarity markings inside the battery compartment.
-
Close the battery cover.
-
CAUTION: Do not mix old and new batteries, as this may damage the remote control.
Be sure to point the remote control at the remote control sensor on the TV.
This logo means "positioning of cell".
CONNECTIONS

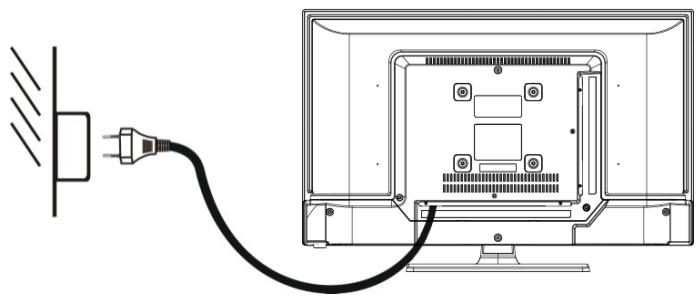

Connecting to AC power source

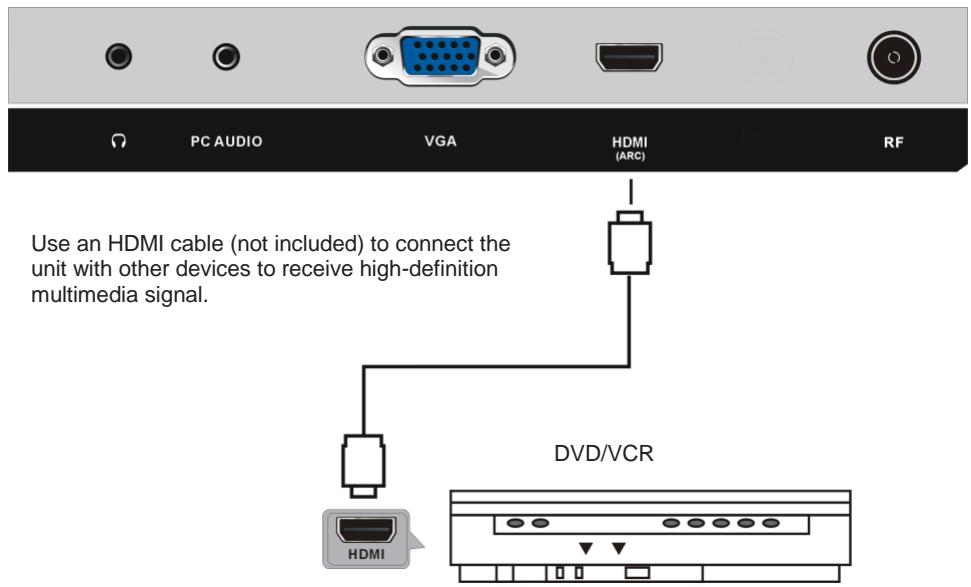

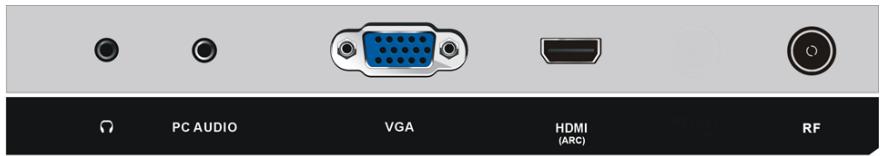

HDMI connection

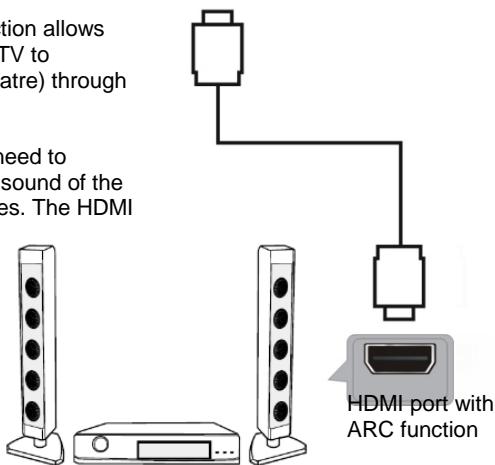

The HDMI ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to ARC-compliant audio devices (e.g. home theatre) through a single HDMI connection.
With the HDMI ARC connection, you do not need to connect the extra audio cable that sends the sound of the TV picture to the ARC-compliant audio devices. The HDMI ARC connection combines both signals.
Use an HDMI cable (not included) that supports the ARC function to connect your ARC-compliant audio devices with your ARC-compliant TV.
Ensure HDMI ARC is turned on in the SETUP menu (refer to page EN-17).
HUMI-ARC compliant device
PC/VGA connection

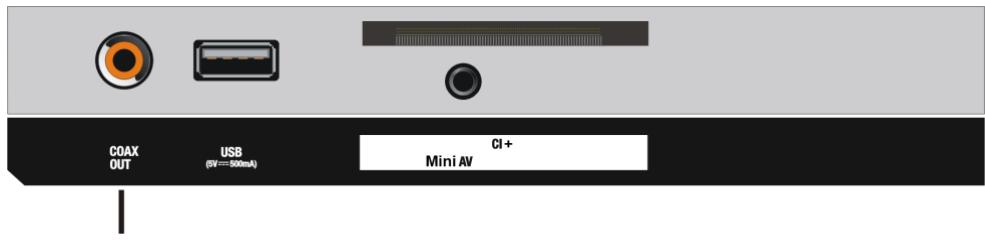

Use a coaxial cable (not included) to connect the unit with an amplifier or other audio decoding devices for coaxial audio signal output.

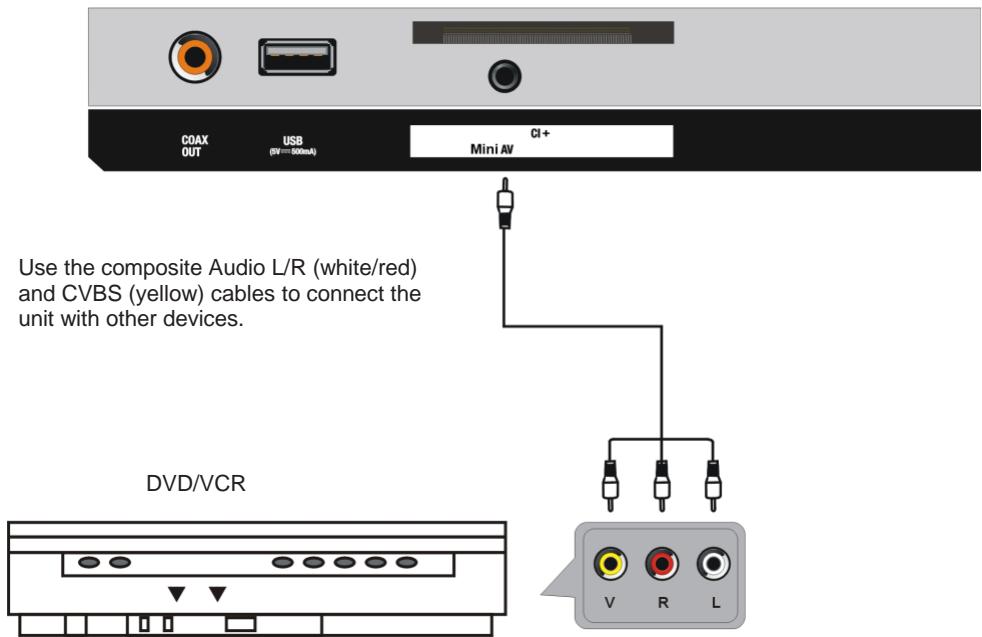

AV (Composite video) connection

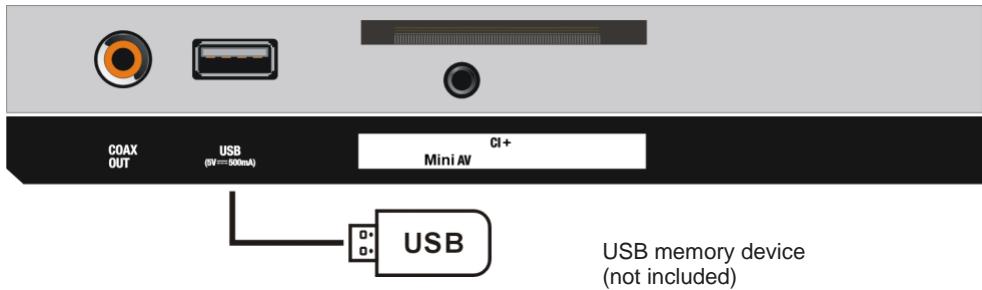

USB connection

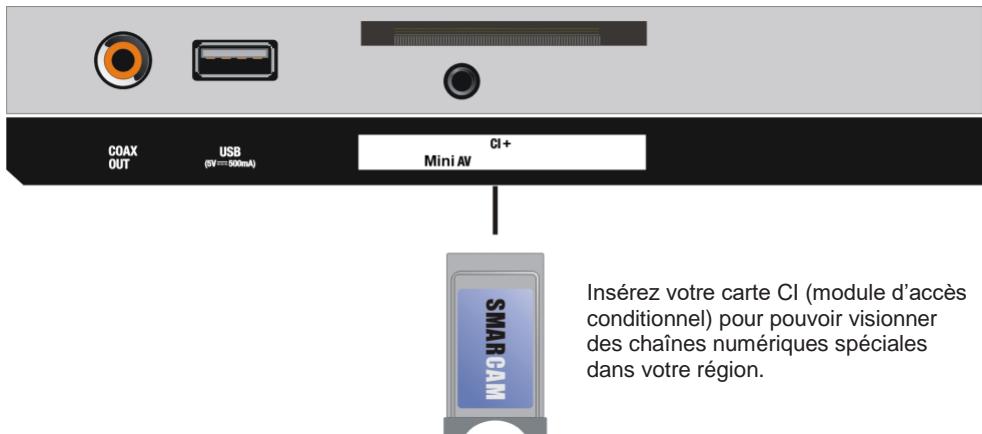

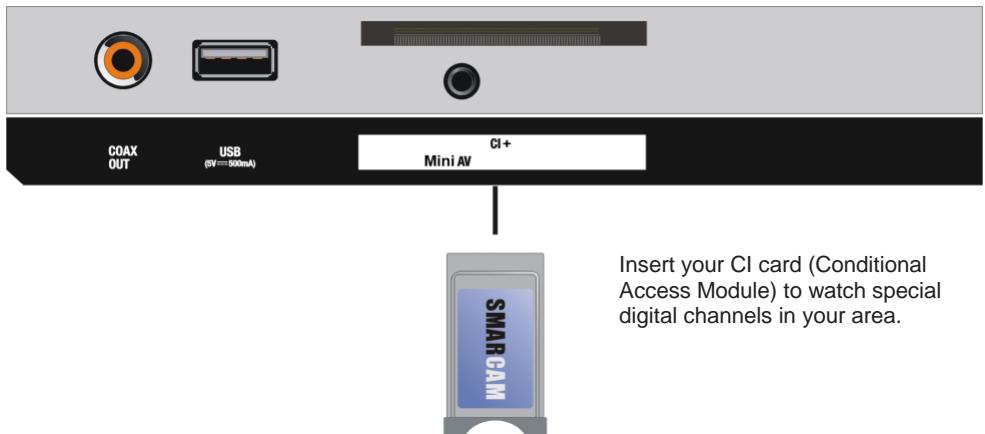

Insert a CI card
BASIC OPERATION
Make sure all necessary connections are correctly made before connecting the unit to the wall socket and turning on the power.
Watching TV
- Press the STANDBY button to power on the unit.
- Press the SOURCE button to select analog (ATV) or digital (DTV) as input source.
- Choose the channel by pressing CH + or CH- or by pressing the numeric buttons (combined [-/-] if necessary) to input the channel number directly.

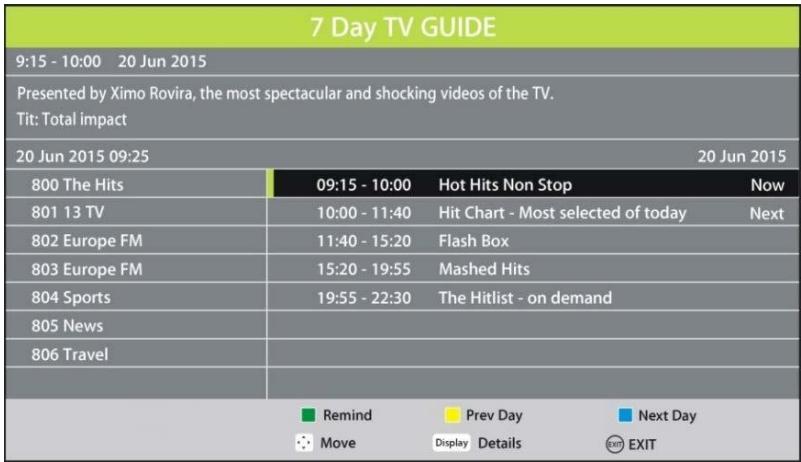

Electronic Program Guide (EPG)
EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control, the menu will appear on the screen, as below:
Press / navigation button to select preferred program
- Press / navigation button to switch between left column and right column.
- Press the GREEN button to set a reminder.
- Press the YELLOW button to display the program guide of the previous day.
- Press the BLUE button to display the program guide of the following day.
The MENU button allows you to access the variety of TV settings for you to customize the settings.
/ : Allow you to highlight options where applicable.
OK: Allow you to confirm the setting or advance to the next screen.
: Allow you to move back to the previous screen or adjust the value.
: Allow you to move to the next screen or adjust the value.
First time installation
When turning on the TV for the first time, the below installation menu will be displayed:
Language: select the on-screen menu language.
Country: select your country.
Energy Mode: select Home or Store mode. It will result in higher energy consumption if you leave Home mode.
Tuning Setup
- If above selections are finished, press OK button to call out Tuning Setup.
- Select preferred Tune Type and Digital Type using navigation buttons and press OK button to start auto tuning.
Note: Items following Digital Type are adjustable only when Digital Type is DVB-C and these items vary for different digital type.
1. Channel
Antenna
- Press LEFT/RIGHT navigation button to select DVB-T or DVB-C.
Auto Tuning
- Press the OK or RIGHT navigation button.
- Use the navigation buttons to set the Country, Tune Type and LCN.
Note: Scan type and following items are adjustable only when "Antenna" is DVB-C.
- Then press OK to start program tuning.
ATV Manual Tuning
Scan available programs manually.
DTV Manual Tuning
Scan available programs manually.
Programme Edit
Edit a program that TV received. (delete, skip or set a favorite program).
This item is used to display signal details, for example: signal quality and strength.
When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.
2. Picture
Picture Mode
- Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Picture Mode: available options: Standard, Mild, Personal, Dynamic.
Contrast / Brightness / Colour / Tint / Sharpness: adjustable value: 0-100.
Note: Contrast, Brightness, Colour and Sharpness are adjustable only when Picture Mode is "Personal". Tint is adjustable only for NTSC system.
Color Temp
This item is used to adjust the optimum color temperature for suitable viewing. Available options: Normal, Warm, Cold.
Noise Reduction
Available options: Off, Low, Medium, High
SCREEN (for PC/VGA mode only)
Dynamic CR
Turn on/off dynamic contrast ratio.
3. Sound
Sound Mode
- Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Sound Mode: available options: Standard, Music, Movie, Sports, Personal. Treble / Bass: adjustable value: 0-100.
Note: Treble and Bass are adjustable only when Sound Mode is "User".
Balance
This item is used to adjust the audio output between left and right speaker from -50 to 50.
Auto Volume
This item is used to set Auto Volume ON or OFF.
Surround Sound
Turn on/off Surround Sound for better sound experience.
SPDIF Mode
Available options: Auto, PCM, Off.
AD Switch
This item is used to turn on/off Audio Description function. For Visually Impaired users, this function can help to know a certain scene or action through the narration, instead of see it.
Notes:
- AD Switch function works only when you are viewing programs that contain related narration information.
- The users can adjust AD Volume when AD Switch is on.
4. Time
Clock
It displays current system time when an available channel was saved.
Time Zone
This item is used to select desired time zone.
Off Time
Off Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.
Hour / Minute: use navigation buttons to adjust the Hour / Minute when the Off Time is not "Off".
On Time
On Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.
Hour / Minute / Source / Channel / Volume: use navigation buttons to adjust these items when the Off Time is not "Off".
Sleep Timer
This item is used to set the automatic sleep time.
This item is used to select a desired Auto Sleep (standby) duration when no operations are done through the remote control.
Available options: Off, 3/4/5 hours. (It will result in higher energy consumption if you select more than 4 hours)
OSD Timer
This item is used to select a desired OSD menu duration.
Available options: Off, 5/10/15/20/25/30/35 seconds.
Use Time
This item is used to display the usage time.
5. Lock
- When entered "Lock", input the factory default password "0000" using number buttons on remote control.
- Press UP/DOWN navigation button to select preferred item.
Note: If you forget the password, please use the universal password "8899".
System Lock
This item is used to turn on/off Lock System.
Set Password
Input a new password twice using number buttons on remote control to set a new password.
Channel Lock
Lock/unlock a channel.
Parental Guidance
This item is used to select desired program rating. Available options: Off, 4-18.
Hotel Mode
This item is used to setup Hotel Lock.
6. Setup
Language
This item is used to select desired on-screen display language.
TT Language
This item is used to select the default teletext language.
Audio Language
- Press the RIGHT navigation button.
- Then you can select the desired primary audio language and secondary audio language.
Subtitle Language
- Press the RIGHT navigation button.
- Then you can select the preferred primary subtitle language and secondary subtitle language.
Hearing Impaired
This item is used to turn on/off the Hearing Impaired function. For Hearing Impaired users, this function providescaptions to supplement the audio.
NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.
Aspect Ratio
This item is used to adjust the video size. Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
Blue Screen
This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition if Blue Screen is ON.
First Time Installation
This item is used to recall the First Time installation menu.
Energy Mode
This item is used to select Home or Store mode.
Reset
This item is used to recall factory default settings.
Software Update (USB)
This item is used to update software through the USB memory device.
HDMI CEC
To use the HDMI CEC function:
- Make sure the HDMI device which supports CEC function (Amplifier, etc.) is connected correctly.
- Press the SOURCE button on the remote control to select the HDMI input source.
HDMI CEC: turn on/off HDMI CEC. HDMI ARC: turn on/off ARC function.
Auto Power: turn on/off Auto Power function.
Device Menu: display the setup menu of other device connected.

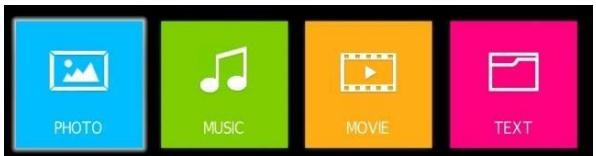

7. USB OPERATION
Plug in your USB device. Press the SOURCE button on remote control to open SOURCE list. Then press UP/DOWN navigation button to select USB (or Media) and press OK button to enter it.
Press button to highlight Photo, Music, Movie and Text, press OK button to confirm selection. Press button on remote control to start playback.
SPECIFICATIONS
| TV Broadcasting | PAL, B/G, D/K, I, SECAM |
| Receiving Channels | ATV (48.25MHz ~ 863.25MHz) |
| Number of Preset Channels | 100 (ATV) |
| Channel Indicator | On Screen Display |
| RF Aerial Input | 75 Ohm (unbalanced) |
| Operating Voltage | AC 100-240V~ 50/60Hz( ~ means alternating current) |
| USB Output | 5V—— 500mA(—— means direct current) |
| Audio Output Power (WRMS.) (10% THD) | 3 W |
| Dimensions DxLxH (with foot) | 139 x 553 x 368 mm |
| Weight (with foot) | 2.25 kg |
| Dimensions DxLxH (without foot) | 66 x 553 x 331 mm |
| Weight (without foot) | 2.12 kg |
| Surrounding temperature | Operation: 0°C ~ 35°CStorage: 5°C ~ 30°C |
| Operating Humidity | Less than 80 % RH |
| Standby Mode | After 3\4\5 hours |
Digital reception
| Reception range | 44MHz – 862MHz |
| Input impedance | 75 Ω |
| Channel bandwidth | 7 MHz / 8 MHz |
| Modulation | DVB-T | COFDM 2K/8K, QPSK, 16QAM, 64QAM |
| DVB-C | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| Video system | MPEG-2 MP@ML, MPEG-2 MP@HL, H.265 |
| Sound system | MPEG-1 layer ½, MPEG-2 layer |
| Basic functions | EPG, Subtitle, LCN, TELEXT (Europe) |
| Max storage channels | 1000CH (DVB-T + DVB-C, dynamic) |
Indoor Use only
Product Information Sheet
| Parameter | Parameter value and precision | Unit |
| Supplier's name or trade mark | JVC | |
| Supplier's address | Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France |
| Supplier's model identifier | LT-24FD120 | |
| Energy efficiency class for standard Dynamic Range (SDR) | E | |
| On mode power demand for Standard Dynamic Range (SDR) | 17 | W |
| Off mode, power demand | N/A | W |
| Standby mode power demand | 0,3 | W |
| Networked standby mode power demand | N/A | W |
| Electronic display category | television | |
| Size ratio | 16 | : | 9 | integer |
| Screen resolution (pixels) Horizontal and vertical pixels | 1366 | x | 768 | pixels |
| Screen diagonal | 60 | cm |
| Screen diagonal | 24 | inches |
| Visible screen area | 15,3 | dm2 |
| Panel technology used | LED LCD | |
| Automatic Brightness Control (ABC) available | NO | |
| Voice recognition sensor available | NO | |
| Room presence sensor available | NO | |
| Image refresh frequency rate | 60 | Hz |
| Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) | 8 | Years |
| Minimum guaranteed availability of spare parts (from the date of end of the placement on the market) | 7 | Years |
| Minimum guaranteed product support | 7 | Years |
| Minimum duration of the general guarantee offered by the supplier | 2 | Years |
| Power supply type: | Internal | |
ENERG
JVC
LT-24FD120
A
B
C
D
E
F
G
17
kWh/1000h
102/6102
TROUBLESHOOTING
| Problem | Possible Solution |
| The screen does not appear/illuminate. | 1. Check that the power plug is securely into the mains socket.
2. Check the power is on. |
| The screen appears, but there is no sound. | 1. Press the MUTE button.
2. Increase the sound level by pressing the volume adjustment buttons
3. Check that the sound terminal of your external input is connected properly.
4. Check that the audio cables are connected properly.
5. Select and check any other input. |
| Noise or poor picture | Stop using wireless telephones, hair dryers or other electrical appliances near the TV. |
| The remote control does not work. | 1. Check if the TV is not switched on.
2. Check that the batteries of the remote control are inserted properly.
3. Check for any obstacles between the TV remote sensor and the remote control. Remove them if necessary.
4. If the batteries have no power, replace them with two new batteries off the same type. |
DISPOSAL
As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.
You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.
Contact your local authority to learn about disposal and recycling.
The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
EU Declaration of Conformity
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Regulamento (UE) N. 2019/2013, N. 2019/2021, N. 2021/340, N. 2021/341
Software version: 20240604112730
ENIEC62368-1:2020+A11:2020
EN 55032: 2015+A11:2020+A1:2020
EN 61000-3-3:2013+A1:2019+A2:2021
ENIEC61000-3-2:2019+A1:2021
EN 55035:2017+A11:2020
EN 303 340 V1.2.1
ENIEC62311:2020
This declaration of conformity is drawn up under the sole responsibility of the manufacturer.
The person responsible for this declaration is:
Place, Date / Lieu :
