| Product Type | LED Television |
| Brand | JVC |
| Model | LT-24VRH345I |
| Screen Size | 24 inches (61 cm) |
| Display Resolution | 1366 x 768 pixels (HD Ready) |
| Display Type | LED |
| Aspect Ratio | 16:9 |
| Tuner | DVB-T/T2/C |
| HDMI Ports | 2 |
| USB Ports | 1 |
| Composite Input | Yes |
| Headphone Jack | Yes |
| Power Consumption (Typical) | 30 W |
| Standby Power | 0.5 W |
| Power Supply | AC 100-240V, 50/60Hz |
| Remote Control | Included |
| VESA Mount Compatibility | 100 x 100 mm |
| Dimensions Without Stand (W x H x D) | 553 x 328 x 43 mm |
| Weight Without Stand | 2.6 kg |
| Energy Efficiency Class | F |
| Refresh Rate | 50 Hz |
Frequently Asked Questions - LT-24VRH345I JVC
User questions about LT-24VRH345I JVC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual LT-24VRH345I - JVC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LT-24VRH345I by JVC.
USER MANUAL LT-24VRH345I JVC
You can access your detailed instruction manual by scanning the QR code.

http://www.jvctv.eu/
Licenze
I termini HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress e i loghi HDMI sono marchi commerciali o marchi registrati di HDMI Licensing Administrator, Inc.

effel
Gentile Cliente,
In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.
The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.
Note: Follow the on screen instructions for operating the related features.
IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.
- Use this TV set at an altitude of less than 5000 metres above the sea level, in dry locations and in regions with moderate or tropical climates.
- The TV set is intended for household and similar indoor use but may also be used in public places.
- For ventilation purposes, leave at least 5cm of free space around the TV.
- The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
- The power cord/plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
- Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g. on shelves above the unit).
- Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV
- Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
- Do not place the TV on the floor or inclined surfaces.
- To avoid danger of suffocation, keep plastic bags out of the reach of babies, children and domestic animals.
- Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV
from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
- Do not dispose of the batteries in fire or with hazardous or flammable materials.
WARNING
- Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
- Excessive sound pressure from earphones or headphones can cause hearing loss.
ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the TV.
| Caution | Serious injury or death risk |
| Risk of electric shock | Dangerous voltage risk |
| Maintenance | Important maintenance component |
Markings on the Product
The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.
WARNING
- Do not ingest the battery, Chemical Burn Hazard.
- This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
- ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
- ALWAYS use furniture that can safely support the television set.
- ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
- ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
- ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
- NEVER place a television set in an unstable location.
- NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
- The equipment is only suitable for mounting at heights ≤ 2 m. If the existing television set is going to be retained and relocated, the same considerations as above should be applied.
Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator).
WALL MOUNTING WARNINGS
- Read the instructions before mounting your TV on the wall.
- The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
- Do not install the TV on a ceiling or on an inclined wall.
- Use the specified wall mounting screws and other accessories.
- Tighten the wall mounting screws firmly to prevent the TV from falling. Do not over-tighten the screws.
Figures and illustrations in these operating instructions are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.
To Switch the TV On
After plugging in the power cord, the TV will turn on automatically. If the TV is in standby mode, the standby LED turns on.
To exit standby and turn on the TV, do one of the following;
-
Press the Standby button on the remote control.
-
Press the center of the control button on the TV.
* The appearance of the remote control buttons and the location of the control buttons on the TV may differ depending on the model.

Turning on with Remote Control

Standby: Standby / On (press briefly), Reset / Power Off (press and hold)
Press and hold the Standby button to see additional actions for this button. Highlight one of the Reset (Restart), Standby (Normal Standby), and Power off (Forced Standby) options and press OK to perform the selected action. If your TV stops responding to commands and the actions menu can not be displayed, the TV will be forced to restart when the button is kept pressed for about five seconds.

Licences
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licensing Limited. DTS, DTS-HD, Virtual:X, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.

The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vestel Elektronik Sanayi ve Ticaret A.S. is under licence. Other trademarks and trade names are those of their respective owners.
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate licence(s) from Microsoft.
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
The "CI Plus" Logo is a trademark of CI Plus LLP.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a licence from Microsoft or an authorised Microsoft subsidiary.
Amazon, Alexa, Fire, Prime Video and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Advance™
Covered by patents at patentlist,accessadvance.com
Using Parental Controls
Your TV has some default protections which when enabled will require a PIN code to be entered for purchases, app launches and it will also restrict viewing of content rated Teen and above. Parental controls are set to OFF as default.
Press the Home button and scroll across to Settings. Highlight Parental Controls in the Preferences or Live TV menu and press Select to enter. Highlight Parental Controls and press Select to switch parental controls on.
Note: You will be asked to enter a PIN to turn the parental controls on or off. This is the Prime Video PIN and it is related to your Amazon account. If you have forgotten your PIN follow the link shown on the screen to reset your PIN.
Disposal Information
[European Union]
Information for users pursuant to Art. 22 of Legislative Decree no. 188 of 20 November 2008 “Implementation of Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators”
The crossed-out wheelie bin symbol on the equipment or its packaging indicates that, at the end of their useful life, the batteries and accumulators must be collected separately from other waste, to allow appropriate treatment and recycling. The final user must take the end-of-life equipment to appropriate separate collection facilities for electrical and electronic waste, or return it to the retailer.
In addition to that symbol, batteries, accumulators and button cells containing over 0.0005 percent mercury (chemical symbol Hg), over 0.002 percent cadmium (chemical symbol Cd) or over 0.004 percent lead (chemical symbol Pb) are marked with the chemical symbol of the relative metal.
Appropriate separate collection for subsequent sending of the waste batteries and accumulators to recycling, treatment or environmentally friendly disposal contributes to avoiding possible effects on the environment and health and encourages recycling-reuse of the materials of which they are made.
Illegal dumping of batteries and accumulators by the user results in application of the penalties indicated in Leg. Decree no. 152/2006 and Leg. Decree no. 188/2008.

Information regarding EU countries (only)
Information for users pursuant to Art. 26 of Legislative Decree no. 49 of 14 March 2014, „Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)“, and Legislative Decree no. 188 of 20 November 2008
The crossed-out wheelie bin symbol on the equipment or its packaging indicates that, at the end of its useful life, the product must be collected separately from other waste, to allow appropriate treatment and recycling. In addition to that symbol, batteries are also marked with the chemical symbols of the relative metal: mercury (Hg) or lead (Pb) and cadmium (Cd) if the battery contains more than 0.0005% mercury or 0.004% lead or 0.002% cadmium.
Batteries/accumulators must be removed from the equipment before it is discarded as waste. Refer to the specific instructions contained in this manual for removal of batteries/accumulators.

The final user must take the end-of-life equipment and battery to appropriate separate collection facilities for electrical and electronic waste, or return it to the retailer, using the following methods:
- for removable batteries and very small equipment, meaning with at least one external side not exceeding 25 cm, delivery free of charge, with no purchase obligation at shops with an electrical and electronic equipment sales area over 400 m2. For smaller shops, this method of delivering the equipment is optional;
- for equipment with dimensions over 25 cm, delivery to all shops with the “1 for 1” method, meaning the equipment may only be delivered to the retailer with the purchase of a new equivalent product.
Appropriate separate collection for subsequent sending of the discarded equipment and batteries/accumulators to recycling, treatment or environmentally friendly disposal contributes to avoiding possible effects on the environment and health and encourages recycling-reuse of the materials of which the equipment is made.
Illegal dumping of the product by the user results in application of the penalties indicated in Leg. Decree no. 152/2006, Leg. Decree no. 49/2014 and Leg. Decree no. 188/2008.
Due to the continuous evolution of the products, the features and design of this model may change without notice
Manufacturer: VESTEL TICARET AS Organize Sanayi Bolgesi Manisa 45030 (Türkiye)

In conformity with applicable rules and regulations
Assembled in Türkiye
Specification
| Digital Reception | Fully integrated digital terrestrial-cable-satellite TV (DVB-T-C-S) (DVB-T2, DVB-S2 compliant) | |
| Channel Indicator On Screen Display | ||
| RF Aerial Input 75 Ohm (unbalanced) | ||
| Operating Voltage 220-240V AC, 50Hz. | ||
| Audio | DTS HD DTS VIRTUAL:X | |
| Audio Output Power (WRMS.) (10% THD) | 2x2,5W | |
| Power Consumption (W) | 45W | |
| Networked Standby Power Consumption (W) | < 2 | |
| Weight (kg) | with stand | without stand |
| 3,5 3,25 | ||
| TV Dimensions WxHxD (with stand) (mm) | 553 x 365 x 135 | |
| TV Dimensions WxHxD (without stand) (mm) | 553 x 334 x 63 | |
| Display Resolution | 1366 x 768 | |
| Operation temperature and operation humidity | 0°C up to 40°C, 85% humidity max | |

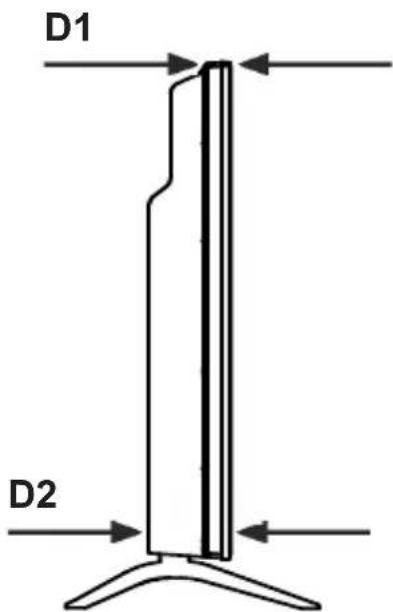

D1(Min.): 41 mm
D2(Max) : 63 mm
Wireless LAN Transmitter Specifications
| Frequency Ranges Max Output Power | |
| 2400 - 2483,5 MHz (CH1 - CH13) < | 100 mW |
| 5150 - 5250 MHz (CH36 - CH48) < | 200 mW |
| 5250 - 5350 MHz (CH52 - CH64) < | 200 mW |
| 5470 - 5725 MHz (CH100 - CH140) | < 200 mW |
Country Restrictions
This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive). The 5.15 - 5.35 GHz band is restricted to indoor operations only in the EU countries.
| Country Restriction | |
| Bulgaria | General authorisation required for outdoor use and public service |
| Italy | If used outside of its own premises, general authorisation is required. Public use is subject to general authorisation by the respective service provider |
| Greece | In-door use only for 5470 MHz to 5725 MHz band |
| Luxembourg | General authorisation required for network and service supply (not for spectrum) |
| Norway | Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund |
| Russian Federation | In-door use only |
| Israel | 5 GHz band only for 5180 MHz-5320 MHz range |
The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for 5 GHz wireless LAN's.
This product is manufactured, distributed and warranted exclusively by VESTEL Ticaret A.Ş and serviced by its designated service providers. "JVC" is the trademark of JVCKENWOOD Corporation, used by such companies under license.

| A | VESA WALL MOUNT MEASUREMENTS | ||
| B | Hole Pattern Sizes (mm) | W | H |
| 75 | 75 | ||
| C | Screw Sizes | ||
| D | Length (X) | min. (mm) | 5 |
| max. (mm) | 8 | ||
| E | Thread (Y) | M4 | |

| A B C D E | |||||
| English VESA WALL MOUNT MEASUREMENTS | Hole Pattern Sizes (mm) Screw Sizes Length (X) Thread (Y) | ||||
| Deutsch | MASSANGABEN FÜR VESA-WANDMONTAGE | Lochmustergrößen (mm) | Schraubengrößen | Länge (X) | Gewinde (Y) |
| Français | DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA | Dimensions des modèles de trous de montage (mm) | Dimensions des vis | Longueur (X) | Filetage (Y) |
| Italiano | Misurazioni installazione a parete VESA | Dimensioni schema foro (mm) | Dimensioni vite | lunghezza (X) | Filettatura (Y) |
| Português | MEDIÇÕES DE MONTAGEM MURAL VESA | Dimensões do molde de furação (mm) | Tamanhos do parafuso | Comprimento (X) | Rosca (Y) |
| Español | MEDIDAS DEL MONTAJE DE PARED VESA | Tamaños de patrón para agujero (mm) | Tamaños de tornillo | Longitud (X) | Rosca (Y) |
| Türkçe | VESA DUVARA MONTAJ APARATI ÖLÇÜLERİ | Açılacak Delik Ölçüleri (mm) | Vida Ölçüleri | Jzunluk (X) | Yüzey (Y) |
| Ελληνικ | ΔΙΑΣΤΑΣΕΙΣ ΒΑΣΗΣ ΤΟΙΧΟΥ VESA | Μεγέθη σχήματος οπών (mm) | Μεγέθη βιδών | Μήκος (X) | Επείρωμα (Y) |
| Polski | WYMIARY DO MONTAZU NAŚCIENNEGO VESA | Rozmiary szablonu otworów (mm) | Rozmiary wkrętów | Długość (X) | Gwint (Y) |
| čeština | ROZMĚRY DRŽÁKU NA ZEŐ VESA | Rozměry velikosti děr (mm) | Rozměry śroubů | Délka (X) | Závit (Y) |
| Magyar | VESA FALI TARTÓ MÉRETEK | Lyukak méretének nagysága(mm) | Csavar méret | Hossz (X) | Menet (Y) |
| Română MĂSURĂTORI SUPORT PERETE VESA | Dimensiuni tipar gaură (mm) | Dimensiuni şuruburi | Lungime (X) | Filet (Y) | |
| Svenska | VESA VÄGGMONTERINGSMÄTT | Hålmönsterstorlear (mm) | Skruvstorlekar | Längd (X) | Träd (Y) |
| Nederlands | VESA WANDMONTAGE METINGEN | Grootte booropening (mm) | Schroefgroote | Lengte (X) | Draad (Y) |
| Suomi | VESA-SEINÄASENNUKSEN MITAT | Reikäkuvion koot (mm) | Ruuvinkoot | Pituus (x) | Kierre (Y) |
| Norsk | VESA VEGGMONTERINGSMÄL | Hullmønster størrelser (mm) | Skruestørrelser | Lengde (x) | Träd (Y) |
| Dansk | VESA VÆGMONTERINGS-MÄL | Hulmønster-størrelser (mm) | Skruestørrelser | Længde(X) | Träd (Y) |
| Русский | РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA | Размеры системы отверстий | Размеры винтов | Длина(X) | Резьба (Y) |
| беларуская | ПАМЕРЫ НАСЦЕННАГА МАЦАВАННЯ VESA | Памеры сістэмы адтулін | Памеры вінтоў | Даўжыня (X) | Разьба (Y) |
| македонски | МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“ | Шема на големини на дупката (mm) | Големина на шрафот | Должина (X) | Навої (Y) |
| українська | РОЗМИРИ НАСТИННОГО КРИПЛЕННЯ VESA | Відстань між кріпильними отворами, мм | Розміри ввинтів | Довжина (X) | Діаметр різьби (Y) |
| Srpski | DIMENZIJE VESA ZIDNOG NOSAČA | Dimenzije šablona za bušenje | Dimenzije zavrtnjeva | Dužina (X) | Navoj (Y) |
| Slovenčina | ROZMERY DRŽIAKA NA STENU VESA | Rozmery veľkosti dier (mm) | Rozmery skrutiek | Dĺžka (X) | Závit (Y) |
| Slovenščina | MERE STENSKEGA NOSILCA VESA | Velikosti vzorca lukenj (mm) | Velikosti vijakov | Dožina (X) | Navoj (Y) |
| Hrvatski | VESA MJERE ZIDNOG DRŽAČA | Veličine uzorka otvora (mm) | Veličine vijka | Dužina (X) | Navoji (Y) |
| Bosanski | DIMENZIJE VESA ZIDNOG NOSAČA | Dimenzije šablona za bušenje | Dimenzije vijaka | Dužina (X) | Navoj (Y) |
| Български | РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA | Размери на отвора (mm) | Размер на болта | Дължинат (X) | Резба (Y) |
| Lietuvių | VESA TVIRTINIMO PRIE SIENOS MATAVIMAI | Angos šablono dydis (mm) | Varžtu dydis | Igis (X) | Sriegis (Y) |
| Latviešu | VESA SIENAS STIPRINĀJUMA IZMĒRI | Caurumu šablona izmērs (mm) | Skrūvju izmēri | Garums (X) | Vitne (Y) |
| Eesti | VESA SEINALE KINNITAMISE MÕÕDUD | Kruvi suuruse mõõt (mm) | Kruvi suurus | Kõrgus(x) | Keere (Y) |
| Shqip | PËRMASAT E NIJÉSISE SË MONTIMIT NË MUR VESA | Madhësitë modele të vrimave (mm) | Madhësitë e vidhave | Giatësia (X) | Filetimi (Y) |
| عربي | التنبايت VESA مغابيس | (م) أحجم التقوب (م) | أحجم البراغي | (طول) | ( Luxury) |
| لاوي | VESA रिवापन प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्रत्यपी प्लون | (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (м) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م 1) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م.)(م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (ر.) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) | (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م) (م). | ||
EN: Hereby, VESTEL Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
