LCD TV user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model ____ Serial No. ____

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.(See back cover for more information)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.
  This image retention is also known as "screen burn".
  To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
  Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
  To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Contents

CONNECTING AND PREPARING YOUR TV

◆ List of Parts ...... 2
◆ Installing the Stand....2
◆ Installing the Wall Mount Kit 2
◆ Viewing the Control Panel.... 3
◆ Viewing the Connection Panel .... 4
◆ Viewing the Remote Control....6
◆ Installing Batteries in the Remote Control...... 7
◆ Switching On and Off 7
◆ Placing Your Television in Standby Mode...... 7
◆ Viewing the Menus....8

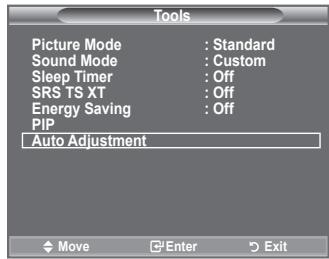

◆ Using the TOOLS Button...... 8
◆ Plug & Play....9

SETTING THE CHANNELS

◆ Storing Channels Automatically .... 10
◆ Storing Channels Manually .....11
◆ Adding / Locking Channels ...... 12
◆ Sorting the Stored Channels 13
◆ Assigning Channels Names ...... 13
◆ Fine Tuning Channel Reception.... 14

SETTING THE PICTURE

◆ Changing the Picture Standard 15
◆Adjusting the Custom Picture.... 16
◆ Resetting the Picture Settings to the Factory Defaults.... 17
◆ Changing the Picture Options .... 18
◆ Viewing the Picture In Picture (PIP) 20

SETTING THE SOUND

◆ Sound Features.... 21
◆ Selecting the Sound Mode 22

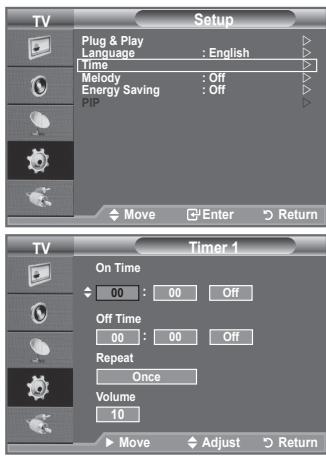

SETTING THE TIME

◆ Setting and Displaying the Current Time...... 23
◆ Setting the Sleep Timer 23
◆ Switching the Television On and Off Automatically ... 24

FUNCTION DESCRIPTION

◆ Choosing Your Language 24
◆ Melody / Energy Saving 25
◆ Selecting the Source 26
◆ Editing the Input Source Names ...... 27

SETTING THE PC

◆ Setting up Your PC Software (Based on Windows XP) 28
◆ Display Modes.... 28
◆ Setting up the TV with your PC 29

RECOMMENDATIONS FOR USE

◆ Teletext Feature ...... 30
◆ Using the Anti-Theft Kensington Lock (depending on the model) 31
◆ Troubleshooting: Before Contacting Service Personnel 32
◆ Technical and Environmental Specifications ... 33

Symbol

Press

Note

One-Touch Button

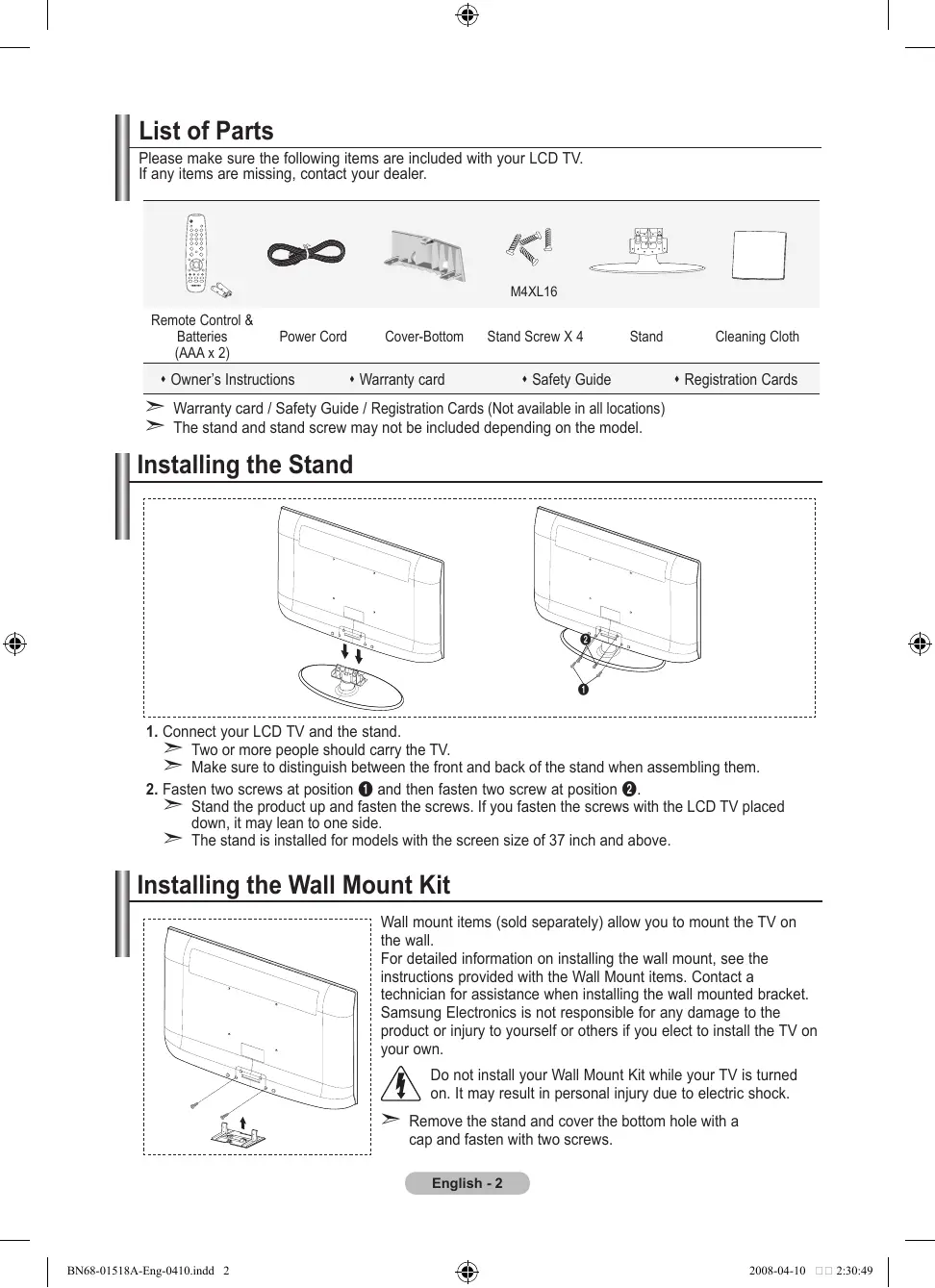

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

			M4XL16
Remote Control & Batteries (AAA x 2)	Power Cord	Cover-Bottom	Stand Screw X 4	Stand	Cleaning Cloth
♦ Owner's Instructions	♦ Warranty card		♦ Safety Guide	♦ Registration Cards

Warranty card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.

Installing the Stand

Diagram of a device with a circular base and an arrow pointing to it, no text or symbols present

Technical diagram of a monitor with labeled parts and angle annotation

1. Connect your LCD TV and the stand.

▶ Two or more people should carry the TV.
➢ Make sure to distinguish between the front and back of the stand when assembling them.

1. Fasten two screws at position ① and then fasten two screw at position ②.

➢ Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.
The stand is installed for models with the screen size of 37 inch and above.

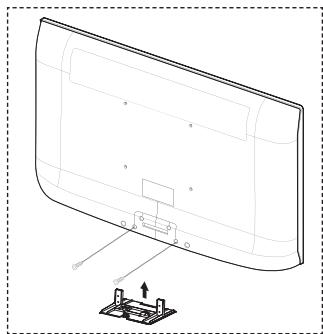

Installing the Wall Mount Kit

Technical line drawing of a curved panel with mounting bracket and base mount (no text or symbols)

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

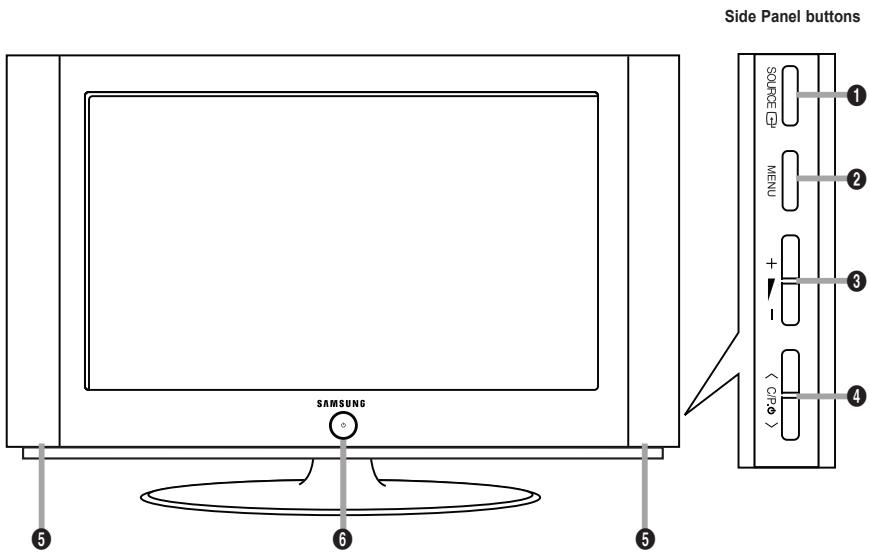

Side Panel buttons SOURCE MENU + - CPS SAMSUNG 5 6 5 1 2 3 4

The product colour and shape may vary depending on the model.

① SOURCE

Toggles between all the available input sources (TV, Ext., AV, Component, PC, HDMI1, HDMI2).

In the on-screen menu, use this button as you use the ENTER button on the remote control.

② MENU

Press to see an on-screen menu of your TV's features.

③ + ▶ -

Press to decrease or increase the volume.

In the on-screen menu, use the + - buttons as you use the ◀ and ▶ buttons on the remote control.

4 < C/P.○ >

Press to change channels. In the on-screen menu, use the < C/P.0> buttons as you use the ▲ and ▼ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

⑤ Speakers

6 ⏻ (Power)

Press to turn the TV on and off.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

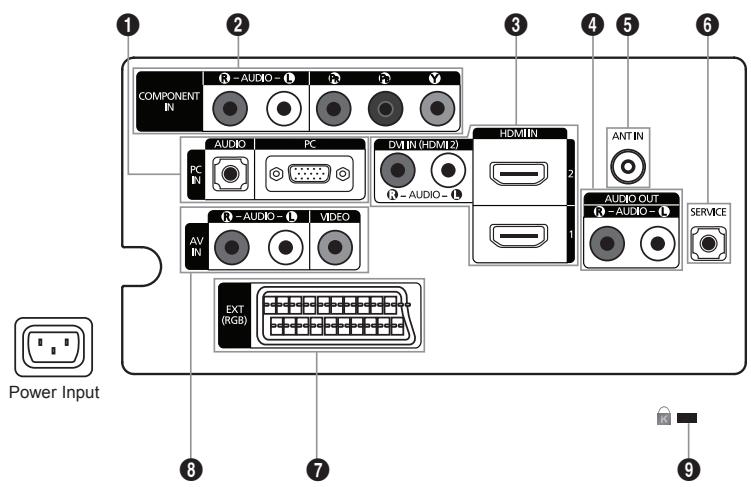

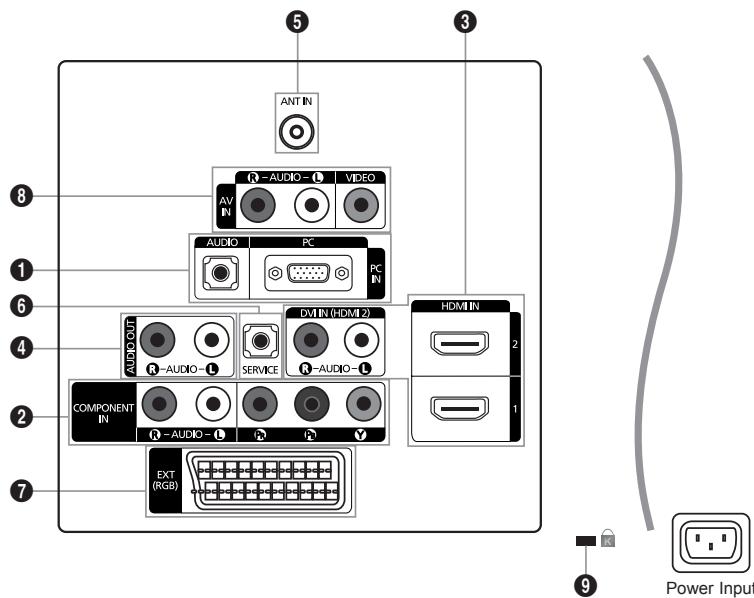

COMPONENT IN AUDIO PC DVI IN (HDMI 2) AV IN MIDEO EXT (RGB) HDMI IN ANTIN AUDIO OUT AUDIO - SERVICE Power Input

ANT IN AV IN AUDIO PC PC IN AUDIO OUT R-AUDIO-L SERVICE DIN (HDMI 2) R-AUDIO-L HDMI IN 2 COMPONENT IN R-AUDIO-L P P EXT (RGB) HDMI IN 1 Power Input

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.

① PC IN [PC] / [AUDIO]

- Connect to the video and audio output jack on your PC.

② COMPONENT IN

• Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD.
• If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set.
• The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
• Connect RCA audio cables (optional) to [R - AUDIO - L] on the rear of your set and the other ends to corresponding audio out connectors on the DVD

③ HDMI IN 1, HDMI IN 2

• Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
• No additional Audio connection is needed for an HDMI to HDMI connection.
• When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

• "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio.
• The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

DVI IN(HDMI2) [R-AUDIO-L]

- DVI audio outputs for external devices.

▶ Supported modes for HDMI/DVI and Component

	480i	480p	576i	576p	720p	1080i
HDMI/DVI 50Hz	X	X	X	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O
Component	O	O	O	O	O	O

④ AUDIO OUT [R-AUDIO-L]

- Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

⑤ ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

6 SERVICE

- Connector for SERVICE only.

⑦ EXT

Connector	Input			Output
	Video	Audio (L/R)	RGB	Video + Audio (L/R)
EXT	O	O	O	Only TV output is available.

-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

⑧ AV IN [VIDEO]/[R-AUDIO-L]

• Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
• Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V device.

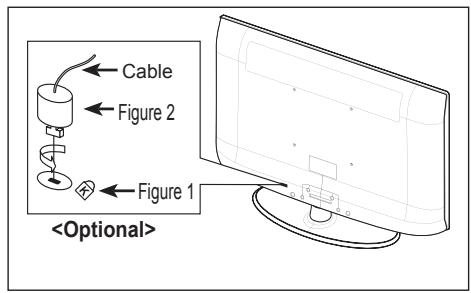

⑨ Kensington Lock (depending on the model)

• The Kensington Lock (optional) is a device used to physically fix the system when used in a public place.
• If you want to use a locking device, contact the dealer where you purchased the TV.
• The location of the Kensington Lock may be different depending on its model.

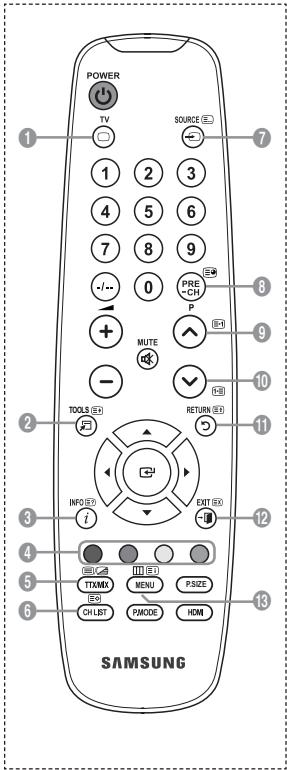

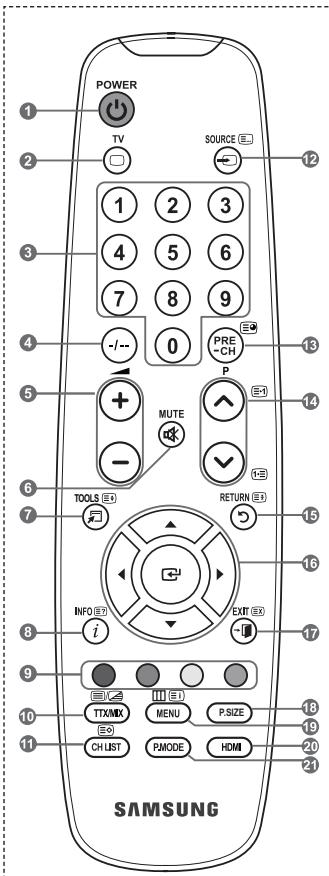

Viewing the Remote Control

① Television Standby button
② Selects the TV mode directly
③ Number buttons for direct channel access
4 One/Two-digit channel selection
⑤ ⊕: Volume increase ⊖: Volume decrease
⑥ Temporary sound switch-off
⑦ Use to quickly select frequently used functions.
8 Use to see information on the current broadcast
⑨ Colour buttons : Use these buttons in the Channel list, etc.
f! Displays the Channel List on screen
⑫ Available source selection
13 Previous channel
14 P: Next channel P: Previous channel
15 Returns to the previous menu
16 Control the cursor in the menu
17 Exit the on-screen menu
18 Picture size selection
19 Displays the main on-screen menu
20 Selects the HDMI mode directly.
21 Picture effect selection

Teletext Functions

② Exit from the teletext display
⑦ Teletext size selection
8 Teletext reveal
9 Fastext topic selection
⑩ Alternately select Teletext, Double, or Mix.
⑪ Teletext store
⑫ Teletext mode selection (LIST/FLOF)
13 Teletext sub page
14 P: Teletext next page P: Teletext previous page
15 Teletext hold
17 Teletext cancel
19 Teletext index

POWER TV SOURCE 1 2 3 4 5 6 7 8 9 -/- 0 PRE- CH MUTE P - TOOLS RETURN INFO EXIT i TTX/MIX MENU P.SIZE CH LIST PMODE HDMI SAMSUNG

The performance of the remote control may be affected by bright light.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AAA size batteries.

Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time.

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever handle assembly (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

1. Press the ⏻ button on your set.

➢ You also can press the POWER ⏻ button or the TV button on the remote control to turn the TV on.
The channel that you were watching last is reselected automatically

1. Press the numeric button (0\~9) or channel up/down (✗/✗) button on the remote control or < C/P.✗> button on your set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

1. To switch your set off, press the POWER ⏻ button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

1. To switch your set back on, simply press the POWER, numeric buttons (0\~9), TV button or channel up/down (✗/✗) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

Viewing the Menus

1. With the power on, press the MENU button.
   The main menu appears on the screen. The menu's left side has icons: Picture, Sound, Channel, Setup, Input.
2. Press the ▲ or ▼ button to select one of the icons.
   Then press the ENTER button to access the icon's submenu.
3. Press the EXIT button to exit.
   The on-screen menus disappear from the screen after about one minute.

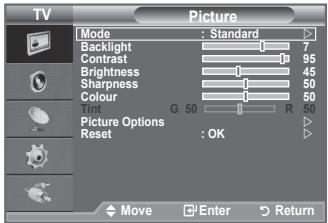

TV Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 G 50 R 50 Picture Options Reset : OK Move Enter Return

TTX/MX MENU CH LIST PMODE HDM

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1. Press the TOOLS button.

The "Tools" menu will appear.

1. Press the ▲ or ▼ button to select a menu.

2. Press the ▲/▼/◄/►/ENTER☑ buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

• Picture Mode, see page 15
• Sound Mode, see page 21
- Sleep Timer, see page 23
• SRS TS XT, see page 21
• Energy Saving, see page 25
- Dual I-II, see page 22
- PIP, see page 20
• Auto Adjustment, see page 29

Tools Picture Mode ← Standard ► Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

TOOLS RETURN

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control. The message "Start Plug & Play." is displayed with "OK" selected.
2. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.
3. Press the ◀ or ▶ button to select "Store Demo" or "Home Use", then the ENTER button.

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.
➢ "Store Demo" mode is only intended for use in retail environments.
If the unit is accidentally set to "Store Demo" mode and you want to return to "Home Use" (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

1. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button.

➢ Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER← button to confirm your choice.

1. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically.
➢ After all the available channels are stored, the "Clock Set" menu appears.
➢ Press the ENTER button at any time to interrupt the memorization process.

1. Press the ENTER← button.

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◀ or ▶ button.

Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button.

➢ You can also set the "Month", "Day", "Year", "Hour" and "Minute" by pressing the number buttons on the remote control.

1. Press the ENTER button to confirm your setting. The message "Enjoy your viewing" is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

♦ Language: Select your language.
♦ Country: Select your country.
- Auto Store: Automatically scans for and stores channels available in the local area.
- Clock Set: Sets the current time for the TV clock.

Plug & Play Start Plug & Play. OK Enter

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup" then press the ENTER button.

1. Press the ENTER← button again, to select "Plug & Play".

For further details on setting up options, refer to the page 9.

The "Plug & Play" feature is only available in the TV mode.

TV Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country).

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ENTER button to select "Country".
3. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.
4. Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.
5. Press the ENTER← button.

The TV will begin memorizing all of the available channels.

➢ Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

You can store television channels, including those received via cable networks.

When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found.
- The programme number of each stored channel which you wish to identify.
1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Manual Store", then press the ENTER button.
3. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
4. When you are satisfied with your setting, press the ENTER button.
5. Press the EXIT button to exit.

♦ Programme (Programme number to be assigned to a channel)

• Press the ▲ or ▼ button until you find the correct number.
  ➢ You can also select the channel number directly by pressing the numeric buttons (0\~9).

♦ Colour System: Auto/PAL/SECAM/NTSC4.43

- Press the ▲ or ▼ button to select the required colour standard.

♦ Sound System: BG/DK/I/L

- Press the ▲ or ▼ button to select the required sound standard.

◆ Channel (When you know the number of the channel to be stored)

- Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

- Press the ▶ button, then press the ▲ or ▼ button to select the required number.

➢ You can also select the channel number directly by pressing the numeric buttons (0\~9).
➢ If there is abnormal sound or no sound, re-select the sound standard required.

♦ Search (When you do not know the channel numbers)

• Press the ▲ or ▼ button to start the search.
• The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

♦ Store (When you store the channel and associated programme number)

- Set to "OK" by pressing the ENTER button.

Channel mode

• P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.
• C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
• S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

TV Programme : P 1 Colour System : Auto Sound System : BG Channel : S 6 Search : 140 MHz Store : ?

Using the Channel Manager, you can conveniently lock or add channels.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

1. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.

♦ Adding channels

Using the Channel List, you can add channels.

1. Select "Channel List" by pressing the ENTER button.

2. Move to the (⊕) field by pressing the ▲, ▼, ◀ or ▶ button, select a channel to be added, and press the ENTER ⊕ button to add the channel.

If you press the ENTER button again, the (√) symbol next to the channel disappears and the channel is not added.

"> "☐" is active when "Child Lock" is selected to "On".

♦ Locking channels

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

1. Press the ▲ or ▼ button to select "Child Lock", then press the ENTER button.

2. Select "On" by pressing the ▲ or ▼ button, then press the ENTER button.

3. Press the ▲ or ▼ button to select "Channel List", then press the ENTER button.

4. Move to the "☐" field by pressing the ▲, ▼, ◀ or ▶ button, select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the (√) symbol next to the channel disappears and the channel lock is cancelled.

A blue screen is displayed when "Child Lock" is activated.

1. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "☐" to be active or inactive.

You can select these options by simply pressing the CH LIST button on the remote control.

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

TV Channel Manager Channel List Child Lock : Off Move Enter Return

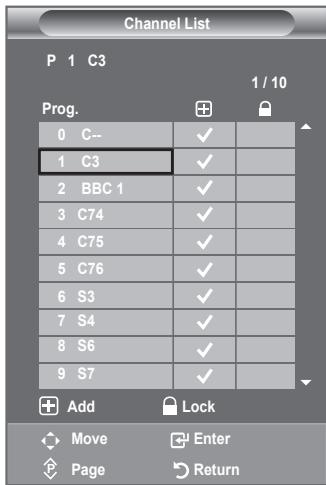

Channel List P 1 C3 1 / 10 Prog. 0 C-- 1 C3 2 BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return

TTX/MIX MENU P.SIZE CH.LE* HDMI

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Sort", then press the ENTER button.
3. Select the channel number that you wish to change by pressing the ▲ or ▼ button.

Press the ENTER← button.

The selected channel number and name are moved to right side.

1. Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button.
2. Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly.
3. Repeat steps 3 to 5 for another channel to be sorted.
4. Press the EXIT button to exit.

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

TV Sort Prog. Ch. Name 0 C-- 1 C23 2 S06 3 S07 4 S09 5 S12 6 S13 7 S14 8 S17 9 C21 Move Enter Return

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Name", then press the ENTER button.
3. If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button.

The selection bar is displayed around the name box.

To...	Then...
Select a letter, number or symbol	Press the ▲ or ▼ button
Move on the next letter	Press the ▶ button
Move back the previous letter	Press the ◀ button
Confirm the name	Press the ENTER button

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Yune Move Enter Return

TV Prog. Ch. Name 0 C-- 1 C23 2 S06 3 S07 4 S09 5 S12 6 S13 7 S14 8 S17 9 C24 Move Enter Return

The following characters are available: Letters of the alphabet (A\~Z) / Numbers (0\~9) / Special characters (+, -, *, /, space)

1. Repeat steps 3 to 4 for each channel to be assigned to a new name.
2. Press the EXIT button to exit.

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER← button.
4. Press the ◀ or ▶ button to adjust the fine tuning. Press the ENTER button.
5. Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.
To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER← button.

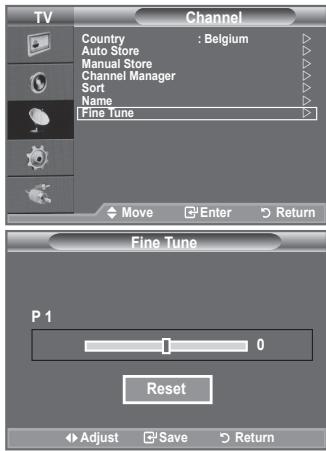

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return Fine Tune P 1 0 Reset Adjust Save Return

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. Press the ENTER← button again, to select "Mode".
3. Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.
4. Press the EXIT button to exit.

◆ Dynamic: Selects the picture for high-definition in a bright room.
♦ Standard: Selects the picture for optimum display in a normal environment.
♦ Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.

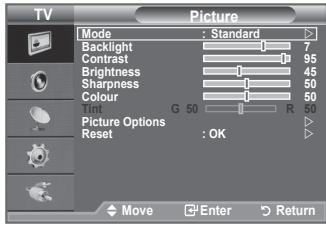

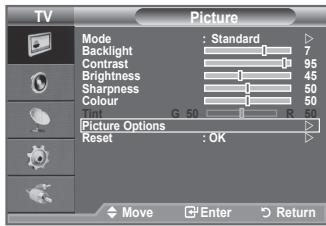

TV Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tin G 50 R 50 Picture Options Reset : OK Move Enter Return

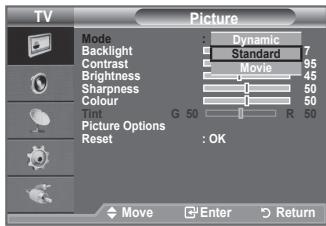

TV Picture Mode : Dynamic Backlight Standard 7 Contrast Movie 95 Brightness 45 Sharpness 1 50 Colour 1 50 G 50 R 50 Picture Options Reset : OK Move Enter Return

You can also press the P.MODE button on the remote control to select one of the picture settings.

TTX/MX MENU P.SIZE CH LIST PMODE

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "Picture Mode".
3. Press the ◀ or ▶ button to select the required option.
4. Press the EXIT or TOOLS button to exit.

Tools Picture Mode ← Standard ► Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

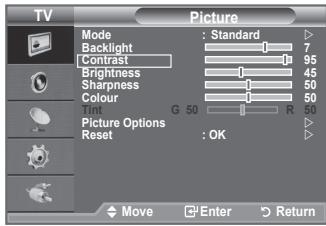

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 15)
2. Press the ▲ or ▼ button to select a particular item. Press the ENTER button.
3. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER button.
4. Press the EXIT button to exit.

♦ Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0\~10)
♦ Contrast: Adjusts the lightness and darkness between objects and the background.
♦ Brightness: Adjusts the brightness of the whole screen.
◆ Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
♦ Colour: Adjusts the colours, making them lighter or darker.
♦ Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

TV Picture Mode : Standard ▷ Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tin G 50 R 50 Picture Options Reset : OK ▷ Move Enter Return

Backlight 7 Move Adjust Return

The adjusted values are stored according to the selected Picture mode.
In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness". (26, 32, 37 inch) In PC mode, you can only make changes to "Contrast" and "Brightness". (40 inch)
In TV, Ext., AV modes of the PAL system, you cannot use the "Tint" Function.

You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 17)
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and that this will reduce the overall running cost.

Resetting the Picture Settings to the Factory Defaults

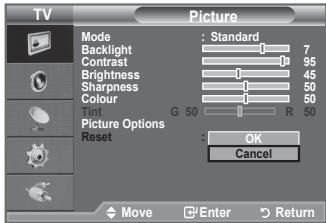

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 on page 15.
2. Press the ▲ or ▼ button to select "Reset", then press the ENTER button.
3. Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button.
4. Press the EXIT button to exit.
   The "Reset" will be set for each Picture mode.

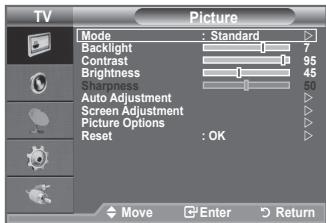

TV Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 G 50 R 50 Picture Options Reset : OK Cancel Move Enter Return

Changing the Picture Options

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. Press the ▲ or ▼ button to select "Picture Options", then press the ENTER button.
3. Select the required option by pressing the ▲ or ▼ button, then press the ENTER← button.
4. When you are satisfied with your setting, press the ENTER button.
5. Press the EXIT button to exit.

In PC mode, you can only make changes to the "Colour Tone" and "Size" from among the items in "Picture Options".

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected Picture mode.
“Warm1” or “Warm2” is only activated when the picture mode is "Movie".

◆ Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

TV Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 G 50 R 50 Picture Options Reset : OK Move Enter Return

TV Picture Options Colour Tone : Normal Size : Auto Wide Screen Mode : 16:9 Digital NR : Auto HDMI Black Level : Normal Move Enter Return

♦ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.
◆ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
♦ Wide Zoom: Magnify the size of the picture more than 4:3.
♦ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
◆ 4:3: This is the default setting for a video movie or normal broadcasting.
Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i) or Component (1080i) signals are input.

➢ "Auto Wide" function is available only in "TV", "Ext." and "AV" mode.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
Temporary image retention may occur when viewing a static image on the set for more than two hours.
When Double (□□, □□) mode has been set in PIP, the Picture Size cannot be set.

Wide Zoom: Move the screen up/down using the ▲ or ▼ button after selecting the ☐ by pressing the ▶ or ENTER☐ button.
Zoom: Select ☐ by pressing the ◀ or ▶ button. Use the ▲ or ▼ button to move the picture up and down. After selecting ☐, use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

➢ After selecting “Just Scan” in HDMI (1080i) or Component (1080i) mode:

Select ☐ by pressing the ◀ or ▶ button. Use the ▲, ▼, ◀ or ▶ button to move the picture.

Reset: Press the ◀ or ▶ button to select "Reset", then press the ENTER button.

You can initialize the setting.

You can select these options by simply pressing the P.SIZE button on the remote control.

B/C TTX/MX E0 CH LIST III E1 MENU P.MODE P.SIZE HDMI

Screen Mode: 16:9/ Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

◆ 16:9: Sets the picture to 16:9 wide mode
♦ Wide Zoom: Magnify the size of the picture more than 4:3.
◆ Zoom: Magnify the size of the picture vertically on screen.
♦ 4:3: Sets the picture to 4:3 normal mode.

➢ This function is available in "Auto Wide" mode.
This function is not available in "PC", "Component" or "HDMI" mode.

♦ Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

♦ HDMI Black Level: Normal/Low

You can select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER ⬇ button.
2. Press the ▲ or ▼ button to select "PIP", then press the ENTER ⏻ button.
3. Select the required option by pressing the ▲ or ▼ button, then press the ENTER ↩ button.
4. When you are satisfied with your setting, press the ENTER ↩ button.
5. Press the EXIT button to exit.
   ➢ You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "PIP", then press the ENTER ⏻ button.
3. Press the ▲ or ▼ button to select a particular item.
4. Press the ◀ or ▶ button to select the required option.
5. Press the EXIT or TOOLS button to exit.

PIP: On/Off

You can activate or deactivate the PIP function.

You can select a source of the sub-picture.

◆ Size: □ / □/ □□

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

You can select a position of the sub-picture.

In Double (□□, □□) mode, "Position" cannot be selected.

Programme

You can select a channel of the sub-picture only when the "Source" is set to "TV".

TV Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

TV PIP PIP : On Source : TV Size : Position : Programme : P1 Move Enter Return

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP Move Enter Exit

PIP PIP On Source : TV Size : Position : Programme : P1 Move Adjust Return

Sound Features

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "Sound Mode".
3. Press the ◀ or ▶ button to select the desired sound mode.
4. Press the EXIT or TOOLS button to exit.

♦ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal preferences.

If you make any changes to these settings, the sound mode is automatically switched to "Custom".

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off TV Speaker : On Sound Select : Main Move Enter Return

Tools Picture Mode : Standard Sound Mode ← Custom ► Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

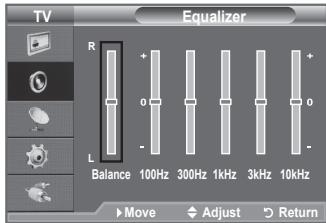

TV Equalizer R + 0 - L Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return

◆ SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "SRS TS XT".
3. Press the ◀ or ▶ button to select the "Off" or "On".
4. Press the EXIT or TOOLS button to exit.

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off [SRS TS XT] Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

SRS(●)

SRS TruSurround XT

TruSurround XT, SRS and (●) Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The ▲+, ▲- and MUTE buttons do not operate when the "TV Speaker" is set to "Off".
When "TV Speaker" is set to "Off", you can operate only "Sound Select" (in PIP mode) in Sound menu.

◆ Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

- Main: Used to listen to the sound of the main picture.

- Sub: Used to listen to the sound of the sub picture.

Selecting the Sound Mode

You can set the sound mode in the TOOLS menu. When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "Dual I-II".
3. Press the ◀ or ▶ button to select required option.
4. Press the ENTER← button.

	Audio Type	Dual 1/2	Default
A2 Stereo	Mono	MONO	Automatic change
	Stereo	STEREO ↔ MONO
	Dual	DUAL 1 ↔ DUAL 2	DUAL 1
NICAM Stereo	Mono	MONO	Automatic change
	Stereo	MONO ↔ STEREO
	Dual	→MONO DUAL 1 ——DUAL 2 ←—	DUAL 1

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II Mono Move Adjust Exit

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.
This function is only activated in stereo sound signal. It is deactivated in mono sound signal.
This function is only available in TV mode.

Setting and Displaying the Current Time

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.
3. Press the ENTER button to select "Clock Set".

4.	To...	Press the...
	Move to "Month", "Day", "Year", "Hour" or "Minute"	◀ or ▶ button.
	Set the "Month", "Day", "Year", "Hour" or "Minute"	▲ or ▼ button.
	Confirm the setting	ENTER▶ button.

1. Press the EXIT button to exit.

Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

TV Clock Set Month 01 Day 01 Year 2008 Hour 00 Minute 00 Move Adjust Return

➢ If you disconnect the power cord, you have to set the clock again.

You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button.
4. Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180).
   Press the ENTER← button.
5. Press the EXIT button to exit.
   The TV automatically switches to standby mode when the timer reaches 0.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "Sleep Timer".
3. Press the ◀ or ▶ button to select the minute.
4. Press the EXIT or TOOLS button to exit.

TV Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

TV Clock Set : 00 : 00 Sleep Timer Timer 1 Timer 2 Timer 3 Off 30 60 90 120 150 180 Move Enter Return

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

Switching the Television On and Off Automatically

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2", "Timer 3", then press the ENTER button.
   Three different On/Off Timer Settings can be made.
   You must set the clock first.

4. Press the ◀ or ▶ button to select the required item below.

Press the ▲ or ▼ button to adjust to the setting satisfied.

◆ On Time: Select hour, minute, and "On"/"Off". (To activate timer with the setting satisfied, set to "On".)
♦ Off Time: Select hour, minute, and "On"/"Off". (To activate timer with the setting satisfied, set to "On".)
♦ Repeat: Select "Once", "Everyday", "Mon\~Fri", "Mon\~Sat", or "Sat\~Sun".

◆ Volume: Select the desired turn on volume level.

Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

TV Timer 1 On Time 00 : 00 Off Off Time 00 : 00 Off Repeat Once Volume 10 ▶ Move ▼ Adjust ▶ Return

➢ You can set the hour and minute directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Language", then press the ENTER button.

3. Select a particular language by pressing the ▲ or ▼ button repeatedly.

Press the ENTER← button.

1. Press the EXIT button to exit.

Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

♦ Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

• When no sound is output from the TV because the MUTE button has been pressed
• When no sound is output from the TV because the ⏻ (Volume) button has been pressed
• When the TV is turned off by Sleep Timer function.

♦ Energy Saving: Off/Low/Medium/High

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

• Off: Turns off the energy saving function.
• Low: Sets the TV to low energy saving mode.
• Medium: Sets the TV to medium energy saving mode.
  – High: Sets the TV to high energy saving mode.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "Energy Saving".
3. Press the ◀ or ▶ button to select the "Off", "Low", "Medium" or "High".
4. Press the EXIT or TOOLS button to exit.
   This function is not available in "PC" mode.(40 inch)

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving ← Off Dual I-II : Mono Move Adjust Exit

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the ENTER button.

1. Press the ENTER button again, to select "Source List".

➢ Available signal sources: TV, Ext., AV, Component, PC, HDMI1, HDMI2.
➢ You can choose only those external devices that are connected to the TV.

1. Select the required device by pressing the ▲ or ▼ button.

Press the ENTER← button.

Press the SOURCE button on the remote control to toggle between all the available source.

TV mode can be selected by pressing the TV button, number buttons(0\~9), and the P ^ⓧ / ^ⓧ button on the remote control.

You can also watch HDMI mode simply by pressing the HDMI button on the remote control.

TV Source List : TV Edit Name Move Enter Return

TV SOURCE E...

TV SOURCE E...

MUTE -

CH LIST HDMI

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Input", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button.
3. Press the ▲ or ▼ button to select the device that you wish to edit.
   Press the ENTER button.
4. Press the ▲ or ▼ button to select the required device.
   Press the ENTER← button.
5. Press the EXIT button to exit.

TV Source List : TV Edit Name Move Enter Return

TV Edit Name Ext. AV Component PC HDMI1 HDMI2 VCR DVD Cable STB Satellite STB PVR STB AV Receiver Game Move Enter Return

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

Display Properties Frames | Desktop | Screen Screen | Appearance | Settings Display: Default Monitor on NVIDIA GeForce PC 5200 Screen resolution Low More 1308 by 760 pixels Color quality Highest (12.64) Displacement Advanced OK Cancel Apply

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum-1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640×350	31.469	70.086	25.175	+/-
	720×400	31.469	70.087	28.322	-/+
VESA	640×480	31.469	59.940	25.175	-/-
	640×480	37.861	72.809	31.500	-/-
	640×480	37.500	75.000	31.500	-/-
	800×600	37.879	60.317	40.000	+/+
	800×600	48.077	72.188	50.000	+/+
	800×600	46.875	75.000	49.500	+/+
	1024×768	48.363	60.004	65.000	-/-
	1024×768	56.476	70.069	75.000	-/-
	1024×768	60.023	75.029	78.750	+/+
	1360 x 768	47.712	60.015	85.500	+/+

HDMI/DVI Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
VESA	640×480	31.469	59.940	25.175	-/-
	800×600	37.879	60.317	40.000	+/+
	1024×768	48.363	60.004	65.000	-/-
	1360 x 768	47.712	60.015	85.500	+/+

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.

➢ Preset: Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Auto Adjustment

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER button.

Screen Adjustment:

Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER button.

Press the ◀ or ▶ button to adjust the screen quality.

Press the ENTER← button.

Position

Adjust the PC's screen positioning if it does not fit the TV screen.

Press the ▲ or ▼ button to adjusting the Vertical-Position.

Press the ◀ or ▶ button to adjust the Horizontal-Position. Press the ENTER button.

Image Reset

You can replace all image settings with the factory default values.

TV Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Shadows 0 Auto Adjustment Screen Adjustment Picture Options Reset : OK Move Enter Return

Auto Adjustment in progress Please wait.

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP Auto Adjustment Move Enter Exit

TV Screen Adjustment Coarse Fine Position Image Reset Move Enter Return

TV Position Move Enter Return

Screen Adjustment Coarse 50 Fine 34 Position Image Reset Move Enter Return

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

① □ (exit)

Exit from the teletext display

② (size)

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

3 ≡? (reveal)

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

④ Coloure buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

5 📊/(Z) (teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

6 ≡ (store)

Used to store the teletext pages.

⑦ ≡... (mode)

Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the ☐(store) button.

8 (sub-page)

Used to display the available sub-page.

9 ≡1 (page up)

Used to display the next teletext page.

10 1≡ (page down)

Used to display the previous teletext page.

11 (hold)

Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

12 ☒ (cancel)

Used to display the broadcast when searching for a page.

13 ≡i (index)

Used to display the index (contents) page at any time while you are viewing teletext.

➢ You can change teletext pages by pressing the numeric buttons on the remote control.

POWER TV SOURCE 1 2 3 4 5 6 7 8 9 - - - 0 PRE-CH P MUTE - TOOLS (E) RETURN (R) INFO (F) EXIT (D) i TITAMX MENU PSIZE CH LIST PAODE HDMI SAMSUNG

1 2 3 4 5 6 7 8 9 -/- 0 PRE- -CH P

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting station identity.
C	Current page number or search status.
D	Date and time.
E	Text.
F	Status information.FASTEXT information.

A B C D E F

➢ Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

♦ Entering the page number
♦ Selecting a title in a list
♦ Selecting a coloured heading (FASTEXT system)

➢ Press the TV button to exit from the teletext display.

TV SOURCE (.) ① ② ③

Using the Anti-Theft Kensington Lock (depending on the model)

The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
   The location of the Kensington Lock may be different depending on its model.

Cable Figure 2 Figure 1 (Optional)

Troubleshooting: Before Contacting Service Personnel

No sound or picture.	Check that the mains lead has been connected to a wall socket.Check that you have pressed thebutton on your set.Check the picture contrast and brightness settings.Check the volume.
Normal picture but no sound.	Check the volume.Check whether theMUTEbutton has been pressed on the remote control.Check if "TV Speaker" is on.
Screen is black and power indicator light blinks steadily.	On your computer check; Power, Signal Cable.The TV is using its power management system.Move the computer's mouse or press any key on the keyboard.
No picture or black and white picture.	Adjust the colour settings.Check that the broadcast system selected is correct.
Sound and picture interference.	Try to identify the electrical appliance that is affecting the set and move it further away.Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound.	Check the direction, location and connections of your aerial.This interference is often due to the use of an indoor aerial.
Remote control malfunctions.	Replace the remote control batteries.Clean the upper edge of the remote control (transmission window).Check the battery terminals.
'Check signal cable.' message is displayed.	Check that the signal cable is firmly connected to the PC or video sources.Check that the PC or video sources are turned on.
On PC mode, 'Mode Not Supported' message is displayed.	Check the maximum resolution and the frequency of the video adaptor.Compare these values with the data in the Display Modes.
The damaged picture appears in the corner of the screen.	If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.
The 'Resets all settings to the default values' message appears.	This appears when you press and hold theEXITbutton for a while. The product settings are reset to the factory defaults.
The TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model Name	LE26A330	LE32A330
Screen Size (Diagonal)	26 inch	32 inch
PC Resolution	1360 X 768 @ 60 Hz	1360 X 768 @ 60 Hz
Sound Output	5W x 2	10W x 2
Dimensions (WxDxH)
Body	744 X 80 X 447 mm	874 X 81 X 531 mm
With stand	744 X 232 X 507 mm	874 X 291 X 577 mm
Weight
With stand	11 kg	15 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing
Stand Swivel(Left / Right)	0°	-20° ~ 20°

Model Name	LE37A330	LE40A330
Screen Size (Diagonal)	37 inch	40 inch
PC Resolution	1360 X 768 @ 60 Hz	1360 X 768 @ 60 Hz
Sound Output	10W x 2	10W x 2
Dimensions (WxDxH)
Body	1013 X 93 X 602 mm	1084 X 95 X 639 mm
With stand	1013 X 300 X 652 mm	1084 X 300 X 690 mm
Weight
With stand	21 kg	22 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel(Left / Right)	-20° ~ 20°

➢ Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For the power supply and Power Consumption, refer to the label attached to the product.

Diagram of a device with an open lid and internal components, showing no text or symbols

Line drawing of a flat-screen monitor with an angle indicator and numbered component (no text or symbols)

Installation du support mural

Technical line drawing of a monitor with base mount (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever handle with no text or symbols

Simple line drawing of a curved mechanical component with an arrow indicating rotation (no text or symbols)

TOOLS RETURN

Plug & Play

Plug & Play Start Plug & Play. OK Enter

TV SOURCE

TV SOURCE

Display Properties Themes Desktop Screen Save Appearance Settings Display Default Monitor on NVIDIA GeForce FX 5200 Screen saver Less More Color quality 1.360 by 760 pixels Highest (32 bit) Doubleboot Advanced OK Cancel Apply

Modes d'affichage

TV SOURCE ① ② ③

Diagram of a device component with an arrow pointing to a circular base (no text or symbols present)

Technical diagram of a monitor with labeled parts and angle annotation

Technical line drawing of a curved electronic device with mounting bracket and base mount (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

4 AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever assembly (no text or symbols)

Simple line drawing of a curved arrow pointing to a rectangular object with a small circular mark (no text or symbols)

Ein-und Ausschalten

TOOLS (E) RETURN (E)

Plug & Play

Plug & Play Start Plug & Play. OK Enter

TV SOURCE E...

TV SOURCE

Display Properties Theme Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Interconnects Level: 1360 by 768 pixels Main: 32.5 MB Highest (32.5 MB) Insulate/Advanced OK Cancel Apply

Anzeigemodi

TV SOURCE ① ② ③

Diagram of a device with an open lid and internal components, showing no text or symbols

Technical diagram of a monitor with labeled parts and angle annotations

Technical line drawing of a curved electronic device with mounting brackets and a base mount (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

4 AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a curved mechanical component with an arrow indicating rotation (no text or symbols)

In- en uitschakelen

TOOLS RETURN

Plug & Play

Plug & Play Start Plug & Play. OK Enter

Picture in Picture (PIP)

♦ Auto Volume: Uit/Aan

TV SOURCE

TV SOURCE

Display Properties Therem Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Intermodulation More Opt quality Length 1360 by 700 pixels Higher (32 bit) Installout Advanced OK Cancel Apply

Weergavestanden

TV SOURCE ① ② ③

Diagram of a device component with an arrow pointing to a circular base (no text or symbols)

Technical line drawing of a monitor with labeled components (no text or symbols present)

Technical line drawing of a curved panel or enclosure with mounting hardware (no text or symbols)

④ AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

TOOLS RETURN

Plug & Play

Plug & Play Start Plug & Play. OK Enter

TV SOURCE

TV SOURCE

Display Properties Themes Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA Server FX 5000 Screen resolution More Color quality Low 1300 by 700 pixels Height (2.0 px) Defaultset Advanced OK Cancel Apply

TV SOURCE ① ② ③

Line drawing of a device component with an arrow pointing to a circular base (no text or symbols)

Technical line drawing of a monitor with labeled parts (no text or symbols present)

Technical line drawing of a curved panel with mounting base and internal components (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

4 AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever handle with no text or symbols

Simple line drawing of a curved mechanical component with an arrow indicating rotation (no text or symbols)

Encendido y apagado

TOOLS RETURN

Plug & Play

Plug & Play Start Plug & Play. OK Enter

TV SOURCE E

TV SOURCE

Display Properties Themed Desktop Screen Screen Appearance Settings Display: Default Monitor on NVIDIA GeForce PC 6200 Screen resolution More 13GB by 780 pixels Color quality Highest (32 Mb) Installable Advanced OK Cancel Apply

TV SOURCE

Cable Figure 2 Figure 1 (Optional)

Diagram of a device with an open lid and a small circular base, showing no text or symbols.

Line drawing of a monitor with an angle measurement and labeled points (no text or symbols beyond labels)

1. Ligue o televisor LCD e a base.

Technical line drawing of a curved electronic device with mounting base and internal components (no text or symbols)

④ AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever handle assembly (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Ligar e desligar

Plug & Play Start Plug & Play. OK Enter

TV SOURCE

TV SOURCE

TAMX MENU F.SIZE E0 CH LIST HDMI

Editar os nomes das fontes de entrada

Display Properties Themes Desktop Screen Save Appearance Settings Display Default Monitor on NVIDIA GeForce FX 5200 Screen saver Less More Color quality 1.360 by 760 pixels Highest (32 bit) Doubleboot Advanced OK Cancel Apply

Diagram showing a device inside a curved panel with an arrow pointing to a circular component (no text or symbols present)

Line drawing of a monitor with labeled parts (1 and 2), no text or symbols present

Technical line drawing of a curved panel or enclosure with mounting hardware and a base mount (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

④ AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

TOOLS RETURN

Plug & Play

Plug & Play Start Plug & Play. OK Enter

TV SOURCE

TV SOURCE

TAXIMA MENU F-SIZE E6 CH LIST HDMI

Display Properties Theme Desktop Screen Server Appearance Settings Display Default Monitor on NVIDIA GeForce Fi 5200 Screen resolution Low More 1360 by 700 pixels Color quality Highest (32 bit) Established Advanced OK Cancel Apply

TV SOURCE ① ② ③

Diagram of a device with an open lid and internal components, showing no text or symbols

Technical diagram of a monitor with labeled components and angle indicators

Technical line drawing of a curved electronic device with mounting bracket and base mount (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

4 AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever assembly (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

TOOLS RETURN

Przeglądanie menu

Plug & Play Start Plug & Play. OK Enter

Display Properties Themes Desktop Screen Save Appearance Settings Display Default Number on NVIDIA GeForce PV 5200 Screen saver: More Color quality Less: 1360 by 760 pixels Highest (32 bit) Options: Advanced OK Cancel Apply

TV SOURCE ① ② ③

Diagram of a device with a base and a switch, showing no text or symbols

Line drawing of a monitor with a base and top view, showing no text or symbols

1. Propojte LCD televizor a stojan.

Technical line drawing of a curved electronic device with mounting bracket and base mount (no text or symbols)

DVI IN (HDMI 2) [R-AUDIO-L]

4 AUDIO OUT [R-AUDIO-L]

Line drawing of a mechanical component with arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever handle with no text or symbols

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Zapnutí a vypnutí

TOOLS RETURN

Plug & Play

♦ PIP: Zapnuto/Vypnuto

TV SOURCE

TV SOURCE

Display Properties Themes Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Network connection Length 1360 by 768 pixels Open pixels Highest (32 Mb) Installable Advanced OK Cancel Apply

Režimy zobrazení

⑤ ≡/∅ (zapnout teletext/mix)

TV SOURCE ① ② ③

Diagram of a device component with an arrow pointing to a circular base (no text or symbols present)

Technical diagram of a monitor with labeled parts and angle annotations

Technical line drawing of a curved panel with mounting bracket and base mount (no text or symbols)

DVI IN (HDMI2) [R-AUDIO-L]

4 AUDIO OUT [R-AUDIO-L]

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical lever handle assembly (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Zapínanie a vypínanie

TOOLS RETURN

Plug & Play

TV SOURCE E TV SOURCE E MUTE -

Display Properties Theme Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA Server FX 5000 Screen resolution More 1300 by 700 pixels Color pixels Highest (20 px) Enableboot Advanced OK Cancel Apply

5 (zapnút' teletext/mix)

TV SOURCE ① ② ③

Diagram of a device rear panel with a small component inside, showing no text or symbols

Technical diagram of a monitor with labeled parts and angle annotation

1. Televizor LCD pritrdite na stojalo.

Technical line drawing of a curved electronic device with mounting bracket and base mount (no text or symbols)

DVI IN (HDMI 2) [R-AUDIO-L]

④ AUDIO OUT [R-AUDIO-L]

- Priključite avdio RCA-kabla na AUDIO OUT [R-AUDIO-L] na hrbtni strani televizorja in druga konca na ustrezne spojnike avdio vhoda na ojačevalniku ali DVD-domačem kinu.

⑤ ANT IN

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Vklop in izklop

1. Pritisnite gumb TOOLS.

Pojavi se meni "Tools".

Plug & Play Start Plug & Play. OK Enter

Priporočamo, da televizor nastavite na način "Home Use", saj to zagotavlja najboljšo slikov domačem okolju.
Način "Store Demo" je namenjen samo uporabi v trgovinah.
Če je enota naključno nastavljena na način "Store Demo" in se želite vrniti v način "Home Use" (Standard): Na televizorju pritisnite gumb za glasnost. Ko je na zaslonu prikaz glasnosti, pritisnite gumb MENU na televizorju in ga držite 5 sekund.

1. Prikaže se sporočilo "Check antenna input." s potrjenim "OK". Pritisnite gumb ENTER.

TV Channel Manager Channel List Child Lock : Off Move Enter Return

Channel List P 1 C3 1 / 10 Prog. 0 C-- 1 C3 2 BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return

TTX/MIX MENU P.SIZE CH LIST HDMI SAMSUNG

Backlight 7 Move Adjust Return

♦ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

♦ Digital NR: Off/Low/Medium/High/Auto

♦ HDMI Black Level: Normal/Low

Mode: Standard/Music/Movie/Speech/Custom

♦ Auto Volume: Off/On

◆ Sound Select: Main/Sub

♦ Repeat: Izberite “Once”, “Everyday”, “Mon\~Fri”, “Mon\~Sat”, ali “Sat\~Sun”.

♦ Volume: Izberite želeno nastavitev glasnosti.

Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return Timer 1 On Time 00 : 00 Off Off Time 00 : 00 Off Repeat Once Volume 10 Move Adjust Return

Melody / Energy Saving

1. Pritisnite gumb MENU, da prikažete meni.
   S pritiskom gumba ▲ ali ▼ izberite “Setup”, nato pa pritisnite gumb ENTER.
2. S pritiskom gumba ▲ ali ▼ izberite želeno možnost, nato pa pritisnite gumb ENTERO.
3. Ko ste zadovoljni z nastavitvijo, pritisnite gumb ENTER.
4. Pritisnite gumb EXIT za izhod.

TV Setup Plug & Play Language : English Time Melody : Off Energy Saving : Off PIP Move Enter Return

♦ Melody: Off/Low/Medium/High

◆ Energy Saving: Off/Low/Medium/High

TV Source List : TV Edit Name Move Enter Return

TV Source List TV Ext. AV Component PC HDMI1 HDMI2 Move Enter Return

TV SOURCE E

TV SOURCE

Display Properties Themes Desktop Screen Save Appearance Settings Display Default Monitor on NVIDIA GeForce F1.5200 Stream introduction More Alt quality Left 1360 to 760 pixels Higher (32 MB) Refreshout Advanced OK Cancel Apply

Načini zaslona

TV Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Shortness Auto Adjustment Screen Adjustment Picture Options Reset : OK Move Enter Return

Auto Adjustment in Progress Please wait.

Tools Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP Auto Adjustment Move Enter Exit

Screen Adjustment Coarse 1 50 Fine 1 34 Position Image Reset Move Enter Return

TV Position Move Enter Return

Screen Adjustment Coarse 1 50 Fine 1 34 Position Image Reset Move Enter Return

Funkcija teleteksta

TV SOURCE ① ② ③

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels present)
