USER MANUAL LE 22S81B SAMSUNG

Owner’s Instructions Before operating the unit, please read this manual thoroughly, and retain it for future reference. ON-SCREEN MENUS PC DISPLAY PICTURE IN PICTURE (PIP) TELETEXT Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference.

Model _______________ ▪ Serial No. _______________ BN68-01177H-00 Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen.
Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2007 Samsung Electronics Co., Ltd. All rights reserved. Contents Connecting and Preparing Your TV

List of Parts p. 2
Installing the Stand p. 2
Installing the Wall Mount Kit p. 2
Viewing the Control Panel p. 3
Viewing the Connection Panel p. 4
Viewing the Remote Control p. 6
Installing Batteries in the Remote Control p. 7
Switching On and Off p. 7
Placing Your Television in Standby Mode p. 7
Plug & Play Setting the Channels p. 8

Changing the Sound Standard p. 21
Adjusting the Sound Settings p. 22
Setting the TruSurround XT (SRS TS XT) p. 22
Connecting Headphones p. 23
Selecting the Sound Mode p. 23
Adjusting the Volume Automatically p. 23
Selecting the Internal Mute p. 24
Listening to the Sound of the Sub Picture p. 24
Resetting the Sound Settings to the Factory Defaults p. 25
Setting the Time Storing Channels Automatically p. 9
Storing Channels Manually p. 10
Setting the Channel Lists p. 11
Activating the Child Lock p. 11
Sorting the Stored Channels p. 12
Assigning Channels Names p. 12
Fine Tuning Channel Reception p. 13
Setting the Picture Changing the Picture Standard p. 14
Adjusting the Custom Picture p. 14
Changing the Colour Tone p. 15
Activating Backlight p. 15
Configuring Detailed Settings on the Picture p. 16
Changing the Picture Size p. 17
Freezing the Current Picture p. 18
Selecting the Screen Mode p. 18
Resetting the Picture Settings to the Factory Defaults p. 18
Digital NR / Active Colour / DNIe p. 19
Viewing the Picture In Picture (PIP) p. 20
HDMI Black Level p. 21

Setting and Displaying the Current Time p. 25
Setting the Sleep Timer p. 26
Switching the Television On and Off Automatically p. 26
Function Description Choosing Your Language p. 27
Using Game Mode p. 27
Setting the Blue Screen Mode / Selecting the Melody p. 28
Using the Energy Saving Feature p. 28
Selecting the Source p. 29
Editing the Input Source Names p. 29
Using the Teletext Feature Teletext Feature p. 30
Setting the PC Setting up Your PC Software (Based on Windows XP) p. 32
Display Modes p. 32
Setting the PC p. 33
Setting the Home Theatre PC p. 34
Recommendations For Use Using the Anti-Theft Kensington Lock p. 35
Troubleshooting: Before Contacting Service Personnel p. 35
Technical and Environmental Specifications Symbol Press Important Note One-Touch Button English - 1 List of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. M4 X L16 Remote Control & Batteries (AAA x 2) Power Cord Owner’s Instructions Cover-Bottom Stand Screw p. 36

Warranty card Stand Safety Guide Cleaning Cloth Registration Cards Warranty card / Safety Guide / Registration Cards (Not available in all locations) The stand and stand screw may not be included depending on the model. Installing the Stand <3> <2>

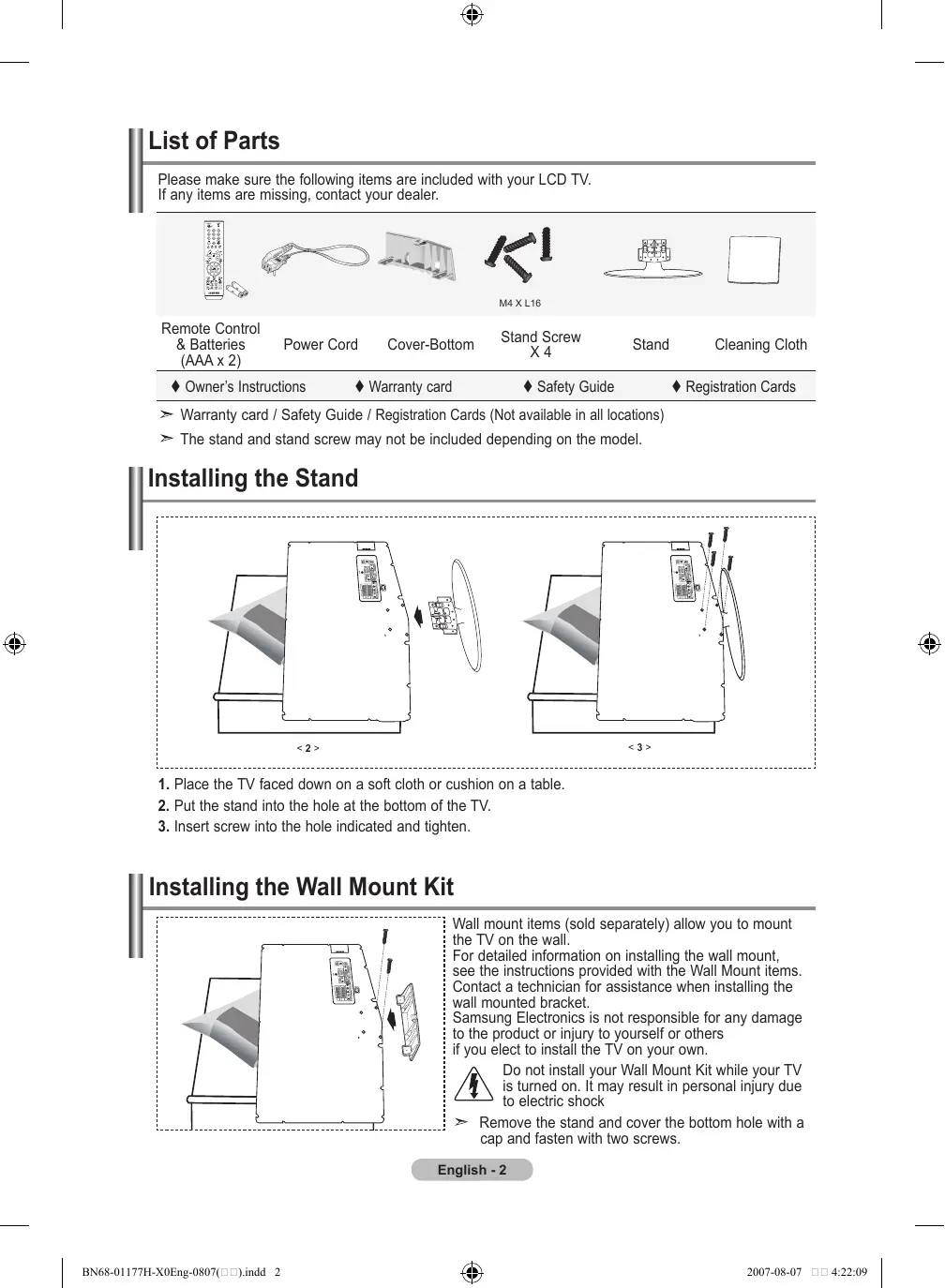

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten.

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock Remove the stand and cover the bottom hole with a cap and fasten with two screws. English - Viewing the Control Panel The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext., AV, S-Video, Component, PC, HDMI). In the on-screen menu, use this button as you use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features.

Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you use the ▲ and ▼ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.) 5 Speakers

(Power) Press to turn the TV on and off. Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode. Remote Control Sensor Aim the remote control towards this spot on the TV. English - Viewing the Connection Panel

The product colour and shape may vary depending on the model. Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable. 1 Connecting Set-Top Box, VCR or DVD Connector Input EXT Video

Output Video + Audio (L/R) Only TV output is available. -Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. 2 Connecting HDMI - Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players). - No additional Audio connection is needed for an HDMI to HDMI connection. What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio (5. 1 channels). - The HDMI/DVI IN terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the “R - AUDIO - L” terminal on DVI for sound output. - When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture. English - Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component 480i

- The HDMI/DVI IN jack support PC connection. 3 Connecting Computer - Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer. - Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer. 4 Connecting an Aerial or Cable Television Network To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network 6 Connecting External A/V Devices - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corre sponding audio out connectors on the A/V device. - Headphone may be connected to the headphone output (5) on the rear of your set. While the head phone is connected, the sound from the built-in speakers will be disabled. 7 DIGITAL AUDIO OUT (OPTICAL) - Connect to a Digital Audio Component. 8 Connecting Component Devices (DVD) - Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD. - If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set. - The PR, PB and Y connectors on your component devices DVD are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DVD. - This LCD TV displays its optimum picture resolution in 720p mode. - This LCD TV displays its maximum picture resolution in 1080i mode. 9 Kensington Lock - The Kensington lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The place of the Kensington Lock may be different depending on its model. English - Viewing the Remote Control 1 Television Standby button PIP Functions 2 Number buttons for direct channel access

IP activation or deactivation 3 One/Two-digit channel selection 4 It display "Channel List" on the screen. 5 Selects the TV mode directly

Volume increase Volume decrease g Sub picture (PIP) channel selection h Sub picture (PIP) source selection i Sub picture (PIP) location selection Teletext Functions 7 Temporary sound switch-off 5 Exit from the teletext display 8 Menu display and change confirmation 8 Teletext index $ Teletext hold 9 Sound mode selection. ^ Teletext mode selection (LIST/FLOF) 0 Returns to the previous menu ! Picture effect selection @ Adjusts screen brightness to save energy. & Teletext sub page ) P : Teletext next page P : Teletext previous page a Teletext cancel # Sound effect selection c Tele text reveal % SRS TS XT selection e Alterna tely select Teletext, Double or Mix. ^ Available source selection & Previous channel

Automatic Power-off ( Selects the HDMI mode directly. h Teletext Store i Teletext size selection 9!df Fastext topic selection ) P : Next channel P : Previous channel a Exit the OSD b Control the cursor in the menu c Use to see information on the current broadcast d Picture freeze f Picture size selection The performance of the remote control may be affected by bright light. This is a special remote control for the visually impaired and has Braille points on the Power, Channel and Volume buttons. English - Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries. Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket. The standby indicator lights up on the front of the set.

Press the button on the front of the set. You also can press the POWER button or the TV button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically.

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or

button on the right side of the set. When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

To switch your set off, press the POWER button again. Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control. The screen is turned off and a red standby indicator appears on the front of your set.

To switch your set back on, simply press the POWER , numeric buttons (0~9), TV button or channel up/down ( / ) button again. Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial. English - Plug & Play When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

2. Select the appropriate language by pressing the ▲ or ▼

button. Press the ENTER button to confirm your choice. Plug & Play Start Plug & Play. Enter Exit

Press the ◄ or ► button to select “Shop” or “Home”, then the ENTER button. We recommend setting the TV to Home mode for the best picture in your home environment. Shop mode is only intended for use in retail environments. If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode, press the Volume button and then hold down the MENU button for five seconds on the side panel of the TV.

The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button. Please check that the antenna cable is connected correctly.

Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button. After all the available channels are stored, the "Clock Set" menu appears. Press the ENTER button at any time to interrupt the memorization process. Press the ENTER button. Select the "Month", "Day", "Year", "Hour" or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour" or "Minute" by pressing the ▲ or ▼ button. You can also set the "Month", "Day", "Year", "Hour" and "Minute" by pressing the number buttons on the remote control.

8. Press the ENTER button to confirm your setting. The message "Enjoy your viewing" is displayed.

When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Language: Select your language. Country: Select your country. Auto Store: Automatically scans for and stores channels available in the local area. Clock Set: Sets the current time for the TV clock. English - If you want to reset this feature...

Press the ENTER button again, to select "Plug & Play".

The message "Start Plug & Play" is displayed. (Refer to page 8) Start Plug & Play.

Enter - Storing Channels Automatically - Storing Channels Manually

Return Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Return Storing Channels Automatically You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

Press the ENTER button to select "Country".

Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button. Press the ENTER button. The TV will begin memorizing all of the available channels. Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu. After all the available channels are stored, the "Sort" menu appears. (Refer to page 12) English - Storing Channels Manually You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose: Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify.

Press the ENTER button to select "Programme".

To assign a programme number to a channel, find the correct number by pressing the ▲ or ▼ button and then press the ENTER button. You can also set a programme number by pressing number buttons on the remote control.

Select the colour standard required by pressing the ▲ or ▼ button then, press the ENTER button.

Select the sound standard required by pressing the ▲ or ▼ button, then press the ENTER button. If there is an abnormal sound or no sound, re-select the sound system required.

If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel". Press the ENTER button. Select C (Air channel) or S (Cable channel) by pressing the ▲ or ▼ button. Press the ► button to select channel. Select the required number by pressing the ▲ or ▼ button and then press the ENTER button. Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode) You can also set a channel number by pressing number buttons on the remote control.

10. If you do not know the channel numbers, press the ▲ or ▼ button to select "Search".

Press the ENTER button. Search by pressing the ▲ or ▼ button and then press the ENTER button.

11. Press the ▲ or ▼ button to select "Store". Press the ENTER button to select "OK".

12. Repeat steps 3 to 11 for each channel to be stored.

Programme: Selects a program number for the channel. Colour System: Sets the colour supporting system. Sound System: Sets the sound supporting system. Channel: Selects a channel. Search: Scans for the frequency value for the channel. Store: Saves your settings. English - 10 Setting the Channel Lists Set the channels according to your preference. You can easily delete, add or lock the channel you want.

Channel List P 1 C3 1 / 10 Prog. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.

3. Press the ENTER button again, to select "Channel List".

Press the ► button to select "

Press the ▲ or ▼ button to select the undesired channel, then press the ENTER button to cancel.

Repeat steps 5 for each channel to be selected or canceled

Press the EXIT button to exit. Add

Move Enter Page Return " line. 5 C76 6 S3 7 S4 8 S6 9 S7 " is active when "Child Lock" is selected to "On". Lock You can select these options by simply pressing the CH LIST button on the remote control Activating the Child Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

Channel List Child Lock

4. Press the ▲ or ▼ button to select "On". Press the

ENTER button. Move Off

Enter Return Channel List P 1 C3 1 / 10 Prog.

Press the ▲ or ▼ button to select "Channel List", then press the ENTER button. 3 C74

Press the ► button to select " " line. 5 C76

Press the ▲ or ▼ button to select the channels you want to lock, then press the ENTER button.

Repeat steps 7 for each channel to be locked or unlocked.

Press the EXIT button to exit. Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive.

4 C75 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return English - 11 Sorting the Stored Channels You can exchange the numbers of two channels, in order to:

Select the channel number that you wish to change by press ing the ▲ or ▼ button repeatedly. Press the ENTER button. The selected channel number and name are moved to right side.

Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER button. The selected channel is exchanged with the one previously stored to the chosen number.

5. Repeat steps 3 to 4 for another channel to be sorted.

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Modify the numeric order in which the channels have been automatically stored. Give easily remembered numbers to the channels that you watch most often.

Return Sort Prog. Ch. Name

Press the EXIT button to exit. Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button. The selection bar is displayed around the name box. To... Press the... Select a letter, number or symbol ▲ or ▼ button Move on the next letter ► button Move back the previous letter ◄ button Confirm the name ENTER button

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Return Name Prog. Ch. Name

The characters available are : Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (space, /, *, -, +)

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Press the EXIT button to exit. English - 12 Fine Tuning Channel Reception Use fine tuning to manually adjust a particular channel for optimal reception.

Use the number buttons to directly select the channel that you want to fine tune.

Press the ◄ or ► button to adjust the fine tuning. Press the ENTER button.

Press the EXIT button to exit. Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Reset Adjust Save Return To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button. English - 13 Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements.

Press the ENTER button again to select "Mode".

Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.

Press the EXIT button to exit.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Return Mode : Dynamic Dynamic Standard Contrast Movie Brightness Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Dynamic: Selects the picture for high-definition in a bright room. Standard: Selects the picture for optimum display in a normal environment. Movie: Selects the picture for comfortable display in a dark room. Move The "Picture" mode must be adjusted separately for each input source. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 18) Enter Picture Enter Return You can also press the P.MODE button on the remote control to select one of the picture settings. Adjusting the Custom Picture Your set has several settings which allow you to control picture quality.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.

Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button.

Press the EXIT button to exit.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Return Contrast: Adjusts the lightness and darkness between objects and the background. Brightness: Adjusts the brightness of the whole screen. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. Colour: Adjusts the colours, making them lighter or darker. Tint: A djusts the colour of objects, making them more red or green for a more natural look. The adjusted values are stored according to the selected Picture mode. In PC Mode, Only "Contrast" and "Brightness" can be adjusted. "Tint" is only activated for NTSC broadcasting and Component modes. English - 14 Changing the Colour Tone You can select the most comfortable colour tone to your eyes.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 14)

Press the ▲ or ▼ button to select "Colour Tone", then press the ENTER button.

Press the ▲ or ▼ button to select the desired colour tone setting. Press the ENTERbutton.

Press the EXIT button to exit

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Cool 2 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm Size : Auto Wide Warm Screen Mode : 16 : 9 More Cool2: Makes the colour temperature bluer than "Cool1" menu. Cool1: Makes whites bluish. Normal: Keeps whites white. Warm1: Makes whites reddish. Warm2: Makes the colour temperature redder than "Warm1" menu. Move Enter Return The adjusted values are stored according to the selected "Picture" mode. When the picture mode is set to "Dynamic" or "Standard", "Warm1" and "Warm2" cannot be selected. Activating Backlight You can adjust the screen brightness by adjusting the LCD backlight brightness. (0~10)

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 14)

2. Press the ▲ or ▼ button to select “Backlight”, then press the

3. Press the ◄ or ► button to decrease or increase the value of

Adjust Return English - 15 Configuring Detailed Settings on the Picture You can set detailed picture settings.

Press the ENTER button, to select "Picture".

Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER button.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Black Adjust, Dynamic Contrast, Gamma, White Balance, My Colour Control, Edge Enhancement, Colour Space.

When you are satisfied with your setting, press the ENTER button. Picture Mode : Movie Contrast 80 Brightness 45 Sharpness 10 Colour 53 Tint G 50 R 50 Colour Tone : Warm2 Detailed Settings Backlight : 5 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Return Detailed Settings

Press the EXIT button to exit. When the picture mode is set to "Movie" or "Standard", "Detailed Settings" can be selected. Move Enter Return If "DNIe" is Off, the "Detailed Settings" cannot be selected when the "Picture" mode is in "Standard" mode. Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth. Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. Gamma: -3 ~ +3 You can adjust the middle brightness of pictures. Press the ◄ or ► button until you reach the optimal setting. White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. My Colour Control: Pink/Green/Blue/White/Reset This setting can be adjusted to suit your personal preferences. Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted colours will be reset to the factory defaults. Edge Enhancement: Off/On You can emphasize object boundaries. Colour Space: Auto/Wide You can set the colour reproduction space for the input signal to Auto or Wide. English - 16 Changing the Picture Size You can select the picture size which best corresponds to your viewing requirements.

Press the ▲ or ▼ button to select "Size", then press the ENTER button.

Select the required option by pressing the ▲ or ▼ button. Press the ENTER button.

Press the EXIT button to exit.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. Wide: Adjusts the picture size to 16:10 appropriate for DVDs or wide broadcasting. 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. 4:3: This is the default setting for a video movie or normal broadcasting. Just Scan: Displays the input scenes as they are without any cutoff when HDMI 720p,1080i signals are input. "Auto Wide" function is available only in "TV", "Ext.", "AV" and "S-Video" mode. Enter Return You can select these options by simply pressing the P.SIZE button on the remote control. In PC Mode, only "Wide" and "4:3" mode can be adjusted. Zoom : Select by pressing the ◄ or ► button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Wide Zoom : Move the screen up/down using the▲ or ▼ buttons after selecting the by pressing the ► or ENTER button. English - 17 Freezing the Current Picture Press the STILL button to freeze a moving picture into a still one. Press again to cancel. Selecting the Screen Mode When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

Press the MENU button to display the menu. Press the ENTER button, to select “Picture”.

Press the ▲ or ▼ button to select "Screen Mode", then press the ENTER button.

Select the required option by pressing the ▲ or ▼ button. Press the ENTER button. Available options: Wide, 16:9, Wide Zoom, Zoom, 4:3 Enter Enter Return Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Wide Backlight : 10 16:9 Size : Auto WideWide Zoom Screen Mode : 16 : Zoom 4:3 More Wide: Sets the picture to 16:10 wide mode. 16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnify the size of the picture vertically on screen. 4:3: Sets the picture to 4:3 normal mode.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Return Press the EXIT button to exit. Screen Mode is available in Auto Wide mode. This function is not available in PC, Component or HDMI mode. Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 on page 14.

Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button.

Picture More Digital NR Active Colour DNle Reset Move

Press the EXIT button to exit. The "Reset" will be set for each picture mode. Picture More Digital NR Active Colour DNle Reset Move Digital NR / Active Colour / DNIe If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Press the MENU button to display the menu. Press the ENTER button, to select “Picture”.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Digital NR, Active Colour, DNIe.

Picture More Digital NR Active Colour DNle Reset Move

3. When you are satisfied with your setting, press the ENTER

Press the EXIT button to exit. Digital NR: Off/Low/Medium/High/Auto If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. This function is not available in PC mode. Active Colour: Off/On If you turn on this option, the colours of the sky and grass will be stronger and clearer for a more vivid on-screen picture. This function is not available in PC mode. This function is not available in Movie and Standard mode. DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is not available in PC mode. This function is not available in Movie mode. English - 19 Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

Press the ▲ or ▼ button to select "PIP", then press the ENTER button.

3. Press the ENTER button again. Press the ▲ or ▼ button to

select "On", then press ENTER button. Main picture Sub picture Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Language :: Off English Time Auto Volume : Off Game Mode : Off Internal Mute : Off Blue Screen : Off Reset Melody : Medium Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move

Enter Mode :PIP Custom Equalizer PIP : On SRS

: Off Source : TV Position :: Off Auto Volume Programme :: Off P 1 Internal Mute Reset Move Move Enter ress the PIP button on the remote control repeatedly to activate or deactivate the "PIP".

4. Press the ▲ or ▼ button to select "Source",then press

ENTER button. Select a source of the sub picture by pressing the ▲ or ▼ button and press the ENTER button. The sub picture can serve different source selections based on what the main picture is set to. You can select these options simply by pressing the SOURCE button on the remote control.

5. Press the ▲ or ▼ button to select "Position", then press the

ENTER button. Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER button. ou can select these options simply by pressing the POSITION button on the remote control.

6. Press the ▲ or ▼ button to select "Programme" and then

press the ENTER button. You can select the channel that you want to view through sub picture by pressing the ▲ or ▼ button. Press the ENTER button. he "Programme" can be active when the sub picture is set to TV. ou can select the channel of the sub picture simply by pressing the P or P button.

7. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. Source: Used to select a source of the sub picture. Position: Used to move the sub picture. Programme: Used to Change the sub picture. English - 20 HDMI Black Level You can directly select the black level on the screen to adjust the screen depth.

Press the ▲ or ▼ button to select "Normal" or "Low", then press the ENTER button.

Mode : Custom Setup Equalizer Plug & Play SRS

Press the EXIT button to exit. This function is active only when the external input connects to HDMI (RGB signals). Enter

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : LowNormal PIP Move Enter Low Return Normal: The screen gets brighter. Low: The screen gets darker. Move Enter Return Changing the Sound Standard You can select the type of the special sound effect to be used when watching a given broadcast.

Press the ENTER button again, to select "Mode".

Select the required sound effect by pressing the ▲ or ▼ button repeatedly and then press the ENTER button.

Press the EXIT button to exit. Standard: Selects the normal sound mode. Music: Emphasizes music over voices. Movie: Provides live and full sound for movies. Speech: Emphasizes voices over other sounds. Custom: Selects your custom sound settings. (Refer to "Adjusting the Sound Settings")

Sound Standard Mode : Custom Music Equalizer Movie

SRS TS XT

: Off Speech Auto Volume : Off Custom Internal Mute : Off Sound Select : Main Reset Move Enter Return ou can also select these options by simply pressing the S.MODE button on the remote control. English - 21 Adjusting the Sound Settings The sound settings can be adjusted to suit your personal preferences.

Press the ▲ or ▼ button to select "Equalizer", then press the ENTER button.

Press the ▲ or ▼ button to reach the required setting. Press the ENTER button. Press the EXIT button to exit. If you make any changes to these settings, the Sound Mode is automatically switched to "Custom". Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return Setting the TruSurround XT (SRS TS XT) TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling,virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Press the ▲ or ▼ button to select "SRS TS XT", then press the ENTER button.

Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.

Press the EXIT button to exit. TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

You can also set these options simply by pressing the SRS button on remote control. English - 22 Connecting Headphones You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room. TV Rear Panel When you insert the head set jack into the corresponding port, you can not operate "Internal Mute" in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently. Selecting the Sound Mode You can set the sound mode by pressing the “DUAL” button. When you press it, the current sound mode is displayed on the screen. Audio Type Mono Stereo Dual Mono Stereo Dual Default Automatic change Dual 1 You can also set these options simply by pressing the DUAL button on remote control. Automatic change Dual 1 If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. Adjusting the Volume Automatically Each broadcasting station has its own signal conditions and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.

Press the EXIT button to exit.

Selecting the Internal Mute If you want to hear the sound through separate speakers, cancel the internal amplifier.

Press the ▲ or ▼ button to select "Internal Mute", then press the ENTER button.

Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.

Press the EXIT button to exit. When "Internal Mute" is set to "On", the Sound menus except for "Sound Select" (in PIP mode) cannot be adjusted. Move Enter Return Listening to the Sound of the Sub Picture During the PIP features activation, you can listen to the sound of the sub picture.

Press the ▲ or ▼ button to select "Sound Select", then press the ENTER button.

Press the EXIT button to exit. Main : Used to listen to the sound of the main picture. Sub : Used to listen to the sound of the sub picture.

Sound Mode : Custom Equalizer

SRS TS XT

: Off Auto Volume : Off Internal Mute : Off Main Sound Select : Main Sub Reset You can select this option when the “PIP” is set to “On”. Move Enter Return English - 24 Resetting the Sound Settings to the Factory Defaults If "Game Mode" is On, the Reset Sound function is activated (Refer to page 27). Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

Press the EXIT button to exit.

You can select this option when the "Game Mode" is set to "On". Setting and Displaying the Current Time You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

Press the ▲ or ▼ button to select "Time", then press the ENTER button.

Press the ENTER button to select "Clock Set".

To... Press the... Confirm the setting ENTER button.

Mode : Custom Setup Equalizer Press the EXIT button to exit. If you disconnect the power cord, you have to set the clock again. You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control. English - 25 Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

Press the ▲ or ▼ button to select "Time", then press the ENTER button.

Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.

Press the EXIT button to exit.

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move Enter

The TV automatically switches to standby mode when the timer reaches 0. Switching the Television On and Off Automatically

Press the ▲ or ▼ button to select "Time", then press the ENTER button.

Press the ▲ or ▼ button to select "Timer 1", "Timer 2", "Timer 3", then press the ENTER button.

Press the ▲ or ▼ button to adjust “Hour”, then press the ► button to move to the next step. Set other items using the same method as above. Yes/No Press the ▲or▼ button Select a Once, Sat~Sun, Mon~Sat, Mon~Fri, Everyday Press the ▲or▼ button Volume Adjust a 0~100 Press the ▲or▼ button Programme Adjust a Programme Press the ▲or▼ button Repeat

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move Repeat Volume ► Move Once Programme Adjust Return When finished, press the RETURN button to return.

The current time will appear every time you press the INFO button.
You can set the hour, minute, directly by pressing the number buttons on the remote control.

Press the EXIT button to exit. Auto PowerOff When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time. English - 26 Choosing Your Language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button.

Press the EXIT button to exit.

Mode : Custom Setup Equalizer Using Game Mode When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

Press the ▲ or ▼ button to select "Game Mode", then press the ENTER button.

Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.

Press the EXIT button to exit.

Mode : Custom Setup Equalizer Plug & Play SRS

Enter To disconnect the game console and connect another Home Theatre PC : Off external device, cancel game mode in the setup menu. Energy Saving : Off HDMI Black Level : Low If you display the TV menu in Game mode, the screen PIP Move Enter Return shakes slightly. Move Enter Return Game Mode is not available in TV mode. If Game Mode is On:

Picture Mode changes to Standard and Sound Mode changes to Custom automatically. The user cannot change these to other modes.
Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults. English - 27 Setting the Blue Screen Mode / Selecting the Melody

Press the ▲ or ▼ button to select "Blue Screen" or "Melody". Press the ENTER button.

When you are satisfied with your setting, press the ENTER button. Blue Screen:Off/On If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Return Move

Low Medium Home Theatre PC : Off Energy Saving : Off High HDMI Black Level : Low PIP Move Enter Return Melody:Off/Low/Medium/High You can hear melody sound when the television is powered on or off.

Press the EXIT button to exit. Using the Energy Saving Feature This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

Press the ▲ or ▼ button to select "Energy Saving", then press the ENTER button.

Select the required option (Off, Low, Medium, High, Auto) by pressing the ▲ or ▼ button. Press the ENTER button

Press the EXIT button to exit.

Mode : Custom Setup Equalizer Plug & Play SRS

Enter Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Medium Home Theatre PC : Off Off Energy Saving : Off Low HDMI Black Level : Low Medium High PIP Auto Move Enter Return ou can also set these options simply by pressing the E.SAVING button on remote control. English - 28 Selecting the Source You can select among external sources connected to your TV’s input jacks.

Press the ENTER button again, to select "Source List". When no external device is connected to your set, only "TV", "Ext." are activated in the "HDMI" are activated only when they are connected to your set.

3. Select the required device by pressing the ▲ or ▼ button.

Press the ENTER button. Mode : Custom Source List Equalizer

SRS TS XT

Auto Volume S-Video :: Off

Internal Mute Component Reset

Move Move Enter Return Enter Return Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV button, number buttons (0~9) and the P / button on the remote control. But it cannot be selected using the SOURCE button. You can also watch HDMI mode simply by pressing the HDMI button on the remote control. Editing the Input Source Names Name the device connected to the input jacks to make your input source selection easier.

Press the ▲ or ▼ button to select the device that you wish to edit. Press the ENTER button. Press the ▲ or ▼ button to select the required device. Press the ENTER button.

Satellite STB AV Receiver

Press the EXIT button to exit. Move Move Enter Return Enter Return English - 29 Teletext Feature Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

(exit) Exit from the teletext display.

(index) Used to display the index (contents) page at any time while you are viewing teletext. (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button.

(page up) Used to display the next teletext page.

(page down) Used to display the previous teletext page.

(cancel) Used to display the broadcast when searching for a page.

(reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. ! Coloured buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

(store) Used to store the teletext pages. You can change teletext pages by pressing the numeric buttons on the remote control. English - 30 The teletext pages are organized according to six categories: Part

Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) Press the TV button to exit from the teletext display. English - 31 Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on "Control Panel" on the Windows start menu. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1680 x 1050 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box. Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported) D-Sub Input Mode Resolution Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640×350 720×400 640×480

640×480 800×600 1024×768

VESA GTF Resolution 640×350 720×400 640×480 800×600 1024×768 1280×1024 1680×1050 The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. English - 32 Setting the PC Coarse and Fine Tuning of the Image (Image Lock): The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

Image Lock Coarse 50 Fine 63

Preset: Press the SOURCE button to select PC mode.

Press the ▲ or ▼ button to select "PC", then press the ENTER button. Move

Press the ENTER button to select "Image Lock".

Press the ◄ or ► button to adjust the screen quality. Press the ENTER button.

Press the EXIT button to exit. Changing the Image Position: Adjust the PC’s screen positioning if it does not fit the TV screen.

Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Position", then press the ENTER button.

Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Press the ENTER button.

Press the EXIT button to exit. Adjusting the PC Screen Automatically (Auto Adjustment): Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER button.

Press the EXIT button to exit.

Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Image Reset", then press the ENTER button.

Press the EXIT button to exit.

Image Lock Position Auto Adjustment Image Reset Move Initializing the Image Settings (Image Reset): You can replace all image settings with the factory default values. Return Position Move

Image Lock Position Auto Adjustment Image Reset Move Enter Return English - 33 Setting the Home Theatre PC You can view higher quality pictures by configuring the screen settings in PC Mode. If you set the "Home Theatre PC" function to On, you can configure the "Detail Settings" (when Picture Mode is set to Standard or Movie) as in PC Mode.

Press the ▲ or ▼ button to select "Home Theatre PC". Press the ENTER button.

Press the ▲ or ▼ button to select "Off" or "On". Press the ENTER button.

Press the EXIT button to exit. This function is available only in PC mode.

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Home Theatre PC : Off Energy Saving : Off On HDMI Black Level : Low PIP Move Enter Return English - 34 Using the Anti-Theft Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction (Figure 2).

Connect the Kensington lock cable.

Fix the Kensington lock to a desk or a heavy stationary object. Cable DVI IN AUDIO The place of the Kensington Lock may be different depending on its model. Troubleshooting: Before Contacting Service Personnel No sound or picture Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on the front of the set. Check the picture contrast and brightness settings. Check the volume. Normal picture but no sound Check the volume. Check whether the MUTE button has been pressed on the remote control. Check if "Internal Mute" is off Screen is black and power On your computer check; Power, Signal Cable. indicator light blinks steadily The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. No picture or black and Adjust the colour settings. white picture Check that the broadcast system selected is correct. Sound and picture Try to identify the electrical appliance that is affecting the set and move it interference further away. Plug your set into a different mains socket. Blurred or snowy picture, Check the direction, location and connections of your aerial. distorted sound This interference is often due to the use of an indoor aerial. Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. "Check signal cable." Check that the signal cable is firmly connected to the PC or video sources. message is displayed. Check that the PC or video sources are turned on. On PC mode, "Not Supported Check the maximum resolution and the frequency of the video adaptor. Mode." message is displayed. Compare these values with the data in the Display Modes. The TFT LCD panel uses a panel consisting of sub pixels (5 292 000) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English - 35 Technical and Environmental Specifications Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimension (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product. English - 36 This page is intentionally left blank. © 2007 Samsung Electronics Co., Ltd. All rights reserved. Installation du support <2> <3> Installation du support mural 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Ajouter Verrouil. Déplacer Entrer Page Retour 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Ajouter Verrouil. Déplacer Entrer Page Retour Français - 11 Nom station Prog. Ch. Nom station

Retour Auto Marche Marche

Annuler Entrer Retour Français - 18 Auto Marche Marche

Retour Mode :PIP Custom Equalizer PIP :: Marche

SRS TS XT

Off Source : TV Auto Volume Off Position Internal Mute Off Programme :: P Reset Move Déplacer Enter Régler les “Mois”, “Date”, “Année”, “Heure” ou “Minute” Bouton ou Mode : Custom Configuration Equalizer Mode : Custom Configuration Equalizer Mode : Custom Configuration Equalizer

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Abbrechen Eingabe Zurück Deutsch - 18 Balance 100Hz 300Hz 1kHz 3kHz 10kHz Navig. Einstellen Zurück

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Sync-Polarität (H/V)

SRS TS XT

Off Bron :: TV Positie Auto Volume : Off Programma :: P Internal Mute Off Reset Hoofdbeeld Subbeeld Move Balance 100Hz 300Hz 1kHz 3kHz 10kHz Verpl. Instellen Terug “Maand”, “Data”, “Jaar”, “Uur” of “min” instellen knop of

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

VESA GTF F U N C T IO N K E Y S-V ID E O V ID E O COM PONENT

S C AR T D V I A udio HDMI IR / K E Y IN P U T Y ,C CVBS Y ,P b,P r R ,G ,B ,H sync,V sy nc B A 76 57 F S G T V _SP D IF LVDS SV C _T X /R X SP D IF BUS LVDS SO U N D A M P N T P 300 0 FBE2 D IM IN G SW 7 4L C X 1 57 U A R T SW M M 7 4H C D M 7 4 L S1 57M EEPROM DDR 1 6M *1 LOLA M S T 6 89 8 1 B L D (2 5 6 -Q F P ) F L A SH

N O R M A L S IG N A L H ea d p ho ne M onitor out M ain/D T V S ervice J ack © 2007 Samsung Electronics Co., Ltd. All rights reserved. 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Añadir Bloquear Mover Entrar Página Volver 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Añadir Bloquear Mover Entrar Página Volver Español - 11 Balance 100Hz 300Hz 1kHz 3kHz 10kHz Mover Ajustar Volver Ajustar “Mes”, “Fecha”, “Año”, “Hora” o “Minuto” el botón o

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Mover Ajustar Voltar

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Nastavení Zpět Sat. receiver AV receiver

Move Posunutí Enter Return Zadat Zpět Čeština - 29

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Return Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Channel List Child Lock Move

Enter Return Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Slovensky - 11 Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Return Sort Prog. Ch. Name

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Return Name Prog. Ch. Name

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Return Picture Mode : Dynamic Dynamic Standard Contrast Movie Brightness Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Cool 2 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm Size : Auto Wide Screen Mode : 16 :Warm More Move Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Backlight Return

Adjust Return Slovensky - 15 Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Move

Enter Enter Return Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Wide Backlight : 10 16:9 Size : Auto WideWide Zoom Screen Mode : 16 : Zoom More 4:3 Picture More Digital NR Active Colour DNle Reset Move

Return Picture More Digital NR Active Colour DNle Reset Move

Cancel Enter Return 2007-08-07 4:00:24 Picture More Digital NR Active Colour DNle Reset Move

Return Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move

Enter Mode :PIP Custom Equalizer PIP : On

SRS TS XT

Off Source :: TV Position : Off Auto Volume Programme :: P Internal Mute Off Reset Move Move Enter Mode : Custom Setup Equalizer Plug & Play SRS

Off Language :: English Time Auto Volume : Off Game Mode Off Internal Mute : Off Blue Screen : Off Reset Melody : Medium Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : LowNormal PIP Move Enter Low Return Move Enter Return Sound Standard Mode : Custom Music Equalizer Movie

SRS TS XT

: Off Speech Auto Volume : Off Custom Internal Mute : Off Sound Select : Main Reset Move Enter Return Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return Mono Dual 1 Dual 2 Sound Mode : Custom Equalizer

SRS TS XT

: Off Auto Volume : Off Internal Mute : Off Main Sound Select : Main Sub Reset Move Enter Return Slovensky - 24 Nastavenie “Month”, “Day”, “Year”, “Hour” alebo “Minute” Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Return Move Enter Return Clock Set Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move Enter

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move Once Programme Adjust Return

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off English Language :: English Deutsch Time Auto Volume : Off Français Game Mode :: Off Internal Mute Off Blue Screen : OffItaliano Reset Melody : OffEspañol

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Return Move

Enter Return Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Off Off

Low Medium Home Theatre PC : Off Energy Saving : Off High HDMI Black Level : Low PIP Move Enter Return Mode : Custom Setup Equalizer Plug & Play SRS

Move Move Enter Enter Return Return Slovensky - 29

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Image Lock Position Auto Adjustment Image Reset Move

Image Lock Position Auto Adjustment Image Reset Move Enter

Return Slovensky - 33 Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Enter Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Return Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Channel List Child Lock Move

Enter Return Channel Liat P 2 C4 BBC1 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Slovenščina - 11 Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move

Return Sort Prog. Ch. Name

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Enter

Return Name Prog. Ch. Name

Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter

Reset Adjust Save Return Slovenščina - 13 Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Return Picture Mode : Dynamic Dynamic Standard Contrast Movie Brightness Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Cool 2 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm Size : Auto Wide Screen Mode : 16 :Warm More Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Backlight Return

Adjust Return Slovenščina - 15 Mode : Movie Contrast 80 Brightness 45 Sharpness 10 Colour 53 Tint G 50 R 50 Colour Tone : Warm2 Detailed Settings Backlight : 5 Size : Auto Wide Screen Mode : 16 : 9 More Move Enter Return Detailed Settings

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Backlight : 10 Size : Auto Wide Screen Mode : 16 : 9 More Move

Enter Enter Return Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Detailed Settings Wide Backlight : 10 16:9 Size : Auto WideWide Zoom Screen Mode : 16 : Zoom 4:3 More Picture More Digital NR Active Colour DNle Reset Move

Return Picture More Digital NR Active Colour DNle Reset Move

Cancel Enter Return Slovenščina - 18 Picture More Digital NR Active Colour DNle Reset Move

Return Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Mode :PIP Custom Equalizer PIP : On

SRS TS XT

Off Source :: TV Position : Off Auto Volume Programme :: P Internal Mute Off Reset Move Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : LowNormal PIP Move Enter Low Return Move Enter Return Sound Standard Mode : Custom Music Equalizer Movie

SRS TS XT

: Off Speech Auto Volume : Off Custom Internal Mute : Off Sound Select : Main Reset Move Enter Return Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return Sound Mode : Custom Equalizer

SRS TS XT

: Off Auto Volume : Off Internal Mute : Off Main Sound Select : Main Sub Reset Move Enter Return Slovenščina - 24 “Year”, “Hour” ali “Minute”

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Return Move Enter Return Clock Set Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Pritisnite gumb ali Pritisnite gumb ali Pritisnite gumb ali

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Return Move Enter Return Timer 1

Repeat Volume ► Move Once Programme Adjust Return

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off English Language :: English Deutsch Time Auto Volume : Off Français Game Mode :: Off Internal Mute Off Blue Screen : OffItaliano Reset Melody : OffEspañol

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Move

Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Off Off

Low Home Theatre PC : OffMedium Energy Saving : Off High HDMI Black Level : Low PIP Move Enter Return Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Energy Saving : Off HDMI Black Level : Low PIP Move Enter Return Move

Enter Return Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Medium Home Theatre PC : Off Off Energy Saving : Off Low HDMI Black Level : Low Medium High PIP Auto Move Enter Return Satellite STB AV Receiver

Move Move Enter Return Enter Return Slovenščina - 29

640×480 800×600 1024×768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Image Lock Position Auto Adjustment Image Reset Move

Image Lock Position Auto Adjustment Image Reset Move Enter

Return Slovenščina - 33 Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Enter Mode : Custom Setup Equalizer Plug & Play

SRS TS XT

Off Language :: English Time Auto Volume : Off Game Mode :: Off Internal Mute Off Blue Screen : Off Reset Melody : Medium

Home Theatre PC : Off Off Energy Saving : Off On HDMI Black Level : Low PIP Move Enter Return Slovenščina - 34
