USER MANUAL KENOX S1060 SAMSUNG

Thank you for buying a Samsung Camera.

This manual has basic instructions for quick and easy picture taking.

For more information, refer to the user manual included in the supplied CD-Rom.

ENGLISH/ FRANÇAIS/Türkçe/

繁體中文/BAHASA/1n

Getting to know your camera

• Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
• All brand and product names appearing in this manual are registered trademarks of their respective companies.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
  Refer to the user manual included on the Software CD for more information.
• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

Contents

Getting to know your camera	1
Identification of features / Contents of camera	4
Battery life & Number of shots (Recording time)	5

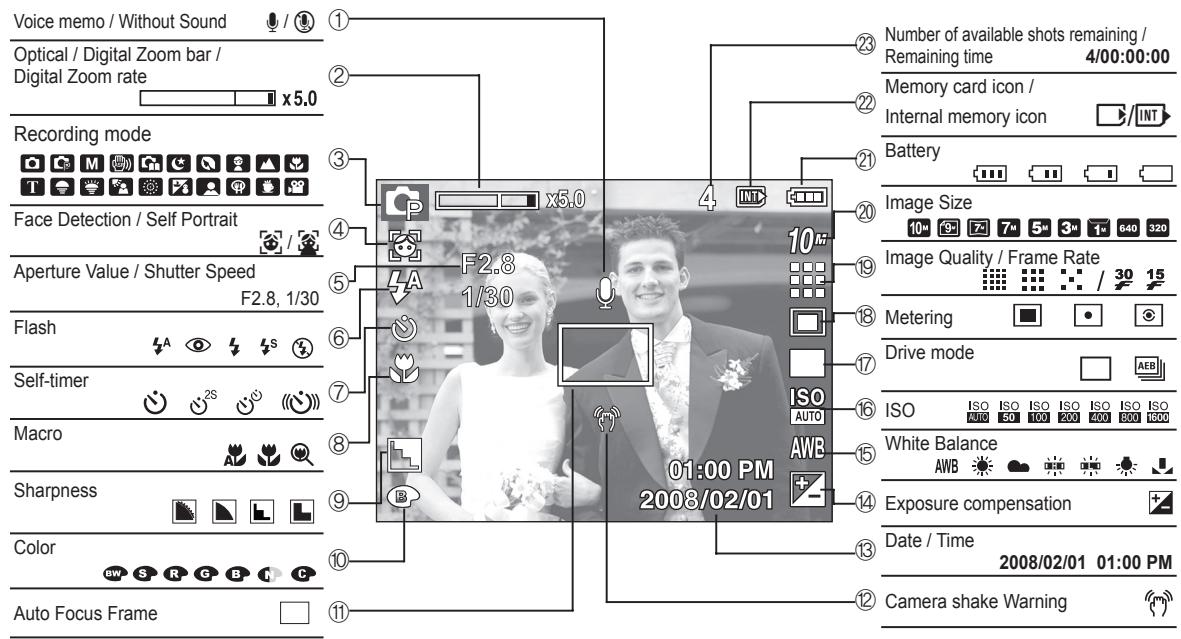

LCD monitor indicator	6
Mode dial	7
Taking a picture	8
Playing back / Deleting images	9
Downloading images	10
Specifications	11

FCC notice

■ NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION :

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Trade Name : SAMSUNG TECHWIN
Model No. : SAMSUNG S1060
Responsible Party : SAMSUNG ELECTRONICS AMERICA INC.
Address : 105 Challenger Road Ridgefield Park NJ
Telephone No. : 1-800-SAMSUNG(726-7864)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

• Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.
• There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Getting to know your camera

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time.

Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury.

• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Using an AC adapter that doesn't match with the camera specification may cause camera malfunction. We recommend supplied battery or exclusive rechargeable battery.
※ Available AC adapter :

一 一 Voltage:3.3V,Ampere:2.0A,Diameter: ±b 2.35

• After turning on the camera, Check whether the battery type and the camera setting set on the [Settings] > [Battery Type] menu are same.

Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case.

Do not insert the memory card the wrong way round.

Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

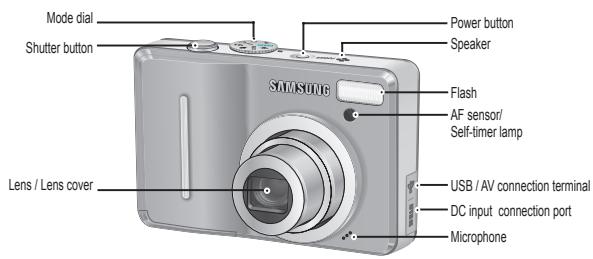

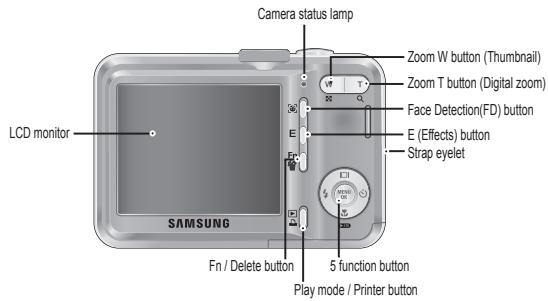

Identification of features / Contents of camera

Included items
Camera

AA Alkaline Batteries

USB Cable

AV Cable

Camera strap

User manual, Product warranty

Software CD

Optional items
SD/SDHC memory card/MMC

Rechargeable Battery (SNB-2512)

Charger (SBC-N2)

AC Cord

Camera case

※ Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shots (Recording time)

We recommend batteries for a digital camera (Within a year from the date of manufacture). The batteries are listed below.

• Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
• Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)

SNB-2512 rechargeable battery Specification

Model	SNB-2512
Type	Ni-MH
Capacity	2500mAh
Voltage	1.2V x 2
Charging time	Approximately 300 Minutes (Use for SBC-N2)

※ Included battery may vary depending on sales region.

• When using a 256MB MMC memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image size		Super Fine	Fine	Normal	30 FPS	15 FPS
Still image	10	About 59	About 82	About 141	-	-
	9	About 66	About 93	About 155	-	-
	7	About 79	About 109	About 183	-	-
	6	About 83	About 115	About 191	-	-
	5	About 110	About 155	About 253	-	-
	4	About 171	About 236	About 371	-	-
	3	About 479	About 553	About 607	-	-
*Movie clip	20	-	-	-	About 3'33"	About 7'03"
	10	-	-	-	About 13'13"	About 25'32"

※ The zoom button doesn't use during the movie recording.
The recording times can be changed by the zoom operation.

※ Refer to the user manual included on the Software CD for more information.

You can select a desired camera mode by using the Mode dial on the top of the camera.

AUTO

Selects this mode for quick and easy picture taking with minimal user interaction.

PHOTO HELP GUIDE

Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting.

PROGRAM

Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

PORTRAIT

Use this menu to take a picture of a person.

MANUAL

You can manually configure all functions with the aperture value and shutter speed.

SCENE

Use the menu to easily configure optimal settings for a variety of shooting situations.

DIS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

MOVIE CLIP

A movie clip can be recorded for as long as the available recording time.

Taking a picture

How to take a picture

1. Turn on the camera and select a camera mode by rotating the mode dial.

1. Take a picture.

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken

1. Hold the camera as shown

1. Confirm the composition

How to record a movie

Rotate the Mode dial and select ( ).

1. Confirm the composition

1. Start the recording Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Playing back / Deleting images

Playingback the images

• The last image stored on the memory is displayed.

Press the play button (回)。

Select an image that you want to play back by pressing the Left/Right button

※Manner mode: Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON.

• Deleting images

• This deletes images stored on the memory card.

• Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( 合 ) button.

[Single Image]

[Thumbnail Image]

1. To add images to delete, press the T button.

2. Left / Right button : Selects images

3. T button : Checks for deletion
4. OK button : deletes the selected images.

1. Select the submenu values by pressing the Up / Down button and then press the OK button.

2. If [No] is selected : cancels "Delete Image".

3. If [Yes] is selected : deletes the selected images.

Downloading images

For Windows	For Macintosh
PC with processor better than Pentium 450MHz(Pentium 800MHz recommended)	Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/Vista	Mac OS 10.0 ~ 10.4
Minimum 128MB RAM(Over 512MB recommended)200MB of available hard disk space(Over 1GB recommend)	Minimum 256MB RAM110MB of available hard-disk space
USB port	USB port
CD-ROM drive	CD-ROM drive
1024x768 pixels, 16bit color displaycompatible monitor(24bit color display recommended)Microsoft DirectX 9.0 or later

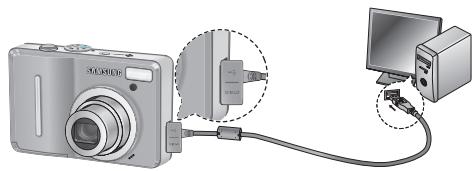

PC connection mode

1. Install the supplied Software.

1. Download the images

• Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

Specifications

Image Sensor -Type:1/2.33"CCD

• Effective Pixel : Approx. 10.2 Mega-pixel
• Total Pixel : Approx. 10.3 Mega-pixel

Lens - Focal Length : SHD Lens f = 6.3 ~ 31.5mm (35mm film equivalent : 38 ~ 190mm)

-F No.: F2.8 ~ F4.6
- Digital Zoom : - Still Image mode :1.0X ~ 5.0X

Play mode: 1.0X 12.0X

(depends on image size)

LCD Monitor -2.7" color TFT LCD (230,000 dots)
Focusing -Type:TTL auto focus (Multi AF,Center AF,Face Detection AF)
- Range

	Normal	Macro	Super Macro	Auto Macro
Wide	80cm ~ Infinity	5cm ~ 80cm	1cm ~ 5cm	5cm ~ Infinity
Tele		50cm ~ 80cm	-	50cm ~ Infinity

Shutter - Speed 1~1/2,000 sec.

Manual/Night: 15 1 / 2,000 sec.,Firework:4sec.)

Exposure - Control: Program AE, Manual Exposure, Face Detection AE

-Metering:Multi,Spot,Center-Weighted
- Compensation: ±2EV (1/3EV steps)
-ISO：Auto,50,100,200,400,800,1600

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off

• Range: Wide: 0.4m ~ 3.0m, Tele: 0.5m ~ 2.5m
• Recharging Time : Approx. 5 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color

White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

• Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

Mode : Auto, Program, Manual, DIS, Photo Help Guide , Portrait, Scene
Scene: Night, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow, Self Shot, Food, Café
- Shooting : Single, AEB
- Self-timer : 10 sec., 2 sec., Double, Motion Timer

Specifications

- Movie Clip ·With Audio (recording time : memory capacity dependent) ·Size : 640x480, 320x240 ·Frame rate : 30 fps, 15 fps ·5X Optical Zoom and Mute in Zooming ·Movie Editing (Embedded): Pause during recording, Still Image Capture
Storage	- Media ·Internal memory : About 17MB flash memory ·External Memory (Optional): MMC card (Up to 2GB guaranteed) SD card (Up to 4GB guaranteed) SDHC card (Up to 4GB guaranteed) - File Format ·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0 ·Movie Clip : AVI (MJPEG) ·Audio : WAV - Image Size
10"	9"	7"	7"	5"	3"	1"
3648X	3648X	3648X	3072X	2592X	2048X	1024X
2736	2432	2052	2304	1944	1536	768

• Capacity (256 MB Size)

	10m	9m	7m	7m	5m	3m	1m
Super Fine	About 59	About 66	About 79	About 83	About 110	About 171	About 479
Fine	About 82	About 93	About 109	About 115	About 155	About 236	About 553
Normal	About 141	About 155	About 183	About 191	About 253	About 371	About 607
※ These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.
"E" Button	- Effect : Color - Editing : Resize, Rotate, Color
Image Play	- Type : Single image, Thumbs nails, Multi slide show, Movie Clip
Interface	- Digital output connector : USB 2.0 - Audio : Mono - Video output : NTSC, PAL (user selectable) - DC Adapter : 3.3V
Power Source	- Primary Battery : 2 X AA Alkaline - Rechargeable battery (Optional) : SNB-2512B KIT(2xAA Ni-MH Battery & Charger) Å Included battery may vary depending on sale region.

Specifications

Dimensions (WxHxD) -98.8 X 63 X 25.6mm (excluding protrusions)

Weight -Approx.160g (without batteries and card)

Operating Temperature - 0 40^

Operating Humidity -5\~85%

Software - Samsung Master, Adobe Reader

※ Specifications are subject to change without prior notice.
※All trademarks are the property of their respective owners.

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking

shown on the product or its literature, indicates that it should

not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

MEMO

Table des matieres

Pile rechargeable (SNB-2512)

Chargeur (SBC-N2)

Cable secteur

Étui

• Batterie rechargeable : SNB-2512B KIT

Dimensions (L x H x P) - 98,8 X 63 X 25,6mm

Suhu Operational - 0 40^

Kelembaban Operational - 5 85%

Perangkat Lunak - Samsung Master, Adobe Reader

L 15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.

1.2015SLIPLaIwIgI 1.2015SLIaIwIgI 1.2015SLIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIg

1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251 1251

aLdLd.1g: aRrall plwJg JlgWll no ggi Jg sJg 1111111111111111111111111111111111111111

a 111111111111111111111111111111

AaiaI Jx noJySLJleiuiuai jayao aye pluaig JiaWg Lj
. 1J, Jy, g JySiill JauL, axiaS Ig oaggl
. aJyS aowg y

aLgS aasagaa JhsiaJusy

4

1. yolssJ 2. yolssJ 3. yolssJ 4. yolssJ 5. yolssJ 6. yolssJ 7. yolssJ 8. yolssJ 9. yolssJ 10. yolssJ 11. yolssJ 12. yolssJ 13. yolssJ 14. yolssJ 15. yolssJ 16. yolssJ 17. yolssJ 18. yolssJ 19. yolssJ 20. yolssJ 21. yolssJ 22. yolssJ 23. yolssJ 24. yolssJ 25. yolssJ 26. yolssJ 27. yolssJ 28. yolssJ 29. yolssJ 30. yolssJ 31. yolssJ 32. yolssJ 33. yolssJ 34. yolssJ 35. yolssJ 36. yolssJ 37. yolssJ 38. yolssJ 39. yolssJ 40. yolssJ 41. yolssJ 42. yolssJ 43. yolssJ 44. yolssJ 45. yolssJ 46. yolssJ 47. yolssJ 48. yolssJ 49. yolssJ 50. yolssJ 51. yolssJ 52. yolssJ 53. yolssJ 54. yolssJ 55. yolssJ 56. yolssJ 57. yolssJ 58. yolssJ 59. yolssJ 60.

：20

Lagbll Joo aol Jgall algillal glll oolal glll pssll lJg

1. yolSJI JIO gGJell jIg Cg gGJI GJI GJI GJI pIaI WU 1. yolSJI GJI GJI GJI

gaaalxuaa uae

121

Jaaa

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 2

Jd

1.2015

Lg

aJg aJg aJc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc

a_6 = 1

1

( x + 2) ( x - 1) = 0

125011 125011 125011 125011 125011 125011 125011 125011 125011 125011 125011 125011 125011 125011 125011 1

yololSJIg 1

C. = ( x - 6)

25.11 25.11 3

a51jll aee baae aee aee aee aee

$$ \left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$

$$ + g _ {2 2} \rightarrow g _ {2 2} \rightarrow g _ {2} c l, n a c l, + n a c l $$

$$ \left. \quad \int_ {0} ^ {1} \frac {\sin x}{x - 1} d x + \int_ {1} ^ {2} \frac {\sin x}{x - 1} d x + \int_ {2} ^ {3} \frac {\sin x}{x - 1} d x + \int_ {3} ^ {4} \frac {\sin x}{x - 1} d x + \int_ {4} ^ {5} \frac {\sin x}{x - 1} d x + \int_ {5} ^ {6} \frac {\sin x}{x - 1} d x + \dots\right) $$

$$ j a _ {a} \text {i s i o j i w u j i j a s i o c i w y g l e , J l c c i w y g l e , a l l j i j a l i j} $$

$$ (c l c l w 1 0, g a m m a) \cup \text {c o n s t} \cup \text {j u s p i r e} \cup \text {c o n s t} \cup \text {j u s p i r e} $$

$$ (j \dot {1} \dot {2} 1 0 \quad \dot {s} \dot {a} \dot {b} \quad \dot {s} \dot {a}) \quad \dot {a} \dot {a} \dot {b} \dot {t} \dot {t} \dot {a} \dot {b} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} $$

$$ (l g i j _ {i} j _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} l _ {j} l _ {i} $$

：aLiOg

$$ \text {j i s o} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad \text {i n} \quad D I S. $$

$$ \begin{array}{l} \text {a d j i l e l l} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \ \text {a d a l b s o l v} \end{array} $$

$$ p l e b, g a o, \alpha \dot {s} \dot {w}, p l e b, g a o, \alpha \dot {s} \dot {w} \text {t i l i g} b l i w $$

AEBg:

$$ \left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$

$$ i _ {a} \omega_ {c} C D 1 / 2. 3 3: e g i l l - i _ {b} \omega_ {d} J l e w j l g $$

$$ L _ {2} ^ {\prime} \text {a d} J L W S, L _ {2} = 0. 1 0 2 \text {A p p r o x :} A l l \neq \text {a d} J L W S, \text {a d} > 0 $$

$$ L _ {i j k} ^ {2} \approx L _ {i j k} L _ {i j k} 1. 0 3 \text {A p p r o x :} L _ {i j k} L _ {i j k} \approx L _ {i j k} L _ {i j k} $$

$$ \left(\varepsilon 1 9 0 - 3 8; \varepsilon 3 5, \varepsilon_ {L} \text {a l l}; \varepsilon_ {L} (\leqslant) _ {L} \varepsilon_ {L} - 3 1. 5 - 6. 3 = \mathrm {f S H D} \quad \text {a w a r d :} \varepsilon_ {L} \text {g a m m a} \mid \text {J g l a b l} - \right. $$

$$ F 4. 6 \sim F 2. 8: \dot {a} l o j w i n o - $$

$$ \therefore \quad a = 1, b = 2, c = 3, d = 4 $$

$$ 5. 0 X \sim 1. 0 X: \text {a l l} \quad \text {a l l} \quad \text {a l l} \quad \text {a l l} \quad \text {a l l} \quad \text {a l l} \quad \text {a l l} \quad \text {a l l} \quad \text {a l l} $$

$$ \left(\frac {1}{2} \times 1. 0 x - 1. 0 x\right) \cdot \frac {1}{2} \times 1. 0 x = 1. 0 x \cdot \frac {1}{2} \times 1. 0 x $$

$$ (a b a; 2 3 0, 0 0 0) \quad a _ {a} a _ {b} T F T 2. 7 a _ {a} a _ {b} \dot {a} - a _ {a} a _ {b} \dot {a} \dot {a} \dot {a} \dot {a} \dot {a} $$

$$ (a \cdot g) l l i s t S I A f _ {g} l n a g A f _ {g} s e e o A F) _ {j} l l i s t j s j T L L: g g - $$

$$ s \downarrow - $$

\( y \oplus y \oplus z \) Slo	\( y \oplus y \oplus z \) Slo	\( y \oplus y \oplus z \) Slo	\( y \oplus y \oplus z \) Slo
\( {a}_{1}{a}_{2} : y \oplus {l}_{0} \oplus {l}_{1} \oplus {l}_{2} \oplus 5 \)	\( {p}_{\text{w }}{5}_{\text{w }} \oplus {p}_{\text{w }}{1}_{\text{w }} \)	\( {p}_{\text{w }}{80}_{\text{w }} \oplus {p}_{\text{w }}{5}_{\text{w }} \)	\( {a}_{1}{a}_{2} : y \oplus {l}_{0} \oplus {l}_{1} \oplus {l}_{2} \oplus {50} \)
\( {a}_{1}{a}_{2} : y \oplus {l}_{0} \oplus {l}_{1} \oplus {l}_{2} \oplus {50} \)	-	\( {p}_{\text{w }}{80}_{\text{w }} \oplus {p}_{\text{w }}{50} \)	\( {a}_{1}{a}_{2} : y \oplus {l}_{0} \oplus {l}_{1} \oplus {l}_{2} \oplus {50} \)

1/2,000~1acw- 1

$$ \left(\text {a} _ {\text {a}} \text {a} _ {\text {a}} 4: \text {a} _ {\text {a}} \text {a} _ {\text {a}} \text {a} _ {\text {a}} \text {a} _ {\text {a}} \text {1 / 2 , 0 0 0} \sim 1 5: \text {a} _ {\text {a}} \text {a} _ {\text {a}} / (\mathrm {J a})\right) $$

$$ \Delta \mathrm {g} \mathrm {f l} \mathrm {a l l} \mathrm {s l} \mathrm {A E} _ {\mathrm {g}} \mathrm {g} \mathrm {d} \mathrm {s} \mathrm {b} \mathrm {e} \mathrm {r} \mathrm {e} \mathrm {g} \mathrm {c o l a l} \mathrm {l l} \mathrm {A E}: \mathrm {s} \mathrm {s} \mathrm {s l} \mathrm {l l} - $$

$$ \therefore \text {a w g} J \text {i j g . a b c d e f . s u e i o :} \because S _ {j} = J - $$

$$ \left(\text {a g} \pm 1 / 3 \mathrm {E V}\right) 2 \mathrm {E V} \pm : j a g = j J - $$

$$ 1 6 0 0. 8 0 0. 4 0 0. 2 0 0. 1 0 0. 5 0 \quad \mathrm {t a u} : \mathrm {I S O} - $$

(cuUdo2025600)

1w	3M	5M	7M	7M	9M	10M	/
L24479	L2447171	L24471110	L244783	L244779	L244766	L244759	L244744
L244553	L244236	L2442155	L2442115	L2442109	L244283	L244282	L24424
L244607	L244371	L244253	L2442191	L2442183	L2442155	L2442141

1.2dL

1J:J- "E"

c0.0000000000000000000000000000000000000

eae bao sao zai yu cuiyuyuoyouyue gill- ayuall

USB2.0: gaa jaoa

(1) 3.3:224 Jg

jglg jgljlbj:ajwlljzbl

(SJ)SNB-2512BKT: (xAA Nl-MH

gll aibio idly aiawll aybaii※

:diéghao

（20 = 40× 320.480× 640.

a1111 15. a1111 30:1111 Jao

[glc]Lus, aaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

j5i jlljLjLjCjLjCjLjCjLjCjLjCjLjCj

Samsung Techwin Eco Eco

.EU RoHSolg

4∠

#

	1
	4
	5
	6
	7
	8
	9
	10
	11

vnaananaaannnnaaann

Microsoft,Windows 1 Windows 1 Microsoft Corporation

-

PDF PDF Explorer Windows PDF Adobe Reader

#

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wwnnnnaaannnnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Wnwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnannn nnann nenn nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nann nenn

nnaeannnnnneennnnnne nnnnnnnnneennnnnne nnnnnnnnneennnnnne

WwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWw

nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

a

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wunwnanwnnnaeannnnnneennnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

wnnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

• nnnnnae aenrnnnne ennnnne ennnnne
  -0

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wuuuunnnnnaaannnnnne

日

y

aennnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nannnee

nnae aee nne eae ne aeene eae ene eae

• -wwnnnnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
  -wnanun

Wide	80mm.~50mm	5mm.~80mm.	1mm.~5mm.
Tele		50mm.~80mm.	-

waw	- lwnu: ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, ən lwnu, 0.4 u, ~3.0 u, Tele: 0.5 u, ~2.5 u, -anglswy: 152222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222
wawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawaw Kawa	- wunu: 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u - lwnu, 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u - lwnuw: 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, w, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, w, u, u - lwnuw: 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u - lwnuw: 0.4 u, u, w, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u - lwnuww: 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, w - lwnuw: 0.4 u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u, u - lwnuw: 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.6 w - lwnuw: 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.6 w - lwnwu: 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0. - lwnuw: 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 - lwnuw: 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.8 w - lwnuw: 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0.4 w, 0. - lwnuw: 10.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w - lwnuw: 10.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w - lwnuw: 10.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w - lwnuw: 10.4 w, 2.4 w, 2.4 w, 2.4 w, 2.4 w - lwnuw: 10.4 w, 2.4 w, 2.4 w, 2.4 w - lwnuw: 10.4 w, 2.4 w, 2.4 w - lwnuw: 10.4 w, 2.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w - lwnuw: 10.4 w
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###
-###	WAV
-###	WAV

10m	9m	7m	7m	5m	3m	1m
3648X	3648X	3648X	3072X	2592X	2048X	1024X
2736	2432	2052	2304	1944	1536	768

-（204 256MB)

Please refer to the warranty that came with the product you purchased, or go to our website http://www.samsungcamera.com/ for after-sales service or inquiries.

Internet address - http://www.samsungcamera.com

The CE Mark is a Directive conformity mark of the European Community (EC)

AD68-02685A
