USER MANUAL PL81 SAMSUNG

Health and safety informationContents Warnings Do not use your camera near flammable or explosive gases and liquids Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories. Keep your camera away from small children and pets Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Prevent damage to subjects’ eyesight Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject’s eyes can cause temporary or permanent damage. Health and safety information…………………… 2 Camera layout ……………… 4 Setting up your camera …… 5 Unpacking ……………………… 5 Inserting the battery and memory card …………………… 6 Charging the battery …………… 7 Selecting options ……………… 7 Capturing photos or videos … 8 Playing files ………………… 9 Transferring files to a PC (Windows) ……………………10 Specifications ……………… 11

English Exercise caution when connecting cables or adapters • and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories. Do not insert foreign objects into any of your camera’s • compartments, slots, or access points. This type of damage may not be covered by your warranty. Protect batteries, chargers, and memory cards from damage Avoid exposing batteries or memory cards to very • cold or very hot temperatures (below 0° C/32° F or above 40° C/104° F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction. Prevent memory cards from making contact with • liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera. Handle and dispose of batteries and chargers with care Use only Samsung-approved batteries and chargers. • Incompatible batteries and chargers can cause serious injuries or damage to your camera. Never place batteries or cameras on or in heating • devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Cautions Handle and store your camera carefully and sensibly Do not allow your camera to get wet—liquids can • cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer’s warranty. Avoid using or storing your camera in dusty, dirty, • humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.54

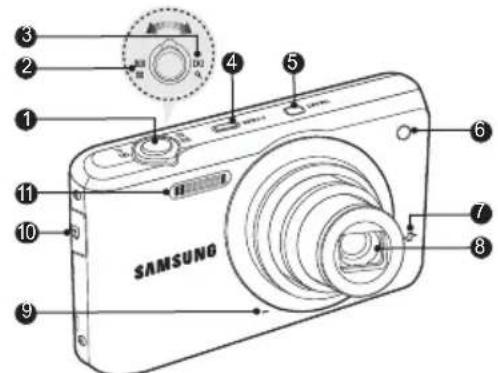

Zoom W Lever (Thumbnail)

Battery chamber cover

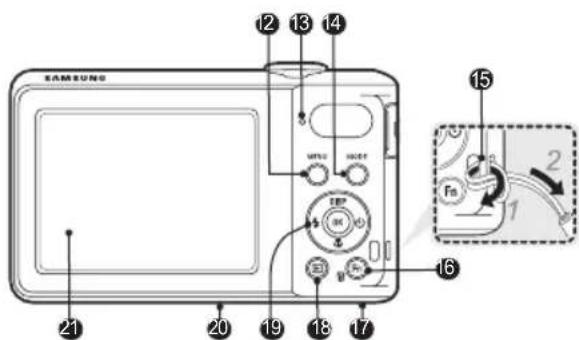

Navigation button/OK button

English Setting up your camera Camera Rechargeable Battery AC adapter/USB cableCamera strap Quick Start Manual Software CD-ROM (User manual included) Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Unpacking Memory cards Camera caseA/V cable Battery charger Optional accessories76

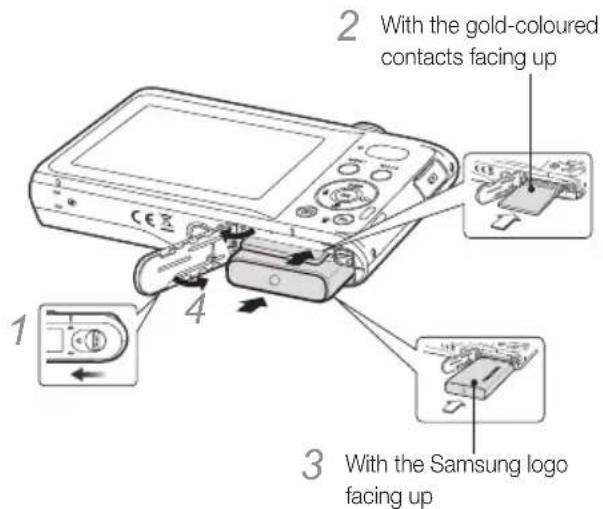

With the gold-coloured contacts facing up

With the Samsung logo facing up Inserting the battery and memory card

Removing the battery Removing the memroy cardPush gently until the card disengages from the camera and then pull it out of the slot. Setting up your camera76

English In Shooting mode, press [

Use the navigation buttons to scroll to an

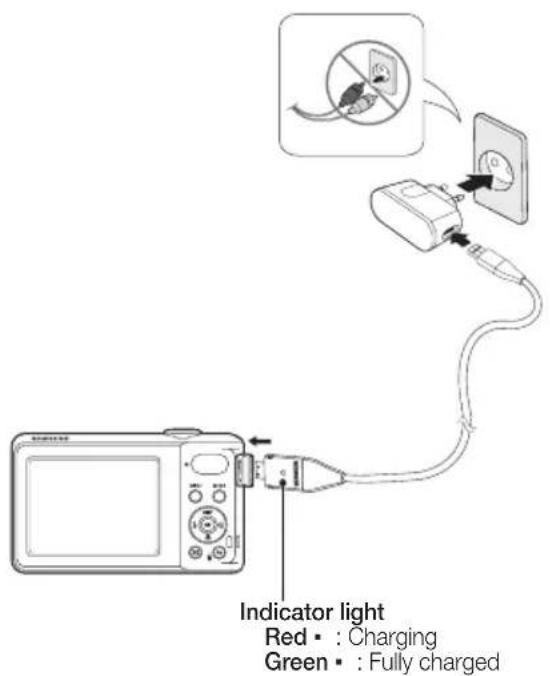

] to confirm the highlighted option or menu. Press [ ▪ ] again to go back to the previous menu. Selecting optionsCharging the battery Indicator lightRed ▪ : ChargingGreen ▪ : Fully charged Before using the camera for the first time, you must charge the battery.98

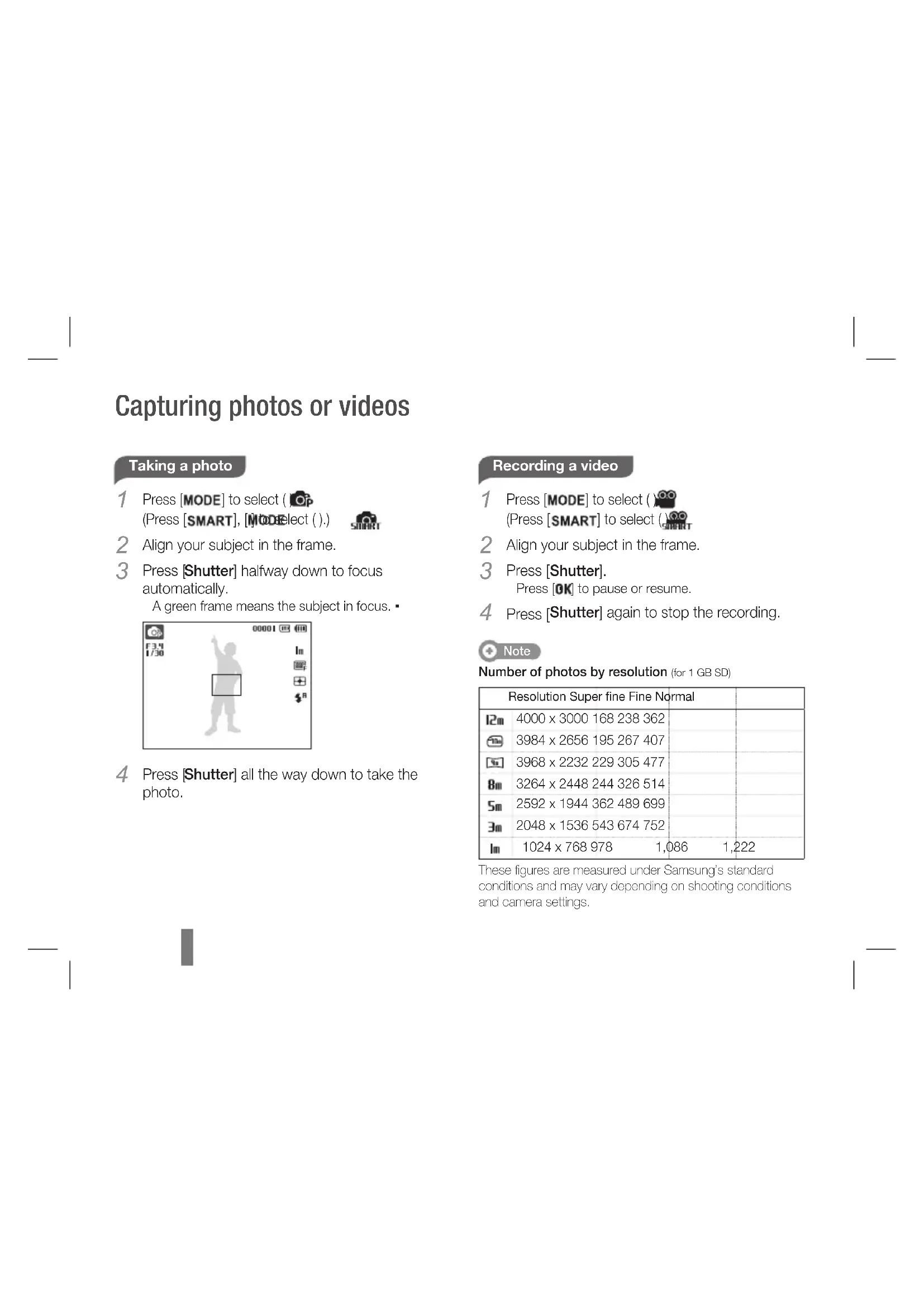

Taking a photo Press [

] to select ( ). (Press [ ], [ ] to select ( ).) Align your subject in the frame.

Shutter] halfway down to focus automatically. A green frame means the subject in focus. ▪ Press [

Shutter] all the way down to take the photo. Recording a video Press [

] to select ( ). (Press [ ] to select ( ).) Align your subject in the frame.

Shutter] again to stop the recording. Note Number of photos by resolution (for 1 GB SD)Resolution Super fine Fine Normal4000 x 3000 168 238 3623984 x 2656 195 267 4073968 x 2232 229 305 4773264 x 2448 244 326 5142592 x 1944 362 489 6992048 x 1536 543 674 7521024 x 768 978 1,086 1,222These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings. Capturing photos or videos98

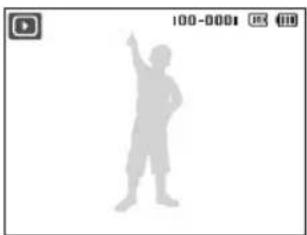

English Playing files Viewing photos Press [

] or [ ] to scroll through files. Press and hold to view files quickly. ▪Viewing videos Press

Play Capture Use the following buttons to control playback.

Transferring files to a PC (Windows) Insert the installation CD in a CD-ROM drive

and follow the onscreen instructions. Connect the camera to the PC with the USB

cable. Turn on the camera.

My Computer → Removable Disk → DCIM → 100PHOTO. Select the files you want and drag or save them

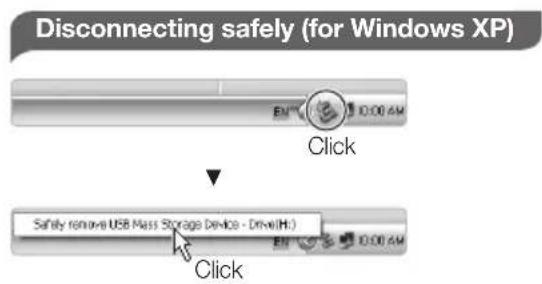

to the PC. Disconnecting safely (for Windows XP) Click

English Image sensor Type: 1/2.3” (approx. 7.81 mm) CCD• Effective pixels: approx. 12.2 mega-pixels• Total pixels: approx. 12.4 mega-pixels • Lens Focal length: Samsung lens f = 5.1 - 25.5 mm (35 mm film equivalent: 28.2 - 141 mm)• F-stop range: F3.4 (W) - F5.9 (T)• Display 2.7” (6.86 cm) 230 K, TFT LCD Focusing TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF) Shutter speed Smart Auto : 1/8 ~ 1/2,000 sec.• Program : 1 ~ 1/2,000 sec.• Night : 8 ~ 1/2,000 sec.• Fireworks : 2 sec.• Storage Internal memory: approx. 86 MB• External memory (Optional): SD card (up to 4 GB guaranteed), • SDHC card (up to 8 GB guaranteed) Internal memory capacity may not match these specifications. DC power input connector

Rechargeable battery BP70A Dimensions (W x H x D)

96.8 × 57.5 × 20.2(18.9) mm (excluding protrusions)

120.3 g (without battery and memory card)

Operating temperature

Tombol Zoom W (Thumbnail)

(18.9)20.2 X 57.5 X 96.8

Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ for after-sales service or inquiries. AD68-04834A (1.0)
