Thank you for buying a Samsung Camera.

This manual has basic instructions for quick and easy picture taking.

For more information, refer to the user manual included in the supplied CD-Rom.

English/Deutsch/Français/Espanol/ Italiano/Nederlands/Português

Getting to know your camera

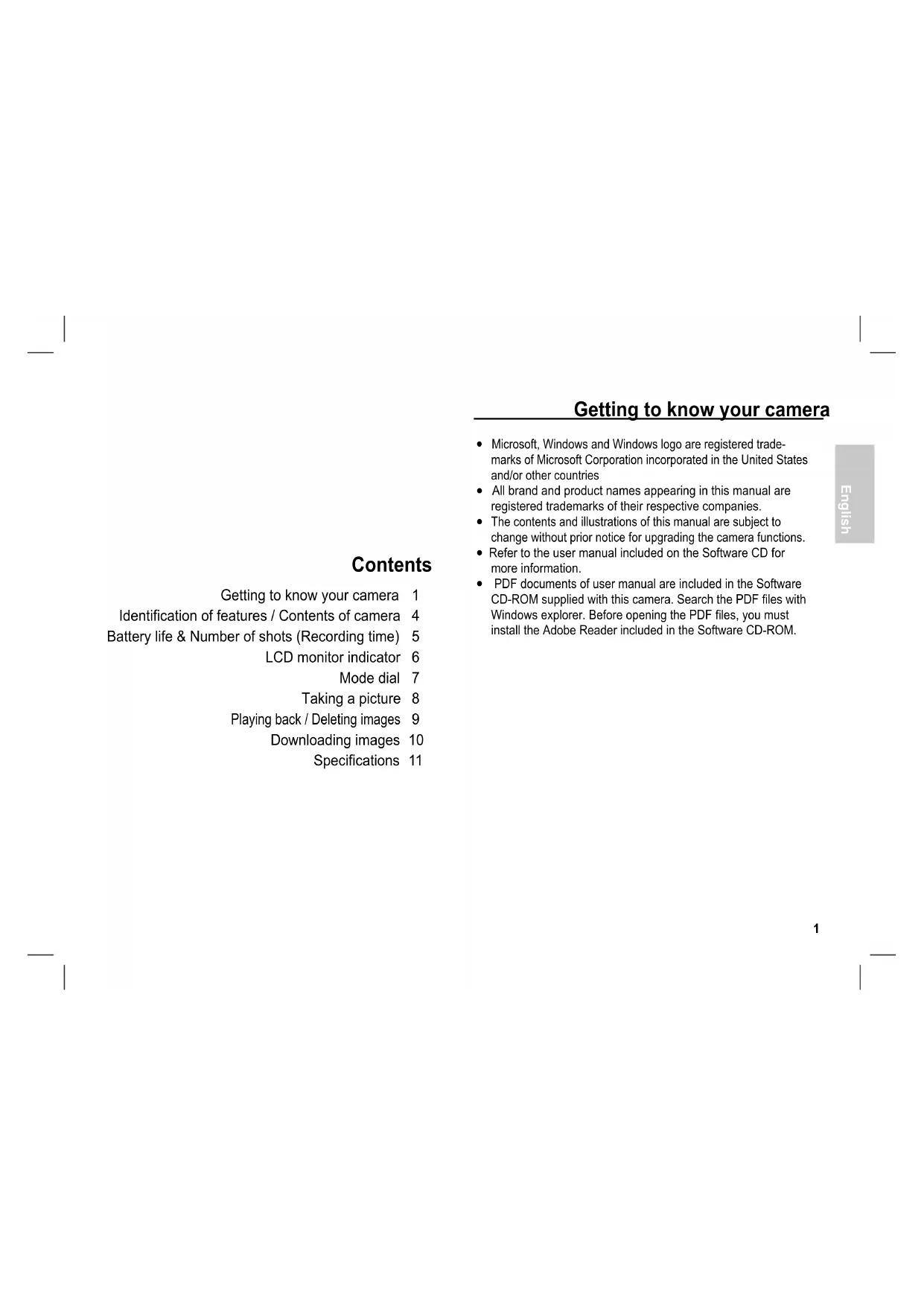

Contents

Getting to know your camera 1

Identification of features / Contents of camera 4

Battery life & Number of shots (Recording time) 5

LCD monitor indicator 6

Mode dial 7

Taking a picture 8

Playing back / Deleting images 9

Downloading images 10

Specifications 11

• Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
• All brand and product names appearing in this manual are registered trademarks of their respective companies.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
• Refer to the user manual included on the Software CD for more information.
• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: -Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately. -There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Getting to know your camera

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury. - Use battery with the correct specification for the camera. - Do not short circuit, heat or dispose of battery in fire. - Do not insert the battery with the polarities reversed.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case.

Do not insert the memory card the wrong way round.

Using an AC adapter that doesn't match with the camera specification may cause camera malfunction. We recommend supplied battery or exclusive rechargeable battery.

※ Available AC adapter :

Voltage: 3.3V, Ampere: 2.0A, Diameter: 8.35

- After turning on the camera, Check whether the battery type and the camera setting set on the [Settings] > [Battery Type] menu are same.

Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

Identification of features / Contents of camera

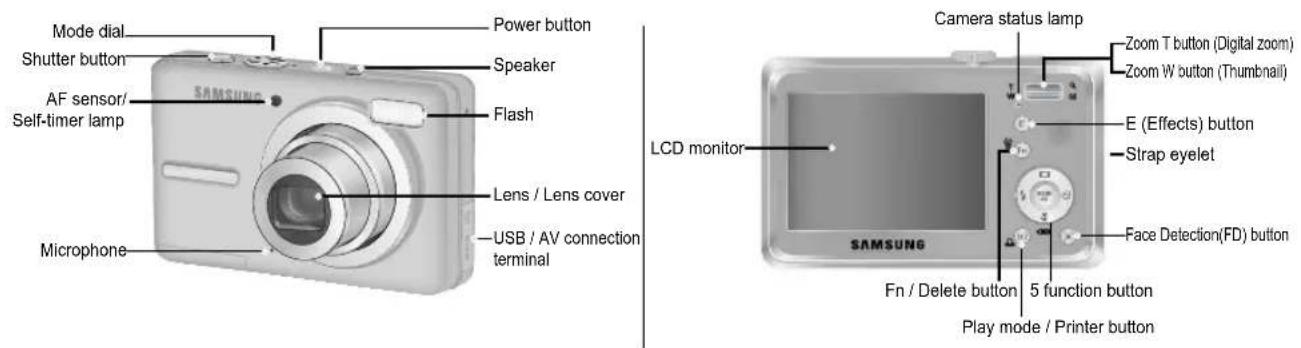

Mode dial Shutter button AF sensor/ Self-timer lamp Microphone Power button Speaker Flash Lens / Lens cover USB / AV connection terminal Camera status lamp Zoom T button (Digital zoom) Zoom W button (Thumbnail) E (Effects) button Strap eyelet Face Detection(FD) button Fn / Delete button 5 function button Play mode / Printer button LCD monitor SAMSUNG

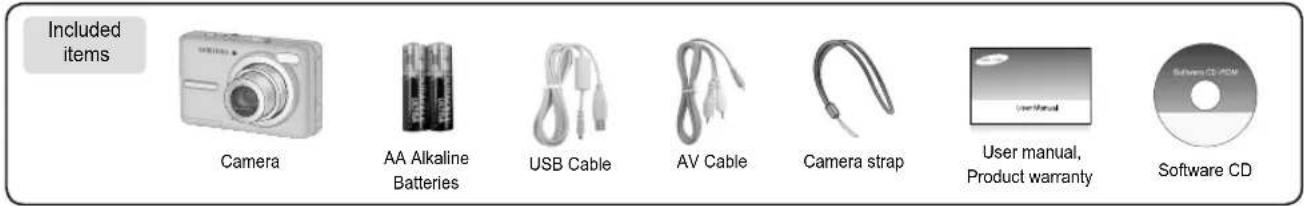

Included items Camera AA Alkaline Batteries USB Cable AV Cable Camera strap User manual, Product warranty Software CD

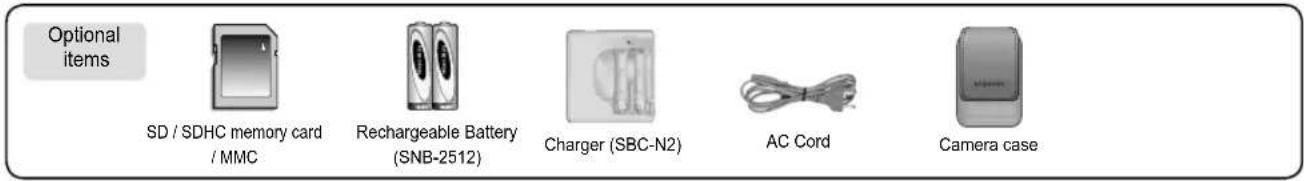

Optional items SD / SDHC memory card / MMC Rechargeable Battery (SNB-2512) Charger (SBC-N2) AC Cord Camera case

※ Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shots (Recording time)

We recommend batteries for a digital camera (Within a year from the date of manufacture). The batteries are listed below.

• Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
• Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)

■ SNB-2512 rechargeable battery Specification

Model SNB-2512
Type Ni-MH
Capacity	2500mAh
Voltage 1.2V x 2
Charging time	Approximately 300 Minutes (Use for SBC-N2)

※ Included battery may vary depending on sales region.

■ When using a 1GB SD memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image size		Super Fine	Fine	Normal	30 FPS	15 FPS
Still image	10"	About 219	About304	About507	-
	9"	About 241	About341	About550	-
	7"	About 282	About 395	About619	-
	7"	About 290	About412	About660	-
	5"	About 366	About507	About825	-
	2"	About1089	About1458	About 2204	- -
	1"	About1907	About2204	About 2419	- -
*Movie clip	640	---			About 14'15"	About 28'02"
	320	---			About 51'32"	About 01:41'47"

※ The zoom button doesn't use during the movie recording. The recording times can be changed by the zoom operation. You can record videos of up to 4GB or 2hours each.

LCD monitor indicator

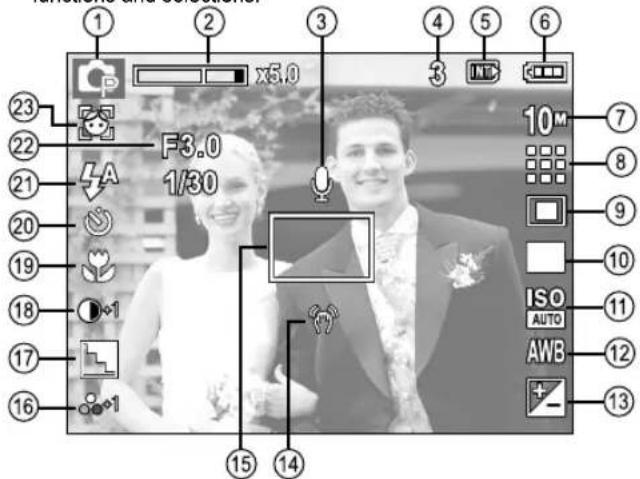

■ The LCD monitor displays information about the shooting functions and selections.

1 2 3 4 5 6 x5.0 F3.0 1/30 10 M 7 8 9 ISO AUTO 11 12 AWB + - 13 23 22 21 20 19 18 17 16 15 14

[Image & Full Status]

No.	Description Icons
1	Recording mode
2	Optical / Digital Zoom bar /Digital Zoom rate	x5.0
3	Voice Memo / Without Sound
4	Number of available shotsremaining	3
	Remaining time 00:00:00

■ You can select a desired camera mode by using the Mode dial on the top of the camera.

AUTO

Selects this mode for quick and easy picture taking with minimal user interaction.

PHOTO HELP GUIDE

Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting.

PROGRAM

Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

PORTRAIT

Use this menu to take a picture of a person.

MANUAL

You can manually configure all functions with the aperture value and shutter speed.

SCENE

Use the menu to easily configure optimal settings for a variety of shooting situations.

DIS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

MOVIE CLIP

A movie clip can be recorded for as long as the available recording time.

Taking a picture

■ How to take a picture

1. Turn on the camera and select a camera mode by rotating the mode dial.

MKSUNG

1. Take a picture.

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken

1. Hold the camera as shown

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

■ How to record a movie

Rotate the Mode dial and select ( 🔍 ).

1. Confirm the composition

Hand holding a smartphone displaying a video call interface with Chinese text and a 'NEW' button

1. Confirm the composition

Illustration of hands holding a smartphone displaying a photo frame (no visible text or symbols)

1. Start the recording

Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Diagram showing a hand pressing down on a device with labeled buttons T, W, Q, R and a downward arrow indicating action.

Playing back / Deleting images

■ Playingback the images

-The last image stored on the memory is displayed.

Press the play button ( ☐ ).

Select an image that you want to play back by pressing the Left/ Right button

※ Manner mode: Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON.

■ Deleting images

- This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( ) button.

[Single Image] [Thumbnail Image]

1. To add images to delete, press the T button.

2. Left / Right button : Selects images

3. T button : Checks for deletion
4. OK button : deletes the selected images.

1. Select the submenu values by pressing the Up / Down button and then press the OK button.

2. If [No] is selected : cancels "Delete Image".

3. If [Yes] is selected : deletes the selected images.

Downloading images

	For Windows For Macintosh
USB Connection Specifications	PC with processor better than Pentium III 500MHz (Pentium III 800MHz recommended) Windows 2000 / XP / Vista Minimum 256MB RAM (Over 512MB recommended)	Power Mac G3 or later Mac OS 10.3 or later Minimum 256MB RAM (Over 512MB recommended)
Software Support Specifications	250MB of available hard disk space (Over 1GB recommend) 1024x768 pixels, 16bit color display compatible monitor (24bit color display recommended) Microsoft DirectX 9.0C	-

■ PC connection mode

1. Install the supplied Software.

Diagram showing a CD and computer tower connected via an arrow, indicating data transfer or scaling process.

1. Download the images

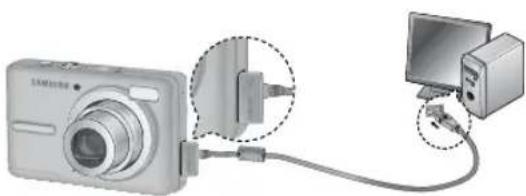

Diagram of a digital camera connected to a computer via cable, showing internal components and wiring (no text or symbols)

- Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

File Edit View Insert File Edit View Insert SOCI 1239 SOCI 12384 SOCI 12384 SOCI 12360 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365 SOCI 12365

Specifications

Image Sensor - Type : 1/2.33" CCD

- Effective Pixel : Approx. 10.2 Mega-pixel

- Total Pixel : Approx. 10.3 Mega-pixel

Lens - Focal Length : SAMSUNG Lens f = 6.3 \~ 18.9mm

(35mm film equivalent : 35 \~ 105mm)

- F No.: F3.0(W) \~ F5.6(T)

- Digital Zoom : ·Still Image mode :1.0X \~ 5.0X

-Play mode: 1.0X \~ 11.4X

(depends on image size)

LCD Monitor - 2.7" color TFT LCD (230,000 dots)

Focusing - Type : TTL auto focus (Multi AF, Center AF, Face Detection AF)

- Range

	Normal Macro	Auto Macro
Wide	80cm ~ Infinity	10cm ~ 80cm 10cm	~ Infinity
Tele 50cm ~ 80cm 50cm ~ Infinity

Shutter - Speed 1 \~ 1/1,500 sec.

( Manual : 8 \~ 1/1,500 sec.)

Exposure - Control: Program AE, Manual Exposure,

Face Detection AE

- Metering : Multi, Spot, Center-Weighted

- Compensation : ±2EV (1/3EV steps)

- ISO: Auto, 80, 100, 200, 400, 800, 1600

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off

- Range : Wide : 0.4m \~ 3.0m,

Tele : 0.5m \~ 2.5m

- Recharging Time : Approx. 4 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color

White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

- Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

Mode : Auto, Program, Manual, DIS, Photo Help Guide , Portrait, Scene

- Scene : Nightscene, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow

- Shooting : Single, Continuous, AEB

- Self-timer : 10 sec., 2 sec., Double, Motion Timer

Specifications

- Movie Clip

- With Audio or without Audio

(user selectable, recording time : max 2 hours)

·Size : 640x480, 320x240

· Frame rate : 30 fps, 15 fps

· 3X Optical Zoom and Mute in Zooming

· Movie Editing (Embedded): Pause during

recording, Still Image Capture

Storage - Media

- Internal memory : About 16MB flash memory

· External Memory (Optional) :

MMC card (Up to 1GB guaranteed)

SD card (Up to 2GB guaranteed)

SDHC card (Up to 8GB guaranteed)

- File Format

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1,

PictBridge 1.0

Movie Clip : AVI (MJPEG)

·Audio : WAV

- Image Size

10M9M7M5M1M					2D
3648X2736	3648X2432	3648X2056	3072X2304	2592X1944	1920X1080	1024X768

• Capacity (1GB Size)

	10M	9M	7M	7M	5M	1M			2M
Super Fine	About 219		About 241		About 282		About 290	About 366	About 1089	About 1907
Fine	About 304		About 341		About 395		About 412	About 507	About 1458	About 2204
Normal	About 507		About 550		About 619		About 660	About 825	About 2204	About 2419

※ These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

"E" Button

- Effect : Color, Image Adjust

(Sharpness, Contrast, Saturation)

Editing : Resize, Rotate, Color

Image Play - Type : Single image, Thumbnails,

Multi slide show, Movie Clip

Interface - Digital output connector : USB 2.0

• Audio : Mono
• Video output : NTSC, PAL (user selectable)
• DC power input connector : 3.3 V

Power Source - Primary Battery : 2x AA Alkaline

Rechargeable battery : SNB-2512B KIT (Optional)

(2xAA Ni-MH Battery & Charger)

※ Included battery may vary depending on sales region.

Specifications

Dimensions (WxHxD) - 93.1 X 61.5 X 24mm

(excluding protrusions)

Weight - Approx. 120g (without batteries and card)

Operating Temperature - 0 \~ 40°C

Operating Humidity - 5 \~ 85%

Software - Samsung Master, Adobe Reader

* Specifications are subject to change without prior notice.

※ All trademarks are the property of their respective owners.

Correct disposal of batteries in this product

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

MEMO

English

MEMO

Close-up of a hand holding a Samsung credit card (no text or symbols visible on the card surface)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a smartphone displaying a video call with Chinese text, likely from a presentation or broadcast.

Illustration of two hands holding a smartphone displaying a video call (no text or symbols visible)

Hand holding a control panel with labeled buttons T, W, Q, H and a downward arrow indicating action

Diagram showing a CD and computer tower connected via an arrow, indicating data transfer or scaling process.

Diagram showing a digital camera connected to a computer via cable, with no visible text or symbols.

Hand holding a Samsung credit card with coins (no text or symbols visible)

1. Prenez une photo

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of two hands holding a smartphone displaying a video call interface (no text or symbols visible)

Illustration of two hands holding a smartphone displaying a video call with two people (no visible text or symbols)

Hand holding a device with a downward arrow and labeled buttons (T, W, Q, N)

FR-8

Illustration showing a CD and a desktop computer with monitor (no text or symbols)

Diagram showing a digital camera connected to a computer via cable, with no visible text or symbols.

Close-up of a hand holding a Samsung credit card (no visible text or symbols on the card surface)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of two hands holding a digital camera with a screen showing two people (no visible text or symbols)

1. Tome una fotografía

Illustration of hands holding a smartphone displaying a video call with two people, one in business attire and the other in a suit.

Diagram showing a hand pressing down on a device with labeled buttons T, W, Q, R and an arrow indicating downward motion.

[IMAG INDIV] [IMAG MINIAT]

Diagram showing a CD and computer tower connected via an arrow, indicating data transfer or scaling process.

Diagram of a digital camera connected to a computer via cable, showing internal components (no text or symbols)

Hand holding a Samsung credit card with visible chip (no text or symbols on card)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of two hands holding a smartphone displaying a video call (no text or symbols visible)

1. Scattare una foto.

Illustration of two hands holding a smartphone displaying a video call (no text or symbols visible)

Diagram showing a hand pressing down on a control panel with labeled buttons T, W, Q, N and a downward arrow indicating action.

Diagram showing a CD and a desktop computer with an arrow indicating transformation (no text or symbols present)

Diagram of a digital camera connected to a computer via cable (no text or symbols visible)

	10m	9m	7m	5m	1m			2m
OTTIMA	circa 219	circa 241		circa 282		circa 290	circa 366	circa 1089	circa 1907
BUONA	circa 304	circa 341		circa 395		circa 412	circa 507	circa 1458	circa 2204
NORMALE	circa 507	circa 550		circa 619		circa 660	circa 825	circa 2204	circa 2419

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a camera (no text or symbols visible)

Illustration of two hands holding a smartphone displaying a video call (no text or symbols visible)

1. Maak een foto

Illustration of hands holding a smartphone displaying a video call with two people (no visible text or symbols)

Hand holding a device with a downward arrow and labeled buttons (T, W, Q, H)

NL-8

Diagram showing a CD and a computer monitor connected by an arrow (no text or symbols present)

1. Download de opnamen

Diagram showing a digital camera connected to a computer via cable, with no visible text or symbols.

(35mm film equivalent : 35 \~ 105mm)

- F nr.: F3,0(W) \~ F5,6(T)

- Digitale zoom :

- Modus stilstaande opname : 1,0X \~ 5,0X

·Afspeelmodus : 1,0X \~ 11,4X

(Multi-AF, AF midden, Gezichtsherkenning AF)

• Bereik

	Normaal Macro Automatische macro
Groothoek	80cm ~ oneindig	10cm ~ 80cm 10cm ~ oneindig
Telelens		50cm ~ 80cm 50cm ~ oneindig

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of two hands holding a smartphone displaying a photo frame (no visible text or symbols)

Illustration of hands holding a smartphone displaying a video call with two people (no text or symbols visible)

1. Comec a gravação

Diagram showing a hand pressing a button labeled with letters T, W, Q, R and an arrow pointing downward

PT-8

Diagram showing a CD and computer tower connected via an arrow, indicating data transfer or scaling process.

1. Baixe as imagens.

Diagram of a digital camera connected to a computer via cable, showing internal components and wiring (no text or symbols)

Please refer to the warranty that came with the product you purchased, or go to our website http://www.samsungcamera.com/ for after-sales service or inquiries.

Internet address - http://www.samsungcamera.com

The CE Mark is a Directive conformity mark of the European Community (EC)

AD68-03240A
