USER MANUAL SmartThings SAMSUNG

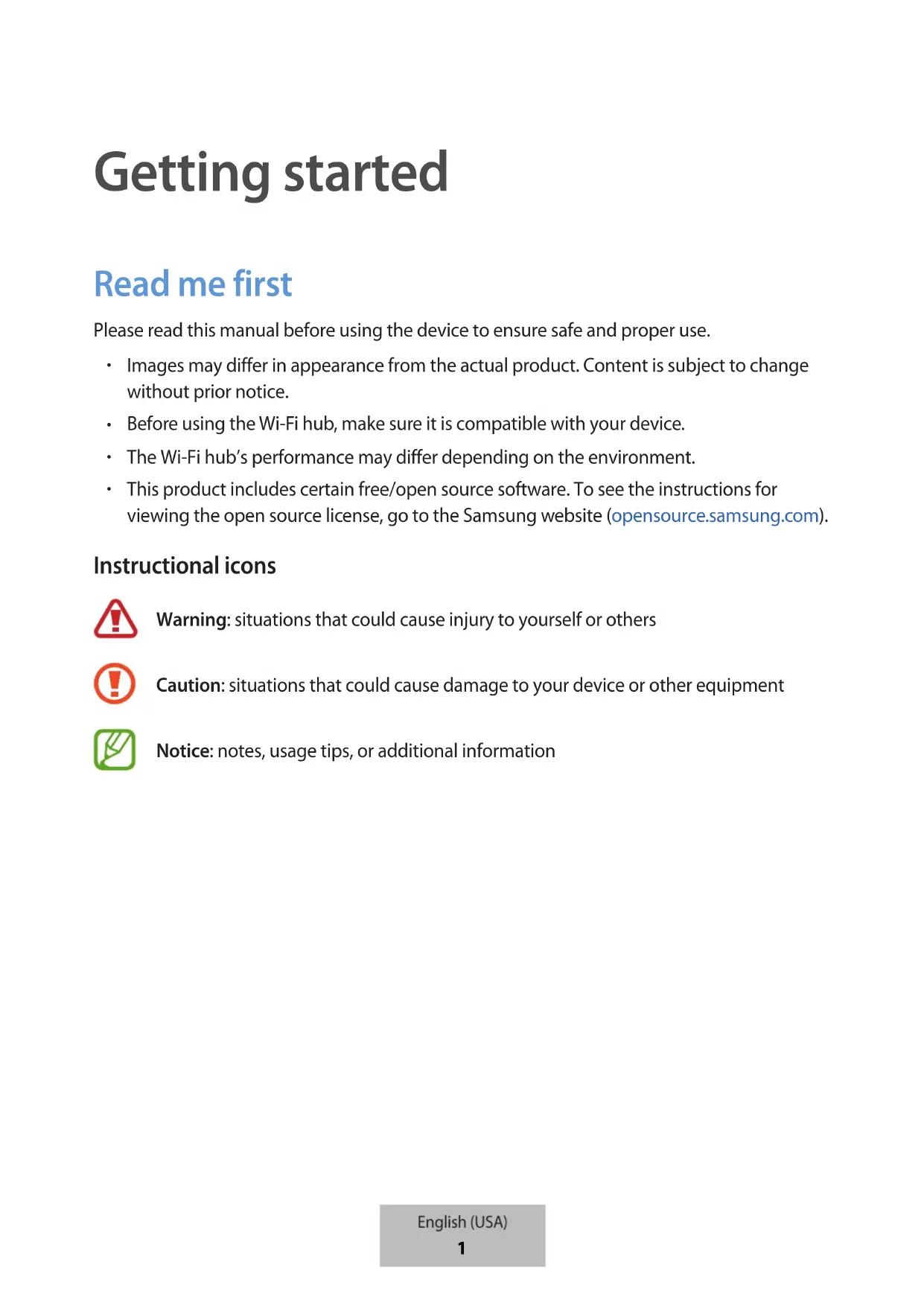

Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Before using the Wi-Fi hub, make sure it is compatible with your device.

The Wi-Fi hub’s performance may differ depending on the environment.

This product includes certain free/open source software. To see the instructions for viewing the open source license, go to the Samsung website (opensource.samsung.com). Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information English (USA) 1Getting started

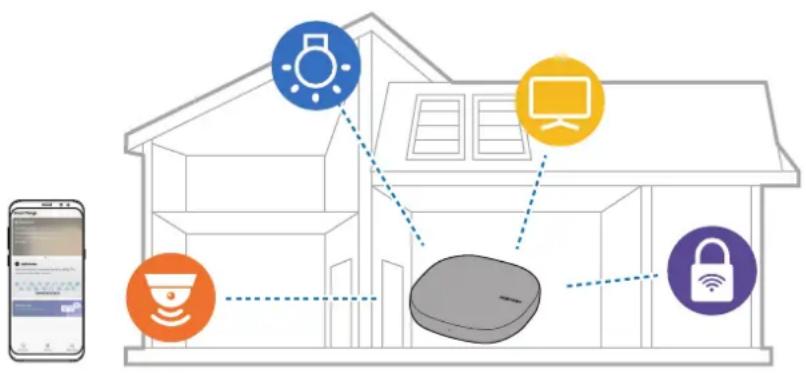

About SmartThings Wifi The SmartThings Wifi is a Wi-Fi router that can connect your smartphone to your smart home appliances via Wi-Fi. You can also connect Internet of Things (IoT) devices to this Wi-Fi hub via the Samsung SmartThings Hub feature. For larger homes, you can connect more Wi-Fi hubs. Package contents Check the product box for the following items:

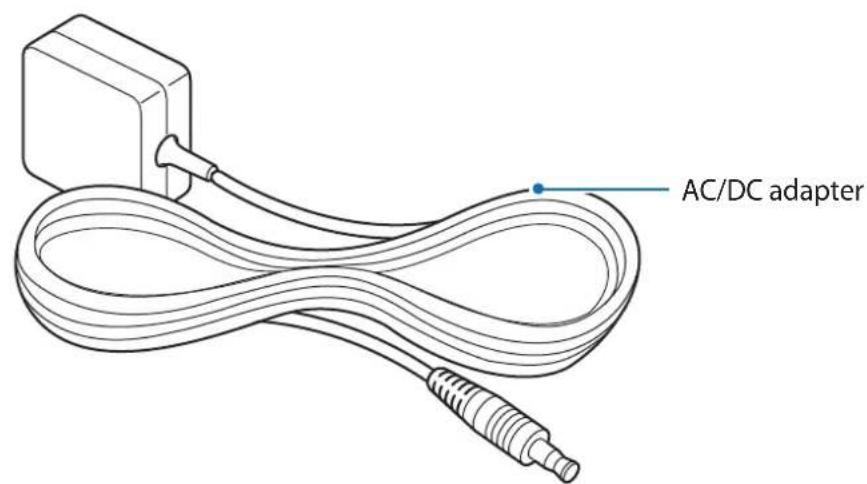

AC/DC adapter (hereafter “adapter”)

The items supplied with the device and any available accessories may vary depending on the region or service provider.

The supplied items are designed only for this device and may not be compatible with other devices.

Appearances and specifications are subject to change without prior notice.

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. English (USA) 2Getting started

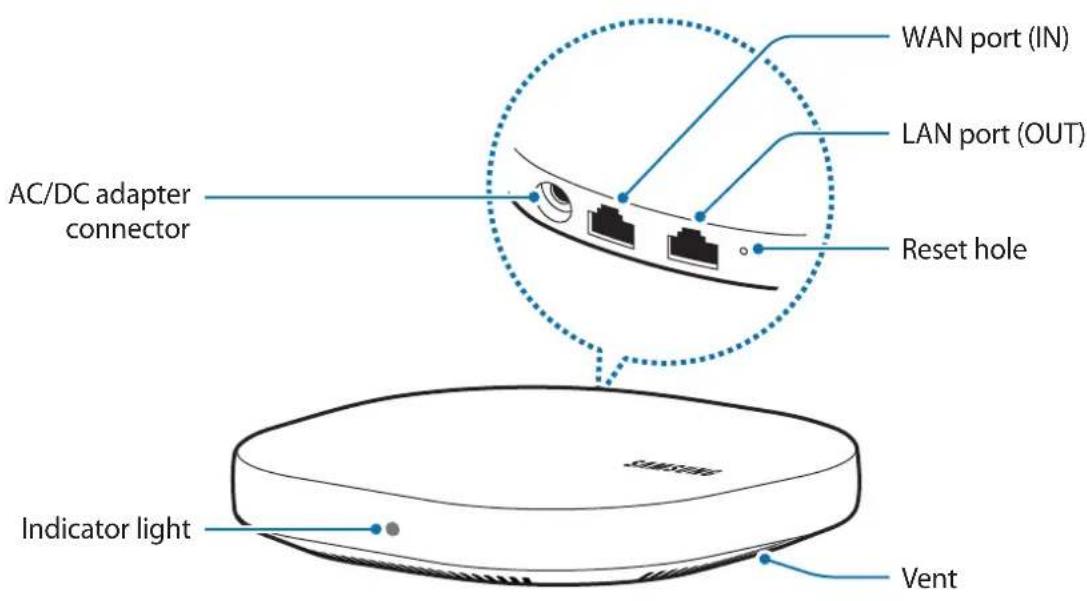

Device layout AC/DC adapter connector WAN port (IN) LAN port (OUT) Reset hole Vent Indicator light Ethernet cable AC/DC adapter The appearance and internal structure of the product may vary depending on the model. English (USA) 3Getting started

Indicator light The indicator light alerts you to the Wi-Fi hub status. Color Status Green Power on, Working Flashes green Booting/resetting the system Flashes green and red Waiting for devices to connect Flashes red Function error Connecting the Wi-Fi hub with a mobile device To connect the Wi-Fi hub with a mobile device, you must install the SmartThings app on the mobile device. You can download the app from Galaxy Apps

You must register and sign in to your Samsung account to use the SmartThings app.

Supported features may vary depending on your mobile device and its operating system. Wi-Fi hub

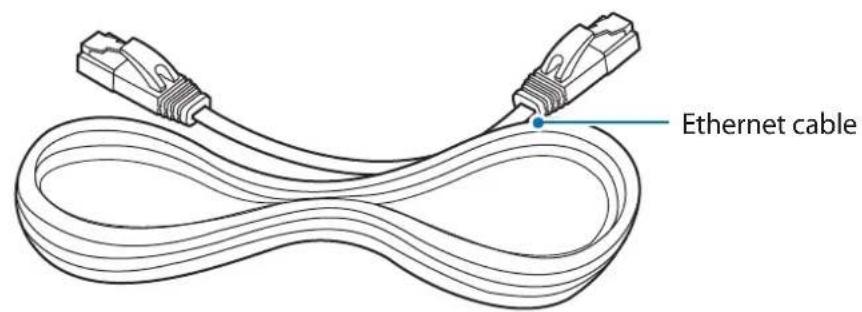

Connect one end of the Ethernet cable to the hub’s WAN port (IN) and the other end to the modem’s LAN port. English (USA) 4Getting started

Connect the adapter to the Wi-Fi hub. The Wi-Fi hub will turn on and the indicator light will flash green. Use only Samsung-approved adapters (12 V/2.1 A or higher).

You can use the Wi-Fi hub only when you connect the Wi-Fi hub to an adapter.

If the Wi-Fi hub overheats for a prolonged period, the Wi-Fi hub may automatically turn off or reset. When this happens continually, disconnect the adapter from the Wi-Fi hub and contact a Samsung Service Center.

To save energy, unplug the adapter when not in use. The adapter does not have a power switch, so you must unplug the adapter from the electric socket when not in use to avoid wasting power. The adapter should remain close to the electric socket and be easily accessible while using it. Mobile device

Launch the SmartThings app on the mobile device.

Follow the pop-up window’s instructions to turn on the Wi-Fi and Bluetooth auto on feature. When you launch the SmartThings app, the Wi-Fi and Bluetooth features will be automatically activated.

The Wi-Fi hub will be detected automatically. Tap ADD NOW

If the Wi-Fi hub is not detected, tap Add device on the dashboard. Then, tap under

Wi-Fi Hub , and tap your Wi-Fi hub’s name. During setup, get within 15 ft of the hub.

Enter a network name and password to assign to the Wi-Fi hub. To connect the Internet of Things (IoT) devices via the Wi-Fi hub, select the Wi-Fi hub under devices and make sure the SmartThings Hub is switched on. English (USA) 5Getting started

Follow the on-screen instructions to complete the connection. When the connection is completed, the following screen appears. The SmartThings Wifi is a single product but it is registered as two separate devices according to their respective features, the Wi-Fi router feature and the Samsung SmartThings Hub feature. Adding additional Wi-Fi hubs One Wi-Fi hub can cover a 140 m

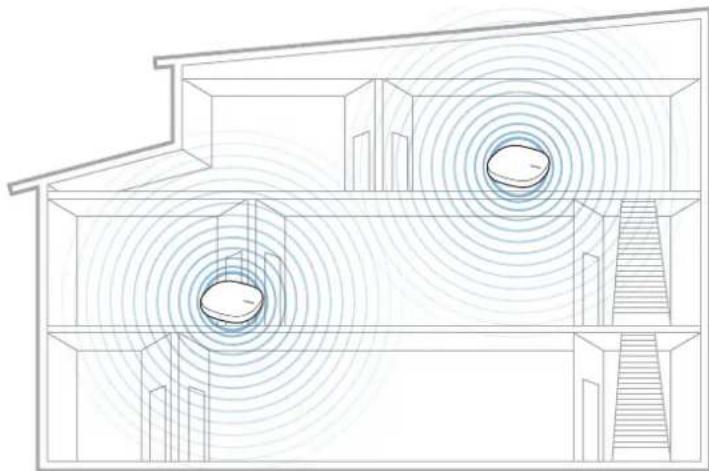

connection range (based on timber buildings) but can differ depending on the usage environment. Install an additional Wi-Fi hub to connect to a larger area beyond the connection range with a Wi-Fi network. English (USA) 6Getting started

Connect the AC/DC adapter to the additional Wi-Fi hub.

On the mobile device, launch the SmartThings app and follow the on-screen instructions to complete the connection. During setup, get within 15 ft of the hub. You can connect up to 31 additional Wi-Fi hubs. Notices for connecting a Wi-Fi hub

Install a Wi-Fi hub near the devices to be registered.

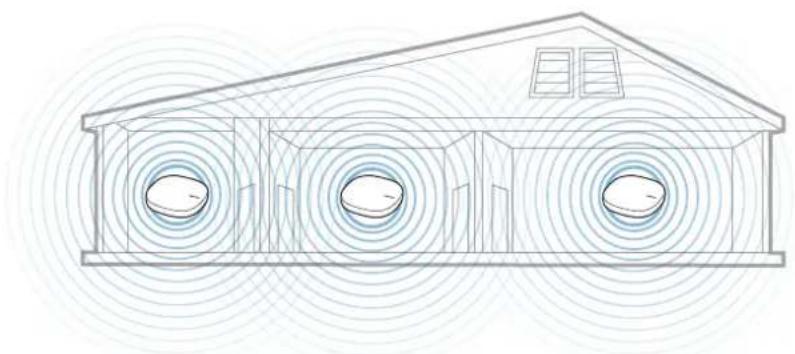

When you add additional Wi-Fi hubs, install them within the connection range.

Do not place obstacles between the Wi-Fi hub and the devices to be registered.

Obstacles such as the human bodies, walls, corners, or fences can weaken the signals.

When using the Wi-Fi hub, it should be connected via the Ethernet cable. English (USA) 7Getting started

To avoid problems when connecting your Wi-Fi hub to another device, place the devices close to each other.

Ensure that your Wi-Fi hub and the other Bluetooth device are within the maximum Bluetooth range (5 m). The distance may vary depending on the environment the devices are used in.

Ensure that there are no obstacles between the Wi-Fi hub and a connected device, including human bodies, walls, corners, or fences.

Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.

Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your Wi-Fi hub. English (USA)

Registering Internet of Things (IoT) devices and smart home appliances Using the SmartThings app Register Internet of Things (IoT) devices and smart home appliances to the SmartThings app on your mobile device, and check their status or control them. To control the devices by location, such as your home or office, create a location and assign registered devices to it. You can also set a scene to control many devices at the same time or set an automation to perform actions automatically at a preset time. Access additional options. SmartThings tips Dashboard Supported devices Search for and register nearby devices. Manage locations and devices. Manage automations. English (USA) 9Registering Internet of Things (IoT) devices and smart home appliances

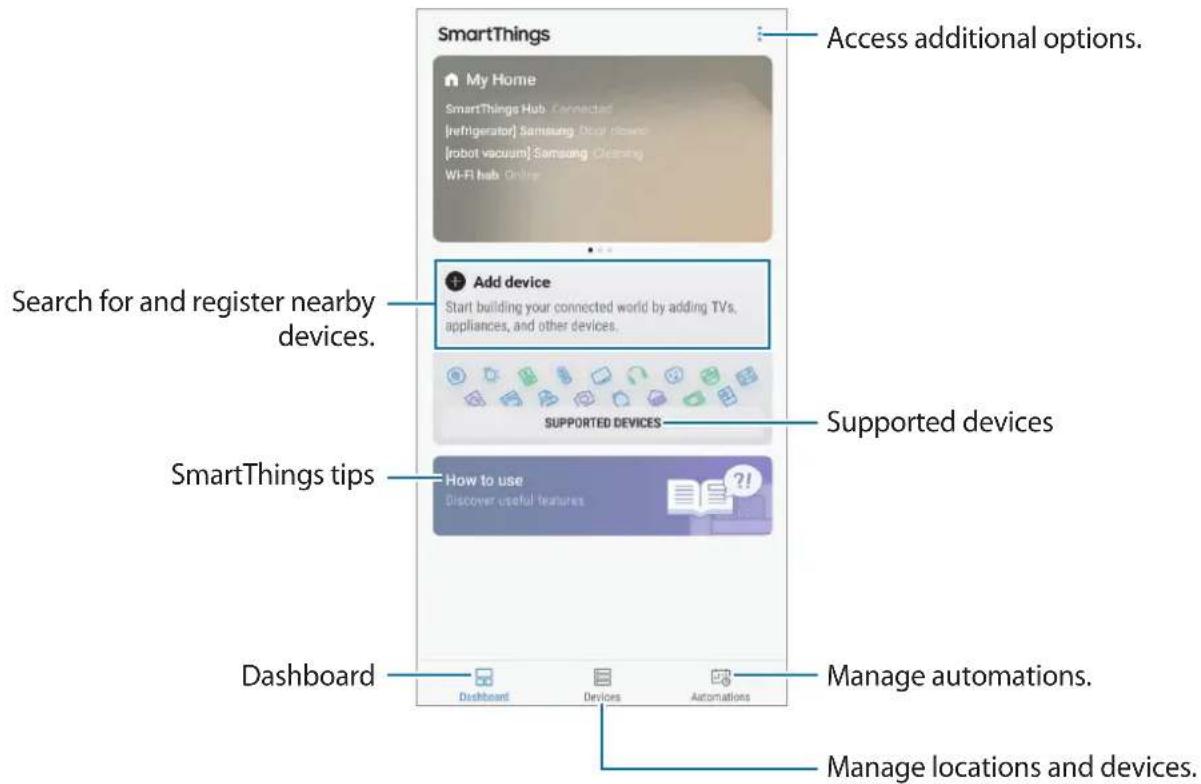

Configuring the dashboard and the SmartThings app Configure the dashboard and the SmartThings app settings. On the dashboard, tap and use the following options.

Manage dashboard : Set the items to show on the dashboard.

Notifications : View the notifications from the SmartThings app. You can also change the notification settings.

Settings : Access information about the SmartThings app and Samsung account information. You can also set the SmartThings panel to be displayed on the notification panel.

Notices : View the notices from the SmartThings service.

Contact us : Ask questions or view frequently asked questions. Registering devices Registering smart home appliances via Wi-Fi Register smart home appliances that support Wi-Fi to the SmartThings app and control them. For instructions on how to register devices, refer to the other devices’ user manuals.

To view the supported devices, tap SUPPORTED DEVICES on the dashboard.

Connected devices’ own errors or defects are not covered by the Samsung warranty. When errors or defects occur on the connected devices, contact the device’s manufacturer. English (USA) 10Registering Internet of Things (IoT) devices and smart home appliances

Registering IoT devices via the Samsung SmartThings Hub feature Register the Internet of Things (IoT) devices that support Z-Wave, zigbee, LAN, or Cloud-to- Cloud to the SmartThings app and control them.

On the dashboard, tap Add device

Select a category of the device to register. Alternatively, enter the device’s name in the search input field and tap ADD next to your device.

Follow the on-screen instructions to complete the registration.

You can only register the IoT devices approved by Samsung. Download the SmartThings app to see a list of supported devices.

Refer to the other devices’ user manuals for instructions on how to pair with them.

To learn more about the Samsung SmartThings Hub feature, visit support.smartthings.com. English (USA) 11Registering Internet of Things (IoT) devices and smart home appliances

Controlling the registered devices

On the SmartThings screen, tap Devices

On the registered devices list, tap a device. The controller for the device will be downloaded.

With the downloaded controller, remotely control the registered devices via the SmartThings app. Creating locations You can register devices by location and manage them.

On the SmartThings screen, tap Devices

Enter a location name and select an icon for the location.

Tap Geolocation to select a location on the map and tap DONE

Your location will be added.

Tap ADD DEVICE to register devices. If you want to manage the location room by room, tap

Add room , and set the room and devices for it. English (USA) 12Registering Internet of Things (IoT) devices and smart home appliances

Inviting members to the created location Invite other members to the created location to control the devices and scenes assigned to that location.

On the SmartThings screen, tap Devices

Tap ALL DEVICES and scroll up or down to select a location.

Tap Enter Samsung account ID , enter the Samsung account for the person you want to invite, and then tap

You can invite users by scanning the QR code. Tap

and invite other users to scan it.

To accept the invitation, on the SmartThings screen, tap the invitation pop-up and tap ACCEPT . To accept the invitation by scanning the QR code, on the dashboard, tap

Accept invitation (QR code) and then scan the QR code.

Follow the on-screen instruction to complete the invitation. English (USA) 13Registering Internet of Things (IoT) devices and smart home appliances

Setting and running scenes Set a scene to operate multiple devices at once. To set a scene, you should create locations. Refer to Creating locations for more information.

On the SmartThings screen, tap Devices

Tap ALL DEVICES and scroll up or down to select a location.

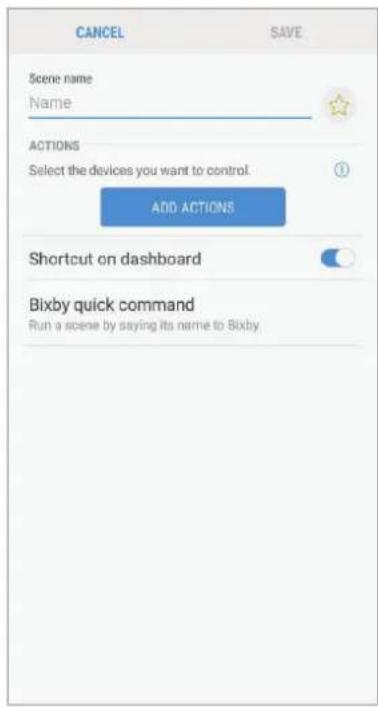

The screen for setting scenes will appear.

Enter the scene’s title, select an icon for the scene, and then tap ADD ACTIONS

English (USA) 14Registering Internet of Things (IoT) devices and smart home appliances

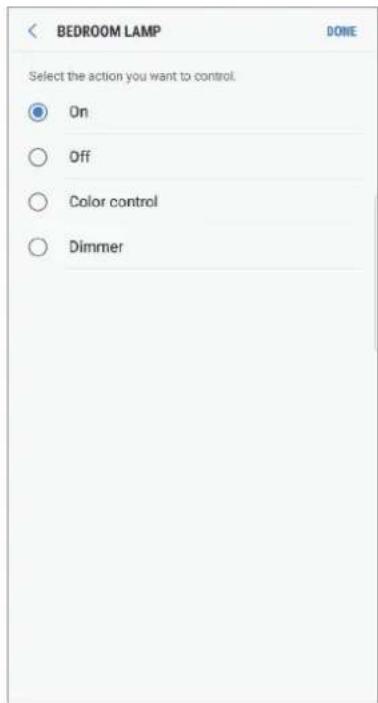

Select a device and an action to be operated, and then tap DONE

For example, select a TV and a robot vacuum cleaner and the corresponding actions to be operated.

Tap the Shortcut on dashboard switch to view the scene on the dashboard.

Tap Bixby quick command to run the scene by saying the scene name to Bixby and tap SAVE

The scene is set. You can view the set scene on the designated location screen. English (USA) 15Registering Internet of Things (IoT) devices and smart home appliances

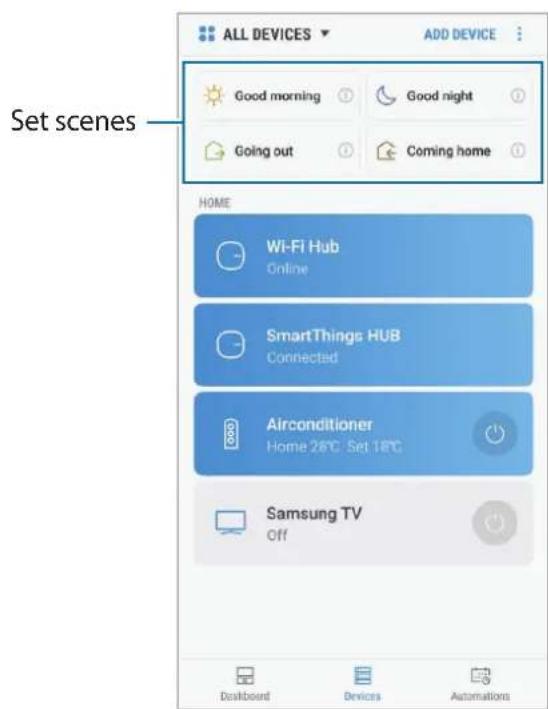

On the SmartThings screen, tap Devices

Tap ALL DEVICES and scroll up or down to select a location that has the scene you want to activate.

Select a scene to activate. The devices you set will operate in accordance with the scene. Set scenes English (USA) 16Registering Internet of Things (IoT) devices and smart home appliances

Managing devices and locations You can manage locations and their assigned devices and scenes.

On the SmartThings screen, tap Devices

Tap ALL DEVICES and scroll up or down to select a location.

Edit and use the following options.

Location name : Change the location name and its icon.

Geolocation : View or change the location on the map.

Show location summary on dashboard : Set to show the location card on the dashboard.

SCENES : Change the scene information or delete the scene.

DEVICES : Change the device information or delete the device from the assigned location.

MEMBERS : View the members to share the location. You can also invite others.

REMOVE LOCATION : Delete the location.

To connect a Z-Wave device to another device, on the currently connected mobile device, remove the device from the SmartThings app to exclude it. When you remove the device from the SmartThings app, the instructions for exclusion will be provided via a URL. Follow the instructions to exclude the Z-Wave device. If you reset the Wi-Fi hub, you should exclude the Z-Wave device and reconnect (re-include) it. For instructions on how to exclude Z-Wave devices, refer respective Z-Wave device’s user manual or contact the device’s manufacturer.

For additional Z-Wave network utility functions, visit www.smartthings.com.

The Wi-Fi hub automatically sends an Association Set for Lifeline/group1 for 4 nodes after adding a device that supports Association. English (USA) 17Registering Internet of Things (IoT) devices and smart home appliances

Setting automations Set an automation for devices assigned to a location to automatically perform actions at a specific time.

If an automation already has set, tap ADD

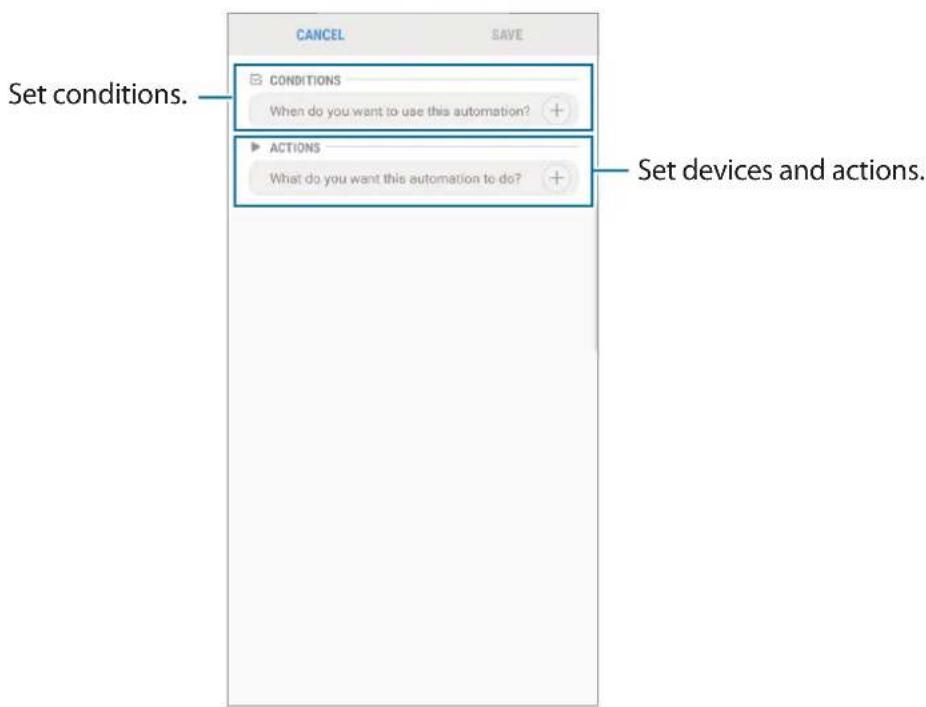

The screen for setting automation will appear. Set conditions. Set devices and actions.

Tap When do you want to use this automation?

Tap Based on the time of day and set days and time. Or, tap Based on a device status to set the device’s condition.

English (USA) 18Registering Internet of Things (IoT) devices and smart home appliances

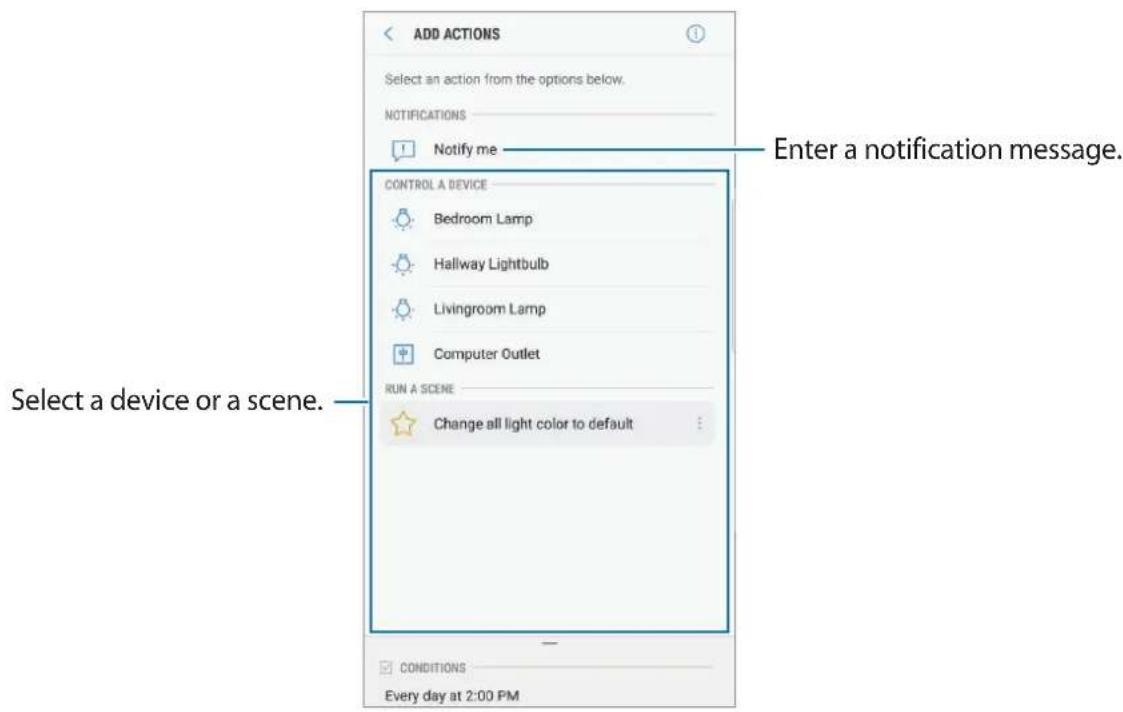

Tap What do you want this automation to do? , select devices and conditions, or scenes, and then tap DONE

To receive a notification when devices perform an action according to the automation, tap Notify me and enter a message. Select a device or a scene. Enter a notification message.

The assigned devices will operate in accordance with the set automation. Managing automations You can view the set automations and manage them. On the SmartThings screen, tap Automations

Tap the switch next to the automation to activate or deactivate it.

Tap the automation to change its details.

Delete to delete the automation. English (USA) 19Registering Internet of Things (IoT) devices and smart home appliances

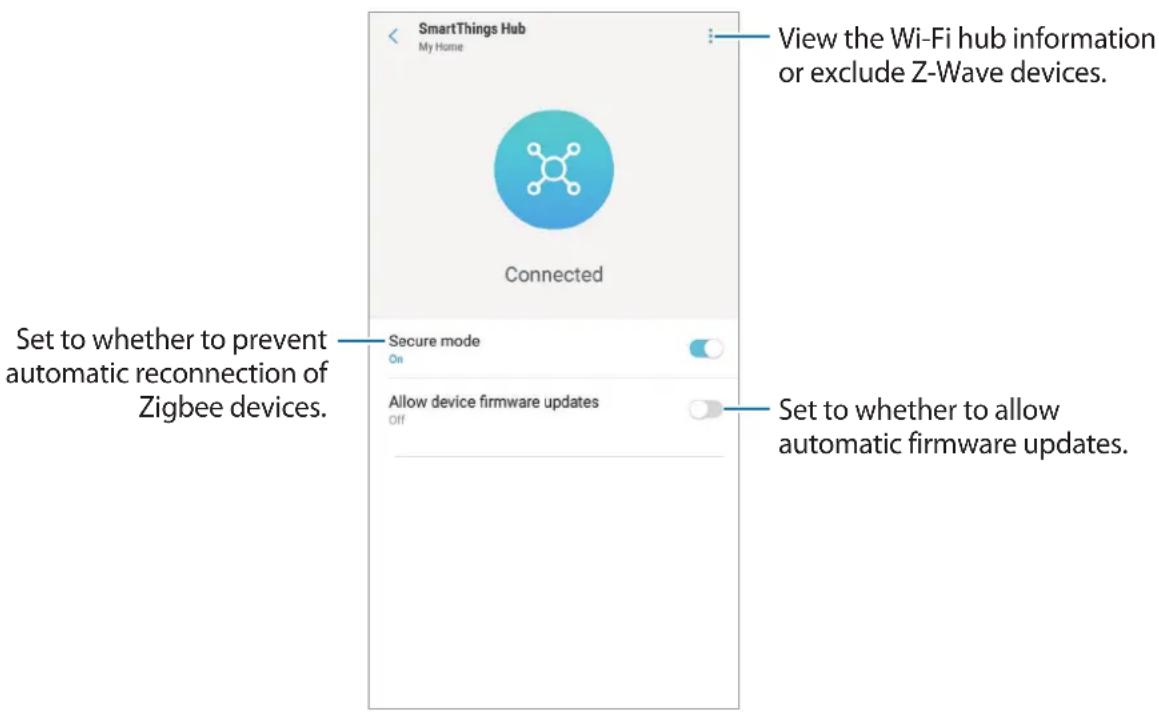

On the SmartThings screen, tap Devices

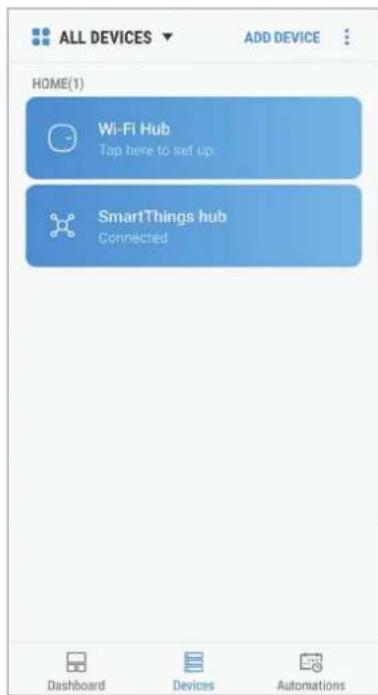

On the registered devices list, tap the SmartThings hub.

Select an option and configure the Samsung SmartThings Hub feature. Set to whether to prevent automatic reconnection of Zigbee devices. View the Wi-Fi hub information or exclude Z-Wave devices. Set to whether to allow automatic firmware updates. English (USA) 20Registering Internet of Things (IoT) devices and smart home appliances

Practical usage of the SmartThings app Use the SmartThings app to make your life easier and more comfortable. Create automations based on your routine, or easily control the registered devices from anywhere.

If you want to ensure that the office is cool when you arrive on a hot summer’s day, turn on the connected air conditioner via the SmartThings app before you arrive.

If you want to come home to a clean house, turn on the connected robot vacuum cleaner via the SmartThings app before you get home.

If you want to improve your home security, create an automation for motion sensors to operate at bedtime and activate the notification feature. When the motion sensors detect unexpected movements, they will notify you. English (USA)

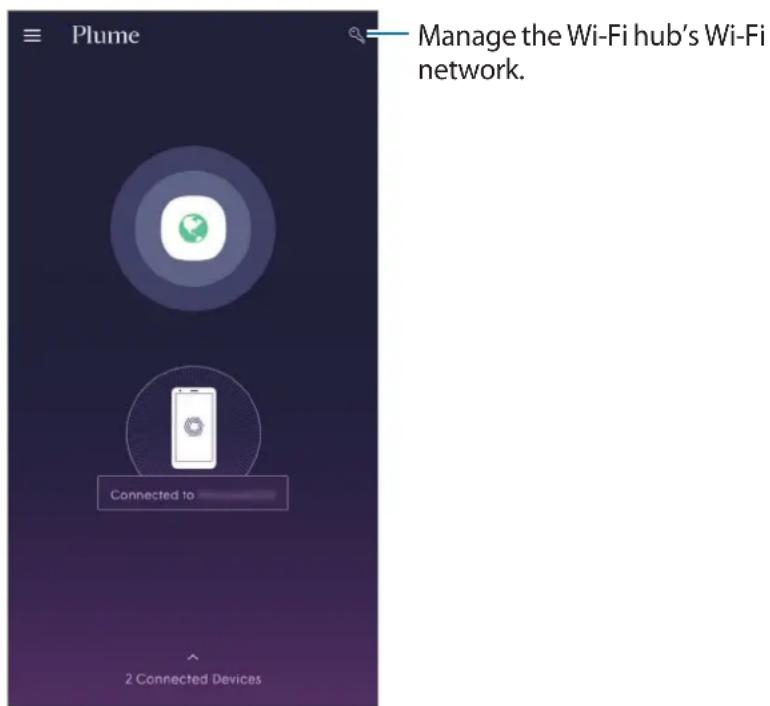

Using the Wi-Fi router feature Using the Plume app You can configure the detailed settings of the Wi-Fi hub’s Wi-Fi router feature. To use the Wi-Fi router feature, you must install the Plume app on the mobile device. You can download the app from Galaxy Apps

Launch the SmartThings app and tap Devices

On the registered devices list, tap the Wi-Fi hub. When you use the Wi-Fi router feature of the Wi-Fi hub for the first time, tap the Wi-Fi hub to download the controller for it.

Tap Manage Wi-Fi with Plume

The Plume app will appear. Manage the Wi-Fi hub’s Wi-Fi network. Once you have entered the Plume app through the SmartThings app, you can launch the Plume app right away and manage the Wi-Fi network without using the SmartThings app. English (USA) 22Using the Wi-Fi router feature

Configuring the Wi-Fi router feature You can manage the Wi-Fi hub’s Wi-Fi network by assigning authorities and adding different passwords. Assigning full authority to connected smartphones You can give authority to the connected smartphone to use the Wi-Fi hub’s Wi-Fi network and to control the registered devices and scenes without any restrictions.

Launch the Plume app and tap .

Tap on the Home tab to add a password for using the Wi-Fi hub’s Wi-Fi network without any restrictions. You can add more than one password.

Enter a password and tap .

The connected smartphone can use the Wi-Fi hub’s Wi-Fi network. Assigning limited authority to connected smartphones You can add a guest network to use the Wi-Fi hub’s Wi-Fi network. You can select the connected smartphones to control the registered devices and scenes.

Launch the Plume app and tap .

Tap on the Guest tab to add a password for a guest network. You can add more than one password. English (USA) 23Using the Wi-Fi router feature

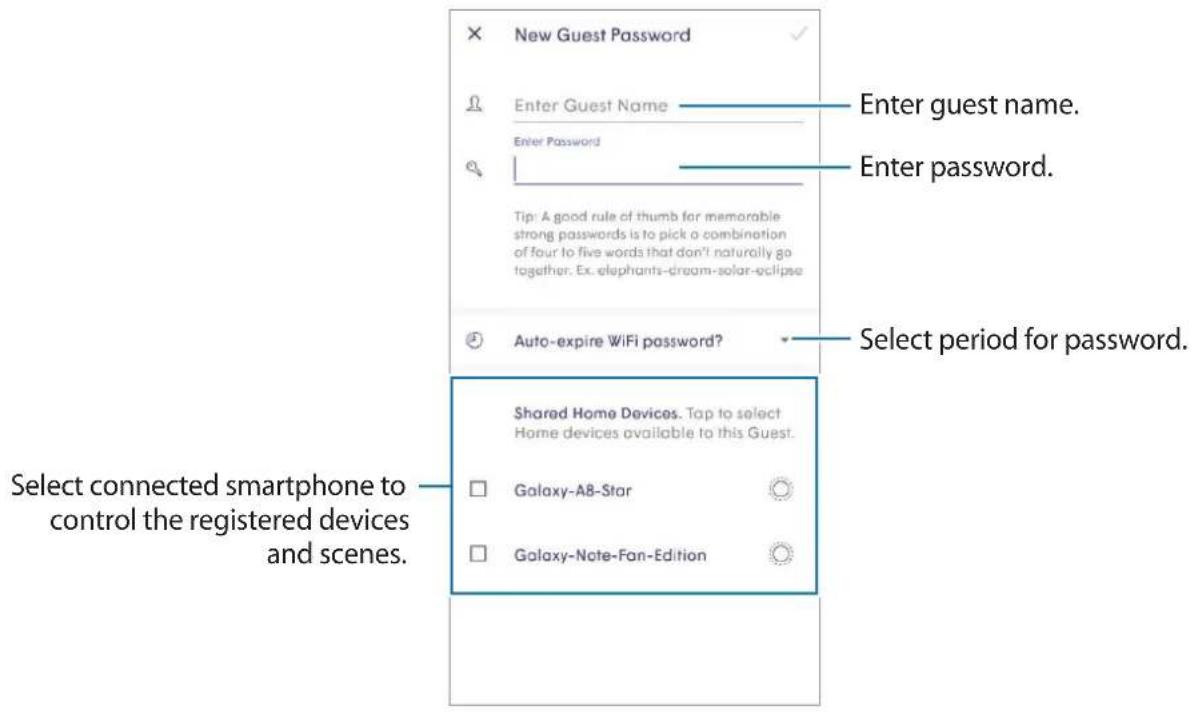

Enter details. Select connected smartphone to control the registered devices and scenes. Enter guest name. Enter password. Select period for password.

The connected smartphone can use the Wi-Fi hub’s Wi-Fi network. Restricting authority to connected smartphones You can allow the connected smartphone to use the Wi-Fi hub’s Wi-Fi network. However, the connected smartphones cannot control the registered devices and scenes.

Launch the Plume app and tap .

Tap on the Internet Only tab to add a password to use the Wi-Fi network. You can add more than one password. English (USA) 24Using the Wi-Fi router feature

Enter a password and select a period for the password.

The connected smartphone can use the Wi-Fi hub’s Wi-Fi network. English (USA)

Appendix Troubleshooting Before contacting a Samsung Service Center, please attempt the following solutions. Your Wi-Fi hub freezes If the Wi-Fi hub freezes or hangs, disconnect the adapter from the Wi-Fi hub and reconnect it. Close the SmartThings app completely on your mobile device and restart it. If your Wi-Fi hub is frozen and unresponsive, insert a pin into the Reset hole more than 8 seconds. If the tips above do not solve the problem, contact a Samsung Service Center. Your Wi-Fi hub is not connected with a router This Wi-Fi hub only supports SmartThings routers. Connect only the SmartThings Wifi. Your Wi-Fi hub is not detected by the SmartThings app

If the Wi-Fi hub freezes or hangs, disconnect the adapter from the Wi-Fi hub and reconnect it.

Close the SmartThings app completely on your mobile device and restart it.

If your Wi-Fi hub is frozen and unresponsive, insert a pin into the Reset hole.

Ensure that the other devices are within the maximum connection range. If the tips above do not solve the problem, contact a Samsung Service Center. Other devices cannot connect to the SmartThings app

On the other device, disconnect from the Wi-Fi network and reconnect to it.

Turn the device off and turn it on. English (USA) 26Appendix

The connection is often disconnected

If there are obstacles between the devices, the operating distance may be reduced.

Ensure that the other devices are within the maximum connection range.

When using the Wi-Fi hub with other devices, the connection may be affected by electromagnetic waves. Use the Wi-Fi hub in environments with fewer wireless devices present. The Wi-Fi hub works differently as described in the manual Available functions may differ depending on the connected device. The Wi-Fi is too slow There may be several different issues that are causing slow Wi-Fi speed. Check some of the possible causes below:

Wi-Fi hub location: Place the Wi-Fi hub in an open space and as close to the Wi-Fi supported devices as possible. Any obstacles located between Wi-Fi connected devices and the Wi-Fi hub may slow down the Wi-Fi speed.

Number of connected devices: When many Wi-Fi supported devices are connected to a single Wi-Fi hub, they are all sharing Internet access at limited speed. This can cause your Wi-Fi speed to slow down.

Modem speed: Even if the Wi-Fi connection status is stable, when the modem’s Internet speed is slow, the Wi-Fi speed may decrease. Try to reboot the modem or measure the speed at different times of the day.

Ethernet cable: The Ethernet cable included in the package can support up to 1 Gbps, but some Ethernet cables do not. Connect the modem using the Ethernet cable supplied in the package.

Ethernet port: Check the speed supported by the Ethernet port on the modem or on the Ethernet switch connected to the Wi-Fi hub. When the Ethernet speed is slow, the Wi-Fi hub may also slow down.

Check whether there is anything placed on top of the Wi-Fi hub or whether the Wi-Fi hub is located in an area that may be warmed by outdoor heat. When the Wi-Fi hub gets hot, the CPU speed may be adjusted temporarily to stop it from overheating.

Unplug the power adapter from the Wi-Fi hub and connect it again. English (USA) 27Copyright Copyright © 2018 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

is a registered trademark of Bluetooth SIG, Inc. worldwide.

, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.

Z-Wave and Z-Wave Plus are registered trademarks of Silicon Laboratories and its subsidiaries in the United States and other countries.

All other trademarks and copyrights are the property of their respective owners. English (USA)
