HM3310 - Electric mixer AEG - Free user manual and instructions

Product type	Electric hand mixer
Brand	AEG
Model	HM3310
Power supply	Mains (230V ~ 50Hz)
Main functions	Speed selector, Turbo button, ejection button
Included accessories	2 whisks, 2 dough hooks
Preparation types	Whisking, mixing, kneading, folding in
Maximum capacity	1.5 kg solid food / 1.75 L liquids
Number of speeds	Variable (continuous) + Turbo position
Turbo control	Button to hold down for maximum speed
Accessory ejection	Ejection button (only when selector is on the left)
Housing cleaning	Soft damp cloth, do not immerse
Accessory cleaning	Dishwasher or soapy water
Maintenance	Dry thoroughly before storage
Safety	Do not immerse motor unit, unplug before cleaning, supervise children
Overheating protection	Cool down between uses for heavy doughs
Recommended use	Standard plastic bowls, indicated quantities
Recommended dough type	Yeast dough, pizza, bread (with hooks)
Recycling	Device and battery must be recycled separately
Safety instructions	Read manual before use, do not use if damaged

Frequently Asked Questions - HM3310 AEG

How to insert the whisks or dough hooks?

Insert the accessories into the slots under the mixer until they click. Make sure the speed selector is on the left (ejection position).

How to use the Turbo button?

Hold the Turbo button down for the mixer to run at maximum speed. Release to return to the selected speed.

What is the maximum amount of food to mix?

Do not exceed 1.5 kg of solid food or 1.75 L of liquids. For heavy doughs (1 to 1.5 kg), let the appliance cool down between uses.

Can I wash the whisks in the dishwasher?

Yes, the whisks and dough hooks can be cleaned in the dishwasher or with soapy water and a brush. Dry them thoroughly before storing.

What to do if the motor slows down during use?

This may be due to an excessive amount of dough or dough that is too sticky. Reduce the quantity or add flour (1 tablespoon at a time) until the motor speeds up.

How to clean the mixer housing?

Use a soft damp cloth, then dry with another cloth. Never use abrasive products and never immerse the motor unit in water.

Can I use the mixer for hot ingredients?

It is not recommended to mix hot liquids. Use only room temperature preparations to avoid splashing or damage.

How to eject the accessories?

First unplug the appliance. Hold the mixer firmly with one hand and press the ejection button with the other. The speed selector must be in the fully left position.

Why is my mixer not working?

Check that the appliance is properly plugged in. If the problem persists, contact customer service. Do not attempt to repair it yourself.

What accessories are supplied with the HM3310?

The mixer comes with two whisks (for whisking, mixing) and two dough hooks (for heavy doughs). Use the appropriate accessories for your preparation.

USER MANUAL HM3310 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

ENGLISH

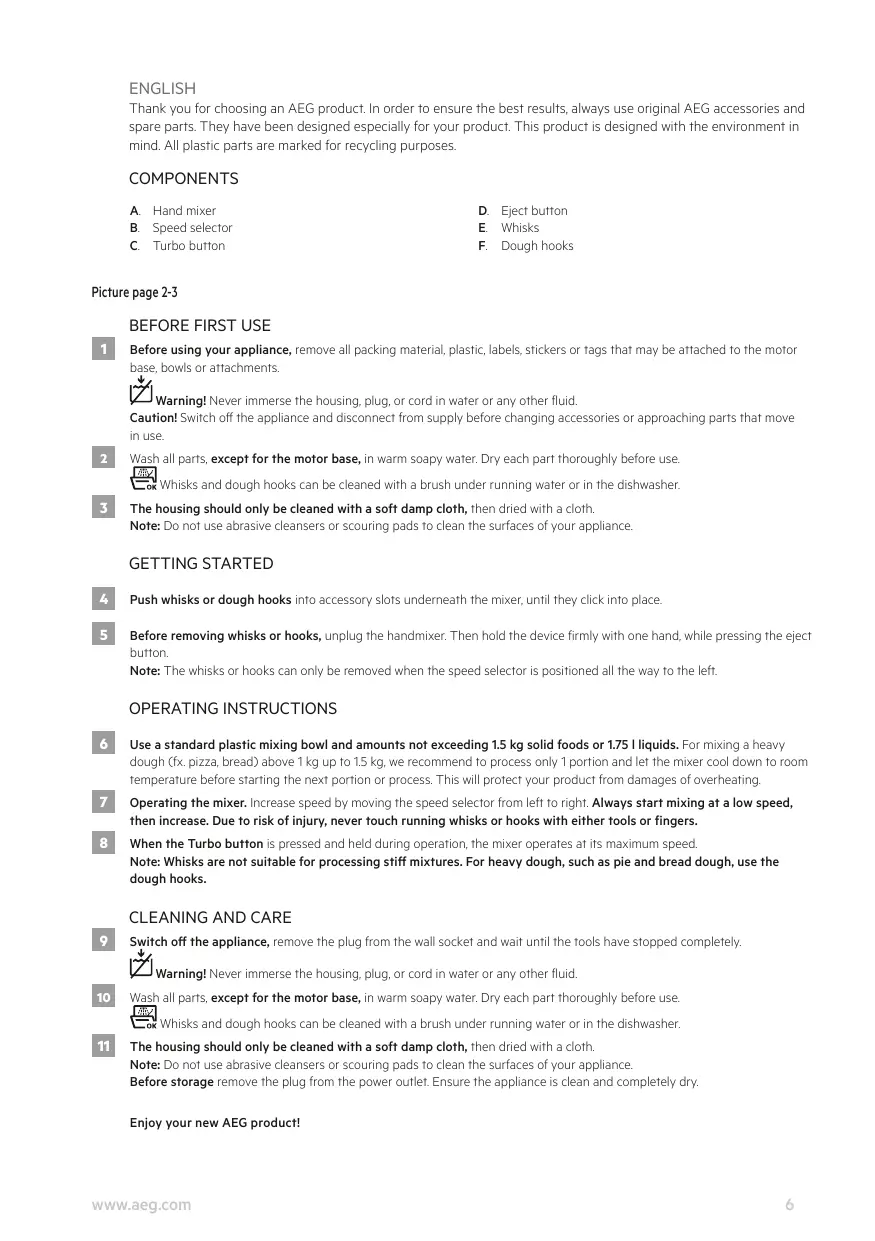

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Hand mixer

D. Eject button

B. Speed selector

E. Whisks

C. Turbo button

F. Dough hooks

Picture page 2-3

BEFORE FIRST USE

1 Before using your appliance, remove all packing material, plastic, labels, stickers or tags that may be attached to the motor base, bowls or attachments.

Warning! Never immerse the housing, plug, or cord in water or any other fluid.

Caution! Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

2 Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use.

Whisks and dough hooks can be cleaned with a brush under running water or in the dishwasher.

3 The housing should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

GETTING STARTED

Push whisks or dough hooks into accessory slots underneath the mixer, until they click into place.

Before removing whisks or hooks, unplug the handmixer. Then hold the device firmly with one hand, while pressing the eject button.

Note: The whisks or hooks can only be removed when the speed selector is positioned all the way to the left.

OPERATING INSTRUCTIONS

6 Use a standard plastic mixing bowl and amounts not exceeding 1.5kg solid foods or 1.75 I liquids. For mixing a heavy dough (fx. pizza, bread) above 1kg up to 1.5kg , we recommend to process only 1 portion and let the mixer cool down to room temperature before starting the next portion or process. This will protect your product from damages of overheating.
7 Operating the mixer. Increase speed by moving the speed selector from left to right. Always start mixing at a low speed, then increase. Due to risk of injury, never touch running whisks or hooks with either tools or fingers.
8 When the Turbo button is pressed and held during operation, the mixer operates at its maximum speed. Note: Whisks are not suitable for processing stiff mixtures. For heavy dough, such as pie and bread dough, use the dough hooks.

CLEANING AND CARE

Switch off the appliance, remove the plug from the wall socket and wait until the tools have stopped completely.

Warning! Never immerse the housing, plug, or cord in water or any other fluid.

10 Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use.

Whisks and dough hooks can be cleaned with a brush under running water or in the dishwasher.

11 The housing should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

Before storage remove the plug from the power outlet. Ensure the appliance is clean and completely dry.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the machine for the first time.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.

• Never use or pick up the appliance if

• the supply cord is damaged,

• the housing is damaged.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Care shall be taken when handling the tools, emptying the bowl and during cleaning.
• Do not immerse the appliance in water or any other liquid.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

RECIPES

RECIPCE	LIST OF INGREDIENTS
Yeast dough (Pizza dough)	Wheat flour	950 gr
Max quantities	Water	600 ml
	Oil	100 ml
	Salt	3 tsp
	Sugar	2 tsp
	Dry Yeast	1 tbs
1. Place yeast, sugar and warm water in a container, and let it stand until creamy. 2. Add flour, salt and oil to the mixture. 3. Mix at lower speed for 30 sec. 4. When the dough is formed homogeneously, increase speed to speed 5 for 4 min and 30 sec. 5. The dough is ready when it does not stick to the side of the bowl, neither to the tool. 6. Spread the dough with a rolling pin to the desired thickness on a lightly floured surface. 7. Place the dough in a lightly greased pan and spread with toppings.

SETTINGS

SETTING	SPEED
Kneading, Mixing	Start with low speed, then increase to high speed.
Folding in	Medium speed.
Stirring	Start with medium speed, then increase to high speed.
Whisking, Frothing	Medium or high speed.
Start processing at low speed to avoid powdery foods and liquids spraying out.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
The motor slows down during operation.	Amount of dough may exceed maximum capacity.	Remove half and process in two batches.
	Dough may be too wet, it sticks onto the side of the bowl.	Add more flour, 1 tablespoon at a time until the motor speeds up. Process until dough cleans the side of the bowl.
The motor does not work.	The appliance is not connected to the mains.	Make sure to plug in the appliance before operation.
If the appliance is still not working, contact the customer service.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
