USER MANUAL KS 9809 SEVERIN

White SEVERIN refrigerator with open lid (no visible text or symbols on body)

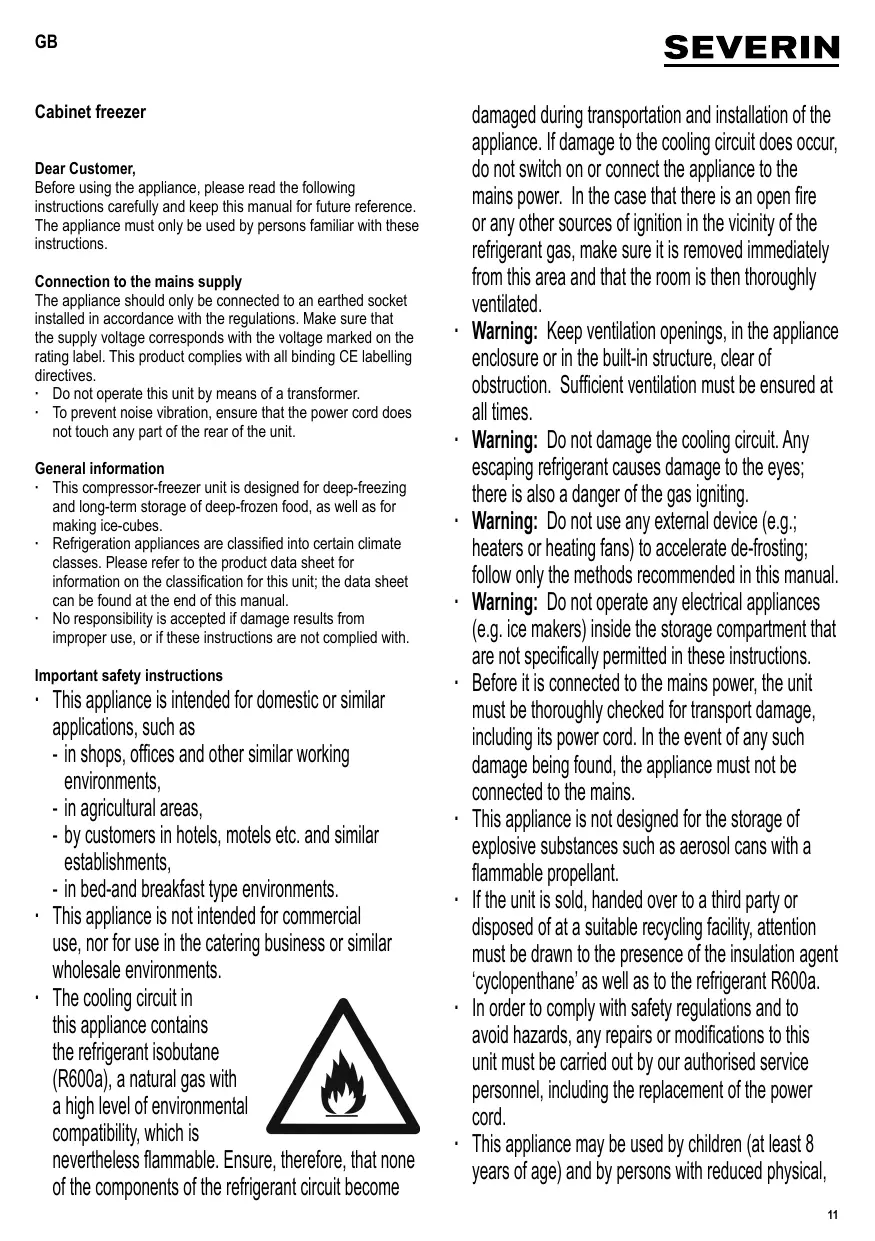

GB Instructions for use Cabinet freezer 11

Warning sign depicting a flame symbol inside a triangle, commonly used in safety or hazard prevention.

Technical diagram of a refrigerator with numbered parts for identification

Line drawing of a rectangular electronic device with a top panel and base, no text or symbols present

Isometric line drawing of a square frame with mounting holes and a small rectangular component at the bottom (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small inset showing a handle and label 'T' (no text or symbols on the table itself)

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Diagram showing two views of a door with arrows indicating direction, no text or symbols present

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

• Do not operate this unit by means of a transformer.
• To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit.

General information

• This compressor-freezer unit is designed for deep-freezing and long-term storage of deep-frozen food, as well as for making ice-cubes.
• Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classification for this unit; the data sheet can be found at the end of this manual.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

• This appliance is intended for domestic or similar applications, such as
• in shops, offices and other similar working environments,
• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,
• in bed-and breakfast type environments.

- This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

- The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is

nevertheless flammable. Ensure, therefore, that none of the components of the refrigerant circuit become

Warning sign depicting a flame symbol inside a triangle, commonly used in safety or hazard prevention.

damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Sufficient ventilation must be ensured at all times.
• Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.
• Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.
• Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.
• Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.
• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
• If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a.
• In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical,

sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.
• Children must not be permitted to carry out any cleaning or maintenance work on the appliance.
• For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging.

- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.

- The ice removed from the unit during de-frosting is not suitable for human consumption.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

- To avoid the risk of fire, do not place any thermo-electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.

• This unit is designed for storing food only.

- Alcoholic substances may be stored only in properly sealed containers and in upright positions.

- Do not store any glass bottles containing carbonated or other freezable liquids in the unit: such bottles may burst during the freezing process.

- To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time.

- Do not lean or put undue weight on the shelves, compartments, door etc.

- Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.

- Remove the plug from the wall socket

• in case of any malfunction,
• before de-frosting,
• during cleaning,
• before maintenance or repair work is carried out.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- If the unit is not used for an extended period of time, we recommend keeping the door open.

• We reserve the right to introduce technical modifications.

Familiarisation

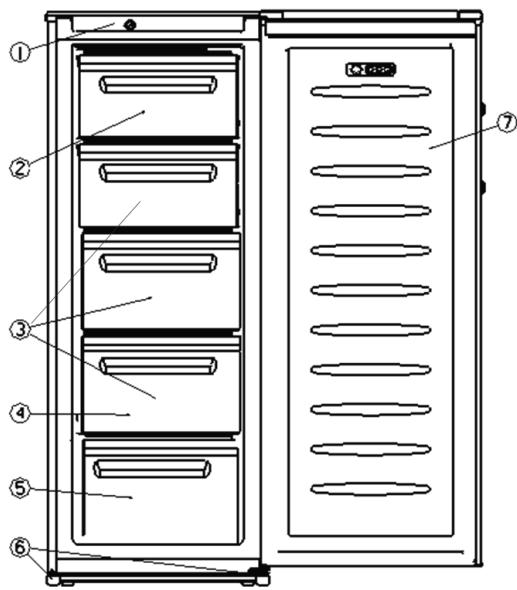

Technical diagram of a refrigerator with numbered parts labeled ① to ⑦

1. Temperature control
2. Hinged flap
3. Pull-out freezer drawer
4. Ice-cube tray (inside the drawer)
5. Bottom freezer drawer
6. Adjustable feet
7. Door

Before using for the first time

Ensure that the following accessories are included with the appliance:

1 door handle
2 screws
2 screw covers
1 hinge opening cover
1 ice-cube tray

• Remove any exterior and interior packaging materials completely, including the adhesive strips and any transport locks or protection devices.

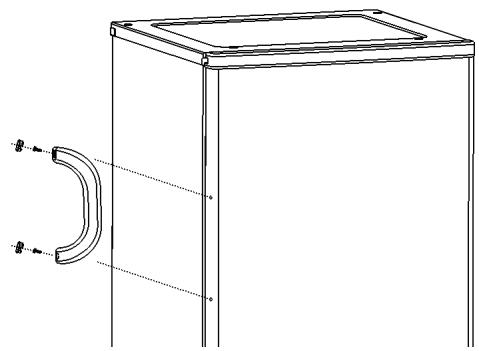

• To install the door handle, remove both of the blind covers. Fit the door handle using the two screws and fit the screw covers.

Line drawing of a rectangular frame with a top panel and two vertical connectors at the base (no text or symbols)

Technical line drawing of a rectangular frame with a curved pipe or bracket, no text or symbols present

• For positioning, we recommend that you tilt the unit slightly backwards. In this way, the transport rollers can be used to move it to its intended place of installation.
• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
• Clean the unit according to the instructions given in the Defrosting and cleaning section.
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
• If the unit has been tilted more than 30^ during transport, allow it to stand upright for at least 4 hours before it is connected to the mains.
• When the unit is first switched on, a slight smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

• The appliance should be set up in a well-ventilated, dry room.
• It should be operated in conditions where the relative humidity is no more than 70 %.
• The product data sheet at the end of this manual contains details of the ambient temperature range suitable for this appliance.
• Do not use the appliance outdoors.
• Ensure that the plug is accessible and can be removed from the wall socket at any time.
• Do not expose the appliance to direct sunlight, and do not

position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.

• The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.
• In the case of uneven floors, the adjustable feet on the unit can be used to compensate and ensure optimum stability.

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear and sides 5 cm, top 10 cm.)

Reversible door

If required, the door may be reversed, i.e. from right-hinged (default installation) to left-hinged.

Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.

Before reversing the door, place the unit on its side, ensuring that it rests on a soft, smooth, non-damaging surface.

1. Remove the screw covers.

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

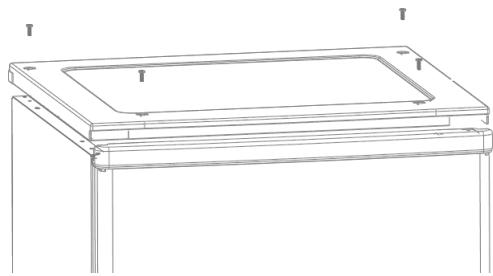

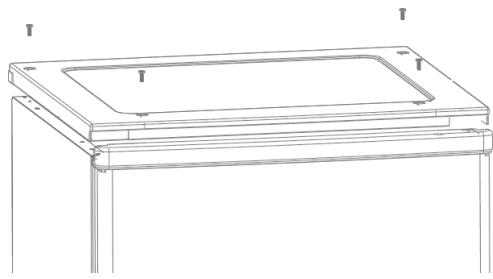

1. Take out the screws and lift off the top cover.

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

1. Remove the small panel from the front of the top cover.

Isometric line drawing of a square frame with mounting holes and a small rectangular component at the bottom (no text or symbols)

1. Reposition the small panel on the other side of the cover.

Technical line drawing of a square mechanical component with a small attached component (no text or symbols)

1. Take off the upper hinge by removing the 3 screws. Take off the door and place it also on a soft, non-damaging surface to protect it against scratching.

Line drawing of a simple wooden table with a small inset showing a handle and base (no text or symbols)

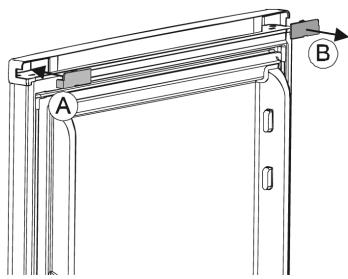

1. Remove the hinge cover B from the inside of the door and install the hinge cover A provided into the hinge opening on the other side of the door.

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

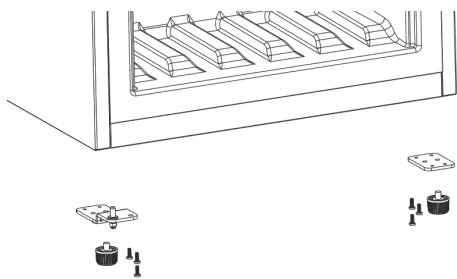

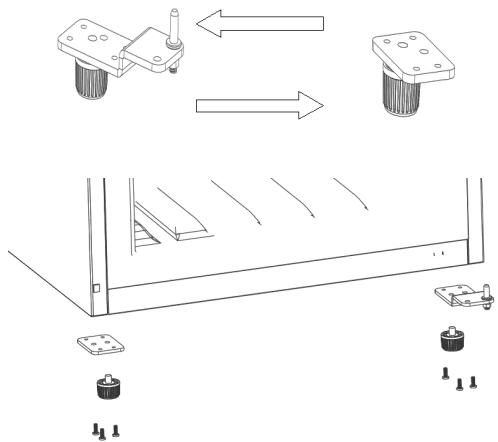

1. Remove both adjustable feet and the screws holding the lower hinge and the foot mounting.

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

1. Remove the lower hinge. Unscrew the hinge pin and reposition it in the other opening in the hinge. Now fit the lower hinge and the foot mounting on the respective opposite sides. Fit the two adjustable feet. Place the door onto the lower-hinge pin.

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

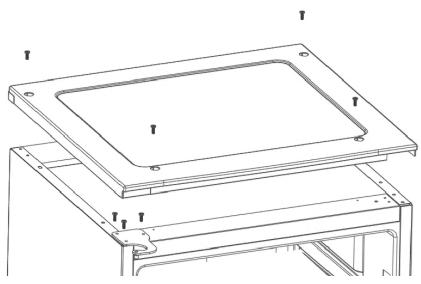

1. Take out the screws on the top left-hand side of the unit and replace them on the top right. Turn the upper hinge round through 180°. Unscrew the hinge pin and reposition it in the other opening in the hinge. Unscrew the hinge pin and reposition it in the other opening in the hinge. Fit the hinge pin into the corresponding opening in the door and tighten the screws to the secure the upper hinge to the housing.

Replace the top cover and secure it by tightening the holding screws. Finally, replace the screw covers.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

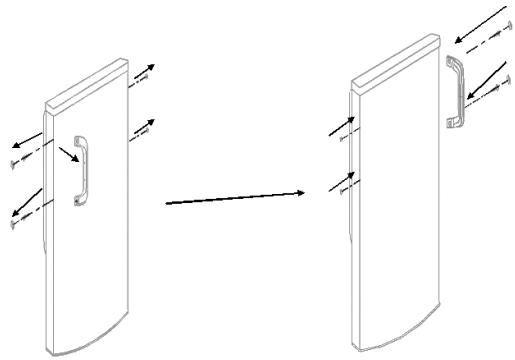

1. Now change the position of the door handle: Take off the screw covers, remove the screws and then take off the handle. Remove the blind covers on the other side of the door and reposition the handle in the new location. Replace the blind covers on the other side.

Diagram showing two views of a door with arrows indicating direction and movement, no text or symbols present

1. Put the unit back in its intended position and wait for about two hours before connecting it to the mains.

Temperature control

The unit is activated by connecting it to the mains.

The temperature in the refrigerator cabinet can be adjusted by using the temperature control. We recommend setting the control initially to position Normal. After a certain time, the actual temperature should then be checked with a thermometer, and adjustments made if necessary. Turning the temperature control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.

Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.

Freezer door

To ensure that frozen food will not de-frost prematurely, the freezer door should be kept closed at all times. This will also prevent an undue build-up of ice and frost. Ensure, therefore, that the door is only opened briefly to place food inside or to remove it.

Freezing and storing food

• The temperature inside the cabinet freezer depends mainly on the ambient temperature, the temperature control setting and the amount of food stored.
• The cabinet freezer is designed for deep-freezing and long-term storage of frozen food, and for making ice cubes.
• To take advantage of the cabinet's maximum capacity, the drawers may be taken out. (Please note that the top drawer cannot be removed).
• To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. To that effect, the prepared food should

be placed into the rapid-freeze drawers, properly spaced in one or two rows.

• Avoid contact with food that has already been frozen.
• Caution: Do not exceed the maximum freezing capacity per day. The product data sheet at the end of this manual contains details of the maximum daily freezing capacity.
• To accelerate the freezing process, turn the temperature control to its maximum setting. After 24 hours, once the food is well frozen, the temperature control can be set back to its original position.

Caution:

- To ensure sufficient distribution of cold air, keep a minimum distance of 2.5 cm between the vapouriser assembly and the tray containing the food to be frozen.

3 cm MIN

• The time required to freeze food may be shortened by dividing it into smaller portions.
• Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic wrap or bags, or aluminium foil. The packaging materials should be well aired before use; check that the package is air-tight before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use-by date.
• Do not attempt to deep-freeze carbonated beverages, warm food or any kind of bottled liquids.

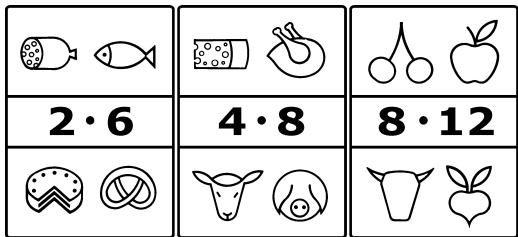

Use-by dates for frozen food are specified (in months) in the table below. Do not exceed these storage times. Always observe the information provided by the manufacturer of the product in question.

2·6 4·8 8·12

• If the unit remains switched off for an extended period (eg during a power failure), keep the door closed; this will help to maintain the lowest possible temperature in the cabinet. The maximum safe-storage time in this case is 12 hours.
• However, please note that the normal storage times will be shortened with increased internal temperature.

Making ice cubes

A special ice-cube tray is provided for making ice cubes. Fill the tray 34 full with drinking water and place it in the freezer compartment. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes.

De-frosting and cleaning

After a certain period of operation and depending on several factors (e.g. how often the door has been opened), a layer of ice will form on the evaporators located below the drawers and on the drawer fronts themselves. Once the build-up of ice has reached a thickness of 3 to 5 mm, the unit must be de-frosted. The build-up of ice increases the power consumption of the appliance.

• When de-frosting the unit, ensure that the plug has been removed from the wall socket,
• Remove all food from the compartment and store it in a cool location, eg together with pre-frozen freezer-packs in a closed plastic container. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible.
• To accelerate defrosting, place one or several containers with hot (but not boiling) water inside the freezer compartment and close the door.

• Do not pour water over or inside the unit.

• Warning: Do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting.

• For frequent cleaning we recommend the use of warm water with some mild detergent. Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
• Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
• After cleaning, thoroughly clean all surfaces again with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
• Turn the temperature control to its maximum setting. After 24 hours, the temperature control can be returned to its normal setting.

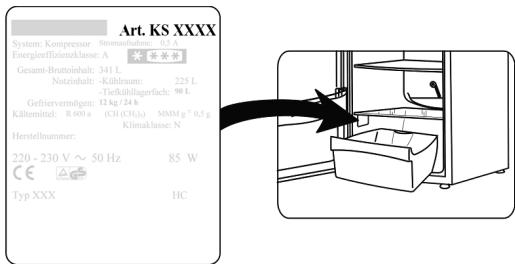

• Take care not to remove or damage the rating plate inside the cabinet during cleaning.
• To save energy, the condenser and the compressor (at the rear) should be cleaned carefully at least twice a year with a hand-brush or a vacuum cleaner.

Energy saving tips

• The appliance should be set up in a well-ventilated, dry room.
• Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.
• Do not cover the ventilation openings and grilles, and ensure sufficient air circulation behind the unit.
• The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption.
• Warm food should be allowed to cool down before it is stored inside.
• To prevent an increased build-up of ice, do not leave the freezer door open for too long when loading or taking out food.
• Frequent de-frosting helps to save energy. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.
• Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are:

- caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.

ok Blubb ... blubb ... Brrr ... Brrr ...

- caused by the cooling agent flowing through the circuit.

The following table lists the possible malfunctions, their

probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem	Possible cause and solution
The appliance is not working at all.	There is a power failureThe main fuse has blown.The temperature control is set to ‘0’.The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The temperature inside the compartment is not low enough.	The cabinet has been overloaded.The doors are not properly closed.There is too much dust on the condenser.Insufficient ventilation: the unit is too close to a wall or other structure or object.The temperature setting is too low
The normal operating sound changes or becomes louder.	Check for proper positioning (uneven floor).Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?)Are there any objects on top of the unit which might be vibrating?

Transporting the unit

To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.

The unit must only be transported in its vertical position; do not tilt any more than 30^ .

Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the unit has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.

Disposal

This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before being disposed

of through special waste collection points in accordance with local regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for competent disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal

rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Information needed by the Customer Service

Should repairs to the appliance become necessary, please contact our Customer Service, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual.

Product data sheet

Art. no.	KS 9809
Product category	Cabinet freezer
Energy efficiency classification	A+
Energy consumption in kWh/year	217
The actual consumption depends on the pattern of use and the location of the appliance
Usable refrigerator capacity (litres)	--
Usable capacity * * * * - Freezer unit (litres)	160
Frost-free : refrigeration unit / freezer unit	-- / no
Safe storage time in case of malfunction, hrs	15
Freezing capacity, kg/24h	12
Climate classification	N,ST
Ambient temperature range, °C	16-38°C
Noise emission	43 dB(a)
Dimensions (H x W x D) in mm	1440 x 551 x 554
Weight (kg)	45.5
Electrical specifications	See rating plate

Congélateur armoire

Chère cliente, Cher client,

Warning sign depicting a flame symbol in a triangular shape

Technical diagram of a refrigerator with numbered compartments and labeled parts

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

Isometric line drawing of a square frame with mounting holes and a small rectangular component at the bottom (no text or symbols)

Technical line drawing of a square mechanical component with a small attached component (no text or symbols)

Line drawing of a simple wooden table with a small inset showing a handle and base (no text or symbols)

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base, clamps, and bolts (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Diagram showing two door frame structures with directional arrows indicating movement, no text or symbols present

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Line drawing of a rectangular frame with a top panel and two vertical connectors at the base (no text or symbols)

Technical line drawing of a rectangular enclosure with a curved pipe or bracket, no text or symbols present

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

1. Neem er de schroeven uit en til er de topafdeking af.

Line drawing of a rectangular table with a recessed top panel and two side supports (no text or symbols)

Isometric line drawing of a square frame with mounting holes and an arrow pointing to a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small inset showing a handle and label '1 11' (no text or symbols on the table itself)

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with two stacked plates and mounting holes (no text or symbols)

Diagram showing two views of a door with arrows indicating direction, no text or symbols present

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Technical diagram of a multi-tiered refrigerator with numbered labels pointing to different compartments.

Technical line drawing of a rectangular frame with two vertical connectors and dotted lines indicating hidden edges (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, against a plain background (no text or symbols)

Line drawing of a rectangular table with a recessed top panel and two side supports (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small rectangular element at the base (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small inset showing a handle and label '1 11' (no text or symbols on the table itself)

Technical line drawing of a mechanical frame assembly with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Diagram showing a door with a handle and directional arrows indicating movement, no text or symbols present

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Technical diagram of a refrigerator with numbered compartments and labeled parts

Technical line drawing of a rectangular frame with vertical supports and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a rectangular frame with a curved cutout and dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Technical line drawing of a rectangular frame with two side supports and a central recessed panel (no text or symbols)

Isometric line drawing of a square frame with mounting holes and a small rectangular component at the bottom (no text or symbols)

Technical line drawing of a square mechanical component with a small attached component (no text or symbols)

Line drawing of a simple wooden table with a small object on top (no text or symbols)

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and bolts (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base, clamps, and support fixtures (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Diagram showing two views of a door with arrows indicating direction, no text or symbols present

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered parts for identification

1. Temperaturregulering
2. Hængslet lem
3. Fryseskuffe
4. Isterningbakke (inde i skuffen)
5. Nederste fryseskuffe
6. Justerbare ben
7. Dør

Før brug

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular electronic device with a recessed top panel and two mounting feet (no text or symbols)

Isometric line drawing of a square frame with mounting holes and a small rectangular component at the bottom (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small object on top (no text or symbols)

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Diagram showing two door frame structures with directional arrows indicating movement or force (no text or symbols)

afdeling for Kundeservice.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Technical diagram of a refrigerator with numbered parts for identification

Line drawing of a rectangular frame with a top panel and two vertical connectors at the base (no text or symbols)

Technical line drawing of a rectangular enclosure with a curved pipe or bracket, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular table with a recessed top panel and two side supports (no text or symbols)

Isometric line drawing of a square frame with mounting holes and an arrow pointing to a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small object on top (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base, clamps, and support feet (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Diagram showing two views of a door with arrows indicating direction, no text or symbols present

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Technical diagram of a refrigerator with numbered parts for identification

Line drawing of a rectangular frame with a top panel and two vertical connectors at the base (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

Isometric line drawing of a square frame with mounting holes and an arrow pointing to a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small inset showing a small object on top (no text or symbols)

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Diagram showing two views of a door with directional arrows indicating movement, no text or symbols present

Lämpötilan säädin

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Technical diagram of a refrigerator with numbered compartments and labeled parts

Line drawing of a rectangular frame with two side connectors and dotted lines indicating hidden edges (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

Isometric line drawing of a square frame with mounting holes and an arrow pointing to a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple rectangular table with a small inset showing a handle and label '1 11' (no text or symbols on the table itself)

Technical line drawing of a mechanical frame assembly with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Diagram showing two views of a door with arrows indicating direction, no text or symbols present

Regulator temperature

Warning symbol of a flame inside a triangle (no text or numbers)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Technical line drawing of a rectangular frame with a square top and vertical supports (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines and arrows (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular table with a recessed top panel and two side supports (no text or symbols)

Isometric line drawing of a square frame with mounting holes and a small rectangular component at the bottom (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small inset showing a separate part (no text or symbols)

Line drawing of a simple wooden table with a flat top and side legs, no text or symbols present.

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base, clamps, and screws (no text or symbols)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Diagram showing two views of a door with arrows indicating direction, no text or symbols present

Warning sign depicting a flame symbol in a triangular shape

Technical diagram of a multi-tiered refrigerator with numbered labels pointing to different compartments.

Technical line drawing of a rectangular frame with two side supports and a central lid (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and side legs, no text or symbols present

Line drawing of a rectangular electronic device with a recessed top panel and two side supports (no text or symbols)

Isometric line drawing of a square frame with a small rectangular component attached to the right side (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple wooden table with a small object on top (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and base mount (no text or symbols)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Diagram showing a door frame being cut with arrows indicating direction (no text or symbols)

Kuressaare: Toomas Teder FIE, Pikk 1B,

tel: [phone]

Philippos Business Center

Agias Anastasias & Laertou, Pilea

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.: 009821 - 77616767

Fax:[phone]

[e-mail]

www.iranseverin.com

Israel

Eatay Agencies

109 Herzel St.

Haifa

Phone: [phone]

Email: [e-mail]

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800240279

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

F.A. Kettaneh

P.O. Box 485

Amman, 11118, Jordan

Tel: [phone]

e-mail: [e-mail]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: + 371 7279892

[e-mail]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Telephone [phone], Fax [phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

Sc. 2 Et.1, Ap. 27, Sector 1

Bucuresti

Tel: [phone]

[phone]

[phone]

Fax: [phone]

[phone]

E-mail: [e-mail]

Web site: www.forbrands.ro

Schweiz

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Serbia

SMIL doo

Pasiceva 28, Novi Sad

Serbia and Montenegro

tel: [phone]

tel: [phone]

fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Finland

Oy Harry Marcell Ab

Rälssitie 6, PL 63

01511 Vantaa

Tel.: 00358 / 2 07 599 860

Fax: 00358 / 2 07 599 803

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]
