Brand	Zanussi
Model	ZFG317S
Product type	Extractor hood
Installation type	Wall-mounted
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 speeds
Control	Mechanical slider
Lighting	1 bulb E14, 4 W, 220-240 V
Grease filter type	Washable, removable
Charcoal filter type	Non-washable, replaceable every 4 to 6 months
Filter maintenance	Clean grease filters monthly; replace charcoal filter every 4-6 months
Recirculation operation	Possible with charcoal filter
Dishwasher cleaning	Grease filters compatible (short cycle, low temperature)
Repairability	Bulb and filters replaceable
Safety	Unplug before maintenance; use gloves to replace bulb
Material	Stainless steel (estimate)

Frequently Asked Questions - ZFG317S ZANUSSI

How to clean the grease filters?

Press the lever of the filter clip under the hood, gently tilt the front downward and pull. Clean the filters with a sponge and non-abrasive detergent, or in the dishwasher at low temperature on a short cycle. Discoloration does not affect performance.

When to replace the charcoal filter?

The activated charcoal filter is not washable and must be replaced every 4 to 6 months or more often with heavy use.

How to replace the bulb?

Unplug the appliance, let the bulb cool down. Use a non-cutting plastic tool to gently remove the bulb diffuser (two notches on each side). Replace the bulb with one of type E14, 4 W, 220-240 V, dimensions 37x100 mm. Reinstall the diffuser.

Is the bulb standard?

Yes, the bulb is an E14 of 4 W, 220-240 V, with a length of 100 mm and a diameter of 37 mm. You can find compatible LED equivalents.

Can I wash the grease filters in the dishwasher?

Yes, the grease filters can be washed in the dishwasher, set to low temperature on a short cycle. Discoloration does not affect performance.

How to adjust the fan speed?

Move the fan speed slider to one of the positions. The appliance starts operating. To stop, set the slider back to position 0.

Does the hood work in recirculation mode?

Yes, the hood can work in recirculation mode with the activated charcoal filter. It must be replaced regularly.

Why won't the hood turn on?

Check that the appliance is plugged in and the light switch is turned on. If the bulb has blown, replace it with an E14 4 W bulb. If the problem persists, contact after-sales service.

How to maintain the hood daily?

After cooking, wipe surfaces with a soft cloth, warm water and mild detergent. Avoid abrasive detergents. Clean the grease filters monthly.

What to do in case of lighting failure?

Unplug the appliance. Remove the bulb diffuser using a plastic tool. Replace the defective bulb with a E14, 4 W, 220-240 V bulb. Reinstall the diffuser.

USER MANUAL ZFG317S ZANUSSI

Simple line drawing of a chimney with three dots on the base (no text or symbols)

ZFG315S

ZFG315S

ZFG317S

ZFG215S

ZANUSSI

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure without any text or symbols.

SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate

Installation Instructions booklet for

Safety Information and Installation.

Read carefully the Safety chapters

before any use or maintenance of the

appliance.

PRODUCT DESCRIPTION

CONTROL PANEL OVERVIEW

	Function	Description
1	Light switch	To switch the light on and off.
2	Fan speed switch	To switch between fan speed level.
3	Indicator	Indicates if the hood operates.

DAILY USE

USING THE HOOD

Check the recommended speed according to the

table below.

1	While heating up food, cooking with covered pots.
2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

Move the fan speed switch to one of the speed levels.

The hood starts to operate. If needed, change the speed by moving the switch.

The hoods light works independently to other hood functions. To illuminate the cooking surface use the light

switch

To turn off the appliance move the fan speed switch to the 0 position.

CARE AND CLEANING

NOTES ON CLEANING

Cleaning Agents	Do not use abrasive detergents and brushes.Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.
Keep the hood clean	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
	Grease filters can be washed in a dishwasher.The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

CLEANING THE GREASE FILTER

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

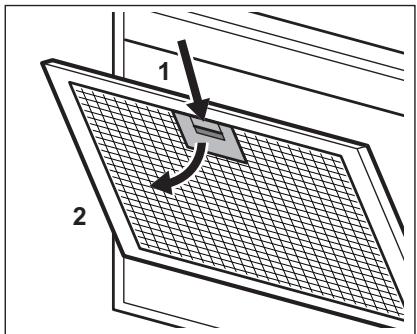

1. Press the handle of the mounting clip on the filter panel underneath the hood.

1. Slightly tilt the front of the filter downwards, then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

REPLACING THE CHARCOAL FILTER

WARNING! The charcoal filter is NON-washable! The filter cannot be regenerated!

To replace the charcoal filter:

1. Remove the grease filters from the appliance. Refer to "Cleaning the grease filter" in this chapter.

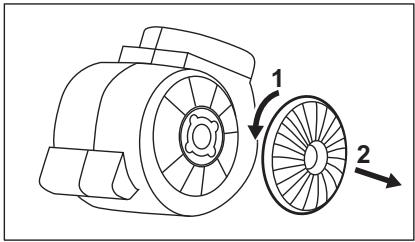

2. Turn the filter counterclockwise (1) and then pull (2).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

To mount the filters back follow the steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

REPLACING THE LAMP

WARNING! Risk of burns and electric shock! Disconnect the appliance from the electricity before the operation! Make sure that the light bulb has cooled down before touching it.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📊. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked

WARNING! Risk of injury! Use protective gloves to replace the lamp.

Risk of damage to the appliance! Do not use sharp edged tools!

Replace the burnt light bulb in accordance with the specifications:

Power (W)	4
Socket	E14
Voltage (V)	220 - 240
Dimensions (mm)	37 x 100 (diameter x length)
ILCOS D Code (according IEC 61231)	DRBB/F-4-220-240-E14-37/100

To replace the lamp:

1. The lamp cover has two slots on each side (1). Use a flat non sharp plastic tool. Gently remove the lamp cover from the appliance (2).
2. Replace the lamp.
3. Mount the lamp cover.

with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.
