Product Type	Kitchen Hood
Brand	FRANKE
Model	GALAXY PLUS FGPL 1000 XS
Area of Use	Domestic use to eliminate cooking vapors
Operation	Air circulation or air extraction
Suction Motor	Adjustable speeds (low, medium, high)
Intensive Suction Mode	Active for 6 minutes at maximum power
24h Suction Mode	Operates for 10 minutes every hour for 24 hours
Delayed Shut-off Function	Motor stops after 30 minutes
Lighting	LED with adjustable intensity (long press)
Perimeter Suction Panel	Opens for filter access
Grease Filter	Dishwasher-safe (max 50°C), lifespan 10 years
Odor Filter	Two types: washable (every 2 months) or non-washable (replace every 3 months)
Clean-Air Filter	For CLEAN-R recirculation system, replace with UV lamp (6000h or 3 years)
Filter Saturation Alarm	Displays "FG" (100h) or "EF" (200h) for cleaning/replacement
Alarm Reset	Press button 24
Safety Instructions	Do not flambé under the hood, monitor deep fryers, avoid electric shocks
Eye Protection	Do not look directly at the LEDs
Body Cleaning	Damp cloth and mild detergent, avoid abrasive products
Available Spare Parts	Odor filter (ref. 112.0373.739), grease filter (ref. 133.0320.716)
Customer Service	Contacts by country at www.franke.com
Disposal	Compliant with European Directive 2002/96/EC, appropriate recycling

Frequently Asked Questions - GALAXY PLUS FGPL 1000 XS FRANKE

How to install the GALAXY PLUS FGPL 1000 XS hood?

Installation must be carried out by a qualified professional. Follow the safety instructions in the manual. Ensure the hood is properly fixed and electrically connected. For the recirculation version, install the appropriate odor filters.

How to clean the grease filters?

The grease filters can be cleaned in the dishwasher at a maximum temperature of 50°C. Let them air dry before putting them back. Perform this cleaning at least once a month.

When should the odor filters be replaced?

For non-washable filters, replace them every 3 months (or more often if heavily used). For washable filters, clean them every 2 months in the dishwasher at high temperature, dry them, then reactivate them in the oven at 100°C for 10 minutes.

What do the alarms 'FG' and 'EF' on the display mean?

The 'FG' alarm indicates that the grease filters need cleaning after 100 hours of operation. 'EF' signals that the grease filters need cleaning and the odor filters need replacing or washing after 200 hours.

How to reset the filter alarm?

Briefly press the '24' button to reset the alarm once the filters have been cleaned or replaced.

How to activate the intensive suction mode?

Briefly press the 'i' button. The intensive mode lasts 6 minutes at full power, then automatically returns to the previous speed. The display shows 'Hl' with a flashing dot.

Can the hood be used with a gas hob?

Yes, but caution is needed: metal surfaces can become very hot. Do not touch hot surfaces and wear heat-resistant gloves when opening the suction panel.

How to replace the LED lighting?

LED replacement must be done by FRANKE customer service. Do not attempt it yourself to avoid electric shock risk.

Where to find spare parts like filters?

Grease filters are available at +33 (0)4.88.78.59.93 and odor filters at +33 (0)1.30.28.94.00. References: odor filter 112.0373.739, grease filter 133.0320.716.

How to contact FRANKE customer service?

Check the contact address for your country on the back cover of the manual or on www.franke.com. Customer service can assist with electrical repairs and maintenance.

USER MANUAL GALAXY PLUS FGPL 1000 XS FRANKE

MANUEL D'UTILISATION

GALAXY PLUS INOX - FGPL 1000/1200 /1400

FR Manuel d'utilisation
EN User manual
DE Bedienungsanleitung
NL Gebruikershandleiding
IT Istruzioni per l'uso
ES Manual del usuario

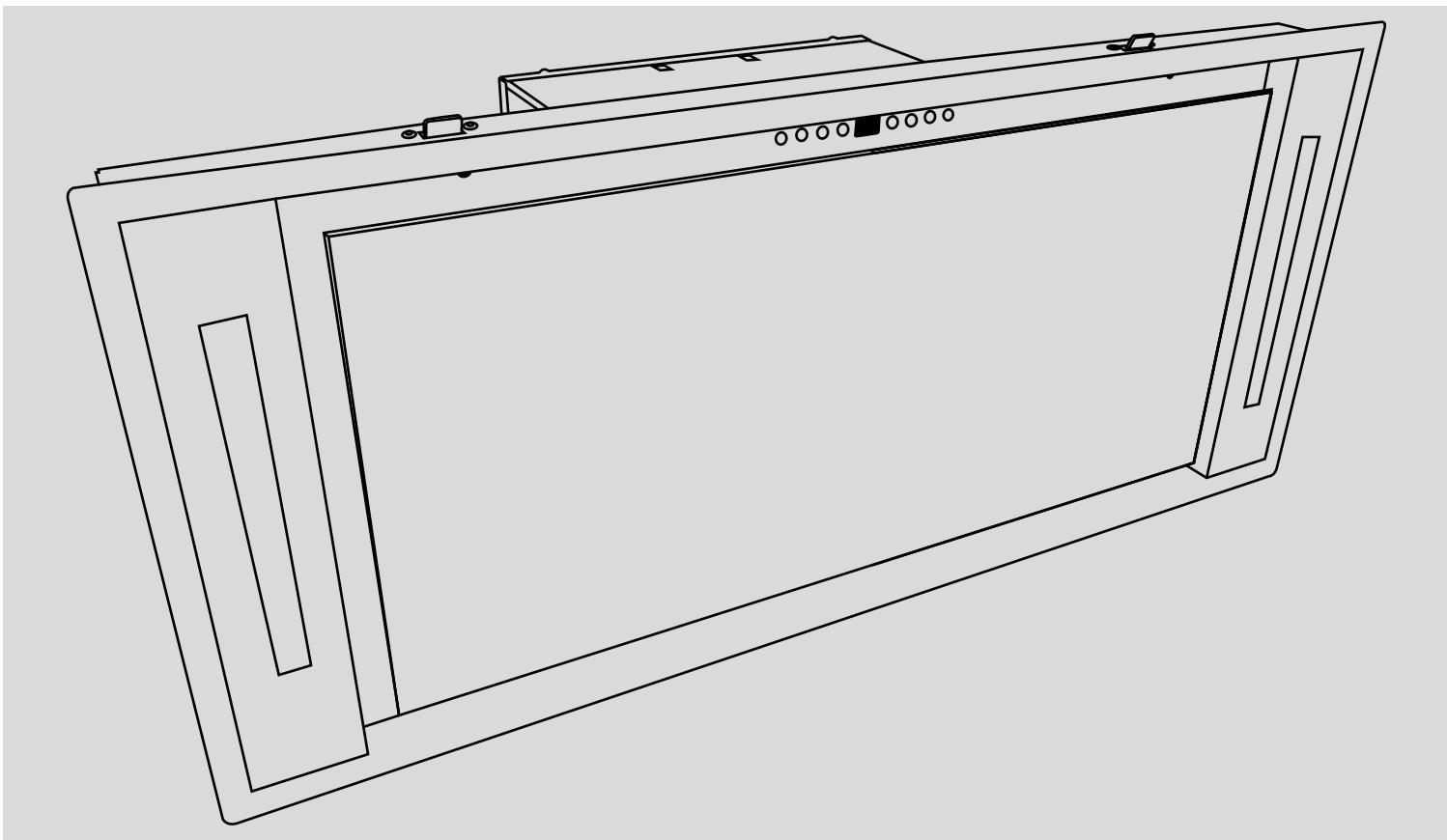

Hotte de plafond

Ceiling kitchen hood

Aspiration intensive

Fonction 24 h

Arrêt différé

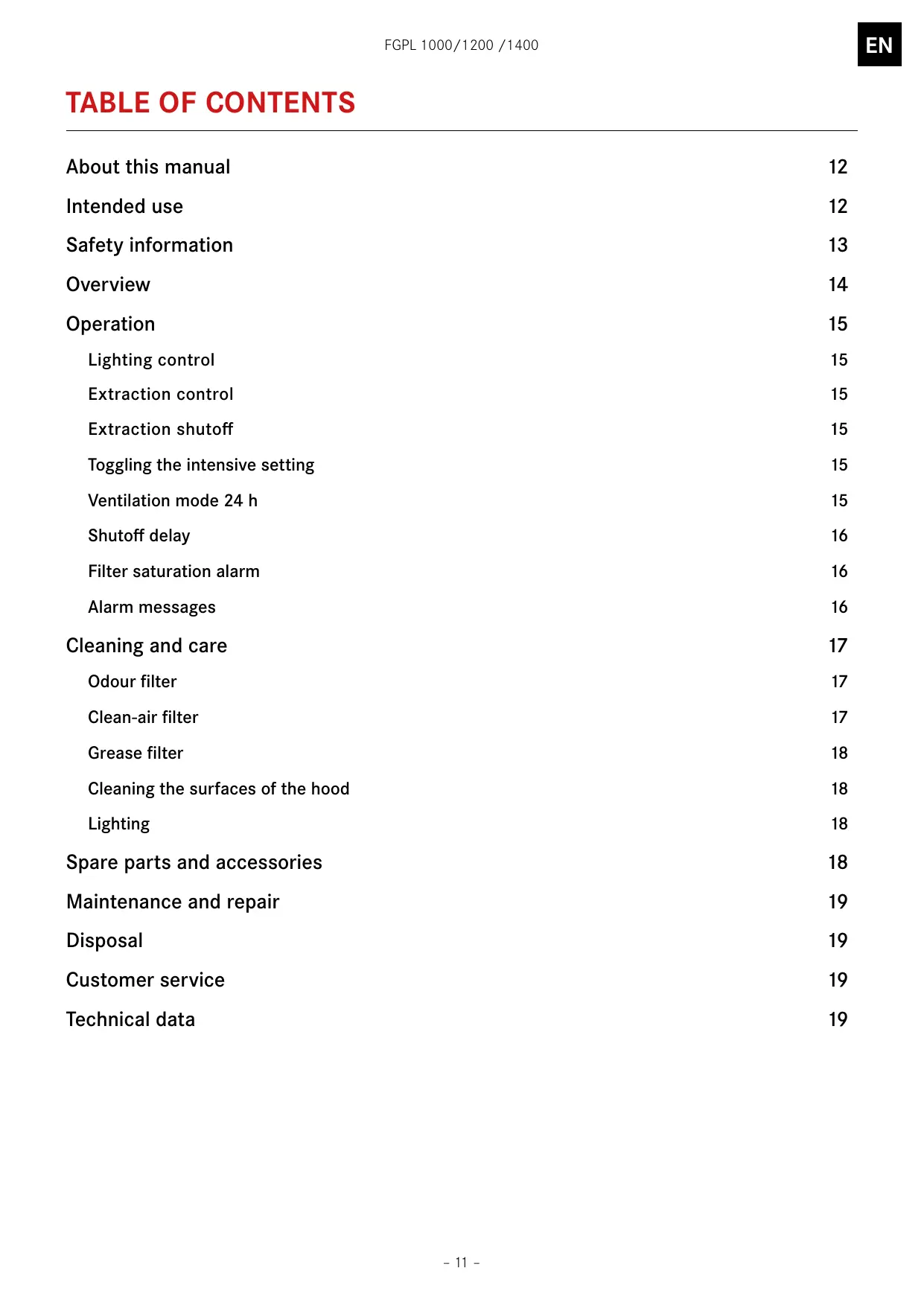

About this manual 12
Intended use 12
Safety information 13
Overview 14
Operation 15
Lighting control 15
Extraction control 15
Extraction shutoff 15
Toggling the intensive setting 15
Ventilation mode 24 h 15
Shutoff delay 16
Filter saturation alarm 16
Alarm messages 16
Cleaning and care 17
Odour filter 17
Clean-air filter 17
Grease filter 18
Cleaning the surfaces of the hood 18
Lighting 18
Spare parts and accessories 18
19
Disposal 19
Customer service 19
Technical data 19

ABOUT THIS MANUAL

This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.

Carefully read the user manual before using the device.

Keep the user manual.
Use the device described in this user manual only according to the intended use.

Symbol	Meaning
!	Warning symbol. Warning against risks of injury.
▷	Actions in safety and warning notes to avoid injury or damage.
►	Action step. Specifies an action to be done.
■	Result. Result of one or more action steps.
✔	Precondition that has to be fulfilled before performing the following action.

INTENDED USE

The hood was developed exclusively for domestic use to eliminate cooking vapours.

The hood, which is equipped with a grease filter and an odour filter, removes vapours forming over a stove top via an air circulation or an air exhaust system.

SAFETY INFORMATION

The manufacturer can not be made liable for possible damage which may occur due to incorrect installation and incorrect, improper or unreasonable use of the device.

The hood can not support heavy loads.

Do not climb, stand or sit on the hood.
Do not place heavy objects on the hood.

Children and persons with restricted physical, sensory or mental abilities, or with limited experience or knowledge, may not use or clean the device, except they are supervised and instructed by a person responsible for their safety.

Children under 8 years may not use or clean the device even if supervised.

This device is not a toy.

• Keep children away from the device and the packaging material.
  Do not leave children near the device unattended.
  Do not let children play with the device.
  When using the hood, observe the manuals of the stove top and of the cooking devices that are used beneath the hood or while the hood is running.

Fire hazard and risk of injury due to open flame!

Deposits in the grease filter may catch fire.

Do not use open flames near the device (e.g. flambéing).
Always clean or change all filters at the specified intervals.

When using deep fat fryers, overheated oil can burst into flames.
Continuously monitor fryers during use.

Risk of eye injury due to LED light!

The LED light is very bright and may damage the eyes.

Do not look directly into the LED light for a prolonged time.

Risk of electric shock due to damaged device!

Do not switch on a damaged device.
Switch off the fuse in the fuse box.
Contact the customer service.

Risk of electric shock due to entering liquid!

The device contains electrical components.

Make sure that no liquid enters the interior of the device.
Do not use pressurised steam to clean the device.
Do not use a wet cloth to clean the operating elements.

Risk of burns due to hot surfaces!

Accessible metallic parts of the hood may become very hot when used with cooking appliances, that emit great amounts of heat (e.g. gas hobs).

Do not touch hot surfaces.
Be careful when opening or closing the fold-out panel.
Wear heat-resistant gloves.

OVERVIEW

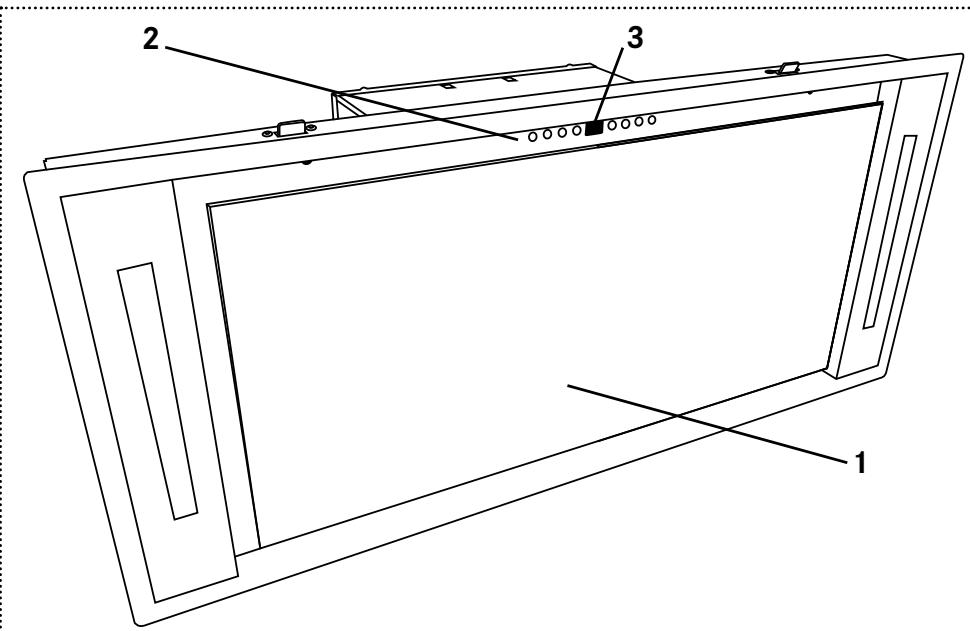

1 Parametric extraction panel
2 Control keyboard
3 Display

Keybords Function

On/Off button

Decreases the extraction

Increases the extraction

Intensive extraction

24 h extraction function

Deferred shutoff

Lighting On/Off button

Lighting intensity adjustment button

Locking and unlocking the keys of the operating panel

Non-existent function.

Lighting control

Main lighting

Briefly press

Turns the lighting on/off at the last intensity used

Secondary lighting

Long press

• Increase or decrease the intensity of the lighting.

Extraction control

Extraction start

Briefly press ①.

Turns on the extraction motor at the last speed used.
Display: shows the speed adjustment.

Extraction level

Low speeds are recommended for low heat cooking and for sauces, simmering, etc.

Intermediate speeds are recommended for medium to fast cooking, grilling and frying.

High speeds are recommended for cooking that creates a lot fat and vapour.

Increases the speed of the extraction motor
Reduces the speed of the extraction motor. -

Extraction shutoff

Briefly press ①.

• Switches the extraction motor off.

Toggling the intensive setting

The intensive extraction mode is recommended if the vapours and fumes occasionally become excessive.

Switching on

Briefly press 已

• Activates the intensive extraction mode, even with the motor off, for 6 minutes and then return to the speed used previously.
• Display: displays «HI» and a point flashing once per second at the bottom right.

Switching off

Briefly press i
- Deactivates the intensive extraction mode, return to the speed used previously.
6 minutes after activation, return to the speed used previously.

Ventilation mode 24 h

This function allows you to remove all the unpleasant and persistent smells in your room by renewing the air.

Switching on

Briefly press (24)

• Motor off or on: switches the motor on for 10 minutes every hour at an extraction speed of 100 ~m / h for 24 ~h .
• Display: Displays «24» and a flashing point at the bottom right, while the motor is running.
• Once the procedure is completed: the signalling of the previously viewed display turns off.

Switching off

Briefly press (24) .

Turns off the extraction motor and consequently deactivates the 24h extraction function
The display turns off.
After 24 ~h of activation of the function
: the motor is turned off and the signalling of the previously viewed display is turned off.

Shutoff delay

This function allows you to temporarily continue filtering and extracting residual smoke after the cooking has stopped.

Switching on

Briefly press.

• Activates motor shutoff deferred by 30 minutes.
• Display: Alternately displays the speed of the extraction motor and the time remaining until motor shutoff. The point at the bottom to the right flashes.

Switching off

Briefly press
Turns the off the „delayed stop“ function

Filter saturation alarm

The alarm tells you when the grease filters and the odour filters need to be cleaned or replaced (for the non-washable odour filters).

Activating the alarm „filter saturation"

Depending on the type of control keyboard, the „Filter saturation“ alarm may need to be activated if your appliance is a recycling or clean-air type.

Contact Customer Service.

Deactivating the alarm „filter saturation“

Contact Customer Service.

Resetting the alarm „filter saturation“

Briefly press(24).
- Resets the filter alarm once triggered.

Alarm messages

• Display: Displays «FG» which signals the need to wash the grease filters every 100 hours of operation.
• Display: Displays «EF» which signals the need to wash the grease filters and replace or wash the odour filters (according to their type), every 200 hours of operation.
  These «FG and EF» signals are only visible when the motor and the lighting are off.

CLEANING AND CARE

Before performing any cleaning and maintenance:

Switch off the device.

Les grFire hazard! Risk of injury!

Deposits in the grease filter may catch fire.

Filters that are not cleaned or changed regularly may catch fire if open flames or extensive heat are handled beneath the hood.

Always clean or change all filters at the specified intervals.

Odour filter

There are two types of odour filter: washable and non-washable.

Non-washable odour filter

Do not wash or reuse a non-washable odour filter.
Replace non-washable odour filters at least every 3 months, or more often if the hood is used for more than 3 hours per day.
Grease filters should always be cleaned at the same time as replacing non-washable odour filters.

Washable odour filter

Clean washable odour filters in a dishwasher at high temperature (without other kitchen utensils) every 2 months. Dry odour filters with the dishwasher or in the open air for approximately 30 minutes.
Activate the washed and dried washable odour filters by placing them in an oven for 10 minutes at 100^ maximum. Z Grease filters should always be cleaned at the same time as cleaning washable odour filters.

Clean-air filter

Clean-air filters are fitted to hoods fitted with the

recycling system CLEAN-R

Only replace a clean-air filter if the associated ultra violet lamp needs to be replaced. The service life of an ultra violet lamp is approximately 6000h or 3years.

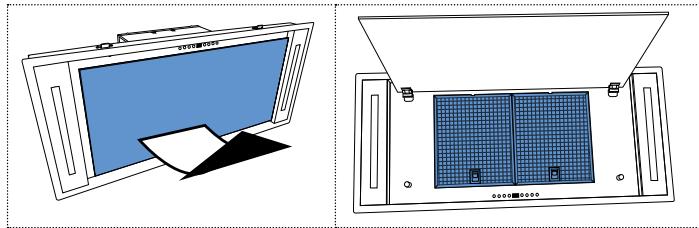

Replacing washable odour filters

Open the perimetric extraction panel.

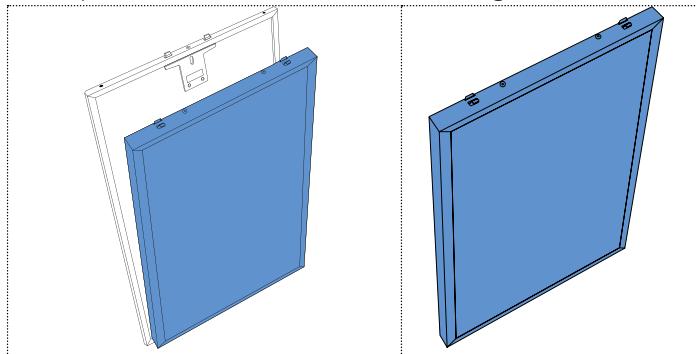

Separate the odour filter from the grease filter.

Repeat the procedure in the reverse order to reposition the odour filter (in blue) on the appliance.
Re-initialize the „filter saturation“ alarm if necessary.

Grease filter

These filters have a service life of 10 years and should be cleaned once a month with normal use.

Clean grease filters in a dishwasher at a maximum temperature of 50^ C .
Let the filters dry in the open air.

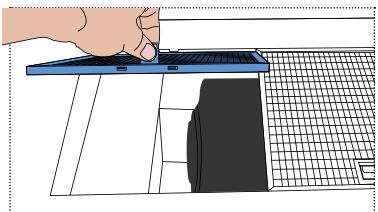

Cleaning the grease filter

• Open the perimetric extraction panel.

Remove the grease filters.
Clean the grease filter.

Fit the the grease filter.
Close the perimetric extraction panel.
Re-initialize the „filter saturation“ alarm if necessary.

Cleaning the surfaces of the hood

We recommend a damp cloth and a mild detergent.

• Do not use any scouring agents or chemical detergents, which could corrode or scratch the surfaces of the device.

Lighting

Make sure that the LED in the spotlights are changed only by the customer service.

SPARE PARTS AND ACCESSORIES

Grease filters are available as spare parts (+33

(0)4.88.78.59.93).

Odour filters are available as accessories (+33

(0)1.30.28.94.00).

Component	Type, item no.	Remark
Odour filter	112.0373.739	high performance, not washable
Grease filter	133.0320.716	washable

MAINTENANCE AND REPAIR

Repairs if carried out incorrectly may cause serious injury, damage to the device and fittings, as well as affect the functioning of the device.

Make sure that maintenance on electrical components and on the smoke vent is carried out only by the manufacturer or the customer service.
Make sure that damaged cables are changed only by the manufacturer or the customer service.

SCRAPPING

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

By disposing of the device in a proper way you help to avoid harmful consequences to environment and health.

Please find out about the local system of sorting for electrical and electronic waste.
Please act according to the local regulations and do not dispose of your used product with general household waste.
Disposing of your end-of-life product correctly will help prevent potentially negative consequences for the environment and human health.

CUSTOMER SERVICE

Refer to the contact address for your country on the back page or www.franke.com

www.franke.com

TECHNICAL DATA

Refer to the type plate placed on the product.

Further information on technical data is available on: www.franke.com

INHALTSVERZEICHNIS

met clean-air filters

Si las reparaciones se llevan a cabo IncorrectamenteSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEQ
Asegúrese de que el mantenimiento de los componentes electricos y de la calidad de humos

Franke Kindred Canada Limited

Midland, ON L4R 4K9

Phone [phone]

Czech Republic

Franke s.r.o.

190 00 Praha 9

Phone [phone]

Denmark

Franke Kitchen Systems Denmark

8520 Lystrup

Phone [phone]

Egypt

Franke Kitchen Systems Egypt S.A.E.

6th of October City

Phone [phone]

Finland

Franke Finland Oy

76850 Naarajärvi

Phone [phone]

France

Franke France S.A.S.

60230 Chambly

Phone [phone]

Germany

Franke GmbH

79713 Bad Säckingen

Phone [phone]

Greece

Franke Hellas S.A.

19003 Markopoulos Attikis (Athens)

Phone [phone]

Hong Kong SAR

Franke Asia Hong Kong Office

Causeway Bay

Phone [phone]

India

Franke Faber India Limited

Aurangabad-431136

Phone [phone]

Italy

Franke S.p.A.

37019 Peschiera del Garda

Phone [phone]

Kazakhstan

Franke Kazakhstan Ltd.

040918 Almaty City

Phone [phone]

Morocco

Franke Kitchen System SARL

21 000 Casablanca

Phone [phone]

Norway

Franke Kitchen Systems Norway

8520 Lystrup, Denmark

Phone [phone]

P.R. China

Franke (China) Kitchen Systems Co., Ltd.

Heshan, Guangdong, 529700

Phone [phone]

Shanghai office [phone]

Poland

Franke Polska Sp. z o.o.

05-090 Raszyn

Phone [phone]

Portugal

Franke Portugal S.A.

2735-531 Cacém

Phone [phone]

Romania

Franke Romania SRL

Pantelimon 077145

Phone [phone]

Russia

Franke Russia GmbH

199106 St. Petersburg

Phone [phone]

Singapore

Franke Singapore Pte. Ltd.

068811 Singapore

Phone [phone]

Slovak Republic

Franke Slovakia s.r.o.

010 01 Žilina

Phone [phone]

South Africa

Franke Kitchen Systems (Pty.) Ltd.

Durban 4052

Phone [phone]

Spain

Franke Espana S.A.U.

08100 Mollet del Valles (Barcelona)

Phone [phone]

Sweden

Franke Kitchen Systems Sweden

168 67 Bromma

Phone [phone]

Switzerland

Franke Consumer Products Inc.

Smyrna, TN 37167

Phone [phone]
