Product Type	Built-in range hood
Brand	CANDY
Model	CBG625N
Installation dimensions (W x D)	490 x 250 mm
Distance above cooking surface	65 to 75 cm
Duct diameter	150 mm
Grease filter	Washable, monthly cleaning
Charcoal filter	Annual replacement (optional for recirculation)
Light bulb	LED, 220 V, max 2 W
Number of speeds	3 (low, medium, high)
Lighting	Yes
Body material	Stainless steel
Power supply	220-240 V, 50/60 Hz
Protection class	Class I (grounded)
Installation type	Built-in into cabinet
Operating mode	External evacuation or recirculation

Frequently Asked Questions - CBG625N CANDY

How to install the CBG625N hood?

Cut an opening of 490 x 250 mm in the overhead cabinet, maintaining a distance of at least 35 mm from the edge. Remove the grease filter and the 2 screws of the panel, screw the hood with the 8 screws provided, then replace the panel. The distance between the hood and the cooking surface must be between 65 and 75 cm.

How far should the hood be placed above the cooking surface?

The recommended distance is between 65 and 75 cm for optimal efficiency.

How to clean the grease filter?

Clean the grease filter every month with a mild detergent or warm soapy water. Never use abrasive sponges or hard brushes. A clogged filter can be a fire hazard.

How to replace the hood's light bulb?

Turn off and unplug the appliance. Remove the lamp cover by unscrewing the 2 screws, unscrew the defective LED bulb and replace it with a bulb of the same type: LED, 220 V, max 2 W. Screw the cover back on.

What to do if the hood vibrates heavily?

First check if the fan blade is damaged. Ensure the motor is firmly fixed and the hood is properly suspended on the console. If the problem persists, contact a qualified technician.

Can I use the hood without external evacuation?

Yes, in recirculation mode. You need to install a charcoal filter (sold separately) which traps odors. Replace it at least once a year.

How to install the charcoal filter?

First detach the grease filter by pressing the lock and pulling down. Insert the charcoal filter into the unit and turn it clockwise until it locks. Repeat on the other side.

What to do if the motor does not work but the light turns on?

The fan blade may be stuck or the motor damaged. Turn off the appliance and have it repaired only by a qualified technician.

Is the hood suitable for commercial use?

No, this hood is intended for domestic use only. It is not suitable for barbecues, rotisseries or other commercial applications.

How to regularly maintain the hood?

Clean the exterior with a soft cloth and soapy water. Clean the grease filter every month and replace the charcoal filter once a year if using recirculation mode. Never use abrasive products.

USER MANUAL CBG625N CANDY

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION. 3 SAFETY PRECAUTION. 3-4 PREPARE FOR INSTALLATION. 5 SPECIFICATIONS. 5 INSTALLATION 6-7 OPERATION. 7-8 MAINTENANCE. 8 TROUBLESHOOTING 9 ENVIRONMENTAL PROTECTION. 9

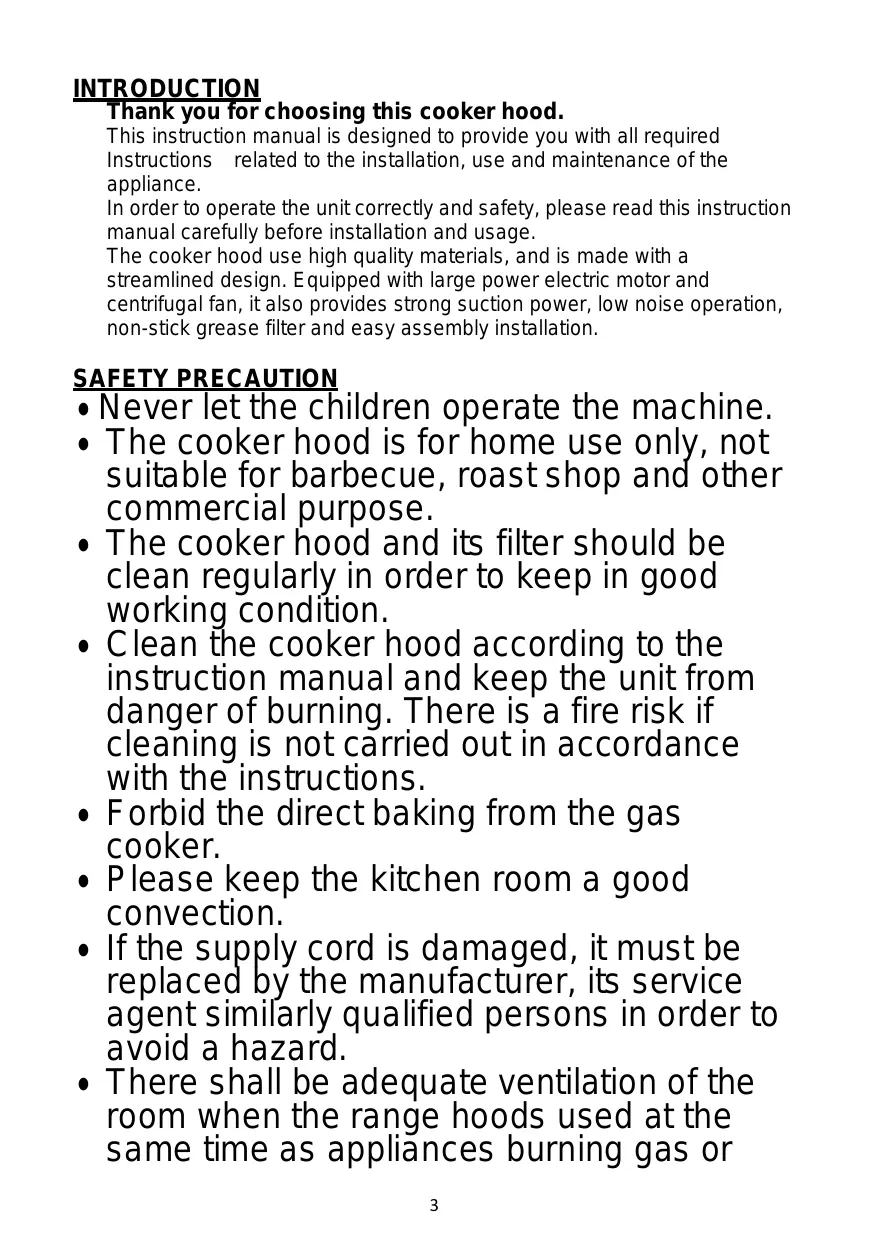

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use, and maintenance of the appliance.

In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high-quality materials and is made with a streamlined design. Equipped with a large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter, and easy assembly installation.

SAFETY PRECAUTION

• Never let children operate the machine.
• The cooker hood is for home use only, not suitable for barbecue, roast shop, and other commercial purposes.
• The cooker hood and its filter should be cleaned regularly in order to keep it in good working condition.
• Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Forbid direct baking from the gas cooker.
• Please keep the kitchen room well ventilated.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or

other fuels.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• Regulations concerning the discharge of air have to be fulfilled.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliance.
• The warning shall be in the same part of the instructions that include details of how to mount the equipment.

Electrical Shock Hazard

• Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
• Failure to follow these instructions can result in death, fire, or electrical shock.

Prepare for installation:

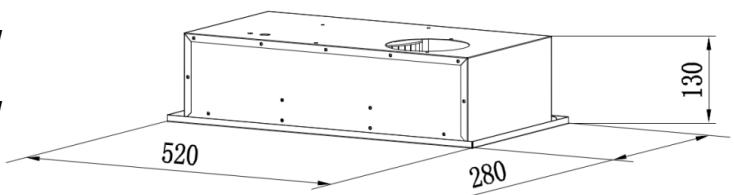

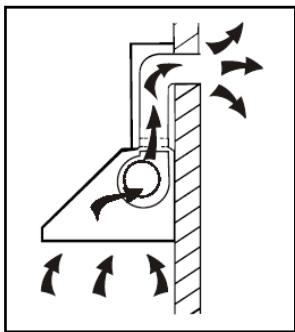

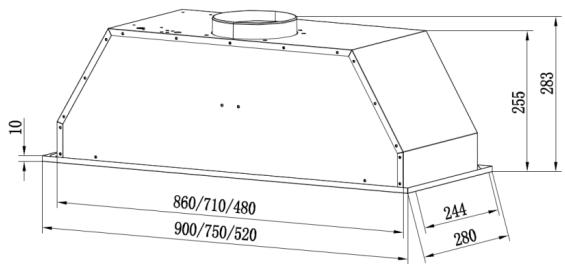

a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150 mm).

b. Before installation, turn the unit off and unplug it from the outlet.

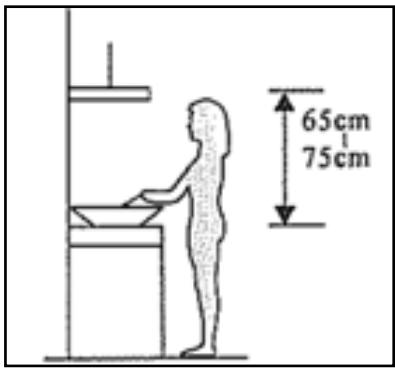

c. The cooker hood should be placed at a distance of 65-75 cm above the cooking plane for best effect.

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N

CBG640/2X CBG6250/1X

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N

Installation

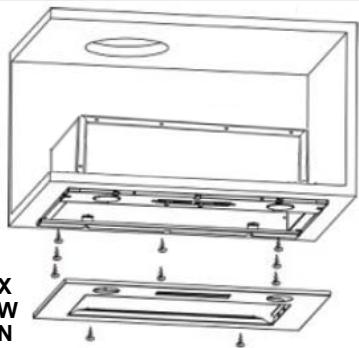

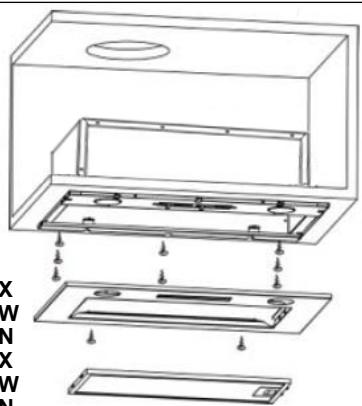

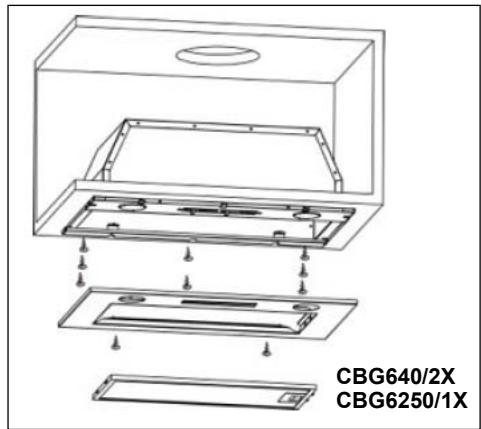

• The typical installation method for your range hood is into a purpose built overhead/wall cabinet.
• Using a jigsaw, create the required cut-out for your range hood, as 490 x 250 mm.
• Make sure the cut-out is at least 35 mm from the cabinet edge.

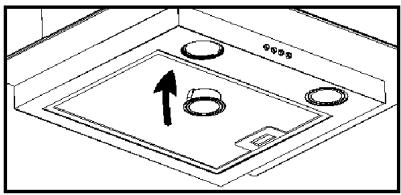

• Remove the grease filter and remove the 2 screws on the panel.

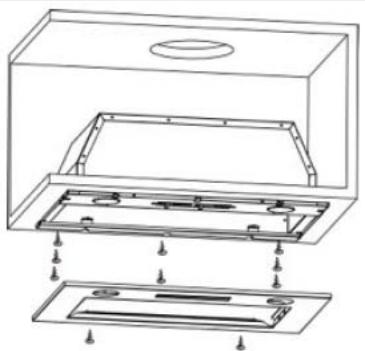

• Screw the range hood into the cabinet using 8 screws (supplied).
• Re-fit the panel with the 2 screws (previously removed).

Activated carbon filter can be used to trap odors.

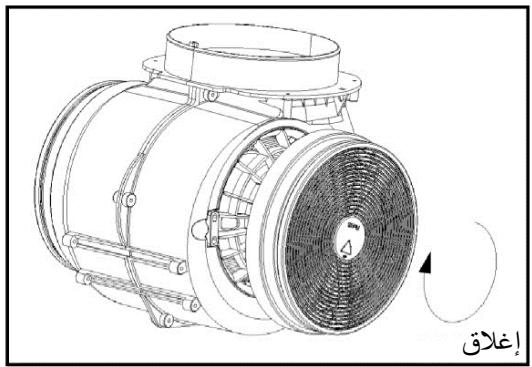

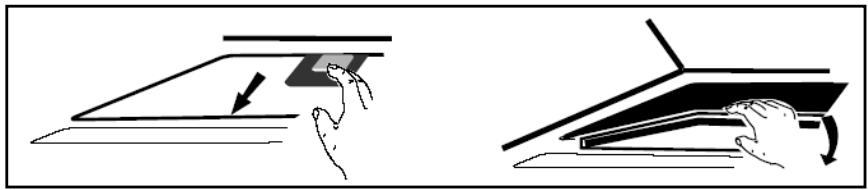

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

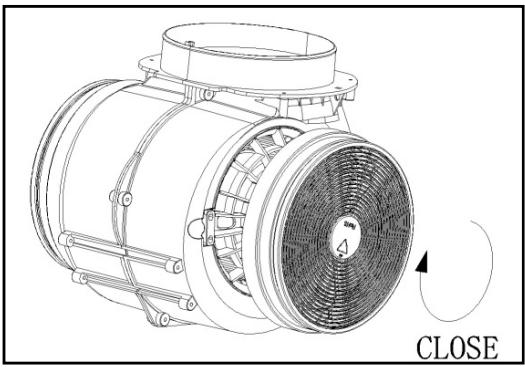

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

○ Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. - When activated carbon filter attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button 1

It's used for ventilation in the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are pressed at the same time, the unit will only operate at the highest speed.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month to prevent any risk of fire.

The filter collects grease, smoke and dust... so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that is installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequently the cooker hood is used.

IV. Bulb Replacement

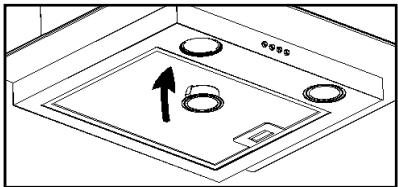

1. Switch the unit off and unplug the appliance. 2. Remove the lamp cover by unscrewing the 2 screws. 3. Unscrew the LED lamp.
2. Replace with the same type and lamp

LED lamp (220V max, 2W).

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
