USER MANUAL BBLSP-1800 WILFA

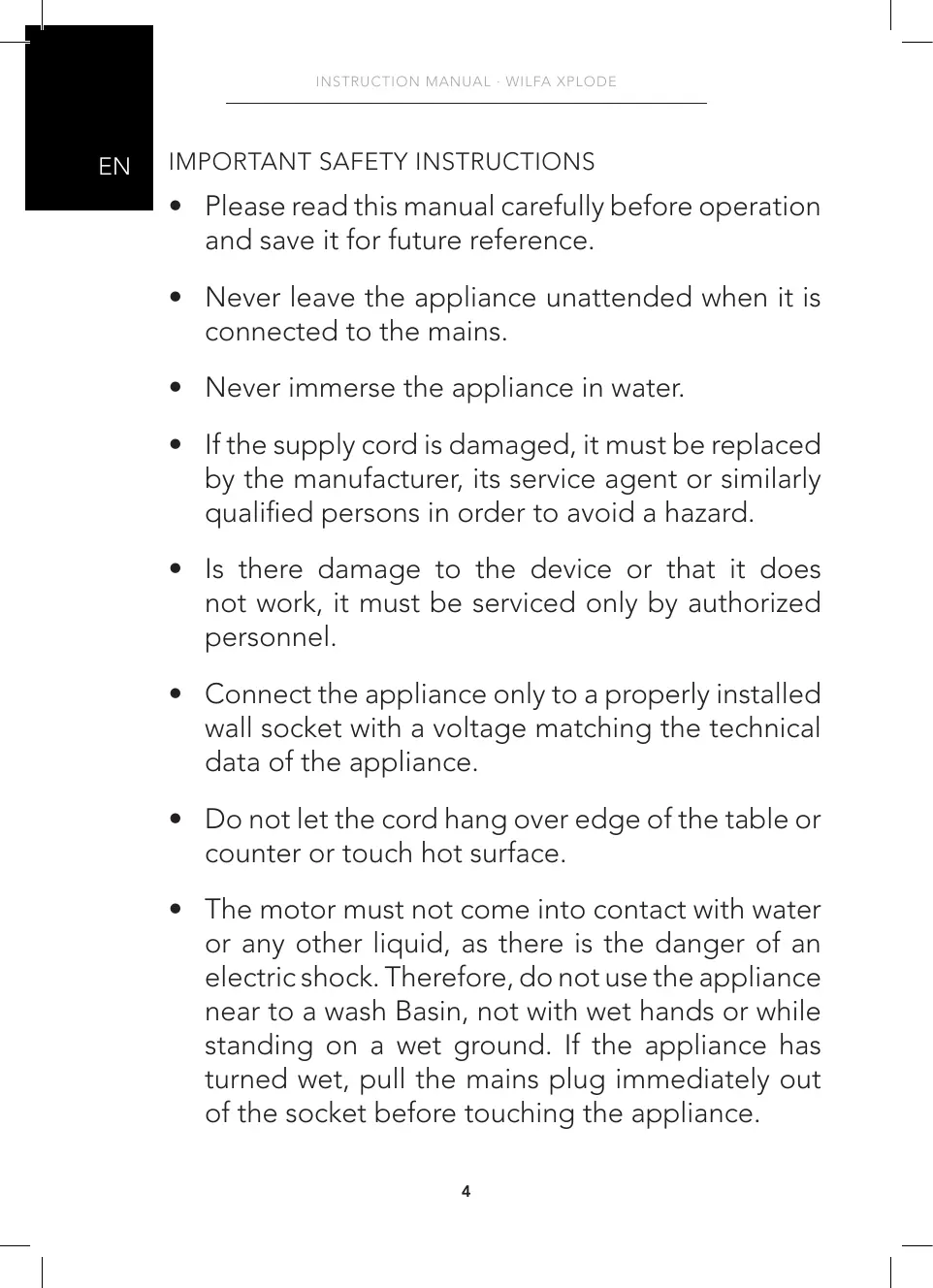

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.

• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.

• Do not use the appliance outdoors.

• This product is intended for household use and not for commercial use.
• Use the appliance only for the purpose it was designed for.
• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

EN

CAUTION

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

SAFETY PRECAUTIONS FOR YOUR TABLE BLENDER

• Operate the blender with lid closed
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off.
• Avoid overwork of motor.
• Handle carefully with glass jar.
• Never place your hands into the glass jar while the motor is on.
• Avoid contact with moving parts.

EN

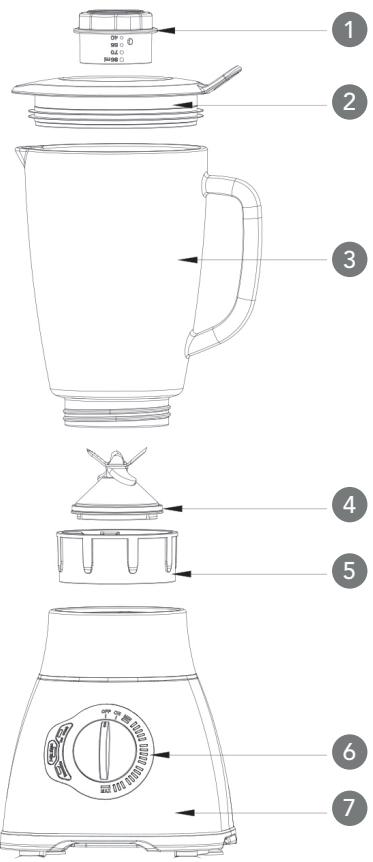

PRODUCT OVERVIEW

1. Measuring cup
2. Lid
3. Glass jar with level indication
4. Blade assembly unit
5. Blade assembly unit interface
6. Control panel
7. Motor unit

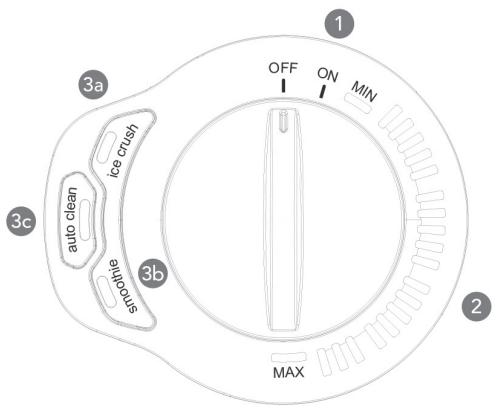

PRODUCT OVERVIEW - CONTROL PANEL

1. ON/OFF switch
2. Speed control (MIN -> MAX)
3. Quick-select button

a. Crush ice button
b.Smoothie button
c. Auto clean button

BUILT-IN SAFETY LOCK

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment).

Note that the blender has a protection device: The thermostat will be activated when the motor is overheated. The device will be re-set by unplug and re-plug the power plug to the socket around 30 minutes.

BEFORE FIRST USE

Clean the unit and parts thoroughly before you use the appliance for the first time.

EN

USING THE APPLIANCE

• To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated.
• To control the speed, turn the knob at between "MIN" & "MAX" position. The light will be illuminated at the desired position.
• To use the quick function, turn the knob to "ON" position. The light on the three buttons will start to blink.

CRUSH ICE BUTTON

Press this button to crush ice. The appliance starts crushing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for 30 seconds.

Warning: Do not add more than than 8pcs ice cubes (less than 20 × 20 × 20 mm size of the ice) in glass jar at a time.

SMOOTHIE BUTTON

Press this button to make delicious smoothies. The appliance starts mixing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

AUTO CLEAN BUTTON

Press the button to run the Auto mode. The appliance starts operating according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for 45 seconds. This function can be used to clean the product; you have to use water in the jar.

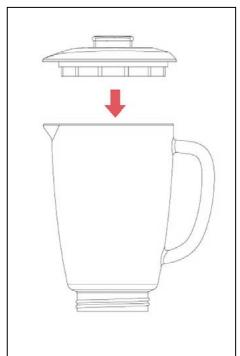

HOW TO USE THE GLASS JAR

1. Place the ingredients in the glass jar.
2. Place the lid on the jar and close it tightly.

1. Insert the measuring cup into the lid opening.

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 3 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance. Note that the glas jar can only withstand temperatures up to 90^ C.

AFTER USING THE BLENDER

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.
4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

CLEANING

Note: Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Damage on glass
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

220V~240V~50Hz, 1800 W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was purchased.

They can take this product for environmentally safe recycling free of charge.

NO

NO

INN HOLD

16 VIKTIGE SIKKERHETSINSTRUKSJONER
18 FORSIKTIG
19 FORHOLDSREGLER FOR BLENDEREN
20 PRODUKTOVERSIKT
21 PRODUKTOVERSIKT - KONTROLLPANEL
21 INNEBYGD SIKKERHETSLÅS
21 FØR FØRSTE GANGS BRUK
22 BRUK
23 ETTER BRUK AV BLENDEREN
23 RENGJØRING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

NO

• Les dette bra克斯anvisningen nøye För du bruker apparatet, og lagre den for fremtidig referanse.
• La aldri produit het vaere uten oppsyn mens den er koblet til strømnette!
• Ikke dypp apparatet i vann.
• Hvis ledningen er skadet, på den erstattes av produsenten, forhandleren eller tilsvarende kvalifisert personell forå unngå farlige situasjoner.
• Hvis apparatet er skadet eller ikke fungerer, på det bare repareres av autorisert personell.
• Koble Produktet kun til stikkontakter som er i orden og som matcher spennen gen som stär i detekniske spesifikasjonene.
• Ikke la ledningen hinges over kanten av bord aller benker, eller berøre varme overflater.

• Motorenmögenå不同程度 med vannEller andre væsker, da dette kan resultere i elektrisk sjokk. Bruk derfor ikke Produktet iærheten av vasker, eller när du ervat på hendene eller står på vätt underlag. Hvis Produktet er blitt vätt, mA du trekke stoppslet ut av kontakten med en gang (og før du tar i Produktet).

• Ikke til bruk utendørs.

• Dette Produktet er kun beregnet til bruk i private husholdninger og/DDke til kommersielt bruk.
• Bruk produitet kun til det som det er laget for.
• Ikke bruk dette produit het vs det er synlige skader på det, eller hvis produits har falt i gulvet.
• Trekk alltid ut stikkontaktenningar apparatet ikke er iBruk, før montering eller demontering og ved rengjøring.
• Dette apparatet skal ikke händteres av barn. Apparatet og apparatets strømledning på oppbevares utenfor barnsrekkevidde.
• Apparatet kan brukes av personer med nedsatte fysisiske, sansemessige eller mentale evner uller mangel på erfaring og kunnskap, hvis de er under tilsyn av uller har fätt anvisninger om sikkerBruk av apparatet og er klar over farene forbundet medBruk.
  Barn skal ikke leke med apparatet.
• Rengjøring og vedlikehold skal ikke utføres av barn, medindre de er over 8 År og under tilsyn.

NO

FORSIKTIG

INNEBYGD SIKKERHETSLÅS

CARACTERISTIQUES DU PRODUIT

220 V~ 240 V~50 Hz, 1800 W

ASSISTANCE ET PIECES DETACHEES

NcIIOJIb3OBAHHe CTEKJIaHHOrO KYBUnHa

1.Помecтnte INHrpdeNHeTHb BCTeKJIaHHbI KYBUnH.
2. YctaHOBInTe KpbIshky Ha KyBUnH nIIOTHo ee 3akpoTte.

1. BCTaBbTe MepHyu yaShky B OTbEpCTne B KpbIiKe.

1. BbI6epnte ckopoctb c nOMoUy pUKN ynpaBHeHn nn HaxMnte KhoNky 6blcTporo BbI6opa.

Примочанe: He Дonyсту Спгельную paobTu yctpoiCTBaВ Teueнe 6олee 3 Мнут. Дайу усту CTBy Ocblы Do KOMHaTHoI TempepaTybl, пжде чem Ррджить erO ЗкплУаТAUIO. ⓔРaTte BHNMaHne, YTO CTeKJIaHHbI KByuHMH MoKET BbIepKINBaTb TempepaTpy He 6oIee 90 °C.
