USER MANUAL DU 623 IX BOMANN

HOUSEHOLD- BUILT-IN COOKER HOOD

Introduction. Page 15
General Notes. Page 15
Special safety Information for this Unit.
Unpacking the Appliance.. Page 17
Overview of the Appliance.. Page 17
Installation.. Page 18
Startup / Operation.. Page 21
Cleaning and Maintenance.. Page 21
Repairs. Page 23
Troubleshooting.. Page 23
Technical Data.. Page 23
Disposal. Page 25

Einleitung

Montage and the Wand

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity. Do not use the appliance with wet hands.
• Do not operate the machine without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and if possibly disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possibly the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• Attention! Accessible parts of the appliance may become hot when used with cooking utensils.
• Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.
• Open the gas supply at gas stoves only when cookware is on the stove. Risk of fire! The filter can be damaged.
• Food during frying should be constantly supervised. By overheated oil can arise a fire hazard.
• Do not check the filter condition while the hood is in operation.
• NEVER use the appliance without fixed aluminum grease filter.
• If the cooker hood and other devices which are powered b other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa (4x10 ^-5 bar).
• Regulations concerning the discharge of air have to be fulfilled.
• Follow the installation instructions. Note the instructions that we give you in the chapter "Installation".
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter "Cleaning and Maintenance". There is a risk of fire if cleaning is not carried out according to these instructions.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filler, cable holder and cardboard packaging.
3. To prevent hazards, check the appliance for any transport damage.
4. In case of damage, do not put the appliance into operation. Contact your distributor.

iNOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

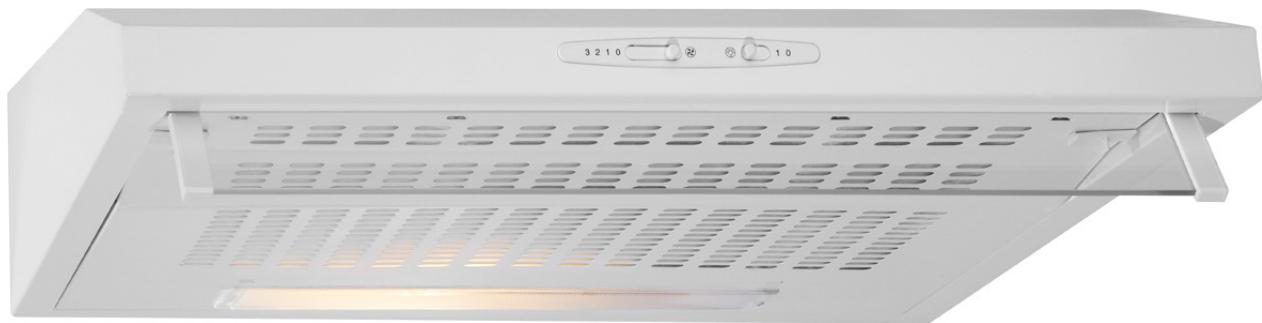

Overview of the Appliance

NOTE: The original appliances may differ from the appliances pictured here.

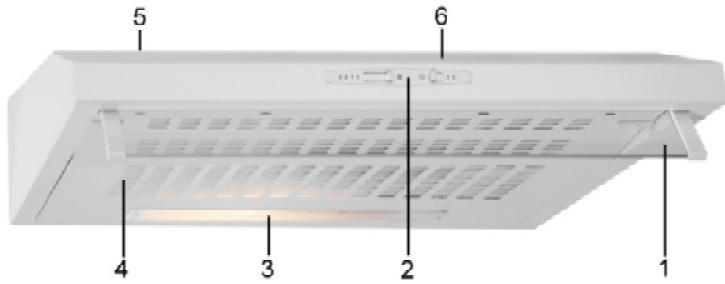

Model:DU 622.1

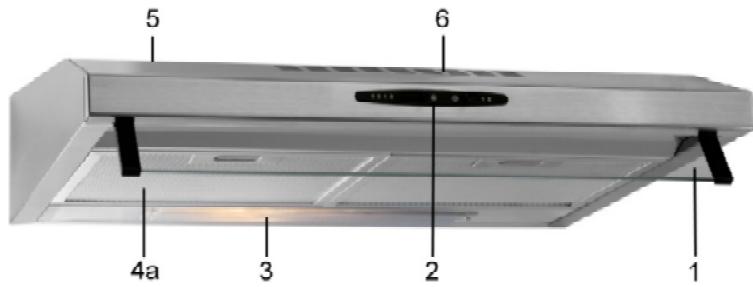

Model:DU 623.1 IX

1	Glass canopy, foldable
2	Control panel
3	Lighting
4	Grease filter grid with fleece filter
4a	Aluminum grease filter
5	Air outlet Ø 120 mm
6	Air outlet for recirculation mode

Supplied parts

1 x connecting piece with non-return valves Assembly material incl. drill template

1 x cover for extraction outlet

Installation

There must be a safety distance between the hotplate of the cooking pot on the hob and the bottom part of the extractor hood:

The distance must be between 60 - 75cm . For gas appliances, the distance must be at least 65~cm . If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outlet

You can operate the extractor hood as described below in two modes.

A: Extraction mode

B: Recirculation mode

To do this, the lever that is located on the motor fan unit is to set in the corresponding position.

Set the connection piece for the extraction mode and the cover for the recirculation mode onto the air outlet. Read the instructions that we give you in "Assembly" as well.

Extraction mode

WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odours to the outside.

• The extracted air is normally vented vertically. If there is a suitable loft space above your kitchen, the extracted air is vented through the wall units and the loft floor to the roof ridge.
• If there is a conduit in your kitchen under the wall units the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; the filtered air is released back into the room). In this case, an activated carbon filter mat as described under "Installing the activated carbon filter mat for recirculation mode", must be used.

The activated carbon filter mat is not supplied. You can order the carbon filter mat from your dealer or in our online accessories shop, www.bomann.de. To order, use the reference number found under "Technical Data".

Assembly

WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter mat, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock.

CAUTION:

• Before mounting, check that the wall or wall unit has sufficient load capacity to bear the extractor hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
• Make sure that the vents are clear of obstacles and are not covered.

NOTE: Recommendations for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.

1	2	3	4	5	6

Mounting at the wall

Mounting below the wall unit

• The hood is mounted at the wall or below a suitable wall unit. Determine the position of the extractor hood centrally above the hob in conformance with the specified safety distances.
• Remove the grease filter grid or aluminum grease filter (depending on the model).
• Select the fume outlet and set the lever to the appropriate position, see "Selecting the fume outlet".

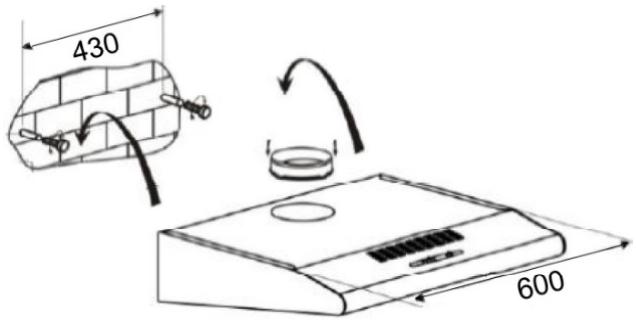

Mounting at the wall

• Mark the necessary holes for the wall mounting by using the supplied drill template and check them with a spirit level.
• Drill two mounting holes 8 mm into the wall and insert the dowel pins (1). Then rotate the mounting screws (2) as far as these stick out about 4 mm from the wall.
• Suspend the hood and tighten the screws through the hood body. Check the secure fitting and horizontally position.

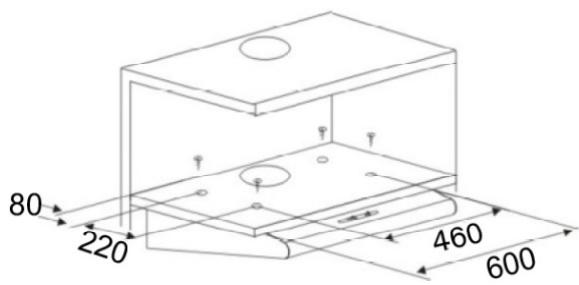

Mounting below the wall unit

• Hold the hood to the specified cabinet position and draw the drilling points from the inside of the unit corresponding to the four screw holes. Check them with a spirit level.

• For extraction mode, you must also create a feed through of approx. 130 mm in the base of the unit.

• If the mains cable is fed through the unit, a feed through also must be provided.

• Drill four mounting holes of 4 mm through the base of the unit. Screw in the appliance with the screws including washers (3) under the wall unit and tighten the nuts (4) through the hood body.

• For extraction mode insert the connecting piece with non-return valves (5) from above onto the air outlet. Thereto a flexible extraction hose (not supplied) with an inner diameter of 120 ~mm must be fitted and connected to the outside by an extraction vent.

• For recirculation mode close the air outlet by putting on the cover (6).
• Reinstall the grease filter grid or aluminum grease filter.

Installing the activated carbon filter mat for recirculation mode

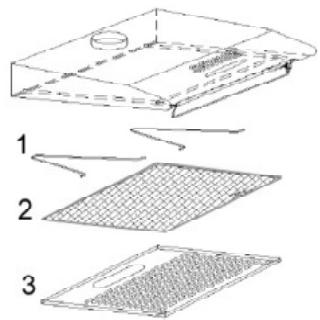

Model:DU 622.1

• Remove the grease filter grid (3) including fleece filter. Loosen the mounting wires (1) that hold the fleece filter in position.
• Insert the previously fitted carbon filter mat (2) onto the fleece filter and clamp the mounting wires in again.
• Reinstall the grease filter grid with fixed fleece filter and carbon filter mat.

Model:DU 623.1 IX

• Remove the aluminum grease filter (1).
• Insert the previously fitted carbon filter mat parts onto the grease filter and fix the mat parts each with two metal struts (2) (supplied with the carbon filter mat).
• Reinstall the aluminum grease filter with fixed carbon filter mats.

NOTE:

The carbon filter mat absorbs odours and must be replaced at least every six months regardless of use.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured in order to disconnect the appliance from the power supply in case of an emergency.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.

Startup / Operation

The extractor hood is operated via two slide switches. The lighting as well as the fan settings must be switched on and off with the corresponding switches.

Fan:

0 Fan off

The motor begins to run at low speed. This setting is suitable for cooking on a low flame and for dishes which produce no or little steam, in order to circulate the air around the kitchen.

2 Power level:

The motor runs at moderate speed. This setting is suitable for normal cooking.

3 Power level:

The motor runs at high speed. The setting is suitable if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

NOTE:

If a lot of vapour is produced, the fan should be left running for a few minutes after cooking. Only leave the fan running if absolutely necessary, since otherwise unnecessary energy is consumed.

Cleaning and Maintenance

The appliance and the operation thereof are best maintained by regular cleaning of your extractor hood as well as the filter. The extractor hood and accessories should also be cleaned regularly for hygiene reasons.

WARNING:

• Before cleaning or maintenance work, the device should always turn off and disconnect the mains plug or switch off the fuse.
• Allow the unit to cool down before cleaning.
• Do not uses steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The device must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.

• Do not use any acidic or abrasive cleaners.

• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.

• The appliance can be used again after everything has dried properly.
• If you use your extractor hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

Cleaning the aluminum grease filter (depending on the model)

WARNING: Risk of fire!

Grease residues in the aluminum grease filter may ignite on exposure to high temperatures. It is therefore important that the grease filter is regularly cleaned / replaced.

Grease and vapours collect in the filter and may accumulate if not regularly cleaned. We recommend that you clean the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the grease filter in the solution.
• Then clean with a soft brush, rinse thoroughly with hot water and leave to dry.
• Alternatively, the grease filter can also be cleaned in the dishwasher (up to 60^ ). Slight discoloration may occur in the dishwasher. This does not affect the function of the grease filter.

Replacing the activated carbon filter mat

The activated carbon filter mat absorbs odours and must be replaced at least every six months, depending on use. Order the carbon filter mat from your dealer or in our online accessories shop, www.bomann.de. To order, use the reference number found under "Technical Data".

• See "Installing the activated carbon filter mat for recirculation mode".
• Remove and dispose the old carbon filter mat.

CAUTION:

The carbon filter mats must not be washed and reused!

Replacing the lighting

WARNING:

Allow the lamp to cool before replacing the lighting. Risk of burns!

• Use the correct lighting: 1 × 28 W (Type E14)
• Remove the grease filter grid or aluminum grease filter (depending on the model).
• Remove the faulty bulb and screw in new bulb.
• Reinstall the grease filter grid or aluminum grease filter.

Repairs

A wrong or improperly performed repair brings danger to the user.

Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Troubleshooting

Before you contact an authorized specialist

The following problems can be solved by you by checking for the possible cause.

Problem	Possible cause	Solution
The appliance is not working or does not work properly	- Is the unit not connected to mains power?- Have you set the power level?	- Insert the plug properly in the contact sock-et. Check the fuse.- Check the setting.
The appliance does not run efficiently	- Have you set the correct power level?- Are the grease filter dirty?- Are the carbon filter needed for recirculation (correctly) installed?- Is the air outlet required for extraction mode clear?	- Check the setting. The kitchen is not proper-ly ventilated.- Clean the grease filter (see “Cleaning the aluminum grease filter”).- Check the carbon filter (see “Replacing the activated carbon filter”).- Check the air outlet.
The lighting does not work	The lighting is faulty, was incorrectly installed, lamp not secure in the fitting.	Check the lighting (see “Replacing the light-ing”).
Oil dripping from the appliance	The grease filter are dirty.	Clean the grease filter.

NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Model	DU 622.1 / DU 623.1 IX
Wall flue	60 cm wide
Power supply	220-240 V~, 50 Hz
Lighting	1 x 28 W (Type E14)
Power rating	128 W
Protection class	II
Appliance dimensions H x W x D	13.5 x 60.0 x 50.0 cm
Duct dimensions H x W x D	approx. 6.0 kg

Overview of dimensions, figures in mm

Activated carbon filter mat for recirculation mode (not supplied)

KFM 565 (Part no. 256 500)

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household cooker hoods according to regulation (EU) No. 65/2014

Brand		Bomann
Model		DU 622.1 / DU 623.1 IX
Annual Energy Consumption (AEChood)	kWh/a	85.6
Energy Efficiency class1)		E
Fluid Dynamic Efficiency (FDEhood)		3.4
Fluid Dynamic Efficiency class2)		G
Lighting Efficiency (LEhood)	lux/W	2.0
Lighting Efficiency class3)		G
Grease Filtering Efficiency	%	76.3
Grease Filtering Efficiency class4)		C
Air flow at minimum speed in normal use	m3/h	136.6
Air flow at maximum speed in normal use	m3/h	170.8
Air flow in use at intensive or boost setting	m3/h	-
A-weighted sound power emission in normal use
- at minimum speed	dB	61
- at maximum speed	dB	63
A-weighted sound power emission in use at intensive or boost setting	dB	-
Power consumption in off mode (Po)	W	-
Power consumption in standby mode (Ps)	W	-

1) A+ (highest efficiency) to F (lowest efficiency)
3) A (highest efficiency) to G (lowest efficiency)
2) A (highest efficiency) to G (lowest efficiency)
4) A (highest efficiency) to G (lowest efficiency)

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the appliance out of operation or dispose it.

BOMANN

C. Bomann GmbH

www.bomann.de

Made in P.R.C.
