DU 670 IX - Range hood BOMANN - Free user manual and instructions

Product Type	Range hood
Brand	Bomann
Model	DU 670 IX
Dimensions (Hood Body)	5.0 x 60.0 x 45.0 cm
Dimensions (Telescopic Shaft)	50.0 - 100.0 x 20.5 x 24.0 cm
Net Weight	Approx. 6.5 kg
Mains Voltage	220-240 V~, 50 Hz
Power Consumption	27 W
Lighting	LED, 2 x 1 W
Energy Efficiency Class	B
Annual Energy Consumption	18.4 kWh/a
Airflow (Min/Max)	240.0 / 282.6 m³/h
Noise Level (Min/Max)	63 / 67 dB
Grease Filtering Efficiency	62.9% (Class E)
Grease Filter	Aluminum, washable in dishwasher up to 60°C
Carbon Filter (Optional)	Model KF 568 (Art.-No. 256 800) for recirculation mode
Operating Modes	Extraction (ducting) or recirculation (with carbon filter)
Safety Distance (Electric Hob)	At least 60 cm
Safety Distance (Gas Hob)	At least 65 cm
Controls	Push buttons: 3 speed levels + light on/off
Protection Class	I
Included Accessories	Outer/inner duct, mounting material, drilling template
Installation	Wall-mounted, with telescopic duct cover
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - DU 670 IX BOMANN

What is the minimum safety distance between the hob and the cooker hood?

For electric hobs the distance must be at least 60 cm. For gas hobs it must be at least 65 cm. If the gas cooker's instructions specify a greater distance, that must be observed.

Can I use the cooker hood without a grease filter?

No, never use the appliance without the fixed aluminum grease filter. The filter must be installed to catch grease and prevent fire hazards.

How do I clean the aluminum grease filter?

Clean the filter monthly. Remove it by sliding back the lock and pulling it out. Wash in hot water with neutral detergent (or in a dishwasher up to 60°C). Rinse thoroughly and allow to dry before reinstalling.

What type of lighting does the hood use and how do I replace it?

The hood uses LED lamps (2 x 1 W). To replace, turn off power and allow lamps to cool. Carefully remove the lamp with a suitable tool, disconnect, replace, and reconnect. Order from dealer or online.

Can I operate the hood in recirculation mode?

Yes, if you do not have an external vent, you can use recirculation mode. You must install an activated carbon filter (model KF 568) to absorb odors. The filter should be replaced at least every 6 months.

What is the maximum airflow and noise level?

At maximum speed, the airflow is 282.6 m³/h and the noise level is 67 dB. At minimum speed, airflow is 240.0 m³/h at 63 dB.

How do I install the cooker hood?

Installation requires two persons. Mark holes using the drilling template, drill and insert dowels, hang the hood, then attach the telescopic ducts. For extraction mode, connect a flexible hose (∅120 mm). Follow the safety distances and ensure proper electrical connection.

What should I do if the hood is not working efficiently?

Check the power level setting. Ensure the kitchen is well ventilated. Clean the grease filter and if in recirculation mode, check or replace the carbon filter. Also verify the air outlet is not blocked.

Can I flambé under the cooker hood?

No, never flambé under the cooker hood due to fire hazard. Always supervise frying and never leave hot oil or fat unattended.

What is the annual energy consumption and energy class?

The annual energy consumption is 18.4 kWh/a and the energy efficiency class is B under EU regulation 65/2014.

USER MANUAL DU 670 IX BOMANN

Modern stainless steel kitchen range hood with ventilation grilles and a chimney (no visible text or symbols)

Special safety Information for this Unit......Page 13

Unpacking the Appliance......Page 15

Appliance Equipment......Page 15

Installation......Page 16

Startup / Operation......Page 17

Cleaning and Maintenance......Page 18

Troubleshooting......Page 19

Technical Data......Page 19

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these Instructions for Usee Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOL highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

IOTENOTE

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

• The appliance is only to be used as described in the user manual. Do not use the appliance for any use other purpose. Any other use is not intended and can result in damages or personal injuries.

• Operate the appliance only properly installed. properly installed

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

- Note to your cooking appliance the manufacturer's instructions whether the operation of a cooker hood is allowed above it and possibly what safety distance must be maintained.

For the extraction mode: For the extraction mode:

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• If the cooker hood and other devices which are powered other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa (4x10 ^-5 bar).
• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• The requirements of the competent local authorities must be observed.

- Observe and follow further installation instructions that we give you in the chapter "Installation".

- ATTENTION: ATTENTION parts of the appliance may become hot when used with cooking utensils.

- Do not flambé under the cooker hood! You can fry under the hood due to fire hazard fire-hazeled constant observation.

- Never allow a gas hotplate burning without cookware. Excess heat can damage the cooker hood.

- Overheated fats and oils can ignite easily. Never walk away from fat and oil when heating them.

- Do not check the filter condition while the hood is in operation.

- NEVER use the appliance without fixed aluminum grease filter.

- This appliance can be used by children-read from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance use of a free appliance understand the hazards involved.

• ChildrenShidrent play with the appliance.
• Cleaning and user maintenance shall maintain made by children or older, they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and Maintenance”. There is a risk risk of fire of cleaning is not carried out according to these instructions.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Unpacking the Appliance Unpacking the Appliance

Appliance Equipment Appliance Equipment

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

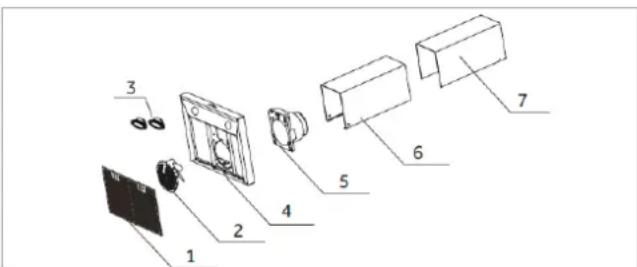

Appliance overviewAppliance overview

1 Aluminum grease filter
5 Connecting piece
2 Motor unit
6 Outer duct
3 LED-lighting
7 Inner duct
4 Hood body

Delivery scope

1 x outer (lower) duct, 1 x inner (upper) duct (with ventilation slots), incl. Installation material and drilling template

Installation Installation

There must be a safety distance between the hot-plate of the cooking pot on the hob and the bottom part of the cooker hood:

Activated carbon filter are not supplied. You can order the carbon filter from your dealer or in our online accessories shop, www.bomann.de To order to use the reference number found under "Technical Data".

The distance must be between 60 The distance gass75c between 60 AssemblyAssembly

appliances, the distance must be at least 65 cm. Appliances, the distance must be at least 65 cm.

the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outletSelecting the fume outlet

You can operate the cooker hood in two modes:

Extraction mode Extraction mode

WARNING: WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odours to the outside.

The extracted air is normally vented vertically. The extracted air can vented through the wall units and the loft floor to the roof ridge.

If there is a conduit under the wall units, the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; the filtered air is released back into the room). In this case, an activated carbon filter as described under "Installing the activated carbon filter for recirculation mode", must be used.

WARNING:WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the power supply.
• Failure to use the mounting fixtures may lead to a risk of electric shockrisk of electric shock

CAUTION:

• Before mounting, check that the wall has sufficient load capacity to bear the cooker hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
• Make sure that the ventilation slots are clear of obstacles and are not covered.

NOTE: Recommendations for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.
• Determine the position of the cooker hood centrally above the hob in conformance with the specified safety distances.
• Align the drilling template and mark the necessary holes for the wall mounting. Check them with a spirit level.

- Drill mounting holes 4 x ∅8 mm and insert the dowel pins.

• Turn the screws 4 x ST4*25 mm as far as these stick out about 10 mm from the wall.
• Hang up the hood. Check the secure fitting, the horizontal position and tighten first the upper and then the lower screws through the hood body.
• Remove the protective foil from the ducts.
• Put on the outer (lower) duct and fix it laterally to the hood with the screws 2 x ST4*8.

For the extraction mode: For the extraction mode:

• Attach a flexible extraction hose (not supplied) with an inner diameter of ∅120 mm onto the connecting piece.
• Slide the inner (upper) duct along the slide fixture into the outer (lower) duct. Make sure that the inner duct is aligned with the vents at the top.
• Determine the extension length of the duct cover by pulling up the inner duct or sliding back into the outer duct.

- Attach the mounting rail at the upper duct ending. Drill mounting holes 2 x ∅8 mm and insert the dowel pins. Use the screws 2 x ST4*25 mm to secure the rail.

For the extraction from the extraction

• Check the correct position of the flexible extraction hose and connect it with the extraction outlet to the outside.
• Pull the inner duct upwards and fasten the duct

cover laterally to the previously mounted rail using the screws 2 x ST4*10 mm.

Installing the activated carbon filter ring and saturated carbon recircum modemode

• Remove the aluminum grease filter.
• Place the carbon filter onto the air intake of the extraction duct. Make sure that the mounting pins on the extraction duct engage the mounting slots of the carbon filter. Turn the filter clockwise until it clicks into place.
• Reinstall the aluminum grease filter.

Electrical connection Electrical connection

WARNING:WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shockshock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / OperationStartup / Operation

The cooker hood is operated via push buttons.

Power level Power level

0 off

1 low

2 medium

3 high

Lighting

on / off

SettingsSettings

1 Power level Switchable for cooking on a low flame and for dishes which produce no or little steam, in order to circulate the air around the kitchen.
2 Power levelPSwible for normal cooking.
3 Power level Switch level of large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

i NOTENOTE

With very strong vapor emission, the fan should continue running after cooking for a few minutes.

Cleaning the aluminum grease filter

⚠️ WARNING: Risk of fire!

Grease residue in aluminum grease filter may ignite at intense heat. Therefore, clean the grease filter regularly!

We recommend cleaning the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the filter in it.
• Then clean with a soft brush, rinse thoroughly with hot water and allow drying.

Cleaning and Maintenance and Maintenance. Alternatively, the grease filter can also be cleaned

WARNING: WARNING:

• Always turn off the appliance and disconnect it from the power supply before cleaning and user maintenance.
• Allow the appliance cool down sufficiently!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Risk steel electric shock leakage the plastic parts.
• The appliance must be dry before restarting operation.

△ CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.

Maintenance of the hood Maintenance of the hood

• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.
• The appliance can be used again after everything has dried properly.
• If you use your cooker hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

in the dishwasher (up to 60°C). Slight discoloration may occur. This does not affect the function of the grease filter.

Replacing the activated carbon filter

The activated carbon filter prevent odors and must depend on the use, but be changed at least every six months.

Order the carbon filter from your dealer or in our online accessories shop, www.bomann.de. Use the reference number found under “Technical Data”.

• See "Installing the activated carbon filter for recirculation mode".
• Remove the old carbon filter by turning the filter anti-clockwise.

Replacing the bulbthe bulb

WARNING: WARNING:

Allow the lamps to cool down before replacing the bulbs. Risk of burns!

i NOTENOTE

Oder the lamps from your dealer or in our online accessories shop www.bomann.de.

Three sequential line drawings of a cabinet or enclosure with hanging weights, shown from different angles (no text or symbols)

Lamp specification: LED, 2 x 1 WLamp specification:

• Carefully remove the lamp with a suitable tool.
• Pull out the lamp and disconnect the lamp from the connecting cable.
• Change the lamp.
• Reconnect the cable with the lamp.
• Replace the lamp properly.

Dimension H x W x D / Weight....

Hood body: 5.0 x 60.0 x 45.0 cm

Telescopic shaft: ....50.0 - 100.0 x 20.5 x 24.0 cm

Net weight: approx. 6.5 kg D, 2 x 1 W

Available accessory....

Activated carbon filter for recirculation mode: ...... KF 568 (Art.-No. 256 800)

The right to make technical and design modifications in the course of continuous product development remains reserved.

Troubleshooting@bleshoo

Before you contact an authorized specialist Before you

ProblemPossible	Caussable Solution / SolutionPossible Ca
Appliance is not working or not properly	- Check the power supply.- Check the power level.
Appliance is not working efficiently	- Check the power level.- Is the kitchen properly ventilated?- Clean the grease filter.- At recirculation mode, check the carbon filter.- Check the air outlet.
Light is not working	Check the bulb, see “Replacing the bulb”.
Oil is dripping Clean the grease filter.

i NOTE:

If you are still having problems after following steps above, contact your trader or an authorized technician.

Technical Data

Electrical connection....

Mains voltage: 220-240 V\~

Mains frequency: 50 Hz

Power consumption: 27 W

Lighting, LED: 2 x 1 W

Protection class: ....I

Product Information for household cooker hoods according to regulation (EU) No. 65/2014

Brand	BOMANN
Modeln	DU 670 IX
Annual Energy Consumption (AEChood)	18.4 kWh/a
Energy Efficiency class	B
Fluid Dynamic Efficiency (FDEhood)	6.5
Fluid Dynamic Efficiency class	F
Lighting Efficiency (LEhood)	44 lx/W
Lighting Efficiency class	A
Grease Filtering Efficiency	62.9 %
Grease Filtering Efficiency class	E
Air flow at minimum speed in normal use	240.0 m3/h
Air flow at maximum speed in normal use	282.6 m3/h
Air flow in use at intensive / boost setting	- m3/h
A-weighted sound power emission in normal use:
- at minimum speed	63 dB
- at maximum speed	67 dB
A-weighted sound power emission in use at intensive or boost setting	- dB
Power consumption in off mode (Po)	0.00 W
Power consumption in standby mode (Ps)	- W

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®
