Product Type	Range Hood
Brand	Bomann
Model	DU 623.2
Width	60 cm
Depth	50 cm
Height (without chimney)	10 cm
Weight	8.5 kg
Power Supply	220-240 V, 50 Hz
Rated Power	150 W
Extraction Rate (max)	480 m³/h
Noise Level (max)	55 dB
Energy Class	A
Type of Installation	Wall-mounted
Control Type	Slider or Push Buttons
Lighting	2 x 2 W LED
Grease Filter	Aluminum mesh (washable)
Carbon Filter	Optional (sold separately)
Operation Modes	Ducting or Recirculation
Maintenance	Clean grease filter monthly; replace carbon filter every 3-6 months
Safety Features	Overheat protection; auto shut-off
Spare Parts Availability	Grease filters, carbon filters, LED bulbs available

Frequently Asked Questions - DU 623.2 BOMANN

How do I install the Bomann DU 623.2 range hood?

Installation should be carried out by a qualified technician. Ensure the hood is mounted at least 65 cm above the cooking surface. Use the provided template to mark screw positions, drill holes, and secure the hood with the included screws. Connect the ducting for external exhaust or install a carbon filter for recirculation.

How often should I clean the grease filter?

The aluminum mesh grease filter should be cleaned at least once a month, or more frequently if you cook heavily. Remove the filter and wash it in warm soapy water or in a dishwasher at low temperature. Dry thoroughly before reinstalling.

Can I use the hood without a carbon filter?

Yes, if the hood is connected to an external duct, the carbon filter is not needed. However, if you use the recirculation mode, a carbon filter (sold separately) is required to absorb odors.

How do I replace the LED light bulb?

First, disconnect the power. Remove the lamp cover by prying it gently with a flat screwdriver. Pull out the defective LED bulb and insert a new one of the same type (2 W, 12 V). Reattach the cover and restore power.

What is the noise level of this range hood?

The noise level at maximum speed is approximately 55 dB, which is comparable to a quiet conversation. At lower speeds, it is even quieter.

Does the DU 623.2 come with a remote control?

No, the DU 623.2 does not include a remote control. It is operated via a slider or push buttons on the front panel.

What are the dimensions of the hood?

The width is 60 cm, depth is 50 cm, and height without the chimney is 10 cm. The overall installed height with chimney varies based on ceiling height.

How do I switch between ducting and recirculation mode?

For ducting mode, connect the exhaust outlet to an external duct. For recirculation, install a carbon filter inside the hood and ensure the air outlet is directed back into the room through the top grille.

What should I do if the hood stops working suddenly?

Check if the power cord is plugged in and the circuit breaker is on. If it still doesn't work, the overheat protection may have activated. Let the motor cool down for 30 minutes then try again. If the problem persists, contact customer service.

Can I wash the carbon filter?

No, carbon filters are not washable. They should be replaced every 3 to 6 months depending on usage. Replace when the filter is saturated and odors become noticeable.

USER MANUAL DU 623.2 BOMANN

HOUSEHOLD - BUILT-IN COOKER HOOD

Exterior view of a white kitchen air conditioner unit with ventilation grilles and control panel (no text or symbols visible)

Special safety Information for this Unit....Page 17

Unpacking the Appliance......Page 18

Overview of the Appliance....Page 18

Installation......Page 18

Startup / Operation....Page 21

Cleaning and Maintenance......Page 23

Repairs....Page 24

Troubleshooting......Page 25

Technical Data......Page 25

Line drawing of a kitchen appliance with a lid and handle, labeled A (no text or symbols on the diagram itself)

Technical line drawings of two mechanical components, one with a bracket and the other with a base and mounting holes (no text or symbols)

Diagram of a mechanical or architectural component with two curved arrows indicating direction (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARMINGNING

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:CAUTION

This refers to possible hazards to the machine or other objects.

NOTENDIT highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity. Do not use the appliance with wet hands.
• Do not operate the machine without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and if possibly disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possibly the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING: WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Uspecial safety Information fo

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• Attention! Attractable parts of the appliance may become hot when used with cooking utensils.
• Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.
• Open the gas supply at gas stoves only when cookware is on the stove. Risk of Risk of fireIfThe filter can be damaged.
• Food during frying should be constantly supervised. By overheated oil can arise a fire hazardfire hazard
• Do not check the filter condition while the hood is in operation.
• NEVER use the appliance without fixed aluminum grease filter.
• If the cooker hood and other devices which are powered b other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa ( 4 × 10^-5 bar).
• Regulations concerning the discharge of air have to be fulfilled.
• Follow the installation instructions. Note the instructions that we give you in the chapter "Installation".
• This appliance can be used by children and guide from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance. The appliance and understand the hazards involved.
• ChildrenChildrent play with the appliance.
• Cleaning and user maintenance must maintain a trade by children, children, they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and Maintenance”. There is a risk of fire or sick cleaning is not carried out according to these instructions.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Unpacking the Appliance Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filler, cable holder and cardboard packaging.
3. To prevent hazards, check the appliance for any transport damage.
4. In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

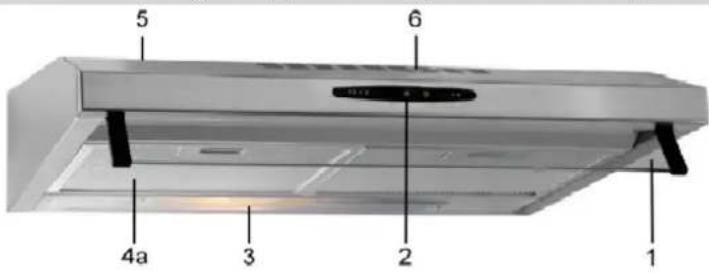

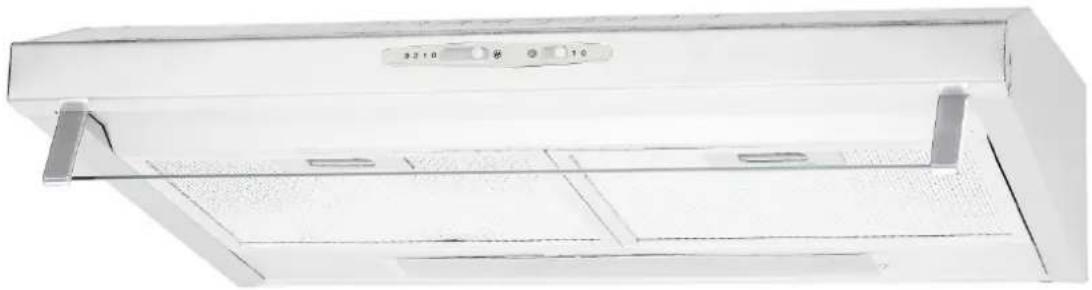

Overview of the Appliance Overview of the Appliance

i NOTENOTEoriginal appliances may differ from the appliances pictured here.

Supplied parts Supplied parts

1 x connecting piece with non-return valves

1 x cover for extraction outlet

Assembly material incl. drill template

1	Glass canopy, foldable
2	Control panel
3	Lighting
4	Grease filter grid with fleece filter
4a	Aluminum grease filter
5	Air outlet ∅ 120 mm
6	Air outlet for recirculation mode

Installation Installation

There must be a safety distance between the hotplate of the cooking pot on the hob and the bottom part of the extractor hood:

The distance must be between 60 must be before 80 appliances, the distance must be at least 65 cm. If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outlet Selecting the fume outlet

You can operate the extractor hood as described below in two modes.

A: Extraction mode

Line drawing of a kitchen appliance with a handle and a lid, labeled A (no text or symbols on the diagram itself)

B: Recirculation mode

Technical line drawings of two mechanical components, one with a bracket and the other with a base and mounting holes (no text or symbols)

To do this, the lever that is located on the motor fan unit is to set in the corresponding position.

Set the connection piece for the extraction mode and the cover for the recirculation mode onto the air outlet. Read the instructions that we give you in "Assembly" as well.

Extraction mode Extraction mode

⚠ WARNING:WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odours to the outside.

• The extracted air is normally vented vertically. If there is a suitable loft space above your kitchen, the extracted air is vented through the wall units and the loft floor to the roof ridge.
• If there is a conduit in your kitchen under the wall units the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the out side; the filtered air is released back into the room). In this case, an activated carbon filter mat as de scribed under "Installing the activated carbon filter mat for recirculation mode", must be used.

The activated carbon filter mat is not supplied. You can order the carbon filter mat from your dealer or in our online accessories shop, www.bomann.de. To order, use the reference number found under "Technical Data".

AssemblyAssembly

WARNING: WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter mat, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock.

CAUTIONCAUTION

• Before mounting, check that the wall or wall unit has sufficient load capacity to bear the extractor hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
  • Make sure that the vents are clear of obstacles and are not covered.

NOTENRECOMMENDATIONS for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.

1	2	3	4	5	6

Mounting at the wall

Mounting below the wall unit

• The hood is mounted at the wall or below a suitable wall unit. Determine the position of the extractor hood centrally above the hob in conformance with the specified safety distances.
• Remove the grease filter grid or aluminum grease filter (depending on the model).
• Select the fume outlet and set the lever to the appropriate position, see "Selecting the fume outlet".

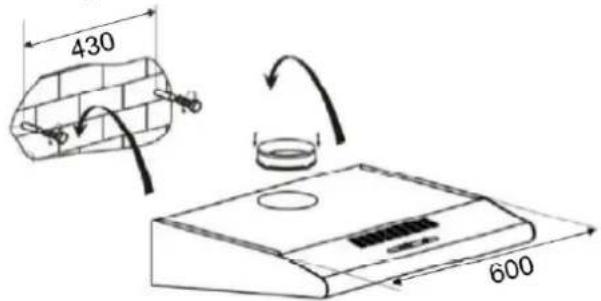

Mounting at the wallMounting at the wall

• Mark the necessary holes for the wall mounting by using the supplied drill template and check them with a spirit level.
• Drill two mounting holes ∅ 8 mm into the wall and insert the dowel pins (1). Then rotate the mounting screws (2) as far as these stick out about 4 mm from the wall.
• Suspend the hood and tighten the screws through the hood body. Check the secure fitting and horizontally position.

Mounting below the wall umitt

• Hold the hood to the specified cabinet position and draw the drilling points from the inside of the unit corresponding to the four screw holes. Check them with a spirit level.
• For extraction mode, you must also create a feed through of approx. ∅ 130 mm in the base of the unit.
• If the mains cable is fed through the unit, a feed through also must be provided.

• Drill four mounting holes of ∅ 4 mm through the base of the unit. Screw in the appliance with the screws including washers (3) under the wall unit and tighten the nuts (4) through the hood body.

• For extraction mode insert the connecting piece with non-return valves (5) from above onto the air outlet. Thereto a flexible extraction hose (not supplied) with an inner diameter of ∅ 120 mm must be fitted and connected to the outside by an extraction vent.

• For recirculation mode close the air outlet by putting on the cover (6).
• Reinstall the grease filter grid or aluminum grease filter.

Installing the activated carbon filter instaftingebicacactivatedodebonfirculation mode

Two technical diagrams showing a 3D panel layout with arrows indicating direction, no text or symbols present.

• Remove the aluminum grease filter (1).
• Insert the previously fitted carbon filter mat parts onto the grease filter and fix the mat parts each with two metal struts (2) (supplied with the carbon filter mat).
• Reinstall the aluminum grease filter with fixed carbon filter mats.

i NOTENOTE

The carbon filter mat absorbs odours and must be replaced at least every six months regardless of use.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock electric shock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured in order to disconnect the appliance from the power supply in case of an emergency.

- Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

- Connect the mains cable to a properly installed and earthed wall outlet.

Startup / Operation

Information to reduce the environmental effect of cooking

(acc. VO (EU) No. 66/2014 appendix I, No. 2)

Cooker hood Cooker hood

The diameter of the pot and pan floors should be according to the size of the cooking zone.

Use pans and pots with flat floors, uneven floors increase the energy consumption.

Ensure that there is sufficient supply air for the operation of the cooker hood.

Adjust the fan step intensity of the damp evolution of the cooking process.

To product the optimal effect of the cooker hood, install it according to the installation instructions. Keep the distance between the upper edge of the cooker and the lower edge of the cooker hood.

Clean the filter regularly.

Controll the active carbon filter regularly and renew it as required.

Switch off the cooker hood after use.

If your cooker hood has a switch-off delay, activate this function.

Switch off the lighting after the cooking process.

We recommend the use of biological cleaners.

Information to professional users for disassembly Information to professional users for disassembly

(acc. VO (EU) No. 66/2014 appendix I, No. 2)(acc. VO (EU) No. 66/2014 appendix I, No. 2)

Cooker hood Cooker hood

Information for non-destructive disassembly for maintenance purposes

Please remove the filter and lamps as described in the manual.

Further steps of disassembly for maintenance are not provided

If you would like to exchange defective components, please contact our customer service.

Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

Check that the unit is disconnected from the power supply before removing all filter from the hood.

First remove the chimney.

When disassembling the hood, be sure that you first loosen the lower and then the upper screws.

For the recycling and recovery of resources give the appliance, the lamps and the various filter to:

- a communal collection point of public waste disposal authorities

- a dedicated disposal company, offering a return system

- a resident electric trader, who voluntary withdraws electrical appliances

The extractor hood is operated via two slide switches. The lighting as well as the fan settings must be switched on and off with the corresponding switches.

F6an:Fan:

0 Fan off 1 Lowest fan setting 2 Moderate fan setting 3 Highest fan setting

Lighting: Lighting:

0 Lighting off 1 Lighting on

1 Power level Power level

The motor begins to run at low speed. This setting is suitable for cooking on a low flame and for dishes which produce no or little steam, in order to circulate the air around the kitchen.

2 Power level: Power level:

The motor runs at moderate speed. This setting is suitable for normal cooking.

3 Power level: Power level:

The motor runs at high speed. The setting is suitable if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

i NOTENOTE

If a lot of vapour is produced, the fan should be left running for a few minutes after cooking. Only leave the fan running if absolutely necessary, since otherwise unnecessary energy is consumed.

Cleaning and Maintenance

The appliance and the operation there of are best maintained by regular cleaning of your extractor hood as well as the filter. The extractor hood and accessories should also be cleaned regularly for hygiene reasons.

WARNING: WARNING:

• Before cleaning or maintenance work, the device should always turn off and disconnect the mains plug or switch off the fuse.
• Allow the unit to cool down be fore cleaning.
• Do not uses steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Effect site should damage the plastic parts. The device must be dry before restarting operation.

CAUTION:CAUTION

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.

- To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.

- The appliance can be used again after everything has dried properly.

- If you use your ex tractor hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

Cleaning the aluminum one-grease filter grease filter

⚠ WARNING: Risk of fire! WARNING: Risk of fire!

Grease residues in the aluminum grease filter may ignite on exposure to high temperatures. It is therefore important that the grease filter is regularly cleaned / replaced.

Grease and vapours collect in the filter and may accumulate if not regularly cleaned. We recommend that you clean the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the grease filter in the solution.
• Then clean with a soft brush, rinse thoroughly with hot water and leave to dry.

- Alternatively, the grease filter can also be cleaned in the dishwasher (up to 60°C). Slight discoloration may occur in the dishwasher. This does not affect the function of the grease filter.

Replacing the activated carbon filter replacing the activated carbon filter

The activated carbon filter mat absorbs odours and must be replaced at least every six months, depending on use. Order the carbon filter mat from your dealer or in our online accessories shop, www.bomann.de. To order, use the reference number found under “Technical Data”.

• See "Installing the activated carbon filter mat for recirculation mode".
• Remove and dispose the old carbon filter mat.

CAUTION:CAUTION:

The carbon filter mats must not be washed and reused!

Replacing the lightingReplacing the lighting

WARNING: WARNING:

Allow the lamp to cool before replacing the lighting. Risk of burns!

• Use the correct lighting: 11 x 28 W (Type E14)
• Remove the grease filter grid or aluminum grease filter (depending on the model).
• Remove the faulty bulb and screw in new bulb.
• Reinstall the grease filter grid or aluminum grease filter.

Repairs

A wrong or improperly performed repair brings danger to the user.

Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Troubleshooting Troubleshooting

Before you Befocteyou authorized specialist

The following problems can be solved by you by checking for the possible cause.

ProblemPossible	Possible causePossible cause	Solution
The appliance is not working or does not work properly	- Is the unit not connected to mains power?- Have you set the power level?	- Insert the plug properly in the contact socket. Check the fuse.- Check the setting.
The appliance does not run efficiently	- Have you set the correct power level?- Are the grease filter dirty?- Are the carbon filter needed for recirculation (correctly) installed?- Is the air outlet required for extraction mode clear?	- Check the setting. The kitchen is not properly ventilated.- Clean the grease filter (see “Cleaning the aluminum grease filter”).- Check the carbon filter (see “Replacing the activated carbon filter”).- Check the air outlet.
The lighting does not work	The lighting is faulty, was incorrectly installed, lamp not secure in the fitting.	Check the lighting (see “Replacing the lighting”).
Oil dripping from the appliance	The grease filter are dirty.	Clean the grease filter.

NOTE:NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Electrical connection....

Mains voltage: 220-240 V\~

Mains frequency: 50 Hz

Power consumption: 105 W

Lighting, LED: 1 x 28 W

Protection class: ....II

DimenSioneh x W x D / Weight....

Hood body: 13.5 x 60.0 x 50.0 cm

Net weight: ....approx. 6.0 kg

Available accessory....

Activated carbon filter for recirculation mode: ....

KFM 565 (Art.-No. 256 500) not supplied

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household cooker hoods according to regulation for (EU) No. 165/2014/05/2014ation (EU) No.

BrandBrand		BOMANNBOMANN
ModelModel		DU 023.223.2
Annual Energy Consumption (AECArea)	Annual Energy Consumption (AEC)	78
Energy Efficiency class		D
Fluid Dynamic Efficiency (FDEhood)	ood	6.6
Fluid Dynamic Efficiency class		F
Lighting Efficiency (LEhood)	lux/W	1.7
Lighting Efficiency class		G
Grease Filtering Efficiency	%	71.8
Grease Filtering Efficiency class		D
Air flow at minimum speed in normal use m3/h		139.4
Air flow at maximum speed in normal use	m3/h	192.4
Air flow in use at intensive or boost setting	m3/h	-
A-weighted sound power emission in normal use
- at minimum speed	dB	60
- at maximum speed	dB	68
A-weighted sound power emission in use at intensive or boost setting	dB	-
Power consumption in off mode (Po)	W	0
Power consumption in standby mode (Ps)	W	-

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the appliance out of operation or dispose it.

BOMANN®
