Product Type	Range Hood
Brand	Bomann
Model	DU 7601 G
Color	Stainless Steel
Installation Type	Wall-mounted
Width	600 mm
Depth	500 mm
Height (without chimney)	150 mm
Weight	12.5 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Number of Speeds	3
Max Airflow	650 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 40 W incandescent (optional LED)
Filter Type	Aluminum grease filter
Filter Cleaning	Dishwasher safe
Exhaust Outlet Diameter	150 mm
Controls	Push buttons
Energy Efficiency Class	B (according to EU 1254/2014)
Safety Features	Overheat protection
Spare Parts	Filters, bulbs, motor available

Frequently Asked Questions - DU 7601 G BOMANN

How do I install the Bomann DU 7601 G range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above an electric hob or 75 cm above a gas hob. Use the provided template to drill holes and secure the hood with anchor bolts. Connect the exhaust duct to the outlet.

How do I clean the grease filter?

Remove the aluminum filter and wash it in warm soapy water or in a dishwasher at low temperature. Allow to dry completely before reinstalling. Clean every 2-3 months depending on usage.

Can the range hood recirculate air?

Yes, the DU 7601 G can be used in recirculation mode with an optional charcoal filter. The filter absorbs odors and should be replaced every 3-6 months.

What should I do if the hood is noisy?

Check if the grease filter is clean and properly installed. Ensure the exhaust duct is not blocked or kinked. Also verify that the hood is mounted securely. Excessive noise may indicate a motor issue.

How do I change the light bulb?

Disconnect power. Remove the lamp cover (if any) and unscrew the old bulb. Replace with a new incandescent bulb (E14, 40W max) or compatible LED. Reattach cover and restore power.

What is the recommended maintenance schedule?

Clean the grease filter every 2-3 months. Replace charcoal filter (if used) every 3-6 months. Clean the hood surface with a mild detergent. Check duct connections periodically.

Can I use the hood without a duct?

No, for ducted mode the hood must be connected to an external exhaust. For recirculation, you need to install a charcoal filter and ensure the air outlet is directed back into the room.

Why does the hood not start?

Check if the power cord is plugged in and the circuit breaker is on. Ensure the speed button is pressed. If the motor hums but does not run, it may be jammed; contact service.

What spare parts are available?

Common spare parts include grease filters, charcoal filters, light bulbs, and the motor assembly. Contact Bomann customer service or authorized dealers for replacements.

How do I control the hood?

The hood has 3 push buttons for fan speeds (low, medium, high) and a button for the light. Slide switches or touch controls may vary; refer to the manual.

USER MANUAL DU 7601 G BOMANN

Modern stainless steel kitchen range hood with curved glass panel and ventilation grille (no text or symbols visible)

Special safety Information for this Unit......Page 15

Unpacking the Appliance......Page 17

Appliance Equipment......Page 17

Installation......Page 17

Startup / Operation......Page 20

Cleaning and Maintenance......Page 20

Troubleshooting......Page 22

Technical Data......Page 22

Installation Installation

Diagram of a brick wall with embedded rebar and arrows indicating construction direction (no text or symbols)

Bild 2 Bild 2

Diagram of a mechanical assembly with a cylindrical component and multiple springs, showing motion direction (no text or symbols)

Bild 2a

Bild 3 Bild 3

Diagram of a brick wall with a cylindrical component and attached paper, showing wiring or wiring connections (no text or symbols)

Bild 4 Bild 4

Technical line drawing of a brick wall with a vertical support structure and directional arrows (no text or symbols)

Technical line drawing showing a mechanical assembly with two views and a downward arrow (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these Instructions for Use:se Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

NOTENO highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

NOTENOTE

Illustrations can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any Use other purpose. Any other use is not intended and can result in damages or personal injuries.

- Operate the appliance only properly installed.

- Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.

- Do not operate the appliance without supervision.

- When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

- The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

- For safety reasons, alterations or modifications of the appliance are prohibited.

- To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

• Note to your cooking appliance the manufacturer's instructions whether the operation of a cooker hood is allowed above it and possibly what safety distance must be maintained.

For the extraction mode:

- Provision shall be made for adequate ventilation in the room when the

cooker hood is operated simultaneously with appliances that burn gas or other fuels.

• If the cooker hood and other devices which are powered other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa (4x10 ^-5 bar).
• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• The requirements of the competent local authorities must be observed.

- Observe and follow further installation instructions that we give you in the chapter "Installation".

- ATTENTION: ACCENTION parts of the appliance may become hot when used with cooking utensils.

- Do not flambé under the cooker hood! You can fry under the hood due to fire hazafide, by a constant observation.

- Never allow a gas hotplate burning without cookware. Excess heat can damage the cooker hood.

- Overheated fats and oils can ignite easily. Never walk away from fat and oil when heating them.

- Do not check the filter condition while operation.

- NEVER use the appliance without fixed aluminum grease filter.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance use of the appliance understand the hazards involved.

- ChildrenShidroot play with the appliance.

• Cleaning and user maintenance shall maintain a trade by children or milkers, they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and Maintenance”. There is a risk risk of fire of cleaning is not carried out according to these instructions.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

UnpackibnPackApplianceng the Appliance Delivery scope

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

1x aluminum grease filter, 1x 2-part chimney shaft, 1x exhaust hose, 1x connecting piece, 2x non-return valve, incl. Installation material and drilling template

Installation

There must be a safety distance between the hot-plate of the cooking pot on the hob and the bottom part of the cooker hood:

The distance must be between 65 – 75 cm. For gas appliances, the distance must be at least 65 cm. If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into

Appliance Equipment Appliance Equipment consideration.

Appliance overviewAppliance overview

1 Aluminum grease filter
2 Stainless-steel frame
3 Control panel
4 Motor unit
5 Hood body
6 Glass screen
7 Shaft unit

Selecting the fume outlet

You can operate the cooker hood in two modes:

Extraction mode

WARNING:

- The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.

WARNING: WARNING:

- When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odors to the outside.

The extracted air is normally vented vertically. The extracted air can vented through the wall units and the loft floor to the roof ridge.

If there is a conduit under the wall units, the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; the filtered air is released back into the room). In this case, activated carbon filter as described under "Installing the activated carbon filter for recirculation mode", must be used.

Activated carbon filter are not supplied. You can order the carbon filter from your dealer or in our online accessories shop, www.bomannvgembory.degEmany.de order, use the reference number found under "Technical Data".

AssemblyAssembly

WARNING:WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock risk of electric shock

CAUTION:CAUTION

- Before mounting, check that the wall has enough load capacity to bear the cooker hood.

CAUTIONCAUTION

• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
• Make sure that the ventilation slots are clear of obstacles and are not covered.

NOTENRecommended for preparation workendations for pre

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.

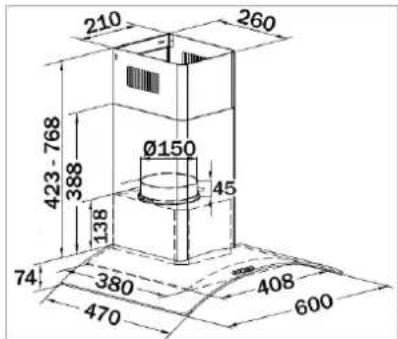

Drilling dimensions Drilling dimensions

Fig. Fig.

Fig.2g.

Diagram of a mechanical assembly with a cylindrical component and springs, no text or symbols present

Fig.129

Fig.13g.

Diagram of a brick wall with a cylindrical object mounted on a base, showing airflow or force direction (no text or symbols)

Fig. Fig.

Architectural diagram of a brick wall with a chimney and support structure (no text or symbols)

- Determine the position of the cooker hood centrally above the cooking area in accordance with the specified safety distances.

Totally 6x mounting holes with a diameter of approx. 8 mm are necessary for the wall mounting. Insert the supplied dowels (Fig. 1).(Fig. 1).

- First mark the holes required for fixing the hood body in accordance with the supplied drilling template. Check the markings with a water balance and make the holes.

- Turn in the upper screws 2x ST4*30mm for the suspension of the hood body so far that they project approx. 5 mm out of the wall.

- Fasten the bracket for the upper shaft termination with the screws 2x ST4*40mm after determining the extension length of the shaft cover.

• Before attaching the hood (Fig.(2)g.

- Fasten the glass screen with the screws 4x M4*20mm in the screw insert made of rubber together with washers on the hood body.

- Affix the connecting piece with inserted non-return valves from the top of the extraction duct with the screws 2x ST4*8mm. Insert the two non-return valves by lightly bending them from above into the connecting piece (Fig. 2a)(Fig. 2a)

For the exhaust Hose, the spray on a flexible exhaust hose (supplied) with an inner diameter of 150 mm must be attached. Secure the hose with the cable tie.

- Hang up the hood. Check the secure hold and the horizontal position. Tighten the lower screws 2x ST4*30mm through the hood body to secure the hood (Fig. 3)(Fig. 3)

For the exhaust hose: Be the cause deposition of the exhaust hose and connect it with the outlet opening.

- Fit the telescoping shaft unit. Pull up the inner shaft and fix the shaft cover to the side of the bracket using the self-tapping screws 2x ST4*8mm (Fig. 4) Fig. 4

Installing the activated carbon filter with a circular carbon recircum mode

- Remove the aluminum grease filter (see "Cleaning the aluminum grease filter").

- Place the carbon filter onto the intake of the exhaust air duct. Make sure that the fixing pins of the carbon filter engage in the fastening slots of the exhaust air duct. Put the filter in A and press firmly flat B.

- Reinstall the aluminum grease filter.

Electrical connection

WARNING:

- The installation to the mains supply must conform to the local standards and regulations.

- Improper connection may cause to an electric shock!

- Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

- The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / OperationStartup / Operation if your cooker hood has a switch-off delay, activate this function.

The cooker hood is operated via push buttons:

0 Switch the operation off

Power level low

Power level medium

Power level high

Switch the lighting on / off

SettingsSettings

Low speed. Suitable for cooking on a low flame and for dishes which produce no or little steam to circulate the air around the kitchen.

Medium speed/Meditable speed/dormal cooking.

High speed-light bars if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

Energy saving tips Energy saving tips

Information to reduce the environmental effect of a tivation cooking (acc. V0(EU)(Nc. 66/2014 appendix II, VO (EU))

No. 2) No. 2)

• The diameter of the pot and pan floors should be according to the size of the cooking zone.
• Use pans and pots with flat floors, uneven floors increase the energy consumption.
• Ensure that there is enough supply air for the operation of the cooker hood.
• Adjust the fan step intensity of the damp evolution of the cooking process.
• To product the optimal effect of the cooker hood, install it according to the installation instructions. Keep the distance between the upper edge of the cooker and the lower edge of the cooker hood.
• Clean the filter regularly.
• Control the active carbon filter regularly and renew it as required.

• Switch off the cooker hood after use.

• Switch off the lighting after the cooking process.

• We recommend the use of biological cleaners.

Cleaning and Maintenance

WARNING:

• Always turn off the appliance and disconnect from the power supply before cleaning and user maintenance.
• Allow the appliance cool down sufficiently!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The appliance must be dry before restarting operation.

CAUTION:

- Do not use a wire brush or other sharp, abrasive to reduce the environmental effect

No. 66/2014 sappendixidic or abrasive cleaners.

Maintenance of the hood

• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.
• The appliance can be used again after everything has dried properly.
• If you use your cooker hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

Cleaning the aluminum grease filter Cleaning the aluminum Replacing the bulb Replacing the bulb

WARNUNG: Risk of fire!WARNUNG: Risk of fire!

Grease residue in aluminum grease filter may ignite at intense heat. Therefore, clean the grease filter regularly!

We recommend cleaning the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the filter in it.
• Then clean with a soft brush, rinse thoroughly with hot water and allow drying.
• Alternatively, the grease filter can also be cleaned in the dishwasher (up to 65°C). Slight discoloration may occur. This does not affect the function of the grease filter.

Replacing the activated carbon filterReplacing the activated carbon

The activated carbon filter prevents odors and must depend on the use but be changed at least every six months.

Order the carbon filter from your dealer or in our online accessories shop, www.bomann-gewrlany.aleg Use the reference number found under "Technical Data".

• See "Installing the activated carbon filter for recirculation mode".
• Remove and dispose the old carbon filter.

CAUTION:CAUTION:

Do NOT Remove the LED lighting cover!

The bulb may only be replaced by an authorized specialist in case of a defect.

WARMINGNING

• The light of LED lamps is very bright and can damage the eyes.. Never look directly into the LED light!
• Disconnect the appliance from the power supply and allow the lamps to cool down before changing the lamp. There is a risk of burns!

i NOTE:

Order the lamps from your dealer or in our online accessories shop www.bomann-germany.degermany.de

Lamp data: Lamp data:

LED max. 1 x 2.0W, AC 12V, ILCOS D Code after

EN 61231: DBS-2/30-H-120-33

Technical line drawing showing a mechanical assembly with a component and a downward arrow (no text or symbols)

- Remove the grease filter. Depending on model (a) or (b): Open the black protective box of the plug-in device and release the plug connection.

many Carefully push the lamp out of the holder.

• Replace defect LED module and connect the two ends of the plug-in device.
• Insert new lamp properly in the bulb holder.
• Close the protective box with inserted plug-in device. Replace the grease filter.

TroubleshootingTroubleshooting

The right to make technical and design modifications despite continuous product development remains specialist reserved.

Before you contact before authorized specialistan authorized

ProblemPulsib	ReSisibc Csoiatio SolutionPossible Ca
Unit is not working or not properly	Check the power supply.Check the power level.
Unit is not working efficiently	Check the power level.Is the kitchen properly ventilated?Clean the grease filter. • At recirculation mode, check the carbon filter. • Check the air outlet.
Light is not working	Check the bulb, see “Replacing the bulb”.
Oil is dripping	Clean the grease filter.

NOTE:NOTE:

If you are still having problems after following steps above, contact your trader or an authorized technician.

Technical Data Technical Data

Electrical conElectrical con....on

Connection voltage: 220-240 V\~ / 50 Hz

Connection power: 62 W

Lighting, LED: 1 x 2.0 W

Protection class: ....I

Weight / Dimension in mm.

Net weight: ....approx. 10.0 kg

Available accessory.

Activated carbon filter for recirculation mode: ....

KF 573 (Art.-No. 257 300) not supplied

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

Information to professional users for disassembly (acc. VO (EU) No. 66/2014 appendix I, No. 2)

Information for non-destructive disassembly for maintenance purposes

- Please remove the filter and lamps as described in the manual.

■ Further steps of disassembly for maintenance are not provided

• If you would like to exchange defective components, please contact our customer service.
  ■ Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

• Check that the unit is disconnected from the power supply before removing all filter from the hood.
• First remove the chimney.
• When disassembling the hood, be sure that you first loosen the lower and then the upper screws.

• For the recycling and recovery of resources give the appliance, the lamps and the various filter to:

• a communal collection point of public waste disposal authorities,

• a dedicated disposal company, offering a return system,
• a resident electric trader, who voluntary withdraws electrical appliances.

EU Product Data Sheet

Product Information for household cooker hoods according to regulation (EU) No. 65/201465/2014ation (EU) No.

BrandBrand		BOMANN
Model		DU 7601 G
Annual Energy Consumption ( AEC_hood )	kWh/a	19.3
Energy Efficiency class		A
Fluid Dynamic Efficiency ( FDE_hood )	%	22.5
Fluid Dynamic Efficiency class		C
Lighting Efficiency ( LE_hood )	lx/W	35.0
Lighting Efficiency class		A
Grease Filtering Efficiency	%	75.2
Grease Filtering Efficiency class		C
Air flow at minimum speed in normal use	m^3/h	153.5
Air flow at maximum speed in normal use	m^3/h	291.1
Air flow in use at intensive or boost setting	m^3/h	-
A-weighted sound power emission in normal use:
A-weighted sound power emission in normal use at minimum speed	dB	52
A-weighted sound power emission in normal use at maximum speed	dB	64
A-weighted sound power emission in use at intensive or boost setting	dB	-
Power consumption in off mode ( P_o )	W	0.0
Power consumption in standby mode ( P_s )	W	-

Product information for household cooker hoods according to regulation (EU) No. 66/201466/2014ation (EU) No.

BrandBrand		BOMANN
Model		DU 7601 G
Annual Energy Consumption (AEC _hood )	kWh/a	19.3
Time increase factor (f)		1.2
Fluid Dynamic Efficiency (FDE _hood )	%	22.5
Energy Efficiency Index (EEI _hood )		49.7
Measured air flow rate at best efficiency point (Q _BEP )	m ^3 /h	169.4
Measured air pressure at best efficiency point (P _BEP )	Pa	195
Maximum air flow (Q _max )	m ^3 /h	291.1
Measured electric power input at best efficiency point (W _BEP )	W	40.8
Nominal power of the lighting system (W _L )	W	2.0
Average illumination of the lighting system on the cooking surface (E _middle )	Lux	70
Measured power consumption in standby mode (P _S )	W	-
Measured power consumption off mode (P _O )	W	0.0
Sound power level (L _WA )	dB	64

Tested to EN 50564, EN 60704, EN 61591

BOMANN®
