USER MANUAL MYTHOS FMY 839 HI FRANKE

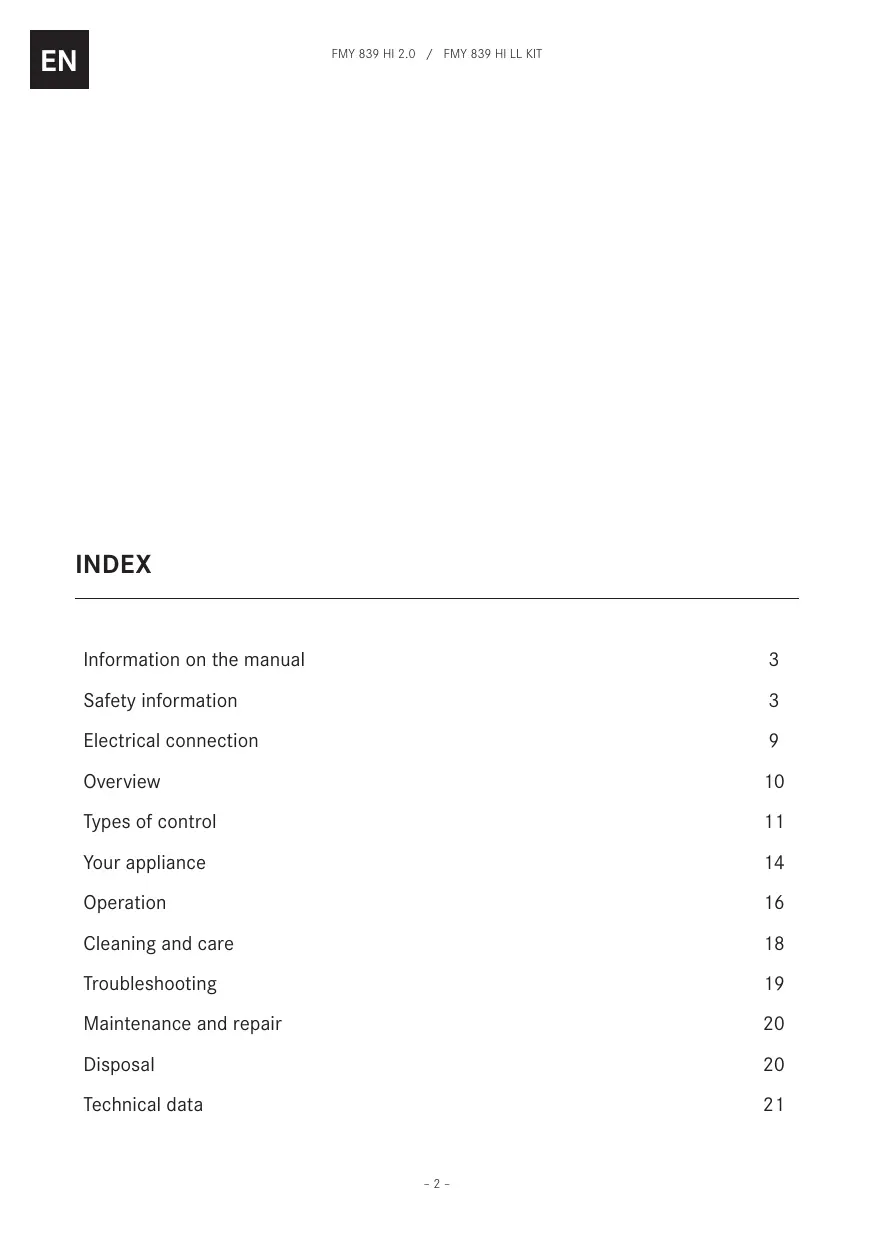

INDEX Information on the manual

Electrical connection

Maintenance and repair

EN INFORMATION ON THE MANUAL These instructions for use are valid for various models of the device. This means that some of the features and functions described here may not be available in the specific model you have purchased.

X Please read the instructions for use carefully before using the device. X Keep the instructions for use safely. X Only use the device described in these instruction for the purposes foreseen.

Danger warning. Danger of injury warning.

Z Safe actions and instructions to avoid injury or damage.

X Action. Specifies an action that must be carried out.

Result. Result of one or more actions.

Requirement that must be met before carrying out the next action.

SAFETY INFORMATION For your own safety and to guarantee proper use of the appliance, please read this manual carefully before installing and using the product. These instructions must always be kept with the appliance, even if it is moved or sold. Users must be fully aware of how the appliance works and of its safety features.

These hobs have induction systems that comply with the requirements of EMC

standards and with the EMF directive, and they should not interfere with other electronic devices. Pacemaker wearers and those using other electronic implants must consult their doctor or the manufacturer of the implanted device to assess whether or not it is sufficiently resistant against interference.

Electrical connections must be performed by a trained

technician. Before making the electrical connection, please read the section on

ELECTRICAL CONNECTION.

Z For appliances with a power supply cable, the terminals or section of wire between the cable anchor point and the terminals must be arranged in such a way as to allow the live wires to be pulled out before the earth wire in the event of the cable coming out of its anchor.

Z The manufacturer will not be liable for any damage resulting from incorrect or inadequate installation. Z Check that the mains power supply corresponds to the one indicated on the identification plate fixed to the inside of the product. Z Fixed electrical connections must incorporate the cut-out devices envisaged by current regulations. Z For class I appliances, check that the domestic

power supply guarantees an adequate earthing system.

Connect the suction hood to the flue using a suitable pipe. Please refer to the accessories to be purchased, indicated in the installation manual (for circular pipes: minimum diameter 120 mm). The exhaust pipe must be as short as possible. Connect the product to the mains using an omnipolar switch. The air venting regulations must be complied with. Never connect the suction appliance to ducts carrying combustion fumes (heaters, fireplaces, etc..). If the suction hood is used alongside non-electrical appliances (e.g. appliances with gas burners), it is necessary to guarantee a sufficient level of ventilation in the room, to prevent any exhaust backflow. When the cooking appliance is used together with other

appliances using nonelectrical power sources, the negative pressure in the room must not exceed

0.04 mbar, to prevent the fumes being sucked back into the room by the cooking appliance. The air must not be discharged into a pipe that is also used as a flue for appliances powered by gas or other fuels. If the power cable is damaged, it must be replaced by the manufacturer, by an authorised service centre or by a qualified technician, to avoid any risk of danger. Connect the appliance plug to a socket that complies with current regulations and is in an accessible area. As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be followed carefully.

CAUTION: remove the protective films before installing the appliance.

Z Only use the screws and other small components supplied with the appliance. WARNING: failure to install the screws or fixing elements as described in these instructions may result in a risk of electric shocks. Z Never look at the light directly through optical devices (binoculars, magnifying glasses...). Z Cleaning and scheduled maintenance must not be carried out by children, unless they are under the supervision of an adult. Z Supervise children, to make sure they do not play with the appliance. Z This appliance must not be used by persons (including children) with limited physical, sensory or mental abilities, or by persons without adequate experience and knowledge, unless they –5–

are supervised or instructed in use of the appliance by the those responsible for their safety.

This appliance may be used by children over the age of 8 years and by persons with limited physical, sensory or mental abilities or with insufficient experience and knowledge, provided they are supervised or have been adequately instructed on safe use of the appliance and understand the risks that it involves. Do not allow children to play with the appliance.

CAUTION: The appliance and its accessible parts become extremely hot during use.

Take great care not to touch the heating elements. Keep children under 8 years of age well away from the appliance, unless they are under constant supervision. Z Clean and/or replace the filters after the period

indicated (danger of fire).

See the paragraph on Cleaning and maintenance. Always guarantee adequate ventilation of the room when the appliance is used in conjunction with other appliances powered by gas or other fuels (this does not apply to appliances that only recirculate the air within the room). WARNING: If the surface is damaged, turn the appliance off to prevent any risk of electric shocks. Do not turn the device on if the surface is cracked or any damage is visible in the thickness of the material. Do not touch the appliance if your hands or body are wet. Do not use steam appliances to clean the product. Do not rest metal objects such as knives, forks, spoons and pan lids on the surface of the hob, as they might overheat. Use the relevant control to turn the cooker hob off after

use, do not rely on the pan sensors.

WARNING: Unsupervised cooking on a hob using oil and grease may be dangerous and may cause a fire. NEVER attempt to put flames out with water. On the contrary, turn the appliance off and suffocate the flames, for example using a pan lid or a fire blanket. WARNING: The cooking process must be supervised. Short cooking processes require continual supervision. The appliance is not designed to be started using an external timer or a separate remote controlled system. WARNING: Danger of fire: Do not rest objects on the cooking surfaces. The appliance must be installed in such a way as to allow disconnection from the electrical power supply with a contact aperture (3

mm) that ensures complete disconnection in category III overload conditions.

The appliance must never be exposed to weather (rain, sun). Ventilation of the appliance must comply with the manufacturer’s instructions.

Requirements for kitchen units

Z The cooker hob is designed to be fitted flush with the kitchen worktop, on a kitchen unit with a width of 600 mm or more. Z If the appliance is mounted on flammable materials, the guidelines and regulations relating to low voltage installations and fire prevention must be followed strictly. Z For the fitted units, the components (plastic materials and veneered wood) must be mounted with heat-resistant adhesives (min. 100 °C): the use of unsuitable material and –7–

adhesives may result in provided along the whole warping and detachment. outer edge of the hob before

The kitchen unit must have installation. sufficient space to allow Proper use for electrical connection of the device. Wall-mounted Z The suction hood has been units above the device must designed solely to eliminate be installed at a sufficient cooking fumes during distance to leave the space domestic use. required to work in comfort. Z Never use the appliance The use of decorative for purposes other than hardwood borders around those for which it has been the worktop behind the designed. device is allowed, provided Z Deep-fryers must be kept the minimum distance under constant supervision always complies with the when in use: the oil may indications provided in the catch fire if it gets too hot. installation drawings. Z Do not use the device with The minimum distance an external timer or separate between the fitted device remote controlled system. and the rear wall is indicated Z The device must never be in the installation drawing for installed behind a decorative the flush-fitted device (150 door, to prevent it from mm for the side wall, 40 mm overheating. for the rear wall and 500 Z Never climb onto the device, mm for any wall-mounted as this may damage it. units above it). Z Never place hot pots and To avoid any infiltration of pans on the frame, as this liquids between the hob may damage the silicon seal. frame and the worktop, Z Never cut or prepare food position the adhesive seal on the vitreous ceramic –8–

surface, or drop hard objects onto it.

Never drag pots and pans

across the vitreous ceramic surface.

Electrical connections must be carried out by a trained technician.

This appliance has a “Y” type connection, so the power cable must have a “neutral” wire. The power cable must be at least of type H05VV-F. SINGLE PHASE, TWO PHASE and THREE PHASE connection: min. crosssection of wires: 2.5 mm². External diameter of the power cable: min. 7 mm - max. 15 mm. The connection terminals can be accessed by removing the junction box cover. Check that the domestic power supply characteristics (voltage, maximum power and current) are compatible with those of the appliance. Connect the appliance as shown in the diagram (in compliance

with reference standards in force nationally for mains voltage).

Z It is recommended that you use the H05V2V2-F 5 x 2.5 mm² power cable. When using the H05V2V2-F 5 x 2.5 mm² power cable, follow the instructions provided here: for three phase connection, separate the 2 wires and remove the blue sheathing from the grey wires.

EN EN OVERVIEW FMY 839 HI 2.0 – 4 zone hob with integrated hood

Cooking panel controls

ON / OFF of the hob / hood control panel Extractor Fan control panel ON / OFF of the hob / hood Activate Timer Timer Display Increase / Decrease the timer Stop&Go / Recall Automatic mode Charcoal (odour) filter Grease cleaning filter notification

13 14 15 16 17 18 19 20 21 22

Speed INTENSIVE 2 Extractor fan selection Cooking / Keep warming at 92 °C Cooking / Keep warming at 74 °C Cooking / Keep warming at 42 °C Temperature Manager Cooking zone selection / power level Cooking zone position Bridge cooking zones Locking / unlocking the hob

TYPES OF CONTROL Display elements and buttons for ON / OFF of the hob control panel

ON / OFF of the hob / hood

– Press ON. Press again to turn OFF. By default when turn on the hob extractor, the hood is in automatic mode and the led will turn ON. – Touch (press) the selection bar to deactivate the automatic mode and to work with the extractor fan in manual mode. The led will turn off. Activate Timer – Press and hold 5 sec the button, the hood will be in delay mode with a preset timer of 15 min. The delay indicator led on the hood will turn on . – Press and hold again 5 seconds the button again in order to deactivate the delay. When the timer has finished the countdown, there is an acoustic signal (for 2 min, or it will stop when the ON / OFF button is pressed), while the display turns off. The countdown is not visible, the visual feedback is the led . Stop & Go / Recall Encrise / Decrease the timer for cooking zone – – +

Press and hold to reset grease filter

Press and hold to reset odour charcoal filter

Key Lock: touch simultaneously for few seconds

EN EN Display elements and buttons for extractor fan control panel

Extractor fan selection

Increase / Decrease extraction speed (power) Activation / Deactivation of automatic function (by default automatic mode is active). When the selection bar of the cooker hood is touched (pressed), the automatic mode deactivates and works with the extractor fan in manual mode. To re - activate the automatic mode press button and the led will light up to indicate that the hood is working in this mode. By default the hood is in ducted mode. Activate charcoal filter – Press for 5 sec the button on the hood the first time that it is switched on . Since that time lit icon will show when it is necessary to perform maintenance of the charcoal (odour) filter . The grease cleaning filter notification through led is always enabled. Resetting activated carbon odour filter saturation After performing maintenance on the filters: – Press and hold 5 sec the button The grease led will turn off, and the indicator countdown will start again. – Press and hold 5 sec the button The odour led will turn off, and the indicator countdown will start again. Set the speed INTENSIVE 1 This speed is timed to run for 10 min. At the end of this time, the system returns automatically to the speed that was set before. Set the speed INTENSIVE 2 This speed is timed to run for 5 min. At the end of this time, the system returns automatically to the speed that was set before.

EN Display elements and buttons for Cooking panel controls

ON / OFF of the hob /hood

Press ON. Press again to turn OFF. Select the Cooking zone to set indipendent timer. It is a countdown, which can be set for each cooking zone, even simultaneously. At the end of the set period the cooking zones will automatically shut down and an acoustic signal informs of it. Activation / Regulation of the hob timer: – Press more time the key to chose the cooking zone you want to activate. The relative icon on the cooking zone will be lighted on. When the desired cooking zone is selected, regulate the duration of the timer: – Press the to increase the automatic shutdown time. – Press to decrease the automatic shutdown time. Setting the time (plus / minus) Stop&Go / Recall This function allows to suspend / restart any function active on the hob, bringing the cooking power to zero. – Press to activate, press again and slide completely the indicated slider from left to right to deactivate. Note: If after 10 min, the Pause function is not deactivated, the hob will turn off automatically. This function allows to recover all the hob settings, in case of accidental shutdown. Activation: – Turn the hob back on. – Press within 6 sec.

Locking / unlocking the hob

Allows to block the settings of the hob to prevent accidental tampering, leaving the functions that have already been set active. Repeat the operation to deactivate. Cooking zone position indicator The cooking zones are able to work in combination, creating a single zone with the same power level. Front master and back secondary cooking zones. To activate the Bridge function: touch simultaneously the 2 bar and the symbol lights up. With the selection bar of the master zone it is possible to select the power level. To deactivate the bridge function simply repeat the same activation procedure. Cooking zone selection Increase / Decrease power level Supplementary power feature which remains active for 10 min, after which the temperature returns to the previously set value. – Touch and scroll along the Selection bar and activate the Power Booster. The power booster level is shown on the display of the selected zone with the symbol . Temperature Manager activation. The display shows Cooking / Keep warming at 42 °C Cooking / Keep warming at 74 °C Cooking / Keep warming at 92 °C Bridge zone between two cooking zones activated Power Booster activated – 13 –

EN YOUR APPLIANCE How induction hobs function

the pan, place it on a cooking zone and start the cooking zone. If the symbol appears on the display, it means the pan is not suitable.

Induction hobs function considerably differently to conventional hobs or solid plates. The induction coil under the glass ceramic creates a magnetic field that alternates quickly and which directly heats the magnetisable base of the cookware. The glass ceramic is only heated by the hot cookware. If the cookware is removed from the cooking zone, the power supply is interrupted immediately.

Every cooking zone is equipped with pan detection. The pan detection recognises cookware with a magnetisable base that is suitable for use with induction hobs. If the cookware is removed during operation or unsuitable cookware is used, the display near the bargraph flashes with . If there is no cookware placed on the cooking zone during the pan detection time of 10 sec: – The cooking zone switches off automatically after 10 sec. – The display of each cooking zone shows .

Note: Use only cookware with a perfectly flat bottom and suitable for induction cooking zones. Using cookware with an irregular bottom could jeopardise the efficiency of the heating system and prevent cookware from being detected on the cooking zone.

Noise during cooking Cookware can make noise during cooking. This does not indicate any malfunction, nor does it affect the functioning of the appliance in any way. Noise depends on the cookware used. If the noise causes considerable disturbance, it can help to change the cookware.

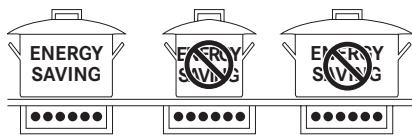

Advice on energy-saving

X The diameter of the base of the pan must

Only cookware with a fully magnetisable base is suitable for cooking on the induction hob. The magnet adheres to every point on the entire base of the cookware.

correspond to the diameter of the cooking zone.

ENERGY SAVING Cookware suitable for use in induction cooking

Cookware used on the induction cooking surface must be made of metal, with magnetic properties and a sufficiently large base.

ENERGY SAVING ENERGY SAVING X When buying a pan, check whether the diameter

9 Enamelled steel cookware with thick bases. 9 Cast iron cookware with an enamelled base. 9 Cookware in multilayer stainless steel, ferritic stainless steel and aluminium with a special base.

X Unsuitable cookware:

9 Copper, stainless steel, aluminium, fireproof glass, wood, ceramic and terracotta cookware. X To see whether the pan is suitable, bring a magnet close to the bottom: if it is attracted, the pan is suitable for induction cooking. If you do not have a magnet, you can put a small amount of water in

indicated is that of the base or the top of the pan, as the top is almost always larger than the base.

When preparing dishes with long cooking times, you can save time and energy by using a pressure cooker, which also makes it possible to preserve the vitamins in the food. Make sure that the pressure cooker contains enough liquid as, if there is not enough and it overheats, this may cause damage to both the pressure cooker and the cooking zone. If possible, always cover pans with a suitable lid.

EN X Choose a pan suitable for the quantity of food

to be cooked. A large, half-empty pan leads to a waste of energy.

184 mm × 220 mm (single)

380 mm × 220 mm (double)

Normal operating noises of the cooktop lnduction technology is based on the creation of electromagnetic fields. They may generate heat directly on the bottom of the cookware. Pots and pans may cause a variety of noises or vibrations depending on the way they‘ve been manufactured.

These noises are described as follows: Low humming (like a transformer) This noise is produced when cooking at a high heat level. lt is based on the amount of energy transferred from the cooktop to the cookware. The noise ceases or quiets down when the heat level is reduced. Quiet whistling This noise is produced when the cooking vessel is empty. lt ceases once water or food is placed in the vessel. Crackling This noise occurs with cookware comprised of various materials layered one upon the other. lt‘s caused by the vibrations of the surfaces where different materials meet. The noise occurs on the cookware and can vary depending on the amount and method of preparation of the food.

with bridging function

This noise occurs with cookware comprised of different materials layered one upon the other, and when they are additionally used at maximum output and also on two cooking zones. The noise ceases or quiets down when the heat level is reduced. Fan noises For proper operation of the electronic system, it is necessary to regulate the temperature of the cooktop. For this purpose, the cooktop is equipped with a cooling fan, which is activated to reduce and regulate the temperature of the electronic system. The fan may also continue to run after the appliance is turned off if the detected temperature of the cooktop is still too hot after turning it off. Rhythmic sounds and similar to the hands of a clock This noise occurs only when at least three cooking zones are operating and disappears or weakens when some of them are switched off. The noises described are a normal element of the described induction technology and shouldn‘t be regarded as defects.

EN OPERATION Switching the appliance on

X Hold for one second to switch on the

Selecting a cooking zone

X Press the „0“ near the bargraph slider of the

„ „0“ flashes in all power levels displays. „ If there are no further inputs, the appliance switches off after 10 sec for safety reasons.

cooking zone and swipe it to set the power level.

Melting, gentle warming

Butter, chocolate, gelatine, sauces

Melting, gentle warming

Butter, chocolate, gelatine, sauces

Continued cooking, reducing, stewing

Vegetables, potatoes, sauces, fruit, fish

Continued cooking, reducing, stewing

Vegetables, potatoes, sauces, fruit, fish

Continued cooking, braising

Pasta, soup, braised meat

Rosti (hash brown), omelettes, breaded fried foods, sausages

Melting butter, chocolate

or honey at around 42 °C Keep

Sauces, keep food ready for serving at around

Keep ready-cooked food

warm at around 92 °C Switching a cooking zone off

X Touch „0“ on the bargraph. „

If there is no further input and the other cooking zones are switched off, the appliance switches off after 10 sec.

Switching the hob off

X Touch for a few seconds to switch the hob off. „

If there is no further input on the display and all the cooking zones are switched off, the appliance switches off after 10 sec.

Residual heat indicator

After a cooking zone is switched off and is still hot an “H” remains illuminated on the panel as long as there is a risk of burns.

EN Defrost, Keep warm and Slow cooking setting

With the defrost function you can defrost food or gently melt butter, chocolate or honey. The keep warm setting keeps ready-cooked foods warm at approx. 74 °C. The slow cooking setting keeps ready-cooked foods warm at approx. 92 °C. With the slow cooking setting you can cook at low temperatures to preserve the nutritional value of the aliments.

X Select the cooking zone by pressing „0“ near the bargraph of the cooking zone.

one more time. appears.

When you press for the first time „1“ is illuminated in the display.

X Press the active cooking zone of the timer that you want to change.

X Change the timer duration using

The bridging function allows two individual cooking zones to be switched on to be adjusted together.

X Press the bargraphs of the two cooking zone. „ The display near the two zones shows on one side and on the other side. If one of the cooking zones is already running when the bridging function is switched on, the power level and operating time of this cooking zone will be used for both zones. If both cooking zones are already running, the operating times are cleared in the power level displays. If the Bridging function is not possible set the Boost speed.

to increase the timer duration, touch

X To select the setting for „Melting“ (defrosting), press

one more time. appears.

All the cooking zones are equipped with the PowerPlus booster.

When PowerPlus is switched on, the cooking zone selected works at extra high power for 10 min. PowerPlus can be used, for instance, to quickly heat a large quantity of water.

Appliance switched on and simultaneously for few seconds until an acoustic signal is emitted.

„ The display is locked. When the display switches off in this state, the lock function will still be active once you restart the hob. To deactivate the childproof lock, press and simultaneously for few seconds.

X X Swipe up on bargraph until a „P“ appears in the display.

X To end PowerPlus, swipe down on the bargraph to the desired power level.

When a timer is set, the cooking zone switches off after a set time between 1 min and 1 h 59 min.

This function is used to heat up a pan at maximum power before continuing to cook at a selected level. The period of time the cooking area will remain at maximum power depends on the final cooking level that is set. See table:

„_00“ flashes in the middle of the display.

230 seconds 312 seconds

408 seconds 120 seconds 168 seconds 216 seconds not available not available

MODEL FMY 839 HI 2.0

7,545 kW To activate, with a pan on the hob and selected cooking area, press and hold for 3 seconds on the selected value (from 1 to 8) on the power bar. The

Display for the corresponding area shows “ A “ . It is possible to increase the cooking level, but if it is decreased the function is deactivated. It can also be deactivated by pressing and holding for 3 seconds the button for the cooking area in question.

CLEANING AND CARE Cleaning the appliance

Z Clean the appliance after every use in order to

The Activated Charcoal odour filter can be re generated. Follow the instructions provided on the

Kit itself both for the regeneration method and for the replacement times. Grease filters Z: The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. Do not wash the grid in the dishwasher.

prevent food residues from burning on.

Z To clean everyday dirt, use a soft cloth or sponge

General recommendations

Z Never use scouring pads, steel wool, muriatic acid

or other products which could scratch or mark the surface.

Foods that accidentally fall or settle on the surface, on the functional or aesthetic elements of the hob must not be eaten.

with water and a suitable cleaning agent. Follow the manufacturer‘s advice with regard to cleaning agents. We recommend using protective cleaning agents.

Remove encrusted dirt, e.g. from milk that has boiled over, with a glass ceramic hob scraper while the hob is still warm. Please follow the manufacturer‘s advice with regard to the scraper. Remove sugary foods, such as marmalade, that have boiled over with a glass ceramic hob scraper while the hob is still warm. Otherwise, this could damage the glass ceramic surface. Remove melted plastic with a glass ceramic hob scraper while the hob is still warm. Otherwise, this could damage the glass ceramic surface. Remove limescale stains using a small amount of lime-dissolving solution, e.g. vinegar or lemon juice, when the hob has cooled down. Then clean again with a damp cloth.

EN TROUBLESHOOTING Error codes

Possible cause of error

ER 03 and continuous tone

Continuous sensor activation; TC turn off after 10 sec

Water or cookware on the glass over the touch control sensors

Clean the control surface, remove objects on the sensors.

Button evaluation defective,

UI shuts off after 3.5-7.5 sec

Short or open circuit in the area of the button sensoric

Incorrect configuration data or deviation between generator

and TC New configuration of the induction generator required

NTC value defective on TC;

Short or open circuit of NTC Replace TC ER 47

Communication error between TC and induction

No or erroneous LIN communication! (Slave does not answer to request of master)

Connection cable not correctly plugged in or defective.

Continuous tone Power supply on inlet to high

Incorrect connection of the cooktop

Correct power supply connection

Excess temperature of the induction element

Overload of cooktop or empty boiled cookware

Let system cool down.

E/A Error on the power board

Error on power board

No power supply error on power board

2. Check filter board 3. Replace power board

Air exhaust blocked, e.g. by paper

Replace Defective fan

Defective temperature sensor on inductor

EN MAINTENANCE AND REPAIR Z Make sure that maintenance on electrical

Z X When contacting the customer service, please

components is carried out only by the manufacturer or the customer service.

Make sure that damaged cables are changed only by the manufacturer or the customer service.

provide the following information:

– Type of fault – Appliance model (Art. / Cod.) – Serial number (S.N.) This information is given on the data plate. The data plate is attached on the bottom side.

DISPOSAL Z The symbol

on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The appliance is in accordance with the Directive 2012/19/EU, regarding the reduction of the hazardous substances used in electrical and electronic appliances, and waste disposal.

EN X Refer to the data plate placed on the bottom side of the product.

X The manufacturer provides continuously product enhancements. For this reason, the text and the illustrations in this manual may be changed without notice.

Further information on technical data is available on:

1,2 Flexible cooking zone 1 + 2 bridged

3,4 Flexible cooking zone 3 + 4 bridged

Power supply voltage / frequency

Power and heating element values

Cooking zone 1, 2, 3 ,4

Flexible Cooking zone

Number of cooking zones

2100 W Power Boost: 3700 W

380 mm × 220 mm (double)

Beurre, chocolat, gélatine, sauces

Beurre, chocolat, gélatine, sauces

Doorkoken, reduceren, stoven

Doorkoken, reduceren, stoven

Boter, chocola of honing smelten op

PROBLEEMOPLOSSING Foutcodes

New configuration of the induction generator required

Franke Hellas S.A. 19003 Markopoulo Attikis (Athens) Phone +30 22991 500 00

Franke Aus. Pty. Ltd. (PR Kitchen Systems) Melbourne 3175 Phone +61 3 9700 9100

Hong Kong SAR Franke Asia Hong Kong Office

Causeway Bay Phone +852 3184 1900

Franke Faber India Limited Aurangabad - 431 136 Phone 1800 209 3484

Franke (Thailand) Co., Ltd. Bangkok 10110 Phone +66 2 013 7900

Franke Kazakhstan Ltd. 040918 Almaty City Phone +7 727 297 3812

Franke Nederland B.V. 5700 AD Helmond Phone +31 492 585 111

Franke Kitchen Systems Norway 8520 Lystrup, Denmark Phone +47 35 566 450

Franke N.V. 9400 Ninove Phone +32 54 310 111 Brazil Franke Sistemas de Cozinhas do Brasil Dona Francisca, 8.300. Bloco N – Sala 49 – Condomínio Perini Business Park Distrito Industrial - 89219-600 Joinville - SC - Brasil Fone +55 47 3431 0500 Canada Franke Kindred Canada Limited Midland, ON L4R 4K9 Phone +1 866 687 7465 China Franke (China) Kitchen Systems Co., Ltd. Heshan, Guangdong, 529700 Hotline 400 882 9898 Czech Republic Franke s.r.o. 190 00 Praha 9 Phone +420 281 090 411 Denmark Franke Kitchen Systems Denmark 8520 Lystrup Phone +45 8624 9024 Finland Franke Finland Oy 76850 Naarajärvi Phone +358 15 341 11 France Franke France S.A.S. 60230 Chambly Phone +33 130 289 400 Germany Franke GmbH 79713 Bad Säckingen Phone +49 7761 52 0

Franke Polska Sp. z o.o. 05-090 Raszyn Phone +48 22 711 6700 Portugal Franke Portugal S.A. 2735-531 Cacém Phone +351 21 426 9670 Romania Franke Romania SRL Pantelimon 077145 Phone +40 21 350 1550 Russia Franke Russia GmbH 199106 St. Petersburg Phone +7 812 703 1540 Slovak Republic Franke Slovakia s.r.o. 010 01 Žilina Phone +421 41 733 6200 South Africa Franke South Africa Durban 4052 Phone +27 31 450 6300

Franke Ukraina LLC 02081 Kyiv Phone +38 044 492 0015 United Kingdom Franke UK Ltd. Manchester M22 5WB Phone +44 161 436 6280 USA Franke Kitchen Systems LLC Smyrna, TN 37167 Phone 800 626 5771

© Franke Technology and Trademark Ltd., Switzerland |991.0607.257_05 - 221122 - D00001515_04
