Product type	Kitchen island extractor hood
Brand	FABER
Model	CHLOE XL ISLAND
Minimum distance between hob and hood	650 mm
Diameter of exhaust duct	120 mm minimum
Appliance class	I (mandatory grounding)
Power supply	According to rating plate (e.g. 220-240 V ~ 50 Hz)
Number of speeds	3 (1, 2, 3) + stop (0)
Lighting	Integrated, replacement by after-sales service
Grease filter	Dishwasher safe, clean every 2 months
Charcoal filter	Not washable, replace periodically
Intended use	Domestic, elimination of cooking odors
Usage precautions	Do not flambé under the hood, do not leave high flame
Exterior cleaning	Damp cloth and neutral liquid detergent
Child safety	Prohibited for children under 8 without supervision
Recycling	Do not throw in household waste, take to recycling center
Spare parts	Available from the manufacturer or after-sales service

Frequently Asked Questions - CHLOE XL ISLAND FABER

What is the minimum installation height between the hood and the cooktop?

The minimum safety distance is 650 mm. Some models can be installed lower; check the working dimensions and installation in the manual.

How do I clean the grease filters of the CHLOE XL ISLAND hood?

The grease filters must be cleaned every 2 months. They are dishwasher safe or can be washed by hand with neutral detergent.

When and how should the charcoal filter be replaced?

The charcoal filter cannot be washed or regenerated; it must be replaced when saturated (usually every 3 to 6 months depending on use). Contact after-sales service for a new filter.

Can I use the hood with a gas cooktop?

Yes, but you must ensure sufficient ventilation of the room. The negative pressure must not exceed 0.04 mbar to prevent the hood from re-aspirating fumes.

How do I replace the hood's light bulb?

For bulb replacement, please contact an authorized after-sales service. Do not attempt to do it yourself.

What should I do if the hood no longer turns on?

First check that the appliance is properly plugged in and that the circuit breaker has not tripped. If the problem persists, contact after-sales service.

Can the hood be connected to a chimney flue?

No, it is forbidden to connect the hood to flues that evacuate combustion fumes (boilers, fireplaces, etc.). Use a dedicated duct.

What is the power consumption of the hood?

The consumption is not specified in the manual. Consult the rating plate inside the hood for exact voltage and power values.

How do I adjust the hood speeds?

Use the V button to select the speed: 0 (stop), 1 (minimum speed), 2 (medium), 3 (maximum). The L button controls the lighting.

Where can I find spare parts for the CHLOE XL ISLAND hood?

Spare parts (filters, bulbs, etc.) are available from the manufacturer FABER or an authorized after-sales service. Check the website or contact support.

USER MANUAL CHLOE XL ISLAND FABER

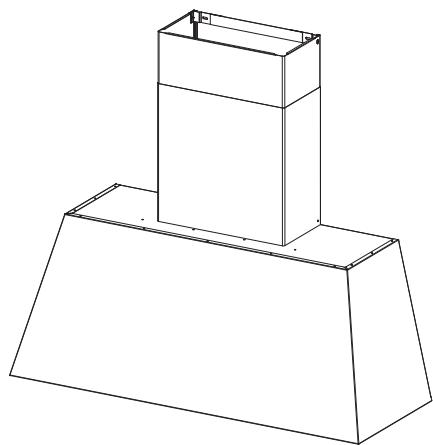

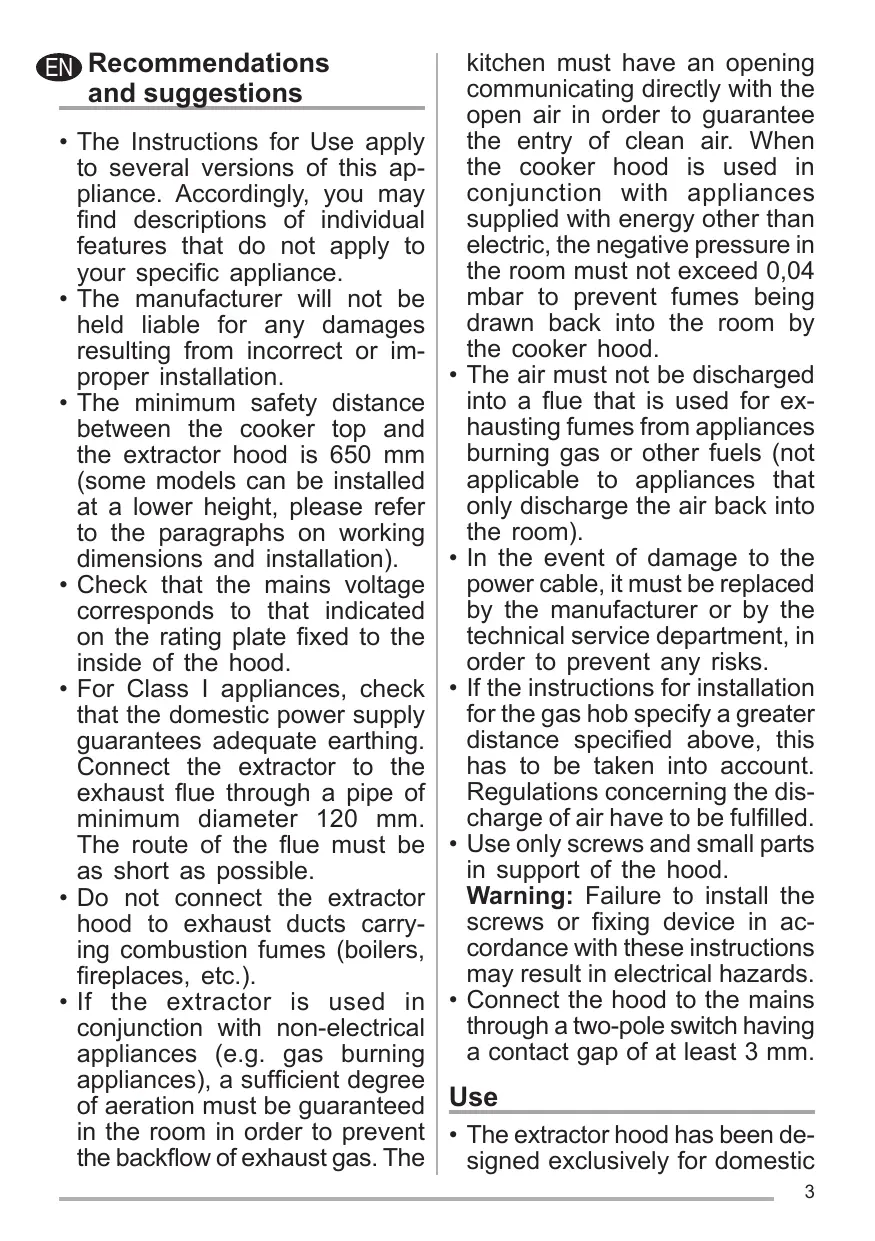

EN Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The

kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the installation instructions for the gas hob specify a greater distance than the one mentioned above, this must be taken into account. Regulations concerning the discharge of air must be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Use

• The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• CAUTION: Accessible parts may become hot when used

with cooking appliances.

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Failure to carry out cleaning as indicated will result in a fire hazard.

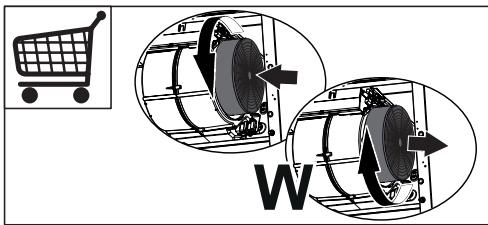

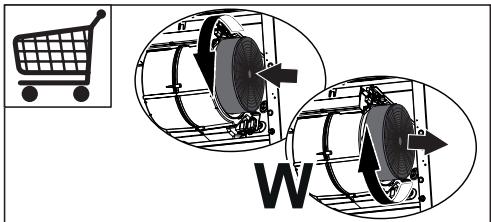

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

L	Light	Switches the lighting system on and off.
V	Speed	Sets the operating speed of the extractor: 0. Motor Off. 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Lighting

• For replacement contact technical support ("To purchase contact technical support").

IMPORTANT: Using screws and clamping devices that do not comply with the instructions in this manual may lead to dangerous situations and electric shocks.

Connect the hood to the power supply using a

switch with a minimum contact gap of 3 mm.

Operation

The extractor hood is intended solely for domestic use to remove cooking fumes from the hob. - Never use the hood for purposes other than those for which it is intended. - Never leave high flames under the hood while it is in operation. - Adjust the flame so that it stays under the bottom of the pan and does not extend beyond its edges. - When frying in a deep fryer, constantly monitor it: strongly heated oil may ignite. Do not cook dishes flambé under the hood: there is a risk of fire. - The appliance can be used by children aged 8 and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they are supervised or have been instructed on the safe use of the appliance and understand the hazards involved. Ensure that children do not play with the appliance. Cleaning and user maintenance should be performed by the user; these tasks may also be performed by children, but

only under adult supervision.

WARNING: Accessible parts of the hood may become very hot during use with gas appliances.

Maintenance

The symbol on the product or its packaging indicates that the appliance must not be disposed of as ordinary household waste. The appliance must be taken to a designated collection point for the recycling of electrical and electronic components. By properly disposing of the appliance, the user helps prevent potential negative consequences for the environment and human health, which could otherwise result from improper disposal. For more detailed information about recycling this product, please contact your local council, your local waste disposal service, or the shop where you purchased the appliance. - Before performing any cleaning or maintenance operations, disconnect the appliance from the power supply. Clean or replace the filters at the specified intervals (risk of fire). "Risk of fire if the appliance is not cleaned in accordance with the instructions."

Recommendations and tips

• The instruction manual for installation and operation applies to the device models listed. In connection with this, you may find descriptions of individual functions that do not belong to your specific device. The manufacturer is not responsible for damages resulting from incorrect or improper installation. The minimum safe distance between the surface of the hob and the hood is 650 mm (some models may be installed lower, see the section on dimensions and installation). - Make sure that the voltage corresponds to the voltage indicated on the nameplate located on the inside of the hood.
• When using devices of class I, make sure that the household electrical supply has proper grounding. Connect the hood to the chimney using a pipe with a diameter of at least 120 mm. The path to the chimney should be as short as possible. Do not connect the hood to ventilation ducts through which combustion products are discharged (from boilers, fireplaces, etc.). If the hood is used together with non-electric devices (e.g., gas appliances), the room must be provided with sufficient ventilation.

To prevent backflow, the exhaust duct must be open and directly connected to the fresh air source to ensure the presence of fresh air. If the hood is used in a room with devices that operate on non-electric energy sources, the negative pressure in the room must not exceed 0.04 mbar to prevent backflow of gases into the room.

It is forbidden to discharge exhaust air into a chimney used for exhaust gases from appliances that burn gas or other fuel (this does not apply to appliances that only discharge air back into the room). - In case of damage to the power cord, it must be replaced by the manufacturer or its service agent to avoid a safety hazard. If the installation instructions for the gas hob specify a greater distance, take that into account. It is necessary to comply with the regulations for air discharge. Use only the screws and small parts provided for mounting the hood.

Warning. If you install a device or appliance incorrectly according to the instructions, it may lead to the risk of electric shock.

electric shock.

- Connect the hood to the power outlet using a two-pole switch with a contact gap of at least 3 mm.

Use

The hood has been specially designed for domestic use to enhance kitchen odors. Never use the hood for any other purpose, as it is not intended for that. Never leave high heat under the hood while it is operating. - Adjust the flame intensity so that it is directed only at the bottom of the cookware, not allowing the flame to wrap around the sides. - During use, the hood should be monitored constantly. Care should be taken to prevent oil from spilling onto the floor or catching fire with the help of a damp cloth (with the flame turned off on the cookware itself) under the hood due to the risk of fire. - This device can be used by children aged 8 and above, persons with reduced physical, sensory, or mental capabilities, or those lacking experience or knowledge, provided they are supervised or have received instructions on the safe use of the device and understand the

possible dangers. Children must not play with the device. Children must not perform cleaning or maintenance without supervision.

• This device is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those lacking experience or knowledge, unless they are supervised or have been instructed on the use of the device by a person responsible for their safety.
• WARNING: Accessible parts may become very hot during use with the [electric hob].

Maintenance

The symbol on the product or its packaging indicates that this product cannot be disposed of as household waste. Instead, it should be taken to the appropriate collection point for recycling of electrical and electronic equipment. By ensuring proper disposal of this product, you can help prevent potential negative consequences for the environment and human health, which could otherwise be caused by improper disposal. For more detailed information on recycling this product, contact your local municipal office, your household waste disposal service, or the shop where you purchased the product.

for disposal of household waste or at the store where the product was purchased.

Unplug the device or disconnect it from the power supply before performing any maintenance work. - Clean and/or replace the filters after the specified period (risk of fire). - If cleaning is not carried out according to the instructions, there is a risk of fire.

The activated carbon filters cannot be washed or restored. They must be replaced approximately every 3 months of operation or more often with particularly intensive use (W).

The metal grease filters must be cleaned every 2 months of operation or more often in case of particularly intensive use. They can be washed in a dishwasher (Z).
