| Product type | Kitchen hood |
| Brand | FALMEC |
| Model | MAIA |
| Installation | Wall-mounted, external evacuation or internal recirculation |
| Minimum distance from cooking surface | 65 cm (gas), 55 cm (electric) |
| Number of speeds | 4 (including timed intensive speed) |
| Timer | Programmable automatic shut-off after 15 minutes |
| Lighting | High efficiency LED spots, low consumption |
| Filter alarm | Fixed red LED indicating cleaning of metal filters after 30 hours of use |
| Metal anti-grease filters | Washable (every month or after 30h), dishwasher safe (max 55°C) |
| Activated carbon filters (optional) | Replace every 3-4 months depending on use |
| Main material | Brushed stainless steel, glass panels |
| Maximum weight suspended on the hood | 1.5 kg |
| Power supply | 230 V ~ 50 Hz, with grounding |
| Protection | Electrical disconnection via accessible plug or main switch |
| Safety | Automatic shut-off, do not use with open flame, requires ventilation when used simultaneously with combustion appliances |
| Surface maintenance | Damp cloth with neutral detergent or denatured alcohol; specific wipes for stainless steel |
| LED bulb replacement | Possible by the user according to assembly instructions |
| Warranty | Follow safety instructions; repairs by qualified personnel only |
Frequently Asked Questions - MAIA FALMEC
User questions about MAIA FALMEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kitchen hood in PDF format for free! Find your manual MAIA - FALMEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MAIA by FALMEC.
USER MANUAL MAIA FALMEC
EN - Measurements for installation (1).
| Gas (min.) | Induction (min.) |
| 600 mm | 520 mm |

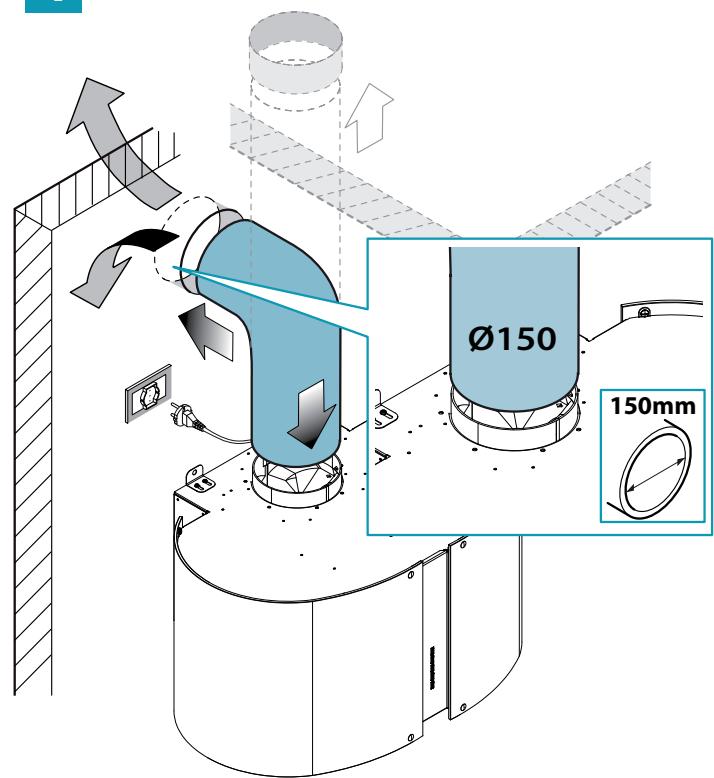

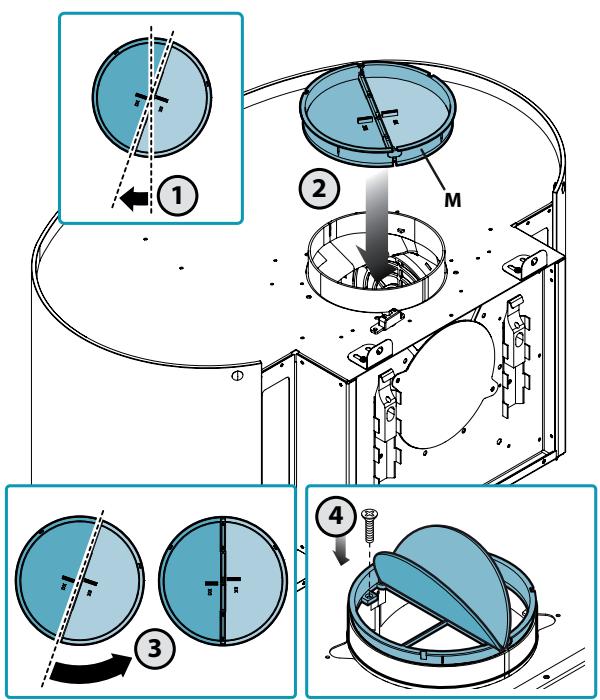

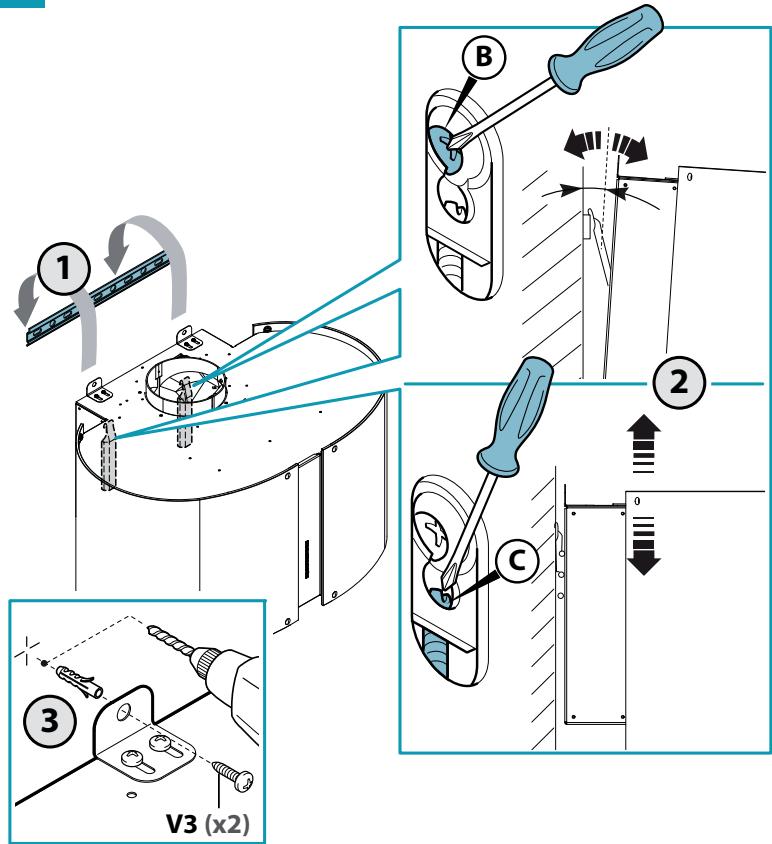

IT - Hood fastening (2), check valve installation (3) and suction pipe assembly (4). EN - Hood fastening (2), check valve installation (3) and suction pipe assembly (4). DE - Befestigung der Abzugshaube (2), Installation des Rückschlagventils (3) und Montage der Ansaugleitung (4). FR - Fixation de la hotte (2), installation du clapet anti-retour (3) et montage du tuyau d'aspiration (4). ES - Fijación de la campana (2), instalación de la válvula antirretorno (3) y montaje del tubo de aspiración (4). RU - Крепление вытяжки (2), установка обратного клапана (3) и монтаж всасывающей трубы (4). PL - Mocowanie okapu (2), montaż zaworu zwrotnego (3) i montaż rury ssącej (4). NL - Kapbevestiging (2), montage terugslagklep (3) en zuigleiding (4). PT - Fixação do exaustor (2), instalação da válvula de não retorno (3) e montagem do tubo de aspiração (4). DK - Fastgørelse af emhætten (2), montering af kontraventil (3) og rør til udsugning (4). SE - Fästning av kåpan (2), installation av backventilen (3) samt montering av utsugningsröret (4). FI - Liesituulettimen kiinnitys (2), vastaventtiilin asennus (3) ja imuputken liitäntä (4). NO - Feste av ventilatorhette (2), installasjon av tilbakeslagsventil (3) og montasje av innsugingsrør (4).
2

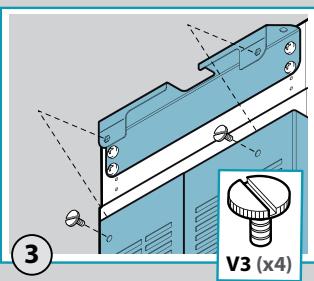

IT - Viti di sicurezza obbligatorie. EN - Mandatory safety screws. DE - Sicherheitsschrauben, obligatorisch. FR - Vis de sécurité obligatoires. ES - Tornillos de seguridad obligatorios. RU - Обязательные предохранительные винты.
PL - Obowiązkowe śruby zabezpieczające. NL - Verplichte veiligheidsschroeven. PT - Parafusos de segurança obrigatórios. DK - Obligatoriske sikkerhedsskruer. SE - Obligatoriska säkerhetsskruvar. FI - Pakolliset varmistusruuvit. NO - Påkrevde sikkerhetsskruer.
3
4
| Gas (min.) | Induction (min.) |
| 600 mm | 520 mm |

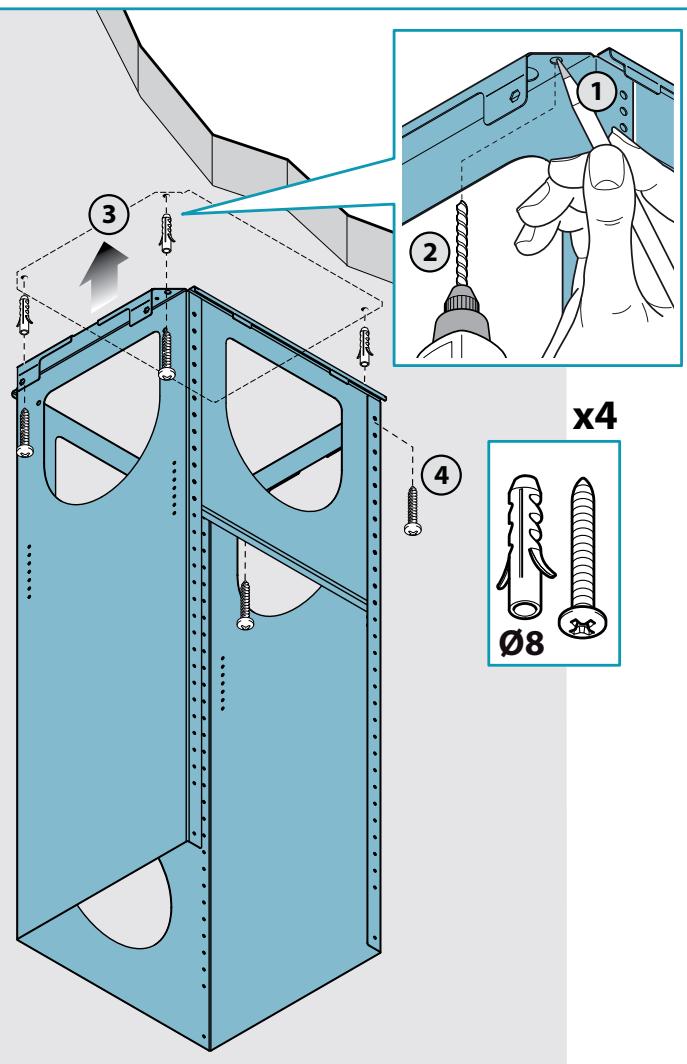

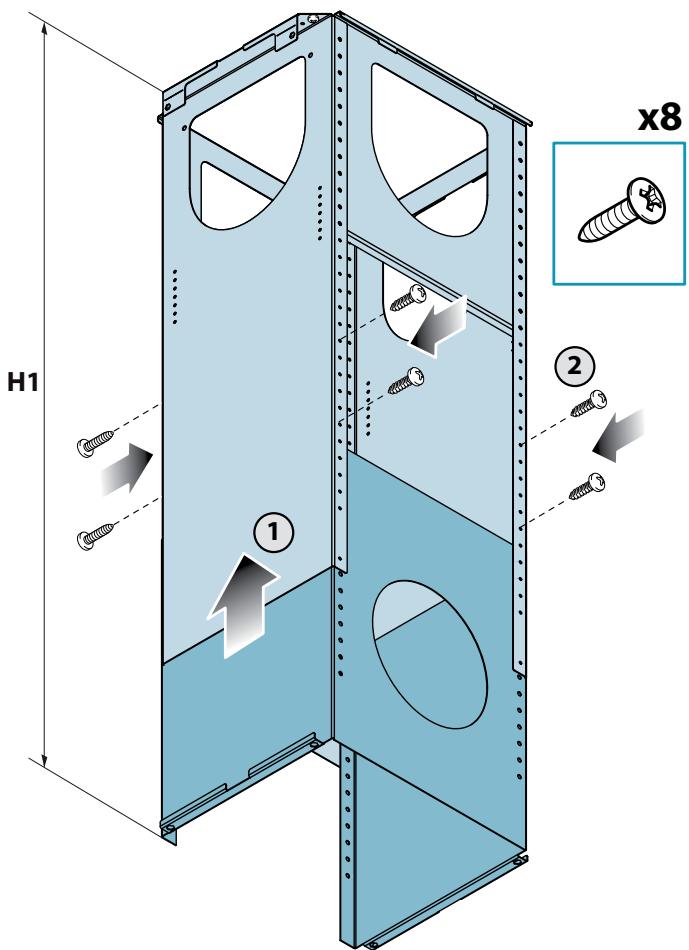

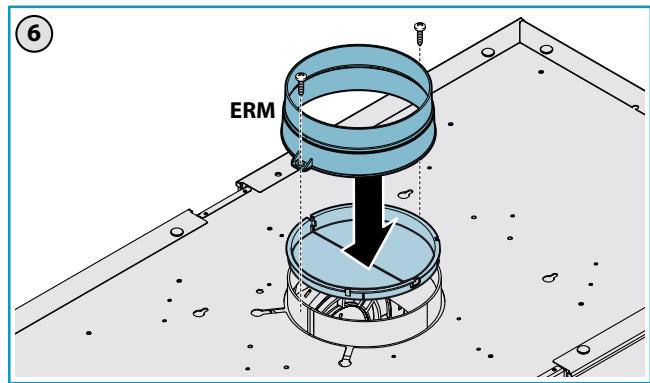

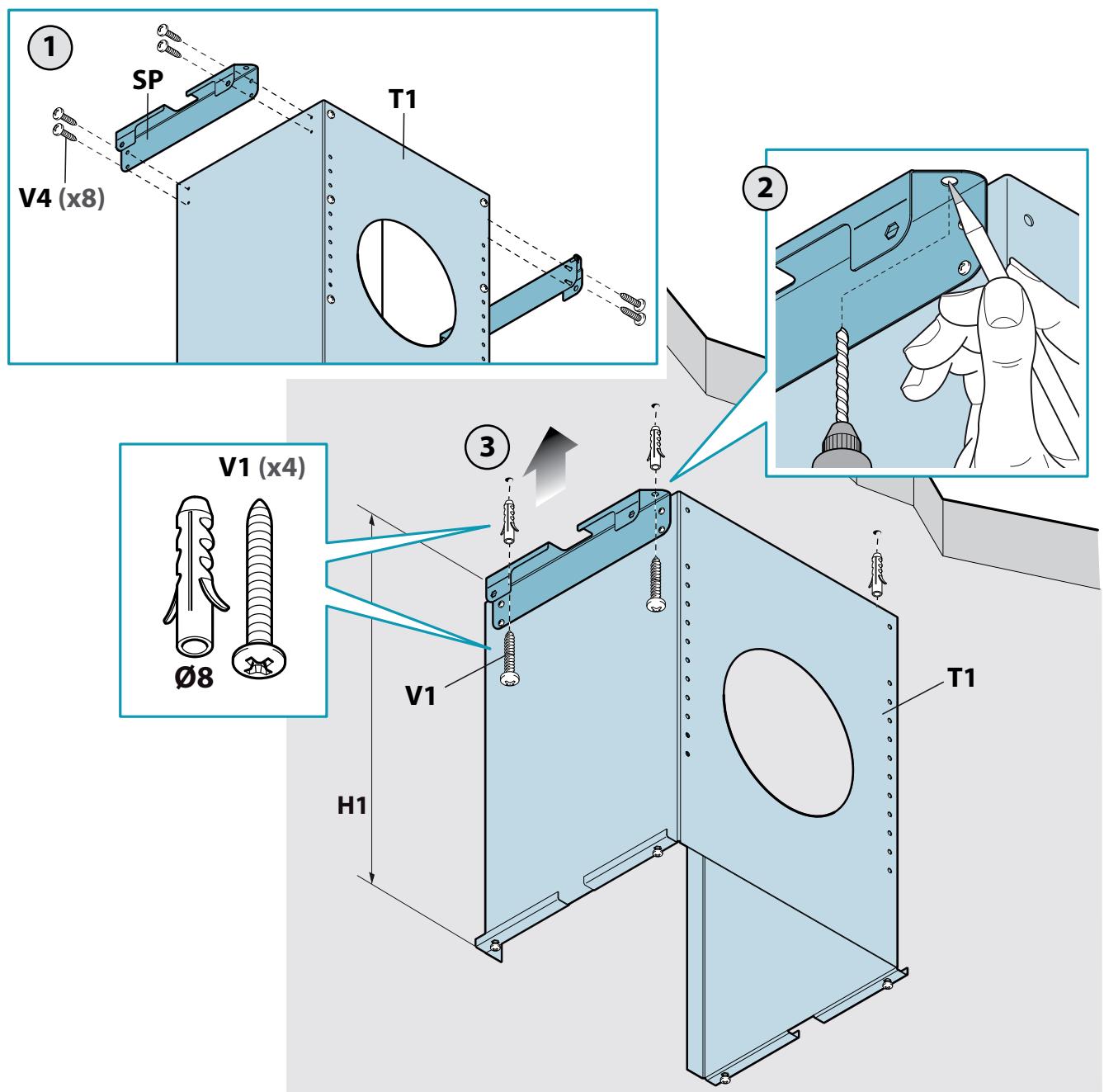

IT - Montaggio traliccio (5) e prolunga (6). EN - Trestle (5) and extension (6) assembly. DE - Montage Gittermast (5) und Verlängerung (6). FR - Montage support de fixation (5) et rallonge (6). ES - Montaje estructura (5) y prolongación (6). RU - Монтаж каркаса (5) и удлинителя (6). PL - Montaż kratki (5) i przedłużenia (6). NL - Montage raamwerk (5) en extensie (6). PT - Montagem treliça (5) e extensão (6). DK - Montering af tværbjælke (5) og forlængerstykke (6). SE - Montering av fackverk (5) och förlängning (6). FI - Säleikön (5) ja jatkeen (6) asennus. NO - Montering av listverk (5) og forlengelse (6).
5
6

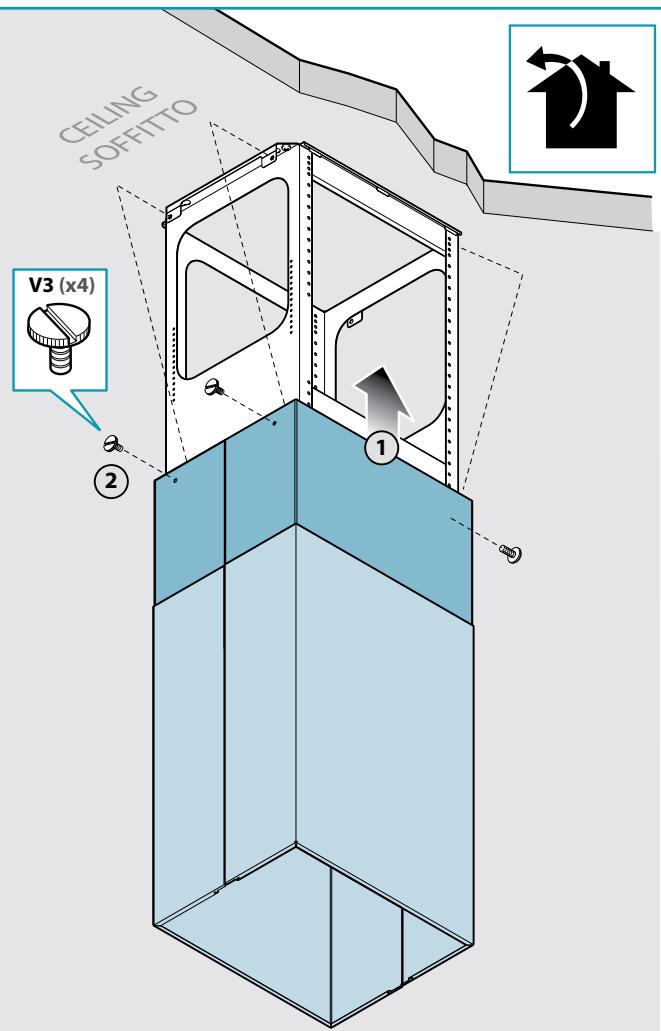

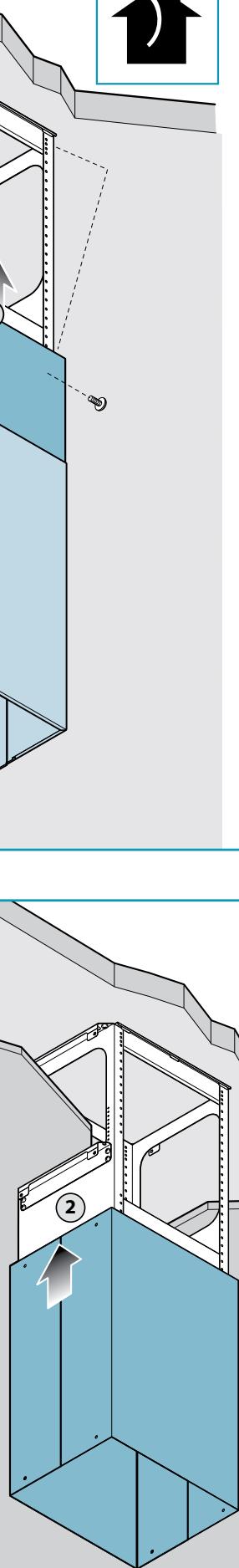

IT - Installazione a soffitto senza traliccio superiore e senza prolunga (7). EN - Ceiling mount without upper trestle and without extension (7). DE - Installation an Decke ohne oberen Gittermast und ohne Verlängerung (7). FR - Installation sur plafond sans support de fixation supérieur et sans rallonge (7). ES - Instalación en techo sin estructura superior y sin prolongación (7). RU - Установка на потолок без верхнего каркаса и без удлинителя (7). PL - Instalacja na suficie bez kratki górnej i przedłużenia (7).
NL - Ceiling installation without top frame and extension (7). PT - Ceiling installation without top frame and extension (7). DK - Loft installation without upper crossbeam and without extension piece (7). SE - Ceiling installation without upper truss and without extension (7). FI - Ceiling installation without upper lattice and extension (7). NO - Ceiling installation without upper trim and without extension (7).
7

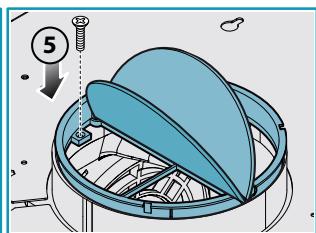

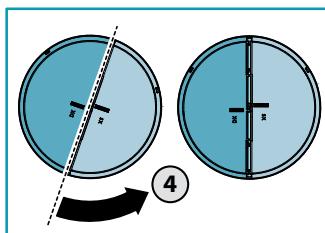

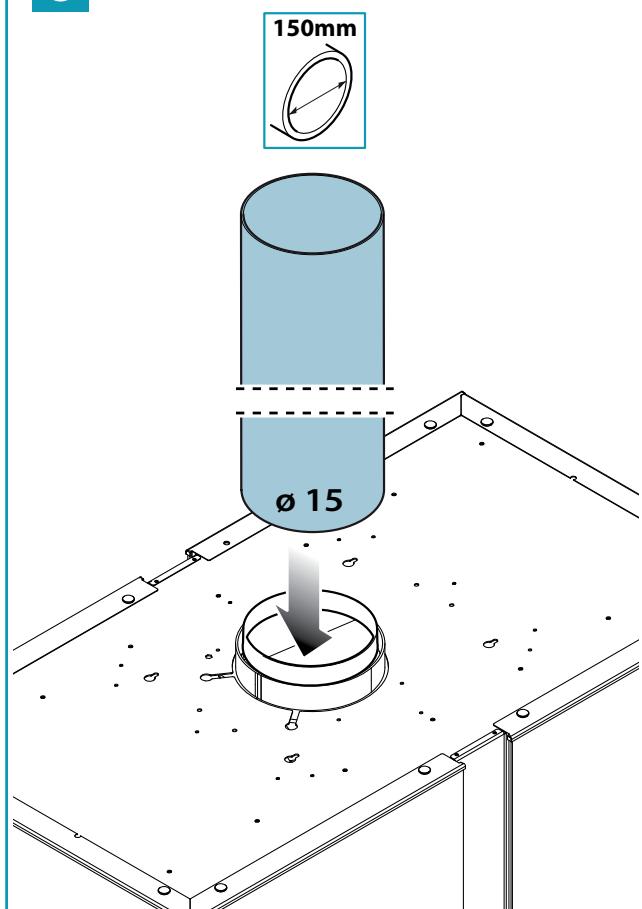

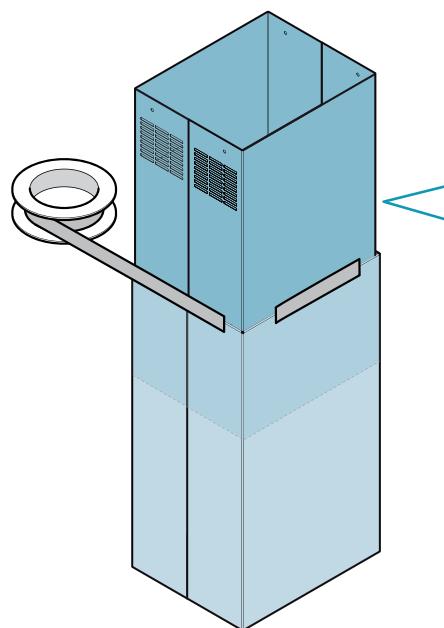

IT - Check valve assembly (7); suction pipe (8); chimney assembly (9). EN - Check valve assembly (7); exhaust pipe (8); chimney assembly (9). DE - Check valve assembly (7); intake pipe (8); chimney assembly (9). FR - Check valve assembly (7); suction tube (8); exhaust duct assembly (9). ES - Check valve assembly (7); suction pipe (8); chimney assembly (9). RU - Check valve assembly (7); suction pipe (8); chimney assembly (9). PL - Check valve assembly (7), suction pipe (8); chimney assembly (9).
NL - Check valve assembly (7); inlet pipe (8); chimney assembly (9). PT - Check valve assembly (7); suction pipe (8); chimney assembly (9). DK - Check valve assembly (7); exhaust pipe (8); chimney assembly (9). SE - Check valve assembly (7); suction line (8); chimney assembly (9). FI - Check valve (7), suction pipe (8) installation. NO - Check valve assembly (7), suction pipe (8), chimney assembly (9).
7
8
9

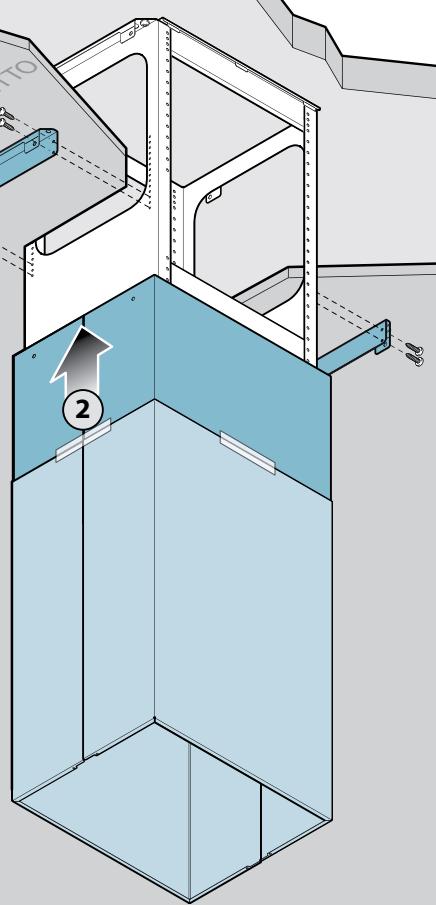

IT - Ceiling configuration (10); False ceiling configuration (11)(12). EN - Ceiling configuration (10); False ceiling configuration (11)(12). DE - Ceiling configuration (10); False ceiling configuration (11)(12). FR - Ceiling installation (10); False ceiling installation (11)(12). ES - Ceiling configuration (10); False ceiling configuration (11)(12). RU - Ceiling configuration (10); Suspended ceiling configuration (11)(12). PL - Configuration on ceiling (10); Configuration on suspended ceiling (11)(12). NL - Ceiling configuration (10); Suspended ceiling configuration (11)(12). PT - Ceiling configuration (10); False ceiling configuration (11)(12). DK - Ceiling configuration (10); Configuration with suspended ceiling (11)(12). SE - Design for ceiling (10); Design for suspended ceiling (11)(12). FI - Setting on ceiling (10); Setting on false ceiling (11)(12). NO - Configuration in ceiling (10); Configuration in suspended ceiling (11)(12).
10
11 1 V4 (x8)
12

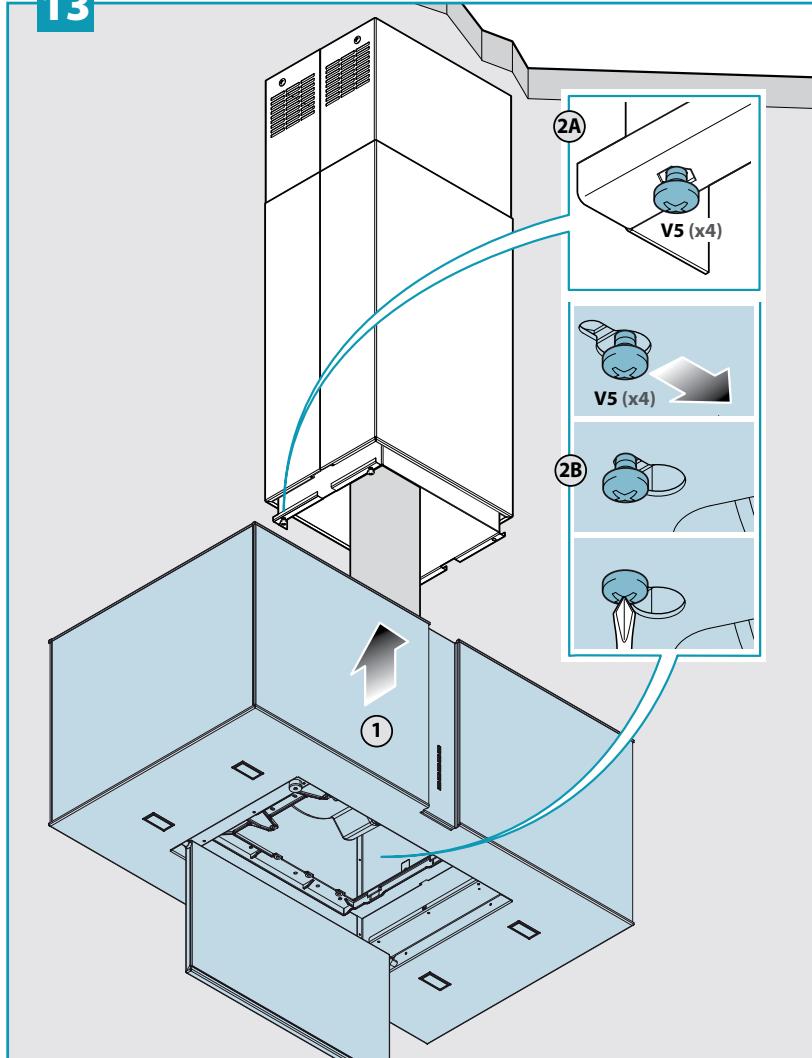

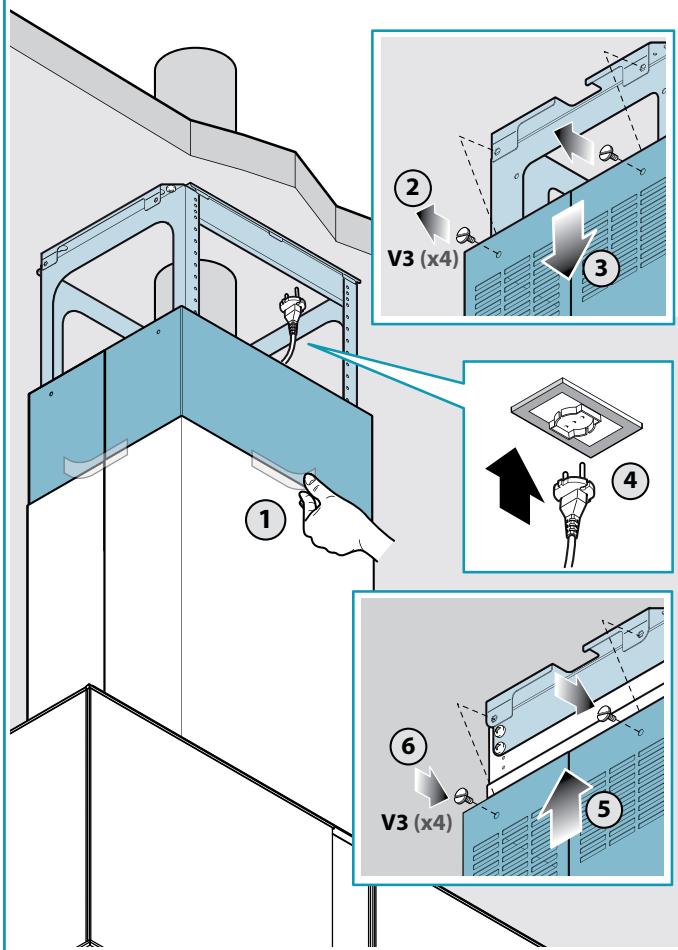

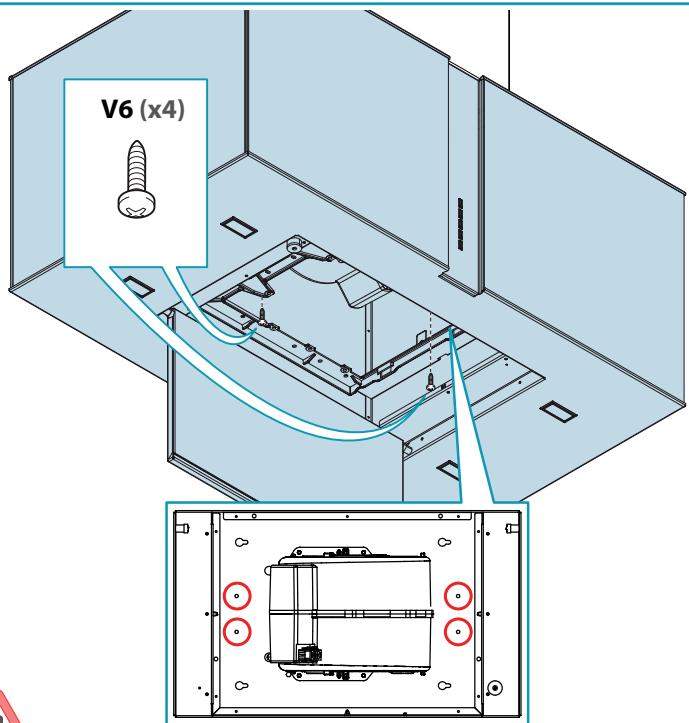

IT - Installation of motor chamber (13); electrical connection and fixing of flue + extension (14). EN - Motor chamber installation (13); electrical connection and chimney + extension installation (14). DE - Installation Motorkammer (13); elektrischer Anschluss und Befestigung Kamin + Verlängerung (14). FR - Installation chambre moteur (13) ; branchement électrique et fixation conduit d'évacuation + rallonge (14). ES - Instalación cámara motor (13); conexión eléctrica y fijación de chimenea + prolongación (14). RU - Установка камеры двигателя (13); электрическое подключение и крепление дымохода + удлинитель (14). PL - Instalacja komory silnika (13); połączenia elektryczne i zamocowanie komina + przedłużenia (14). NL - Installatie kamer motor (13); elektrische aansluiting en bevestiging schoorsteen + extensie (14). PT - Instalação câmara motor (13); ligação elétrica e fixação da chaminé + extensão (14). DK - Installation af motorkammer (13); elektrisk tilslutning og fastgøring af skorsten + forlængerstykke (14). SE - Installation motorhus (13); elanslutning och fastsättning av skorsten + förlängning (14). FI - Moottorikotelon (13) asennus; sähkökytkentä ja hormin + jatkeen (14) kiinnitys. NO - Installasjon av motorrom (13), elektrisk tilkobling og feste av pipe + forlengelse (14).
13
14
IT - Viti di sicurezza obbligatorie EN - Mandatory safety screws DE - Sicherheitsschrauben, obligatorisch FR - Vis de sécurité obligatoires ES - Tornillos de seguridad obligatorios RU - Обязательные предохранительные винты
PL - Obowiązkowe śruby zabezpieczające NL - Verplichte veiligheidsschroeven PT - Parafusos de segurança obrigatórios DK - Obligatoriske sikkerhedsskruer SE - Obligatoriska säkerhetsskruvar FI - Pakolliset varmistusruuvit NO - Påkrevde sikkerhetsskruer

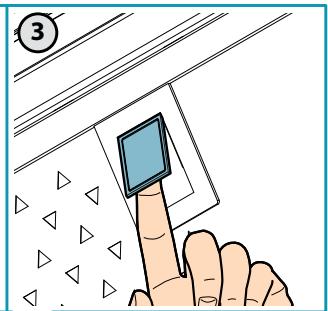

IT - Montaggio filtro di serie (1)+(2). EN - Assembly of factory-fitted filter (1)+(2). DE - Montage des Serienfilters (1)+(2). FR - Montage du filtre de série (1)+(2). ES - Montaje del filtro de serie (1)+(2). RU - Монтаж фильтра серийного оснащения (1)+(2). PL - Montaż filtra występującego w wyposażeniu seryjnym (1)+(2). NL - Montage filter, serieel (1)+(2). PT - Montagem filtro de série (1)+(2). DK - Montering af seriefilter (1)+(2). SE - Montering av seriefilter (1)+(2). FI - Varusteluun kuuluvan suodattimen (1)+(2) asennus. NO - Montering av standardfilter (1)+(2).
1
2
Installation operations are to be carried out by skilled and qualified installers in accordance with the instructions in this booklet and in compliance with the regulations in force.
DO NOT use the hood if the power supply cable or other components are damaged: disconnect the hood from the electrical power supply and contact the Dealer or an authorised Servicing Dealer for repairs.
Do not modify the electrical, mechanical or functional structure of the equipment.
Do not personally try to carry out repairs or replacements. Interventions carried out by incompetent and unauthorized persons can cause serious damage to the unit or physical and personal harm, not covered by the Manufacturer's warranty.
WARNING FOR THE INSTALLER
TECHNICAL SAFETY
Before installing the hood, check the integrity and function of each part. Should anomalies be noted, do not proceed with installation and contact the Dealer.
Do NOT install the hood if an aesthetic (or cosmetic) defect has been detected. Put it back into its original package and contact the dealer.
No claim can be made for aesthetic (or cosmetic) defects once it has been installed.
During installation, always use personal protective equipment (e.g., safety shoes) and adopt prudent and proper conduct.
The installation kit (screws and plugs) supplied with the hood is only to be used on masonry walls: in case of installation on walls of a different material, assess other installation options keeping in mind the type of wall surface and the weight of the hood (indicated on page 2).
Keep in mind that installations with different types of fastening systems from those supplied, or which are not compliant, can cause electrical and mechanical seal danger.
Do not install the hood outdoors and do not expose it to atmospheric elements (rain, wind, etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is to be connected must be in accordance with local standards and supplied with earthed connection in compliance with safety regulations in the country of use. It must also comply with European standards regarding radio antistatic properties.
Before installing the hood, check that the electrical mains power supply corresponds with what is reported on the identification plate located inside the hood. The socket used to connect the installed equipment to the electrical power supply must be within reach: otherwise, install a mains switch to disconnect the hood when required.
Any changes to the electrical system must be carried out by a qualified electrician.
The maximum length of the flue fastening screws (supplied by the manufacturer) must be 13 mm. Use of non-compliant screws with these instructions can lead to danger of an electrical nature.
Do not try to solve the problem yourself in the event of equipment malfunction, but contact the Dealer or an authorized Servicing Department for repairs.
When installing the hood, disconnect the equipment by removing the plug or switching off the main switch.
FUMES DISCHARGE SAFETY
! Do not connect the equipment to discharge pipes of fumes produced from combustion (for example boilers, fireplaces, etc.).
Before installing the hood, ensure that all standards in force regarding discharge of air out of the room have been complied with.
USER WARNINGS
These warnings have been drawn up for your personal safety and those of others. You are therefore kindly asked to read the booklet carefully in its entirety before using or cleaning the equipment.
The Manufacturer declines all responsibility for any damage caused directly, or indirectly, to persons, things and pets as a consequence of failing to comply with the safety warnings indicated in this booklet.
It is imperative that this instructions booklet is kept together with the equipment for any future consultation.
If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative warnings.
After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if not removed, can cause irreversible damage to the hood surface. To properly clean the unit, the manufacturer recommends using the supplied moist wipes, which are also available sold separately.
Insist on original spare parts.
INTENDED USE
The equipment is solely intended to be used to extract fumes generated from cooking food in non-professional domestic kitchens: any other use is improper. Improper use can cause damage to persons, things, pets and exempts the Manufacturer from any liability.
The equipment can be used by children over the age of 8 and by persons with reduced physical, sensory and mental abilities, or with no experience or knowledge, as long as they do so under supervision or after having received relative instructions regarding safe use of the equipment and understanding of the dangers connected to it.
Children are not to play with the equipment. Cleaning and maintenance by the user must not be carried out by children without supervision.
USE AND CLEANING WARNINGS
Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching the main switch.
Do not use the hood with wet hands or bare feet.
Always check that all electrical parts (lights, extractor fan) are off when the equipment is not being used.
The maximum overall weight of any objects placed or hung (if applicable) on the hood must not exceed 1.5 kg.
Always supervise the cooking process during the use of deep-fryers: Overheated oil can catch fire.
Do not leave open, unattended flames under the hood.
Do not prepare food over an open flame under the hood.
Never use the hood without the metal anti-grease filters: in this case, grease and dirt will deposit in the equipment and compromise its operation.
Accessible parts of the hood can be hot when used at the same time as the cooking appliances.
Do not carry out any cleaning operations when parts of the hood are still hot.
There can be a risk of fire if cleaning is not carried out according to the instructions and products indicated in this booklet.
Disconnect the main switch when the equipment is not used for long periods of time.
If other appliances that use gas or other fuels are being used at the same time (boiler, stove, fireplaces, etc.), make sure the room
where the fumes are discharged is well-ventilated, in compliance with the local regulations.
INSTALLATION
only intended for qualified personnel
Before installing the hood, carefully read the chapter 'SAFETY INSTRUCTIONS AND WARNINGS'.
TECHNICAL FEATURES
The technical specifications are exhibited on the labels located inside the hood.
POSITIONING
The minimum distance between the highest part of the cooking equipment and the lowest part of the hood is indicated in the installation instructions.
Generally, when the hood is placed over gas cookers, the distance must be at least 65 cm (25.6"). However, according to an interpretation of standard EN60335-2-31 dated 11-07-2002 of TC61 (sub-clause 7.12.1 meeting 15 agenda item 10.11), the minimum distance between the cooker and lower part of the hood can be reduced to the quota reported in the installation instructions.
Should the instructions for the gas cooker specify a greater distance, this must be taken into consideration.
Do not install the hood outdoors and do not expose it to outdoor environment (rain, wind, etc.).
ELECTRICAL CONNECTION
(only intended for qualified personnel)
Disconnect the equipment from electrical mains power supply before carrying out any operations on the hood.
Ensure that the wires inside the hood are not disconnected or cut:
In the event of damage, contact your nearest Servicing Department. Refer to qualified personnel for electrical connections.
Connection must be carried out in compliance with the provisions of law in force.
Before connecting the hood to the electrical mains power supply, check that:
- Voltage supply corresponds with what is reported on the data plate located inside the hood;
- The electrical system is compliant and can withstand the load (see the technical specifications located inside the hood);
- The power supply plug and cable do not come into contact with temperatures exceeding 70°C;
- The power supply system is effectively and properly connected to earth in compliance with regulations in force;
- The socket used to connect the hood is within reach.
In case of:
- Devices fitted with cables without a plug: the type of plug to use is a "standardised" one. The wires must be connected as follows: yellow-green for earthing, blue for neutral and brown for the phase. The plug must be connected to an adequate safety socket.
- Fixed equipment not provided with a power supply cable and plug, or any other device that ensures disconnection from the electrical mains, with an opening gap of the contacts that enables total disconnection in overvoltage category III conditions.
Said disconnection devices must be provided in the mains power supply in compliance with installation regulations.
The yellow/green earth cable must not be cut off by the switch.
The Manufacturer declines all responsibility for failure to comply with the safety regulations.
EXTERNAL EXHAUST HOOD (SUCTION)
In this version, the fumes and vapors are discharged outside through the exhaust pipe.
To this end, the hood outlet fitting must be connected via a pipe to an external output.
The outlet pipe must have:
- a diameter not less than that of the hood fitting.
- a slight downward slope (drop) in the horizontal sections to prevent condensation from flowing back into the motor, and the minimum required number of bends.
- the minimum required length to avoid vibrations and reduce the suction performance of the hood.
You are required to insulate the pipes if they pass through cold environments. In the presence of motors with 800 m3/h or higher, a check valve is present to prevent external air from flowing back.
Deviation for Germany:
When the kitchen hood is used at the same time as appliances that are powered by energy other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
HOOD WITH INTERNAL RECIRCULATION (FILTERING)
In this model, the air passes through the charcoal filters to be purified and recycled in the environment.
Ensure that the active carbon filters are assembled into the hood; if not, install them as indicated in the assembly instructions.
In this version, the check valve must not be assembled: remove it if it is on the air outlet fitting of the motor.
ASSEMBLY INSTRUCTIONS
Only intended for qualified personnel.

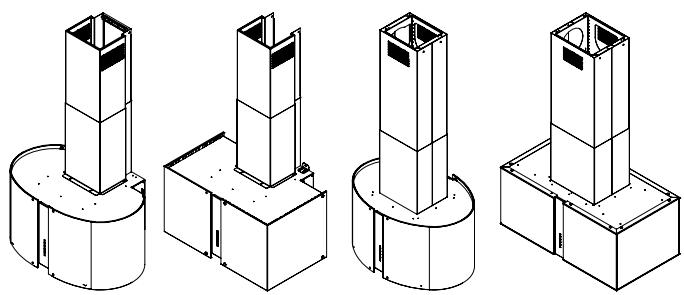

The hood can be installed in various configurations. The generic assembly steps apply to all installations; for each case, follow the specific steps provided for the required installation.
OPERATION
WHEN TO TURN ON THE HOOD?
Switch on the hood at least one minute before starting to cook to direct fumes and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours and odours. By means of the Timer function, it is possible to set auto switch-off function which will allow the hood to turn off automatically after 15 minutes of operation.
WHICH SPEED IS TO BE SELECTED?
1st speed: maintains the circulation of clean air with low electricity consumption.
2nd speed: normal conditions of use.
3rd speed: presence of strong odours and vapours.
4th speed: rapid disposal of odours and vapours.
WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?
The metal filters must be cleaned every 30 hours of operation.
The active carbon filters must be replaced every 3-4 months, depending on the use of the hood.
For further details see the "MAINTENANCE" chap.
ELECTRONIC PUSHBUTTON PANEL
| + | * | - |
| Motor ON/OFF Upon start-up, the speed is that stored at the previous operation. | ||
| Increase speed from 1 to 4 Speed 4 is only active for a few minutes, then speed 3 activates. | The speeds are indicated by the LEDs on the keys: + + - Speed 1 + + - Speed 2 + + - Speed 3 + + - Speed 4 ("+" LED flashing) | |
| Reduce speed from 4 to 1 | ||
| Light on/off Press for 3 seconds for room light With motor OFF: Use + and - to adjust intensity | ||
| TIMER (red LED flashing) Auto switch-off after 15 min. The function deactivates (red LED off) if: - The TIMER key (▲) is pressed again. - The ON/OFF key (▲) is pressed. | ||
| FILTER ALARM (red LED steady on with (▲) off) Anti-grease filter maintenance after approximately 30 hours of op- eration. Press (▲) the meter for 3 seconds to reset. | ||
Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.
Do not use detergents containing abrasive, acidic or corrosive substances or abrasive cloths.
Regular maintenance guarantees proper operation and performance over time. Special attention is to be paid to the metal anti-grease filters: frequent cleaning of the filters and their supports ensures that no flammable grease is accumulated.
CLEANING OF EXTERNAL SURFACES
You are advised to clean the external surfaces of the hood at least once every 15 days to prevent oily substances and grease from sticking to them. To clean the brushed stainless steel hood, the Manufacturer recommends using "Magic Steel" wipes.
Alternatively and for all the other types of surfaces, it can be cleaned using a damp cloth, slightly moistened with mild, liquid detergent or denatured alcohol. Complete cleaning by rinsing well and drying with soft cloths.
Do not use too much moisture or water around the push button control panel and lighting devices in order to prevent humidity from reaching electronic parts.
The glass panels can only be cleaned with specific, non-corrosive or non-abrasive detergents using a soft cloth.
The Manufacturer declines all responsibility for failure to comply with these instructions.

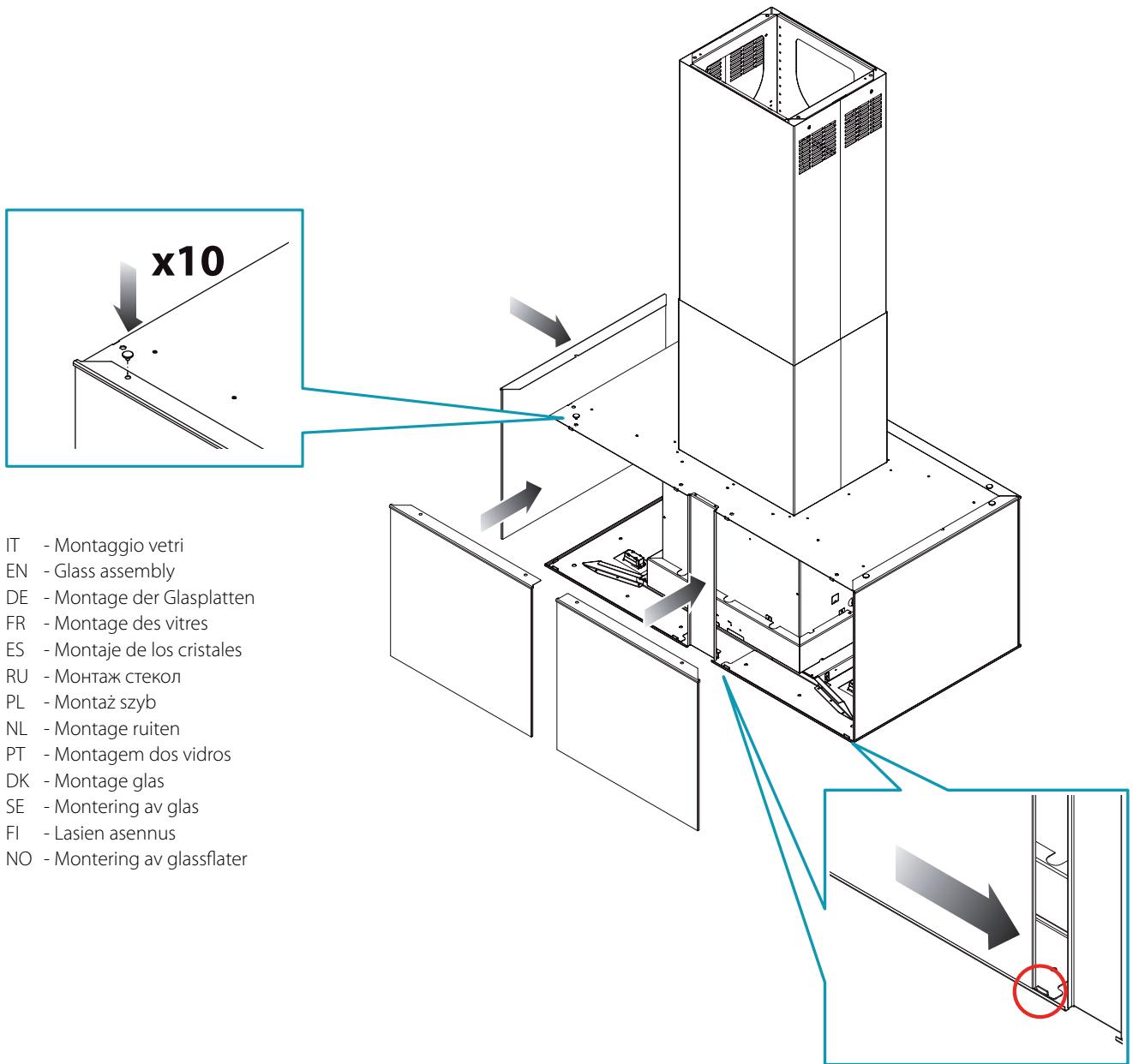

GLASS CLEANING
To remove the glass, see the assembly instructions.
CLEANING OF INTERNAL SURFACES
Do not clean electrical parts, or parts related to the motor inside the hood, with liquids or solvents.
For the internal metal parts, see the previous paragraph.

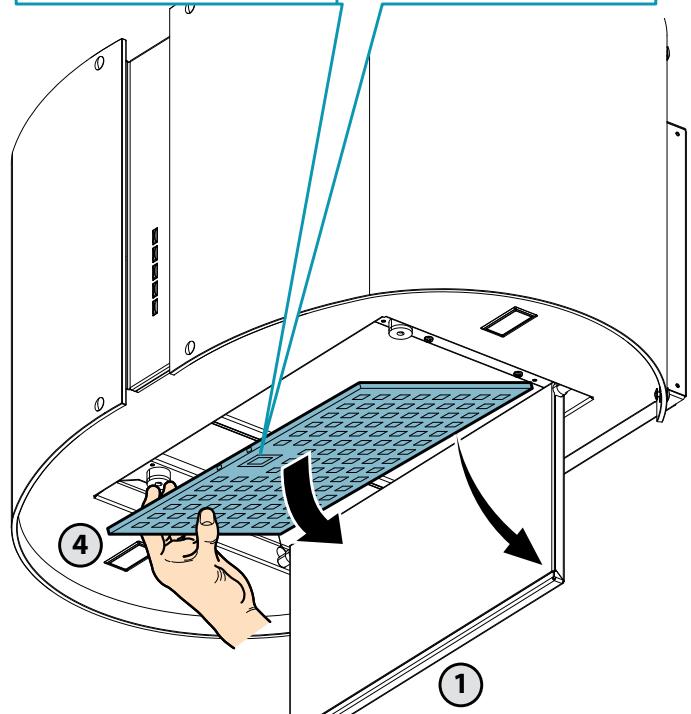

METAL ANTI-GREASE FILTERS
It is advised to frequently wash the metal filters (at least once a month) leaving them to soak in boiling water and cleaning solution for 1 hour, taking care not to bend them.
Do not use corrosive, acid or alkaline detergents.
Rinse them well and wait for them to be completely dry before reassembling them.
Washing in a dishwasher is permitted, however, it may cause the filter material to darken: to reduce the possibility of this problem from happening, use low-temperature washes (55°C max.).
To extract and insert the metal anti-grease filters see the assembly instructions.

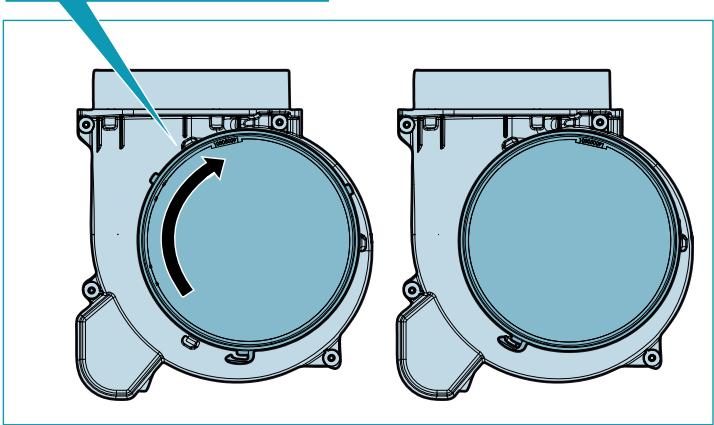

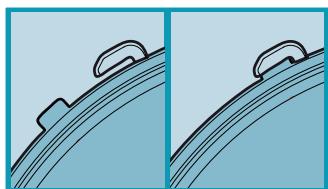

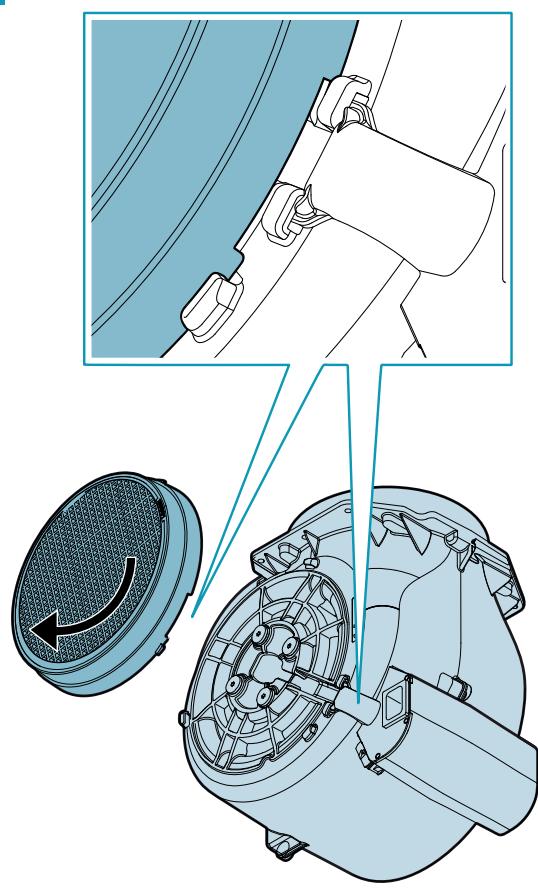

ACTIVE CARBON FILTERS
These filters retain the odours in the air that passes through them. The purified air is recirculated into the environment.
The active carbon filters must be replaced on average every 3-4 months under normal conditions of use.
See assembly instructions to replace the active carbon filters.
LIGHTING
The range hood is equipped with high efficiency, low consumption LED spotlights with an extremely long life-span under normal use conditions.
Should the LED spotlight need to be replaced, proceed as shown in the figure.
DISPOSAL AFTER END OF USEFUL LIFE
The crossed-out trash or refuse bin symbol on the appliance means that the product is WEEE, i.e., "Waste electrical and electronic equipment," accordingly it must not be disposed of with regular unsorted waste.
ted waste (i.e., with "mixed household waste"), but it must be disposed of separately so that it can undergo specific processing for its re-use, or a specific treatment, to remove and safely dispose of any substances that may be harmful to the environment and remove the raw materials that can be recycled. Proper disposal of these products contributes to saving valuable resources and avoids potential negative effects on personal health and the environment, which may be caused by inappropriate disposal of waste.
You are kindly asked to contact your local authorities for further information regarding the designated waste collection points nearest to you. Penalties for improper disposal of such waste can be applied in compliance with national regulations.
INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
The EU WEEE Directive was implemented differently in each country, accordingly, if you wish to dispose of this appliance we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.
INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES
The crossed-out trash or refuse bin symbol is only valid in the European Union: if you wish to dispose of this appliance in other countries, we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.
WARNING!
The Manufacturer reserves the right to make changes to the equipment at any time and without prior notice. Printing, translation and reproduction, even partial, of this manual are bound by the Manufacturer's authorisation.
Technical information, graphic representations and specifications in this manual are for information purposes and cannot be divulged.
This manual is written in Italian. The Manufacturer is not responsible for any transcription or translation errors.
ACTIVE CARBON FILTERS
SAFETY PRECAUTIONS
Installation must be carried out by qualified and experienced personnel in accordance with the instructions in this manual and applicable regulations.
If the power cord or other parts are damaged, do not use the hood: disconnect it from the power supply and contact the dealer or an authorized service center for repair.
Do not make electrical, mechanical, or functional modifications to the appliance.
Do not attempt to replace parts or repair the appliance yourself. Work performed by unqualified or unauthorized personnel may cause damage, including serious injury to persons or property, for which the manufacturer's warranty does not apply.
SAFETY TECHNIQUES
Before starting the installation of the extractor hood, it is necessary to make sure that all its parts are intact and in good working order. If any damage is found, do not proceed with the installation, but contact the distributor.
If any defects are found in the visible part, do not install the hood; pack it back in its original packaging and contact the distributor.
After installation is complete, no claims regarding visible defects will be accepted.
During installation, always use personal protective equipment (for example, protective footwear) and exercise caution and attentiveness.
The set of fasteners (screws, plugs) supplied with the hood can be used exclusively on brick walls. In the case of installation on walls made of other materials, other fastening systems should be considered, taking into account the strength of the wall and the weight of the hood (indicated on page 2).
It should be noted that installation using fastening systems other than those supplied or not suitable for the intended purpose may lead to electrical hazards or mechanical failure.
Do not install the hood outdoors or in places where it would be exposed to atmospheric conditions (rain, wind, etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is connected must comply with current standards and must be grounded in accordance with the requirements of the standards in force in the country of operation; it must also comply with European standards for interference suppression devices.
Make sure that the voltage in the electrical network corresponds to that indicated on the factory plate, which is located inside the hood.
The socket used for connecting the hood to the electrical supply must be accessible after the equipment is installed. Otherwise, it is necessary to provide an easily accessible main switch or a means of disconnecting the hood in case of such need.
Any modifications to the electrical system must be carried out only by a qualified electrician.
The maximum length of the screw for fixing the hood (supplied by the manufacturer) is 13 mm. The use of screws that do not comply with these instructions may lead to electrical hazards.
If the device is faulty, do not attempt to repair it yourself. Contact the distributor or an authorized service center for repair.
When installing the hood, unplug the device or use the main switch to disconnect it from the power supply.
SAFETY OF SMOKE EXHAUST
Do not connect the appliance to the smoke ducts used for exhausting fumes from combustion (boilers, fireplaces, etc.).
Before installing the hood, make sure that all applicable regulations regarding the discharge of air outside the premises are complied with.
SAFETY MEASURES FOR THE USER
These safety measures are provided for your safety and for the safety of others. Therefore, we ask you to read them carefully before using or cleaning the appliance.
The manufacturer is not liable for any direct or indirect damage caused to persons, property, or pets due to failure to comply with the instructions given in this manual.
It is important that this manual with instructions is kept with the equipment for future reference when needed.
In case of sale or transfer of the appliance to another person, make sure that the manual is also transferred so that the new user can familiarize themselves with the operation of the hood and the corresponding warnings.
After installing the hood made of stainless steel, it is necessary to clean off any traces of glue from the protective coating and possible traces of lubricating oil. If they are not removed, they may permanently damage the surface of the hood. For this operation, the manufacturer recommends using the cloths included in the delivery kit, which are also available for purchase.
Require original spare parts.
INTENDED USE
The appliance is intended exclusively for extracting fumes generated during cooking in domestic environments, not in professional settings. Any other use, different from this, is considered unacceptable; it may cause harm to persons, property, or pets, and relieves the manufacturer of all liability.
The appliance can be used by children aged 8 and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they are supervised or have been instructed on the safe use of the appliance and understand the associated dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.
SAFETY PRECAUTIONS FOR OPERATION
Before performing any operation on the system or maintenance, disconnect the device from the power supply by unplugging it from the socket or using the main switch.
Do not touch the hood with wet hands and do not use it barefoot.
When the device is not in use, always check that all electrical components (light, aspirator) are switched off.
The total weight of items placed on or hung from the hood (where provided) must not exceed 1.5 kg.
Watch out for fire hazards during use: hot oil can ignite.
Do not light open flames under the hood.
Do not cook food over an open flame under the hood. Never use the hood without metal grease filters; in this case, grease and dirt will settle in the hood, negatively affecting its operation.
The accessible parts of the hood may become hot when used with cooking appliances.
Do not clean the hood while its parts are still hot. If cleaning is not carried out in accordance with the methods and using the products specified in these instructions, there is a risk of fire.
When the hood is not used for an extended period, it is necessary to turn off the main switch.
In case of simultaneous use of other devices (boilers, stoves, fireplaces, etc.) operating on gas or other fuel, provide adequate ventilation of the room where smoke is extracted, in accordance with applicable regulatory requirements.
INSTALLATION
Section intended for qualified personnel
Before starting the installation of the hood, carefully read the section "SAFETY PRECAUTIONS".
TECHNICAL DATA
The technical data of the extractor hood are given on the labels that are inside the hood.
POSITIONING
The minimum distance between the highest part of the appliance for preparing food and the lowest part of the hood is indicated in the installation instructions.
Usually, when the hood is installed over a gas hob, this distance must be no less than 65 cm (25.6"). However, based on the standard EN60335-2-31 of 11-07-2002 from TC61 (clause 7.12.3 and note 10.11), the minimum distance between the hob surface and the lower part of the hood can be reduced to the mark indicated in the installation instructions.
If the gas hob manufacturer indicates a greater distance, this must be taken into account.
Do not install the hood outdoors or in places where it would be exposed to atmospheric agents (rain, wind, etc.).
ELECTRICAL CONNECTION
(This section is intended only for qualified personnel)
Before performing any operation on the hood, disconnect the appliance from the electrical power supply.
Check that there are no disconnected or broken wires inside the hood:
If so, contact the nearest technical service. The electrical connection must be made by qualified personnel.
The connection must be made in compliance with the requirements of current legislation.
Before connecting the hood to the electrical power supply, check that:
The voltage in the electrical power supply corresponds to that indicated on the factory plate.
Duct, which is located inside the hood;
- The electrical network complies with current standards and can withstand the load (see technical characteristics inside the hood); the plug and electrical cable must not come into contact with temperatures above 70°C; the electrical system is equipped with proper grounding in accordance with current standards; the plug used for connection must be accessible after installation of the hood.
In case:
The manufacturer bears no responsibility in case of improper installation.
Exhaust outlet
Kitchen hood with external exhaust (suction)
In this version, smoke is expelled through an exhaust duct to the outside.
For this purpose, the hood's exhaust outlet must be connected via a pipe to an external outlet.
The exhaust pipe must have:
- A diameter not less than the diameter of the hood's exhaust outlet. - A slope downwards (fall) for horizontal sections to prevent condensate from entering the motor. - The minimum number of necessary bends.
The minimum possible length to avoid vibrations and reduction of the suction capacity of the hood.
To prevent the return of outside air, it is recommended to install a non-return flap, installed when the flow rate is 800 m3/h or more.
Absence of air inlet:
When operating simultaneously in the room with the kitchen hood and other devices that operate on an energy source other than electricity, the negative pressure inside the room must not exceed 4 Pa (4 x 10-5 bar).
EXTRACTION WITH INTERNAL RECIRCULATION (AIR FILTER)
In version 308, the recirculated air passes through activated carbon filters and is then supplied back into the room.
Make sure that the activated carbon filters are installed on the extraction unit; otherwise, install them as
described in the installation instructions.
In this version, the valve must be installed. Remove it if it is installed on the air outlet pipe of the motor.
INSTALLATION INSTRUCTIONS
This section is intended only for qualified personnel.
The extraction unit can be installed in various configurations.
The general installation steps are common to all types of installations; it is also necessary to follow the steps specifically indicated for each type of installation.
OPERATION
WHEN TO TURN ON THE EXTRACTION UNIT?
The extraction unit should be turned on at least 3 minutes before starting cooking to create an air flow to direct smoke and odors towards the suction surface. After cooking, the extraction unit should be left on until all vapors and odors are completely aspirated. Using the timer function, you can set an automatic shutdown of the extraction unit after 15 minutes of operation.
WHICH SPEED TO SELECT?
Speed I: keeps the air clean with low electricity consumption.
Speed II: normal working conditions.
Speed III: removal of persistent odors and large amounts of steam.
Speed IV: rapid removal of odors and steam.
When to change the filters?
Metal grease filters must be washed every 30 hours of operation. Filters with activated carbon should be replaced every 3-4 months depending on the intensity of use of the hood.
Additional information is provided in the "SERVICE AND MAINTENANCE" section.
ELECTRONIC CONTROL PANEL
| + | Двигател BKЛ/BыКЛ При заучке скорoctь COOTBETCTBYET скорoctи, Вhecенhoь в па-mятыPreиPreдыДушем ВыКлIOUЧЕНИN. | |
| + | Увенистеньскорoctи OT 1 do 4 Скорoctь 4 pajobаet толъков В чуже несякови МИ-нут, затем подючaeТСЯ 3-я SCKорoctь. | С Bretоднода Кнорок Показовот скороб: + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + . + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + ? + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + > + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 |
SERVICE AND MAINTENANCE
Before performing any cleaning or maintenance operation, disconnect the appliance from the power supply by removing the plug from the socket or using the main switch.
Do not use abrasive, acidic, or corrosive substances, nor cloths with rough surfaces.
Regular care and maintenance guarantee correct functioning and efficiency.
Special attention should be paid to the metal grease filters, as regular cleaning of the filters guarantees the absence of easily flammable grease deposits.
CLEANING OF EXTERNAL SURFACES
It is recommended to clean the external surface of the hood at least every 15 days to prevent damage from the action of oily or greasy substances. For cleaning the hood made of painted stainless steel, it is recommended to use "Magic Steel" cloths.
As an alternative, and for all other surfaces of the hood, a damp cloth moistened with neutral mild detergent or denatured alcohol can be used.
Finish cleaning with a thorough rinse and dry with a soft cloth.
Do not use the appliance with a lot of water near the control panel to avoid splashing on electronic parts.
Cleaning of glass panels should only be done using special non-corrosive liquid or creamy detergents with a soft cloth. The manufacturer is not responsible for non-compliance with these instructions.
Cleaning of glass
To remove the glass, see the installation instructions.
Cleaning of internal surfaces
It is forbidden to clean electrical components or parts of the motor inside the hood using liquids or solvents.
Cleaning of internal metal surfaces is described in the previous paragraph.
METAL GREASE FILTERS
It is recommended to wash the metal filters (at least once a month) by soaking them for about 1 hour in very hot water with a dishwashing detergent, trying not to bend the filters.
Do not use corrosive, acidic, or alkaline detergents.
Rinse thoroughly and dry until they are completely dry before reinstalling them.
It is allowed to wash the filters in a dishwasher, but this may cause darkening of the filter material. To reduce these effects, use washing programs with low temperature (maximum 55°C).
Instructions for replacing filters with activated carbon are in the installation instructions.
LIGHTING
The hood is equipped with LED lighting elements with high efficiency, low energy consumption, and a long service life under normal operating conditions.

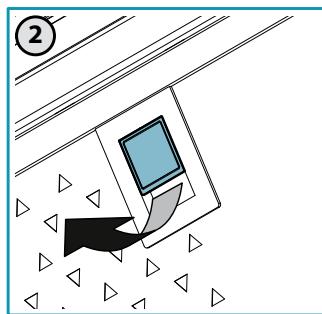

If necessary, replace the lamp as shown in the figure.
DISPOSAL AT END OF SERVICE LIFE
The crossed-out wheeled bin symbol on the device indicates that it belongs to the category of "Waste Electrical and Electronic Equipment". Therefore, it must not be
disposed of together with unsorted waste (i.e., with household waste), but must be handed in separately to allow for the necessary treatment, recycling, or special processing for safe disposal of potentially hazardous materials for the environment and to recover materials that can be reused. Correct disposal of this product will help save valuable resources and avoid potential negative effects on human health and the environment, which could result from incorrect disposal.
Please contact your local authorities for detailed information on the collection points for this product. In accordance with national legislation, penalties may be imposed in case of incorrect disposal of these wastes.
INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
INFORMATION ON DISPOSAL IN COUNTRIES OUTSIDE THE EUROPEAN UNION
The crossed-out wheeled bin symbol is only valid in European Union countries. If you wish to dispose of this device in other countries, we recommend contacting local authorities or distributors for information on correct disposal.
WARNING!
The manufacturer reserves the right to make changes to the device at any time without prior notice. Printing, reproduction, including partial, of this manual is only possible after obtaining prior permission from the manufacturer.
Technical information, graphic images, and specifications provided in this manual are indicative and are not subject to disclosure.
This manual was written in Italian; the manufacturer is not responsible for possible errors or translation mistakes.
SAFETY INSTRUCTIONS AND WARNINGS
EXTRACTOR HOOD WITH EXTERNAL EXHAUST
RECIRCULATION HOOD WITH INTERNAL RECIRCULATION (FILTERING)
- WARNING FOR THE INSTALLER
- TECHNICAL SAFETY
- ELECTRICAL SAFETY
- FUMES DISCHARGE SAFETY
- USER WARNINGS
- INTENDED USE
- USE AND CLEANING WARNINGS
- INSTALLATION
- TECHNICAL FEATURES
- POSITIONING
- ELECTRICAL CONNECTION
- IN CASE OF
- EXTERNAL EXHAUST HOOD (SUCTION)
- HOOD WITH INTERNAL RECIRCULATION (FILTERING)
- ASSEMBLY INSTRUCTIONS
- OPERATION
- WHEN TO TURN ON THE HOOD
- WHICH SPEED IS TO BE SELECTED
- WHEN SHOULD THE FILTERS BE WASHED OR REPLACED
- ELECTRONIC PUSHBUTTON PANEL
- CLEANING OF EXTERNAL SURFACES
- GLASS CLEANING
- CLEANING OF INTERNAL SURFACES
- METAL ANTI-GREASE FILTERS
- ACTIVE CARBON FILTERS
- LIGHTING
- DISPOSAL AFTER END OF USEFUL LIFE
- INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
- INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES
- WARNING
- SAFETY PRECAUTIONS
- SAFETY TECHNIQUES
- SAFETY OF SMOKE EXHAUST
- SAFETY MEASURES FOR THE USER
- SAFETY PRECAUTIONS FOR OPERATION
- BEFORE PERFORMING ANY OPERATION ON THE SYSTEM OR MAINTENANCE, DISCONNECT THE DEVICE FROM THE POWER SUPPLY BY UNPLUGGING IT FROM THE SOCKET OR USING THE MAIN SWITCH
- TECHNICAL DATA
- IN CASE
- EXHAUST OUTLET
- KITCHEN HOOD WITH EXTERNAL EXHAUST (SUCTION)
- THE EXHAUST PIPE MUST HAVE
- ABSENCE OF AIR INLET
- EXTRACTION WITH INTERNAL RECIRCULATION (AIR FILTER)
- INSTALLATION INSTRUCTIONS
- WHEN TO TURN ON THE EXTRACTION UNIT
- WHICH SPEED TO SELECT
- WHEN TO CHANGE THE FILTERS
- ELECTRONIC CONTROL PANEL
- SERVICE AND MAINTENANCE
- CLEANING OF GLASS
- METAL GREASE FILTERS
- DISPOSAL AT END OF SERVICE LIFE
- INFORMATION ON DISPOSAL IN COUNTRIES OUTSIDE THE EUROPEAN UNION
- SAFETY INSTRUCTIONS AND WARNINGS
- EXTRACTOR HOOD WITH EXTERNAL EXHAUST
- RECIRCULATION HOOD WITH INTERNAL RECIRCULATION (FILTERING)
Brand : FALMEC
Model : MAIA
Category : Kitchen hood
