USER MANUAL OTC6223WG AMICA

Downloaded from www.Manualslib.com manuals search engine

EN- Table of contents

NOTES ON SAFETY UNPACKING DISPOSAL OF OLD APPLIANCE OPERATION

CLEANING AND MAINTENANCE

WARRANTY AND AFTER SALES SERVICE

GWARANCJA, OBSŁUGA POSPRZEDAŻOWA

-2Downloaded from www.Manualslib.com manuals search engine

-3Downloaded from www.Manualslib.com manuals search engine

-4Downloaded from www.Manualslib.com manuals search engine

-5Downloaded from www.Manualslib.com manuals search engine

From now on, your daily housework will be easier than ever before. Your appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality. Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time. Follow these instructions carefully in order to avoid possible accidents. Sincerely,

-6Downloaded from www.Manualslib.com manuals search engine

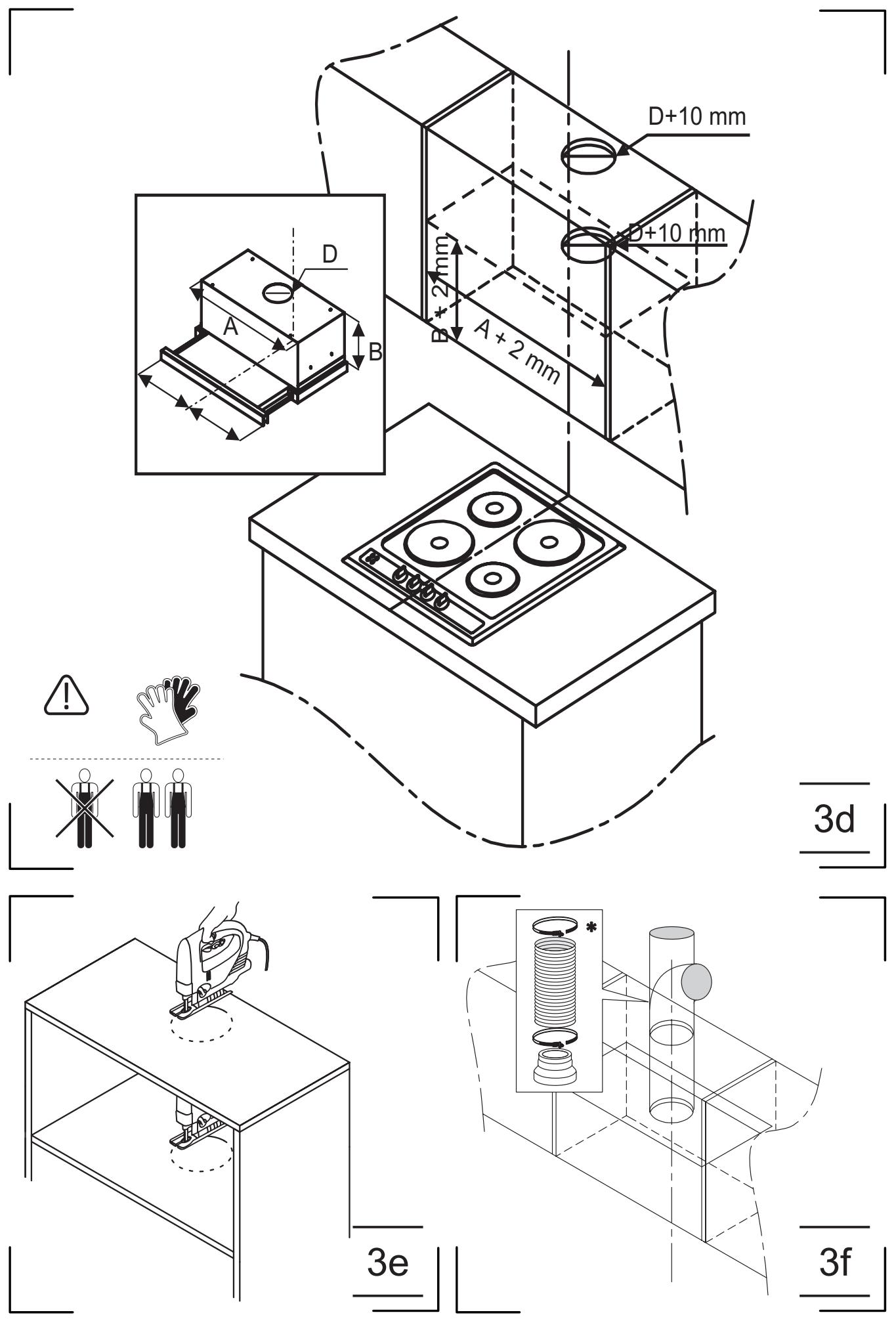

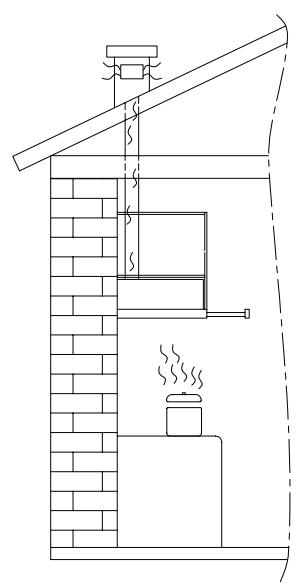

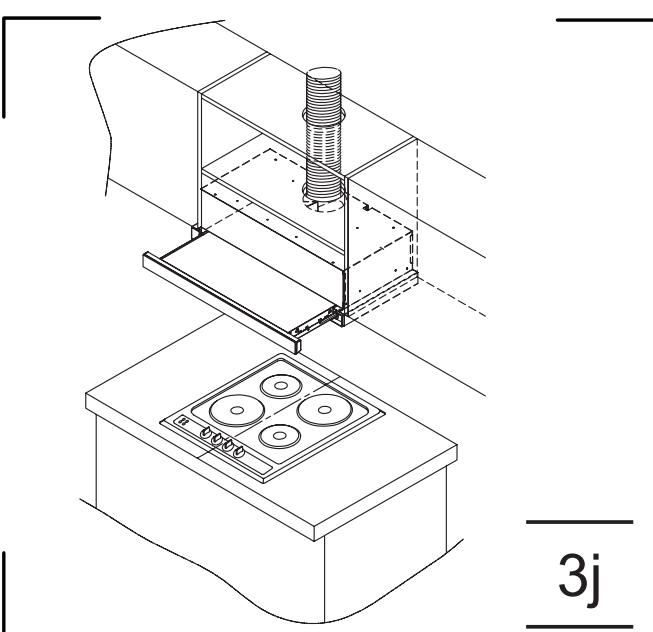

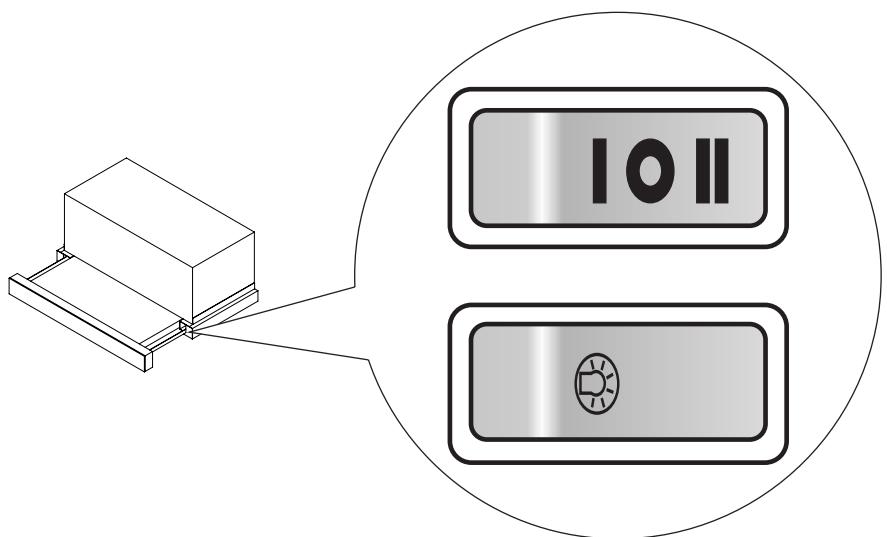

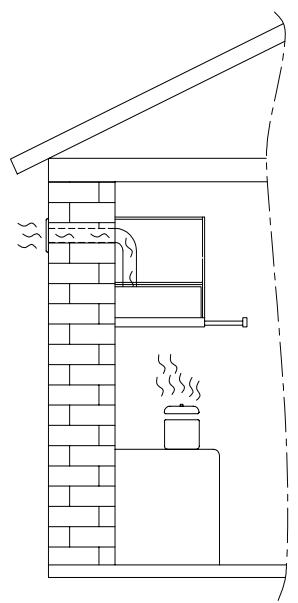

• Before using the appliance, please carefully read this manual! • The appliance is designed for household use only. • The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance. • The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual. • Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes. • Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of Ø 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode. • Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods). • The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds. • Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture -7Downloaded from www.Manualslib.com manuals search engine

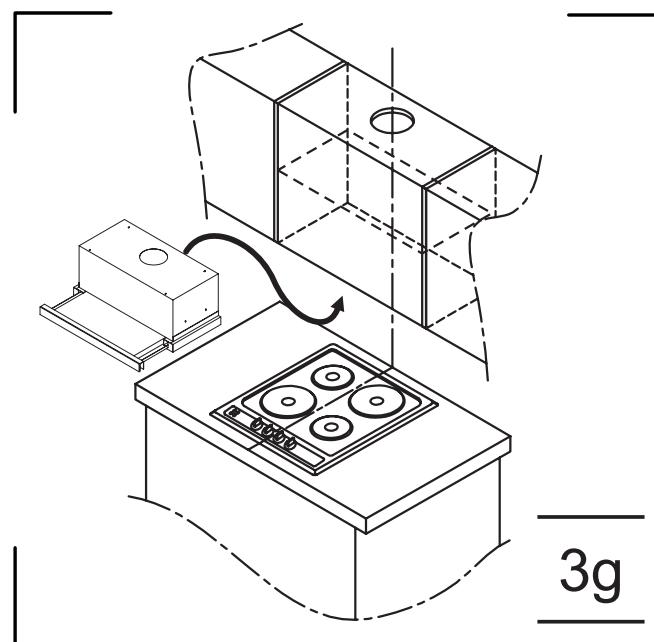

over a gas or electric stove (telescopic and builtin hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1). Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat. When cooking on fat, supervise the pans constantly, because overheated fat can ignite. Unplug the appliance before any cleaning, replacing the filter or repair work. Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable. Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter) Do not lean on the hood. The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters -8-

Downloaded from www.Manualslib.com manuals search engine

results in a fire risk.

If the power cord is damaged it should be replaced by a specialised service centre. Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch. This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Particular attention should be paid not to allow unaccompanied children to use the appliance. Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage. Before use, extend and straighten the power cord. Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking. Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete. Do not operate your kitchen hood without the aluminium grease filters. It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood. Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction. Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health. Hanging kitchen hoods operate only in air circulation / odour absorber mode -9-

Downloaded from www.Manualslib.com manuals search engine

UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE In accordance with European Directive

2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.
