370 - Range hood ROBLIN - Free user manual and instructions

Brand	ROBLIN
Model	370
Product type	Extractor hood
Intended use	Domestic, elimination of cooking odors
Power supply	220-240 V, 50/60 Hz (estimated)
Electrical class	Class I (grounding required)
Minimum safety distance	650 mm between hob and hood
Air outlet diameter	150 mm or 120 mm (reducer included)
Metal grease filters	Dishwasher safe, every 100 hours of use
Activated charcoal filter	Replacement every 4 months approx., not washable
Suction speeds	3 speeds + intensive speed (6 minutes timed)
Lighting	Integrated LED spots (replacement by after-sales service)
Controls	Touch panel with keys L, T1 to T4 and indicator S1
Remote control	Optional, compatible with LR03-AAA (not supplied)
Installation mode	Extraction or recirculation mode
Materials	Metal body, telescopic chimney
Approximate weight	15 kg (estimated for medium size hood)
Dimensions (W x D x H)	900 x 500 x 650-1100 mm (estimated, height varies with installation)
Availability of spare parts	Contact after-sales service for filters, lighting
Repairability index	Not communicated, but parts accessible

Frequently Asked Questions - 370 ROBLIN

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm. If your gas hob instructions indicate a greater distance, follow that.

How to clean the metal grease filters?

The grease filters can be washed in the dishwasher or by hand with a mild detergent. Let them dry completely before reinstalling. Clean them every 2 months or when the S1 indicator lights up.

When should the activated charcoal filter be replaced?

The activated charcoal filter should be replaced approximately every 4 months or when the LED S1 flashes. It is not washable or reusable.

How to reset the filter saturation alarm?

Turn off lights and motor. Press the T3 key for at least 3 seconds until the LED flashes three times.

Can I use the hood with gas appliances?

Yes, but ensure sufficient ventilation in the room to prevent backflow of combustion gases. The kitchen must have an opening to the outside.

How to activate the remote control?

Press the T4 key for about 5 seconds to validate the remote control. The LED will flash twice. To deactivate, press again for 5 seconds, the LED will flash once.

What to do if the lights no longer work?

Contact after-sales service for replacement of the LED spots. Do not attempt to replace them yourself.

Can I install the hood in recirculation mode?

Yes, the hood can be installed in recirculation mode using the activated charcoal filter and the recirculation kit provided. Follow the mounting instructions in the manual.

How to adjust the height of the telescopic chimney?

The chimney height must be calculated based on the total hood height. Use the formula: H chimney = H hood - 184 mm. Adjust and tighten the safety screws.

What type of batteries does the remote control use?

The remote control uses alkaline zinc-carbon batteries LR03-AAA (1.5 V), not supplied.

USER MANUAL 370 ROBLIN

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

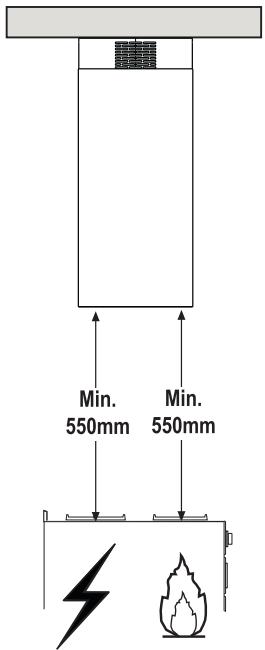

• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

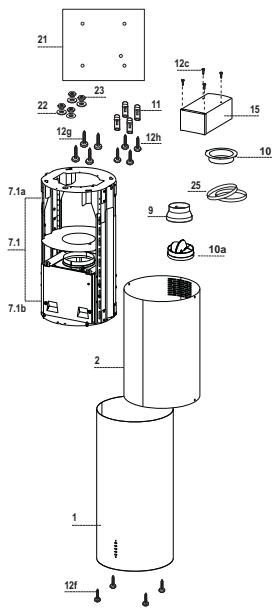

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Chimney Upper
7.1	1	Telescopic frame complete with extractor, consisting of:
7.1a	1	Upper frame
7.1b	1	Lower frame
9	1	Reducer Flange ø 150-120 mm
10	1	Flange ø 120 mm
10a	1	Damper (Optional)
15	1	Recirculation Air Outlet Connection
25	2	Pipe clamps

Ref.	Q.ty	Installation Components
11	4	Wall Plugs Ø 10
12c	4	Screws 2,9 x 6,5
12f	4	Screws M6 x 10
12g	4	Screws M6 x 80
12h	4	Screws 5,2 x 70
21	1	Drilling template
22	4	6.4 mm int. dia washers
23	4	M6 nuts

Q.ty Documentation

1 Instruction Manual

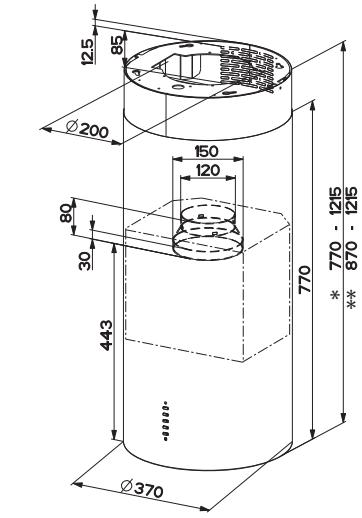

• Dimensions of the hood in ducting version.
  ** Dimensions of the hood in recycling version.

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

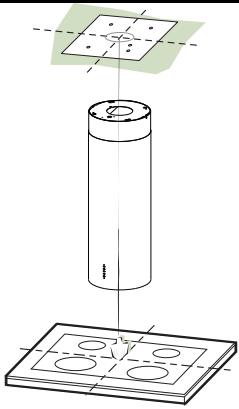

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20mm : drill 10mm (immediately insert the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill 7 mm .
• For the power supply cable feed, drill 10mm

• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

• Insert two screws of the following type, crossing them and leaving 4 - 5mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20mm , Screws 12h, supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

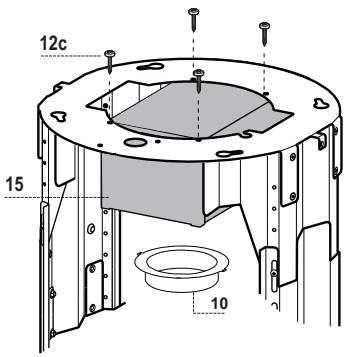

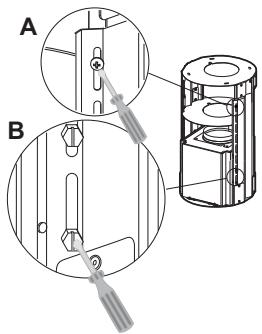

PREPARATION OF THE FRAME FOR THE HOOD IN RECYCLING VERSION

In case the hood is used in recycling version it is necessary to prepare the frame with all the necessary connection pieces. In order to make the installation easier it is necessary to lengthen the frame:

• Unscrew the two screws 2.1 fixing the upper chimney to the frame and pull the chimney out.
• Unscrew the four safety screws placed at the top in the frame separation area. (A).
• Unscrew the eight metric screws connecting the two columns, placed on both sides of the frame (B).

Installation of components in recycling version:

Fix the recycling air outlet piece 15 to the upper part of the frame using four 12c screws supplied with the hood.
Fix the flange (0120) 10 to the lower part of the recycling air outlet 15.
- Put the reducer flange 9 on the hood body outlet.
- At this point, join the flanges with a pipe. In order to calculate the height of the pipe it is necessary to estimate the height of the hood (mm) and subtract 615 mm. (H pipe = H hood-615).
- Lengthen the frame so that the pipe can be inserted. Place the pipe between the two flanges and block it. Make sure that the height of the frame is correct considering the height of the cooker hood (H frame = H hood - 184). Adjust the height of the frame and tighten again the earlier removed screws. Tighten again the safety screws in order to give more stability to the structure.
Fix the pipe with the pipe clamps 25 supplied with the hood.

FIXING THE FRAME

• Lift the frame up, making sure that the index over the frame plate is turned forwards.
• Fit the frame slots onto the two screws inserted in the ceiling as above, and turn until reaching the centre of the adjustment slot.
• Tighten the two screws and fasten the other two screws provided; before locking the screws completely, it is possible to adjust the frame by turning it, making sure that the screws do not come out of their housing in the adjustment slot.
• The Frame must be securely fastened so as to support both the weight of the Hood and the stress caused by occasional axial pressure against the fitted Appliance. After fixing, make sure that the base is stable even when the Frame is subjected to lateral stress.
• If the Ceiling is not strong enough in the area where the hood is to be fixed, the Installer must strengthen the area using suitable plates and counterplates anchored to resistant structures.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm , the choice of which is left to the installer.

To install a 0 150

• To install the dumper 10a.
  Fix the pipe in position using sufficient pipe clamps (not supplied).

To install a 0 120

• To install a 120mm air exhaust connection, insert the reducer flange 9 on the dumper 10a.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

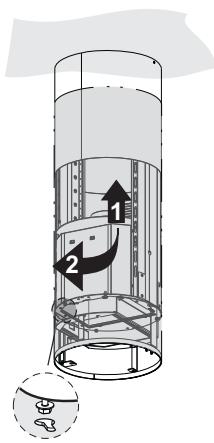

Installing of the chimney and fixing of the hood

When the hood is installed in recycling version the chimney has to be positioned with the slots upwards. When the hood is installed in ducting version it has to be positioned in the opposite way.

• Place the chimney on the frame and fix it to the upper part of it with the earlier removed screws. When installing the hood in recycling version make sure that the slots correspond to the air outlet of the recycling air outlet piece 15.
• Open the lighting unit by slightly pulling the notch. Remove the unit from the hood by sliding the fixing pivot.
• Remove the filter pushing it towards the back side of the hood unit and simultaneously pulling downwards.
• Remove possible charcoal filters.
• In order to fix the hood body to the frame insert the 4 screws 12f in their seats. It is necessary to leave at least 4 - 5mm gap between the screw heads and the frame plate.
• Hook the hood canopy to the frame and turn it to the left until it reaches the stop, then lock the screws immediately to prevent the hood canopy from falling out accidentally.

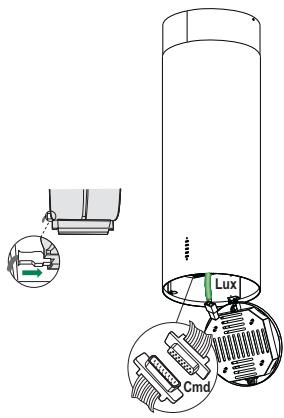

ELECTRICAL CONNECTION

• Connect the Hood to the mains power supply, inserting a two-pole cut-out switch with contact aperture of at least 3mm along the line.
• Ensure that the supply cable connector is properly inserted into the Suction device socket
• Hook up the Commands connector Cmd.
• Hook up the Spotlights connector Lux to the socket provided behind the lighting unit cover.
• For the Recirculation Version, fit the Activated Charcoal Odour Filter.
• Replace the filters and the lighting unit.

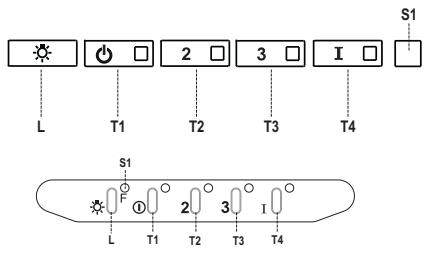

Control panel

Button	Led	Function
L	-	Turns the lights on/off at maximum strength.
T1	Fixed	Turns the motor on/off at speed one.
T2	Fixed	Turns the Motor on at speed two.
		Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The relevant LED flashes twice to confirm. To turn the alarm off, press the button again and hold for at least 3 seconds. The relevant LED flashes once.
T3	Fixed	Turns the Motor on at speed three.
		Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to perform a reset of Filter saturation alarm. The LED S1 flashes three times.
T4	Fixed	Turns the Motor on at INTENSIVE Speed. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time.
		Press and hold for 3 seconds to enable the remote control, indicated by the LED flashing twice. Press and hold for 3 seconds to disable the remote control, indicated by the LED flashing just once.
S1	Fixed	Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours. (Reset see the parag. Maintenance)
	Flashing	When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours. (Activation and Reset see the parag. Maintenance)

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Metal grease filters

These can be washed in the dishwasher, and need to be cleaned whenever the S1 Led comes on or at least once every 2 months use, or more frequently if use is particularly intensive.

CLEANING THE FILTERS

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes three times in confirmation.

Cleaning the Filters

• Open the lighting unit by pulling on the nocth.
• Remove the Filter, pushing it towards the back of the unit and at the same time pulling downward.
• Wash the filter without bending it, and leave it to dry thoroughly before replacing (if the surface of the filter changes colour over time, this will have absolutely no effect on its efficiency).
• Replace, taking care to ensure that the handle faces forwards.
• Replace the lighting unit.

This cannot be washed or regenerated, and must be changed when led S1 starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press button T2 and hold it for 5 seconds until the LED flashes twice in confirmation:

CHANGING

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes three times in confirmation.

Changing the Filter

• Open the lighting unit by pulling on the notch provided.
• Remove the Metal Grease Filter
• Remove the saturated Activated charcoal filter, using the hooks provided.
• Fit the new Filter, hooking it into place.
• Fit the Grease filter and the Light Unit back into place.

Lighting unit

• For replacement contact technical support ("To purchase contact technical support").
