Product type	LED TV 4K UHD
Brand	Samsung
Model	UE50MU6102 / UE50MU6172
Screen resolution	3840 x 2160 pixels (4K UHD)
Screen size (diagonal)	50 inches (125 cm)
Audio power	20 W
Stand rotation (left/right)	0° (fixed)
Dimensions without stand (W x H x D)	1128.9 x 654.4 x 63.2 mm
Dimensions with stand (W x H x D)	1128.9 x 723.7 x 310.5 mm
Weight without stand	11.5 kg
Weight with stand	12.7 kg
Burn-in prevention	Avoid prolonged static images; use appropriate mode and reduce brightness/contrast
Screen cleaning	Dry or slightly damp microfiber cloth; do not use chemical products
Chassis cleaning	Damp microfiber cloth, then dry
Usage precautions	Do not expose to water or liquids; avoid shocks
User manual	Available in PDF format (324 pages)
Spare parts	Contact Samsung customer service
Repairability	Repair possible by a certified technician

Frequently Asked Questions - 50MU6102KXXH SAMSUNG

What is the screen resolution of the Samsung 50MU6102?

The resolution is 3840 x 2160 pixels, which is 4K UHD definition.

What are the dimensions of the television?

Without stand: 1128.9 x 654.4 x 63.2 mm. With stand: 1128.9 x 723.7 x 310.5 mm.

How to clean the television screen?

Use a dry or slightly damp microfiber cloth. Never use chemical or abrasive products.

Does the television have an anti-burn-in function?

Yes, to avoid burn-in, avoid prolonged static images and adjust brightness and contrast in the settings.

What is the weight of the television?

The weight without stand is 11.5 kg and with stand 12.7 kg.

Does the stand allow rotation?

No, the stand is fixed with a rotation of 0° (no lateral movement).

What is the audio power?

The audio power is 20 W.

Where can I download the user manual?

The manual is available for free in PDF format at notice-facile.com (324 pages).

How to avoid damaging the screen?

Avoid any contact with water or sharp objects. Clean only according to instructions and do not pour any liquid on the device.

What to do in case of a technical problem?

First consult the manual, then contact Samsung customer service or a certified technician for repair.

USER MANUAL 50MU6102KXXH SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com/register

Model Serial No.

Before Reading This User Manual

This TV comes with this user manual and an embedded e-Manual.

Before reading this user manual, review the following:

User Manual	Read this provided user manual to see information about product safety, installation, accessories, initial configuration, and product specifications.
e-Manual	For more information about this TV, read the e-Manual embedded in the product. • To open the e-Manual, >Settings >Support >Open e-Manual

On the website, you can download the user manual and see its contents on your PC or mobile device.

Learning the e-Manual's assistance functions

• Some menu screens cannot be accessed from the e-Manual.

Q	(Search)	Select an item from the search results to load the corresponding page.
A-Z	(Index)	Select a keyword to navigate to the relevant page.
←	(Recent pages)	Select a topic from the list of recently viewed topics.

Learning the functions of the buttons that appear on e-Manual topic pages

(Try Now)	Access the associated menu item and try out the feature directly.
(Link)	Access a topic referred to on an e-Manual topic page.

Warning! Important Safety Instructions

Please read the Safety Instructions before using your TV.

CAUTION		Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required.
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.		AC voltage: Rated voltage marked with this symbol is AC voltage.
4	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.	DC voltage: Rated voltage marked with this symbol is DC voltage.
!	This symbol indicates that this product has included important literature concerning operation and maintenance.	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus and to protect it from overheating, these slots and openings must never be blocked or covered.

• Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.). If this apparatus accidentally gets wet, unplug it and contact an authorised dealer immediately.

• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.
• Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.

• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.

• To protect this apparatus from a lightning storm, or when left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure that the voltage designation of the DC adaptor corresponds to the local electrical supply.
• Never insert anything metallic into the open parts of this apparatus. This may cause a danger of electric shock.
• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
• Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.
• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or service centre.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house).

• Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by causing the insulation to deteriorate.

• Be sure to contact an authorised Samsung service centre for information if you intend to install your TV in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failure to do so may lead to serious damage to your TV.

• Use only a properly grounded plug and wall outlet.

• An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.

• Store the accessories (batteries, etc.) in a location safely out of the reach of children.
• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service centre.
• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the TV or erase the printing on the product.
• Do not expose this apparatus to dripping or splashing.
• Do not dispose of batteries in a fire.
• Do not short-circuit, disassemble, or overheat the batteries.

• There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.

• Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

Contents

Before Reading This User Manual 2

Warning! Important Safety Instructions 3

01 What's in the Box?

02 TV Installation

Mounting the TV on a wall 7

Providing proper ventilation for your TV 8

Attaching the TV to the Stand 8

Safety Precaution: Securing the TV

to the wall to prevent falling 9

03 The Samsung Smart Remote

Pairing the TV to the Samsung Smart Remote 11

11

04 Initial Setup

Using the TV Controller 12

05 Connecting to a Network

Network Connection - Wireless 13

Network Connection - Wired 13

06 Troubleshooting and Maintenance

Troubleshooting 14

What is Remote Support? 16

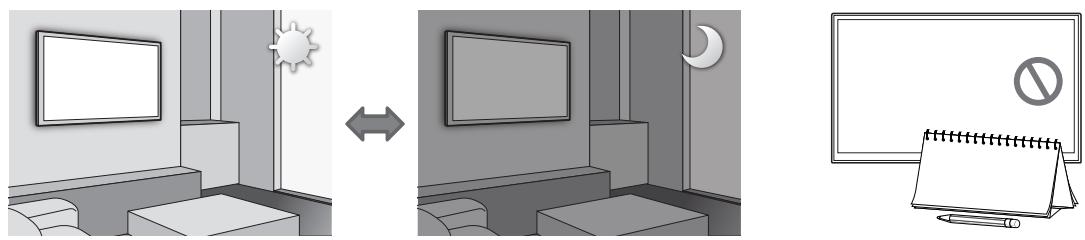

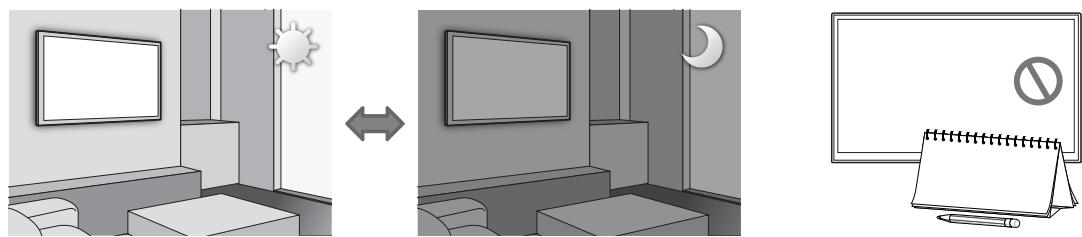

Eco Sensor and screen brightness 16

Still image warning 17

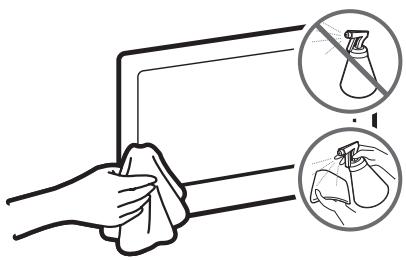

Caring for the TV 17

07 Specifications and Other Information

Specifications 18

Environmental Considerations 19

Decreasing power consumption 19

Licences 20

01 What's in the Box?

Make sure the following items are included with your TV. If any items are missing, contact your dealer.

Samsung Smart Remote & Batteries (AA x 2)
- User Manual
TV Power Cable

• Warranty Card / Regulatory Guide (Not available in some locations)

COMPONENT IN / AVIN Adapter (Not available in some locations)

CI Card Adapter

• The items' colours and shapes may vary depending on the models.
• Cables not included can be purchased separately.
• Check for any accessories hidden behind or in the packing materials when opening the box.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but there will be no defect with the product (i.e., where the user manual has not been read).
(b) You bring the unit to a repair centre, but there will be no defect identified the product (i.e., where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

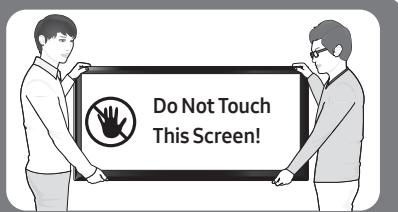

Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV at the edges, as shown.

02 TV Installation

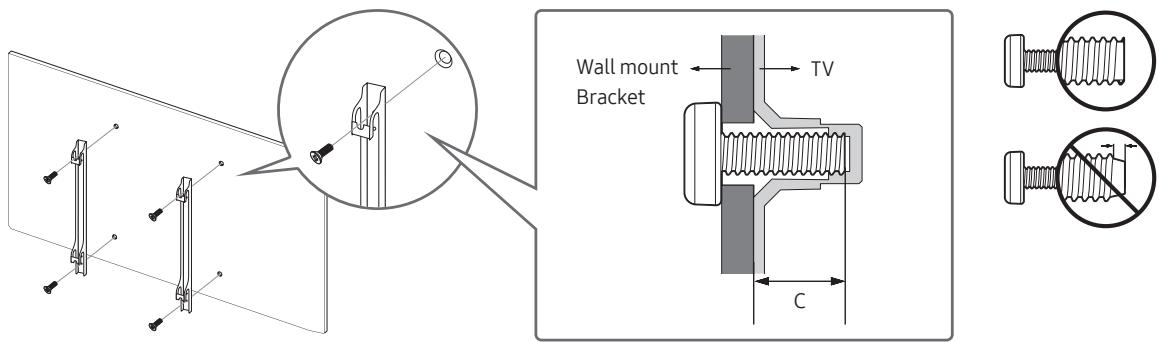

Mounting the TV on a wall

If you mount this TV on a wall, follow the instructions exactly as set out by the manufacturer. Unless it is correctly mounted, the TV may slide or fall and cause serious injury to a child or adult and serious damage to the TV.

For models providing wall mount adapters, install them as shown in the figure below before installing the wall mount kit.

• Refer to the installation manual included with the Samsung wall mount kit.
• You can mount the TV on the wall using a wall mount kit (sold separately).

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you choose to install the wall mount on your own.
- You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury.
- Standard dimensions for wall mount kits are shown in the table on the next page.
- If you are installing a third-party wall mount, note that the length of the screws you can use to attach the TV to the wall mount is shown in column C in the table on the next page.
- When installing a wall mount kit, we recommend you fasten all four VESA screws.
- If you want to install a wall mount kit that attaches to the wall using two top screws only, be sure to use a Samsung wall mount kit that supports this type of installation. (You may not be able to purchase this type of wall mount kit, depending on the geographical region.)

TV size in inches	VESA screw hole specs (A * B) in millimetres	C (mm)	Standard Screw	Quantity	A B
40 ~ 43	200 x 200	18 ~ 20	M8	4
49 ~ 65	400 x 400
75		20 ~ 22

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
  Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the consumer fails to follow the product installation instructions.
• Do not mount the TV at more than a 15 degree tilt.
  Always have two people mount the TV onto a wall.

Providing proper ventilation for your TV

When you install your TV, maintain a distance of at least 10cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by Samsung Electronics only. Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused by the product falling.

Installation with a stand	Installation with a wall mount
10cm 10cm	10cm 10cm

Attaching the TV to the Stand

Make sure you have all the accessories shown, and that you assemble the stand following the provided assembly instructions.

Safety Precaution: Securing the TV to the wall to prevent falling

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang on or destabilise the TV. This action may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device as described below.

WARNING: Never place a television set in an unstable location. The television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If you are retaining and relocating the television set that you are replacing with this new set, you should apply the same precautions to the old set.

Preventing the TV from falling

1. Using the appropriate screws, firmly fasten a set of brackets to the wall. Confirm that the screws are firmly attached to the wall.

2. You may need additional material such as wall anchors depending on the type of wall.

3. Using the appropriately sized screws, firmly fasten a set of brackets to the TV.

4. For the screw specifications, refer to the standard screw part in the table under "Mounting the TV on a wall".

5. Connect the brackets fixed to the TV and the brackets fixed to the wall with a durable, heavy-duty string, and then tie the string tightly.

Install the TV near the wall so that it does not fall backwards.
- Connect the string so that the brackets fixed to the wall are at the same height as or lower than the brackets fixed to the TV.

• The product colour and shape may vary depending on the model.

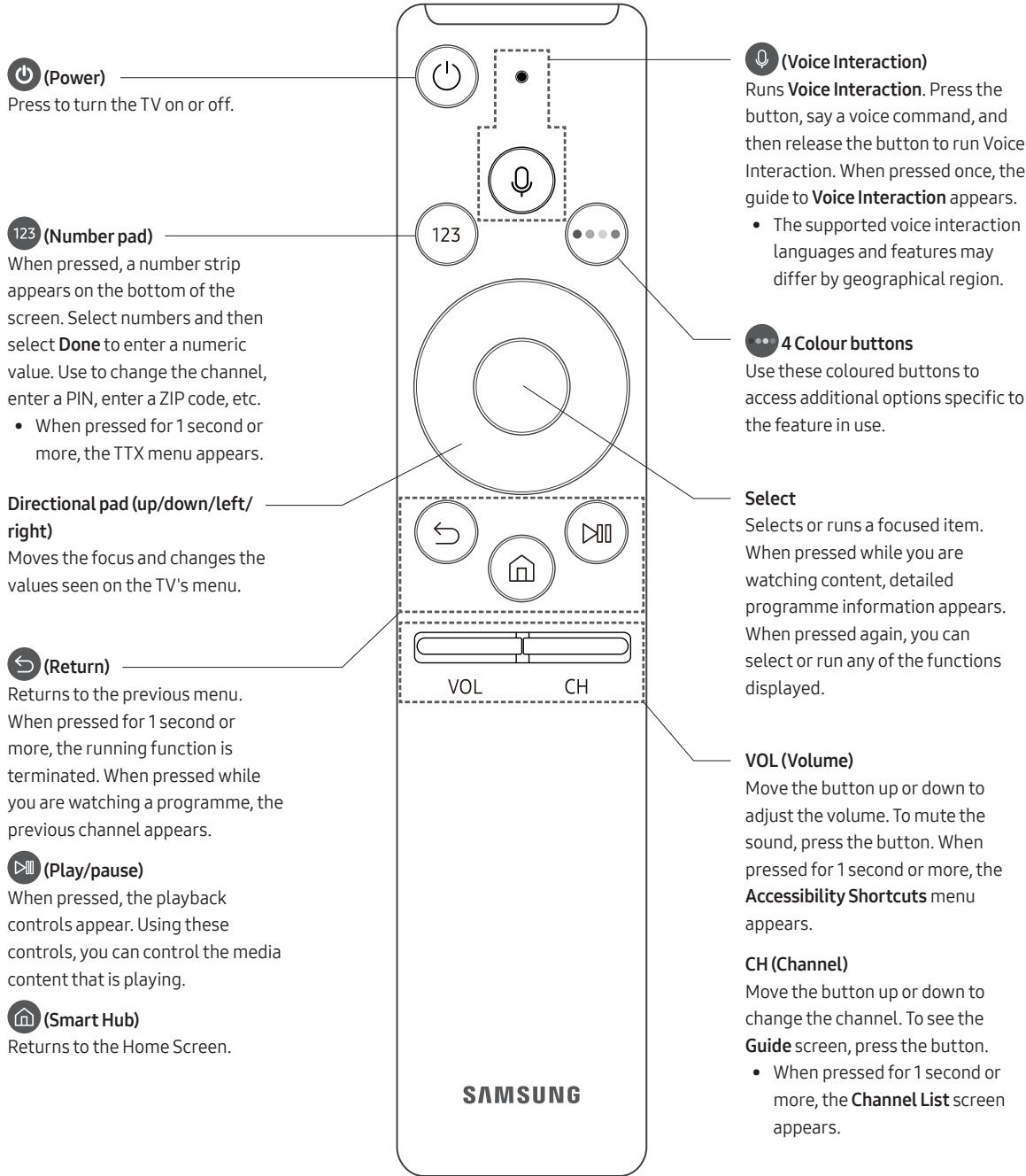

03 The Samsung Smart Remote

Pairing the TV to the Samsung Smart Remote

When you turn on the TV for the first time, the Samsung Smart Remote pairs to the TV automatically. If the Samsung Smart Remote does not pair to the TV automatically, point it at the remote control sensor of the TV, and then press and hold the buttons labelled and as shown in the figure on the left simultaneously for 3 seconds or more.

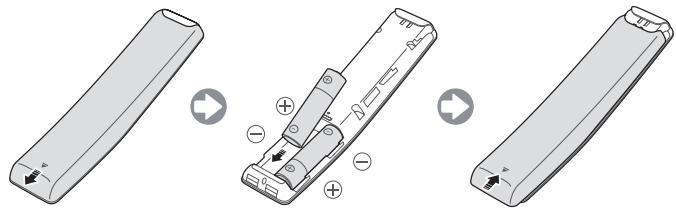

Installing batteries into the Samsung Smart Remote

To install the batteries, push the rear cover open in the direction of the arrow, and then insert the batteries as shown in the figure. Make sure that the positive and negative ends are facing in the correct direction.

• Alkaline batteries are recommended for longer battery life.

04 Initial Setup

The initial setup dialogue box appears when the TV is first activated. Follow the on-screen instructions to finish the initial setup process. You can manually perform this process at a later time in the > Settings > General > Start Setup menu.

• If you connect any device to HDMI1 before starting the installation, the Channel Source will be changed to Settop box automatically.
• If you do not want to select Set-top box, please select Aerial.

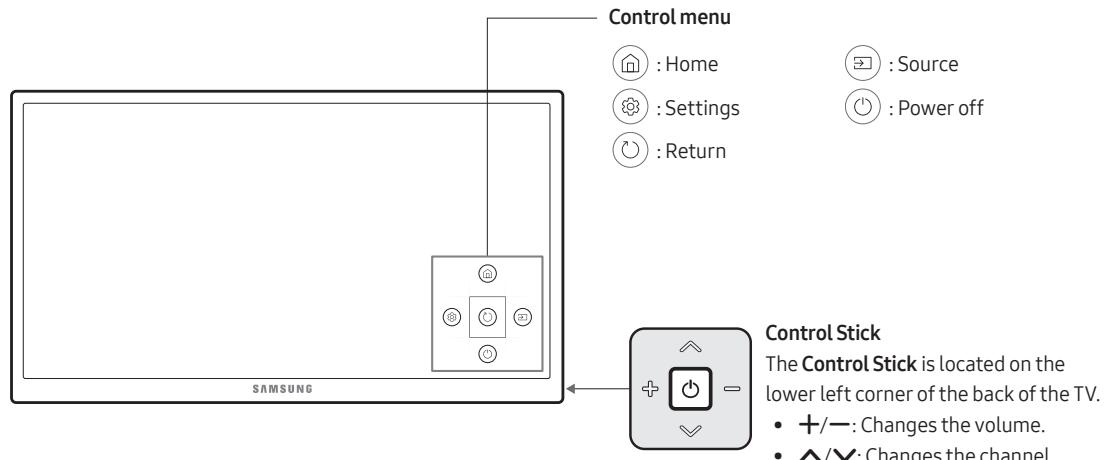

Using the TV Controller

Turn on the TV with the TV Controller button on the rear of the TV and then use the control menu. The Control menu appears when the button is pressed while the TV is On. For more information about its usage, refer to the figure below.

05 Connecting to a Network

Connecting the TV to a network gives you access to online services, such as Smart Hub, as well as software updates.

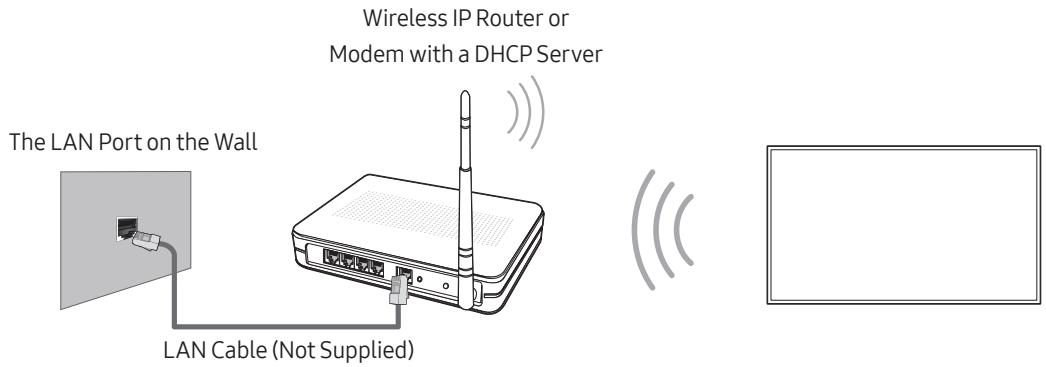

Network Connection - Wireless

Connect the TV to the Internet using a standard router or modem.

Network Connection - Wired

Connect your TV to your network using a LAN cable.

• The TV does not support the network speeds less than or equal to 10 Mbps.

• Use Cat7 (*STP Type) cable for the connection.

• Shielded Twist Pair

06 Troubleshooting and Maintenance

Troubleshooting

If the TV seems to have a problem, first review this list of possible problems and solutions. Alternatively, review the Troubleshooting Section in the e-Manual. If none of these troubleshooting tips apply, please visit "www.samsung.com" and click on Support, or contact the call centre listed on the back cover of this manual.

• This TFT LED panel is made up of sub pixels which require sophisticated technology to produce. There may be, however, a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
• To keep your TV in optimum condition, upgrade to the latest software. Use the Update Now or Auto update functions on the TV's menu (Settings > Support > Software Update > Update Now or Auto update).

The TV won't turn on.

• Make sure that the AC power cord is securely plugged in to the TV and the wall outlet.
• Make sure that the wall outlet is working and the power indicator on the TV is lit and glowing a solid red.
• Try pressing the Power button on the TV to make sure that the problem is not with the remote control. If the TV turns on, refer to "Remote control does not work" below.

There is no picture/video/sound, or a distorted picture/video/sound from an external device, or "Weak or No Signal" is displayed on the TV, or you cannot find a channel.

• Make sure the connection to the device is correct and that all cables are fully inserted.
• Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible.
• Confirm that the correct input source has been selected ( > Source).
• Perform a TV self diagnosis to determine if the problem is caused by the TV or the device (Settings > Support > Self Diagnosis > Start Picture Test or Start Sound Test).
• If the test results are normal, reboot the connected devices by unplugging each device's power cord and then plugging it in again. If the issue persists, refer to the connection guide in the user manual of the connected device.

• If the TV is not connected to a cable or satellite box, run Auto Tuning to search for channels (Settings > Broadcasting > Auto Tuning Settings > Auto Tuning).

• This function is only available on certain models in specific geographical areas.

The remote control does not work.

• Check if the power indicator on the TV blinks when you press the remote's Power button. If it does not, replace the remote control's batteries.
• Make sure that the batteries are installed with their poles (+/-) in the correct direction.
• Try pointing the remote directly at the TV from 1.5 1.8 m away.
• If your TV came with a Samsung Smart Remote (Bluetooth Remote), make sure to pair the remote to the TV.

The cable or satellite box remote control doesn't turn the TV on or off or adjust the volume.

• Programme the cable or satellite box remote control to operate the TV. Refer to the cable or satellite box user manual for the SAMSUNG TV code.

The TV settings are lost after 5 minutes.

• The TV is in the Retail Mode. Change the Usage Mode in the General Menu to Home Mode (Settings > General > System Manager > Usage Mode > Home Mode).

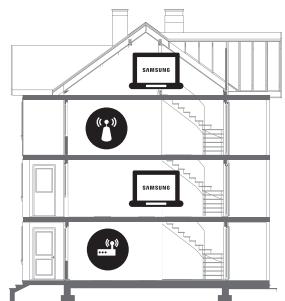

Intermittent Wi-Fi

• Make sure the TV has a network connection (Settings > General > Network > Network Status).
• Make sure the Wi-Fi password is entered correctly.
• Check the distance between the TV and the Modem/Router. The distance should not exceed 15.2m .
• Reduce interference by not using or turning off wireless devices. Also, verify that there are no obstacles between the TV and the Modem/Router. (The Wi-Fi strength can be decreased by appliances, cordless phones, stone walls/fireplaces, etc.)

Single story

Multi story

Wireless router

Wireless repeater

• Contact your ISP and ask them to reset your network circuit to re-register the Mac addresses of your new Modem/Router and the TV.

Video App problems (Youtube etc)

• Change the DNS to 8.8.8.8. Select Settings > General > Network > Network Status > IP Settings > DNS setting > Enter manually > DNS Server > enter 8.8.8.8 > OK.
• Reset by selecting 山 > 山 Settings > Support > Self Diagnosis > Reset Smart Hub.

What is Remote Support?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:

• Diagnose your TV
• Adjust the TV settings for you
• Perform a factory reset on your TV
  Install recommended firmware updates

How does Remote Support work?

You can easily have a Samsung Tech service your TV remotely:

1. Call the Samsung Contact Centre and ask for remote support.
2. Open the menu on your TV and go to the Support section.
3. Select Remote Management, then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the agent.
4. The agent will then access your TV.

Eco Sensor and screen brightness

Eco Sensor adjusts the brightness of the TV automatically. This feature measures the light in your room and optimises the brightness of the TV automatically to reduce power consumption. If you want to turn this off, go to > Settings > General > Eco Solution > Ambient Light Detection.

• If the screen is too dark while you are watching TV in a dark environment, it may be due to the Ambient Light Detection function.
• Do not block the sensor with any object. This can decrease picture brightness.

Still image warning

Avoid displaying still images (such as JPEG picture files), still image elements (such as TV channel logos, stock or news crawls at the screen bottom etc.), or programmes in panorama or 4:3 image format on the screen. If you constantly display still pictures, it can cause image burn-in on the LED screen and affect image quality. To reduce the risk of this adverse effect, please follow the recommendations below:

• Avoid displaying the same TV channel for long periods.
• Always try to display any image in full screen. Use the picture format menu of the TV for the best possible match.
• Reduce brightness and contrast to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn. Refer to the e-Manual for details.

Caring for the TV

• If a sticker was attached to the TV screen, some debris can remain after you remove the sticker. Please clean the debris off before watching TV.
• The exterior and screen of the TV can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches.
• Do not spray water or any liquid directly onto the TV. Any liquid that goes into the product may cause a failure, fire, or electric shock.
• To clean the screen, turn off the TV, then gently wipe away smudges and fingerprints on the panel with a micro-fiber cloth. Clean the body or panel of the TV with a micro-fiber cloth dampened with a small amount of water. After that, remove the moisture with a dry cloth. While cleaning, do not apply strong force to the surface of the panel because it can damage the panel. Never use flammable liquids (benzene, thinner, etc.) or a cleaning agent. For stubborn smudges, spray a small amount of screen cleaner on a micro-fiber cloth, and then use the cloth to wipe away the smudges.

07 Specifications and Other Information

Specifications

Model Name	UE40MU6102 / UE40MU6172	UE43MU6102 / UE43MU6172
Display Resolution	3840 x 2160	3840 x 2160
Screen Size (Diagonal)	40 inches (101 cm)	43 inches (108 cm)
Sound (Output)	20 W	20 W
Stand Swivel (Left / Right)	0°	0°
Dimensions (W x H x D)
Body	917.7 x 535.7 x 62.6 mm	975.8 x 569.0 x 62.6 mm
With stand	917.7 x 596.5 x 288.1 mm	975.8 x 637.0 x 288.1 mm
Weight
Without Stand	7.7 kg	8.6 kg
With Stand	8.7 kg	9.6 kg
Model Name	UE49MU6102 / UE49MU6172	UE50MU6102 / UE50MU6172
Display Resolution	3840 x 2160	3840 x 2160
Screen Size (Diagonal)	49 inches (123 cm)	50 inches (125 cm)
Sound (Output)	20 W	20 W
Stand Swivel (Left / Right)	0°	0°
Dimensions (W x H x D)
Body	1107.9 x 647.7 x 53.4 mm	1128.9 x 654.4 x 63.2 mm
With stand	1107.9 x 707.4 x 310.5 mm	1128.9 x 723.7 x 310.5 mm
Weight
Without Stand	12.3 kg	11.5 kg
With Stand	13.6 kg	12.7 kg
Model Name	UE55MU6102 / UE55MU6172	UE65MU6102 / UE65MU6172
Display Resolution	3840 x 2160	3840 x 2160
Screen Size (Diagonal)	55 inches (138 cm)	65 inches (163 cm)
Sound (Output)	20 W	20 W
Stand Swivel (Left / Right)	0°	0°
Dimensions (W x H x D)
Body	1242.6 x 718.4 x 63.2 mm	1463.5 x 844.5 x 64.6 mm
With stand	1242.6 x 787.5 x 310.5 mm	1463.5 x 907.6 x 369.4 mm
Weight
Without Stand	15.3 kg	23.5 kg
With Stand	16.5 kg	25.7 kg

Model Name	UE75MU6102 / UE75MU6172
Display Resolution	3840 x 2160
Screen Size (Diagonal)	75 inches (189 cm)
Sound (Output)	20 W
Stand Swivel (Left / Right)	0°
Dimensions (W x H x D)
Body	1688.9 x 971.2 x 66.0 mm
With stand	1688.9 x 1052.6 x 384.9 mm
Weight
Without Stand	35.2 kg
With Stand	38.8 kg

Environmental Considerations

Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing

• The design and specifications are subject to change without prior notice.
• For information about the power supply, and more information about power consumption, refer to the label-rating attached to the product.
  Typical power consumption is measured according to IEC 62087.

Decreasing power consumption

When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cord when you don't intend to use the TV for a long time.

Licences

DOLBY AUDIO

dtts

Premium Sound | 5.1

HD

POWERED BY

QUICKSET

HEVCAdvance™

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Recommendation - EU Only

Hereby, Samsung Electronics, declares that this TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search

Product Support and enter the model name.

This equipment may only be used indoors.

This equipment may be operated in all EU countries.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of the batteries in this product (Applicable in countries with separate collection systems)

This marking on battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data-corner.html

WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Σuσταση - Móvov EU

• TeleBn3OpbT He noI,dbpka MpeKOBn cKOpOcTn No-MaJIkn OT nIi paBn Ha 10 Mbps.

• 3a BpB3KaTa n3nOJ3BaIe Ka6eI Cat 7 (TInI *STP).

• Shielded Twist Pair

06 OTeTpaHЯBaHe Ha Hen3PpaBHOCTN I NOdIrpbJkKa

OTCTpaHЯBaHe Ha HEn3npaBHOCTN

Ako n3rIeJka, ye TeIeBn3OpbT Ima npo6IeM, nbpBO npereJaTe To3N cIncbK C Bb3MoJHn npo6IeMn IpeuHn.Дуг haunH e da npereJeDApe ra3deLa 3a OTcpanBaHe Ha HeN3npaBHOCTN BeIeKtpOHOTO pBkoBOdCTBO.AKO hnto eDIn OH ot CbBETNe 3a OTcpanBaHe Ha HeN3npaBHOCTN, HAnIsCaHn Tuk, He MoJx De 6bJe npinloJxH, Nocetete cTpaHncaTa HA www.samsung.com, cIed TOBa uPakHe Te Bpxy "IodpBXkKa", iln ce CBpKteC zentropBeTe 3a o6cIyKbaHe O TcPncbKa Ha nopCleHnata CTpaHnla Ha TOBa pBkoBOdCTBO.

To3n TFT LED naneJ ce c bctOn ot cy6nKceJ, 3a chEto npoI3BOcTBo e Heo6xOJMa CLOXHa TexHOJOrJy. Bbnpekn ToBa Ha ekpaHa MoKe Ja mHa HkoJIco CBETIn NmTbMHn NkCeJa. Te3n NIKCEJn Hma Da NobJnayr Ha KaueCTBOTO Ha pa60Ta Ha npOdykTa.
3a da noi dbpkaTe TeleBn3Opa Cn B ONTmAlHo CbCToHne, HAcCTpoIe Do Ha-NOBn coToye. N3noJ3BaIte yHKcInTe AkTuAn3Inpe cera nn ABt. aKTuAn3Inpe OTe MeHIO To Ha TeleBn3Opa (> HAcToPkn > PndpbjckKa > AkTuAn3Inpe Ha coToye > AkTuAn3Inpe cera nn ABt. aKTuAn3InpeAe).

TeLeBn3OpbT He NcKa da Ce BkIIOu.

• Ybepete Ce, Ye a,danTepbT 3a npomEnIb TB OKe BkIIOueH 3dpaBO B KOHTaKToI TeJeBn30pa.
• YBepTeCe, Ye eIeKtpnuecknT KOhtaK T pa60Tu N Ye INHdkaTopbT 3a 3axpaHbaHe Ha TeJIeBn3Opa CBeTN HepeKbCHaTO B UepBeHo.
  -Опитуге Да натус悔убуToHA 3a Вклюване Ha TeleБиЗОра,зда се уberite,ч epo6IeMbT He e BДистанционноу nprablenne.Ако TeLEБиЗОрьт се Включ,Вж."Дистанционноу nprablenne He pa6Otn"ПО-ДOLУ.

HamaJIbaHe Ha KOHCyMaZnIa Ta Ha eHeprna

Korato n3kIIOUHTe TeBEN3Opa,ToB BLIN3a BpeKIM Ha rotOBHoc. B peKIM Ha rotOBHocT ToPiOdbJIkaBa Da n3PON3Ba MaNko KOJIueCTBO eHepnra. 3a Da HAMALITE KOHCyMaunra Ta H eHepnra, N3BaJdAaiTe UeIcena Ha 3axpaHbAsnna Ka6eI ON KOHTAKTa, KORato HMA da n3PON3BaTe TeBEN3Opa pOdbJIxnteHNO BpeMe.

Iицeнзи

DOLBY AUDIO

dtts

Premium Sound | 5.1

HD

POWERED BY

QUICKSET

HEVCAvance ™

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Ppenopbka - caMo 3a EC

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Preporuka - samo za EU

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Doporuceni - pouze EU

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Preporuka - samo za EU

Ovim putem kompanija Samsung Electronics izjavljuhe da je ovaj televizor usklaeden sa osnovnim uslovima i drugim primenljivim odredbama Direktive 1999/5/EC.

Zvaničnu izjavu o usklaženosti možete da pronadete na Vib lokaciji http://www.samsung.com, takо štoćete izabrati „Podrška > Pretraži podršku za proizvod" i uneti naziv modela.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Rekomandim - vetem per BE-nee

Samsung Electronics deklaron se ky televizor éshte né pörputhje me kérkesat bazédhe disposita tíjera pörkatëse të Direktivës 1999/5/KE.

MOnTnpaHBeHaTeleBn3OpOT Ha SnD 7

06e36eynBaHbHeHa cooDbetHa

BENTINaJia3aBaIIOTTeJIeBn3Op 8

PnkauyBaHeHaTeleBn3OpOTcoDpKaUOT 8

LTo npertctabya Remote Support? 16

Eko cen3op n ocBteHIOCT na ekpaHOT 16

IpeDynpdyeBaHe 3a HeNoDbnKHa CInka 17

TpNxka 3a TeIeBn3OpoT 17

07 CpeunphiKaun npytnnHopMaun

Cpeunphikaun 18

UcnoB3a3aHTTaOdOnkpyKyBaHbeto 19

HamaLyBaHeHa nToPoUyBaUkata Ha eHeprNiJa 19

JIuueHcI 20

01 LTo mMa Bo NaKeTOT?

+/一：Ob03MOKyBaMeHyBaHéHa jaHHaTa Ha 3BykOT.
- ∧/V: MehyBaHé Ha KaHaJI.

LTo npetctabyBa Remote Support?

Ucnyrata Remote Support od Samsung Bn hydn noDprka liue-Bo-luie co Texnucap od Samsung koj moke daJeunckn da Bn nOmOrHe:

-ДиJaTHeOCTnKaHaBaIaIOTTeJIeBn3Op
- Пилагоуваные на посту воваьая на телевизорот hamecto bac
- Pecetupahe Ha BaushoT TeJIeBn3Op Ha fo6puuKu BpeIHOCTN
-Инсталраиье на прени рачани джурпаьа на сирmbерот

Kako yHKuHnpa Remote Support?

Доztволе对我 Na Heков сервир od Samsungа го порави Вално телевизор далунскп:

1. JabeTe Ce BO KOHTaKTHNt CEHTap Ha Samsung u no6apajTe daJIeunHcKa noI,dpuka.
2. OTbOpTe rO MeHTo Ha BaIInOT TeIeBn3Op n OJeTe BO JeIoT 3a PoIaRpaKa.
   3.Изберет Далецнску npabByBaHe,а потоа почитajte Ги сcorlaçete ce co和完善оворпесо договорпесуслгатa.Koraké ce nojabe ekpanot 3a PIN,кжete му ro PIN 6pojot ha areHTOT.
3. Notoa areHTOT ke npictanHa Baunot TeJebn3Op.

Eko ceH3Op n OCBeTJIeHOCT Ha ekpaHOT

ФункцижаяЕкocсноравTomatси ja пилагоуваocbetлесова TelebeN3opot.ObaaФункциja ja мерп CBETПИната BO bawata co6a n ABTomatcki ja onTIMn3upa ocBetлесоваHa TelebeN3opot 3a da ja habamnnotpoшувачkaраз ha eheprnja.Ako caKaTeJa ja ncknyuHte Obaa onUniJa,odete Bo >ПoctabyB.>OnшTo>Eko peшенe>OTkpnbAbe am6neHTalna CBetlina.

• Ako ekpaHOT e npemHory Temen IdoKea TneIate TeleBn3Ja BO TEMHO ONkpyKyBaHe, 3a Toa Moke da 6nJe OndroBOPHaФункциjata OTkpNbaHe am6neHTaJIHa CBETInHa.
• He ro 6loknupajte ceH30pOTo co KaKBrn 6IIno IpeJMeTn. Oba moKe Ja npEiN3BnKa HaMaIyBaHe haOCBETJeHOCTa Ha CJIINkata.

PpeDynpdeYBaHbe 3a HenoDbNkHa cInKa

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Пpenopaka-camo EY

Co oba, Samsung Electronics, n3jabya Deka Oojo TeleBnOe BO corgnaChoc T CO heonxoJHnte ycNoBnIOCTaHaTInTe NObAHHN NOTTOckNaДиpeKtNbata 1999/5/EC.

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Priporočilo - samo EU

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

leteikumi - tikai ES

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Rekomendacija (tik ES)

Covered by Patents at patentlist.hevcadvance.com

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This page is intentionally left blank.

This page is intentionally left blank.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre®	Web Site
AUSTRIA	0800-SAMSUNG (0800-7267864) [Only for Dealers] 0810-112233	www.samsung.com/at/support
BELGIUM	02-201-24-18	www.samsung.com/be/support (Dutch) www.samsung.com/be_fr/support (French)
BOSNIA	055 233 999	www.samsung.com/support
BULGARIA	*3000 Zeha в мржата 0800 111 31, Белларна телегонna линя	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
	Samsung Electronics Czech and Slovak, s.r.o. V Parku 2323/14, 148 00 - Praha 4
DENMARK	70 70 19 70	www.samsung.com/dk/support
FINLAND	030-6227 515	www.samsung.com/fi/support
FRANCE	01 48 63 00 00	www.samsung.com/fr/support
GERMANY	0180 6 SAMSUNG bzw. 0180 6 7267864* (*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)	www.samsung.com/de/support
CYPRUS	8009 4000 only from landline, toll free
GREECE	80111-SAMSUNG (80111 726 7864) only from land line ([phone] from mobile and land line	www.samsung.com/gr/support
HUNGARY	0680SAMSUNG (0680-726-786) 0680PREMIUM (0680-773-648)	www.samsung.com/hu/support
ITALIA	800-SAMSUNG (800.7267864)	www.samsung.com/it/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	815 56480	www.samsung.com/no/support
POLAND	801-172-678* lub [phone]* *(koszt polączenia wedtug taryfy operadora)	www.samsung.com/pl/support
PORTUGAL	808 20 7267	www.samsung.com/pt/support
ROMANIA	*8000 (apel in retea) 08008-726-78-64 (08008-SAMSUNG) Apel Gratisuit	www.samsung.com/ro/support
SERBIA	011 321 6899	www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
SPAIN	34902172678	www.samsung.com/es/support
SWEDEN	0771 726 7864 (0771-SAMSUNG)	www.samsung.com/se/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German) www.samsung.com/ch_fr/support (French)
UK	0330 SAMSUNG (7267864)	www.samsung.com/uk/support
EIRE	0818 717100	www.samsung.com/ie/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
TURKEY	444 77 11	www.samsung.com/tr/support
