USER MANUAL CUBIA ISOLA X FABER

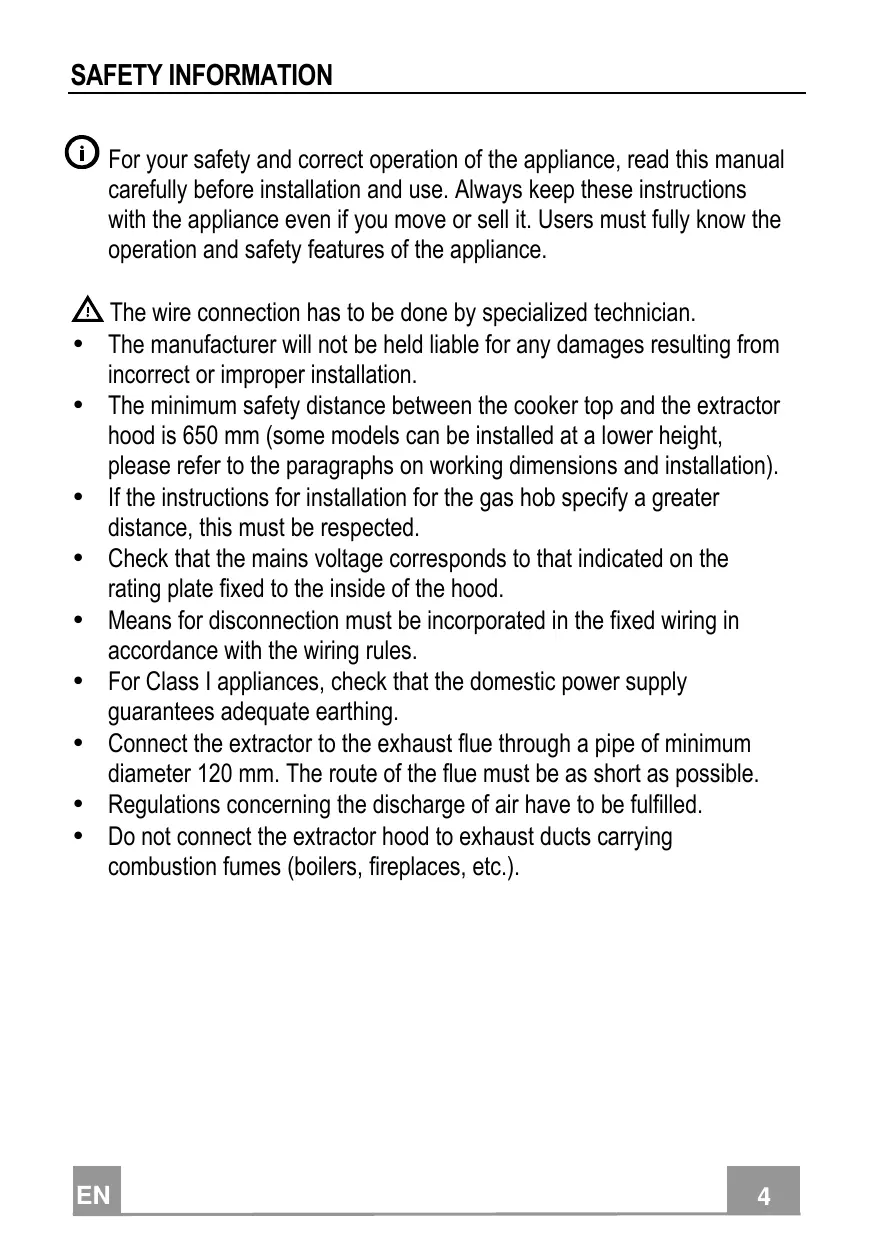

SAFETY INFORMATION For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. • • • • • • • • •

The wire connection has to be done by specialized technician.

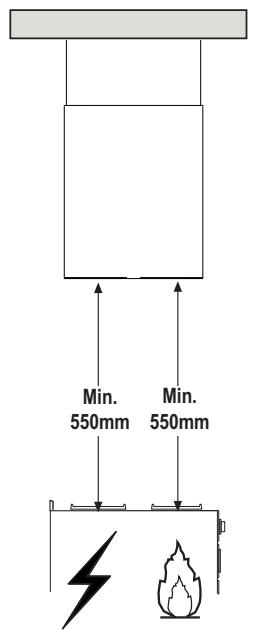

The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation). If the instructions for installation for the gas hob specify a greater distance, this must be respected. Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. Regulations concerning the discharge of air have to be fulfilled. Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood. • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. • If the supply cord is damaged, it must be replaced from the manufacturer or its service agent. • Connect the plug to a socket complying with current regulations, located in an accessible place. • With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. WARNING: Before installing the Hood, remove the protective films. • Use only screws and small parts in support of the hood. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. • Do not look directly at the light through optical devices (binoculars, magnifying glasses…). • Do not flambè under the range hood; risk of fire. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Children should be supervised to ensure that they do not play with the appliance.

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances. • Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning. • There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). • The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

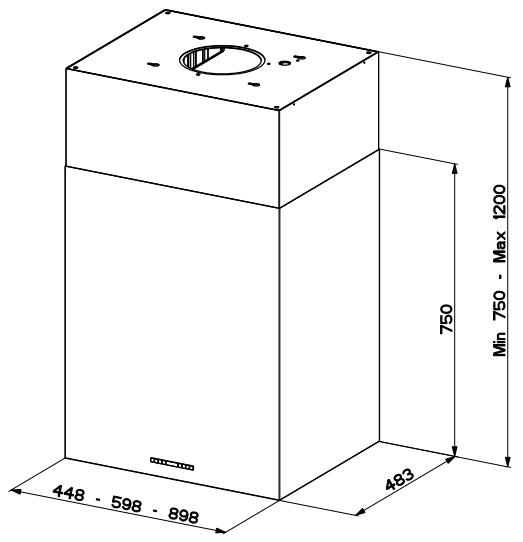

CHARACTERISTICS Dimensions

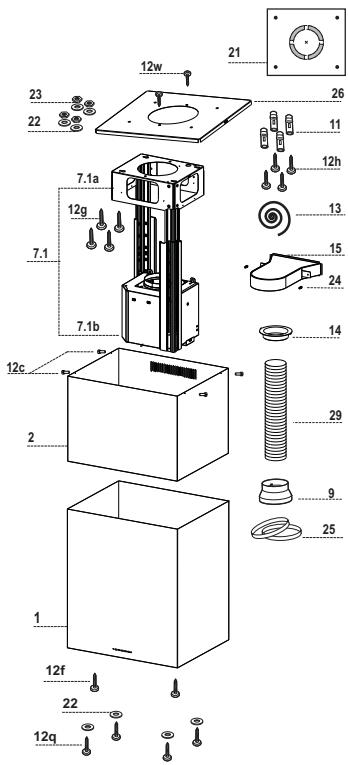

Ref. 1 2 7.1 7.1a 7.1b 9 13 14 15 25 26 29

Q.ty Product Components

1 Hood Body, complete with: Controls, Light, Blower, Filters 1 Upper Chimney 1 Telescopic frame complete with extractor, consisting of: 1 Upper frame 1 Lower frame 1 Reducer Flange ø 150-120 mm 1 Gasket 1 Hood Body Air Outlet Extension Piece 1 Air Outlet Connection Pipe clamps (not included) 1 Fixing Part of the upper Chimney 1 Air outlet connection tube

11 12c 12f 12g 12h 12q 12w 21 22 23 24

4 4 2 4 4 4 2 1 8 4 2

Installation Components

Wall Plugs ø 10 Screws 2,9 x 9,5 Screws M6 x 15 Screws M6 x 80 Screws 5,2 x 70 Screws 3,5 x 9,5 Screws M3 x 8 Drilling template 6.4 mm int. dia washers M6 nuts Fixing knobs for the air outlet connection piece

1 Instruction Manual

INSTALLATION Drilling the Ceiling/shelf and fixing the frame

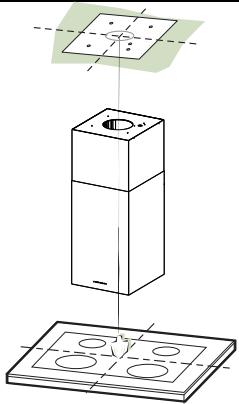

DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. • Mark the centres of the holes in the template. • Drill the holes at the points marked: • For concrete ceilings, drill for plugs appropriate to the screw size. • For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert the Dowels 11 supplied). • For wooden beam ceilings, drill according to the wood screws used. • For wooden shelf, drill ø 7 mm. • For the power supply cable feed, drill ø 10 mm. • For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection. • Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling: • For concrete ceilings, use the appropriate plugs for the screw size (not provided). • for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h, supplied. • For wooden beam ceilings, use 4 wood screws (not provided). • For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

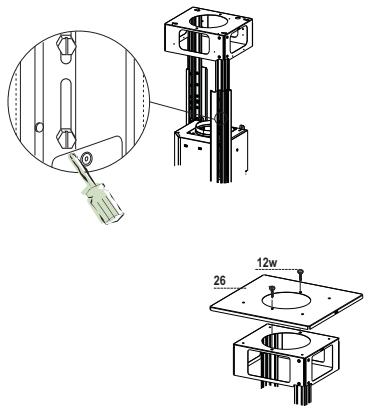

FIXING THE FRAME If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the metric screws joining the two columns, located at the sides of the frame. • Adjust the frame to the required, then replace all the screws removed as above. • Fix the Fixing Part of the Upper Chimney 26 to the hanging kit using the 2 screws 12w (M3 x 8). • Lift up the frame, fit the frame slots onto the screws up to the slot end positions. • Tighten the two screws and fasten the other two screws provided; before locking the screws completely, it is possible to adjust the frame by turning it, making sure that the screws do not come out of their housing in the adjustment slot. • It is now possible to place and tighten the 4 safety screws, Proceed as follows: • drill the ceiling with a 10 mm ø bit taking as reference the holes of the side parts of the upper chimney fixing part. • insert the 4 dowels (provided). • insert the washers (provided) to the screws and tighten the screws • The Frame must be securely fastened so as to support both the weight of the Hood and the stress caused by occasional axial pressure against the fitted Appliance. After fixing, make sure that the base is stable even when the Frame is subjected to lateral stress. • If the Ceiling is not strong enough in the area where the hood is to be fixed, the Installer must strengthen the area using suitable plates and counterplates anchored to resistant structures.

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. • To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet. • Fix the pipe using the pipe clamps 25 (not provided). • Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Insert the reducer flange 9 on the air outlet of the extractor. • Attach the adhesive Novastik gasket 13 to the air outlet connection 15 and fix this to the upper frame using the 2 knobs 24. • Fix the air outlet connection extension piece 14 to the air outlet connection 15. • Place the air outlet connection tube 29 between the two air outlets.

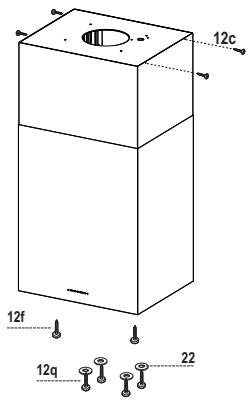

Flue assembly - Mounting the hood body

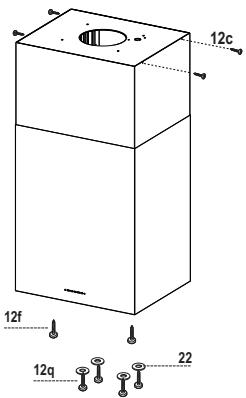

• Insert the upper duct and fix it on the top of the upper duct connection using the 12c screws (2.9 x 9.5) supplied with the appliance. Recirculation version • It is necessary to make sure that the air outlet connection 15 is placed correctly so that the air outlet grid in it corresponds to that of the chimney. • If the grids of the two parts are not corresponding to each other, it will be necessary to remove the chimney and to adjust the position of the air outlet connection 15, and at last to assembly the parts again by following the earlier indications. Before fixing the hood body to the frame: • Screw the 2 screws 12f half way into the holes provided in the sides of the bottom of the frame. • Open the suction panel by turning the specific knob. • Disconnect the panel from the hood canopy by sliding the fixing pin lever. • Remove the grease filters from the hood body. • Remove any activated charcoal filters. • Lift the hood canopy and engage the screws 12f in the slots (A) as far as they will go. • Working from below, fix the hood canopy to the frame (B), using the 4 screws 12q and 4 washers 22 provided, then tighten all the screws securely.

B A ELECTRICAL CONNECTION

• Connect the Hood to the mains power supply, inserting a twopole cut-out switch with contact aperture of at least 3 mm along the line. • Pull the Comfort Panel to open it, ensure that the supply cable connector is properly inserted into the Suction device socket • Join the connectors. • Install the odour filter and the charcoal filter in case the hood is to be used in recycling version. • Install the grease filter again, and successively the suction panel.

USE A B C D E F G H Control panel

A B C D E F G H EN Function

Turns the suction motor on and off at speed one. Decreases the working speed. Increases the working speed. Activate intensive speed from any other speed, including motor off. This speed is set to operate for 6 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes. Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off. 24H function Turns the suction motor on at speed one and effects one 10 minute extraction every hour. When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.

Activate automatic switch-off with a 30’ delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off. Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Remote Control On and Off. Turns the lighting system on and off at maximum intensity. Turns the Courtesy Lighting on and off.

Displays the set speed Displays the set speed Displays the set speed Displays HI and the time remaining once very second.

Displays 24 and the spot at the bottom right flashes once every second, while the motor is running.

It is disabled by pressing the button. FF flashes three times.

When the procedure terminates, the indication shown previously turns off:

FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours. Displays the operating speed and the spot at the bottom right flashes once a second.

MAINTENANCE REMOTE CONTROL (OPTIONAL)

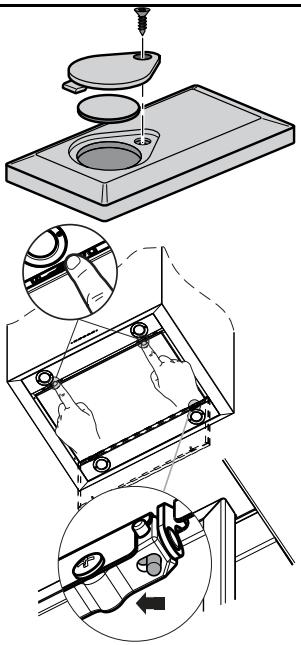

This appliance can be commanded using a remote control, powered by a CR2032 type 3 V battery (not supplied). • Do not place the remote control near heat sources. • Do not discard the batteries with normal waste, they must be put into the specific containers.

Cleaning the Comfort Panels

• Pull the Comfort Panel to open it. • Disconnect the panel from the hood canopy by sliding the fixing pin lever. • The comfort panel must never be washed in a dishwasher. • Clean the outside by using a damp cloth and neutral liquid detergent. • Clean the inside as well by using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances. • When the above operation has been completed, hook the panel back to the hood canopy and close it by turning the knob in the opposite direction.

Metal grease filters

They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive. Resetting the alarm signal • Turn the Lights and the Suction motor off, then disable the 24h function, if enabled. • Press button E (see the paragraph on Use). Cleaning the Filters • Open the Comfort panels by pulling on the recess. • Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward. • Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.) • Replace, taking care to ensure that the handle faces forwards. • Close the Comfort panels.

Activated Charcoal Filter (Recirculation Version)

It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on. Activating the alarm signal • In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date. • Turn the Lights and the Suction Motor off. • Press D and hold for approximately 5 Seconds: • The message FC+Dot flashes twice, A.C. Filter saturation alarm ACTIVATED • The message FC+Dot flashes once, A.C. Filter saturation alarm DEACTIVATED CHANGING THE ACTIVATED CHARCOAL FILTER Resetting the alarm signal • Turn the Lights and the Suction motor off, then disable the 24h function, if enabled. • Press button E (see the paragraph on Use). Changing the Filter • Open the Comfort panels by pulling on the recess. • Remove the Metal grease filters. • Remove the saturated charcoal filter by releasing the fixing hooks. • Fit the new filter and fasten it in its correct position. • Replace the Metal grease filters. • Close the Comfort panels.

• For replacement contact technical support ("To purchase contact technical support").
