828 - Range hood NOVY - Free user manual and instructions

Product type	Extractor hood
Brand	NOVY
Model	828
Control type	Electronic touch control
Number of speeds	4 (including 1 power speed)
Lighting	Halogen, replaceable with supplied suction cup
Grease filter saturation indicator	4 LEDs flash after 30 hours of cooking
Charcoal filter saturation indicator	4 LEDs stay on after 120 hours
Material	Stainless steel (Inox)
Grease filter type	Dishwasher-safe metal
Charcoal filter type	Activated charcoal, replaceable (optional for recirculation)
Recirculation function	Possible with charcoal filter
Power supply	220-240 V / 50 Hz
Earth connection	Mandatory
Warranty	60 months (5 years) for domestic use
Customer service (Belgium)	056/36.51.02
Customer service (France)	03.20.94.06.62
Customer service (Germany)	0511.54.20.771
Included accessories	Suction cup for lamp replacement
Exterior cleaning	Soft cloth and mild detergent, for stainless steel use NOVY Inoxcleaner

Frequently Asked Questions - 828 NOVY

How to clean the grease filter?

The grease filter can be cleaned in the dishwasher or by hand in hot water with liquid detergent. Soak, rinse, dry and replace. Do not neglect this periodic cleaning as an overloaded filter may pose a fire hazard.

How to reset the filter saturation indicator?

To reset the timer, press and hold the speed 4 button for at least 3 seconds.

What to do if the 4 LEDs flash after cooking?

The 4 flashing LEDs indicate that the grease filter needs cleaning. It has been operating for 30 hours of cooking.

What to do if the 4 LEDs stay on after cooking?

The 4 solid LEDs indicate that the charcoal filter needs to be replaced (if present). This alert occurs after 120 hours of cooking.

How to replace the halogen bulb?

Unplug the hood and let the lamps cool down. Use the supplied suction cup to pull the halogen lamp towards you, then install the new lamp with the same suction cup.

Can the hood be used without a grease filter?

No, never use the hood without the grease filters as this would allow grease to penetrate inside and damage the appliance.

What is the minimum distance between the hob and the hood?

The minimum and maximum distance is indicated in the installation instructions. Please refer to them for proper installation.

How to turn the hood on and off?

Press the 1 button to start the motor. Buttons 1 to 4 allow you to select the speed. The L button controls the lighting, independently of the fan.

What to do in case of fire under the hood?

Turn off the hood, never pour water on burning grease. Cover the pan with a lid or a damp cloth. Never leave a deep fryer unattended.

What is the warranty period for this hood?

The warranty is 60 months (5 years) for domestic use, limited to 12 months for industrial or community use.

USER MANUAL 828 NOVY

Dimensions: p. 14-15

Scheme Electrique: p. 16

1. ALLGEMEINE INFORMATION

• Please read these operating instructions carefully. They contain information about installation, operation, safety and maintenance you need to be aware of.
• This hood is for domestic use only.
• Check the condition of the hood and the installation material before installing. Carefully remove the hood out of the packaging. Be careful not to use sharp knives to open the box.
• Please keep these instructions to pass on to future users.
• Disposal of transport packaging and old appliance. Your new appliance was sent to you in protective packaging. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.
• Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. This appliance is identified according to the European Directive 2002/96/EC on waste electrical and electronic equipment. Please ask your dealer or inquire at your local authority about current means of disposal.

This manual makes use of a number of symbols. The meaning of these symbols are given below.

Symbol	Meaning	Action
⑥	Indication	Explanation of an indication on the hood
!	Warning	This symbol indicates an important tip or a dangerous situation.

Follow this instruction to avoid injury and material damage.

2. SAFETY

2.1 Precautions before using

• Do not change or alter the appliance.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.

2.2 Using the appliance

• Under no circumstances is it allowed to flambé under the hood
• Deep frying under the hood is only allowed under constant supervision.
• In case of fire always switch off the hood.

• Never extinguish burning fat or oil with water. Cover the pot with a well fitting lid or a burnblanket.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved

• Activate the hood a few minutes prior to cooking.
• Switch the hood off 10 minutes after cooking is finished.
• Avoid drafts under the hood surface.
• When cooking make sure pots are positioned properly under the hood surface.
• When using induction: adapt the intensity of both hob and hood to the lowest possible level in order to avoid excessive creation of damp fumes.
• Attention, certain accessible parts of the hood can become hot while cooking.

2.3 Precautions not to damage the appliance

• The mounting instructions describe the correct way of mounting. Carefully read these instructions.
• Check the distance between the cooking surface and the hood. The minimum and maximum heights are indicated in the mounting instructions.
• Never use the hood without the fat filters in order to prevent dirt and fat from further entering the hood, which will eventually affect the performance and functioning of the hood.
• Always stay around when you are frying, roasting, grilling of deep-frying. Overheated oil and fat may catch fire and damage the hood.

2.4 Air supply

When using a hood sufficient air flow is necessary. However large your kitchen may be, there is only so much air available in that space. Opening a door or window or the installation of a ventilation grid close to the hood insures a good quality of air flow. Insufficient air flow will impair the extraction efficiency of your hood immensely.

Insufficient air flow can cause reflux from other air ducts such as chimneys or combustion appliances.

When using a cooker hood and appliances using energy

other than electrical in the same space, the pressure in the room may not surpass 4 Pa (= 0.04mBar).

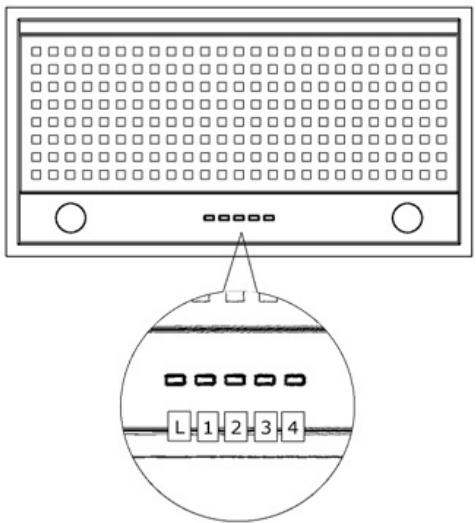

3. OPERATION

L = Lights
1 = Speed level 1
2 = Speed level 2
3 = Speed level 3
4 = Speed level 4

Switch on - switch off

The hood has 4 speed levels. With buttons 1 to 4 you can choose the speed level. The illuminated buttons show the level in use

Illumination

You can switch on and off the illumination with button "L"

Filter cleaning indicator

Fat filter: the 4 LEDs are flashing (see section 'Maintenance')

Carbon filter: the 4 LEDs are continuously lit (see section 'Maintenance')

4. MAINTENANCE

Grease filter

After 30 cooking hours, the 4 LEDs will start flashing when they are turned off. This indicates that the grease filter needs cleaning.

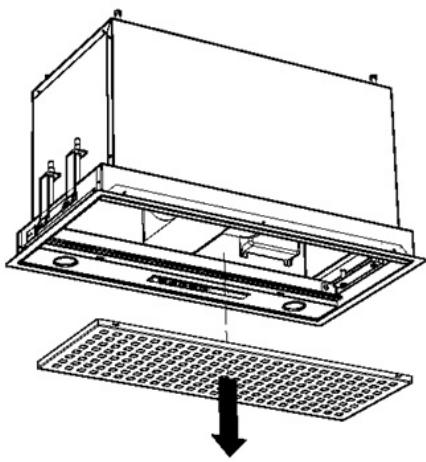

Access to the grease filter

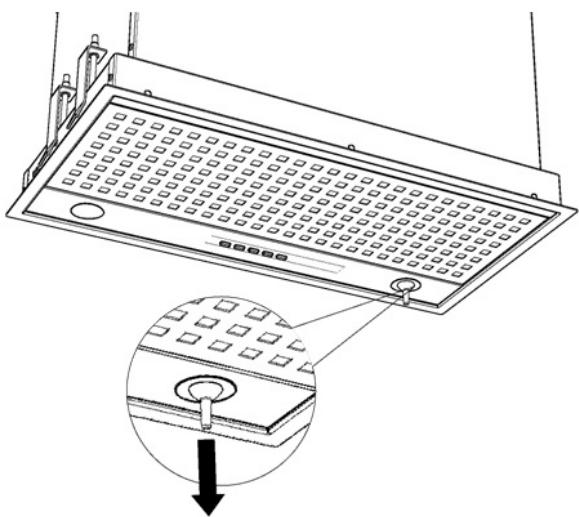

You can remove the filter by pulling the handle in the filter (2).

Protect the cooking plate. You can take the grease filter out of the hood by pulling the handle that has been placed on the filter. The filter will come down.

Cleaning the filter:

• in the dishwasher
• manually: in a hot solution of water and a liquid detergent. Rince and allow to dry completely

The previous instructions need to be followed. If not an increased fire hazard may occur.

Carbon filter (only with recirculation)

After 120 cooking hours, the LEDs remain lit for 30 seconds when they are turned off. This indicates that the carbon filter needs to be changed (if present). It is recommended to clean the fat filter at the same time.

Access to the carbon filters

Remove the fat filters from the hood. The carbon filters have been screwed at the left and the right sides on the motor in the hood. Remove the carbon filter from the motor with a turning and pulling movement.

Reset the timer

In order to reset the timer, press the button for position 4 of the motor and hold it for at least 3 seconds.

Maintenance of the hood

Please allow the lights to cool down sufficiently before cleaning the hood.

Use a soft, wet cloth and a mild detergent to clean the hood.

Never use aggressive, abrasive detergents or sponges.

Bleach will damage stainless steel.

The stainless steel surfaces can be treated with Novy Inoxcleaner (906.060) after cleaning.

5. REPLACING THE LAMPS

First take the plug from the wall socket or switch off the power group. Let the lamps cool down sufficiently before replacing them.

A suction cup for removing the lamps has been delivered with the hood. Place the suction cup onto the halogen spot and draw it towards you. The lamp will now come out. You can also install the new lamp using the suction cup.

In case of technical problems please contact Novy Service Department:

For Belgium: Tel.: [phone]
For France: Tel.: [phone]
For Germany: Tel.: [phone]

For all other countries: your local installer or Novy Belgium: +32 (0)56/36.51.02

Please supply us with the model number of your hood.

The model number can be found on the engraved plaque behind the filter.

You can make a note of the number here:

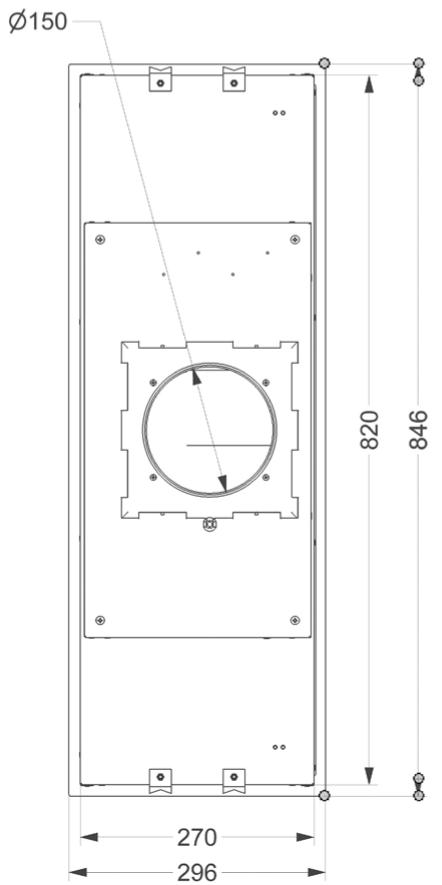

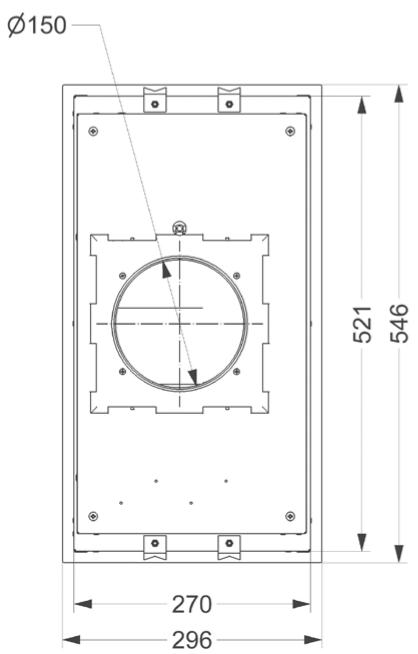

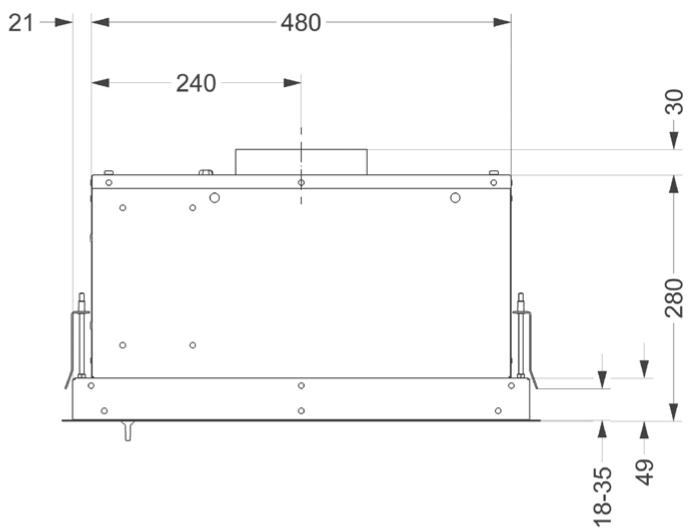

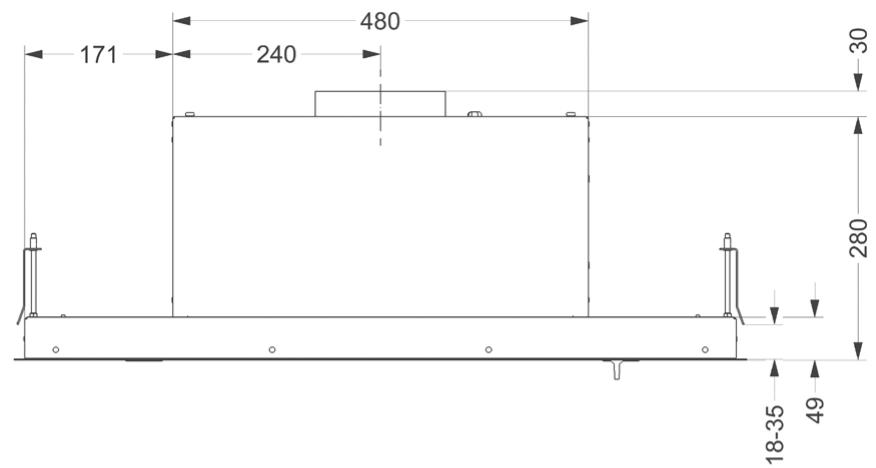

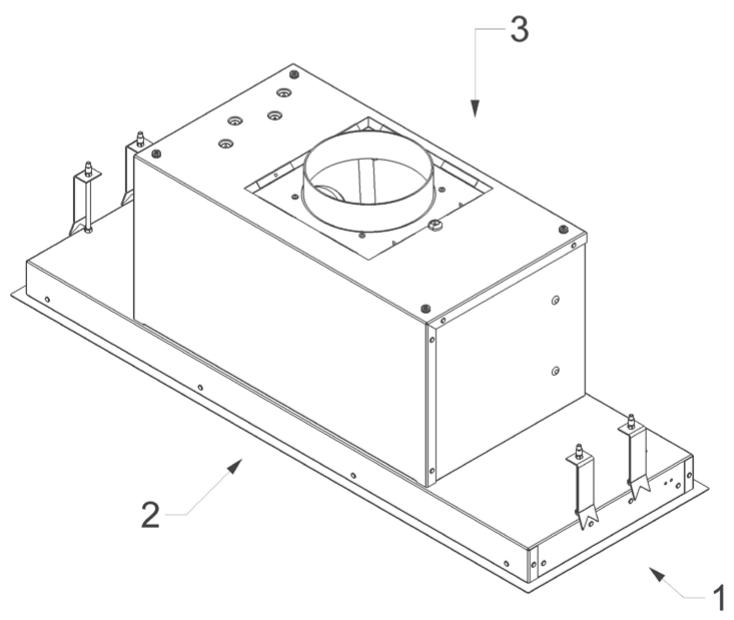

Dimensions: p. 14-15

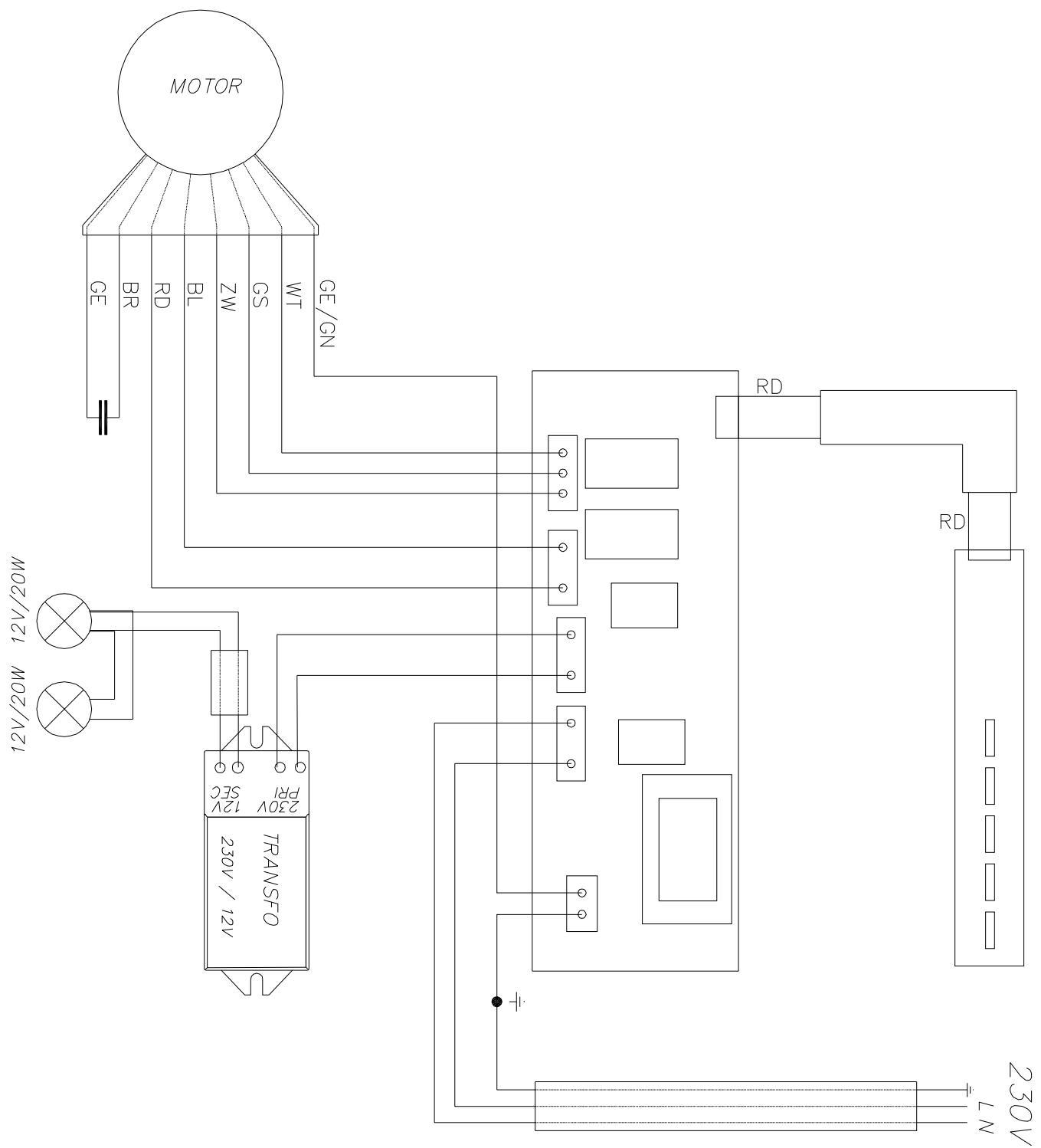

Electrical scheme: p. 16

1

2

3

4

828

1

2

3

4

828 - 829

WT	wit	blanc	weiss	white
GE/GN	geel/groen	jaune/vert	gelb/grün	yellow/green
GS	grijs	gris	grau	grey
RD	rood	rouge	rot	red
BL	blauw	bleu	blau	blue
ZW	zwart	noir	schwarz	black
BR	bruin	brun	braun	brown
GE	geel	jaune	gelb	yellow
